Df Water Tanker with Fire Pump Truck (20, 000L Sprinkler Truck / Watering Cart)

Quantity:
  • Shanghai, China
  • 10000
  • T/T
  • Water Tanker
  • 6×4
  • 150-250hp
  • New
  • 11.00r20
  • Dongfeng Cummins Engine
  • 9880X2480X3050
  • 4350+1300
  • 4-6mm Carbon/Stainless Steel
  • Model: PS50 Rate of Flow: 60L/S/1MPa, Water Range
  • CB10/60,Rate of Flow:60L/S, Pressure:1.0MPa
  • DFAC
  • Nil
  • military standard.
  • China
  • 8705309000
  • Tanker
  • >10000L
  • Euro 3-6
  • Manual
  • 20T
  • Diesel

DONGFENG Fire Sprinkler Tank Truck For Sale
DF Water Tanker With Fire Pump Truck (Sprinkler Truck / Watering Cart)

Fire fighting water tank lorry truck

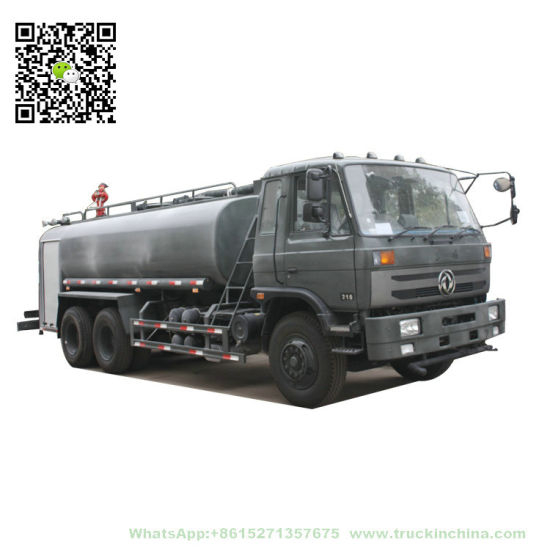

The pictures are for your reference only. Df Water Tanker with Fire Pump Truck (20, 000L Sprinkler Truck / Watering Cart)
Specification of DF Sprinkler Truck / Watering Cart
Item Specification Item Specification
General
Truck Name Sprinkler truck / Watering Cart Overall Dimension (mm) 9880x2480x3050
Truck Brand Dongfeng Gross / Curb Weight (kg) 25000/10370
Truck Model EQ1258KB3GJ Approach / Departure Angle (°) 24/11
Max. Speed (km/h) 90 Front / Rear Overhang (mm) 1250/2980
Chassis
Chassis Brand DF Chassis Model EQ1258KB3GJ
Wheel Base (mm) 4350+1300 Leaf Spring 9/10
Traction System 6 x 4 Quantity of Axles 3
Cab Capacity 1+1 Front / Rear Axle Load (kg) 7000/18000
Transmission manual Front / Rear Wheel Tread (mm) 1960/1860
Tyre Model 11.00-20 18PR Quantity of Tyre 10+1
Engine (Motor)
Brand DF Type of Fuel Diesel
Model ISD210 50 Displacement (ml) 6700
Max. Power (hp) 210 Emission Standard Euro 3-5-6
Motor Net Weight (kg) * ABS yes
Equipments
Tank Capacity (L) 20,000
Tank Material 4-6mm carbon/stainless steel
Fire Monitor Model: PS50 rate of flow: 60L/S/1MPa, water range: ≥60m
Fire Pump(Normal Pressure)middle-lower pressure is optional

1. Normal pressure model:: CB10/60,rate of flow:60L/s, pressure:1.0MPa

2.water diversion time ≤35s (7m absorbing depth) water ring sandwitch type full power PTO

REMARKS:

1. Equipped with high power self-suction water pump that characterized by high-pressure and fast speed suction.


2. Equipped with front, rear and side sprinklers and high position sprinkler, and rear working platform.


3. The water cannon which is installed on the working platform can rotate by 360 degree and the water flow can be adjusted into various rain shape. There are straight shape, heavy rain, moderate rain and drizzle etc. The max range can reach 30m.

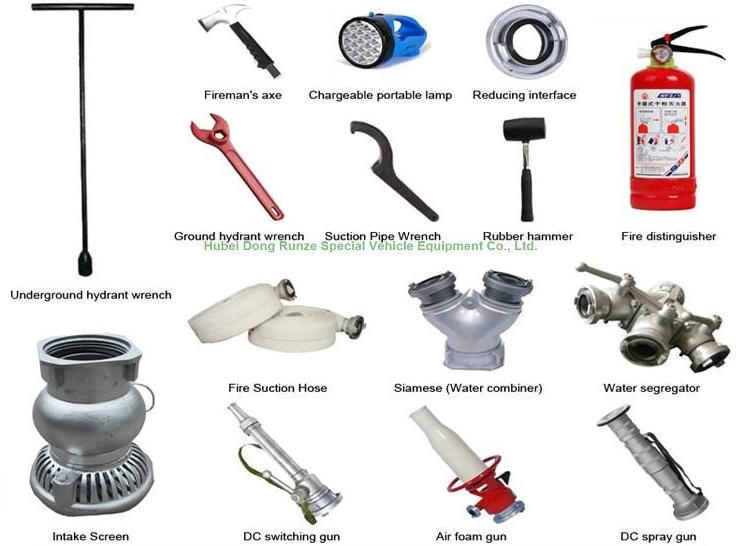

4. Equipped with fire coupling, flow valves, filter screen and water level gauge.


5. According to customers' request, the crane, high working platform and spraying machine also can be equipped.


6. Mainly used for washing on urban roads, watering and greening on trees, green belts and lawn and dust full of construction sites. And also used for drinking water delivery and fire fighting function etc.

NOTE:

1. Any part can be customized depending on customers' demand.

2. 12 months whole vehicle warranty

3. We could support you original spare parts. Besides, we can give assistance in the following days by email or telephone. If necessary, our outwork engineer could go for technical assistance.


Df Water Tanker with Fire Pump Truck (20, 000L Sprinkler Truck / Watering Cart) Df Water Tanker with Fire Pump Truck (20, 000L Sprinkler Truck / Watering Cart)

Df Water Tanker with Fire Pump Truck (20, 000L Sprinkler Truck / Watering Cart)
Df Water Tanker with Fire Pump Truck (20, 000L Sprinkler Truck / Watering Cart)
Df Water Tanker with Fire Pump Truck (20, 000L Sprinkler Truck / Watering Cart)
