10000liter ~14000L Double Cabin Dongfeng Water Foam Fire Fighting Truck
| Quantity: | |
|---|---|
- 1000
- T/T,
- Nil

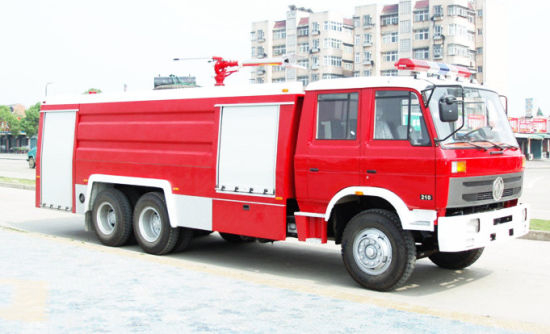

Double Cabin dongfeng 6x4 fire truck HXF5250GXF water foam tank Fire Fighting Truck fire fighting truck
The fire trucks are consists of fluid container, pump room, hose box, power output & transmission system, pipe system and electrical system. It is widely used in urban public security fire brigades, oil and chemical industry, factories and mines, forests, ports and other departments, which can put out a fire quickly, is an ideal fire fighting equipment.
Relying on strong technological capability, we can produce and sell the DONGFENG, SINOTRUCK, JMC, ISUZU, NORTH Benz series water fire truck, foam fire truck, powder 2. Fire truck, emergency rescue fire truck, forest fire truck, water truck with fire pump etc.
Our fire truck is widely used for fire fighting of construction, forest, petroleum, chemical industry, factories, mines, oil depot, wharf and other places.
All of our fire trucks with reliable quality, stable performance and reasonable price, and also all are equiped with full fire equipments.
| Chassis | Tank volume water / foam (m³) | Units price FOB USD | Engine Model | Power (KW) | axes | wheelbase | Number of spring | Tire specifications | Fire water cannons | Fire pump model type |
| QL11009KARY | 3.1 | #REF! | 4HK1-TCG40 | 139 | 2 | 3815 | 8/10+6 | 235/75R17.5 | CB10/40 | PS40 |
| EQ1126KJ1 | 4 | #REF! | B190 30 | 136 | 2 | 4700 | 8/10+7 | 9.00-20 | CB10/40 | PS40 |
| DFL1140B2 | 5.5 | #REF! | B190 30 | 132 | 2 | 4500 | 7/9+6,8/10+8 | 9.00-20 | CB10/40 | PS40 |
| FVR34J2 QL1160AMFRY | 5.5 | #REF! | 6HK1-TCNG40 | 177 | 2 | 4500 | 9/14 | 10.00R20-16PR | CB10/40 | PS40 |
| EQ1141KJ | 5.5 | #REF! | B190 30 | 136 | 2 | 4500 | 8/10+8 | 10.00-20 | CB10/40 | PS40 |
| ZZ1167M4617C | 8 | #REF! | WD615.92E | 196 | 2 | 4600 | 10/9+6 | 11.00-20 18PR | CB10/60 | PS50 |
| ZZ1166M4616C1 | 8 | #REF! | WD615.92E | 196 | 2 | 4600 | 9/9+6 | 11.00-20 | CB10/60 | PS50 |
| ZZ1257N4347C | 11.5 | #REF! | WD615.95E | 247 | 3 | 4325+1350 | 10/12,4/12 | 11.00-20 18PR | CB10/60 | PS50 |
| ZZ1256M4646C | 11.5 | #REF! | WD615.92E | 196 | 3 | 4325+1350 | 9/12,10/12,10/- | 11.00-20 | CB10/60 | PS50 |
| CXA34T QL1250DRFZY | 12 | #REF! | 6HK1-TCSG40 | 206 | 3 | 5100+1300 | 9/10 | 11.00-20-18PR | CB10/60 | PS50 |
| ZZ1257S4647C | 12 | #REF! | WD615.96E | 276 | 3 | 4600+1350 | 10/12,4/12 | 11.00-20 18PR | CB10/60 | PS50 |
| QL11009KARY | 2.1+0.885 | #REF! | 4HK1-TCG40 | 139 | 2 | 3815 | 8/10+6 | 235/75R17.5 | CB10/40 | PL32 |
| EQ1126KJ1 | 2.5+1.33 | #REF! | B190 30 | 136 | 2 | 4700 | 8/10+7 | 9.00-20 | CB10/40 | PL32 |
| DFL1140B2 | 3.5+1.77 | #REF! | B190 30 | 132 | 2 | 4500 | 7/9+6,8/10+8 | 9.00-20 | CB10/40 | PL32 |
| EQ1141KJ | 3.5+1.77 | #REF! | B190 30 | 136 | 2 | 4500 | 8/10+8 | 10.00-20 | CB10/40 | PL32 |
| FVR34J2 QL1160AMFRY | 4+1.322 | #REF! | 6HK1-TCNG40 | 191 | 2 | 4500 | 9/14 | 10.00R20-16PR | CB10/40 | PL32 |
| ZZ1167M4617C | 6+1.77 | #REF! | WD615.92E | 196 | 2 | 4600 | 10/9+6 | 11.00-20 18PR | CB10/60 | PL48 |
| ZZ1166M4616C1 | 6+1.77 | #REF! | WD615.92E | 196 | 2 | 4600 | 9/9+6 | 11.00-20 | CB10/60 | PL48 |
| ZZ1257N4347C | 8.5+2.66 | #REF! | WD615.95E | 247 | 3 | 4325+1350 | 10/12,4/12 | 11.00-20 18PR | CB10/60 | PL48 |
| ZZ1256M4646C | 8.5+2.66 | #REF! | WD615.92E | 196 | 3 | 4325+1350 | 9/12,10/12,10/- | 11.00-20 | CB10/60 | PL48 |
| CXA34T QL1250DRFZY | 9+2.65 | #REF! | 6HK1-TCSG40 | 191 | 3 | 5100+1300 | 9/10 | 11.00-20-18PR | CB10/60 | PL48 |
| ZZ1257S4647C | 12+3.54 | #REF! | WD615.96E | 276 | 3 | 4600+1350 | 10/12,4/12 | 11.00-20 18PR | CB10/60 | PL48 |
| FVR34J2 QL1160AMFRY | 5.52+0.28 | #REF! | 6HK1-TCNG40 | 177 | 2 | 4500 | 9/14 | 10.00R20-16PR | CB10/40 | PL32 |
| FVR34J2 QL1160AMFRY | 6HK1-TCNG40 | 177 | 2 | 4500 | 9/14 | 10.00R20-16PR | ||||
| NKR77LLLWCJAY | 4HK1-TC | 96 | 2 | 3360 | 8/6+5 | 7.50-15 | ||||
| NJ1056SHXN6 | SOFIM8140.43S3 | 92 | 2 | 3600 | -/5+5,-/4+3,-/5+3 | 6.50R16C |
QJ270 sandwich PTO, splashing-type lubricate, can put out fire when driving
Material of carriage
Carriage is made of high quality carbon steel and Aluminium embossed sheet
Pump room
Central type, there are pump system and pipeline, reasonable structure. Easily operate all meters and operate-switch.
Equipment box
Equipment box: at the back of carriage, there is two-layers clapboard, can store equipment. There is safe ladder to up and down on the back of equipment box.
Structure: whole frame is welded to ensure intension and rigidity.
Material: frame is high quality steel, inner plague is aluminium embossed sheet, surface is anodic processed.
Rolling shutter door
Light and high quality aluminum alloy rolling shutter door, neatly open and close, good seal, low noise, beauty outside, and with one set lock.
pedal
Adopt air-supporting stucture to overturn easily and safely lock.
Material is high quality Q235A, pedal is non-skid aluminum embossed sheet
Electric control system
1. Alarm
Warning light: Lightweight Rectangular, installed on the top of cab, in accordance with outside of whole truck.
Siren: 80W. With FM/ Public Address System and megaphone
2. Light in equipment and pump room can be controlled in carriage.
3. Other light: one light on the top of vehicle, the switch in the cab.
color
The whole vehicle is red for fire fighting, there are white in the middle of truck in accordance with the whole truck
Technical requirement
1. The fire fighting vehicle is accordance with GB7965 performance requirementa and test methods for fire fighting vehicle
2. Tank of foam and water is accordance with GB39.5 General specification for fire fithting vehicle.
3. The outside is very beauty, the surface roughness is accordance with GB39.5 general specification for fire fighting vehicle.
All operating switch and meter is accordance with standard nameplate
Set
Please refer the following set of fire technical equipment
With fire hose reel auto-rewind middle pressure monitor. 1/2 inch, 40m
Fire fighting truck China Tanker Tanker Truck Oil Tanker Water And Foam Fire Truck Water Tank Fire Trucks Fire Tanker Trucks Foton Fire Trucks Water Tanker Fire Fighting Vehicle
Recommended Suppliers:
China Tanker Manufacturers Tanker Truck Manufacturers Oil Tanker Manufacturers Water And Foam Fire Truck Manufacturers Water Tank Fire Trucks Manufacturers Fire Tanker Trucks Manufacturers Foton Fire Trucks Manufacturers Water Tanker Fire Fighting Vehicle Manufacturers\
Fire truck | ||||||||||
Here the price is for standard configuration. Selective configuration and any change according to the buyer’s requirements please confirm the price with our company. | ||||||||||
Standard configuration | Chassis,sub frame, van body,America DOPPON paint baking varnish,national standard equipment box, 25 units national standard fire-fighting equipment,fire | |||||||||
pump(CB10/20, CB10/30,CB10/40,CB10/60 according to the capacity), fire gun(PS20,PS30,PS40,PS50 according to the capacity),fire power take off, sliding gate, row type | ||||||||||
lights, reel, common tools,rear climbing ladder,water tank. | ||||||||||
Selective configuration | foam type,dry powder type,stainless tank,other requirements. | |||||||||
Vehicle model | Chassis brand | Chassis model | Load | Overall dimensions | Wheel base | Engine model | hp/standard | Tire | FOB Price | |
L | mm | mm | RMB | USD | ||||||
DRZ5050GXFSGE | DONGFENG | EQ1050NJ20D3 | 2500 | 6260X1900X2750 | 3300 | CY4102-C3F | 95/Euro 3 | 6.15-16 | 135800 | 19980 |
DRZ5060GSSXFE | DONGFENG | EQ1060TJ20D3 | 5000 | 5980X1980X2380 | 3300 | CY4102-C3F | 95/Euro 3 | 7.00-16 | 101200 | 14890 |
DRZ5090GSSXFE | DONGFENG | EQ1090T9ADJ3AC | 6000 | 6995X2285X2980 | 3800 | CY4102-E3C | 120/Euro 3 | 7.50R16 | 122300 | 17990 |
DRZ5090GXFSGE | DONGFENG | EQ1090T9ADJ3AC | 4000 | 7025X2095X2840 | 3800 | CY4102-E3C | 120/Euro 3 | 7.50R16 | 170400 | 25060 |
DRZ5100GSSXFE | DONGFENG | EQ1100FKJ | 7000 | 7350X2440X2990 | 3950 | YC4E140-33 | 140/Euro 3 | 9.00-20 | 123300 | 18140 |
DRZ5108GSSXFE | DONGFENG | EQ1108KJ | 9000 | 7450X2480X3185 | 3950 | B170 33 | 170/Euro 3 | 9.00-20 | 147400 | 21680 |
DRZ5108GXFSGE | DONGFENG | EQ1108KJ | 5000 | 7490X2500X2280 | 3950 | B170 33 | 170/Euro 3 | 9.00-20 | 192500 | 28310 |
DRZ5126GXFSGE | DONGFENG | EQ1126KJ1 | 6000 | 8315X2500X3300 | 4700 | B190 33 | 190/Euro 3 | 9.00-20 | 249700 | 36730 |
DRZ5141GSSXFE | DONGFENG | EQ1141KJ | 11000 | 8105X2490X3250 | 4500 | B190 33 | 190/Euro 3 | 10.00-20 | 159400 | 23450 |
DRZ5141GXFSGE | DONGFENG | EQ1141KJ | 6000 | 8115X2500X3300 | 4500 | B190 33 | 190/Euro 3 | 10.00-20 | 247700 | 36430 |
DRZ5253GSSXFE | DONGFENG | EQ5253GFJ2 | 15000 | 9950X2480X3750 | 4350+1300 | B210 33 | 210/Euro 3 | 10.00-20 | 212600 | 31270 |
DRZ5090GXFSGPME | DONGFENG | EQ1090T9ADJ3AC | 2400 | 7025X2095X2840 | 3800 | B140 33 | 140/Euro 3 | 7.50R16 | 197500 | 29050 |
DRZ5070GXFSGQ | ISUZU | QL1070A1KWY | 3000 | 6820X2000X2820 | 3815 | 4KH1-TCG40 | 120/Euro 4 | 7.00-16 | 218100 | 32080 |
DRZ5160GXFSGQ | ISUZU | QL1160AMFRY | 6000 | 8360X2485X3420 | 4500 | 6HK1-TCNG40 | 240/Euro 4 | 10.00-20 | 457300 | 67250 |
DRZ5250GXFSGQ | ISUZU | QL1250DRFZY | 15000 | 9775X2490X3560 | 5100+1300 | 6HK1-TCSG40 | 280/Euro 4 | 11.00-20 | 621800 | 91450 |
DRZ50703GXFSGQ | ISUZU | QL10703HWRY | 2500 | 6260X1980X2780 | 3360 | 4JB1CN | 98/Euro 4 | 7.00-15 | 182000 | 26770 |
DRZ51609GXFSGQ | ISUZU | QL11609MFRY | 6000 | 8070X2500X3370 | 4500 | 4HK1-TCG40 | 190/Euro 4 | 10.00-20 | 378000 | 55590 |
DRZ5167GXFSGZ | SINOTRUK | ZZ1167M4617C | 8000 | 8820X2500X3450 | 4600 | WD615.92 | 266/Euro 3 | 11.00-20 | 401600 | 59060 |
DRZ5257GSSXFZ | SINOTRUK | ZZ1257M4641W | 20000 | 9895X2496X2958 | 4325+1350 | WD615.92 | 266/Euro 2 | 12.00-20 | 295300 | 43430 |
DRZ5257GXFSGZ | SINOTRUK | ZZ1257N4347C | 15000 | 9680X2500X3650 | 4325+1350 | WD615.69 | 336/Euro 3 | 12.00-20 | 476800 | 70120 |
DRZ5257GXFSGZ1 | SINOTRUK | ZZ1257S4647C | 16000 | 10265X2500X3580 | 4600+1350 | WD615.96 | 375/Euro 3 | 12.00-20 | 473300 | 69610 |
