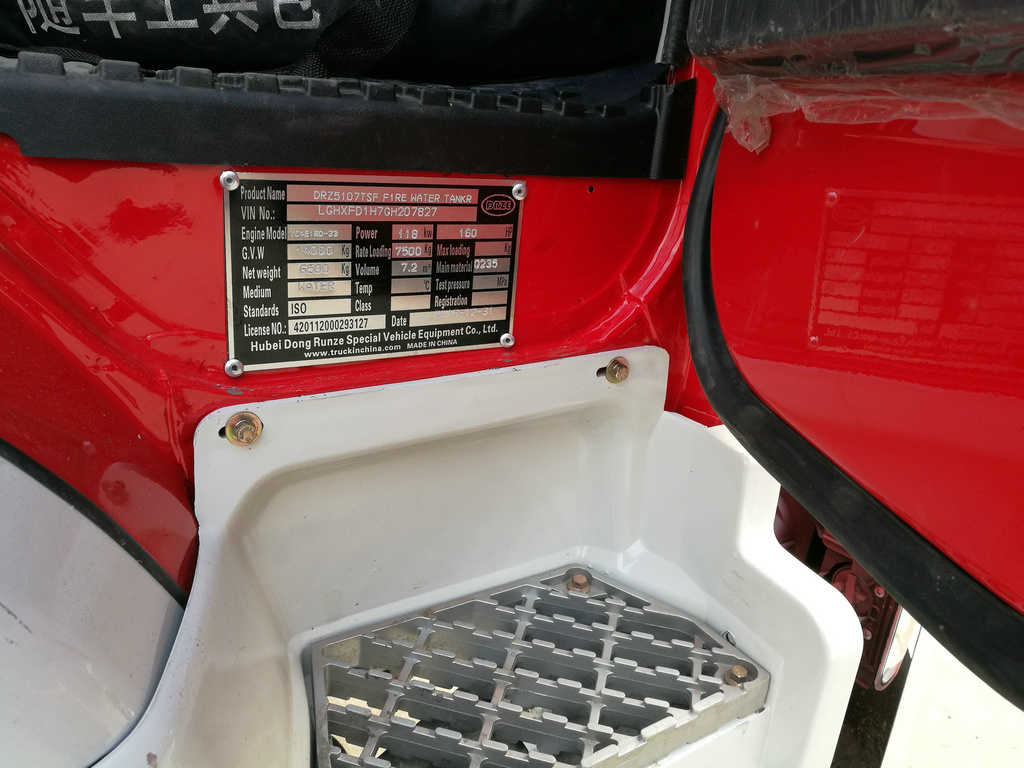

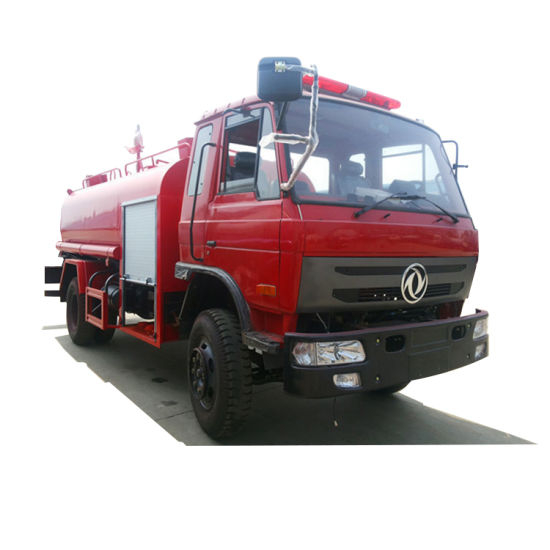

Body

Name

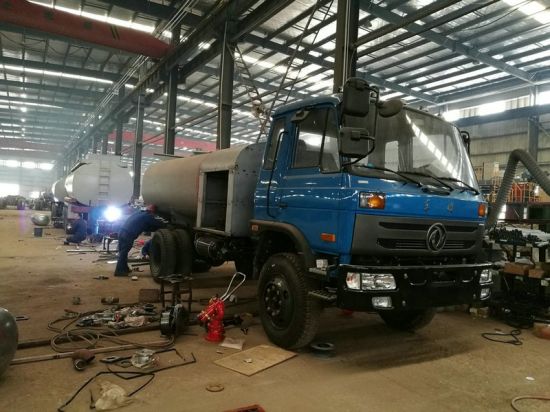

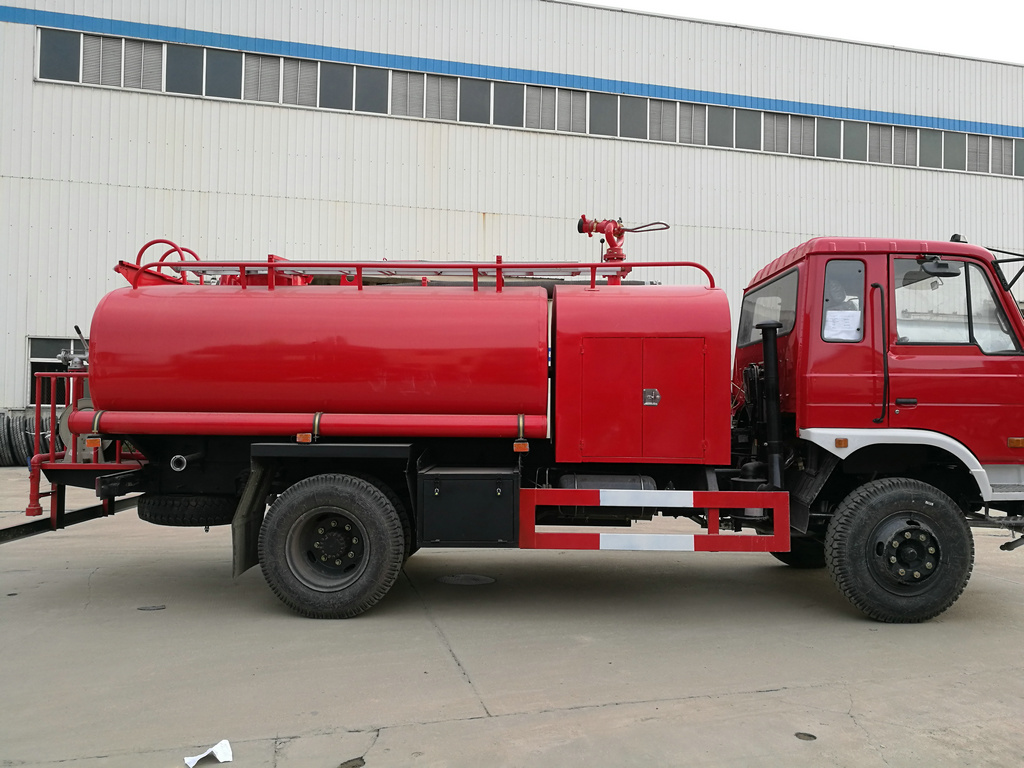

Water tank lorry

Country of origin

China

Cab

cabin (two doors) with

Air - Condition,

Minimum Size of Tyre

900-20

The number of Tyre

6+1 (Spare tyre)

Minimum speed

100 Km/hr

Water tank capacity

1500 gal (To reduce the

action of Water waves.)

Suspension (Front)

Leaf Spring (11) Nos

Suspension (Rear)

Leaf Spring (12+5) Nos

Vehicles dimension (mm)

7720x2400x3070

Water tank dimension (mm)

3250x2100x1200

(Minimum)

Wheelbase (mm)

3950

Required U Shape (6") at the end od realy pipe.

Search light must be fitted left or right.

Engine

Minimum Engine Rated power

96 KW/130 HP

Engine type

4 Stroke Water Cooling

Direct Injection

Engine Fuel

Diesel Oil

Driving type

4 x 2

Gear Link

Lug type

Ball quality is required to improve in the transfer gear box.

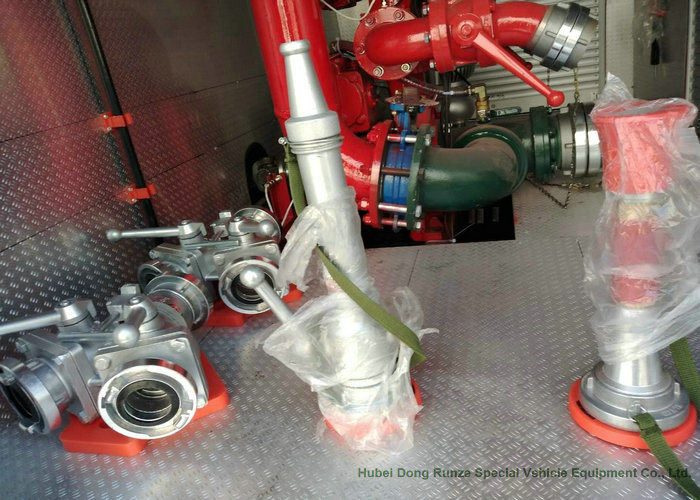

Pump and Pipe

Type of fire pump

Centrifugal pump

Minimum fire pressure

1.0 mpa

Minimum fire pump capacity

30 L/S

Fire fighting pump Suction depth

> 7m

Fire fighting pump Suction

< 35 s

Time

Delivery outlet (B/S type)

65 mm (2  1/2 inch)

Fire fighting nozzle range

> 55m

Rotation angle of fire fighting

360°

Turrent Nozzle

Pipe Line (Inlet)

4"Ø one on both side

Pipe Line (Outlet)

2 1/2"Ø two on both side

Vacuum pump Valve must be located on the control box.

Pump inlet pipe must be located (1")above the tank base.

Vacuum cut-off quality is required to improve.

Rod system is possible for pump gear.

Main pump should be fitted (4") ball valve.

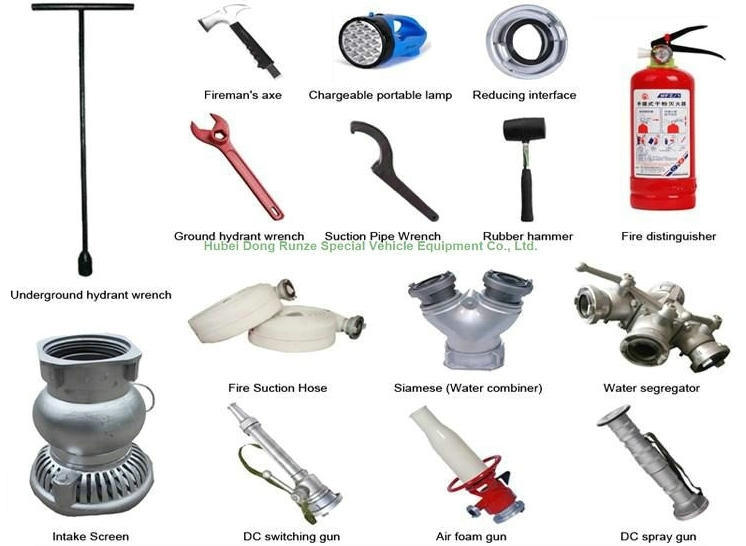

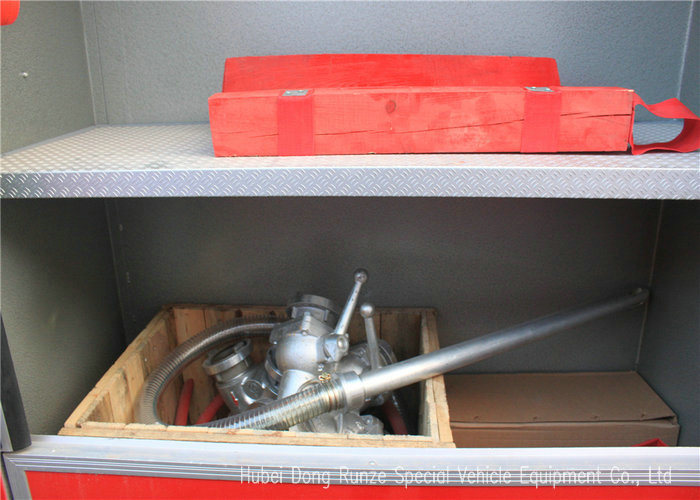

Accessories

Fire Electric siren

1-Nos

Emergency ratation lamp

1-Nos

Fire axe

1-Nos

Fire hook

1-Nos (Must be applied to climb)

Fireman ladder (Extension ladder)

1-Nos (Metal Ladder)

(30' <)

Jet & Spray Nozzle

1-Nos

Jet Nozzle

1-Nos

Fire hoses (B/S system) (65 mm

4-Nos

20 m)

Suction pipe (Length 4m)(Æ100mm)

2-Nos

Water Filter (Æ100mm)( Metal)

2-Nos

Suction pipe wrench

2-Nos

Fire hydrant wrench (Æ100mm)

2-Nos

Pipe quality is required to improve.

To contain fire extiinguisher. (3 Kg)

Seat of hydraulic jack and wheel spanner quality

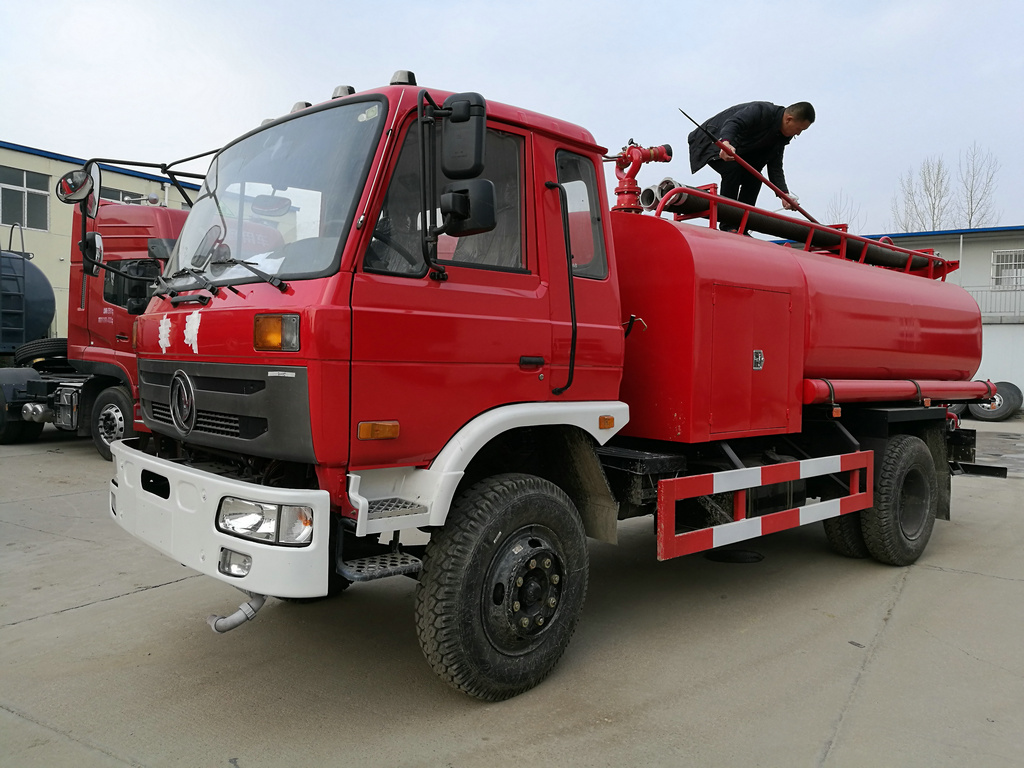

Superstructure

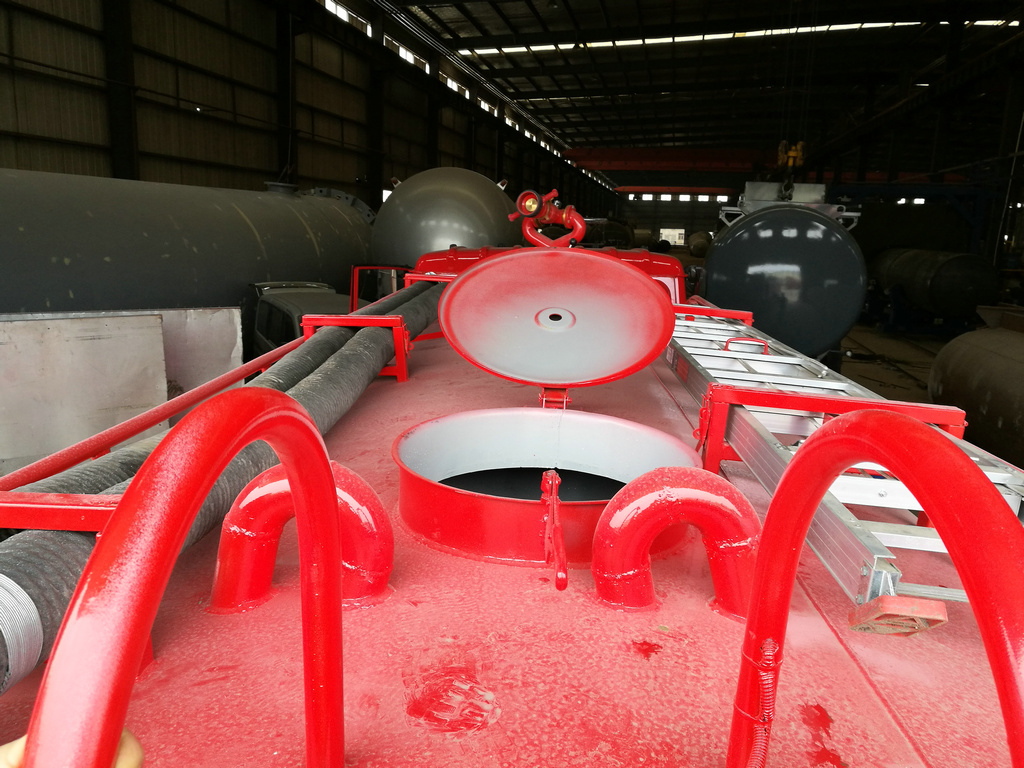

Water Tank Capacity

4,000 litres

Tank Material

Carbon steel

Fire Pump

Flow speed

30 L/s

Pressure

1.0 MPa

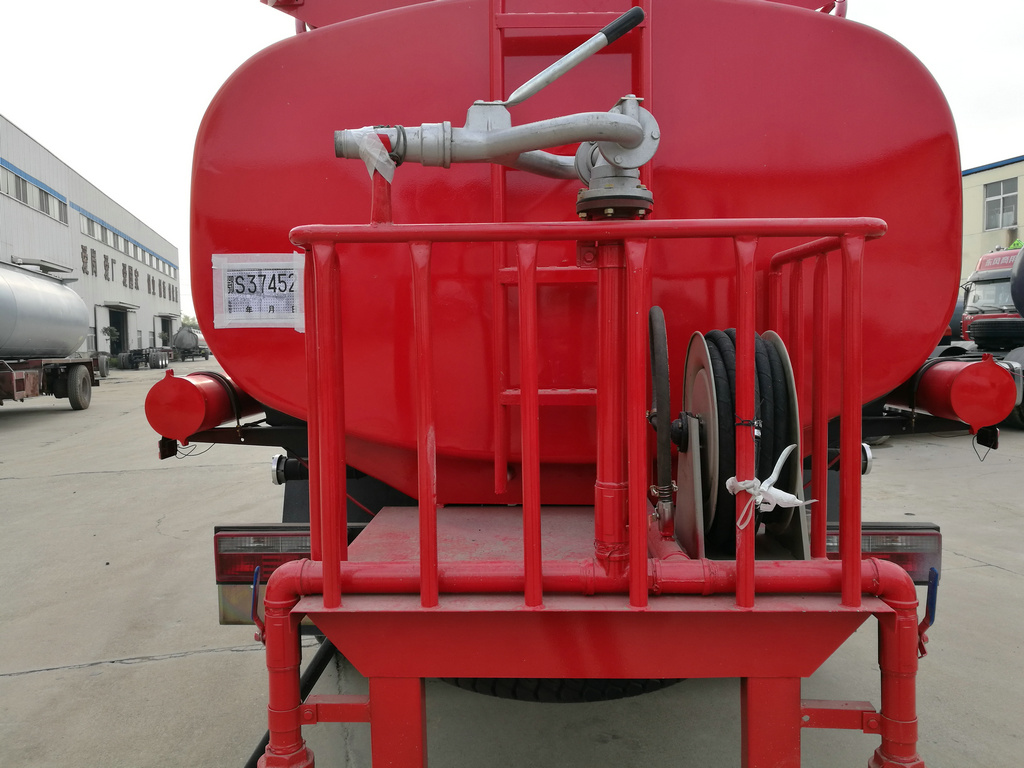

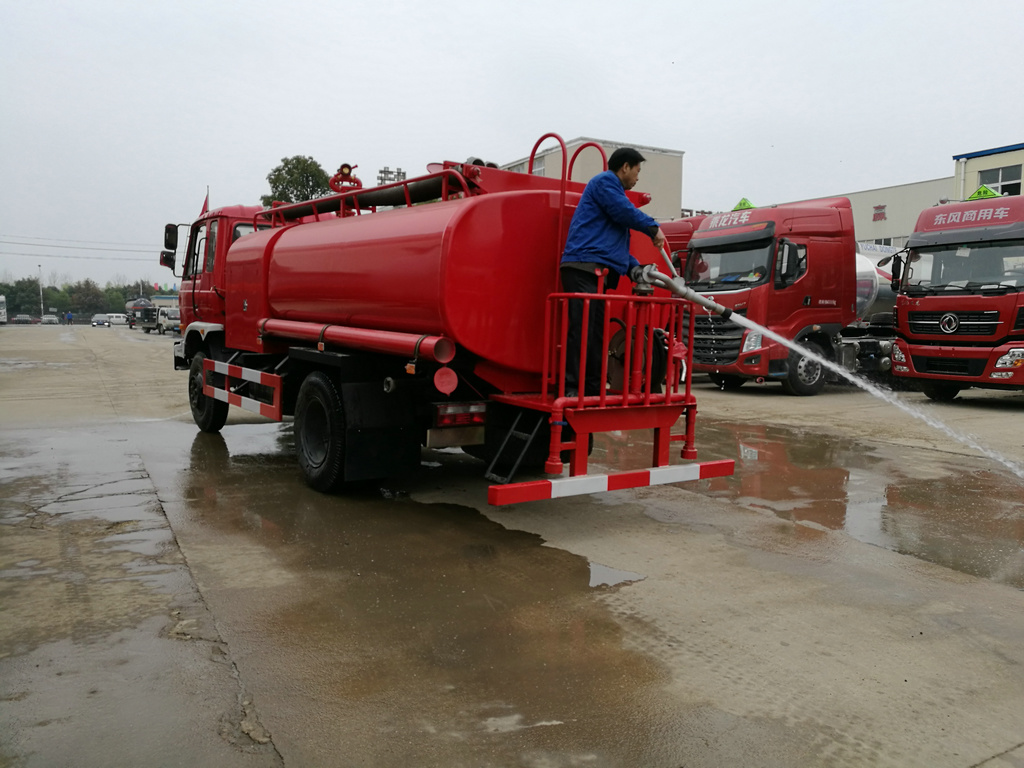

Fire Cannon

Flow speed

30 L/s

Shot

55 m

Suction Head

6 m

Hose

High quality, wire strengthened hose, with cooper wire, anti-static

All standard accessories: Typical modern fire apparatus carries equipment for a wide range of firefighting and rescue tasks. These include  shovel, pike poles, axes and cutting equipment, halligan bars.…

Optional

Ladders, floodlights...

Dimension Parameters

Overall dimension (mm)

6340*2050*2650

Wheelbase (mm)

3350+1100

Front / Rear Suspension (mm)

1280 / 1450

Wheel Tread (mm)

1886 / 1846 / 1846

Approach / Departure angle (°)

35 / 23

Allowable person capacity

3+2

Weight Parameters

Curb Weight (kg)

4200

Max. authorized total mass of chassis (kg)

9100

Max. authorized load weight (kg)

Front Axle: 2700

Rear Axle: 3200+3200

Performance

Engine Rated Power (kw / r/min)

140 / 2800

Engine Max Torque (N.m / r/min)

640 / 1400-1600

Engine Displacement (L)

5.9

Max Speed (km/h)

85

Min Steady Speed (km/h)

3.5

0-60km/h Acceleration Time (s)

≤30

Max.Gradability (%)

60

Slope Retaining Capacity (%)

40

Min Ground Clearance (mm)

286

Min Turningradius (m)

≤8

Max Vertical Obstacle Height (mm)

≤600

Max Crossing Width (mm)

≤600

Max Fording Depth (mm)

≤1000

100km fuel consumption

under limited conditions (L)

<18

Braking Distance When Full

Load Initial Speed 30km/h (m)

≤8

Fuel Tank Capacity (L)

220

Max Endurance Mileage (m)

800

Driving Type

6x6

Environmental Adaptabilityrequirements

Working Temperature:-41ºC~+55ºC;

Storage Temperature:-55ºC~+70ºC;

Altitude 5000m (Allowthe power to decrease accordingly);

Relative Humidity:95%(30ºC).

Basic Technical Parameters

Engine

190hp, in-line, 6 cylinders,

turbocharged intercooler dieselengine, 140kw

Transmission

Manual 5-speed Transmission

Transfer Case

with high and low gear,

electronic control pneumaticoperation

Front Axle

2.7 ton integral axle ,hub reduction

Rear Axle

3.5 ton integral axle, hub reduction

Suspension

front suspension is leaf spring,

with twobidirectional cylinder type shock absorber.

Rear suspensionis leaf spring balance suspension,

with Stabilizer bar.

Frame

stampingriveted frame structure,

frame max outer width 860mm,

Stringer max cross-sectionalsize is 280 x 75 x 8mm.

Tire

6 off road military tires 305/80, with one spare tire

Electric System

24V circuit system, 12V,100ah, two sets,

Maintenance-free.

Other

Hydraulic clutch assistance,

hydraulic power steering, exhaust brake,

four circuit pressure brake.
