road fence cleaning truck Road Guardrail Cleanout Truck, Guardrail Cleaning Vehicle, Street Washing Truck for sale
Views: 1818 Author: Dong Runze Special Vehicle Publish Time: 2017-06-15 Origin: Dong Runze Special Vehicle
Road Guardrail Cleanout Truck, Guardrail Cleaning Vehicle, Street Washing Truck for sale

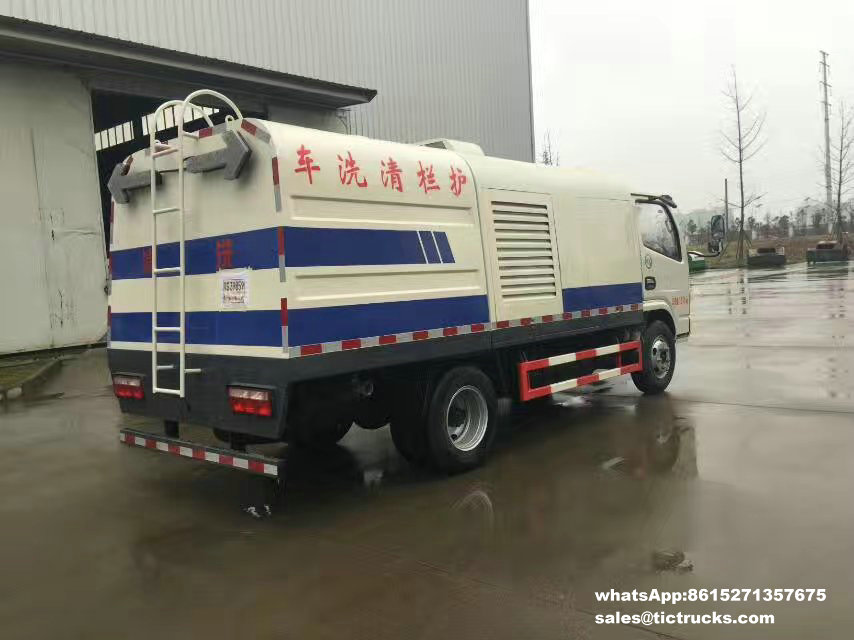

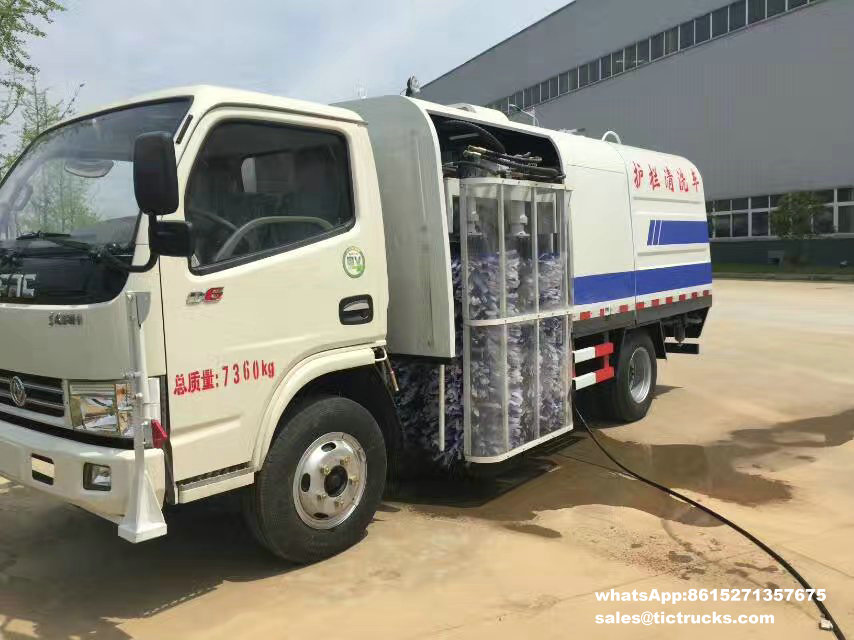

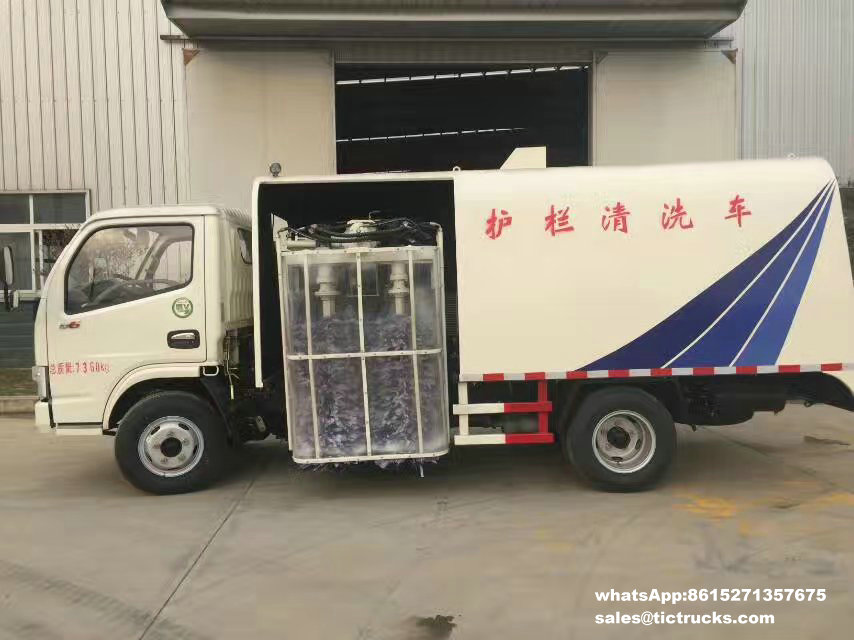

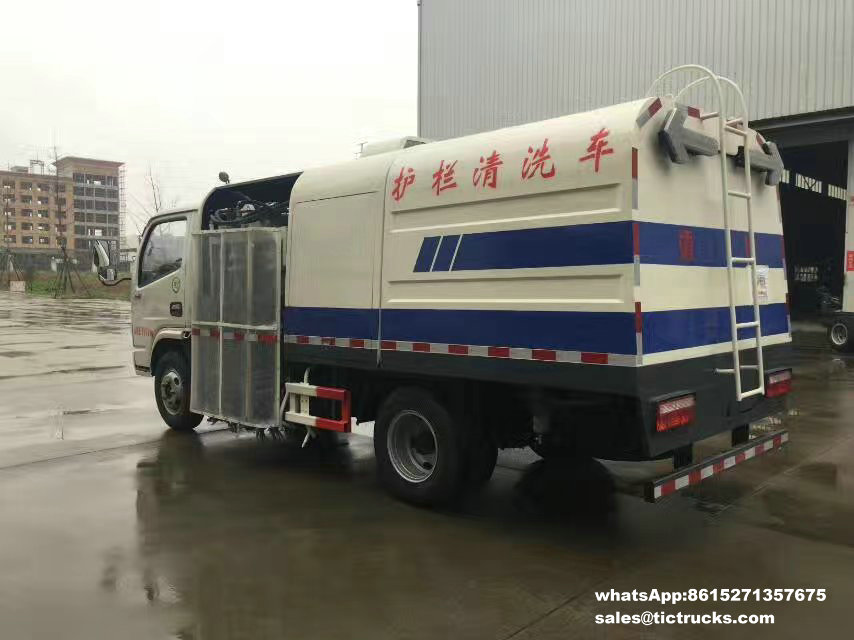

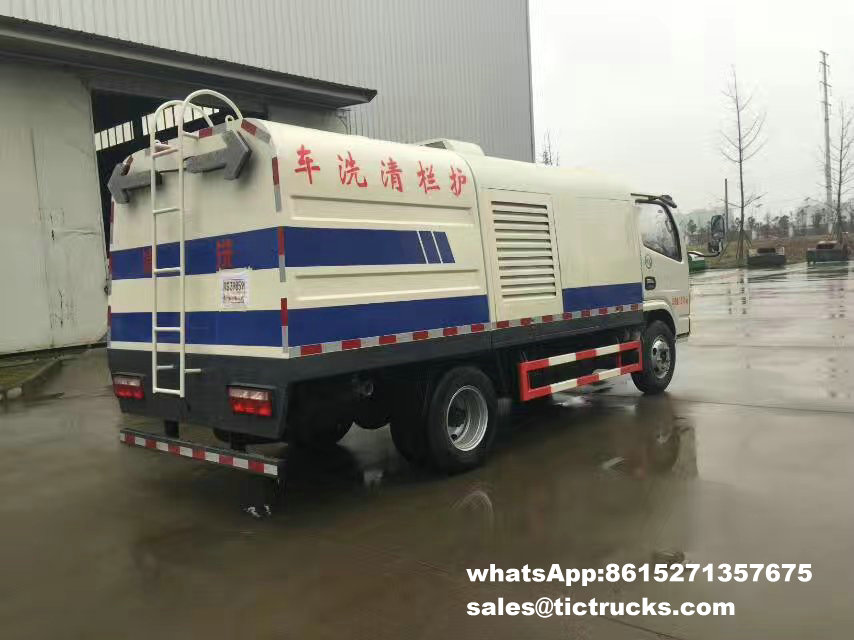

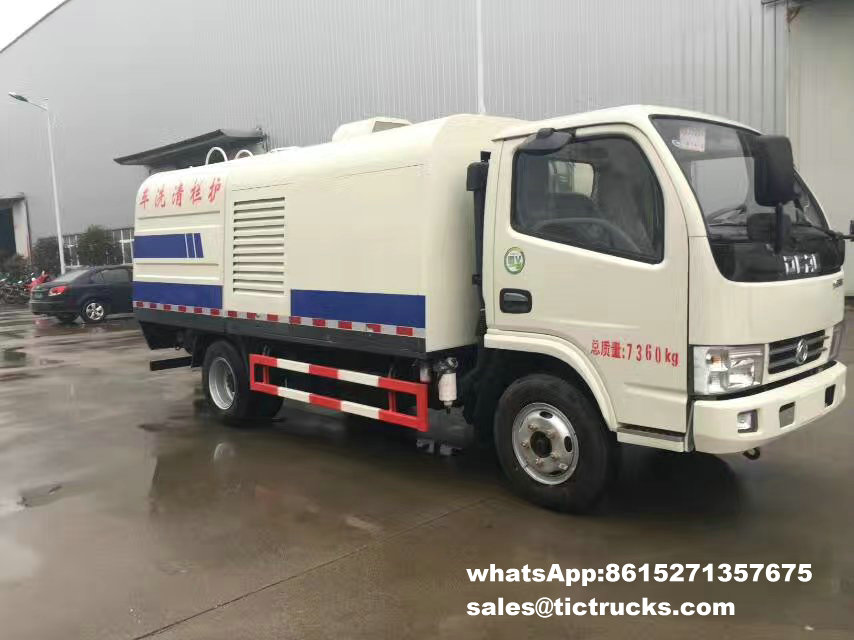

Dongfeng 4x2 road Guardrail cleaning truck
Product name | famous best 4x2 road Guardrail cleaning truck | ||
Tank volume(m³) | 3 | Chassis model | EQ1060GLJ |
Overall dimension(mm) | 5990×2050×2600 | Brand name | Dongfeng |
Gross weight(Kg) | 7300 | Wheelbase(mm) | 3300 |
Payload(Kg) | 2670 | Drive type | 4*2 |
Curb weight(Kg) | 4500 | Fuel type | diesel |
Axle No. | 2 | Emission standard | Euro 2/Euro 3/Euro 4/Euro 5 |
Cab seats(person) | 2,3 | Transmission | 5-speed |
Approach/departure angle(°) | 19/12 | Tires No. | 6 |
Axle load (Kg) | 2920/4380 | Tire specification | 7.00-16 14PR |
Front/rear hang(mm) | 1032/1658 | Max speed(km/h) | 95 |
Front/Rear track(mm) | 1506/1466 | Steel spring number | 8/9+5 |
Engine parameters | |||
Engine model | Engine manufacturer | Displacement (ml) | power(kw) |
CY4102-CE4F | Dongfeng chaoyang forward power co ., LTD | 3856 | 73 |
Chassis Description | Dongfeng 4x2 chassis, single row and left/right hand drive optional, 100HP Engine. | ||

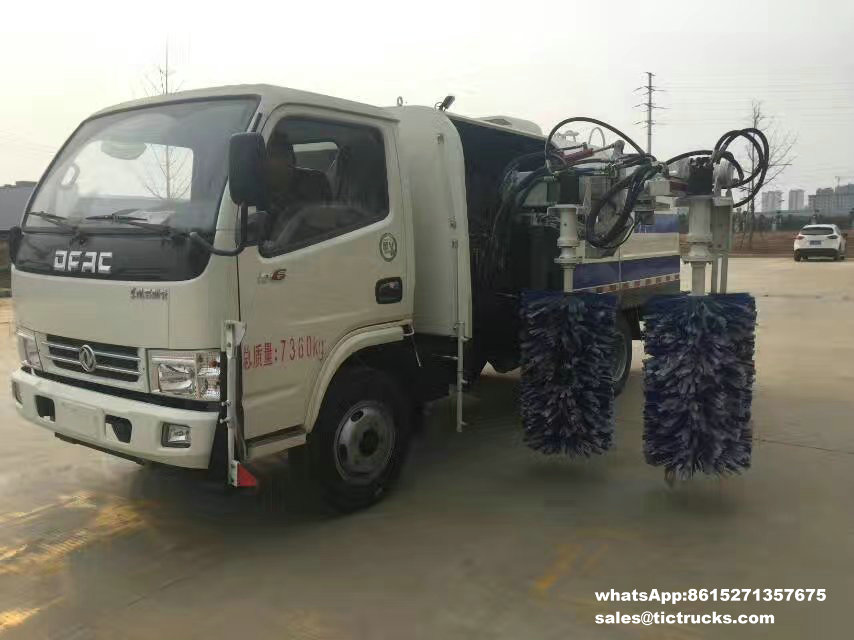

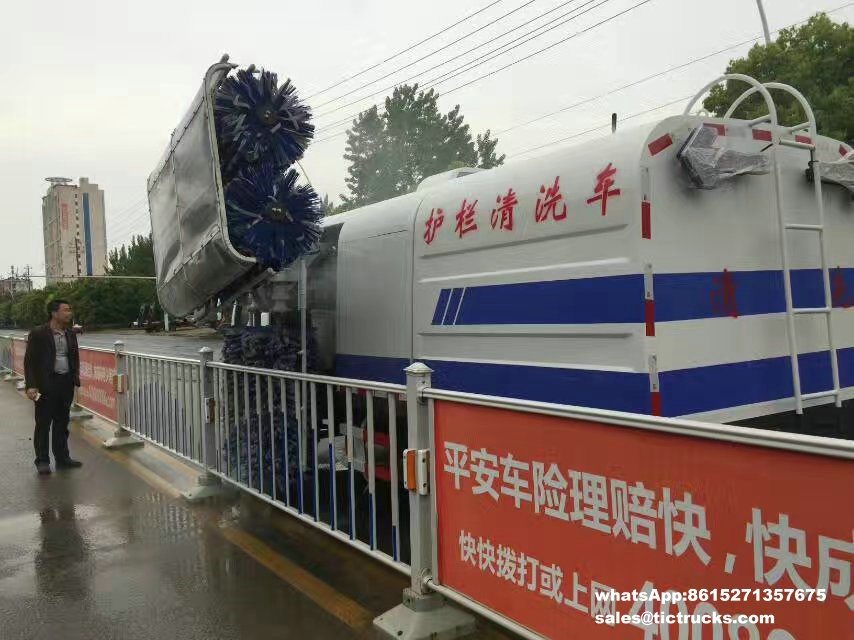

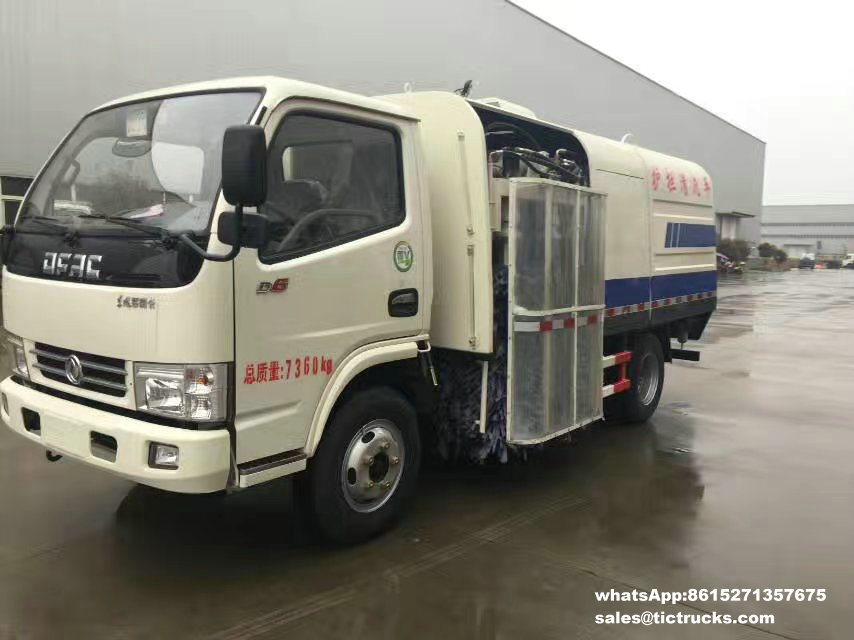

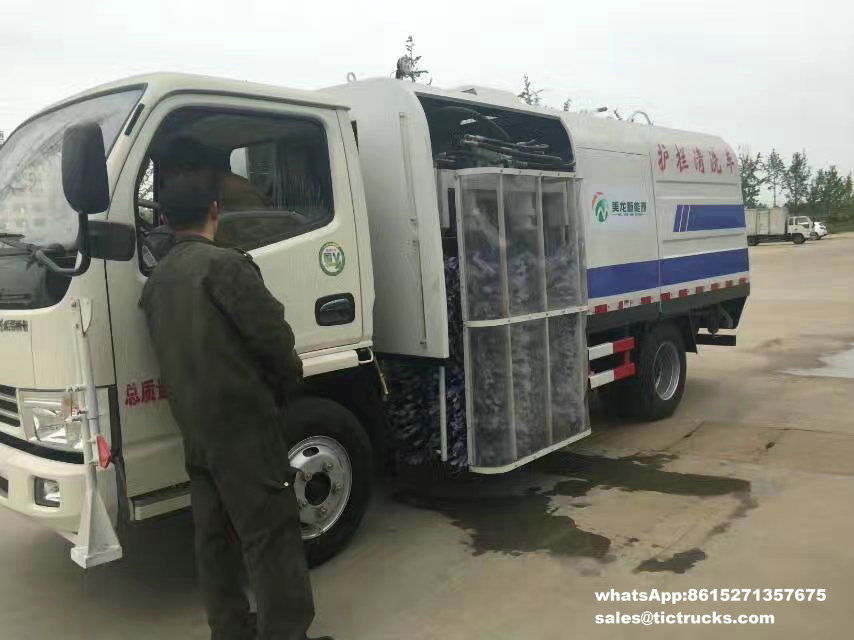

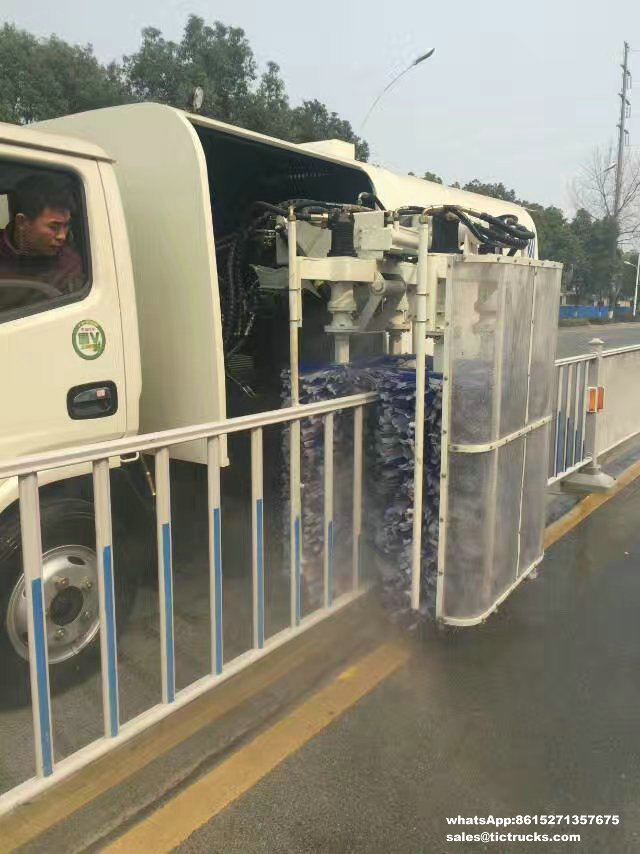

Standard Equipment | 1. Tank volume: 3m³, it is quadrate and made of stainless steel(side 2.5mm and bottom 4mm). 2. Equipps with domestic motor , hydraulic pump , Taiwan valve group, small single cylinder piston pump, roller brush with spray water cleaning(6~8pcs spray nozzles) ,a LED arrow indicator on the tail of truck, 77HPJMC vice engine and etc. A low pressure flush nozzle with four vertical arrangement washing roller brush the back of cab can clean guardrail. 3. Operation methods: driving indoor integrated control. The height of washing guardrail is 0.1~1.4m. | ||
Optional Equipment | We can make the high pressure washing truck according to customer's requests with the optional equipments below: 1. Import motor. 2. Sprinkler function 3. Marking line on ground cleaning. 4. With no vice engine. Please advise us in advance if you have any special requests for the high pressure washing truck, we can equip various kinds optional equipment for you. | ||
Purposes | 1. Guardrail cleaning truck is mainly used for guardrail cleaning and city roads isolation guard bar cleaning. 2. This truck can also be used to clean industrial drainage pipe and wall,wall body cleaning on both sides of roads. 3. The optional high pressure pump and gun can flush small ads and sculpture. | ||
Product advantage | 1. High efficiency,good cleaning quality, safety, saving water, leave no dead Angle, no scratch paint, a variety of chassis. 2. Best Quality with competitive price. | ||

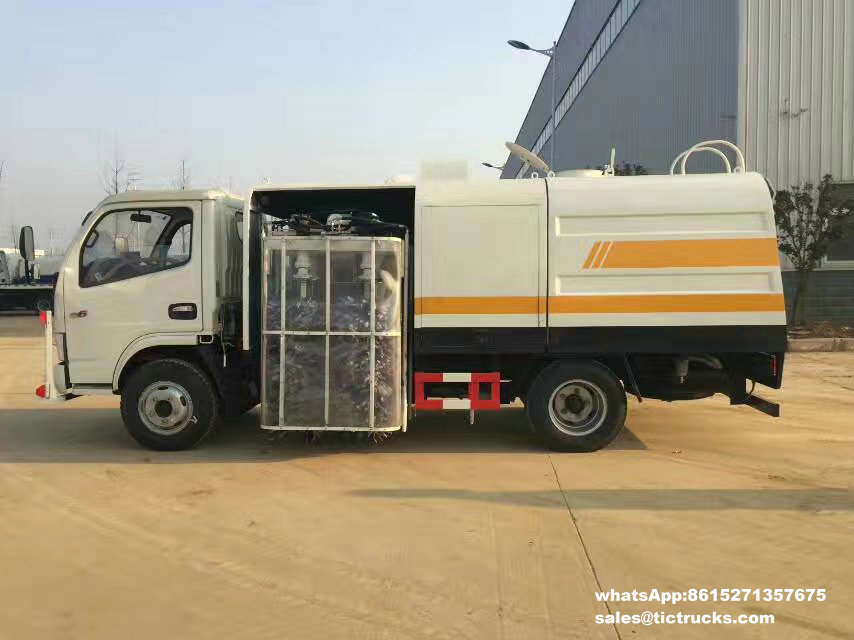

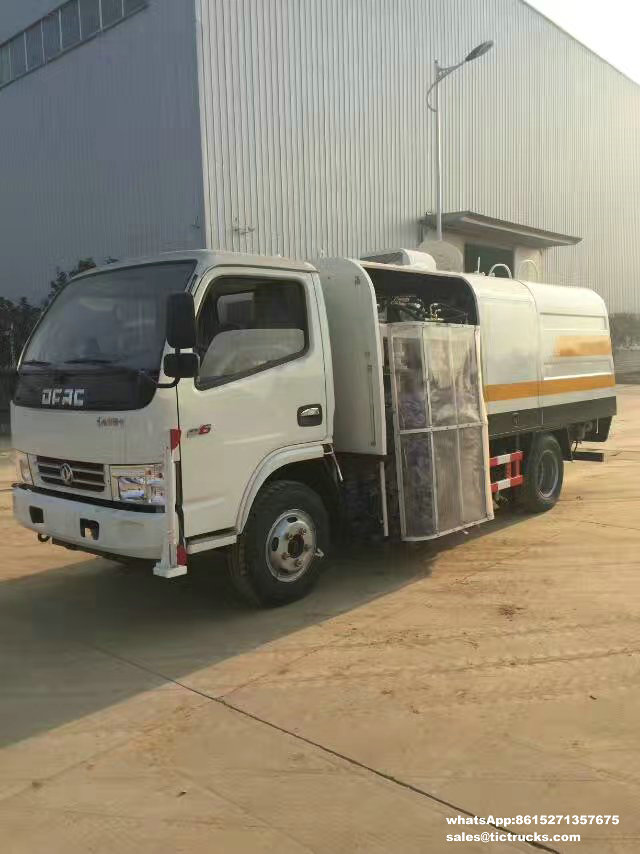

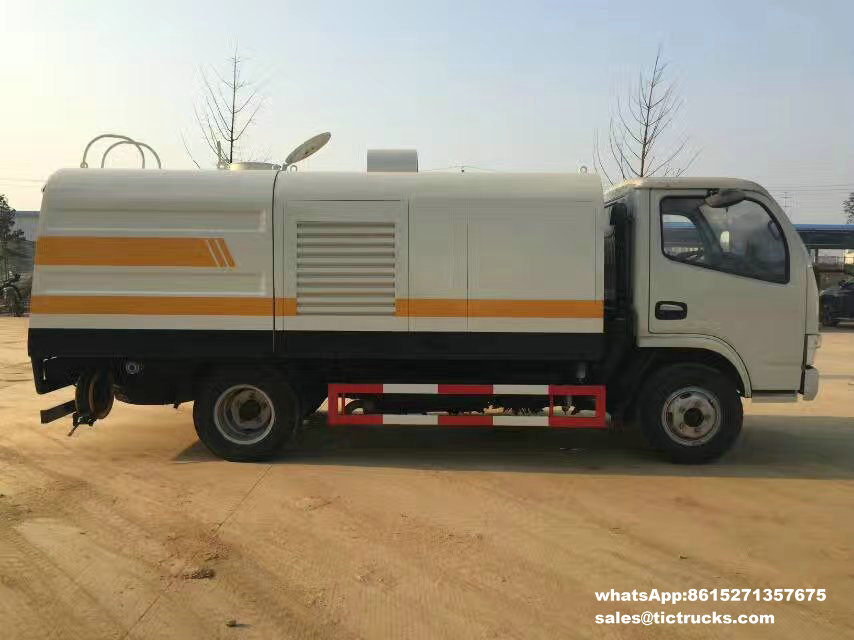

Dongfeng freeway Guardrail cleaning truck 4x2 road cleaning truck
Products Technical Specification Water Guardrail Fence Road Cleaning Truck | |
Type | Guard Cleaning Truck |
Brand | DONGFENG |
Cab | Standard cabin |
Model | DFA1072GLJ |
Vehicle description | |
Overall dimensions(mm) | 5995*2000*2600 |
G.V.W (kg) | 7350 |
Curb weight(kg) | 3400 |
Max speed (km/h) | 90 |
Front / Rear axle (kg) | 3000/4400 |
Type of fuel | Diesel |
Tire | 7.00-16 |
Engine | |
Engine model | YC4FA115-50 |
Maximum power | 85kw(115hp) |
Displacement | 2.336L |
Emission standard | Euro2 |
Up-parts description | |
Tank material | Q345R |
Diameter of brushing | 1050mm |
Revolution speed | 200r/min |
Boom length | 2500mm |
Cleaning speed | 3-20 km/h |
Cleaning height | 0-1350m |
JAC High pressure cleaning truck 4x2 Road guardrail cleanout truck for sale
Description | High pressure cleaning truck 4x2 Road guardrail cleanout truck for sale | ||
Condition | New condition/LHD&RHD | ||
Chassis | Curb weight(kg) | 4300 | |
G.V.W.(kg) | 6495 | ||
Wheelbase(mm) | 3360 | ||
Dimensions(mm) | 6000×2000×2500 | ||
Overhang (front/rear) (mm) | 1105/1587 | ||
Wheel track (front/rear) (mm) | 1580/1395 | ||
Approach/Departure angle(°) | 23/14 | ||
Axle Load(kg) | 2500/3995 | ||
Max. driving speed(km/h) | 95 | ||
Brand | JAC | ||
Model | HFC1065 | ||
Tire | Number | 6 pcs with one spare tire | |
Specifications | 6.50-16,7.00-16 | ||
Clutch | Reinforced diaphragm clutch | ||
Gear box | 5 Forwards & 1 Reverse | ||
Cab | 3 | ||
Engine | Model | CY4102-C3D | |
Displacement(ml) | 3856 | ||
Power(kw) | 80 | ||
Emission standard | Euro 3 | ||
Brakes | Service brake: dual circuit compressed air brake Parking brake(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake | ||
Steering Gear | Power steering, hydraulic steering with power assistance | ||
Water tank | Capacity(cbm) | 1cbm 1.5cbm 2cbm 3cbm | |
Tank material | Q235 carbon steel | ||
Remarks | 1, High pressure water pump 2, Double brush 3,Auxiliary engine 4,The high pressure water spray gun is optional. | ||
Specifications
1, Double brush design, high cleaning efficiency, 3-5km/h.
2, Special design equipment, so that the cleaning brush and guard rail to maintain a constant distance, to ensure the quality of cleaning, efficiency and safety.
3, High pressure design, High efficiency and water saving, 1T water can be used for cleaning 5-8km guard rail.
4, The unique design of cleaning brush, safety for the paint.
5, Safety, energy saving, environmental protection, stable and reliable.
6, The chassis brand is optional, our company built a long cooperate relationship with many brand chassis manufacturer.
Foton Euro 3 Guardrail cleaning truck 95HP High pressure cleaning truck High pressure guardrail cleaning truck for sale
Description | Euro 3 Guardrail cleaning truck 95HP High pressure cleaning truck High pressure guardrail cleaning truck for sale | ||
Condition | New condition/LHD&RHD | ||
Chassis | Curb weight(kg) | 4300 | |
G.V.W.(kg) | 6495 | ||
Wheelbase(mm) | 3360 | ||
Dimensions(mm) | 5995×2080×2580 | ||
Overhang (front/rear) (mm) | 1095/1540 | ||
Wheel track (front/rear) (mm) | 1730/1590 | ||
Approach/Departure angle(°) | 21/14 | ||
Axle Load(kg) | 2100/4395 | ||
Max. driving speed(km/h) | 90 | ||
Brand | Foton | ||
Model | BJ1061 | ||
Tire | Number | 6 pcs with one spare tire | |
Specifications | 7.00-16,6.50-16,7.00R16,6.50R16 | ||
Clutch | Reinforced diaphragm clutch | ||
Gear box | 5 Forwards & 1 Reverse | ||
Cab | 3 | ||
Engine | Model | CY4102-C3F | |
Displacement(ml) | 3856 | ||
Power(kw) | 70 | ||
Emission standard | Euro 3 | ||
Brakes | Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake | ||
Steering Gear | Power steering, hydraulic steering with power assistance | ||
Water tank | Capacity(cbm) | 1cbm 1.5cbm 2cbm 3cbm | |
Tank material | Q235 carbon steel | ||
Remarks | 1, High pressure water pump 2, Double brush 3,Auxiliary engine 4,The high pressure water spray gun is optional. | ||
