king Run Emergency rescue fire vchicle Euro 3 / 5
Light power . 4 x 1000/w
Lifting height 8.9m
Generator power. 10.5 kw
crane SQ5ZK2
Lifting weight /kg 5000
Working range 7m
The traction Winch Towing 5000kg Euro 3 / 5 Price Negotiated
| FOB: | |
|---|---|
| Quantity: | |
|
| |
-
DRZ5161TXFJY40
-
King Run
-
8705309000
king Run Emergency rescue fire vchicle Euro 3 / 5 Price Negotiated

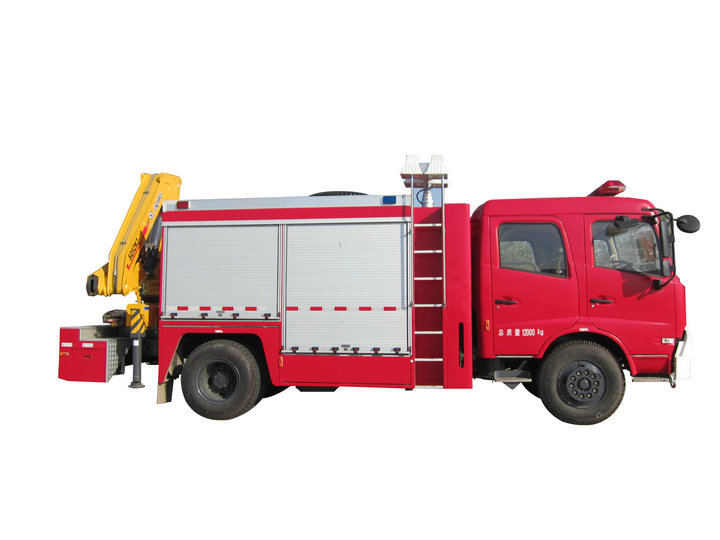

The vehicle has power generation, lighting, lifting, traction and other functions. The car is a double-row cab, which can carry 1+1+4 crew members and is comfortable to ride. The upper body is welded with high quality section steel, which is firm and durable. The equipment box is made of curtain door structure and easy to operate. Large space, can assemble a large number of emergency rescue, personal protection, preventive washing and elimination equipment as required; The equipment is firmly clamped, arranged and easy to use
Technical specifications
| # | Engine model | Engine displacement | Engine power | Engine manufacturer | |||
|---|---|---|---|---|---|---|---|
| 1 | ISDe210 40 | 6 700 cc | 6.7 L | 409 cu in | 155 kW | 211 hp | Dongfeng Cummins Engine Co., Ltd. |
| 2 | ISDe180 40 | 4 500 cc | 4.5 L | 275 cu in | 132 kW | 179 hp | Dongfeng Cummins Engine Co., Ltd. |
| 3 | ISDe185 40 | 6 700 cc | 6.7 L | 409 cu in | 136 kW | 185 hp | Dongfeng Cummins Engine Co., Ltd. |
| 4 | EQH180-40 | 4 752 cc | 4.8 L | 290 cu in | 132 kW | 179 hp | Dongfeng Commercial Vehicle Co., Ltd. |
| 5 | ISB180 40 | 5 900 cc | 5.9 L | 360 cu in | 132 kW | 179 hp | Dongfeng Cummins Engine Co., Ltd. |
| Performance | ||||
|---|---|---|---|---|
| Fuel | diesel fuel | |||
| Environmental standard | National IV / Euro 4 | |||
| Maximum speed | 90 km/h | 56 mph | ||
| ABS | have | |||
| Capacity | ||||
|---|---|---|---|---|
| Rated load capacity | 9900 kg | 9.9 t | 21,800 lbs | |
| Load factor (the ratio of the payload of a vehicle to its weight) | 1.70 | |||
| Weights and Ground pressure | ||||
|---|---|---|---|---|
| Curb weight | 5905 kg | 5.9 t | 13,018 lbs | |
| Gross vehicle weight rating | 16000 kg | 16 t | 35,000 lbs | |
| Axle load distribution | 6000 kg / 10000 kg 6 t / 10 t 13,000 lbs / 22,000 lbs | |||
| Dimensions | ||||
|---|---|---|---|---|
| Overall length | 8000 mm / 7700 mm | 26′3″ / 25′4″ | ||
| Overall width | 2500 mm | 8′3″ | ||
| Overall height | 2870 mm | 9′5″ | ||
| Cargo body | ||||
|---|---|---|---|---|
| Cargo body length | 5600 mm / 5300 mm | 18′5″ / 17′5″ | ||
| Cargo body width | 600 mm | 2′0″ | ||
| Cargo body height | 2300 mm / 2400 mm | 7′7″ / 7′11″ | ||
| Undercarriage and Suspension | ||||
|---|---|---|---|---|
| Number of axles | 2 | |||
| Wheelbase | 4500 mm, 4200 mm | 14′10″, 13′10″ | ||
| Front track | 1880 mm | 6′3″ | ||
| Rear track | 1860 mm, 1800 mm | 6′2″, 5′11″ | ||
| Front overhang | 1430 mm | 4′9″ | ||
| Rear overhang | 2070 mm | 6′10″ | ||
| Angle of approach | 20° | |||
| Angle of departure | 13° | |||
| Leaf springs | 8 / 10+8, 7 / 9+6 | |||
| Tyres and Wheels | ||||
|---|---|---|---|---|
| Number of tyres | 6 | |||
| Tyres dimension | 10.00-20, 10.00R20, 9.00-20, 9.00R20 | |||
| Miscellaneous | ||||
|---|---|---|---|---|
| Seating capacity | 1+1+4 | |||
| Steering control | steering wheel | |||
