Heavy Haul Trailers for Hauling Wind Blades,
Featuring specification
Name: 18~40m extendable flatbed trailer for wind turbine blade transportation
Loading capacity: 40 ton before extension, 5 ton after extension
Overall dimension: before extension 18000*2500*1250mm, after extension: 40000*2500*1250
Useful deck length: 18000~40000mm
Suspension: Air suspension
Axle: bogie steering type suspension, 3 axle line, 6 balanced axles.
Tires: 11R22.5, 12 tires + 1 spare tires, Triangle, Chaoyang, double coin, Michellin, Bridgestone, etc.
Frame: Q550 high tension steel for main frame, Q700 for extension frame
Kingpin: 2'' JOST Kingpin
Landing gear: Double speed JOST
Spare tire carrier: 1~2
Brake system: Wabco dual line pneumatic brake line
Accessories: whole set of standard tools and tool box
Light: Tail lamp, side lamp, brake lamp, etc, all LED
Surface: sandblasted
Painting: base coating + Surface painting
Electrical system: 12/24V, 7 socket (US, EU or Australian standard)
Shipment option
The wind blade trailer doesn't occupies much space before suspension, therefore it is more reasonable is send in CBU terms while it can be used directly when the trailer arrives
Wind Blade Trailer Features
Extendable design to over 40 meters
Bogie steering axle to faciliate the turning
Special locks for wind turbine blades
Air suspension is preferred for stablization

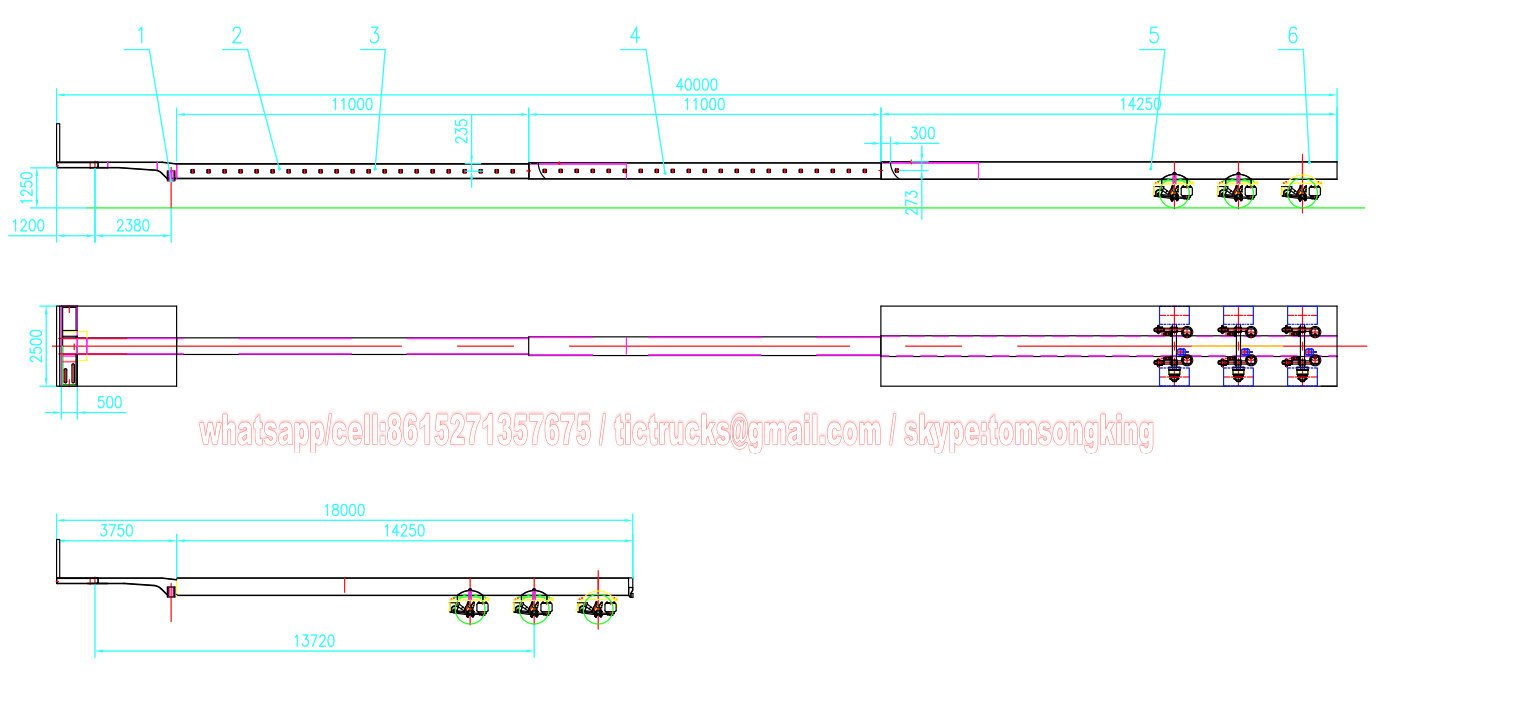

Featuring diagram

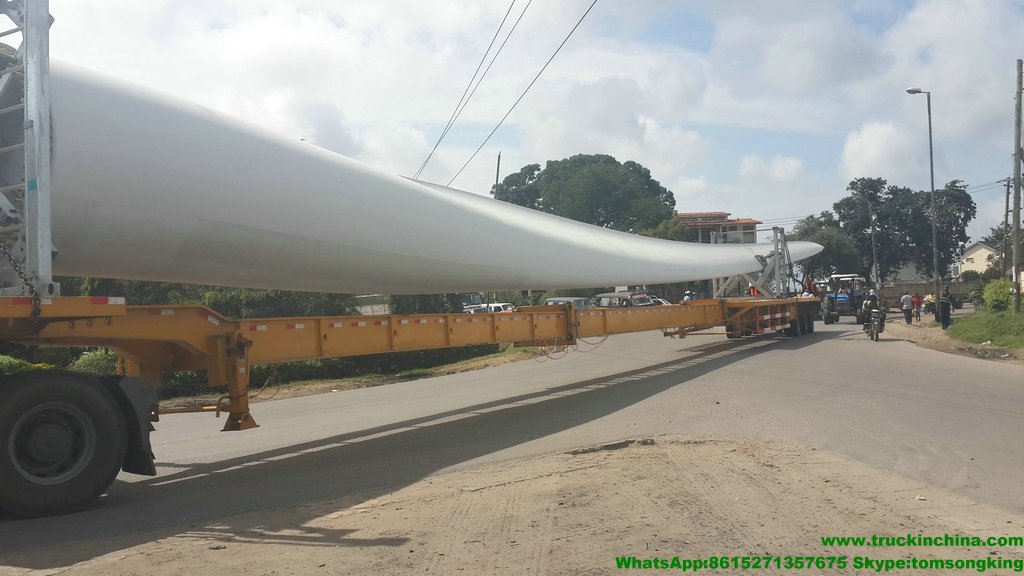

The wind blade trailer is a specially-designed unit for the transportation of wind turbine blades. Extension function is inevitable in such kind of trailer. Before extension, the trailer is basically a skeleton of a normal flatbed trailer, which is available for ISO container or other regular cargo transportation. In the front middle of the trailer deck, it's cut, enabling the trailer to extend into over 30 or 40m for wind turbine blade transportation. Since the trailer is too long after extension, bogie steering type axle is sometimes adopted to faciliate the turning during road duty. Special locks are also placed on the deck to lock the blade. Air suspension is also a good option for the stablization.
