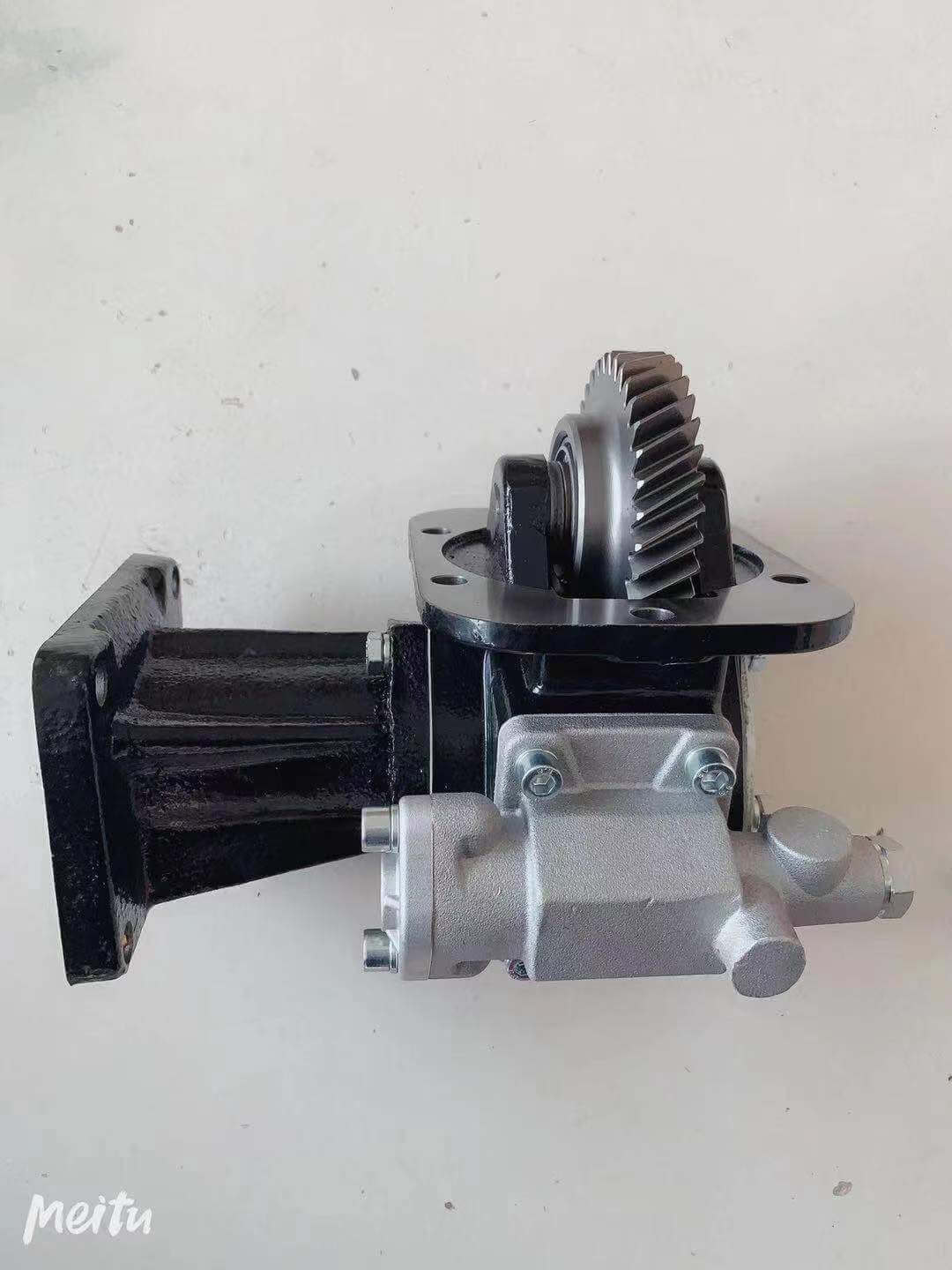

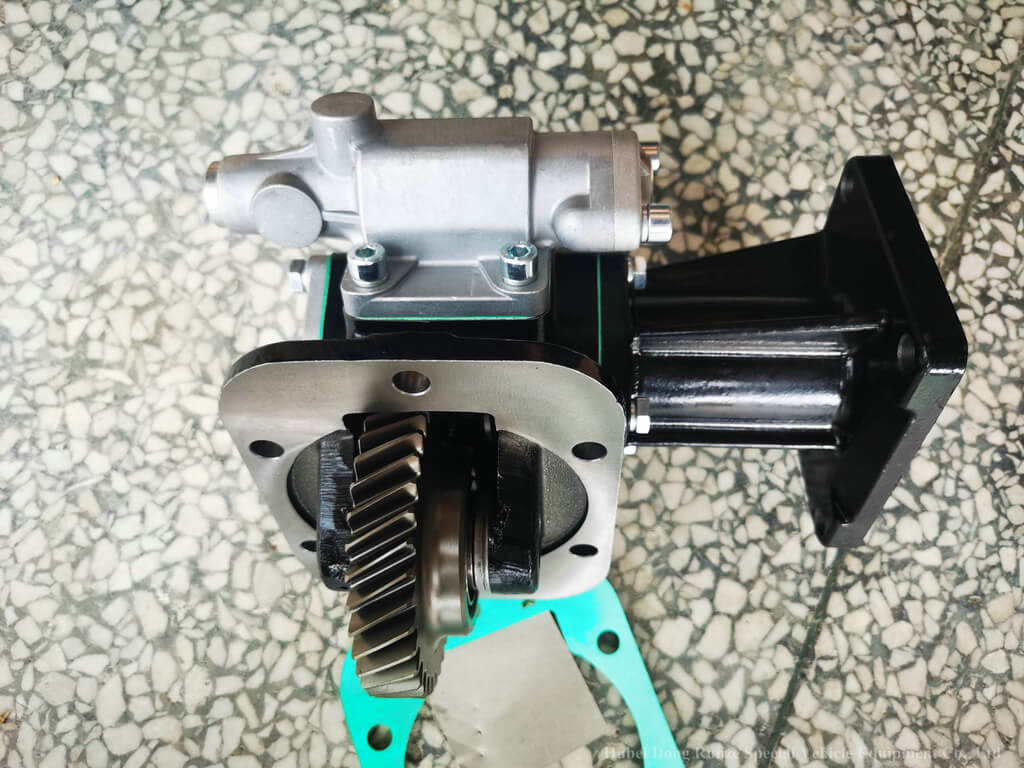

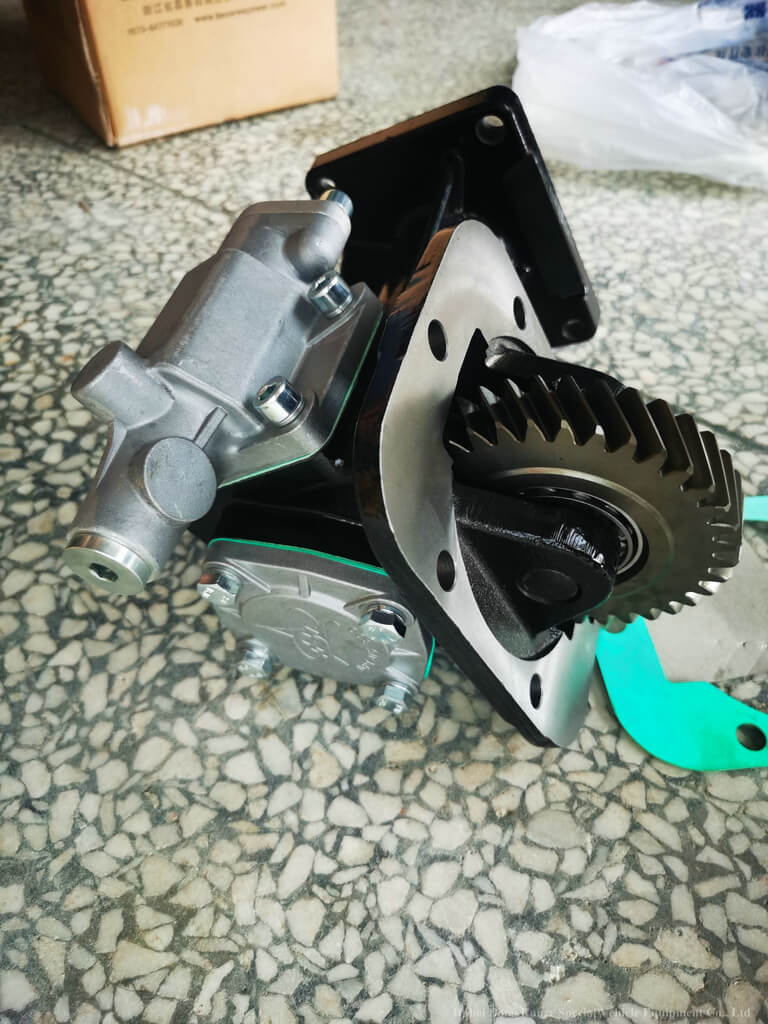

PTO SDQ50/67 PTO FOR JAC ML532A GEARBOX Transmission

Views: 21815 Author: Tom Publish Time: 2021-07-27 Origin: DRZE

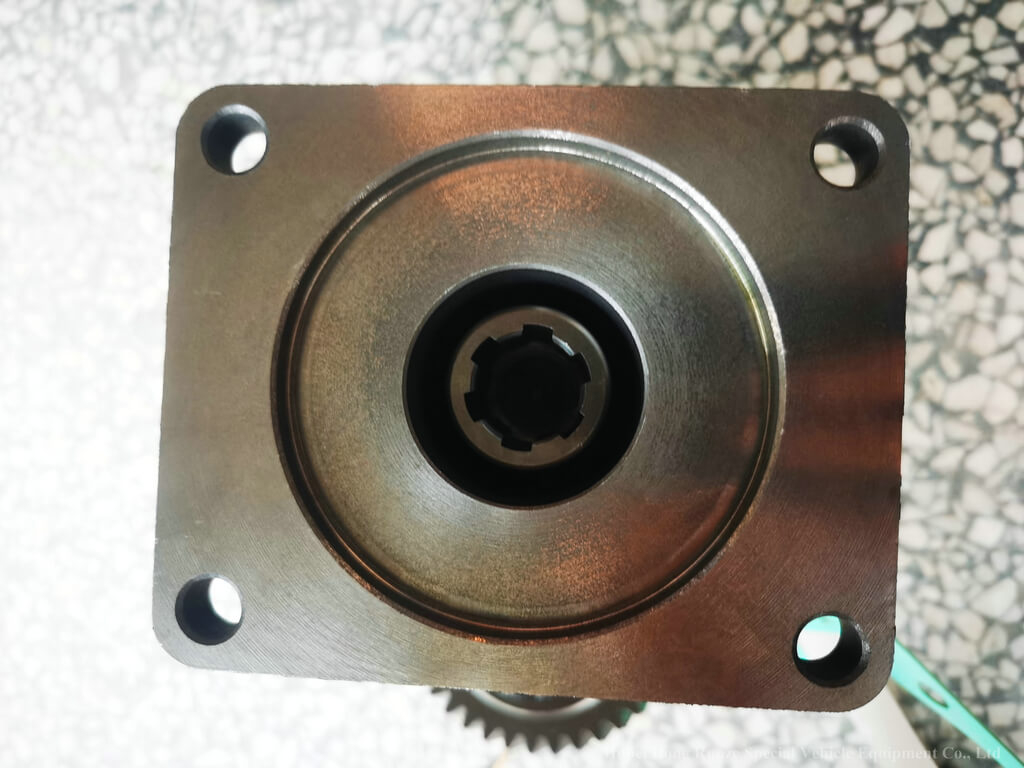

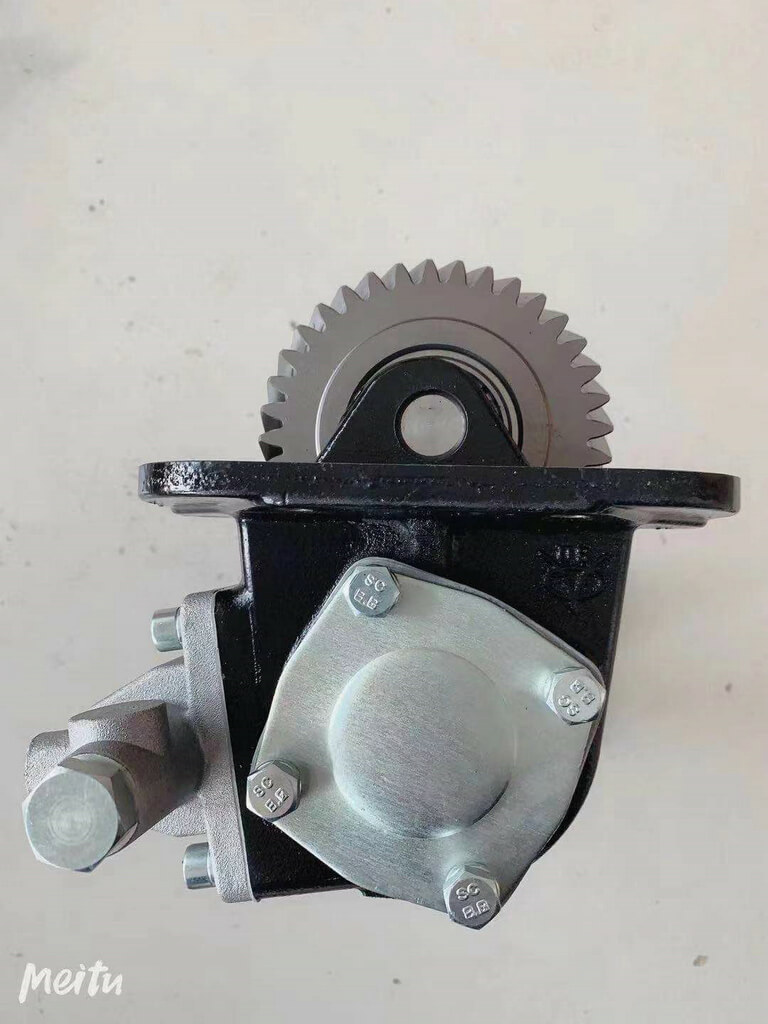

PTO SDQ50-67 PTO FOR JAC ML532A GEARBOX (3)_1

PTO Power Take Off Power Transmission Gearbox

FAW Jiefang power take off (FAW)

Jac Xingrui series power take off (JAC)

WanLiYang series power take off (wly)

SINOTRUCK HOWO PTO power take off

New energy Electric series power take off

Vacuum control PTO

Pneumatic control PTO

Electric control PTO

Remote manual PTO

Jac Xingrui series power take off (JAC)

Serial number	Model Of Power Take-Off	Speed Ratio	Output Torque (N.m)	Matching Gearbox	Output Mode	Control Mode
1	SDQ-XR50/35	1	300	LC6T55 WLY6TS55	Internal spline / flange	Pneumatics
2	SDQ-XR50/45	1.1	280	LC6T46/LC6T450	Internal spline / flange	Pneumatics
3	SDQ-XR50/60	1.1435	300	LC6T540	Internal spline / flange	Pneumatics
4	SDQ-XR50/63	1.11	300	LC6T540/15CO7027	Internal spline / flange	Pneumatics
5	SDQ-XR50/65	1.6433	250	ML642A-A9	Internal spline / flange	Pneumatics
6	SDQ-XR50/67	1.1541	250	ML532A	Internal spline / flange	Pneumatic / manual
7	SDQ-XR50/69	1.1	280	LC6T46/LC6T450	Internal spline / flange	Pneumatics
8	SDQ-XR50/71	1.17	200	LC5T97/LC5T30	Internal spline / flange	Pneumatics
9	SDQ-XR50/74	1.03	200	LC5T35/LC5T40	Internal spline / flange	Pneumatics
10	SDQ-XR23/55	1.12	300	LC6T450M1	Internal spline / flange	Pneumatic / manual
11	SDQ-XR37/77	1.55	200	ML532C	Internal spline / flange	Pneumatic / manual

Qingling Isuzu series power take off (Isuzu)

Serial number	Model Of Power Take-Off	Speed Ratio	Output Torque (N.m)	Matching Gearbox	Output Mode	Control Mode
1	SDQ-WS51/62	1.3	150	Msb-5m / starray lc5t88	Internal spline / flange	Pneumatics
2	SDQ-WS38/63	1	150	Msb-5m / starray lc5t88	Internal spline / flange	Pneumatic / manual
3	SDQ-WS32/64	1.095	300	MYY-6S	Internal spline / flange	Pneumatic / manual
4	SDQ-WS35/74	1.63	180	MSB-5M/MSB-5S/MSB-5SM/LC5T88 LC5T25/LC5T255M3/LC5T28	Internal spline / flange	Pneumatic / manual vacuum
5	SDQ-WS52/77	1.18	250	MLD-6Q/MLD6A	Internal spline / flange	Pneumatics

JMC series power take off

Serial number	Model of power take-off	speed ratio	Output torque (N.m)	Matching gearbox	Output mode	control mode
1	SDQ-GT32/65	1.26	250	6MT1420/DN3-70030-E0/KN3	Internal spline / flange	Pneumatic / manual
2	SDQ-GT51/67	1.2	200	JC5T28/5T26.5/MTI280JD	Internal spline / flange	Pneumatic / manual
3	SDQ-GT32/65-A	1.315	250	6MT1420/DN3-70030-E0/KN3	Internal spline / flange	Pneumatic / manual
4	SDQ-GT32/65-B	1.09	250	6MT1420/DN3-70030-E0/KN3	Internal spline / flange	Pneumatic / manual
5	SDQ-GT32/65-C	1.26	250	6MT1420/DN3-70030-E0/KN3	Internal spline / flange	Pneumatic / manual

JAC light Duty chassis list

Product line		H3815	H 3365	K3360		K3308		K2800
Chassis Model		HFC1081P91K2C5	HFC1071P81K1C3	HFC1073P83K1C3		HFC1073P83K1C3		HFC1040P83K1B4
size parameter	Length (mm)	7018	6305	5815		5773		5255
	Width (mm)	1995	1995	1861		1831		1861
	Height (mm)	2235	2220	2160		2160		2160
	Wheelbase (mm)	3815	3365	3360		3308		2800
	Front suspension (mm)	1085	1085	1085		1085		1085
	Rear suspension (mm)	1910	1855	1370		1380		1370
	Front track width (mm)	1665	1665	1440		1440		1440
	Rear track width (mm)	1525	1600	1425		1395		1425
hair move machine	model	WP3Q130E50	WP3Q130E50	WP3Q130E50	HFC4DA1-2D	HFC4DA1-2D	HFC4DF1-2D2	HFC4DF1-2D2

	Power (kw)	96	96	96	85	85	86	86
	Torque (N.m)	350	350	350	250	250	320	320
Transmission model		LC6T450M1	LC6T450M1	LC5T400M1	LC5T30	LC5T30	LC5T400M1	LC5T400M1
take power implement	model	SDQ50/45LGQ1、inner spline key	SDQ50/45LGQ1 inner spline output	SDQ50/74	QL15B	QL15B	SDQ50/74	SDQ50/74
	speed ratio	1.1	1.1	1.5	1.563	1.563	1.5	1.5
	Torque (kg)	28	28	25	15	15	25	25
	Manipulation mode	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic
Maximum speed (km / h)		100	100	100	90	100	100	90
Maximum climbing gradient		30%	30%	30%	30%	30%	30%	30%
Maximum total mass (kg)		8280	7450	7360		7360		4495
Front / rear axle (T)		2.5/6	2.5/5	2/4		2/4		2/4
PTO and remote throttle		Local PTO, remote PTO interface	Local PTO, remote PTO interface	Local PTO, remote PTO interface		Local PTO, remote PTO interface		Local PTO, remote PTO interface
Frame section (mm)		190×60×6	190×65×6	170×65×5		170×70×5		170×65×5
Leaf spring number (front / back)		9/6+6	9/12+6	8/4+6		11/9+7		8/4+6
Braking (brake form)		Drum brake	Drum brake	Drum brake		Drum brake		Drum brake
tyre		7.50-16 14PR、7.50R16 14PR 8.25-16 16PR、8.25R16 16PR	7.50-16 14PR 、7.50R16 14PR	7.00R16 14PR、7.00-16 14PR		7.00R16 14PR、7.00-16 14PR		7.00R16 12PR、6.50R16 10PR
Other options				With exhaust auxiliary brake; Optional air conditioning,
