Military Beiben 8x8 Offroad Truck Mounted With 30Ton Crane SQZ800K

Views: 2169     Author: DRZ     Publish Time: 2018-03-19      Origin: www.truckinchina.com

Military Beiben 8x8 Offroad Truck Mounted With 30Ton Crane SQZ800K

Military Beiben 8x8 Offroad Truck Mounted With 30Ton Crane SQZ800K

$142000-$155000USD

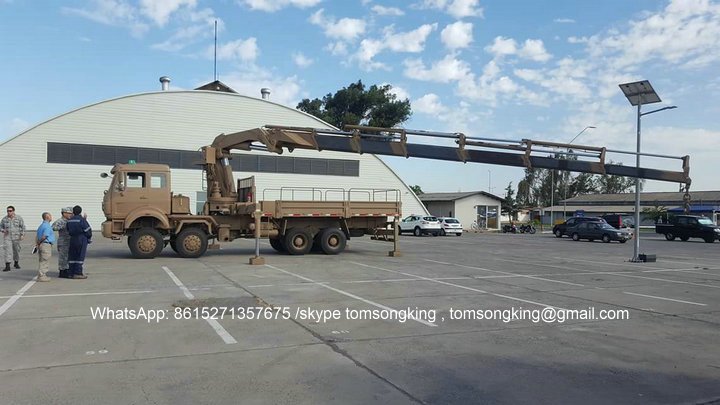

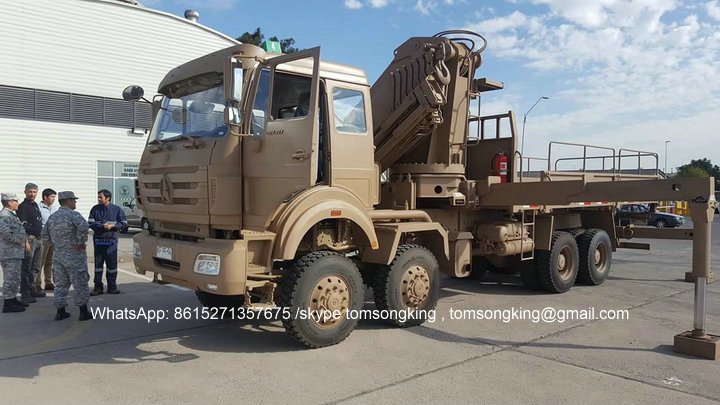

BEIBEN Crane truck 8x8-25T.jpgBEIBEN Crane truck 8x8-27T.jpg

SQZ800K 30ton knuckle boom truck mounted crane SQZ800K

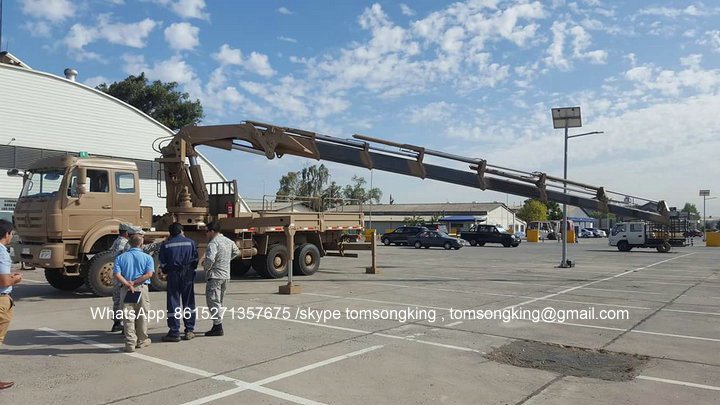

BEIBEN Crane truck 8x8-28T.jpg


 Chassis model ND2310G50 Chassis brand North-Benz

Overall dimensions 11465X2495X3220mm Wheel base 1500+5050+1450mm

Front/rear wheel track 1990/1990, 1800/1800mm Front/rear suspension 1410/2055mm

Approach/departure angle 34/30° Maximum speed 90km/h

Chassis Manufacturer Baotou Bei Ben Heavy-Duty Truck Co., Ltd

Cab Configuration NG80A a row and a half deluxe cab(with sleeping berth), allowable 3 passengers,air conditioner.

Color Green, other color is optional

Engine Model WP10.336

Emission Euro 3

Type 6 cylinders, in-line, 4-stroke, water-cooled, turbo inter-cooling, exhaust valve brake, direct injection, diesel engine

Rated power 336hp, rated power speed 2200rpm

Displacement 9726ml

Max.torque 1250N.m

Bore x stroke 126x130mm

Manufacturer Weichai Power Co.,Ltd

Tire Size 12.00-20 nylon tire

Number 8+1 nos

Fuel tank 400L iron oil tank

Front axle 14 tons

Rear axle 26 tons

Drive form 8X8 full drive

Suspension Multi leaf springs

Rated voltage 24V, DC

Transmissions Gearbox 12JS160T, 12 speed forward 2 reverse.

Steering device Power assisted steering

Steering wheel Left hand drive

Selective configuration



SQZ800K 30ton knuckle boom truck mounted crane

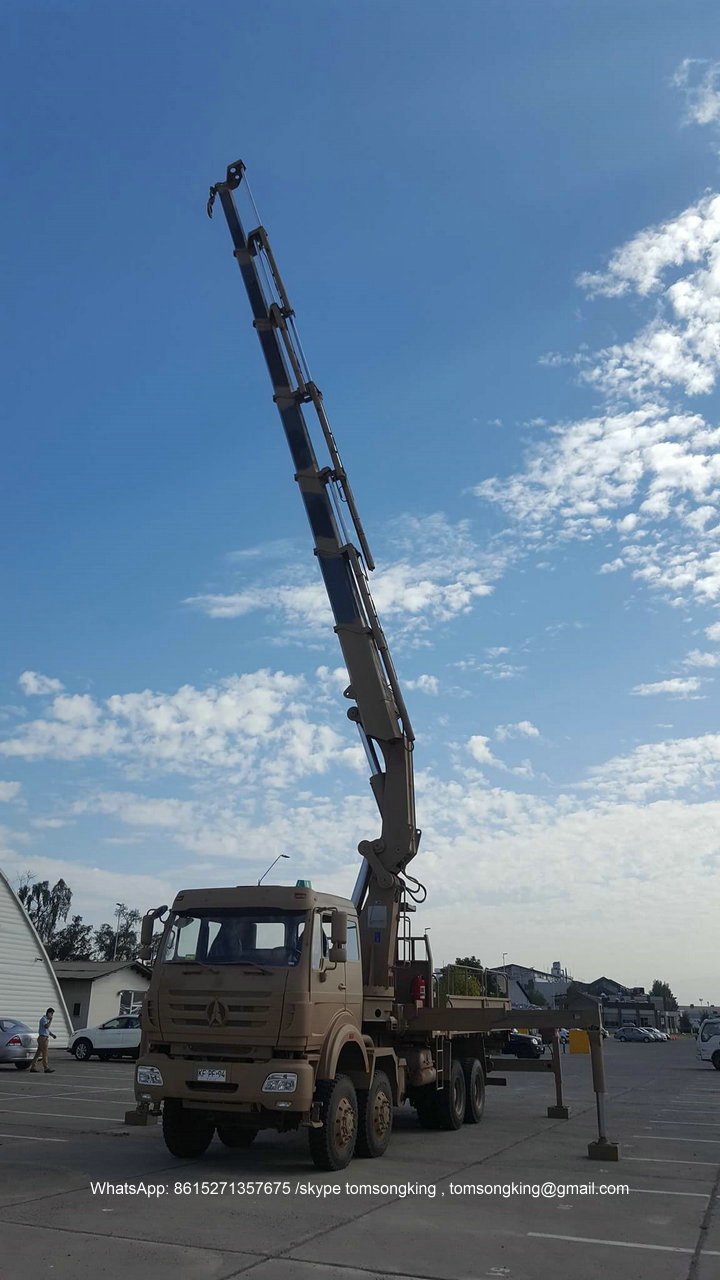

 BEIBEN Crane truck 8x8-26T.jpg


Project

SQZ800K Crane


Maximum Weight

30000

(Kg)

Maximum Lifting Torque

70.4

(T.M)

Turning Angle

360°

(°)

Lifting Capacity

30000 Kg@ 2.3 Meters Away

16000kg@4.4  Meters Away

10880kg@6.26 Meters Away

8190kg@8.13 Meters Away

6450kg@10.17 Meters Away

(Kg/m)
