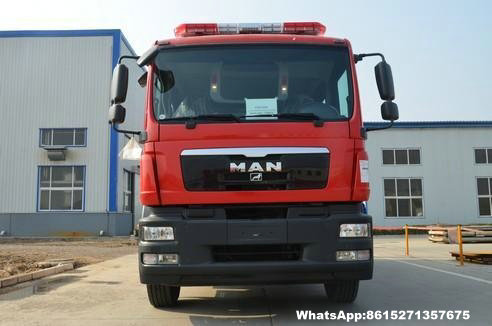

MAN TGM 18.340 Rescue fire truck Technical specifications
Rescue fire truck
Vehicle performance parameters
1, chassis
Model: MAN TGM 18.340 4X2 II chassis
Drive type: 4×2
Wheel base: 4725mm
Size: 8.25-22.5
2, engine
Model: D0836LFL28
Power: 250kW (2200r/min,)
Torque: 1250N·m (1900r/min)
Emission compliance: Euro ⅳ
3, size parameters:
Overall dimensions (length x width x height): 8200mmx2490mmx3310mm
Wheelbase: 4600mm
Hung long (front/rear suspension): 1500/2075mm
Approach/departure angle: 16°/14°
Minimum ground clearance (rear axle): 241mm
4, performance parameter:
Minimum turning diameter: 18.5m
Max speed: 89km/h
Maximum gradability: ≥30%
Acceleration noise outside the car: ≤84dB (a)
Specific power: 14.7
5, quality parameters:
Kg gross mass: 17000kg
6, the number of passengers (including driver): 6(person)
Second, the main structure:
1, cab
Knot Construction: flat head metal front double, double the original cab.
Seating settings:2+4 people. Features air respirator cage behind the rear passenger seat 4, and equipped with shock protection device about 1.2 metres height of Office have elaborate safety railing.
To: hydraulic turnover mechanism.
Laboratory equipment for the crew: In addition to the original vehicle equipment, plus a100W sirens, revolving lights switch, PTO switch, possessed light switches and indicator lights, radio power cord.
Police Lamp: top cab equipped with long rows of flashing police lights .
2, equipment boxes
Material: Bulk skeleton made of high quality steel welded together, interior wall panels are 1.5mm oxide aluminum tread plate.
Structure: Skeleton using special profiles for aluminum frame and connectors connecting structure, can maximize space utilization and the variability of internal equipment frame using aluminum structures, can be configured according to user requirements of various types of sliding tray, slide, drawer. The structure of science, equipment and storing, the layout is compact, is reasonable, in line with ergonomic principles, the space utilization ratio is over 85%.
Shutter: All equipment compartments used shutter door with lock, handles and locks sturdy and durable, not deformation, is a water proof performance test.
Skirting boards: Steel frame covered with plastic aluminum diamond plate, gas springs and special section steel reached the double lock, safe and reliable.
3, lifting the lighting system:
l Generator: EH3160 Honda
Power: 1 0.5kW
Frequency: 50HZ
Voltage: 220/380V
l Lighting:
Power: 4×1000W
l Moving lights: 2×500W
l Lifter:
Type: Pneumatic
Maximum height from the ground: ≥7.5m
Pitch: -90°~+90°
Horizontal rotation: 360°
Voltage: 220V
l Distribution boxes: A feature control key, meter, all kinds of operations are focused on the control box, and can run fast and accurate control of all movements, 5M wire press.
4, traction winch system: (US title)
Model: N16800XF
Drive type: Electric
Single rope Max traction force: ≥7000kg
Wire rope diameter: 13mm
Rope length: 48m
5, foldable car crane systems: ( The whole Valley HIAB (Hiab) )
Installation type: The rear-mounted
Model: 111 B–2 CLX-truck mounted crane
Max lifting moment: ≥9.9tm
Swivel angle: ≥410°
6 Rotary torque: ≥14.1kNm
7, a leg span: 4890mm。
6、 Additional Electrical System
l Vehicle total power of all electrical equipment below the rated power of the generator 1.4 times;
l Licence holders together with the provisions of GB4785 to meet the typesetting required a licence;
l Top cab front end to a long row of lights and sirens power was 100W, sirens, police lights, strobe lights circuit for independent additional circuits, controller installed inside the cab.
l Above the body sides with 3 strobe lamp, installed security lights at the bottom and side retro-reflector (composite type), equipped with front and back outline marker lamps on each side of a turn signal, in the crew room, storage compartment, are equipped with lights, and in accordance with the provisions of GB4785.
l Top left and right sides of the car to install the two possessed work lights
l Roof with the Department after 1 round red lights and 1 24V, 60W, Omni-directional lights.
l Vehicle equipped with inflatable, charging device.
l Side and rear sets reflective film, and in accordance with the provisions of GB7258
7, painting:
Made of high quality paint, body, RIM the inner ring for the big red (fire red), rim of the outer ring, the front bumper is white, screen door for aluminum anodized color.
8, truck equipment and layout
Fire fighting equipment: equipped with table
Equipment layout:
l Human engineering principle and design of equipment carriers
l By using logic, equipment weight and shape and frequently used placing equipment
l Design according to fight into the ring and fighting equipment integration
l Standing on the ground or the pedal 1-2 access to equipment, to ensure that the fighting expanded player non interference
Third, the General technical requirements
l All operation switches, instruments, equipment and vehicles that complies with the specification nameplate signs.
l Vehicle performance in line with the GB7956 of the fire performance requirements and test provisions of the method.
l Electrical systems in line with the national power generation electrical lighting, BG5493, BG5476, BG5174, the relevant provisions.
l Fire truck marked in accordance with GB7258of the motor vehicle safety conditions.
l Fire truck exterior lighting and light signalling devices in accordance with GB4785of motor vehicles and their trailers lighting and light signalling Regulations on the installation of the device.
l After the fire protection requirements under GB11567.1of the motor vehicles and trailers, rear underrun protection requirements.
l Vehicle outline dimensions, axle load and masses for limit values in accordance withGB1589 the relevant provisions.
l Vehicle looks the GA38.4-92.
l Vehicle parts by forcing the supplier certification and type approval
l Rust and corrosion protection shall conform to the relevant provisions.
l All structural parts are made of carbon dioxide shielded welding, solid, no cold solder joint.
Four, with car files
l Chassis manual.
l The chassis quality warranty card.
l Chassis maintenance volumes.
l Chassis certification.
l Truck tool inventory.
l Engine number extension.
l Chassis number rubbing parts.
l Fire trucks use story-telling.
l Truck-fire-fighting equipment.
l Fire certificate.
l Fire truck transfer list.
l 3C certificate.
equipment table
Serial number | The name | Specifications | Work unit | The number of | Notes |
1 | Mobile lighting | 500W | Generic classifier | 2 | |
2 | Move the tripod | Generic classifier | 2 | ||
3 | Cable spools | 220V | Dish | 2 | |
4 | Vehicle tools | Set | 1 | Original vehicle chassis equipped with | |
5 | Spare tire | Nondescript animals | 1 | Original vehicle chassis equipped with |
6 | Fire pump motor | 1 | ||||
7 | Floating pump | 1 | ||||
8 | Mobile hose reel | 1 | ||||
9 | Mobile water cannon (manual) | 1 | ||||
10 | Two ladders (6m) | 3 | ||||
11 | Two ladders (9m) | 3 | ||||
12 | Three pull ladder | 2 | ||||
13 | Hook ladder | 3 | ||||
14 | Medium pressure hose (65mm) | 100 | ||||
15 | High-pressure hose (65mm) | 50 | ||||
16 | High-pressure hose (80mm) | 50 | ||||
17 | Water stop | 1 | ||||
18 | Water separator | 3 | ||||
19 | Hose connection (65mm) | 100 | ||||
20 | Folding rescue ladder | 1 | ||||
21 | Water water | 1 | ||||
22 | High expansion foam generators | 1 | ||||
23 | Portable water mist fire extinguishing system | 1 | ||||
24 | PQ8 foam gun | 3 | ||||
25 | DC water gun | 10 | ||||
26 | Multifunction fire water gun | 10 | ||||
27 | Total | |||||
28 | Insulating protective clothing | 4 | ||||
29 | Level a chemical protective clothing (imported) | 2 | ||||
30 | Secondary chemical protective clothing (imported) | 2 | ||||
31 | Bee-proof clothing | 2 | ||||
32 | Anti-static clothing | 6 | ||||
33 | Built-in cotton gloves | 6 | ||||
34 | Gloves for protection against high temperature | 4 | ||||
35 | Chemical protection gloves | 4 | ||||
36 | Fire safety ropes for General | 2 | ||||
37 | Class II safety harnesses | 2 | ||||
38 | Class III harness | 2 | ||||
39 | Explosion-proof hand- | 30 | ||||
40 | Total | |||||
41 | Electronic weather instruments | 1 | ||||
42 | Electronic pH meter | 1 | ||||
43 | Thermometer | 1 | ||||
44 | Toxic gas detectors (importation) | 1 | ||||
45 | Infrared thermography for fire (import) | 1 | ||||
46 | Audio and video in one life-detectors (importation) | 1 | ||||
47 | Total | |||||
48 | Electric shears expanding pliers (importation) | 1 | ||||
49 | Universal hydraulic nippers | 1 | ||||
50 | Toothless saw blades | 1 | ||||
51 | Multifunction tool | 10 | ||||
52 | Portable emergency gas cutter | 1 | ||||
53 | Cone-shaped flag column | 10 | ||||
54 | Handheld microphone | 5 | ||||
55 | Flashing warning light | 6 | ||||
56 | Fixed body air bag | 1 | ||||
57 | Limb immobilization balloon | 1 | ||||
58 | Folding stretcher | 2 | ||||
59 | Wounded lift plate | 1 | ||||
60 | Handheld strong light | 10 | ||||
61 | Rescue support | 1 | ||||
62 | Escape ladder | 1 | ||||
63 | Power Inverter | 1 | ||||
64 | Injection sealing tool | 1 | ||||
65 | Electromagnetic leak stoppage tool | 1 | ||||
66 | Hang small air conveyor | 1 | ||||
67 | Mobile lighting lanterns (portable) | 1 | ||||
68 | Fire safety belts | 30 | ||||
69 | Positive pressure fire air breathing apparatus | 20 | ||||
70 | Fireman for help | 30 | ||||
71 | Fire light safety rope | 30 | ||||
72 | Fire lumbar axe | 30 | ||||
MAN TGM 18.340 fire pumper truck Vehicle Info
ChassisMake: | Mann TGM18.340 4×2 BB |
Total Gross Weight(kg) | 18000 |
Engine Output(kW) | 250 |
Emission Standard: | Euro Ⅳ |
Top Speed(km/h) | 130 |
Cab Configuration | Double cab seat up to 6 |
Dimensions(length×Width×Height)(mm) | 8700×2500×3400 |
Tank Capacity(kg) | Water 4000Type A Foam 200Type B Foam 500 |
Fire Pump | WATEROUS CXVC20F |
Flow Rate(L/min) | 3600l/s@1.0Mpa |
Compressor: | Germany GHHCF75D D3 ED |
Class B foam proportional system |
