Liquid Chemical ISO Tank Container (T2-T23)
Views: 150 Author: Dong Runze Special Vehicle Publish Time: 2017-12-07 Origin: Dong Runze Special Vehicle
Liquid Chemical ISO Tank Container (T2-T23)
HS Code 86090000
T3 ISO Tank Container for Bitumen
Technical Details:
Specification: 20ft
Design Standard: ASME VIII DIV. 1
Classification Society: CCS/ABS/LR
Effective Capacity: 22.5 m³
Working Pressure: 0.175 MPa
Material of Construction: Carbon Steel Q345R
Medium: Bitumen

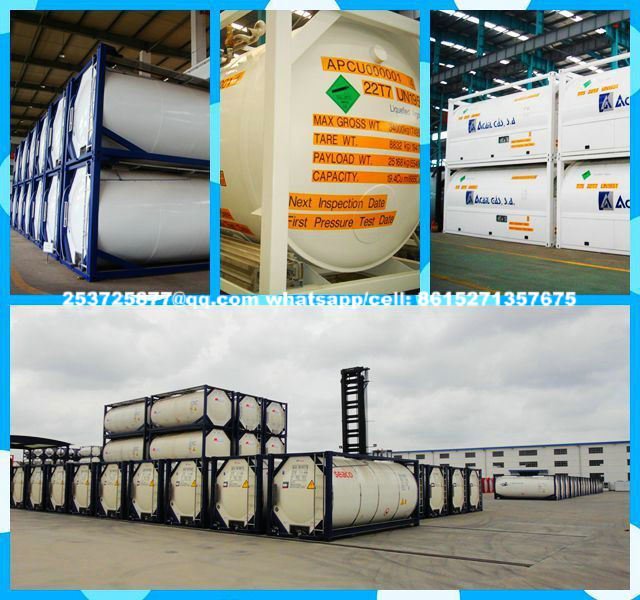

T4 ISO Tank Container .
Technical Details:
Specification: 20ft
Design Standard: ASME VIII DIV. 1
Classification Society: LR/BV
Effective Capacity: 19~26 m³
Working Pressure: 0.18 MPa
Material of Construction: Stainless Steel 304
Medium: Petro Chemicals, Oils. Food Grade Liquids.
T11 ISO Tank Container.
Technical Details:
Specification: 20ft
Design Standard: ASME VIII DIV. 1
Classification Society: LR/BV
Effective Capacity: 16~26 m³
Working Pressure: 0.4 MPa
Material of Construction: Stainless Steel 316L
Medium: General Liquid Chemicals
T14 ISO Tank Container(Rubber Lining)
Technical Details:
Specification: 20ft
Design Standard: ASME VIII DIV. 1
Classification Society: LR
Effective Capacity: 16~21 m³
Working Pressure: 0.4 MPa
Material of Construction: Stainless Steel 304/ Carbon Steel Q345R
Medium: Corrosive Liquid Chemicals (HCL)
T14 ISO Tank Container(HDPE Lining)
Technical Details:
Specification: 20ft
Design Standard: ASME VIII DIV. 1
Classification Society: LR/CCS
Effective Capacity: 19~21 m³
Working Pressure: 0.4 MPa
Material of Construction: Carbon Steel SA-516M
Medium: Corrosive Liquid Chemicals (Hydrochloric Acid, Ferric Chloride Solution, Sodium Hypochlorite, Hydrofluoric Acid)
T20 ISO Tank Container
Technical Details:
Specification: 20ft
Design Standard: ASME VIII DIV. 1
Classification Society: LR/CCS
Effective Capacity: 14.5~21 m³
Working Pressure: 0.667 MPa
Material of Construction: Carbon Steel SA-516M/Stainless Steel 316L
Medium: Anhydrous Hydrofluoric Acid, Titanium Tetrachloride
Liquefied Gas ISO Tank Container (T50)
GB150
T50 ISO Tank Container – 2.2 MPa, 20FT
Technical Details:
Specification: 20ft
Design Standard: GB150
Classification Society: CCS/BV
Effective Capacity: 24.5 m³
Working Pressure: 2.2 MPa
Material of Construction: Carbon Steel Q345R
Medium: R22, Butadien, Butane, Butylene, R124, Trimethylene, R12, R21, R152A, Dimetlylamine, Dimethylether, Ethylamine, Chlorethyl, Isobutene, Methylamine, R40, LPG, Propene, Trimethylamine, Vinyl Bromide, Vinyl Chloride, Ethylene, R114, Isobutane, R12B1, Propane Gas, R142B, R500, Chlorine, R134A and so on.
T50 ISO Tank Container for LPG – 1.8 MPa, 240FT
Technical Details:
Specification: 40ft
Design Standard: GB150
Classification Society: CCS/BV
Effective Capacity: 50 m³
Working Pressure: 1.8 MPa
Material of Construction: Carbon Steel Q345R
Medium: Butane, Butylene, Trimethylene, Dimetlylamine, Dimethylether, Isobutene, LPG, Propene.
ASME U
T50 ISO Tank Container - 1.38 MPa
Technical Details:
Specification: 20ft
Design Standard: ASME
Classification Society: LR
Effective Capacity: 24 m³
Working Pressure: 1.38 MPa
Material of Construction: Carbon Steel SA-612M
Medium: R134A, R22, R124, R152A, R142B, R40, R21, R12B1.
T50 ISO Tank Container –2.75 MPa
Technical Details:
Specification: 20ft
Design Standard: ASME VIII DIV. 1
Classification Society: LR
Effective Capacity: 22 m³
Working Pressure: 2.75 MPa
Material of Construction: Carbon Steel SA-612M
Medium: R22, Butadien, Butane, Butylene, R124, Trimethylene, R12, R21, R152A, Dimetlylamine, Dimethylether, Ethylamine, Chlorethyl, Isobutene, Methylamine, R40, LPG, Propene, Trimethylamine, Vinyl Bromide, Vinyl Chloride, Ethylene, R114, Isobutane, R12B1, Propane Gas, R142B, R500, Chlorine, R134A, R125, R404A, R407A, R407C and so on.
ASME U2
T50 ISO Tank Container - 3.44 MPa
Technical Details:
Specification: 20ft
Design Standard: ASME VIII DIV. 1
Classification Society: LR
Effective Capacity: 24.3 m³
Working Pressure: 3.44 MPa
Material of Construction: P460NL1
Medium: R22, Butadien, Butane, Butylene, R124, Trimethylene, R12, R21, R152A, Dimetlylamine, Dimethylether, Ethylamine, Chlorethyl, Isobutene, Methylamine, R40, LPG, Propene, Trimethylamine, Vinyl Bromide, Vinyl Chloride, Ethylene, R114, Isobutane, R12B1, Propane Gas, R142B, R500, Chlorine, Methyl Vinyl Ether, R134A, R125, R32, R404A, R407A, R407B, R407c and so on.
