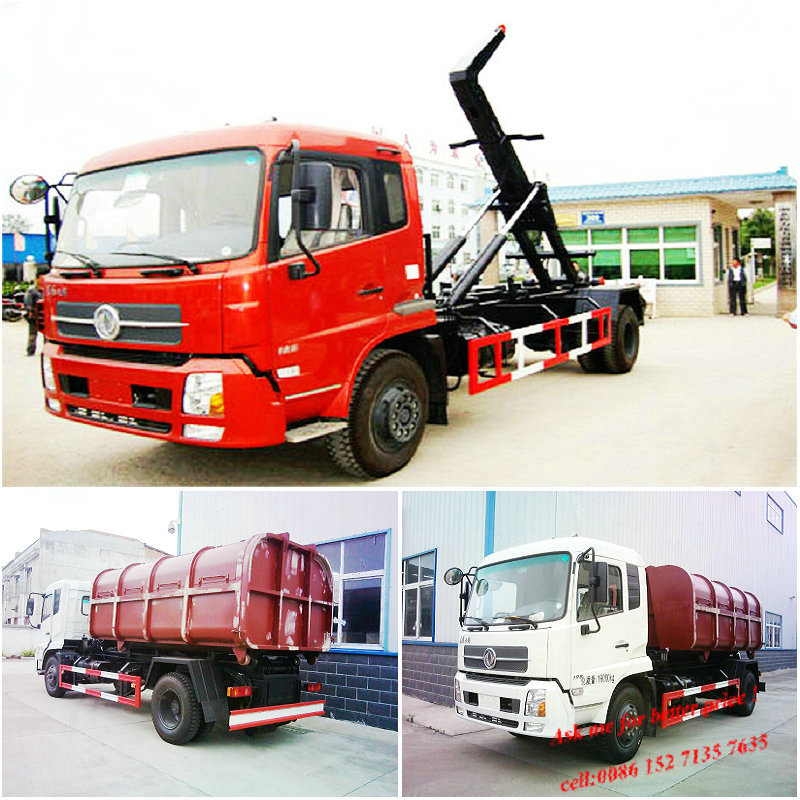

Hook lift truck Kingrun Hook lift truck 12~15cbm
Customization lift capacity: 3~20T /3-20CBM hook lift/hook loaders with various engine horsepower
The Specification of Hooklift Garbage Truck:
| Engine model | optional ISDe210 40 ISDe180 40 ISDe185 40 EQH180-40 ISB180 40 | Engine manufacturer | Dongfeng Cummins Engine Co Ltd |
| Displacement(ml) | 5900 | Power(kw) | 140 |
| Overall dimension(mm) | 7350×2495×3120 | Box dimension(mm) | 4500*2270*1500mm |
| G.V.W.(kg) | 16000 | Allowable passenger in cab | 3 |
| Tare weight(kg) | 8205 | Payloading(kg) | 7600 |
| Approach/departure angle | 20/19 | Front/rear suspension | 1430/1420 |
| Wheelbase (mm) | 4500 | Front/rear axle- loading(T) | 1430/1420. |
| Axle nos. | 2 | Spring leaf nos. | 7/9+6,8/10+8 |
| Tire nos. | 6 | Tire model | 10.00-20 |
| Front track(mm) | 1880 | Rear tract(mm) | 18,00 1,860 |
| Steering system | steering wheel | Max speed(km/h) | 90 |
| Emission standard | GB3847-2005,GB17691-2005 Euro 4 | ||
| Chassis model | DFL1160BX | ||
| Hook arm frame lifting capacity (kg) | 8000 |
| Hook compartments work time (s) | ≤60 |
| Unloading time lifting compartments (s) | ≤60 |
| Carriage lifting time (s) | ≤60 |
| Dustbin Max lifting angle (s) | 49 |
| The height of center hook (mm) | 1570 |
Hooklift Truck
A SPECIAL CARGO DUMP VEHICLE EQUIPPED WITH A LIFTING ARM FOR MULTIPLE LIFT – DUMPING SYSTEM. THIS MULTI-PURPOSE HOOKLIFT TRUCK IS SPECIALLY DESIGNED FOR TRANSPORTING MATERIALS EFFICIENTLY AND ECONOMICALLY, FEATURING LOAD – UNLOAD MECHANISM OF ITS OWN CONTAINER FROM THE CAB – CHASSIS, AND DUMPING MECHANISM FOR UNLOADING MATERIALS.
* OPERATE AS MANY BINS WITH THE USE OF ONLY ONE TRUCK.
* LOADING AT GROUND LEVEL. AVOIDS THE INCONVENIENT USE OF LADDER AND PAYLOADER.
* FAST AND EFFICIENT LOGISTICS HANDLING
* MULTI-LIFT FUNCTIONS
* EASY AND LOW COST MAINTENANCE
Material: Carbon steel made of Q235B
Thickness: Body Side 3mm ,4mm
Body Floor 4mm 5mm
Hopper Bottom 5mm 6mm
Hopper Sides 5mm 6 mm
Material: Carbon steel made of Q235B
Thickness: Body Side 3mm ,4mm
Body Floor 4mm 5mm
Hopper Bottom 5mm 6mm
Hopper Sides 5mm 6 mm
Standard Specification
T: 86 722 3308751, M:8615271357675
Weichat:King253725877 WhatsApp:8615271357675 Skype:tomsongking Yahoo:tomsongking
Skip Loader hook lift hook lift truck
OBM ODM Refitting special vehicle MOUNTED ON RIGID Chassis
CNHTC-sinotruk-ZZ Chassis, Shanxi vehicle SHACMAN -SX Chassis, FOTON -Auman -BJ Chassis,FAW -jiefang-CA Chassis, Dongfeng -EQ/DFL Chassis, North BENZ -Beiben /TIEMA-ND/XC Chassis, ISUZU Chassis,DF NISSAN -UD Chassis, HINO Chassis, JMC Chassis,JAC Chassis, Hongyan IVECO , Hualing-CAMC Chassis Hook lift
