FOB: | |
---|---|
Availability: | |
Quantity: | |
| |
DRZ5160TXFCQ
DRZ
Code: 8705309000

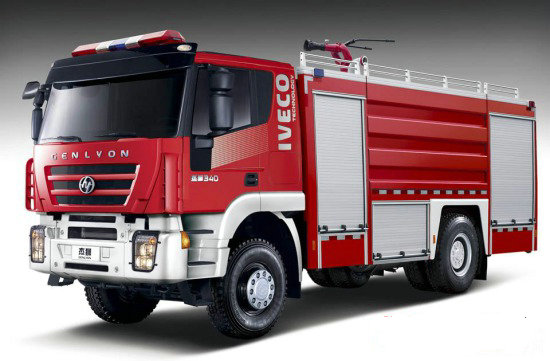

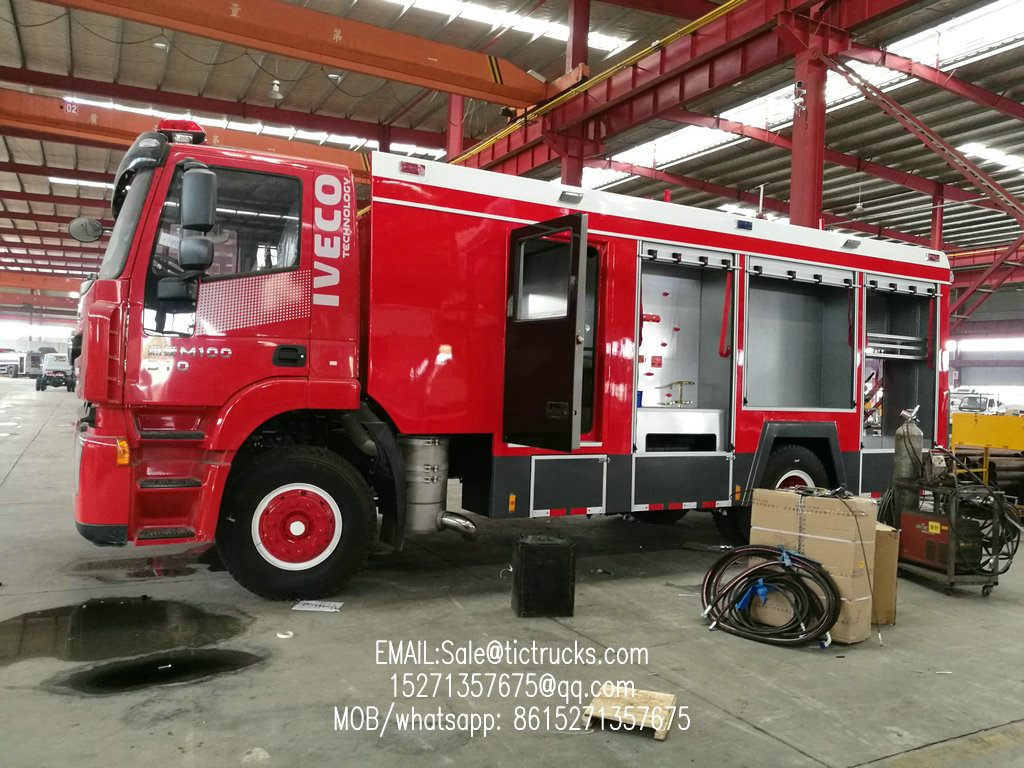

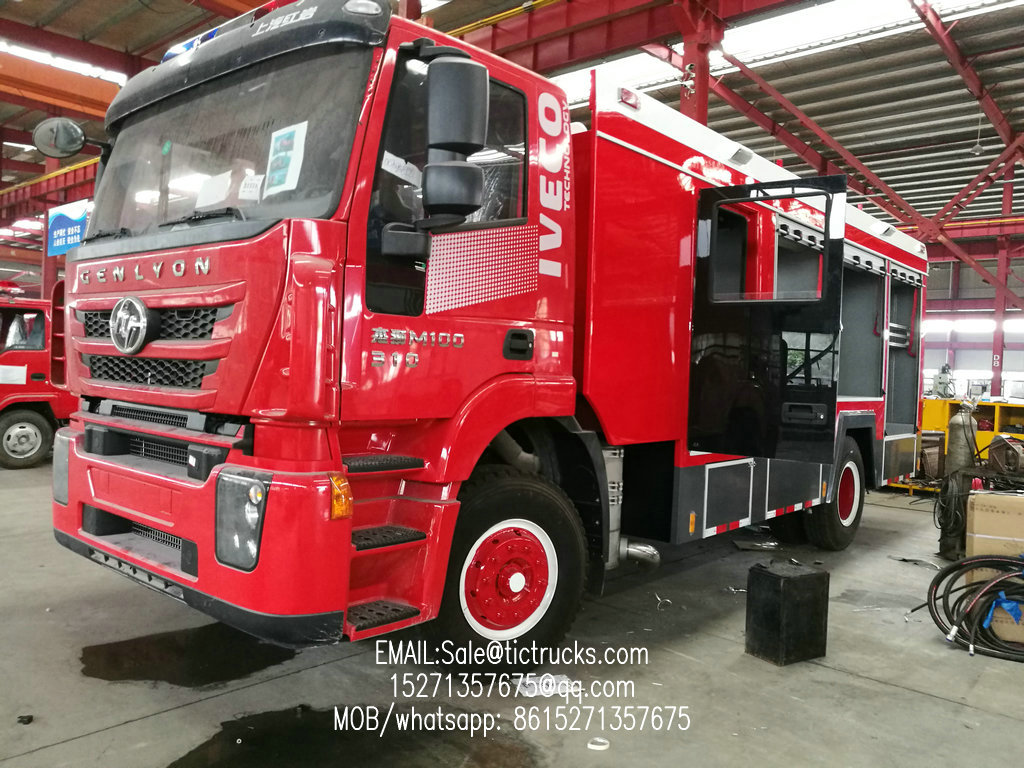

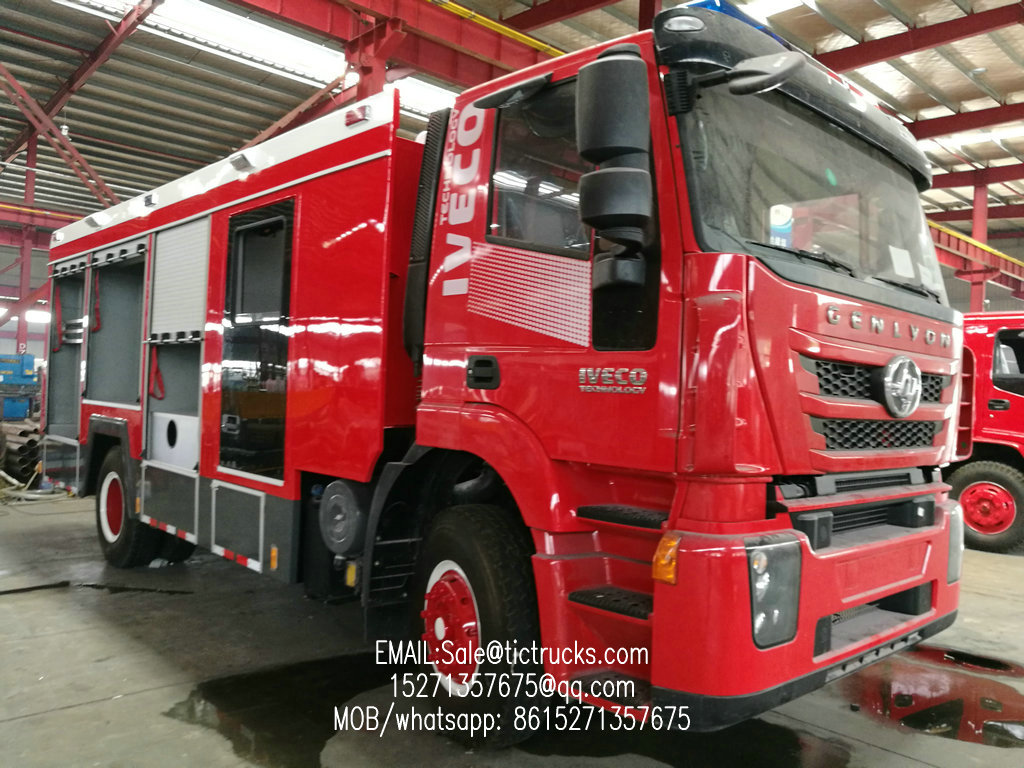

Hongyan Genlyon foam Fire engine 4x2
VECO Technology 5500L water and 1500Lfoam Fire Truck
IVECO Water foam Tank IVECO foam Truck
CB20.10/30.60 1.0MPa(Nomal Pressure) 60L/S,1.8MPa (Medium Pressure) 30L/S
Dong Runze Special Vehicle Wholesale 8615271357675
www.truckinchina.com
optional tank capacity as clients speical need.
IVECO fire Truck, IVECO foam Fire engine, IVECO foam Truck, Iveco Genlyon, IVECO tender, IVECO Water foam Tanker, IVECO water tanker, SAIC IVECO,
Hongyan Genlyon foam Fire engine 4x2
VECO Technology 5500L water and 1500Lfoam Fire Truck
IVECO Water foam Tank IVECO foam Truck
CB20.10/30.60 1.0MPa(Nomal Pressure) 60L/S,1.8MPa (Medium Pressure) 30L/S
Dong Runze Special Vehicle Wholesale 8615271357675
www.truckinchina.com
optional tank capacity as clients speical need.
IVECO fire Truck, IVECO foam Fire engine, IVECO foam Truck, Iveco Genlyon, IVECO tender, IVECO Water foam Tanker, IVECO water tanker, SAIC IVECO,
IVECO Technology 5000L water and foam Fire Truck
optional tank capacity as clients speical need.
Hongyan Genlyon foam Fire engine 4x2
VECO Technology 5500L water and 1500Lfoam Fire Truck
IVECO Water foam Tank IVECO foam Truck
CB20.10/30.60 1.0MPa(Nomal Pressure) 60L/S,1.8MPa (Medium Pressure) 30L/S
Customization, Cost Control Built How You Want it, at a Price You Can Afford. for sale call:+86-152 -7135-7675
SAIC-IVECO HONGYAN
Hongyan Genlyon 4x2 Water Tank Fire Truck Specification | ||
Driving Type | 4x2 | |
GVW (kg) | 19000 | |
Kerb Mass (kg) | 7000 | |
Wheel Base (mm) | 4600 | |
Outside Dimension (mm) | L | 8255 |
W | 2500 | |
H | 3800 | |
Max.Speed (km/h) | 80 | |
Engine | Cursor 9- C9.290 HP , C9.340 HP , C9.380 HP , C9.400 HP | |
Clutch | Single Plate,Φ430 Large Diaphragm-spring Type | |
Gearbox | 9JS119 | |

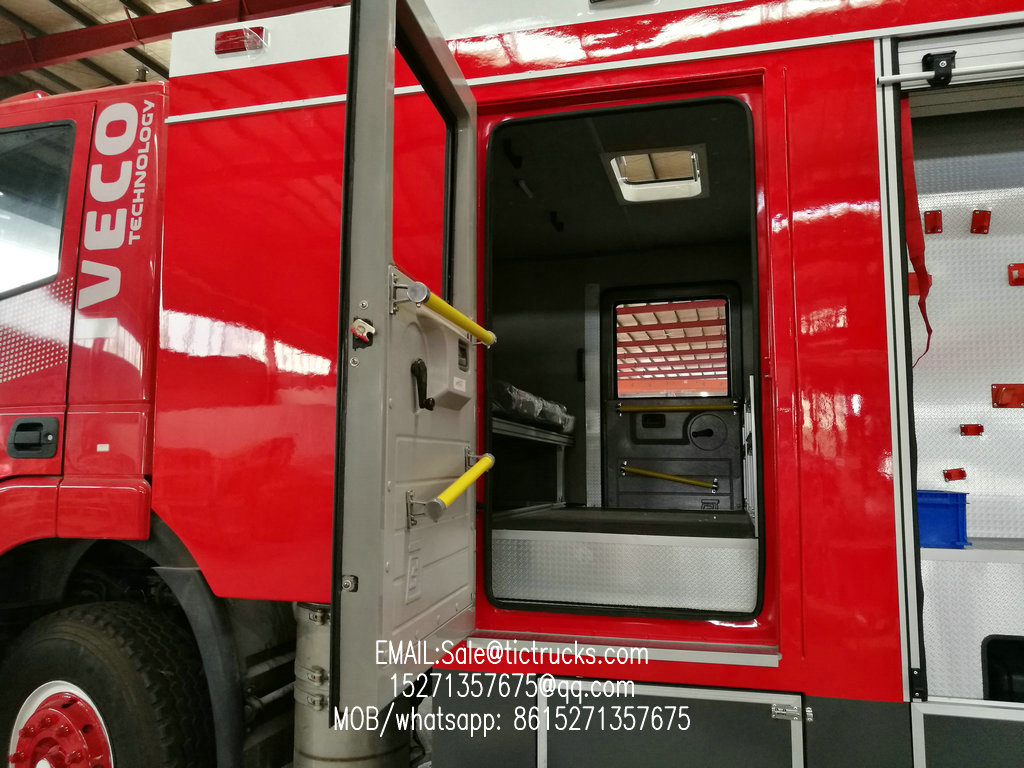

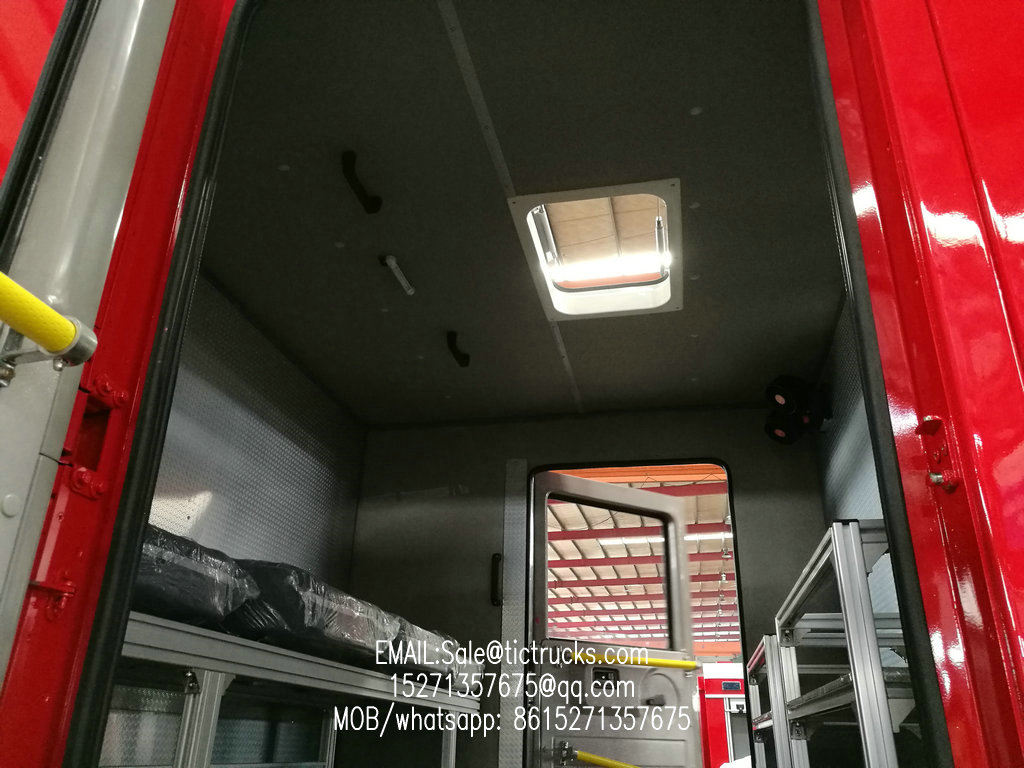

Cab | Twin-row Integrated Whelding with Special Hydraulic Tilting Structure | |
Grewmen(person) | 2+4 | |
Tank Capacity (L) | 8000 | |
Type of Fire Pump | CB20.10/30.60 (Imported Fire Pump Optional) | |
Flow Rate (L/S) | 1.0MPa(Nomal Pressure) 60L/S,1.8MPa (Medium Pressure) 30L/S | |
Mount Method | Rear Installation | |
Type of Fire Monitor | Ps60 | |
Shot Range (m) | Water >/=65 | |
Leaf Spring NO. | 9/10+6 | |
Steering | ZF 8098 Rotary Valve Steering | |
Rear Axle / Ratio | Hub Reduction Rear Axle Whelding Housing / 4.8 | |
Frame | 865x280x(8+5) | |
Tire | 12.00R20 | |
Emission STD | EURO III | |
Others | Fitted with General Equipment |
IVECO/SFH~Cursor 9 Diesel Engine Configuration Type C9.290 C9.340 C9.380 C9.400 Layout Six-Cylinder in line Bore * Stroke 117mm*135mm Displacement 8.7L Valves per Cylinder 4 valves Fuel Injection Electronically Controlled High Pressure Common Rail System Intake Mode Turbocharger VGT Rated Power / rpm 290HP 340HP 380HP 400HP Maximum Torque / rpm 1100Nm 1300Nm 1500Nm 1600Nm Fuel Consumption 196g/KW.h Emission Euro III / IV / V Size L1335mm*W825mm*H1055mm Net Weight 840Kg IVECO/SFH~Cursor 9 Diesel Engine |
Water tank | |
Capacity | 4500L |
Material | carbon steel |
Tank craftsmanship | welding type, inside the fortification dampers, with fast lock and open device, overflow device, liquid level indicator |
Foam tank | |
Capacity | 500L |
Material | carbon steel |
Tank craftsmanship | welding type, inside the fortification dampers, with fast lock and open device, overflow device, liquid level indicator |
Fire fight pump | |
Model | CB20.10/30.60 |
Type | High and low pressure fire pump |
Flow Rate | 3600L /min at 10 Bar, 1800L/min at 20 bar |
Suction Height: | 7 m |
Priming Time | 40 s |
Foam concentrate proportioner | |
Model | PH64 |
Mixing proportion | 6% |
Water and foam Roof monitor | |
Pressure | 10 bar |
Flow Rate | 60L/S |
Water Range distances | ≥60m/1.0MPa |
Water Range distances | ≥55m/1.0MPa |
Rotary angle | 360 |
high pressure hose with reel | 60 m high pressure hose with reel , Foam fire-fighting lance |
Pipeline system | excellent anticorrosive property excellent freeze protection excellent shockproof performance |

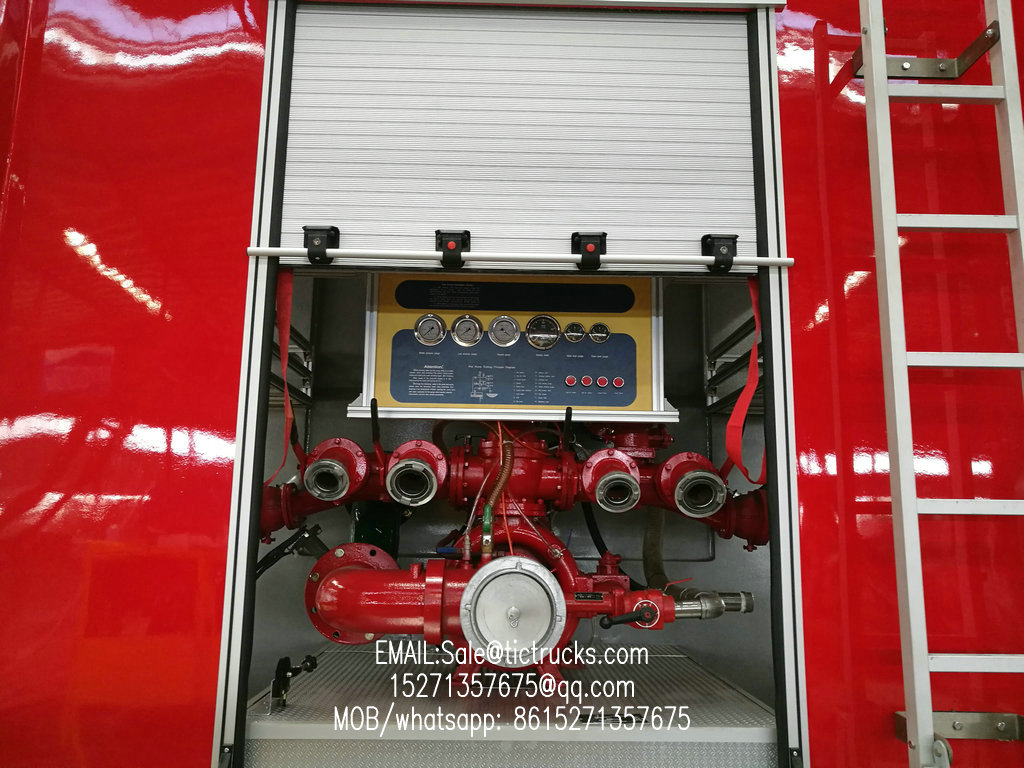

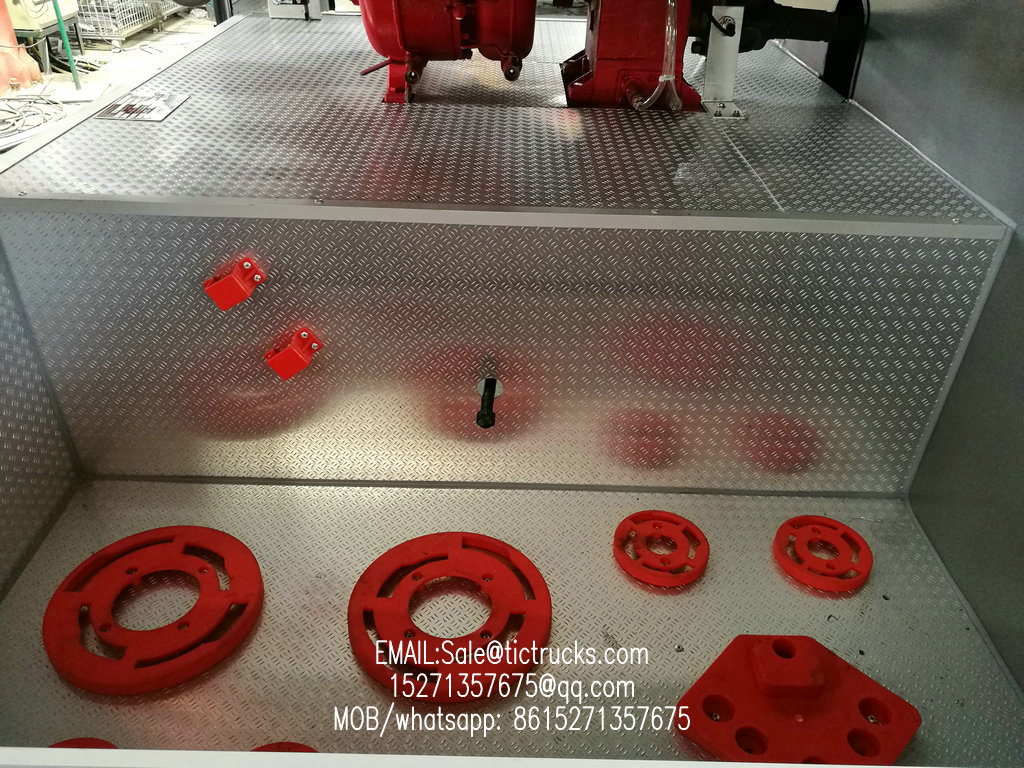

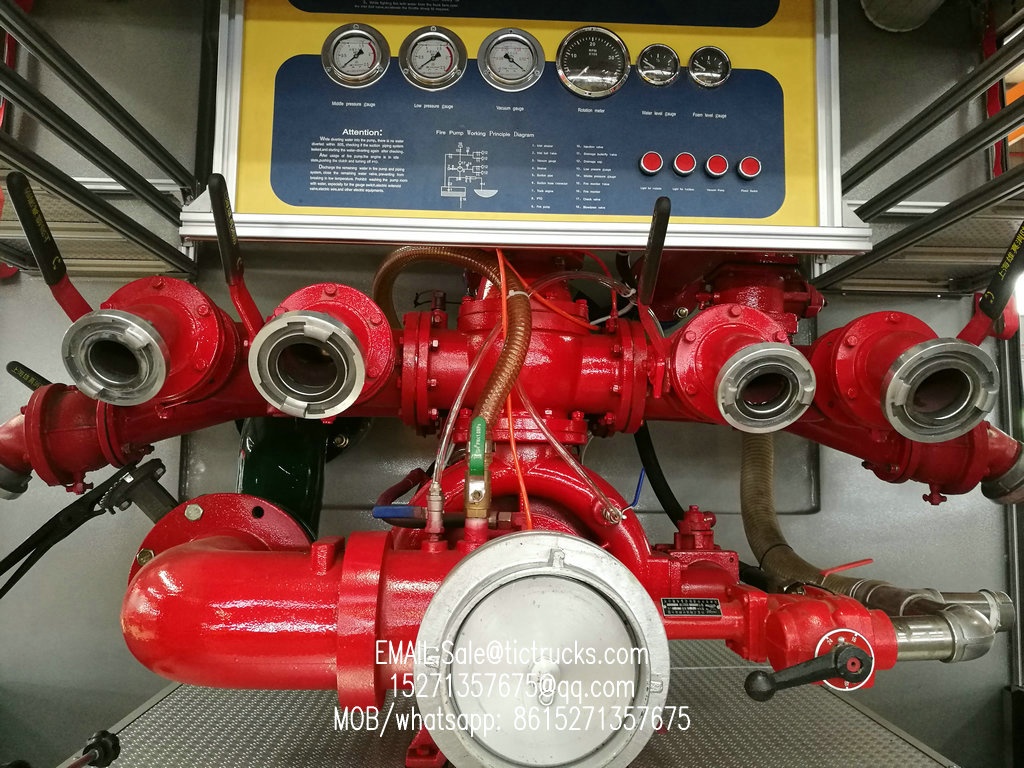

Pump room | Setting water pump system, each kind of instrument, liquid level indicator ,l pressure gauge , vacuum meter |

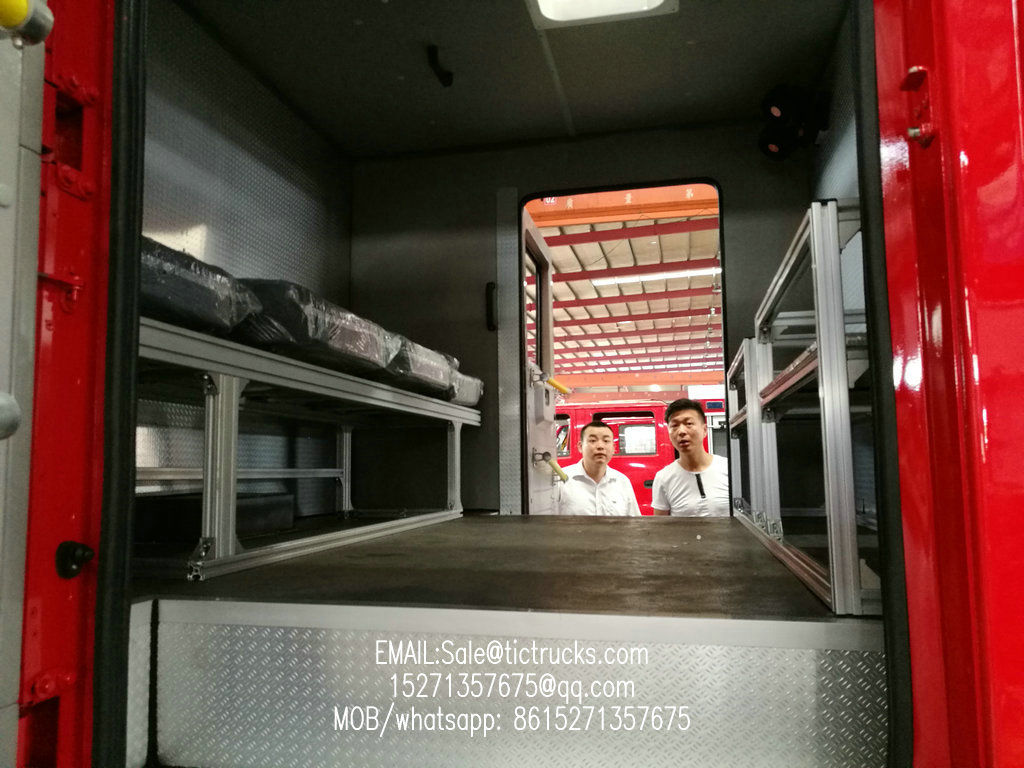

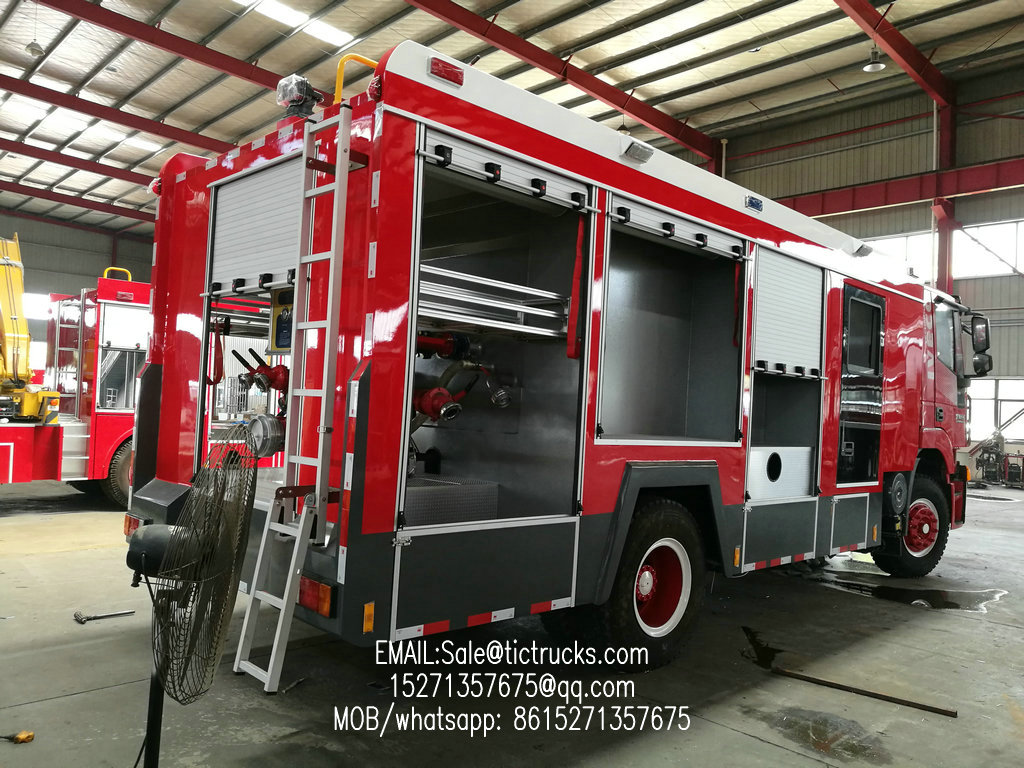

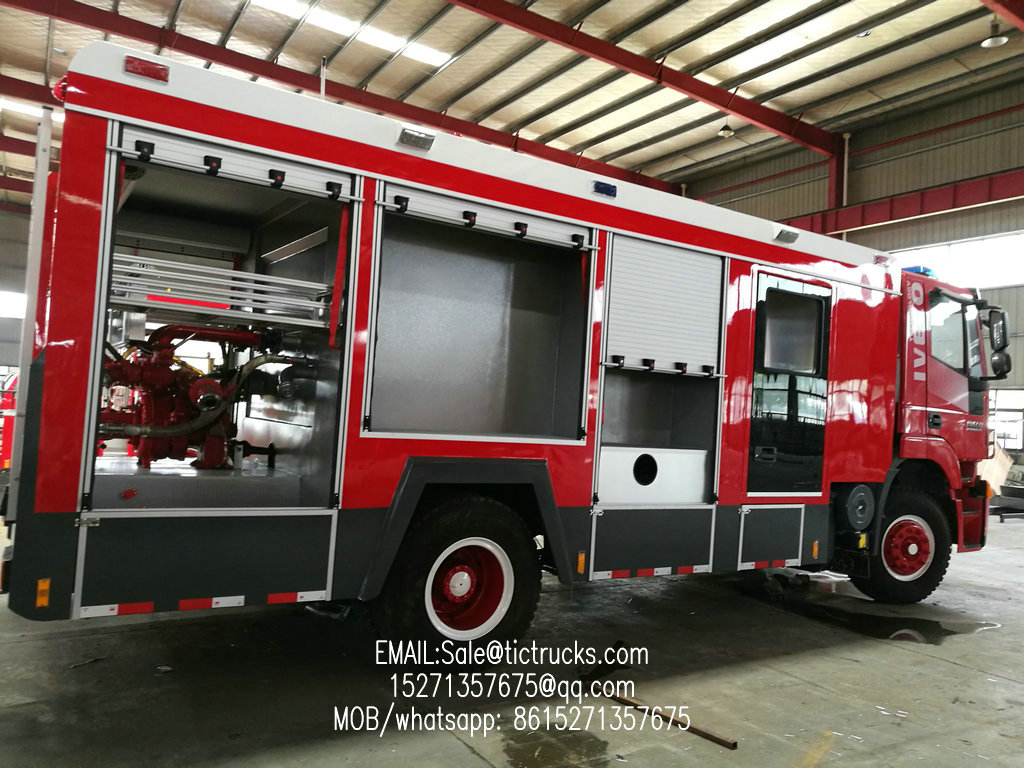

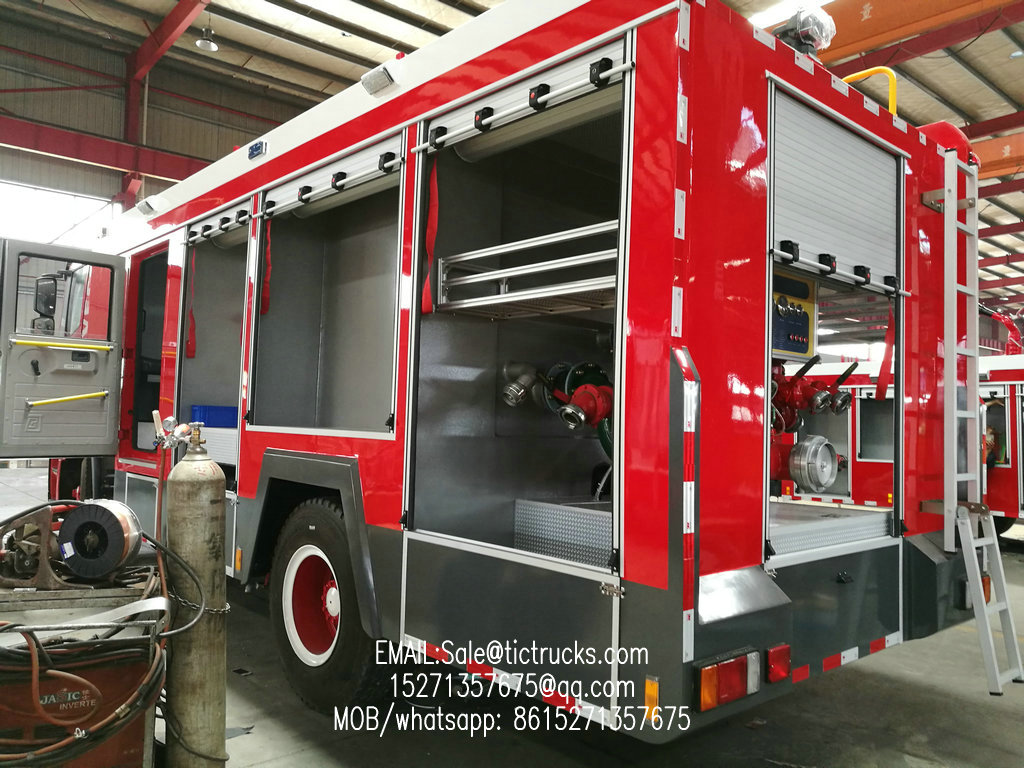

Storage Compartment | Equipment outside compartments skeleton using High quality carbon steel plate, inner frame Using high strength aluminium alloy profile,using Recessed lap structure design and production, Interior decorative pattern plate adopts the aluminum plate production, The surface use anodic oxidation process, sturdy and durable. In the structure, Equipment compartments decorate reasonable equipment to take more convenient, and special fixture device makes the equipment fixed deposit more firmly. |
Storage Compartment rolling door | using High quality aluminum alloy to design, flexible for opening, Low Noise, Good sealing, Nice appearance. |
Lighting System | Long line lights in the rear of the top cab, Alarm power : 100 W, in the front and rear of the roof with 24 V, 60 W fire lighting t, 100 W, And equipped with flash explosion. Cab, equipment boxes and Pump room all equipped with lighting |
Painting | R3 fire red quality high quality finishing paint, The roof ,wing plate ,Tire outer front bumper with white painting. |
Other Equipments | Roof barrier |
Prevent slippery Diamond Plate in the roof | |
Up and down escalator in the rear of the fire truck | |
Rotating lights switch | |
Power Control Switch | |
All operation switch instrument equipment and vehicles are in line with norms signs nameplate |
2. Equipment List of Annexes:
Equipment list
No. | Name | Specification | Q’t | Remark |
1 | 吸水管suction pipe | Ø125×2000mm | 4PCS | |
2 | 消防水带fire fighting belt | Ø65×2000mm | 8 | |
3 | 消防水带fire fighting belt | Ø80×2000mm | 4 | |
4 | 滤水器water purifier water-strainer | FJF125 | 1PC | |
5 | 二分水器 water segregator | FF65 | 1PC | |
6 | 异径接口increasers Reducing couplings | KJ65/80 | 2PCS | |
7 | Allotype reducing couplings | 1 Piece | ||
8 | 水带挂钩Hose hook | FG600 | 4PCS | |
9 | 水带包布Hose bandage | FP470 | 4PCS | |
10 | Hose protecter | 1 set | ||
11 | 地上消火栓扳手Over ground hydrant wrench | FB450 | 1PC | |
12 | 地下消火栓扳手Underground hydrant wrench | FBX800 | 1PC | |
13 | 吸水管扳手Suction pipe wrench | FS100/125 | 2PCS | |
14 | 直流开关水枪Water fire-fighting lance straight stream shut-off nozzle | QZG19 | 1PC | |
15 | 直流水枪 Water fire-fighting lance straight stream nozzle | QZ19 | 1PC | |
16 | 直流开花水枪Water fire-fighting lance straight stream multi-jet squirt | QZH19 | 1PC | |
17 | 空气泡沫枪 Foam fire-fighting lance air foam nozzle | PQ8 | 1SET | |
18 | 空气泡沫枪 Foam fire-fighting lance air foam nozzle assembly | PQ4 | 1SET | |
19 | Proportioner suction tubes | 1Piece | ||
20 | suction tubes wrench | 2 Piece | ||
21 | bucket | 1 Piece | ||
Rescue tools | 消防腰斧fire fighting axe | GF285 | 1PC | |
铁铤tool shovel | GT1 | 1PC | ||
pickaxe | 1 Piece | |||
急救箱emergency box | 1set | |||
灭火器fire extinguisher | 1set |
WARRANTY
1 years Cab and Structure
1 years Chassis frame ( from Chassis fatory)
An operating and maintenance training for the buyer personnel is provided in our factory for 2 days till it’s believed all necessary details are shared.If it’s requested , our technical team (consisting 2 technician) could also travel to the buyer’s homeland in order to provide this training. In this case, all transportation and accommodation costs ( visas – plane tickets – airline fees – motorway transportation –hotel room – meals etc.) on route of “Hubei China – Buyer’s Field – Hubei China” is undertaken by the buyer. Normally, total training time doesn’t get longer than 2 days with all necessary conditions are met.Operating and maintenance manuals and CD's in English language.
Driver ManagementMaintain records of driver activities and performance and evaluate driver capability and productivity.
