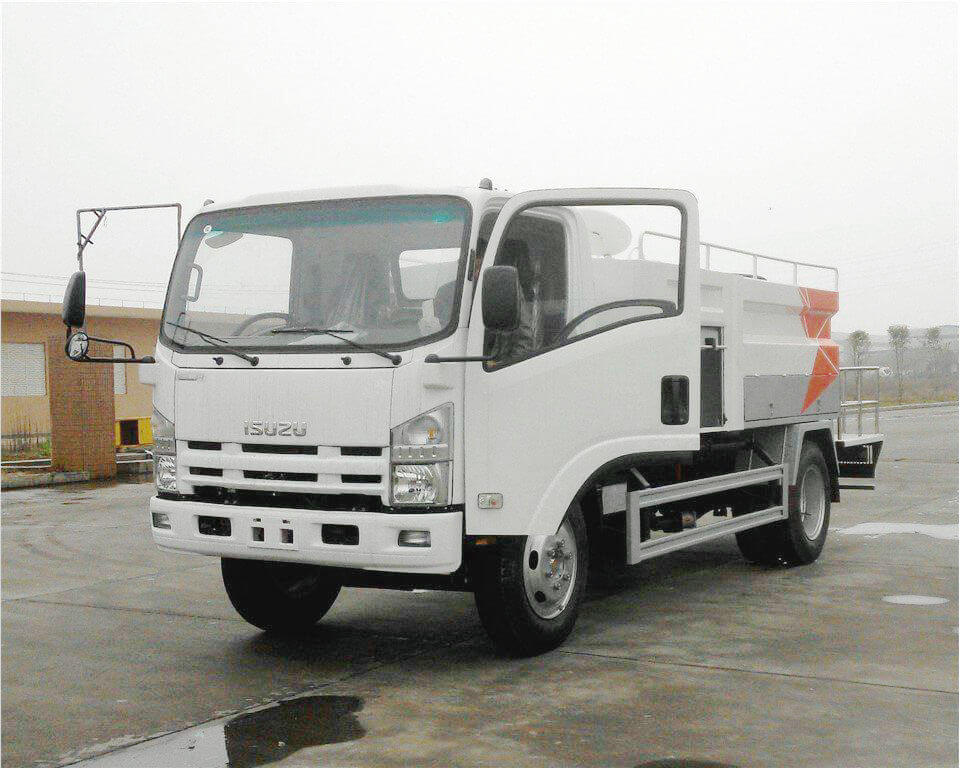

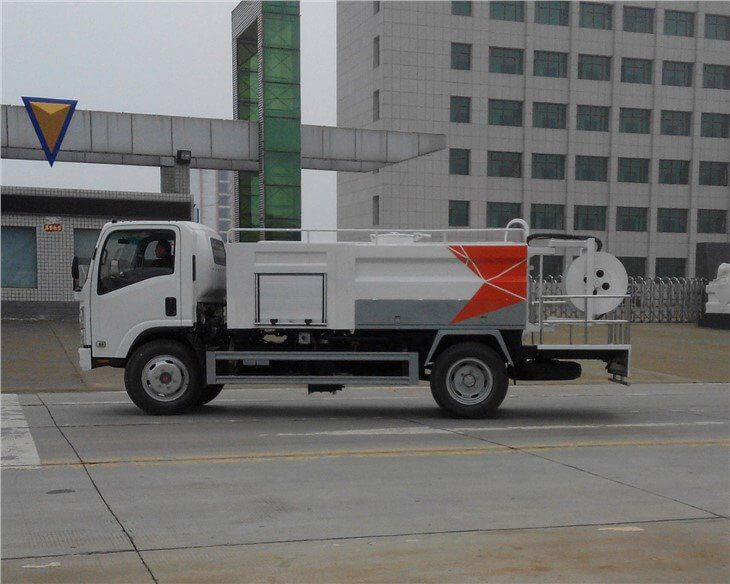

ISUZU High pressure Sewer Jetting Truck 4CBM
Views: 0 Author: Site Editor Publish Time: 2022-01-17 Origin: Site
ISUZU High pressure Sewer Jetting Truck 4CBM
BRIEF
Model Number: DRZ5071GQX
Water Tank capacity: 4CBM
Plunger pump: Pratissoli KF36
Chassis brand: ISUZU
Engine horsepower: 120-130HP
FEATURES
● ISUZU, Sinotruk, Shacman, FOTON, Dongfeng, and other brand chassis and Italy pressure pump are availed. our high-pressure jetting truck runs on site with high pressure and large output and longtime continuous working performance, which make it the best choice for 150mm-800mm pipeline.
● Hydrodynamic drain line cleaning.
● High pressure surface cleaning.
● High pressure industrial cleaning.
● The small jet cleaner can be used for narrow roads or residential operations, and the large sewer jetting truck can be used in other public areas.
● High-pressure water pump: imported high-pressure water pump from Europe and America, which has higher water pressure and flow.
● Large storage space: It can be equipped with tools and equipment such as mobile power supplies and portable pipeline detectors.

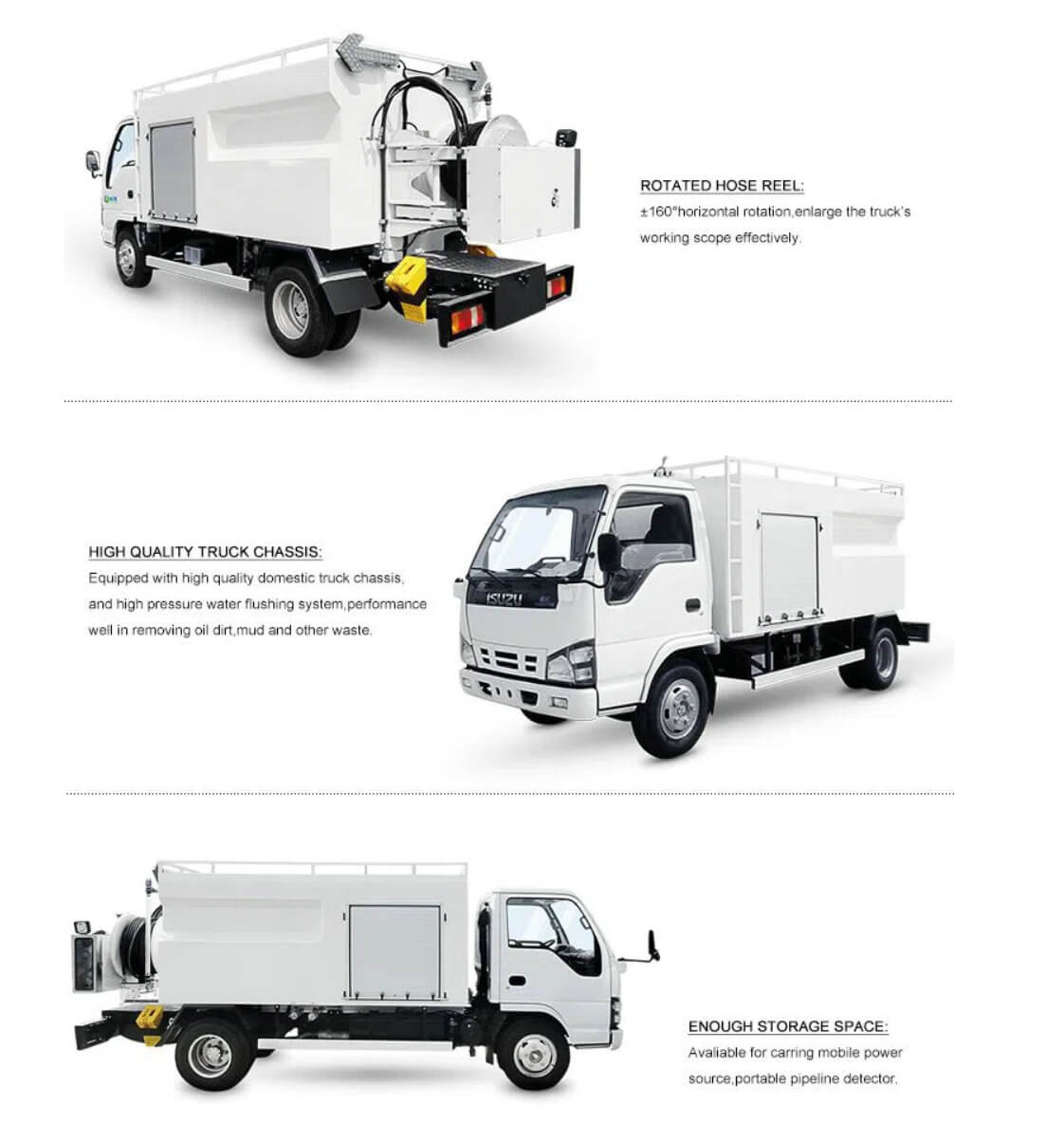

● Rotating winch: The dredging winch can rotate ±160 degrees horizontally, effectively increasing the vehicle's adaptability to the dredging position.
● Hydraulic retractable can be selected: it can realize the reciprocating dredging and cleaning of the sewer pipes, increasing the cleaning effect and reducing the labor intensity of the operators.
● Fashion design: The appearance of the whole vehicle is handsome and stylish, and the design of humanization and visual details reflects unique ingenuity. It adopts domestically-made chassis, has high-cost performance and perfect after-sales service guarantee system.

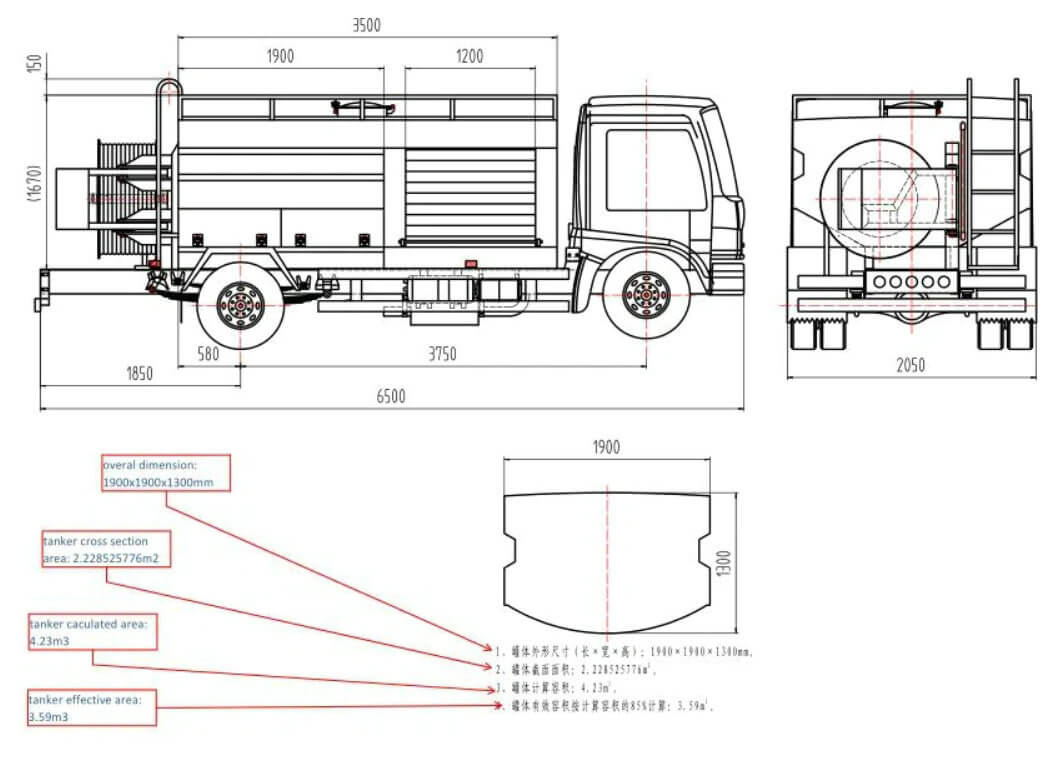

Structure drawing for reference only and main parts of high pressure jetting truck
Structure Components
High pressure pump: high pressure pump is the power source of the high-pressure water, suction inlet, overflow gate connects with water tank, outlet gate connect operate panel and nozzle through high pressure hose.

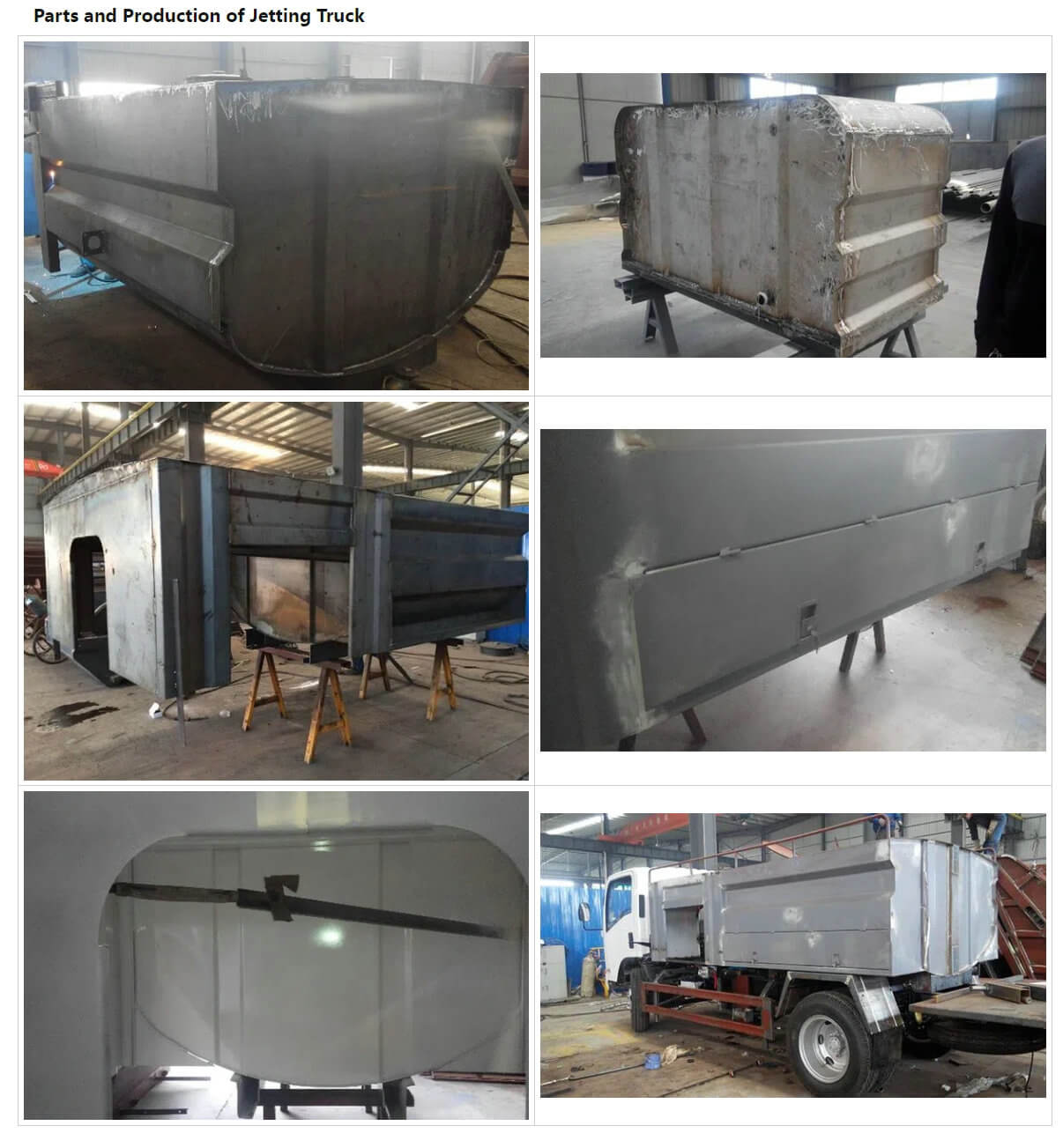

Water tank: Water tank is welded by carbon steel or stainless steel, elliptical type, with manhole on the top of the tank, it could fill water from fire hydrant and water hose. Water tank’s outlet gets through jet pump’s suction inlet via Y type filter. The high pressure water discharged from jet pump, then get through high pressure hose, operate valve、nozzle and discharged as jet current to dredge. The capacity of the tank dedicated for pure water depends on GVW of the chassis. The cylindrical tank is mounted on a subframe and is placed on the chassis in accordance with strict vehicle construction standards. While stop working, change the three-way ball valve to make the high-pressure water back to the tank.
Hydraulic system: Hydraulic system the oil pump of the hydraulic system fixed on the main axle of the jet pump. The oil change into high pressure oil while get through the gear pump. And then get through spillover valve、reducing valve and oil pipe, get in the manual change valve. Move the handle of the manual change valve, it could change the direction of the high pressure, thus make the hydraulic motors rotate direction, to drive the Roundup hose wheel extend or withdraw the high-pressure pipe.

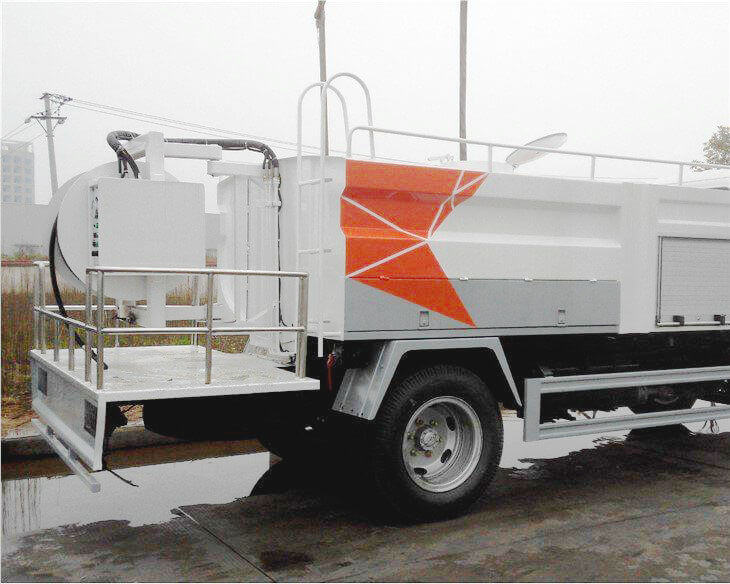

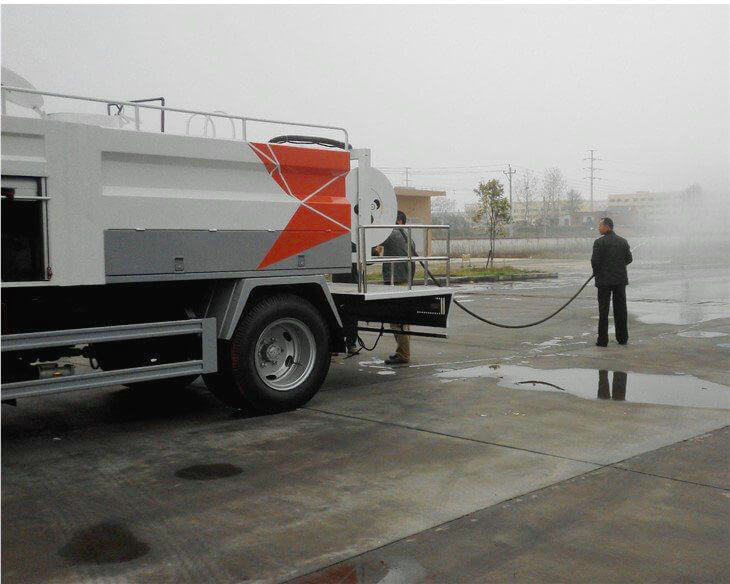

Hose reel: Hose reel fixed at the rear location of the truck. It drives by hydraulic motor; the high-pressure pipe is twined on the roundup hose-wheel. The high-pressure water gets into the fixed end of the high-pressure pipe. On the other end fixed the nozzle, the high-pressure water change into high-speed Brooklet to move the pipe clean the sewer. While the nozzle gets the other well head, the pipe withdraws as the Roundup hose-wheel drive. Meanwhile the high-pressure water keeps jetting and discharges the sludge.
Exterior of water tank: it can be equipped with lockable side boxes, which increase safety and aesthetic appearance of the jetting truck. It consists of convenient tool boxes with key-locked.
SPLIT SHAFT PTO: It is the mechanism that the rear axle with the front axle engaged in the process of separation and transfers the vehicle’s power to the Pumps without yield loss.
nozzles: Insert type is of ceramic with lobes. Achieve linear water jet instead of mist flow, ensure the best direction of flow and less pressure loss. Optional front jet makes work be easier. Hardening treatment achieves less or no wear and tear. And 2 different nozzles suit different sewer pipe.
Security system is optional: Voiced and Illuminated Warning Systems; When clean water is empty, electronic sensors engage and then buzzer blare and warning lamps illuminates. The Pump automatically stops. Level Indicators: Level indicators are used to watch to water level of clean water area.
High pressure surface cleaning.
High pressure industrial cleaning.
The small jet cleaner can be used for narrow roads or residential operations, and the large sewer jetting truck can be used in other public areas.
Specification
General | |
Truck Model | CSC5071GQX |
Overall Dimension | 5980x1920x2450mm |
Chassis Brand | ISUZU |
Chassis Model | QL1070 |
Driving type | LHD |
GVW | 7300kg |
Curb weight | 4060kg |
Axle No. | 2 |
Wheelbase | 3360mm |
Approach / Departure angle | 24/14° |
Tire No. | 6+1spare tire |
Tire Specs. | 7.00R16 7.00-16 optional |
Max. Speed | 95km/h |
Front axle capacity | 2580kg |
Rear axle capacity | 4720kg |
Springs | 8/6+5 |
Front wheel trace | 1504mm |
Rear wheel trace | 1425mm |
Engine | |
Brand | ISUZU |
Model | 4KH1-TCG40 |
Horsepower | 120HP |
Displacement | 2999ML |
Emissions standard | Euro4 |
Max. Torque | 290N.m |
Max. rotated speed | 2900rpm |
Type | 4 Stroke, Inter-cooling Turbo-Charged, 4 Cylinders |
Transmission | |
Brand | ISUZU |
Model | MSB |
Forward/reverse | 5F/1R |
Type | Manual |
Cab | |
Type | Single-Row Cab with Air Conditioner |
Color | Usually white |
Water Tank | |
Capacity | 4CBM/4,000Liters |
Material | High quality carbon steel, stainless steel is optional |
Thickness | 4mm |
Welding | machine welding automatically |
Jetting Pump | |
Brand | PRATISOLIO KF36 |
Origin | Italy |
Type | High pressure plunger pump |
Pumping speed | 122L/min |
Pressure | 16Mpa/800rpm |
Installed | High quality split-shaft-PTO to drive it |
Jetting system parts | |
Pressure pipe diameter | 25mm or 19mm /DN19 or DN25 |
Pressure jetting hose length | 60-100m is optional |
Brand | Domestic or USA or Italy are optional |
Water feeding system | |
Special water feeding system | installed on assembly part which used to feed water into water tank |
High pressure nozzles | |
Brand | Domestic or USA or Italy are optional |
mushroom nozzle | 3/4”,1pc |
grenade nozzle | 3/4”, 1pc |
diamond nozzle | 3/4”, 1pc |
Cleaning pipe reel optional | |
Length | 15m |
Pipe reel with nozzle | 1pc |
Control Box | |
Quantity | 1pc |
Stainless steel box | With all operation buttons on panel |
