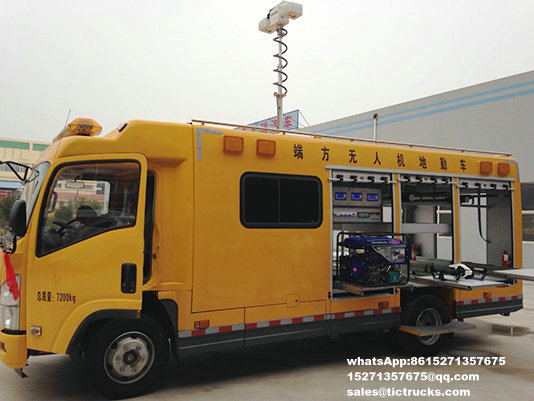

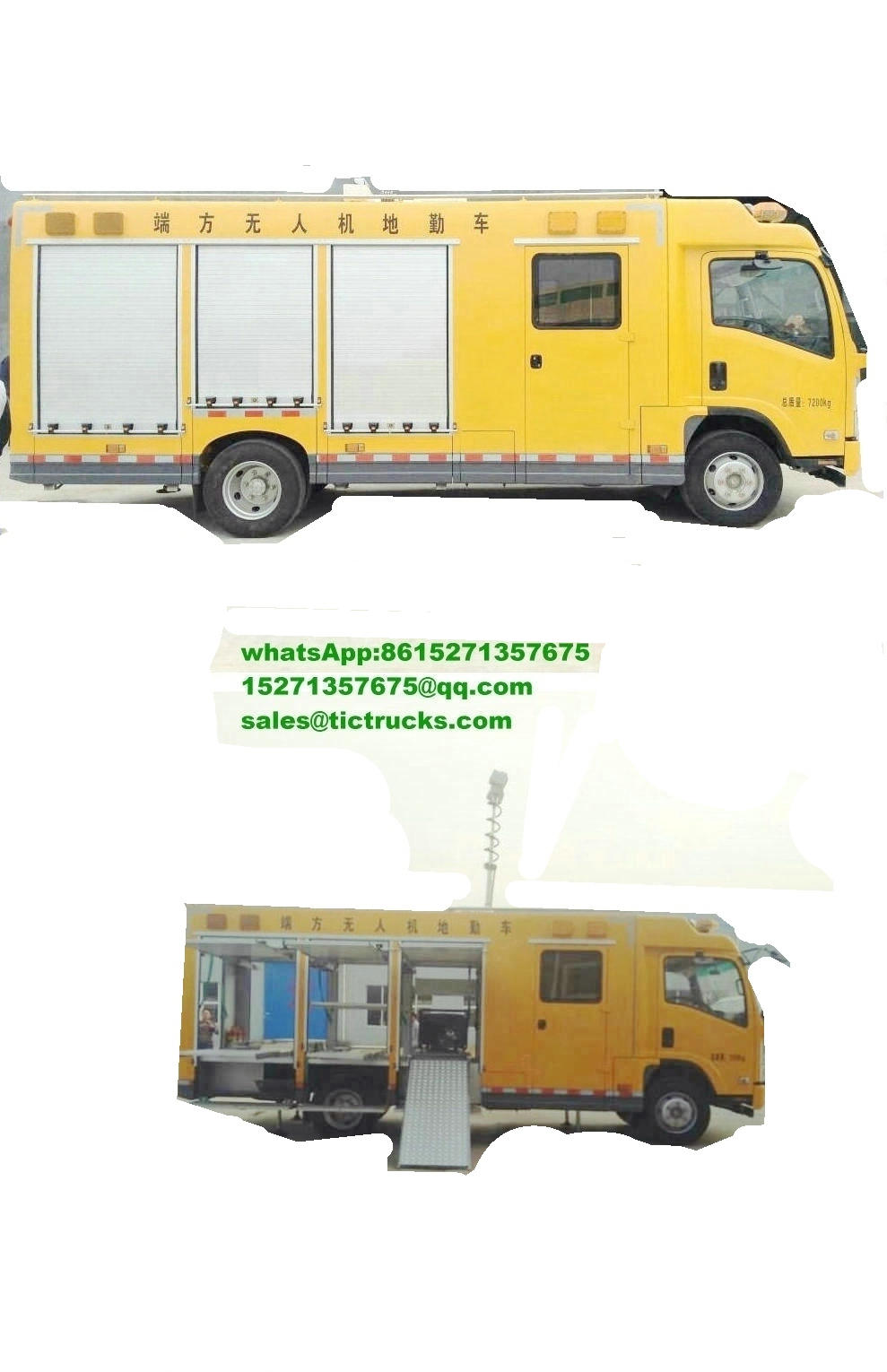

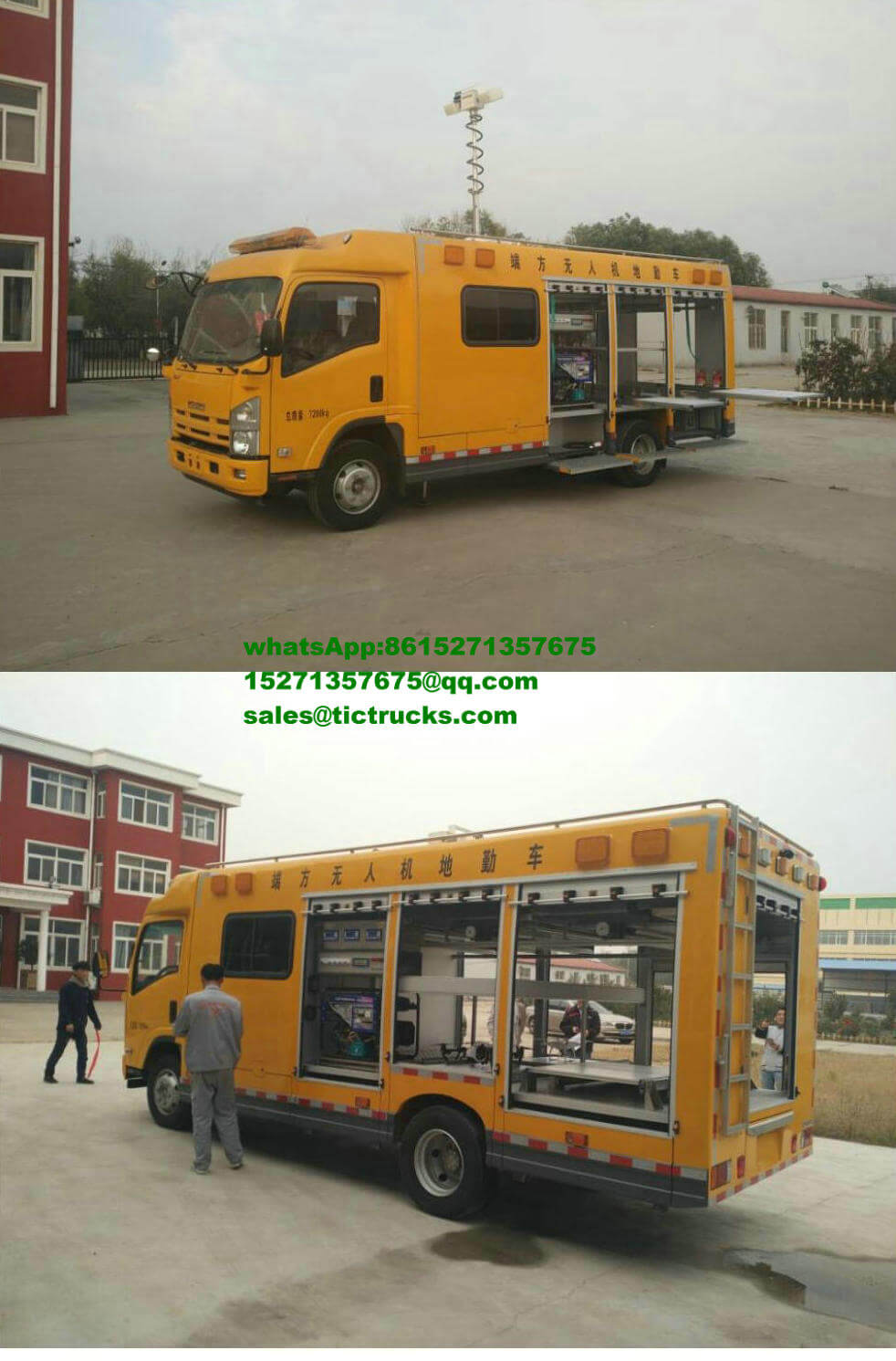

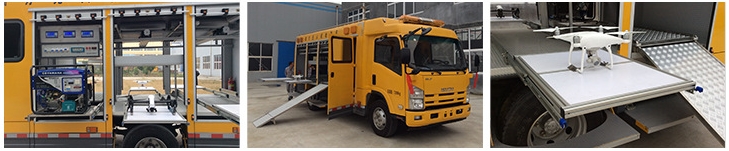

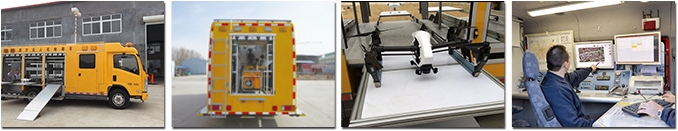

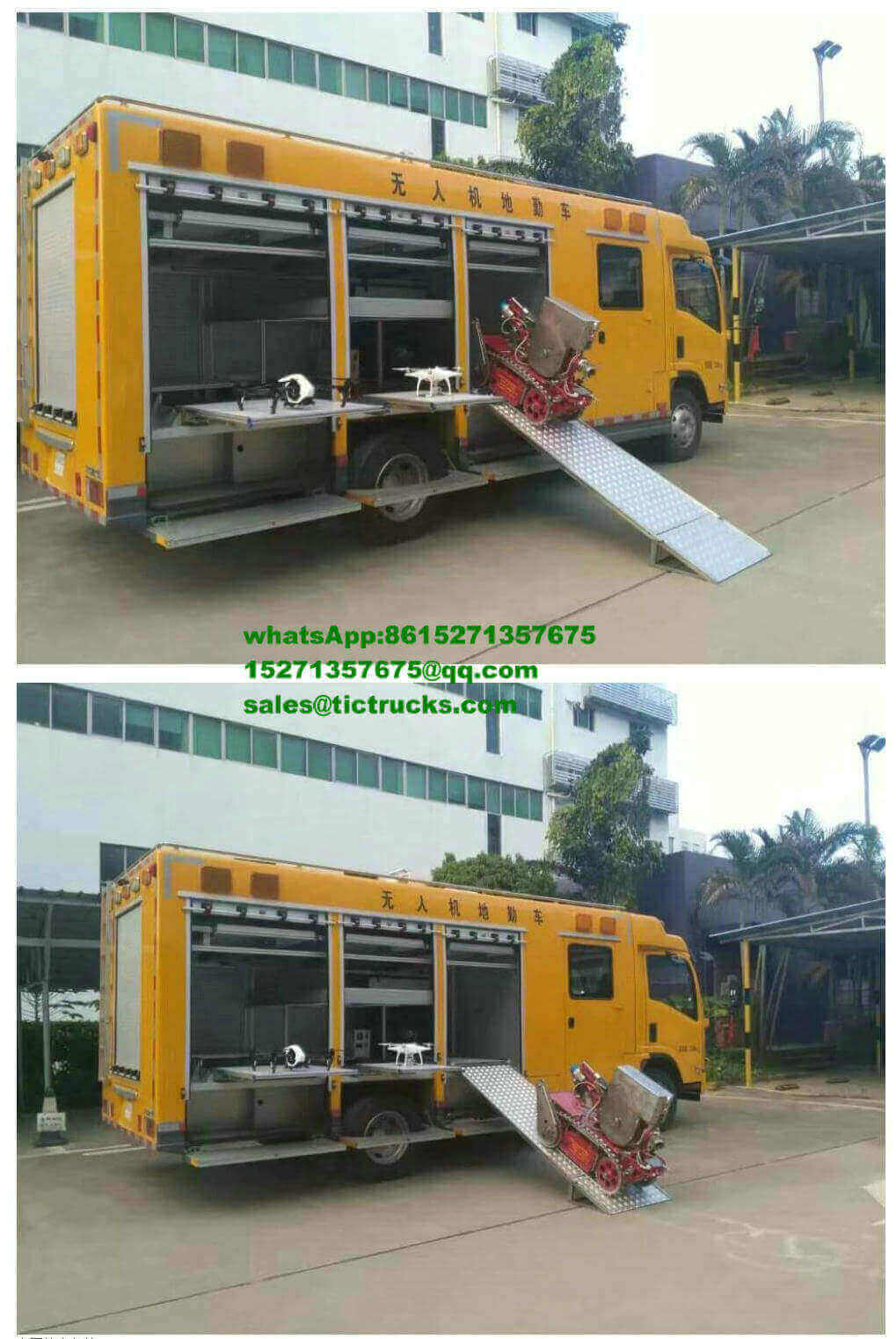

ISUZU 700P unmanned drone ground vehicle export price
Views: 1609 Author: ISUZU Truck Customizing Publish Time: 2017-07-03 Origin: ISUZU Truck Customizing
ISUZU 700P unmanned drone ground vehicle export price
export price FOB:$123000-CIF$125500USD
aircraft,spacecraft,craft,aerocraft,flyer,drone ground vehicle
Modified configuration | |||
Serial number | No. | unit | |
1 | Qingling ISUZU 700P, class II chassis . Overall dimensions:length 7305 width 2320 high 2900 (3150); diesel fuel, five discharged; wheelbase:4175, accessible by 5~6 people power: 139kW. | 1 | pcs |
2 | 1) streamlined integration of cab and cab design. CAB top is closed, not open. 2) envelope for the rest, the control room in the front and rear of the equipment compartment. Equipment cabin side fire aluminium roller shutter door 3 depending on the size of the device configuration groups, group 1 at the back (with the key mortise deadlock). Rear left and right put unmanned devices, can easily access the device using a dedicated device. 3) equipment cabin floors and interior is paved with small wood grain aluminum panels. 4) skeleton of aluminum profiles for well-known brands. 5) bus skirt enclosed structure designed down can be done still. Can be placed inside small equipment. 6) rest, before the left side of the control pod to open a saloon cars (equipped with key mortise deadlock), the cabin about installing 2 RV-specific window. Interior car layout. | 1 | pcs |
3 | Restructuring of cab, original car air conditioning control room | 1 | Set |
4 | Hydraulic RAM | 4 | Set |
5 | Cutting pattern aluminium floor | 1 | Set |
6 | Body sides and rear door | 7 | Set |
7 | Equipment warehouses on both sides of the Cabinet body: 30 aluminium and connection accessories, small wood grain aluminum base plate laying. | 1 | pcs |
8 | Line of work lights (yellow): 100W, LED | 1 | Nondescript animals |
9 | Flanked by yellow flashing lights: LED | 8 | |
10 | Rear combination of yellow and white strobe lights: LED | 1 | Group |
11 | Interior lighting: adjustable lighting and automotive lighting lamp | 4 | Nondescript animals |
12 | External power supply system | 1 | Set |
13 | Electric centralized control system | 1 | pcs |
14 | Security system: grounding, fire extinguisher | 1 | Set |
15 | Vehicle spray and appearance identification | 1 | Set |
16 | Other | 1 | pcs |
17 | Solar Panel bracket-side pull | 1 | pcs |
18 | Folding lift lighting camera system, 2*250W dysprosium lamps | 1 | pcs |
19 | Car roof mounted air conditioner system | 1 | pcs |
20 | Gasoline generator 5.5KW | 1 | pcs |
Equipment table | |||
Serial number | Equipment | NO. | unit |
1 | The fire-fighting robot | 1 | pcs |
2 | Dajiang unmanned machine S1000 | 1 | pcs |
3 | Art-UAV A8-H | 1 | pcs |
4 | Dajiang drone Elf 4 | 1 | pcs |
5 | Dajiang drone INSPIRE | 1 | pcs |
6 | Anti-unmanned machine gun | 1 | pcs |
7 | Solar power generation system | 1 | pcs |
8 | System box | 1 | pcs |
9 | Explosion-proof battery box | 2 | pcs |
10 | Fire extinguisher | 2 | pcs |
11 | Drone repair kit | 1 | pcs |
