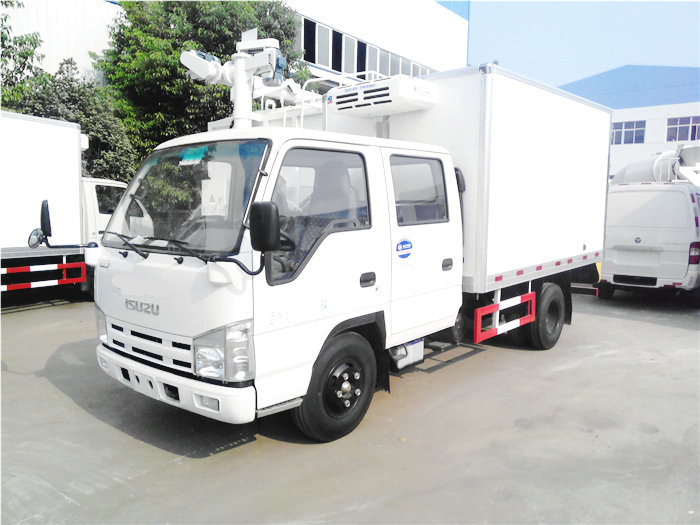

ISUZU 5041XLCQ Freezer Truck 2~3T 9.6m3<Customization>

ISUZU 5041XLCQ Freezer Truck 2~3T 9.6m3
Availability:
Quantity:

ISUZU 4x2、 5041XLCQ Freezer Truck  2~3T
choose the freezer unit  -18C refrigerated trucks

 Online call me Call me!Tom

FACT LOADING: 2-3 Ton;

VAN VOLUME: 9.6 CBM; 3150*1750*1750
ENGINE: 98HP,diesel engine,EURO IV;  4JB1CN
TRANSMISSION:5-speed with over drive;
TIRE SPECIFICATION: 7.00-15 10PR/ 6+1;
With insulation van and refrigeration unit ;
Refrigerated truck is mainly used to transport fresh meat, vegetables and seafood etc. Special ones can also transport dangerous chemicals.
Can be designed as you want.


       [Chassis Technical Parameters
       Chassis Type        QL10403HWRY        Chassis name        Light truck chassis (II)
       Brand name        Isuzu brand        Manufacturer        Qingling Motors Co.
       Dimensions (mm)        5900 &times; 1860 &times; 2180        Number of tires        6
       Approach / departure angle (&deg;)        24/16        Tire specifications        7.00-15 10PR, 7.00R15 10PR
       Number of leaf spring        8/6 + 5        Front track (mm)        1385
       Type of fuel        Diesel fuel        Rear track (mm)        1425
       Emission Standards        GB17691-2005 (National Ⅳ), GB3847-2005
       Engine Model        Engine manufacturer        Displacement (ml)        Power (Kw)
       4JB1CN        Isuzu Qingling (Chongqing)Engine Co., Ltd.        2771        72

The main configuration instructions:
One,    Chassis parts: Chongqing Qingling chassis, Isuzu engine, authentic national IV emission 98 horsepower, wheelbase 3360, 7.00-15 nylon tire, power steering, original air conditioning, oil brake, Double Cab, other standard;
Two,    Tops parts: Case Size 3150 * 1750 * 1750, vehicle dimensions strictly announcement sized, color steel outer and inner envelope using glass and steel production, intermediate 8 cm thick polyurethane insulation panels, door frames and door trim all use Stainless steel, stainless steel corners, aluminum extrusions edging, with the dome light and bumper blocks, rather the point of non-independent air-conditioning unit,   inside the minimum temperature 0 ℃ to-5 ℃;-5 to-18 ℃;

ISUZU  4x2、4x4 Freezer Truck  2~3T

 ISUZU-5041XLCQ04T-freezer truckISUZU-5041XLCQ11T-freezer truck

 you can choose the freezer unit your self:
 Refrigerated: insulation thickness 8CM, meat hook rail plus $300 / m, meat hooks $10 / pcs, meat hooks standard three rails, ventilation slots $300 / m, open side door plus $400, excluding the price of other requirements

 control system in the can for freezer unit
