Hyundai Spray Bitumen Distributor Truck 3-5m3

Views: 512 Author: Site Editor Publish Time: 2022-04-29 Origin: Site

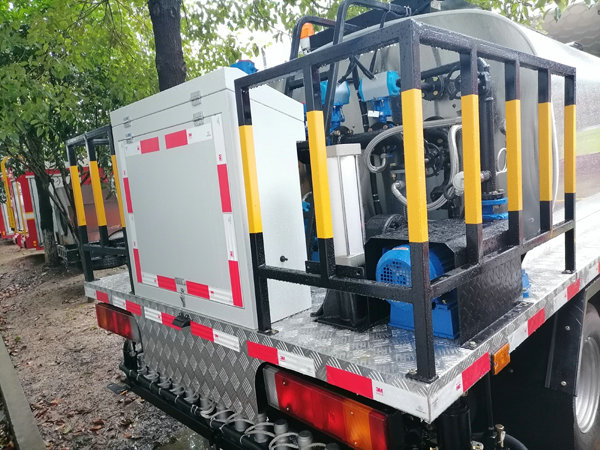

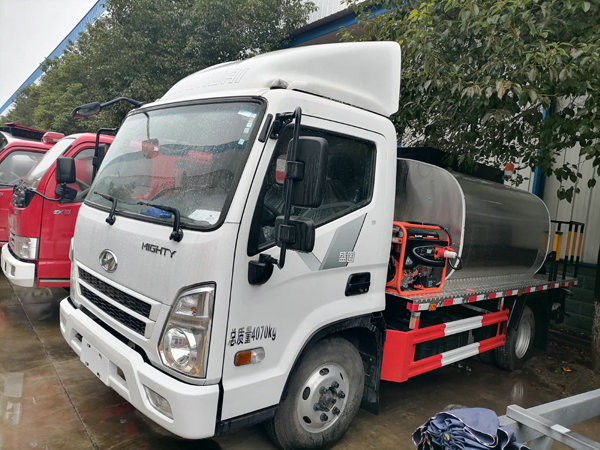

Hyundai Spray Bitumen Distributor Truck 3-5m3

Bitumen Distributor Truck Technical date:

Truck model			DRZ5080G
Cab			Hyundai cab with one sleeper, with power steering. Electronic flameout
Driving Type			4*2
Max Speed (km/h)			90
Overall dimension(mm)			7760×2500×2880 (mm)
Mass in working order( kg)			8495
GVW( kg)			6000
Wheelbase(mm)			3800
Tire			7.00
Clutch			Single-plate dry diaphragm spring clutch
Steering			Hydraulic steering with power assistance
Gear box			6-speed
Engine	Model		EURO II
	Horse power		130HP
Braking system	Service Brake		Compressed air brake
	Park Brake		Spring energy
Eletric system			24v
Upper-Body specification
Tank Volume (m3)		4-6
Asphalt pump discharge(L/min)		300
Distribution width measurement(mm)		3500~4000
Distribution height from ground level(mm)		200~450
Distribution quantitative(L/m2)		0.2-3
Burner		G10
Asphalt pump		QGB270
Asphalt pump hydraulic drive motor		05-110-BD31
Hydraulic pump		CBQ540-L
Control method		Manually controlled two by one
Heating Model		Thermal fuel Automatic heating
Conducting oil pump		40-25-160

12m3 12000L Bitumen Tanker
14m3 14000L Bitumen Tanker
15m3 15000L Bitumen Tanker
16m3 16000L Bitumen Tanker

Sinotruck HOWO 15t Bitumen Automatic Intelligent Asphalt Distributor Tanker Truck

Brief introduction of asphalt distributor truck

Model	DRZ5250GLQZ	Curb weight	16805
Overall size	11000×2500×3500(mm)	Type	6x4
wheelbase	4600+1350mm	Power steering	Equipped
Front Axle	HF7T	Rear axle	HF 16T
Gearbox	Manual	Tire	295/80R22.5
Engine	371hp	Power steering	Equipped
Asphalt pump	950L/MIN	Generator power	6kw
Capacity of Asphalt	0.25-2.5L/m3	Diesel burner	G10 from Italy

Configuration Type

Details of Asphalt truck

Normal configuration Simple type

1. Asphalt pump: ZP230 insulation type high viscosity asphalt pump;

2. Asphalt pump drive motor: GM05 series high-torque plunger motor;

3. Burner: G10 imported from Italy

4. Temperature control: AI-218 microcomputer temperature controller;

5. Spreading width: 1.2m ~ 4.5m, optional 6m

6. Spray control: manual adjustment

7. Asphalt pipeline compressed air cleaning function

Ordinary configuration

1. Asphalt pump: ZP230 insulation type high viscosity asphalt pump;

2. Asphalt pump drive motor: GM05 series high-torque plunger motor;

3. Hydraulic pump: F563 aluminum alloy gear pump;

4. Hydraulic system: manual flow control valve imported;

5. Burner: G10 imported from Italy

6. Temperature control: AI-218 microcomputer temperature controller;

7. Spreading width: 1.2m ~ 4.5m, optional 6m

8. Sprinkler control: manually adjust asphalt pipe

9. Asphalt pipeline compressed air cleaning function

Ordinary upgrade configuration

1. Asphalt pump: ZP230 insulation type high viscosity asphalt pump;

2. Asphalt pump drive motor: GM05 series high-torque plunger motor;

3. Hydraulic pump: F563 aluminum alloy gear pump;

4. Hydraulic system: imported proportional flow control valve;

5. Burner: G10 imported from Italy

6. Heating method: automatically heating by heat-conduction oil

7. Temperature control: AI microcomputer temperature controller;

8. Width of Spray : 1.2m ~ 4.5m, optional 6m precise triple overlapping Spray ,

9. Spraying quantity control: manually adjust asphalt nozzle;

10. Asphalt pipeline compressed air cleaning function

Semi-intelligent configuration

1. Asphalt pump: ZP230 insulation type high viscosity asphalt pump;

2. Asphalt pump drive motor: GM05 series high-torque plunger motor;

3. Hydraulic pump: F563 aluminum alloy gear pump;

4. Hydraulic system: imported proportional flow control valve;

5. Burner: G10 imported from Italy

6. Heating method: automatically heating by heat-conduction oil

7. Temperature control: AI microcomputer temperature controller;

8. Maximum width of Spray : 4.5 meters, optional 6 meters, precise three overlapping Spray , fully electric control nozzle,

9. Sprinkler control: front and background potentiometer adjustment, digital display;

10. Asphalt pipeline compressed air cleaning function

Full intelligent configuration

1. Asphalt pump: ZP230 insulation type high viscosity asphalt pump;

2. Asphalt pump drive motor: GM05 series high-torque plunger motor;

3. Hydraulic pump: F563 aluminum alloy gear pump;

4. Hydraulic system: imported proportional flow control valve;

5. Burner: G10 imported from Italy

6. Heating method: automatically heating by heat-conduction oil with selective heating function

7.temperature control: Germany Siemens temperature control module, computer temperature control

8. Maximum width of Spray : 4.5 meters, optional 6 meters, precise three overlapping Spray , fully electric control nozzle,

9. Sprinkling width is precisely controlled by computer: sprinkling quantity control: Germany Siemens PLC, intelligent control, sprinkling quantity and speed precise linkage, front touch screen control system.

10. Asphalt pipeline compressed air cleaning function

Full intelligent configuration

imported Pump

Price Add >$12000

1. Asphalt pump: European TGGP-86-100 heat preservation pump

2. Asphalt pump drive motor: GM05 series high-torque plunger motor;

3. Hydraulic pump: Germany leisler plunger variable pump;

4. Hydraulic system: imported proportional flow control valve;

5. Burner: G10 imported from Italy

6. Heating method: automatically heating by heat-conduction oil with selective heating function

7.temperature control: Germany Siemens temperature control module, computer temperature control

8. Maximum width of Spray : 4.5 meters, optional 6 meters, precise three overlapping Spray , fully electric control nozzle,

10. Asphalt pipeline compressed air cleaning function

11.spray volume 0.2 ~ 3 kg / ㎡, 28 sets of full electric nozzle,
