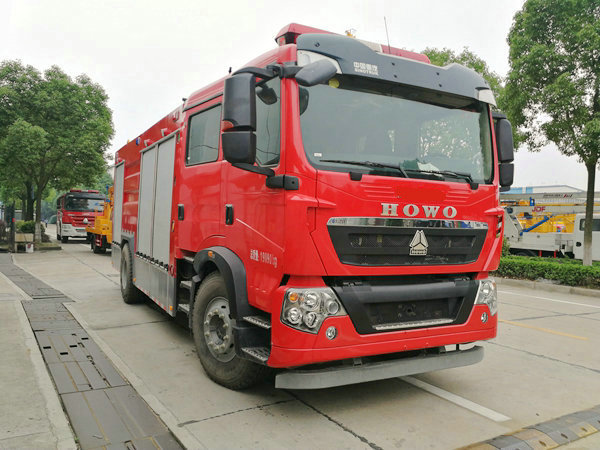

HOWO Foam Fire Truck 4 X 4 Off Road All Wheel Drive with 6500Liters - 8000L Water Foam Tank

The dimensions:

6752,7792,8292,9192×2520×3200(mm)

Total quality:

18000(Kg)

Anti-lock braking system:

with

Curb weight:

9000(Kg)

The rated load quality:

8870(Kg)

Approach Angle/Angle of departure:

31/23, 31/16, 31/15, 31/13 (°)

Suspension before/after suspension:

1602/1350,1602/1890,1602/2090,1602/2390(mm)

Axial load:

7000/11000

Wheel base:

3800,4300,4600,5200(mm)

Shaft:

2

Top speed:

90(km/h)

Fuel consumption:

29.0, 28.9

Spring leaf number:

4/9 + 6, 9/9 + 6

Tyre number:

6

Tire specifications:

11.00-20 18PR,11.00R20 18PR,12.00-20 16PR,12.00-20 18PR,12.00-20 20PR,12.00R20 16PR,12.00R20 18PR,12.00R20 20PR

Before the wheel track:

2041202 2

After the wheel track:

1850

vehicle VIN

LZZ1BEMD××××××××× LZZ1BEMF××××××××× LZZ1BEMH××××××××× LZZ1BEND××××××××× LZZ1BENF××××××××× LZZ1BENH×××××××××

Engine parameters

The engine

Engine manufacturing enterprises

Displacement (ml)

Power (kw)

D10.28-50
D10.31-50
D10.34-50
MC11.32-50

SINOTRUCK

9726
9726
9726
10518

206
228
249
238

Vehicle fuel parameters

Fuel types:

diesel

Chassis emissions standards:

EURO Ⅴ

other

1, Cross-country total GW 16000 kg, axle weight (kg) for 6500/9500, cross-country loading 7000 kg.

2,  Optional D10.28-50, D10.31-50, D10.34-50 engine,fuel consumption  29.0 L / 100 km;

   Optional MC11.32-50 engine, fuel consumption   28.9 L / 100 km.

Working condition of the city

Working condition of the suburbs

Comprehensive value

36.60

29.63

29.05

36.37

29.41

28.85

Fire Monitor

Model:PS50 Water monitor rated pressure:0.5-1.2MPa
Water monitor rated flow:50L/S       Water monitor rated reach≥70m               Pitching angle(°):-30~70       Level back to the corner(°):360                   Spray angle(°)≥100

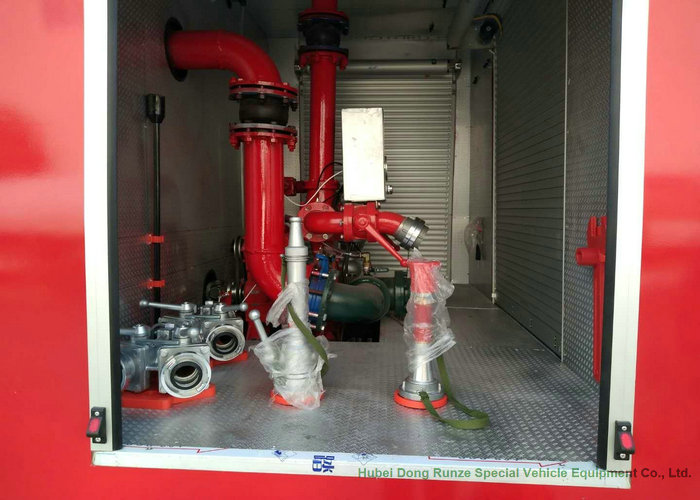

Fire Pump

Model:CB10/60

(1)pump pressure (Mpa):1.0
flow(L/S):60L/S/1.0MParotate speed(rmp):2800power(kw)98.5
time of drawing water:40s

(2)pump pressure (Mpa):1.3
flow(L/S):42L/S/1.3MParotate speed(rmp):2990power(kw)93.5
time of drawing water:40s

Model

HOWO Foam-water Combined

Fire Truck 8 tons

Chassis Model

howo 4x4 chassis

Weight Parameter (kg)

Load weight

10000

Overall Dimensions(mm)

8950×2500×3510

Curb weight

12050

Box Dimensions(mm)

/

MAX overall weight

22050

Wheelbase (mm)

4600

Engine

Model

WD615.92E

Type

/

Power/ Displacement(kw/ml)

196/9726

Product factory

Sino-Truck Co.,Ltd

Performanceparameter

Max speed (km/h)

90

Track Span (mm)

Front axle

20,222,041

Max creeping slope capacity (%)

34

Rear axle

1830

Oil consumption/100K(L)

30

Reaching out of vehicle (mm)

Front overhang

1500

Slope stop for empty vehicle (%)

20

Rear overhang

2650

Min circle turning Diameter(m)

15.6

Driving angle (°)

Proximal angle

26

Smallest ground clearance (mm)

255

Off angle

13

Gearbox

Machine type 6-speed transmission

Tire

10.00-20-16PR

Cab

Flat head all metal to up.Five passenger allowed

Tank effective volume

8(m³)

SpecialFunction

Water tank volume(L)

6000

Foam tank volume(L)

2000

Fire Monitor

Model:PS50 Water monitor rated pressure:0.5-1.2MPa
Water monitor rated flow:50L/S       Water monitor rated reach≥70m               Pitching angle(°):-30~70       Level back to the corner(°):360                   Spray angle(°)≥100

Fire Pump

Model:CB10/60

(1)pump pressure (Mpa):1.0
flow(L/S):60L/S/1.0MParotate speed(rmp):2800power(kw)98.5
time of drawing water:40s

(2)pump pressure (Mpa):1.3
flow(L/S):42L/S/1.3MParotate speed(rmp):2990power(kw)93.5
time of drawing water:40s

1

Suction Tube 100-125   2 meters

4

Length of

2

Water Filter 100-125

1

unit

3

Suction Tube wrench

2

unit

4

Ground fire wrench

1

unit

5

Underground Fire wrench

1

unit

6

Water belt   65#

5

roll

7

Water belt   80#

5

roll

8

Outer-affusion water belt

2

roll

9

Different diameter interface 80-65

2

unit

10

DC water gun

1

unit

11

Flowering water gun

1

unit

12

DC switch water gun

1

unit

13

Foam gun

2

unit

14

Same diameter interface 100-125

1

unit

15

Tri-detaching water equipment   80-65

1

unit

16

Water collection

1

unit

17

Water belt guard bridge

1

Set of

18

Water belt Wrapper

4

unit

19

Water belt hook

4

unit

20

Foam barrel 25 Litre

2

unit

21

Fire Hammer

1

unit

22

Fire axe

1

unit

23

Fire xin

1

unit

24

Fire Ting

1

unit

25

Fire pickaxe

1

unit

26

Fire barrel

1

unit

27

Axe

1

unit

28

soft ladder

1

Set of

Product Name

HOWO 5T foam fire truck

Chassis model

ZZ2167M

Weight parameters

Max Gross Weight(kg)

16000

Overall dimension(mm)

8780×2500×3460

Rated loading weight(kg)

8000

Tank capacity(Liters)

8000

Curb weight(kg)

6850

Wheel base (mm)

4600

Engine parameters

Model

WD615.62

Displacement standard

Diesel, EURO II

Power/Displacement(kw/ml)

196/9726

 Manufacturer

Sinotruk Heavy Duty Group

Performance parameter

Max speed(km/h)

80

Wheel tread(mm)

Front

2022

Cabin

Flat single cabin

Rear

1830

Leaf spring

9/9+6

Suspension

(mm)

Front

1578

Nos of tires

4+1 spare tire

     Rear

1890

Tire specification

11.00-20

Driven angle(°)

Approach angle

15

Nos of axle

2

Department angle

24

Special function

Tank capacity(L)

Water tank 4500L, Foam 500L.

Fire monitor

PL32 monitor, water flow range 328L/S/1MPa, water flow spray range:≥50m, the bubble spray range:≥45mm

Fire pump

CB10/40 vehicle normal pressure fire pump, flow: 40L/s, pressure: 1.0MPa

delivery water time≤35s (7m depth) water diversion ring ,sandwich  type full PTO
