Fast Eaton Transmission Power Take-Off Spline PTO SDQ211/60LGQ1 for 6DS60T-B/60T-D Costa Rica

Views: 21756     Author: Tom     Publish Time: 2022-06-14      Origin: DRZE

Fast Eaton Transmission Power Take-Off Spline PTO SDQ211/60LGQ1 for 6DS60T-B/60T-D Costa Rica

 Fast Eaton Transmission  Power Take-Off  Spline  PTO  SDQ211/60LGQ1 for 6DS60T-B/60T-D Costa Rica

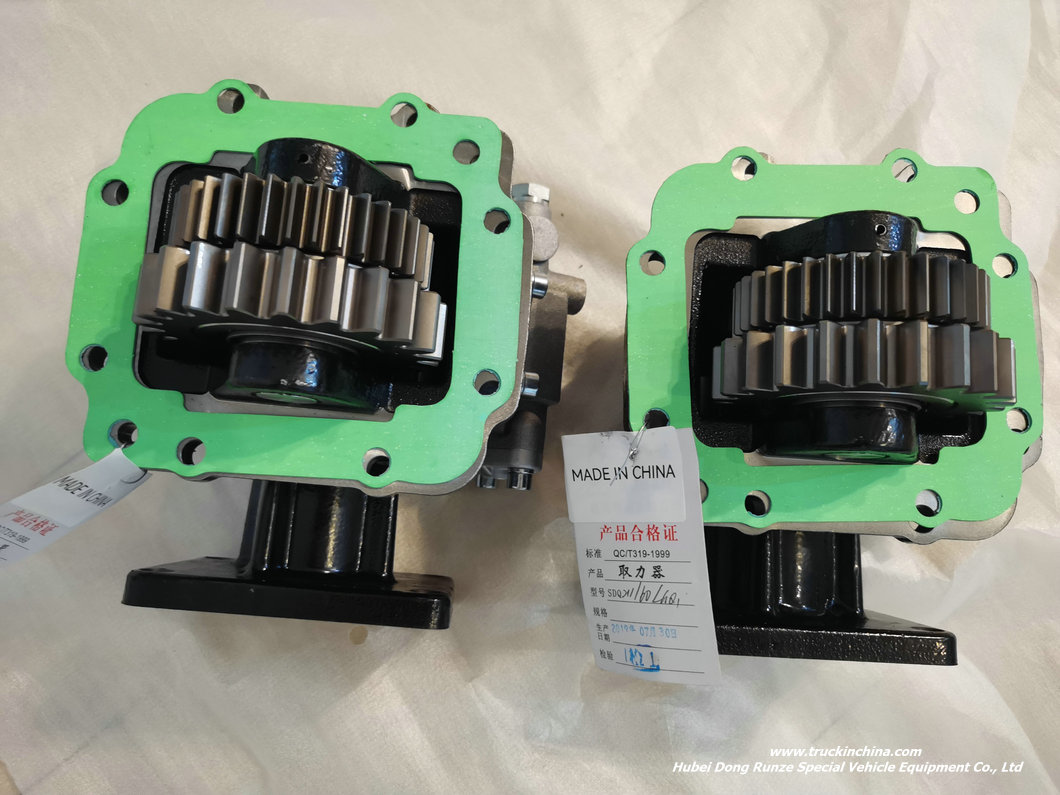

SDQ211-60LGQ1 PTO for 6DS60T-D (3)

PACKING LIST


No: D22645
TO: Alajuela, Costa Rica Date: 2022/6/4
Part No. Description Quantity Gross weight Measurement
SDQ211/60 PTO  For 6DS60T-D Gear SDQ211/60LGPQ 2 27KGS 23*24*25CM *2

By DHL/UPS/FEDEX

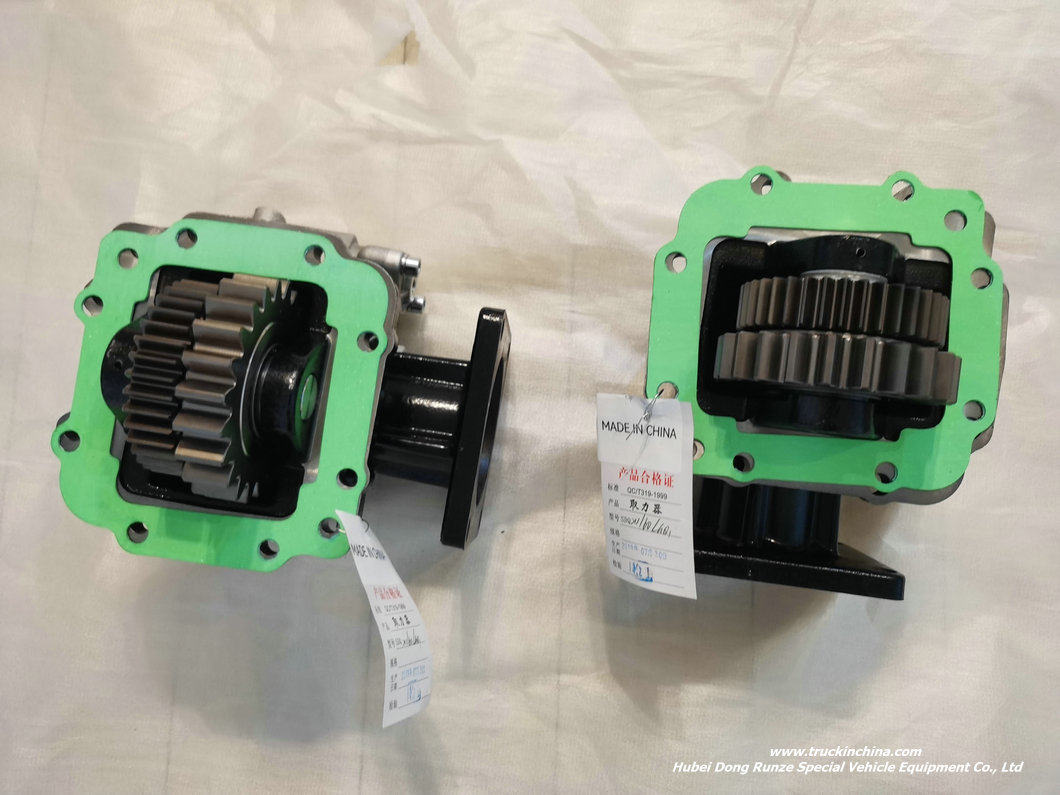

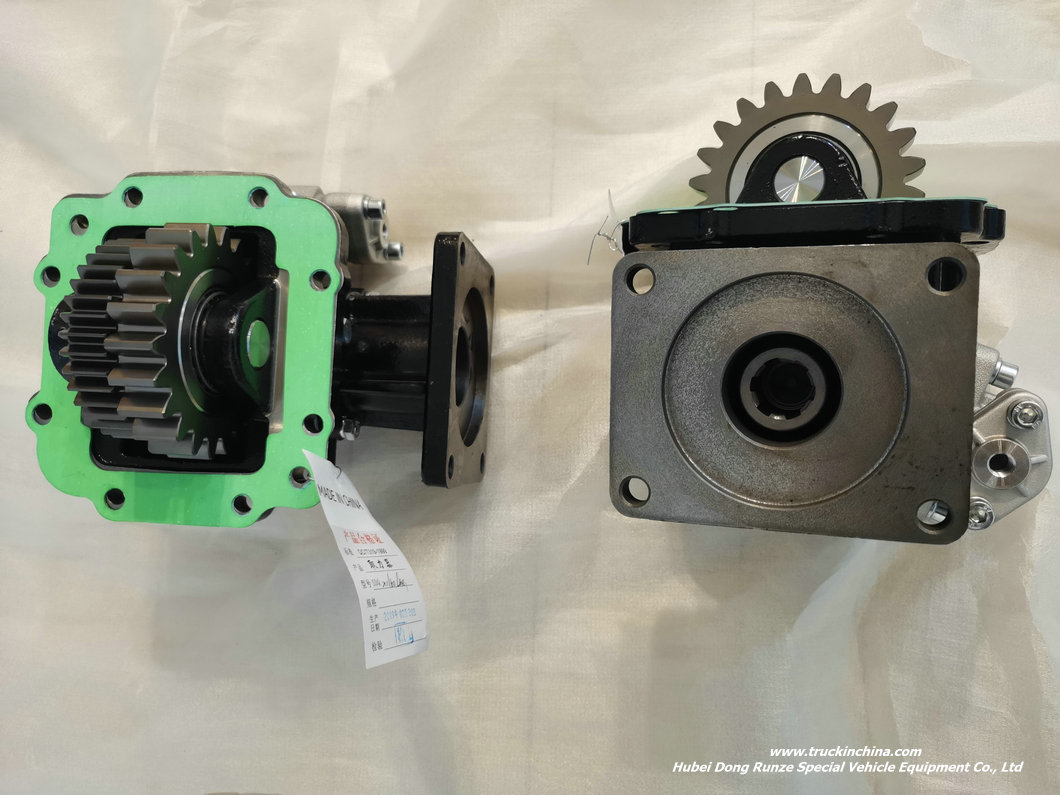

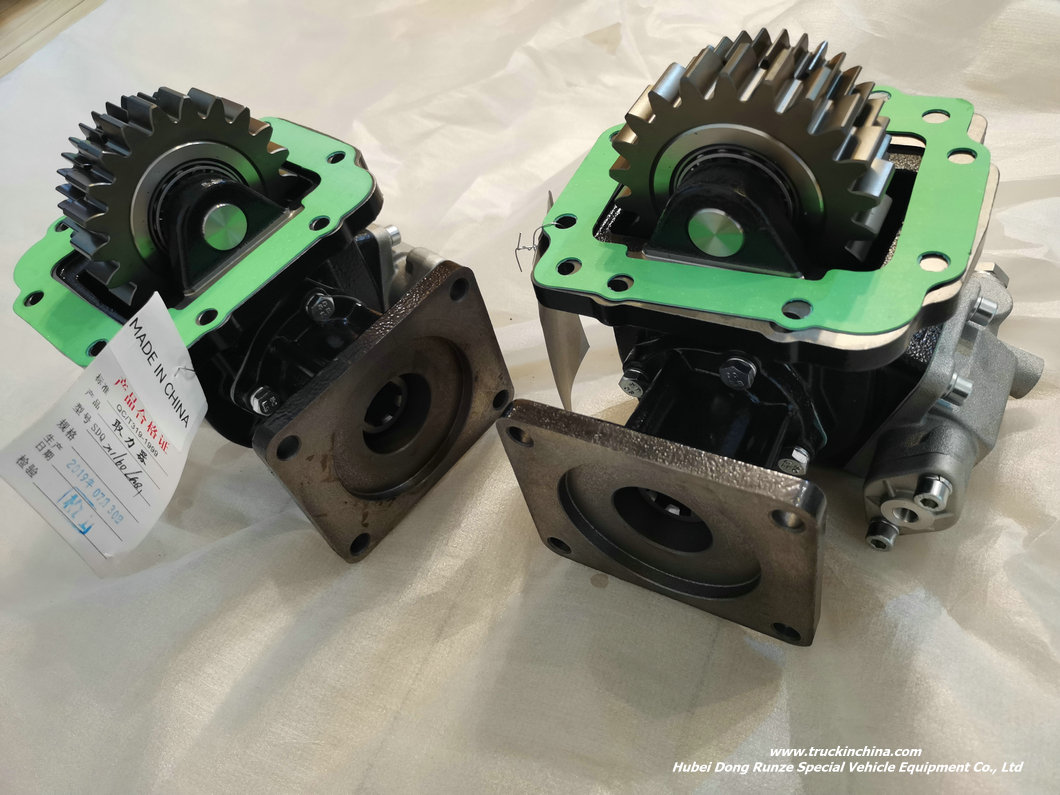

SDQ211-60LGQ1 PTO for 6DS60T-D (2)SDQ211-60LGQ1 PTO for 6DS60T-D (7)SDQ211-60LGQ1 PTO for 6DS60T-D (6)SDQ211-60LGQ1 PTO for 6DS60T-D (4)

Fast Group-Joint venture of Eaton clutch power take off

Serial number

Model of power take-off

speed ratio

Output torque (N.m)

Matching gearbox

Output mode

control mode

1

SDQ-FS212/70

0.94

600

12JSD160TA

Internal spline / flange

Pneumatics

2

SDQ-FS212/70-A

0.78

600

12JSD160TA

Internal spline / flange

Pneumatics

3

SDQ-FS19/31

(QD40A)

1.09

400

8JS75

Internal spline

Pneumatics

4

SDQ-FS24/37

( QCZ70A)

0.93

600

6J80T

Internal spline / flange

Pneumatics

5

SDQ-FS211/60

1.1

350

6DS40TB-D/6DS60TB-D

6DS60TA-D

Internal spline / flange

Pneumatics


6


SDQ-FS211/70


0.94


600

Fuller / fast / rt-11509c

8JS100S/17G0A9-22

Internal spline / flange

Pneumatics


7


SDQ-FS211/70-A


0.78


600

Fuller / fast / rt-11509c

8JS100S/17G0A9-22

Internal spline / flange

Pneumatics

8

SDQ-FS34/29

QD40J



400

8JS75

8js75tc


Internal spline / flange

Pneumatics

6DS60T-B/60T-D Twin-Countershaft Transmission

Transmission Speed Ratios


1F

2F

3F

4F

5F

6F

1R

6DS40T/50T

6.67

4.01

2.42

1.52

1.00

0.78

6.13

6DS40TA/50TA

6.67

4.01

2.57

1.78

1.31

1.00

6.13

6DS40TB-D/50TB-D

5.32

2.90

1.81

1.34

1

0.76

4.89

6DS60TA

5.90

3.55

2.14

1.35

1.00

0.78

5.43

6DS60TA-D

5.94

3.58

2.15

1.36

1.00

0.77

5.47

60DS60T-B/60T-D

6.64

4.00

2.41

1.52

1

0.78

6.13

6DS80T

6.62

3.73

2.30

1.51

1.00

0.75

6.05

6DS80TA

7.81

4.39

2.72

1.79

1.32

1.00

7.13

6DS80TB

5.92

3.33

2.06

1.36

1.00

0.76

5.41

6DS80TC

6.40

3.71

2.22

1.37

1.00

0.73

5.84


Using self-made high performance fast shift synchronizer, flexible and portable operation.

The side force taking window can be matched with the force taking device.

Designed with light weight and high strength,adopting single box and single axle structure.

Simple structure,Full helical gear and full grinding gear design, low noise and high reliability.

Has become the standard speed variator of Yutong high end business car and Futian high Rui light car.

Transmission Model

Input Torque

Input Power

Rated Input Rotation

Length

Oil Capacity

Weight

6DS40T/50T

400-500N•m

85-100kw

2600rpm

629mm

6L

144kg

6DS40TA/50TA

400-500N•m

85-100kw

2600rpm

629mm

6L

144kg

6DS40TB-D/50TB-D

400-500N•m

85-100kw

2600rpm

629mm

6L

144kg

6DS60TA/6DS60TA-D

600N•m

130kw

2600rpm

629mm

6L

144kg

6DS60T-B/6DS60T-D

600N•m

130kw

2600rpm

629mm

6L

144kg

6DS80T/TA/TB/TC

800N•m

147kw

2600rpm

723mm

10L

200kg
