FZ36/38 Power Take-off (PTO) for ZF6S500/ZF6S600/ ZF6S558/ZF6S508/ZF6S458 Transmission Gearboxes

FZ36/38 Power Take-off (PTO) for ZF6S500/ZF6S600/ ZF6S558/ZF6S508/ZF6S458 Transmission Gearboxes
Price: $ 360
Discount Price: $ 280
Availability:
Quantity:

  • FZ36/38,SDQ51/38 ,HWP-Z36/38

  • FZ

  • Shanghai, China

  • 10000

  • T/T , Paypal , Union

  • Carton

  • 1 Ask for discount

 FZ36/38 Power Take-off (PTO) for ZF6S500/ZF6S600/ ZF6S558/ZF6S508/ZF6S458 Transmission Gearboxes

Model:FZ36/38

Control method: pneumatic push

Output method: outer disc ISO FLANGE CARDAN, or inner spline

Number of output teeth Z36

Output tooth height:38mm

Adaptive transmission Model: ZF6S500/ZF6S600/ZF6S558/ZF6S508/ZF6S458

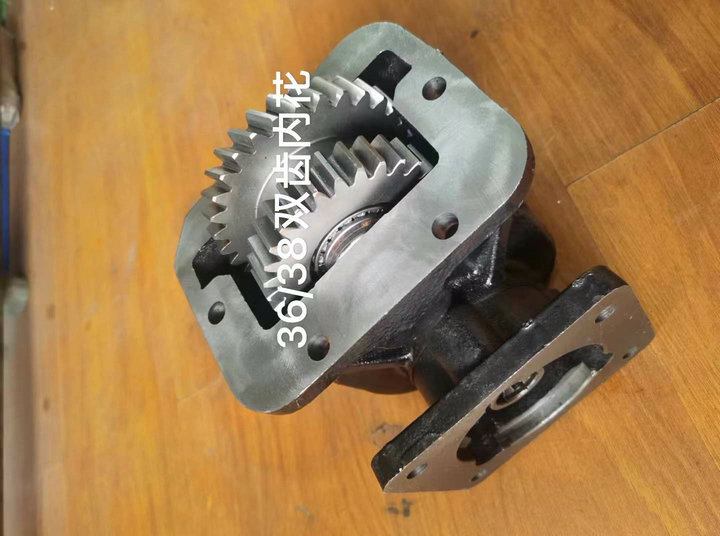

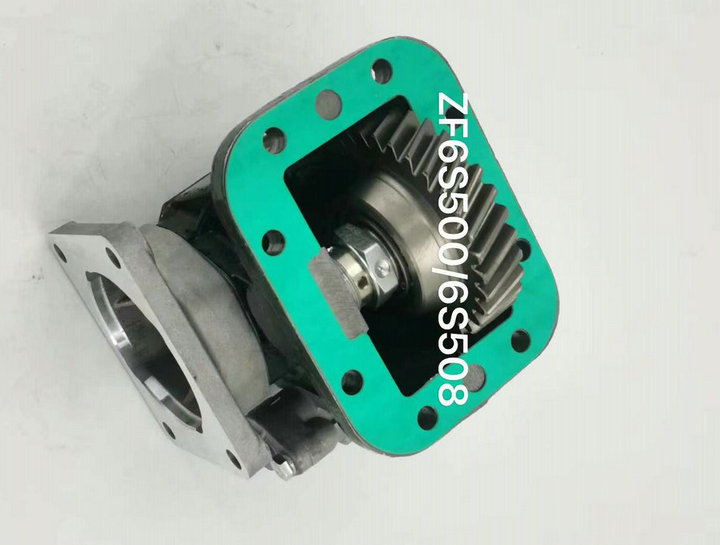

FZ36-38 PTO for ZF6S500 ZF6S600 (5)FZ36-38 PTO for ZF6S500 ZF6S600 (4)

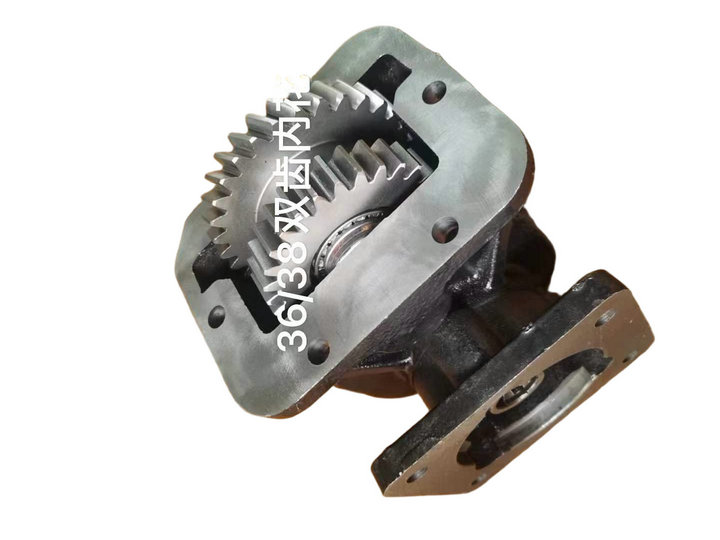

FZ36/38 Power Take-off (PTO)

Applicable to ZF6S500 / ZF6S600 / ZF6S558 / ZF6S508 / ZF6S458 Gearbox

Model Description

  • FZ: PTO series code

  • 36: Output spline teeth

  • 38: Output spline dimension

Compatible Transmissions

  • ZF6S500

  • ZF6S600

  • ZF6S558

  • ZF6S508

  • ZF6S458

Main Specifications

  • Operation: Pneumatic control

  • Mounting: Left side mounted

  • Output Type: Internal spline / ISO flange

  • Rated Torque: 300 N·m

  • Rotation: Clockwise (facing output end)

  • Gear Ratio: 1.077

Application

Applicable Vehicles: Foton Aumark, Ollin and other light trucks with Cummins 2.8L / 3.8L engines
Supplies power for vehicle auxiliary equipment:
  • Hydraulic pumps for tipper, tanker and wrecker trucks

  • Air compressors

  • Light cranes and special working devices

Alternative Replacement Model:

SDQ51/38 ,HWP-Z36/38

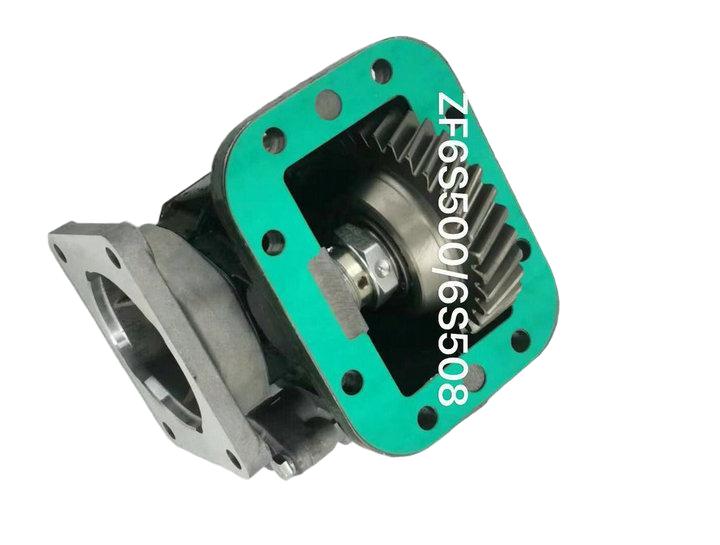

PTO Gearbox Power Take off Pto (5)PTO Gearbox Power Take off Pto
