Dollicar water truck Euro 3/Euro 4

Views: 1753     Author: Dongfeng Water Sprinkler Tank Truck     Publish Time: 2017-09-11      Origin: Dongfeng Water Sprinkler Tank Truck

Dollicar water truck Euro 3/Euro 4

Dollicar water truck Euro 3/Euro 4

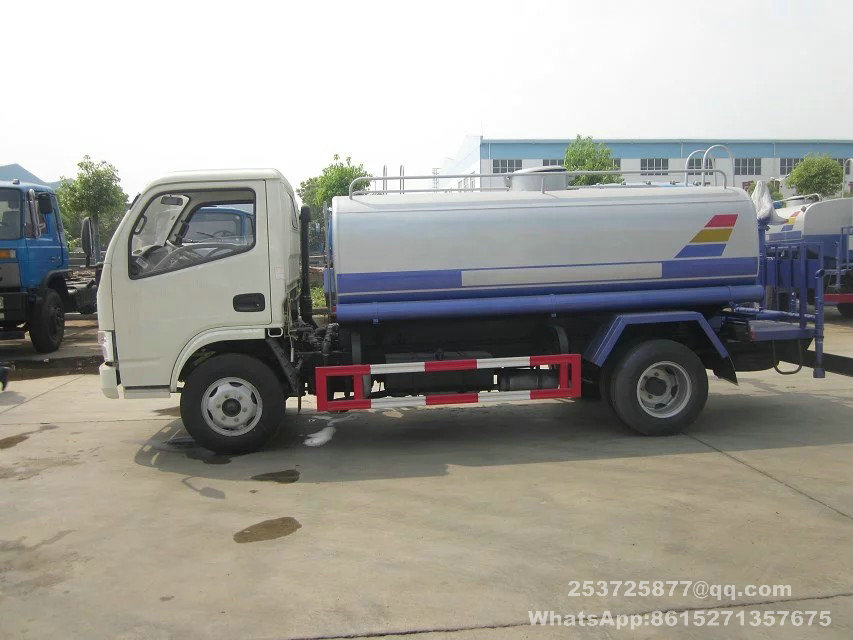

US $10,000-13,000 / Unit dollicar water truck-5000liters-trucks_1.jpeg

DongFeng mini water tanker truck

General

Truck Name

Water Truck  DRZ5040GSSD4

Dribe Type

4*2

Vehicle Brand

DRZ

Chassis Brand

DongFeng

Overall Dimension

5995×2000×2300

GVW/Kerb Weight

4495/2870KG

Cab

Cab Capacity

2-3persons allolwed

Air Conditioner

Air conditioner is optional

ABS

With ABS

Engine

Engine Brand

YuChai

Fuel Type

Diesel

Power

75KW

Emission Standard

 Euro 3/Euro 4

Chassis

Chassis Brand

DongFeng

Front/Rear Axle Load(KG)

1800/2695

Wheelbase

3300

Drive Type

4×2, left or right hand drive

No.of axle

2

Brake

Air Brake

Steel Wheel

Power-assisted left hand drive

Tyre Specification

7.00-16 8PR,7.00R16 8PR,6.50-16 10PR,6.50R16 10PR

Tyre Number

6 tyres

Max Speed

95km/h

Paint

Metallic paint

Approach/departure angle(°)

19/16

Front/rear hang(mm)

1032/1663

Superstructure

Tank Capacity

1.5-6m³

Tank Material

Q235A

Spraying Width

10-12m

Pump

Chinese Famous Brand

Suction Head

6m

Hose

High quality PVC hose, anti-aging

All other standard accessories: manhole ,ladder, inlet, discharge

Optional

Can be equipped with pesticide spraying device,LED alarm light... Tank material could be stainless steel or carbon steel with non-toxic treatment for potable water, safe for human body.

NOTE:Any part can be customized depending on customers'demand.

Dong Feng furuika 4*2 95HP sprinkling truck


Vehicle model


DRZ5060GSS3 Water tank truck

Chassis model


EQ1060TJ20D3

External dimensions (L×W×H)

(mm)

5850×1950×2250

Rated payload

(kg)

3000

Curb weight

(kg)

3365

Max. Total mass

(kg)

6495

Shaft distance

(mm)

3300

Closing angle/departing angle

(°)

19and13

Front suspension / Rear suspension

(mm)

1032/1518

Front tread / Rear  tread

(mm)

1506/1466

Axle number


2

Leaf spring number


8/9+5,6/8+4

Engine model


YC4F90-30

Fuel


DIESEL

Max power

(kw/hp)

66/95

Exhaust volume

(ml)

2659

Emission standard


Euro 3

Tire model


7.00-16,6.50-16,7.00R16,6.50R16

Tire number


6

Top speed

(km/h)

95

Tank volume

(L)

3150

Mini Water Tanker Trucks

Vehicle main technical information:

Product Name

Dongfeng water truck

Product Model

EQ

Water tank size(mm)

3400*1600*1100(length*long axis*minor axis)

Overall size(L*W*H)

5990×1960×2380mm

Gross weight

7300kgs

Rated capacity

4020,3955kgs

Curb weight

3150kgs

Approaching/Departure Angle

16/13(°)

Front/Rear suspension

1032/1658mm

Max.speed

95km/h

Chassis Parameters:

Chassis Brand

Dongfeng

Chassis model

DFA

Drive type

4X2, LHD/RHD

Fuel Type

Diesel

Tire Specification

7.00R16,7.00-16

Tire No.

6

Wheelbase

3300mm

Alex No.

2

Leaf Spring No.

8/9+5,6/8+4

Front trend

1506,1404mm

Rear trend

1466,1458mm

Passengers in cab

2 or 3

Axle loading

2920/4380

Engine Parameters:

Manufacturer

Kunming Yunnei Power Co.,Ltd.

Model

YN33CRD2

Horse Power

102HP

Displacement/Power

3298ml/75kw

Emission standard

Euro 4
