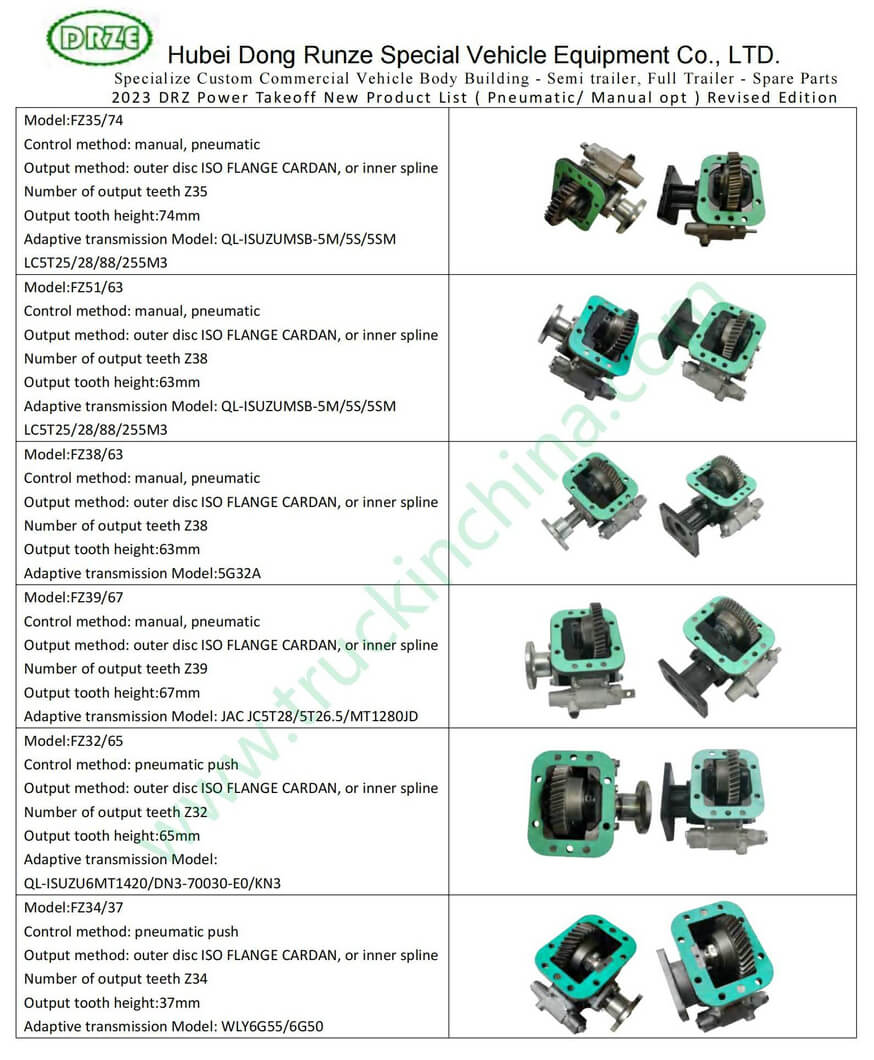

DRZ Power Takeoff New Product List ( Pneumatic Manual opt ) Revised Edition 2023

Model:FZ51/63

Control method: manual, pneumatic

Output method: outer disc ISO FLANGE CARDAN, or inner spline

Number of output teeth Z38

Output tooth height:63mm

Adaptive transmission Model: QL-ISUZUMSB-5M/5S/5SM

LC5T25/28/88/255M3

Model:FZ38/63

Control method: manual, pneumatic

Output method: outer disc ISO FLANGE CARDAN, or inner spline

Number of output teeth Z38

Output tooth height:63mm

Adaptive transmission Model:5G32A

Model:FZ39/67

Control method: manual, pneumatic

Output method: outer disc ISO FLANGE CARDAN, or inner spline

Number of output teeth Z39

Output tooth height:67mm

Adaptive transmission Model: JAC JC5T28/5T26.5/MT1280JD

Model:FZ32/65

Control method: pneumatic push

Output method: outer disc ISO FLANGE CARDAN, or inner spline

Number of output teeth Z32

Output tooth height:65mm

Adaptive transmission Model: QL-ISUZU6MT1420/DN3-70030-E0/KN3

Model:FZ34/37

Control method: pneumatic push

Output method: outer disc ISO FLANGE CARDAN, or inner spline

Number of output teeth Z34

Output tooth height:37mm

Adaptive transmission Model: WLY6G55/6G50

Model:FZ36/38

Control method: pneumatic push

Output method: outer disc ISO FLANGE CARDAN, or inner spline

Number of output teeth Z36

Output tooth height:38mm

Adaptive transmission Model: ZF6S500/ZF6S600/

ZF6S558/ZF6S508/ZF6S458

Model:FZ31/47

Control method: pneumatic push

Output method: outer disc ISO FLANGE CARDAN, or inner spline

Number of output teeth Z31

Output tooth height:47mm

Adaptive transmission Model: WLY5TS40B/5S100

Model:FZ31/40

Control method: pneumatic push

Output method: outer disc ISO FLANGE CARDAN, or inner spline

Number of output teeth Z31

Output tooth height:40mm

Adaptive transmission Model: WLY6G40A/6G45

Model:FZ31/42

Control method: pneumatic push

Output method: outer disc ISO FLANGE CARDAN, or inner spline

Number of output teeth Z31

Output tooth height:42mm

Adaptive transmission Model:WLY6G40B

Model:FZ25/67

Control method: pneumatic push

Output method: outer disc ISO FLANGE CARDAN, or inner spline

Number of output teeth Z25

Output tooth height:67mm

Adaptive transmission Model: WLY6T55C/6S46/6S51/ 6T120/6T50

Model:FZ25/71

Control method: pneumatic push

Output method: outer disc ISO FLANGE CARDAN, or inner spline

Number of output teeth Z25

Output tooth height:67mm

Adaptive transmission Model: WLY6TS55B/6S46B

Model:FZ45/40

Control method: pneumatic push

Output method: outer disc ISO FLANGE CARDAN, or inner spline

Number of output teeth Z45 Output tooth height:40mm

Adaptive transmission Model: ZF5S408/ZF5S328/ZF5S400E

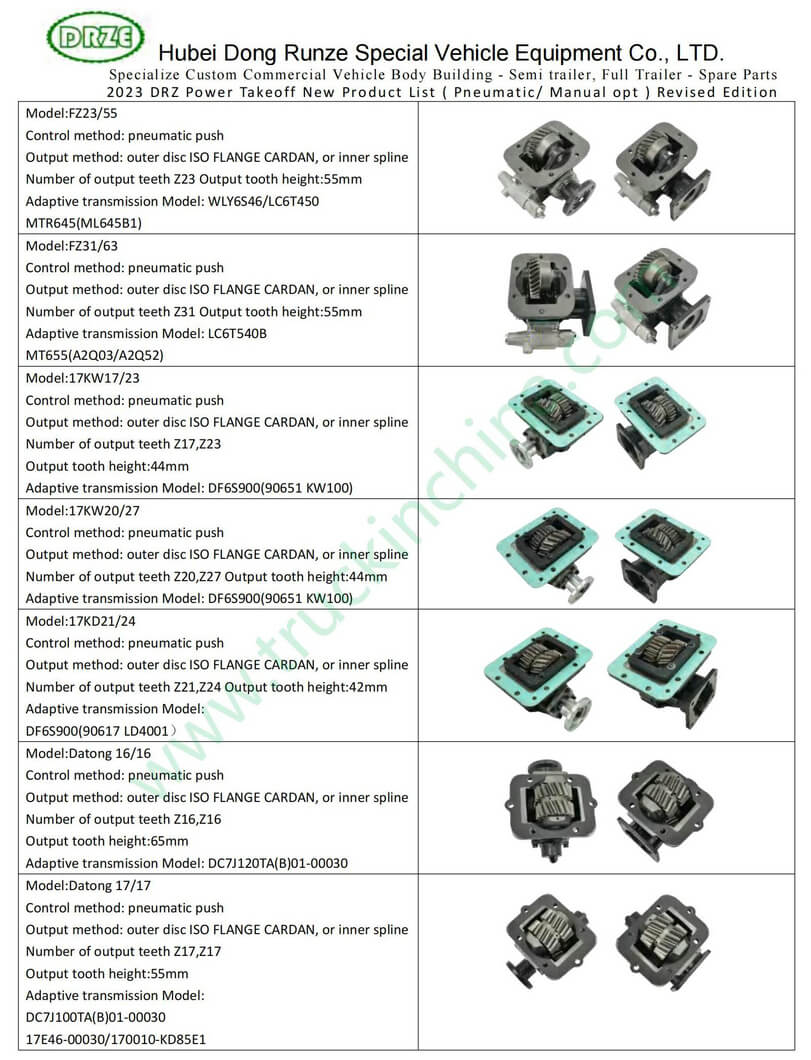

Model:FZ23/55

Control method: pneumatic push

Output method: outer disc ISO FLANGE CARDAN, or inner spline

Number of output teeth Z23 Output tooth height:55mm

Adaptive transmission Model: WLY6S46/LC6T450

MTR645(ML645B1)

Model:FZ31/63

Control method: pneumatic push

Output method: outer disc ISO FLANGE CARDAN, or inner spline

Number of output teeth Z31 Output tooth height:55mm

Adaptive transmission Model: LC6T540B  MT655(A2Q03/A2Q52)

Model:17KW17/23

Control method: pneumatic push

Output method: outer disc ISO FLANGE CARDAN, or inner spline

Number of output teeth Z17,Z23

Output tooth height:44mm

Adaptive transmission Model: DF6S900(90651 KW100)

Model:17KW20/27

Control method: pneumatic push

Output method: outer disc ISO FLANGE CARDAN, or inner spline

Number of output teeth Z20,Z27 Output tooth height:44mm

Adaptive transmission Model: DF6S900(90651 KW100)

Model:17KD21/24

Control method: pneumatic push

Output method: outer disc ISO FLANGE CARDAN, or inner spline

Number of output teeth Z21,Z24 Output tooth height:42mm

Adaptive transmission Model:

DF6S900(90617 LD4001）

Model:Datong 16/16

Control method: pneumatic push

Output method: outer disc ISO FLANGE CARDAN, or inner spline

Number of output teeth Z16,Z16

Output tooth height:65mm

Adaptive transmission Model: DC7J120TA(B)01-00030

Model:Datong 17/17

Control method: pneumatic push

Output method: outer disc ISO FLANGE CARDAN, or inner spline

Number of output teeth Z17,Z17

Output tooth height:55mm

Adaptive transmission Model:

DC7J100TA(B)01-00030

17E46-00030/170010-KD85E1

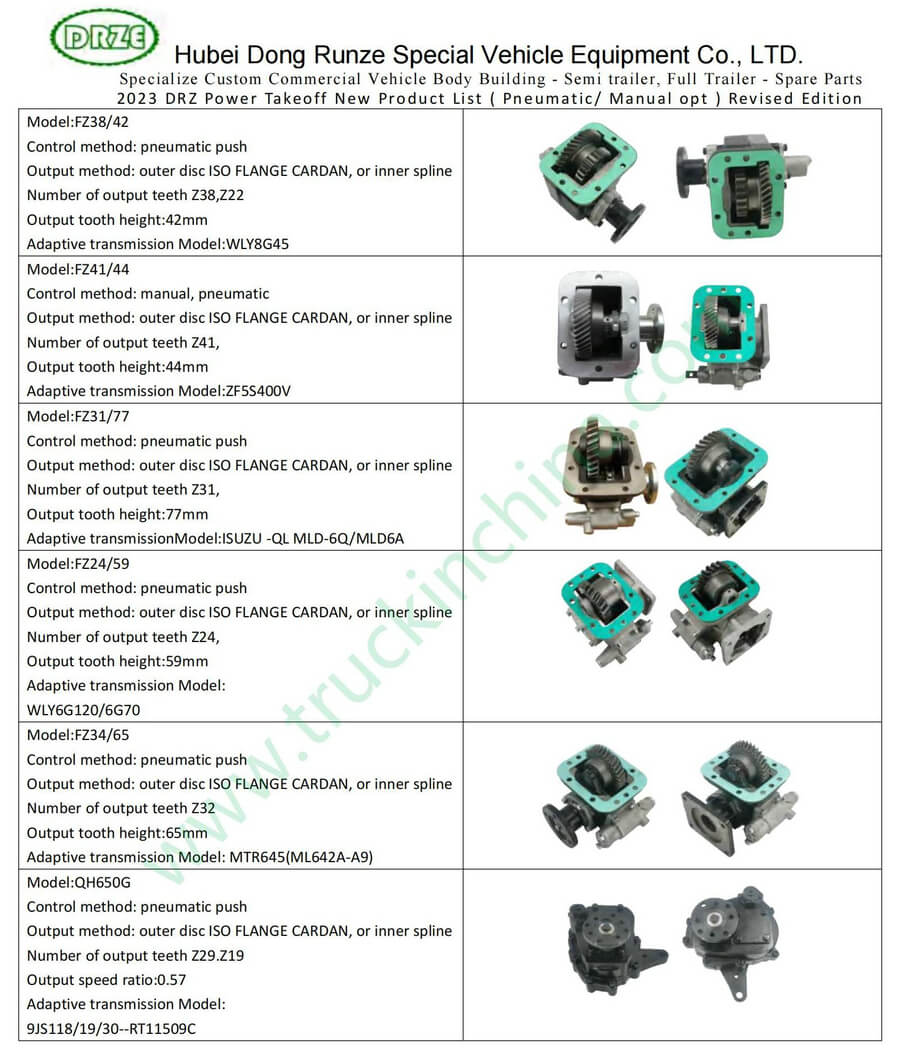

Model:FZ38/42

Control method: pneumatic push

Output method: outer disc ISO FLANGE CARDAN, or inner spline

Number of output teeth Z38,Z22

Output tooth height:42mm

Adaptive transmission Model:WLY8G45

Model:FZ41/44

Control method: manual, pneumatic

Output method: outer disc ISO FLANGE CARDAN, or inner spline

Number of output teeth Z41,

Output tooth height:44mm

Adaptive transmission Model:ZF5S400V

Model:FZ31/77

Control method: pneumatic push

Output method: outer disc ISO FLANGE CARDAN, or inner spline

Number of output teeth Z31,

Output tooth height:77mm

Adaptive transmissionModel:ISUZU -QL MLD-6Q/MLD6A

Model:FZ24/59

Control method: pneumatic push

Output method: outer disc ISO FLANGE CARDAN, or inner spline

Number of output teeth Z24,

Output tooth height:59mm

Adaptive transmission Model:

WLY6G120/6G70

Model:FZ34/65

Control method: pneumatic push

Output method: outer disc ISO FLANGE CARDAN, or inner spline

Number of output teeth Z32

Output tooth height:65mm

Adaptive transmission Model: MTR645(ML642A-A9)

Model:QH650G

Control method: pneumatic push

Output method: outer disc ISO FLANGE CARDAN, or inner spline

Number of output teeth Z29.Z19

Output speed ratio:0.57

Adaptive transmission Model:

9JS118/19/30--RT11509C

DF

1

HWP-D18/45CHQ

1.02

500N.M

DF6S900(6.938)

inner Spline

Pneumatical

2

HWP-D18/45TQ

1.02

500N,M

DF6S900(6.938)

Cardan Flange Shaft

Pneumatical

3

HWP-D19/65CHQ

1.2

400N.M

DF6S650(6.446)

inner Spline

Pneumatical

4

HWP-D19/65TQ

1.2

400N.M

DF6S650(6.446)

Cardan Flange Shaft

Pneumatical

5

HWP-D21/42CHQ

1.04

500N.M

DF6S900(7.966)

inner Spline

Pneumatical

6

HWP-D21/42TQ

1.04

500N.M

DF6S900(7.966)

Cardan Flange Shaft

Pneumatical

7

HWP-D23/47CHQ

1.04

500N.M

DT0690(6.75)

inner Spline

Pneumatical

8

HWP-D23/47TQ

1.04

500N.M

DT0690(6.75)

Cardan Flange Shaft

Pneumatical

9

HWP-D23/64CHQ

1.06

450N.M

DF6S650(6.446 / 10 holes)

inner Spline

Pneumatical

10

HWP-D23/64TQ

1.06

450N.M

DF6S650(6.446  / 10 holes)

Cardan Flange Shaft

Pneumatical

11

HWP-D25/33CHQ

1.2

450N.M

17000D4-010/1700D-010/17C-00030

inner Spline

Pneumatical

12

HWP-D25/33TQ

1.2

450N.M

17000D4-010/1700D-010/17C-00030

Cardan Flange Shaft

Pneumatical

13

HW P-D25/25CHQ

1.2

450N.M

17V70-00030/17G

37- 00030/17Q37-00030

inner Spline

Pneumatical

14

HWP-D25/25TQ

1.2

450N.M

17V70-00030/17G37-00030/17Q37-00030

Cardan Flange Shaft

Pneumatical

FAST

15

HW P-F15/65CHQ

0.94

650N.M

9JS119T,10JS

inner Spline

Pneumatical

16

HWP-F15/65TQ

0.94

650N.M

9JS119T,10JS

Cardan Flange Shaft

Pneumatical

17

HWP-F15/65TQ-B

0.78

600N.M

9JS119T,10JS

Cardan Flange Shaft

Pneumatical

18

HWP-F15/70CHQ-1

0.94

700N.M

12JS160TA

inner Spline

Pneumatical

19

HWP-F15/70T0-1

0.94

700N.M

12JS160TA

Cardan Flange Shaft

Pneumatical

20

HWP-F15/70C HQ-2

0.94

700N.M

12JSD160TA

inner Spline

Pneumatical

21

HWP-F15/70TQ-2

0.94

700N.M

12JSD160TA

Cardan Flange Shaft

Pneumatical

22

HWP-F36/63CHQ

1.1

300N.M

6DS40T/50T/60T

inner Spline

Pneumatical

23

HWP-F36/63TQ

1.1

300N.M

6DS40T/50T/60T

Cardan Flange Shaft

Pneumatical

24

HWP-F34/31CHQ

0.94

250N.M

8JS8 5E /95E-C

inner Spline

Pneumatical

25

HWP-F34/31TQ

0.94

250N. M

8JS85E/95E-C

Cardan Flange Shaft

Pneumatical

ISUZU

26

HWP-I31/77CHQ

1.07

350N.M

MLD-6Q

inner Spline

Pneumatical

27

HW P-I3 1/77TQ

1.07

350N. M

MLD-6Q

Cardan Flange Shaft

Pneumatical

28

HWP-I31/77CHS

1.07

350N.M

MLD-6Q

inner Spline

Manual mechanical

29

HWP-I31/77TS

1.07

350N.M

MLD-6Q

Cardan Flange Shaft

Manual mechanical

30

HWP-T35/62CHQ

1.3

250N.M

MSB-5 S/5M/5SM

inner Spline

Pneumatical

31

HWP-I35/62TQ

1.3

250N.M

MSB-5S/5M/5SM

Cardan Flange Shaft

Pneumatical

32

HWP-I35/62CHS

1.3

250N.M

MSB-5S/5M/5SM

inner Spline

Manual mechanical

33

HWP-T35/62TS

1.3

250N.M

MSB-5S/5M/5SM

Cardan Flange Shaft

Manual mechanical

34

HWP-T35/74CHQ

1.633

250N. M

M SB- 5S/5M/5SM

inner Spline

Pneumatical

35

HWP-T35/74TQ

1.633

250N.M

MSB-5S/5M/5SM

Cardan Flange Shaft

Pneumatical

36

HWP-T35/74CHS

1.633

250N.M

MSB-5S/5M/5SM

inner Spline

Manual mechanical

37

HWP-T35/74TS

1.633

250N.M

M SB-5S/ 5M/5SM

Cardan Flange Shaft

Manual mechanical

38

HWP-T38/63CHQ

1.01

200N.M

MSB-5S/5M/5SM

inner Spline

Pneumatical

39

HWP-T38/63TQ

1.01

200N.M

MSB-5S/5M/5SM

Cardan Flange Shaft

Pneumatical

40

HWP-T38/63CH S

1.01

200N.M

MSB-5S/5M/5SM

inner Spline

Manual mechanical

41

HWP-T38/63TS

1.01

200N.M

MSB-5S/5M/5SM

Cardan Flange Shaft

Manual mechanical

42

HWP-I32/64TQ

1.26

200N.M

MYY6S/5S

Cardan Flange Shaft

Pneumatical

43

HWP-T32/64CH Q

1.26

200N.M

MYY6S/5S

inner Spline

Pneumatical

JMC

44

HWP-G32/65CHQ

1.26

250N.M

6MTI420

inner Spline

Pneumatical

45

HWP-G32/65TQ

1.26

250N.M

6MTI420

Cardan Flange Shaft

Pneumatical

46

HWP-G32/65CHS

1.26

250N.M

6MTI420

inner Spline

Manual mechanical

47

HWP-G32/65TS

1.26

250N.M

6MTI420

Cardan Flange Shaft

Manual mechanical

48

HWP-T35/74CPS

1.633

250N.M

JCT528T8

inner Spline

Manual mechanical

49

HW P-I39/67CHQ

1.2

250N.M

JCT528T8

inner Spline

Pneumatical

50

HWP-T39/67TQ

1.2

250N.M

JCT528T8

Cardan Flange Shaft

Pneumatical

51

HWP-I39/67CHS

1.2

250N,M

JCT528T8

inner Spline

Manual mechanical

52

HWP-I39/67TS

1.2

250N.M

JCT528T8

Cardan Flange Shaft

Manual mechanical

IVECO

53

HWP-V31/27CHQ

1.2

200N.M

2830.5

inner Spline

Pneumatical

54

HWP-V31/27TQ

1.2

200N.M

28,305

Cardan Flange Shaft

Pneumatical

55

HWP-V31/27CHS

1.2

200N.M

2830.5

inner Spline

Manual mechanical

56

HWP-V31/27TS

1.2

200N.M

2830.5

Cardan Flange Shaft

Manual mechanical

57

HWP-V34/36CHQ

0.77

200N,M

2840.628

inner Spline

Pneumatical

58

HW P-V34/36TQ

0.77

200N.M

2840.628

Cardan Flange Shaft

Pneumatical

60

HWP-X23/55TQ

1.12

300N.M

LC6T450M1

Cardan Flange Shaft

Pneumatical

61

HWP-X30/71CHQ

1.55

250N.M

LC5T30

inner Spline

Pneumatical

62

HWP-X30/71TQ

1.55

250N.M

LC5T30

Cardan Flange Shaft

Pneumatical

63

HWP-X31/63CHQ

1.1

300N.M

LC6T540

inner Spline

Pneumatical

64

HWP-X31/63TQ

1.1

300N, M

LC6T540

Cardan Flange Shaft

Pneumatical

65

HWP-X31/74CHQ

1.56

250N.M

LC5T40

inner Spline

Pneumatical

66

HWP-X31/74TQ

1.56

250N.M

LC5T40

Cardan Flange Shaft

Pneumatical

67

HWP-X35/65CHQ

1.64

250N.M

ML642A

inner Spline

Pneumatical

68

HWP-X35/65TQ

1.64

250N.M

ML642A

Cardan Flange Shaft

Pneumatical

69

HWP-X35/65CHQ-A

1.096

250N.M

ML642A

inner Spline

Pneumatical

70

HWP-X35/65TQ-A

1.096

250N.M

MI642A

Cardan Flange Shaft

Pneumatical

71

HWP-X37/67CHQ

1.15

250N.M

ML532A

inner Spline

Pneumatical

72

HWP-X37/67TQ

1.15

250N.M

ML532A

Cardan Flange Shaft

Pneumatical

73

HWP-X29/38CHQ

1.337

200N. M

ML1OTF97A

inner Spline

Pneumatical

74

HWP-X29/38TQ

1.337

200N.M

ML10TF97A

Cardan Flange Shaft

Pneumatical

WLY

75

HWP-W24/74CHQ

1

300N. M

WL.Y7TS60B

inner Spline

Pneumatical

76

HWP-W24/74TQ

1

300N. M

WLY7TS60B

Cardan Flange Shaft

Pneumatical

77

HWP-W25/67CHQ

1.15

400N.M

WLY6T120

inner Spline

Pneumatical

78

HWP-W25/67TQ

1.15

400N.M

WLY6T120

Cardan Flange Shaft

Pneumatical

79

HWP-W25/71CHQ

1.11

400N. M

WLY6S51B(5.522)

inner Spline

Pneumatical

80

HWP-W25/71TQ

1.11

400N.M

WLY6S51B(5.522)

Cardan Flange Shaft

Pneumatical

81

HWP-W31/39CHQ

1.1

300N.M

WLY6G40A

inner Spline

Pneumatical

82

HWP-W31/39TQ

1.1

300N. M

WLY6G40A

Cardan Flange Shaft

Pneumatical

83

HWP-W31/42CHQ

1.1

300N.M

WLY6G40B

inner Spline

Pneumatical

84

HWP-W31/42TQ

1.1

300N. M

WLY6G40B

Cardan Flange Shaft

Pneumatical

85

HWP-W31/43CHQ

1.1

300N.M

WLY5G40B

inner Spline

Pneumatical

86

HWP-W31/43TQ

1.1

300N. M

WLY5G40B

Cardan Flange Shaft

Pneumatical

87

HWP-W31/47CHQ

1.2

250N.M

WLY5TS40/WLY5TS100

inner Spline

Pneumatical

88

HWP-W31/47TQ

1.2

250N.M

WLY5TS40/WLY5TS100

Cardan Flange Shaft

Pneumatical

89

HWP-W27/60CHQ

1.27

300N. M

WLY6TS40

inner Spline

Pneumatical

90

HWP-W27/60TQ

1.27

300N,M

WLY6TS40

Cardan Flange Shaft

Pneumatical

91

HWP-W34/37CHQ

1.1

300N.M

WLY6G55

inner Spline

Pneumatical

92

HWP-W34/37TQ

1.1

300N,M

WLY6G55

Cardan Flange Shaft

Pneumatical

93

HWP-W22/72CHQ

1.1

300N. M

WLY6TS55E, WLY6TS60

inner Spline

Pneumatical

94

HWP-W22/72TQ

1.1

300N.M

WLY6TS55E,WLY6TS60

Cardan Flange Shaft

Pneumatical

95

HWP-W38/64CHQ

1.04

200N.M

WLY5G32A

inner Spline

Pneumatical

96

HWP-W38/64TQ

1.04

200N. M

WLY5G32A

Cardan Flange Shaft

Pneumatical

97

HWP-W38/66CHQ

1.1

200N.M

WLY5G32B

inner Spline

Pneumatical

98

HWP-W38/66TQ

1.1

200N.M

WLY5G32B

Cardan Flange Shaft

Pneumatical

99

HWP-W38/67CHQ

1.3

200N.M

WLY5G32C

inner Spline

Pneumatical

100

HWP-W38/67TQ

1.3

200N.M

WLY5G32C

Cardan Flange Shaft

Pneumatical

ZF

101

HWP-NH1C

1

1000N.M

ZF16S1650

inner Spline

Pneumatical

102

HWP-NH1B

1

1000N.M

ZF16S1650

Cardan Flange Shaft

Pneumatical

103

HWP-Z12/65BHQ

0.75

650N.M

TraXon12/7F16

inner Spline

Pneumatical

104

HWP-Z12/65TQ

0.75

650N.M

TraXon12/ZF16

Cardan Flange Shaft

Pneumatical

105

HWP-Z36/38CHQ

1.15

300N.M

ZF6S500

inner Spline

Pneumatical

106

HWP-Z36/38TQ

1.15

300N.M

ZF6S500

Cardan Flange Shaft

Pneumatical

107

HWP-Z41/44CHQ

1

300N.M

ZF5S400V

inner Spline

Pneumatical

108

HWP-Z41/44TQ

1

300N.M

ZE5S400V

Cardan Flange Shaft

Pneumatical

109

HWP-Z45/40CHQ

1.09

300N.M

ZF5S400E

inner Spline

Pneumatical

110

HWP-Z45/40TQ

1.09

300N.M

ZF5S400F

Cardan Flange Shaft

Pneumatical

LK

111

HWP-L19/35CHQ

1.024

300N.M

J4S100A

inner Spline

Pneumatical

112

HWP-L19/35TQ

1.024

300N.M

J4S100A

Cardan Flange Shaft

Pneumatical

113

HWP-L31/38CHQ

1.047

400N.M

LKT6S100

inner Spline

Pneumatical

114

HWP-L31/38TQ

1.047

400N.M

LKJ6S100

Cardan Flange Shaft

Pneumatical
