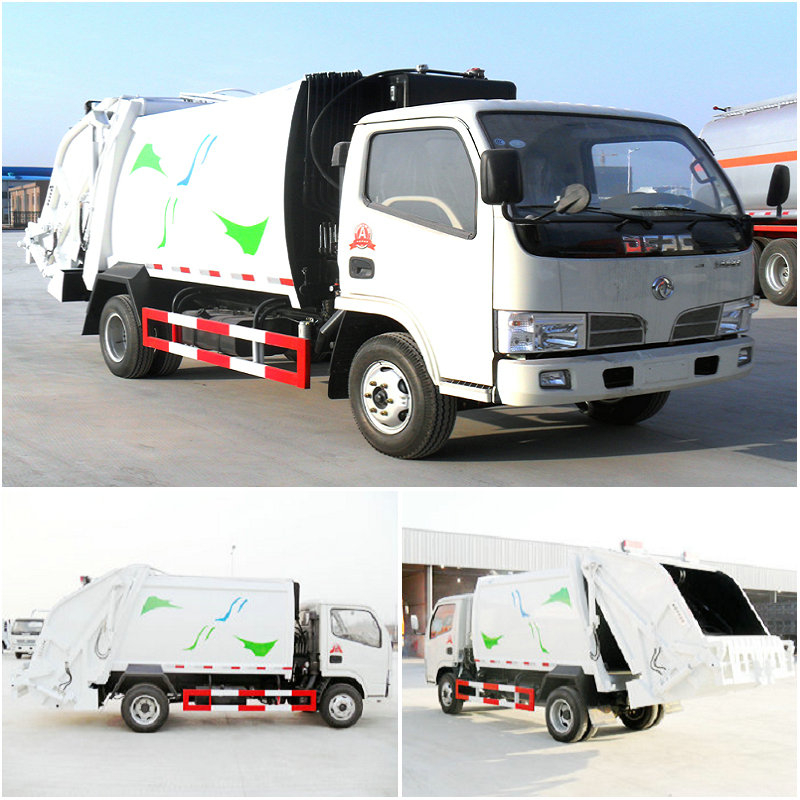

DONGFENG 4-6CBM 4x2 GARBAGE COMPACTOR TRUCK

DONGFENG 4-6CBM 4x2 GARBAGE COMPACTOR TRUCK
Availability:
Quantity:

DONGFENG 4-6CBM 4x2 GARBAGE COMPACTOR TRUCK
Compactor Garbage Truck

  DONGFENG 4-6CBM 4x2 GARBAGE COMPACTOR TRUCK 201601210011135193Description




             Cab




             Single row,Left/right hand drive with AC




             Chassis




             Gas brake




             Dongfeng




             Chassis model




             DFA1070




             Drive type




             4x2




             Tire Spec.




             7.00-16 14PR,7.00R16 14PR




             Tire Numbers




             6




             Braking System




             air brake




             Clutch




             Uniwafer,dry clutch,hydraulic,remote control




             Transmission




             manual




             Engine




             Model




             CY4102-E3C




             Horse Power(hp)




             95HP




             Displacement(cc)/ Power(kw)




             3707




             Emission




             Euro III/Euro IV




             Main Parameters




             Overall dimension (L*W*H/mm)




             6580x2060x2450




             Wheelbase(mm)




             3300




             Axles No.




             2




             GVW(kg)




             7300




             Curb Weight(kg)




             4905




             Leaf spring No.




             8/9+5,6/8+4,6/6+5




             Approaching/Departure Angle(°)




             24/14




             Front/Rear track(mm)




             1506/1466




             Front/Rear suspension(mm)




             1032/1300




             Max speed(km/h)




             95




             Front/Rear Axle Load(kg)




             2920/4380




             Modified Description




             1. Volume:4-6CBM,made by high quality carbon steel plate




             2. Types of collect garbage:barrel collecting,bucket collecting,box collecting.




             3. Equipped with two sets of hydraulic operation systems.




             Composition




             Basic composition:chassis,container,push plate,scraper blade,sliding plate,padding machine,tipping bucket, hydraulic electric system and etc.




             Purpose




             This truck is mainly used for the sanitation department of municipal and large-scale factories and mines carry a variety of waste with simple and convenient collection method.



Dongfeng EQ 5~6M3 Trash Compactor Truck
Customization, Cost and Control Built How You Want it, at a Price You Can Afford. for sale call:+86-152 -7135-7675
 Waste Compactor Function:
 The machine supports heavy duty operations and is high in performance and low in maintenance , it can collect , compact , store and dump the garbage

 Compactor designs. Have been many and varied , one of the most popular being the traditional "sweep and slide" system where hydraulic-powered plates scoop out the waste from a loading hooper and subsequently compact it aagainst the material already loaded.

 Once the waste is dumped, it is compacted by a large blade called a "packer blade" that pushes the waste to the rear of the vehicle.

  Trash Compactor Truck




         COMPACTOR BODY INFORMATION




         Shape




         Smooth Body (Optional)




         Body Capacity (m3)




         5




         Hopper Capacity (m3)




         1.6




         Gate size (width x height) (mm)




         1380 x 1350




         Operation Mechanism




         manual & automatic




         Discharging System




         horizontal push-out




         Loading Time [one cycle] (sec)




         25~30




         Discharge Time (sec)




         30~35




         Hydraulic System Working Pressure (Mpa)




         16.2




         Compression Ratio




         2.5-3 to 1




         Body Material




         Carbon steel made of Q235B




         Plate thickness
         (mm)




         Body




         Floor




         4




         Roof




         5




         Side




         4




         Hopper




         Side(upper)




         5




         Side(lower)




         5




         Bottom




         5




         Discharge plate




         4




         Press plate




         5





 Our Trash compactor truck equipped with China famous hydraulic cylinders and components, adopted by advanced German electronic controlling hydraulic system for realizing manual and intelligent controlling operation, Italy multi-way valve is optional;
 The carriage of our Trash compactor truck is designed with circular arc with good appearance.

 Our factory products line:
 Fire truck; Road wrecker/recovery tow truck/ Car carrier/; Aerial work platform ; Road sweeper; Garbage truck; Watering cart ; Oil/Fuel tanker truck; Truck mounted crane; Concrete mixer truck ; Bulk powder transport truck ; Dumper ; Sewage suction truck etc.
