Byd Mini Bev Battery Electric Self-Loading Garbage Truck for sale
Views: 25 Author: Tom Publish Time: 2021-12-27 Origin: DRZE

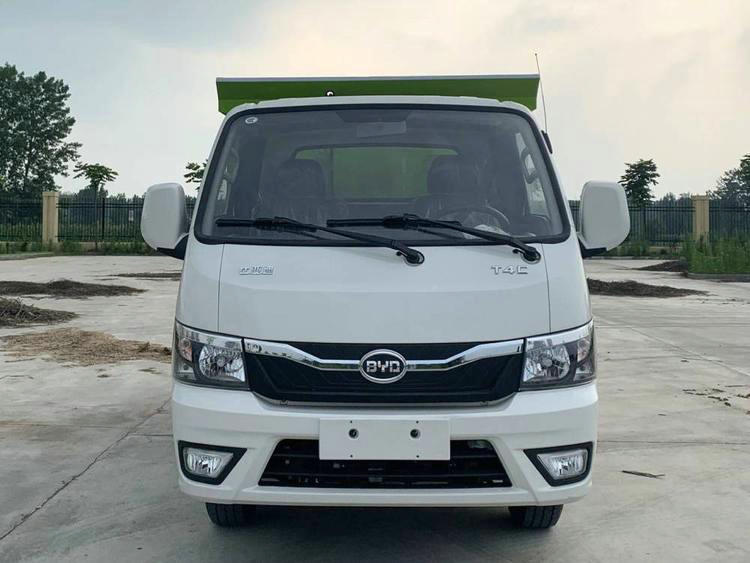

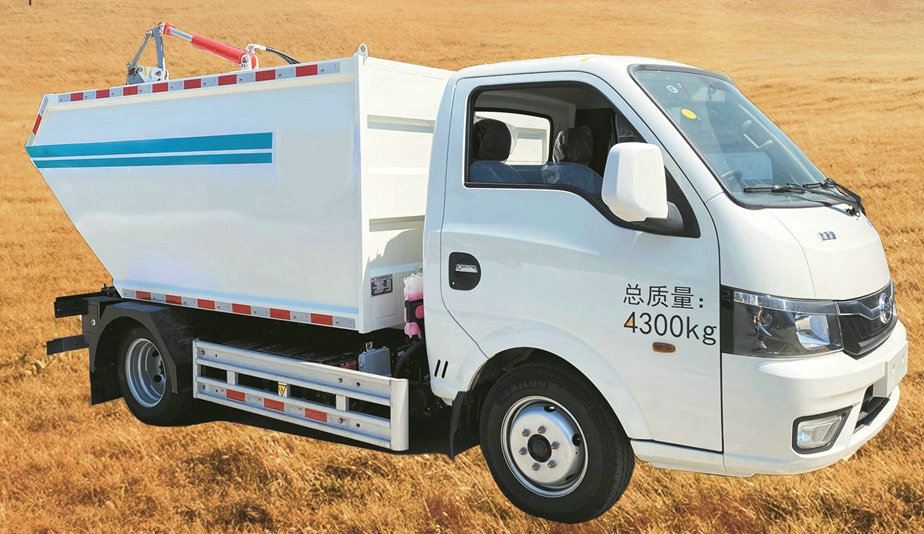

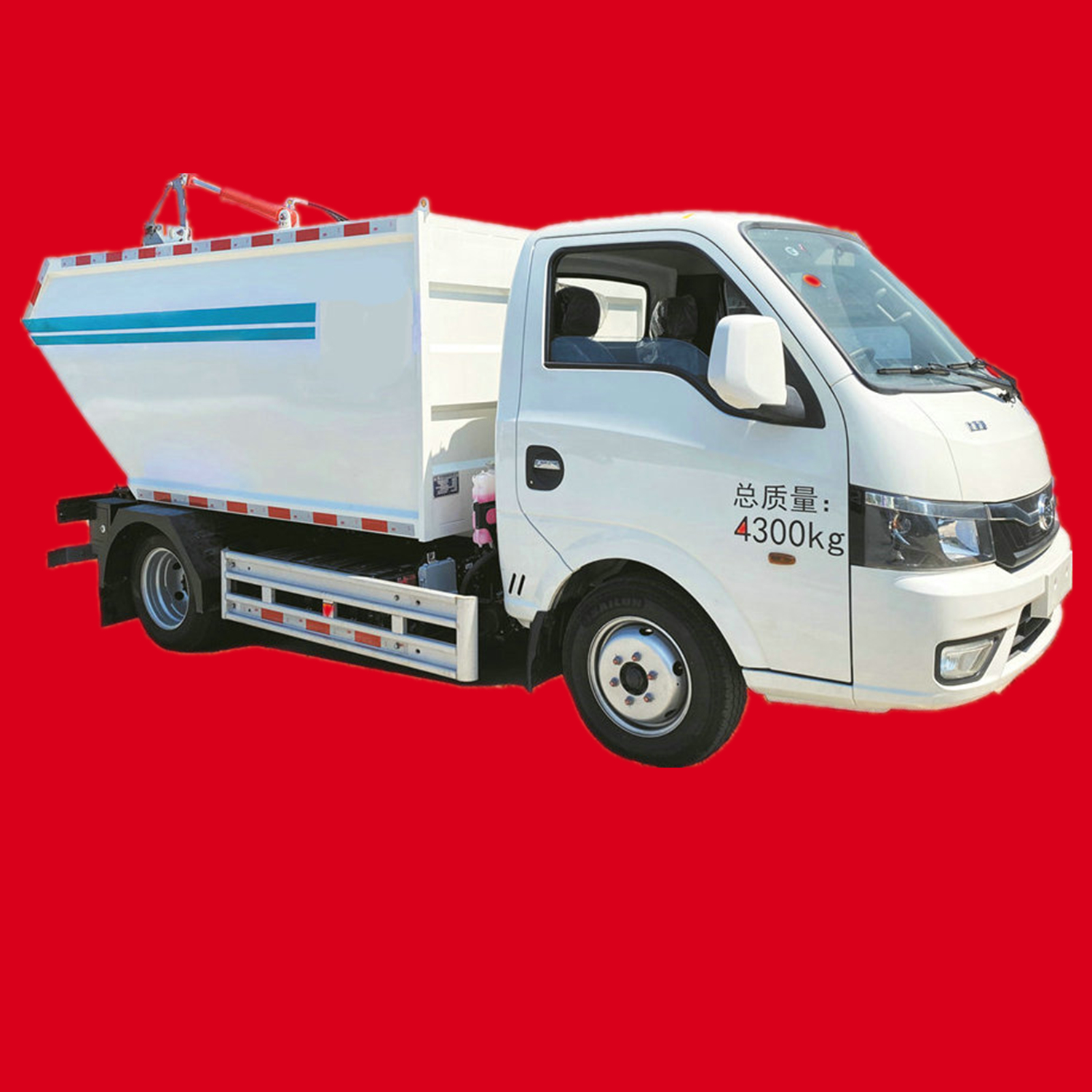

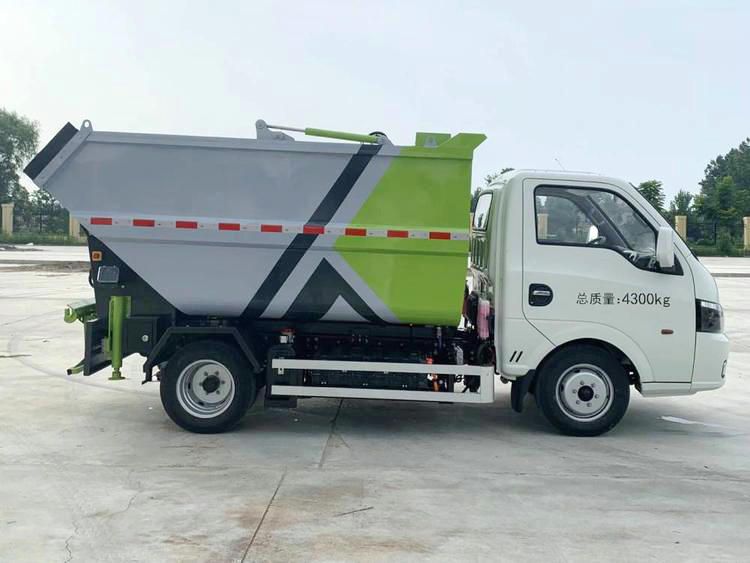

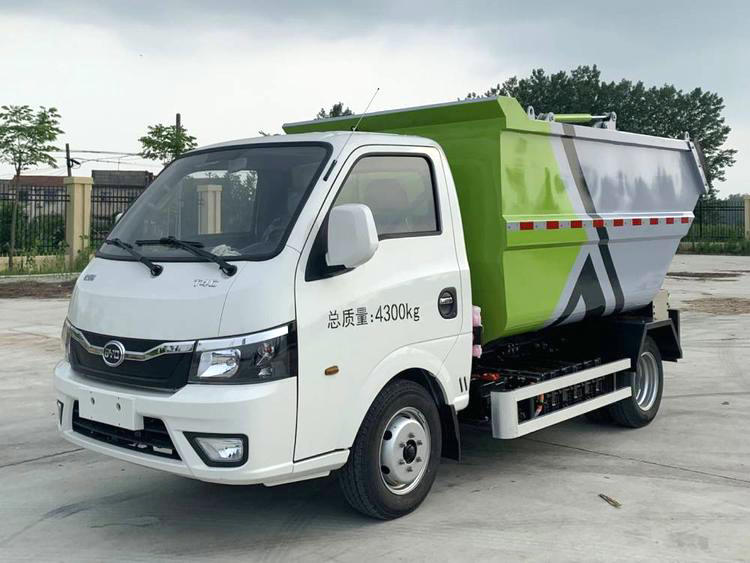

Byd Mini Bev Battery Electric Self-Loading Garbage Truck for sale
Product Description
BYD MINI BEV Battery Electric Self-loading Unloading Dump Garbage Truck 3.5-5CBM Bucket
Maximum power of chassis motor: 80kW
Rated voltage of battery pack: 289.8v
Battery capacity: 63kwh
Chassis full load range: 280km
Battery category: lithium iron phosphate battery
Battery brand: BYD
Rated power of upper motor: 10kw
Hourly power consumption of top mounted: 8kwh
Recommended charging pile power: 120kw
Charging time: about 0.6 hours
| Announcement model | Cl5041zbev pure electric self loading and unloading garbage truck | Overall dimension | 5280x1910x2390 |
| Chassis Model | BYD10411N7BEVD5 | Loading volume | 5square |
| Total mass | 4300KG | Rated power of upper motor | 10KW |
| curb weight | 3010KG | Hourly power consumption of top mounted | 8KWH |
| wheelbase | 2700MM | Recommended charging pile power | 120KW |
| tyre | 185R15LT | Charging time (at recommended power) | About 0.6 hours |
| Number of axes | 2 | Remarks: ABS model: cm4yl;ABS manufacturer: Guangzhou Ruili Kemi Automotive Electronics Co., Ltd;Type of energy storage device: lithium iron phosphate battery;Manufacturers of energy storage devices: Shenzhen BYD Lithium Battery Co., Ltd. (monomer), Shanwei BYD Automobile Co., Ltd. (assembly);;Special function and device description: special device: box, lifting device, mainly used for the transportation of urban sanitation waste, and the unloading method is post unloading;Other notes: drive motor type: permanent magnet synchronous motor, rated power 50KW, peak power 80kW, manufacturer: Changsha BYD Automobile Co., Ltd;Optional etc device; | |
| Chassis motor * * power | 80 KW | ||
| Rated voltage of battery pack | 289.8V | ||
| battery level | 63KWH | ||
| Chassis full load range | 280 KM | ||
| Battery category | Lithium iron phosphate battery | ||
| Battery brand | BYD | ||
| Fuel type | Pure electric | ||
| environment protection | |||
| Exemption | |||
New energy vehicles include pure electric vehicles, incremental electric vehicles, hybrid electric vehicles, fuel cell electric vehicles, hydrogen engine vehicles, etc.This product is a pure electric vehicle
Introduction to new energy pure electric vehicle:
Blade electric vehicles (Bev) is a vehicle that uses a single battery as the energy storage power source. It uses the battery as the energy storage power source to provide electric energy to the motor through the battery and drive the motor to run, so as to drive the vehicle.Rechargeable batteries of pure electric vehicles mainly include lead-acid batteries, nickel cadmium batteries, nickel hydrogen batteries and lithium-ion batteries, which can provide power for pure electric vehicles.At the same time, pure electric vehicles also store electric energy through batteries to drive the motor to run and let the vehicle run normally.
Advantages of pure electric special vehicle:
(1) Zero emission.Pure electric vehicles use electric energy, no exhaust gas is discharged during driving, and do not pollute the environment.
(2) High energy utilization.Studies have shown that the same crude oil is roughened, sent to the power plant for power generation, charged into the battery, and then driven by the battery. Its energy utilization efficiency is higher than that of refined into gasoline and then driven by the gasoline engine.
(3) Simple structure.Due to the use of single electric energy, the fuel tank, engine, transmission, cooling system and exhaust system are omitted. Compared with the internal combustion gasoline engine power system of traditional vehicles, its structure is greatly simplified.
(4) Low noise.During driving, the vibration and noise are small, and the inside and outside of the carriage are very quiet.
(5) Wide range of raw materials.The electricity used can be obtained from a variety of primary energy sources, such as coal, nuclear energy and water power, which relieves people's concern about the increasing depletion of oil resources.
(6) Shift the peak and fill the valley.For power generation enterprises and power companies, the battery of electric vehicles can be charged at night by using the cheap "valley power" of the power grid, which can stabilize the peak valley difference of the power grid and make full use of the power generation equipment day and night, so as to greatly improve the economic benefits.
Product introduction:
Cl5041zbev pure electric self loading and unloading garbage truck is a special vehicle for new energy garbage transportation. It is refitted with BYD pure electric chassis. It has the characteristics of low noise and no emission pollution. It is mainly suitable for garbage collection and transportation in urban communities and streets.
Performance characteristics:
the garbage scraper in the carriage is equipped to effectively regulate the garbage and effectively improve the garbage loading capacity of the vehicle
the car body is integrally welded with high-strength steel plate, with high strength, good corrosion resistance and long service life
the garbage can lifting mechanism can be compatible with standard garbage cans with lifting capacity of 120L and 240L, which is convenient for garbage loading
the upper control adopts a new remote wireless remote control technology, and the upper control system is simple, convenient, safe and reliable
the rear high-level unloading type is adopted, and the unloading angle of the vehicle is large, so as to ensure that the garbage can can be dumped clean without residual material during lifting and unloading.
Basic parameters of chassis:
Introduction to new energy pure electric vehicle:
Blade electric vehicles (Bev) is a vehicle that uses a single battery as the energy storage power source. It uses the battery as the energy storage power source to provide electric energy to the motor through the battery and drive the motor to run, so as to drive the vehicle.Rechargeable batteries of pure electric vehicles mainly include lead-acid batteries, nickel cadmium batteries, nickel hydrogen batteries and lithium-ion batteries, which can provide power for pure electric vehicles.At the same time, pure electric vehicles also store electric energy through batteries to drive the motor to run and let the vehicle run normally.
Advantages of pure electric special vehicle:
(1) Zero emission.Pure electric vehicles use electric energy, no exhaust gas is discharged during driving, and do not pollute the environment.
(2) High energy utilization.Studies have shown that the same crude oil is roughened, sent to the power plant for power generation, charged into the battery, and then driven by the battery. Its energy utilization efficiency is higher than that of refined into gasoline and then driven by the gasoline engine.
(3) Simple structure.Due to the use of single electric energy, the fuel tank, engine, transmission, cooling system and exhaust system are omitted. Compared with the internal combustion gasoline engine power system of traditional vehicles, its structure is greatly simplified.
(4) Low noise.During driving, the vibration and noise are small, and the inside and outside of the carriage are very quiet.
(5) Wide range of raw materials.The electricity used can be obtained from a variety of primary energy sources, such as coal, nuclear energy and water power, which relieves people's concern about the increasing depletion of oil resources.
(6) Shift the peak and fill the valley.For power generation enterprises and power companies, the battery of electric vehicles can be charged at night by using the cheap "valley power" of the power grid, which can stabilize the peak valley difference of the power grid and make full use of the power generation equipment day and night, so as to greatly improve the economic benefits.
Product introduction:
Cl5041zbev pure electric self loading and unloading garbage truck is a special vehicle for new energy garbage transportation. It is refitted with BYD pure electric chassis. It has the characteristics of low noise and no emission pollution. It is mainly suitable for garbage collection and transportation in urban communities and streets.
Performance characteristics:
the garbage scraper in the carriage is equipped to effectively regulate the garbage and effectively improve the garbage loading capacity of the vehicle
the car body is integrally welded with high-strength steel plate, with high strength, good corrosion resistance and long service life
the garbage can lifting mechanism can be compatible with standard garbage cans with lifting capacity of 120L and 240L, which is convenient for garbage loading
the upper control adopts a new remote wireless remote control technology, and the upper control system is simple, convenient, safe and reliable
the rear high-level unloading type is adopted, and the unloading angle of the vehicle is large, so as to ensure that the garbage can can be dumped clean without residual material during lifting and unloading.
Basic parameters of chassis:
| Total mass (kg) | 4300 | Wheelbase (mm) | 2700 |
| Vehicle power (KWH) | 63.75 | Motor * * power (kw) | 80 |
| Vehicle voltage platform (V) | 289.8 | Motor model | TZ180XSE |
| **Vehicle speed (km / h) | 90 | **Climbing slope | 20% |
| Approach angle / departure angle (°) | 19/17 | **Small turning radius (mm) | 6000 |
| **Small ground clearance (mm) | 155 | Upper power distribution (kw) | 13kw |
| Front and rear axle load (T) | Front axle 1.5T, rear axle 2.8T | Charging time (H) | 1.15 |
| Driving range (working condition method km) | 280 | Tire specification | 185R15LT |
| Drive motor | Coaxial Bridge | steering system | EHPS (electro hydraulic power assisted) |
| Charging type | DC55kw | Steering wheel | Four wheel steering without buttons |
| Battery type | Lithium iron phosphate battery | Steering column | Two way adjustable |
| Parking type | Mechanical handbrake | Braking type | hydraulic pressure |
| Cab type | Short head single row | Brake | Front disc rear drum |
| Cab turnover type | Non reversible | tyre | Tubeless Radial Tire |
| Cab mount | Rubber mount | car window | Electric |
| [technical parameters of the whole vehicle] | ||||
| Product trademark | Dong Runze | Announcement batch | 337 | |
| Product name | cl5041zbev pure electric self loading and unloading garbage truck | |||
| Total mass (kg) | 4300 | Tank volume (M3) | ||
| Rated mass (kg) | 1160 | Overall dimension (mm) | 5280X1910X2390 | |
| Curb weight (kg) | 3010 | Cargo compartment size (mm) | XX | |
| Number of passengers allowed in the cab (person) | 2 | Saddle * * load mass (kg) | ||
| Approach angle / departure angle (°) | 19/13 | Front suspension / rear suspension (mm) | 1180/1400 | |
| Axle load (kg) | 1450/2850 | **Vehicle speed (km / h) | 90 | |
| remarks: | Remarks: ABS model: cm4yl;ABS manufacturer: Guangzhou Ruili Kemi Automotive Electronics Co., Ltd;Type of energy storage device: lithium iron phosphate battery;Manufacturers of energy storage devices: Shenzhen BYD Lithium Battery Co., Ltd. (monomer), Shanwei BYD Automobile Co., Ltd. (assembly);Material, connection mode and main dimension parameters of rear protective device (section size and ground clearance): the material of side protective device is 5052-H32, which is connected with the vehicle by bolts;The rear guard is replaced by a special device, section size (mm): 100×50, 305 mm above the ground;Special function and device description: special device: box, lifting device, mainly used for the transportation of urban sanitation waste, and the unloading method is post unloading;Other notes: drive motor type: permanent magnet synchronous motor, rated power 50KW, peak power 80kW, manufacturer: Changsha BYD Automobile Co., Ltd;Optional etc device; | |||
| [chassis technical parameters] | ||||
| Chassis Model | BYD10411N7BEVD5 | Chassis name | ||
| Trade name | manufacturing enterprise | |||
| Number of axes | 2 | Number of tires | 6 | |
| Wheelbase (mm) | 2700 | |||
| Tire specification | 185R15LT | |||
| Number of leaf springs | 3/3,3/4+2,3/6 | Front track width (mm) | 1375 | |
| Fuel type | Rear track width (mm) | 1310 | ||
| Emission basis standard | ||||
| Engine model | Engine manufacturer | Engine displacement | Engine power | |
| TZ180XSE | - | 80 | ||
