API valve YOJE series

API valve YOJE series
Availability:
Quantity:

   API valve

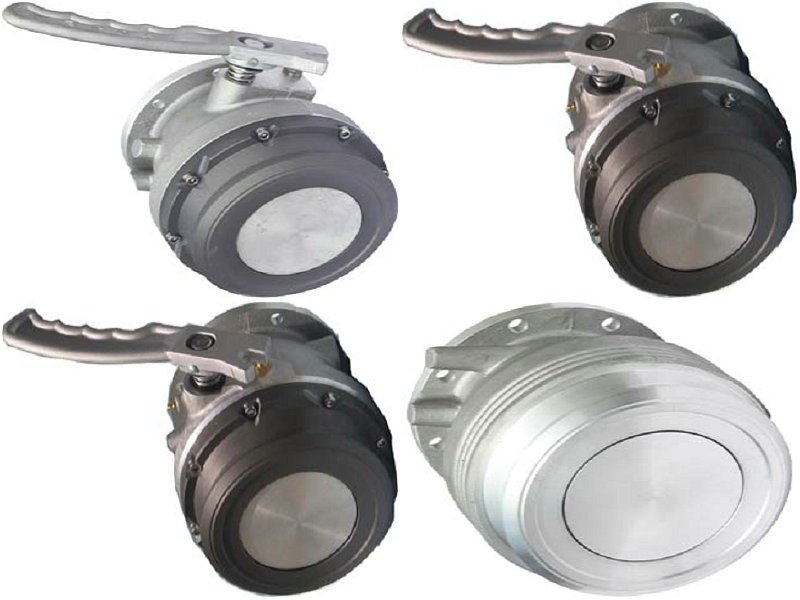

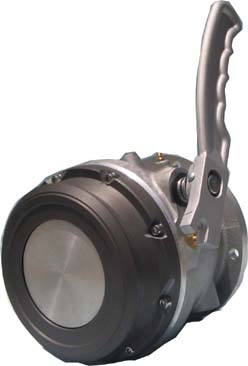

 YOJE HYF series API valve is installed at the bottom of tanker,to unload safely and conveniently.

 When unloading oil,the valve can connect with coupler quite firmly,that can effectively resist the pulling force.

 It has AL alloy structure and can fit for various coupler.Its design and structure can increase the service life and improve the operation ability.





 Material:

 Body: AL alloy

 API valve head: hard AL

 Lift valve: AL alloy

 Seal: FPW and NBR

 Operate shaft: SS


 Feature:

 Casting AL structure and use the spring to increase service life

 Decrease fluid line to raise the flow

 Easy to change and inside use the SS to prove intensity

 Fit API1004, EN13083 and flange TTMA standard



  API valve


   HYF-01



   API valve HYF-01Material:



   Body: AL alloy



   API valve head: hard AL



   Lift valve: AL alloy



   Seal: FPW and NBR



   Operate shaft: SS







   Parameter :






         Size          4"
         Flow          2500L/min
         Working pressure          0.6MPA
         operate way          manual


           Temperature




           -20 to 70 ℃




           Connect way


         flange
         Medium          oil






   HYF-02



   API valve HYF-02Material:



   Body: AL alloy



   API valve head: hard AL



   Lift valve: AL alloy



   Seal: FPW and NBR



   Operate shaft: SS




         Size                                    4"
         Flow          2500L/min
         Working pressure          0.6MPA
         operate way          manual


           Temperature




           -20 to 70 ℃




           Connect way


         flange
         Medium          oil






   HYF-03



   API valve HYF-03Material:



   Body: AL alloy



   API valve head: hard AL



   Lift valve: AL alloy



   Seal: FPW and NBR



   Operate shaft: SS


         Size          4"
         Flow          2500L/min
         Working pressure          0.6MPA
         operate way                    manual


           Temperature




           -20 to 70 ℃




           Connect way


         flange
         Medium          oil






   HYF-04



   API valve HYF-04Material:



   Body: AL alloy



   API valve head: hard AL



   Lift valve: AL alloy



   Seal: FPW and NBR



   Operate shaft: SS



         Size          4"
         Flow                                      2500L/min
         Working pressure          0.6MPA
         operate way          manual


           Temperature




           -20 to 70 ℃




           Connect way


         flange
         Medium          oil
