Views: 1215 Author: Dong Runze Special Vehicle Publish Time: 2017-10-17 Origin: Dong Runze Special Vehicle
6x6 Off-road dongfeng 8000 Litres Vac Tank Truck export sale price
FOB US $45,000-48,000 / Unit
Dongfeng All Wheel Drive Off Road 6x6 Vacuum Sewage Suction Truck
Characteristic of 6WD Dongfeng Vacuum Sewage Suction Truck:
Equipped with vacuum pump(rating rotate speed=1400r/m,min rotate speed ≥800r/m, max suction lift ≥6m, vacuum 500mmHg, clockwise)
Equipped withpower take off, transmission shaft, fecal tank, pipe network, fecal pipe for observing and cleanout equipment
Time for full suction<5min
Equipment is designed to collect, by suction, and transport the sewage and sludge. Cesspit emptier consists of a subframe connected to the vehicle's chassis. A cylindirical tank, a hydraulically openning full diameter tailgate and the vacuum system powered by the PTO mounted to the gearbox of the vehicle. All the functions and the load distribution of the equipment are properly arranged to the technical specifications of the chassis on which it is mounted.

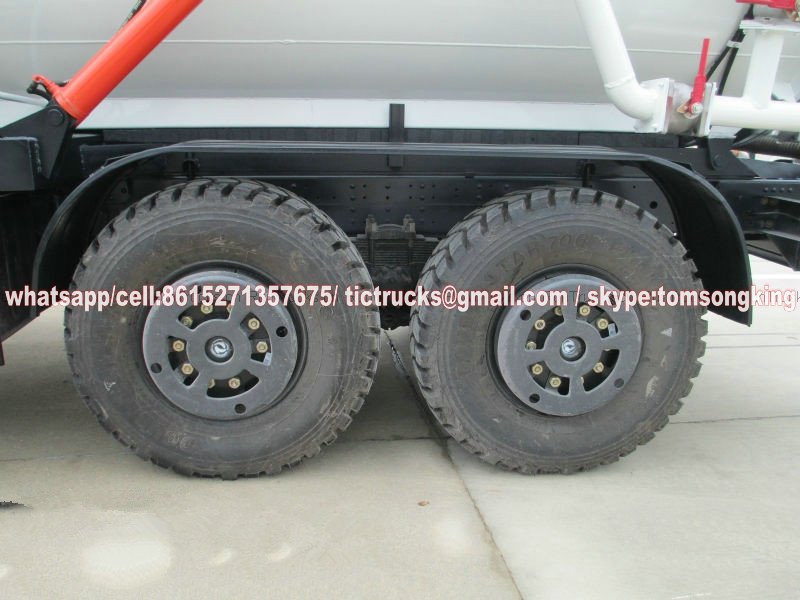

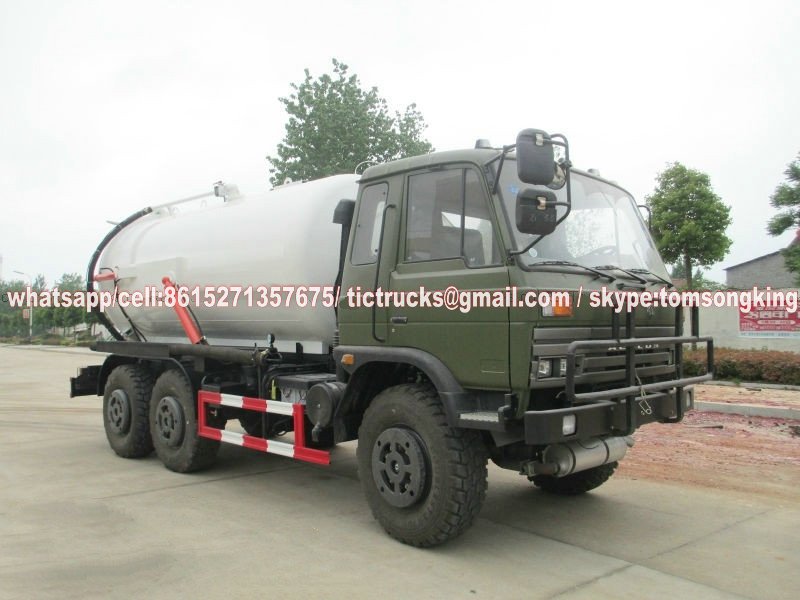

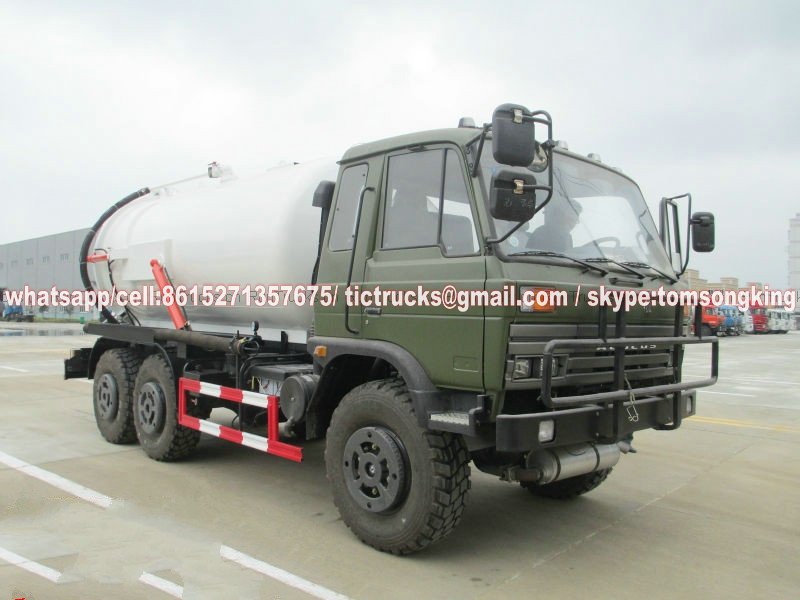

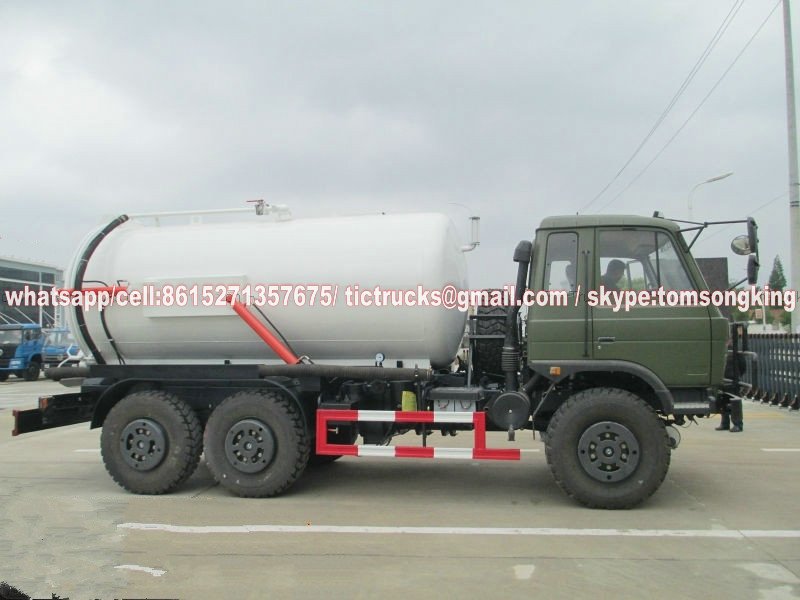

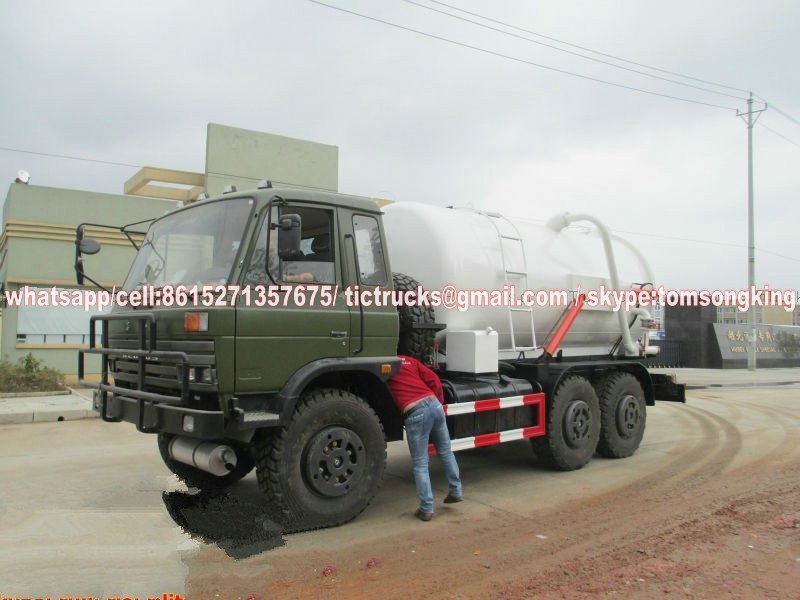

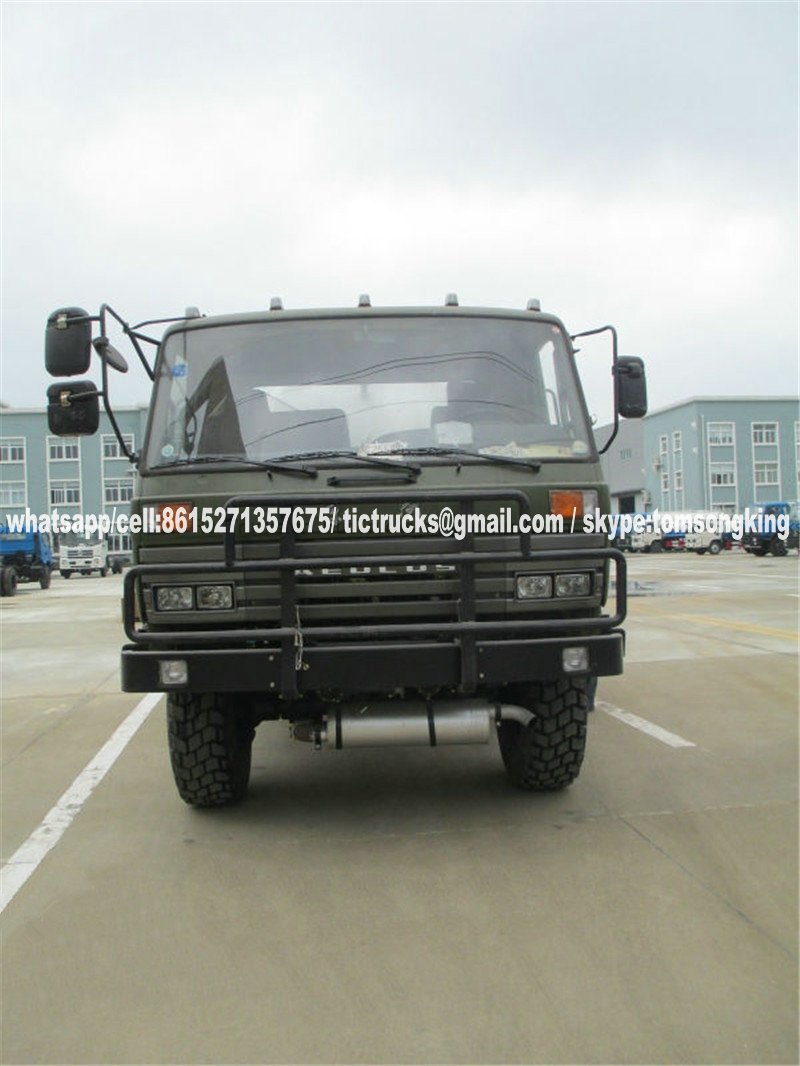

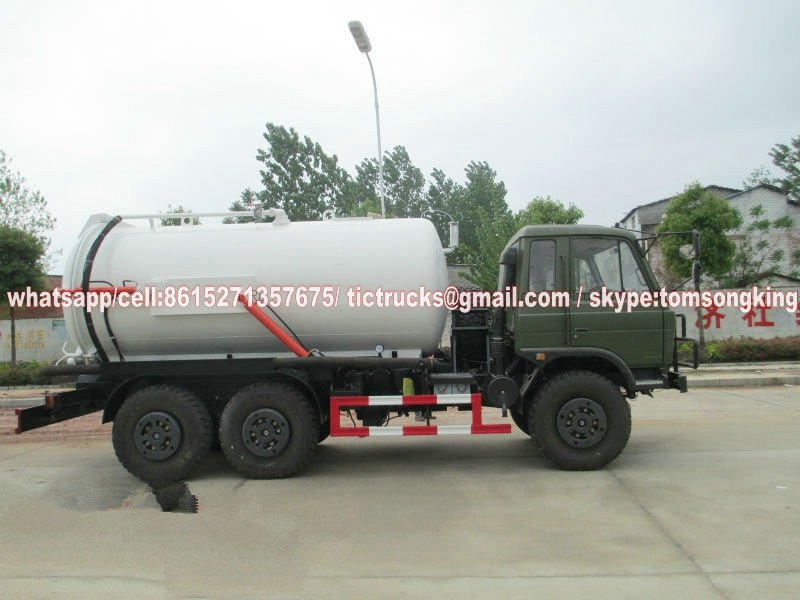

Detail Photos of Dongfeng 6*6 Desert Area Vacuum Sewage Suction Truck:
All Wheel Drive Off Road Desert Vacuum Sewage Suction Truck
Dongfeng off-road suction sewage truck | ||||||||
The total mass (kg) | 16050 | Curb weight (kg) | 7955 | |||||
Rated weight (kg) | 7900 | Chassis Type | DFS5160GLJ | |||||
Cab seats (people) | 3 | Cubage () | 7000Liters to 8000Liters | |||||
Approach / departure angle (°) | 35/30 | Front / rear overhang | 1385/1625 | |||||
Dimensions (mm) | 7760X2500X2845 | Compartment Size (mm) | 4850X2300X600, 800 | |||||
Total trailer weight (kg) | Axle load | 4020/6015/6015 | ||||||
Number of axes | 3 | Top speed | 95 | |||||
Vehicle Identification Number | ||||||||
Tire Size | 12.5R20 | Number of tires | 6 | |||||
Front track | 1916 | Rear track | 1876/1876 | |||||
Wheelbase | 3500 +1250 | Number of springs | 10/12 | |||||
Emission standards | GB17691-2005 | Type of fuel | Diesel fuel | |||||
Engine Model
| Engine Manufacturer | Engine displacement | Engine power
| |||||
ISDe185 40 | Dongfeng Cummins Engine Co., Ltd. | 6700 | 136 /190hp | |||||
Other
| 1 Net engine power corresponds to: YC6J180-42 to 128kW, ISDe185 40 of 130.2kW; 2. Side Protection: Material Q235, connection bolts. Rear underrun protection: Material Q235, connection bolt connection, cross section dimensions 120 × 60mm, height of 450mm. | |||||||
suction system | suction pump | Single Stage Rotary Oil Seal Vacuum Pump | ||||||
special parameter | Vertical suction height | ≥8 | ||||||
working pressure | 8500 Pa | |||||||
rotation speed | 500 | |||||||
suction speed | 98 L/S | |||||||
power | 5.5 kw | |||||||
inlet diameter | 50 mm | |||||||
filling time | less than 5 s | |||||||
discharge time | Less Than 4 s |
Dongfeng All Wheel Drive Off Road 6*6 Vacuum Sewage Suction Truck
US $40000-50000 / Unit
1 Unit (Min. Order)
Fuel Type: Diesel
Brand Name: dongfeng
Dimension (L x W x H): 7800*2500*3000
Model Number: EQ2102
Horsepower: 160hp
All Wheel Drive Off Road 6WD Dongfeng Sewage Suction Truck 6*6 Vacuum Septic Tanker Truck Desert Truck EQ2102
Free Inspection
US $38000-45000 / Unit
2 Units (Min. Order)
Brand Name: Dongfeng Sewage Suction Truck
Drive type: 6*6 For Desert area
Horsepower: 160hp
Tank Volume: 6000L-8000L
Dongfeng All Wheel Drive Off Road Military 6WD 6*6 Sewage Jetting Vacuum Pump Truck Suction Tank Truck Call 0086 15897603919
Free Inspection
US $38000-45000 /
Off-road dongfeng Vac Tank Truck ,Off-road Vac Tank Truck , 6*6 all wheel drive sewage truck, all wheel drive vaccum truck,8000Ltrs Military Sewer Tanker Truck ,All Wheel Drive Off Road, 6*6 Septic Vacuum Sewage Suction Truck ,Sewer Tanker Truck
