3 axle hydraulic dumper trailer 50 tons Features
Views: 1638 Author: Dong Runze Special Vehicle Publish Time: 2017-10-17 Origin: Dong Runze Special Vehicle

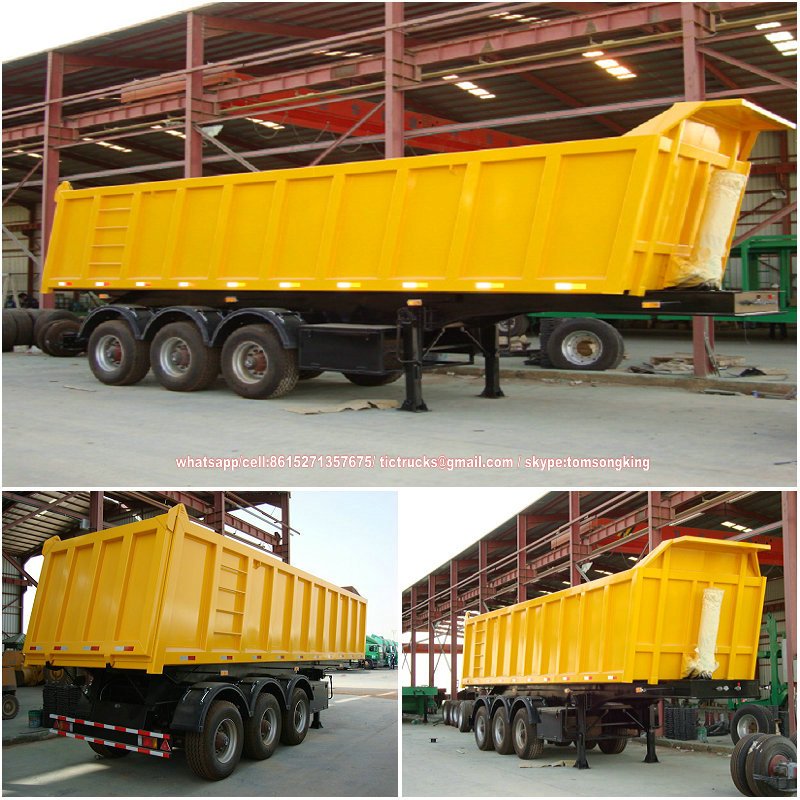

3 axle hydraulic dumper trailer 40 tons, 50tons,60 tons,80 tons
specification
US $27000-$29800
Name: 3 axle hydraulic dumper trailer
Payload: 40 tons, 50tons,60 tons,80 tons

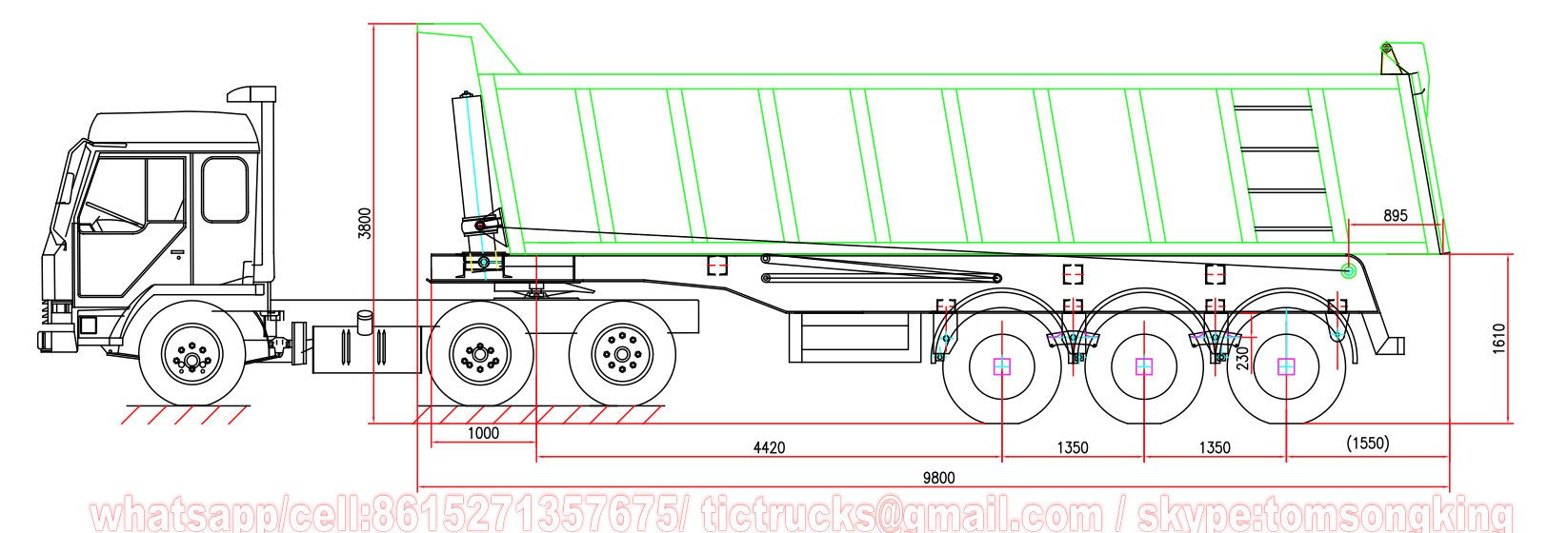

Overall dimension: 9800*2500*3800
Hydraulic: central station hydraulic powered by PTO from the prime mover
Hydraulic lifting angle: 50 degree
Axle: 13T * 3, FUWA, Anqiao, Man, York or BPW
Dumper body: 8mm for dumper base panel, sidewall panel 6mm
Tires: 385/65R22.5, 12 tires + 1 spare tire
Frame: Q550 high tension steel
Kingpin: 2'' JOST
Landing gear: double speed JOST
Spare tire carrier: 1~2
Brake system: Wabco dual line pneumatic brake line
Electricl system: 12/24V, 7 pin socket
Accessories: A standard set of tools
Light: Tail lamp, side lamp, brake lamp, etc. All LED
Surface process: sandblasted
Painting: Base coating + surface painting
dumper body can be U shape or with sharp angle. The dumper base panel normally has a thickness of 8mm while sidewalls 6mm. Lifting angle is 50 degree. The hydraulic cylinder, which powered by PTO from the prime mover, has multi-stage station. It can be placed at the front for the dumper or in the middle, with foldable function. The dumper has lower central gravity, more stable for the handling of sands, ores, mini-stone, etc. The axle adopts 2 axle type or 3 axle type, with spring suspension or air suspension according to customers' requirements. Side lift dumper is also available.
Dumper Trailer Features
Various loading capacity
U shape dumper body available
Multi-stage hydraulic cylinder
Main components purchased from famous brand
Shipment option
The dumper trailer can be separated into SKD forms and loaded inside 40ft ISO containers. Local assembly is required for such shipment solution. CBU transportation is availble while the freight cost is higher.
