3 axle 30CBM vacuum tanker trailer Features
Views: 1647 Author: Dong Runze Special Vehicle Publish Time: 2017-10-17 Origin: Vacuum Tanker Trailer
3 axle 30CBM vacuum tanker trailer Features
US $41800-$49800
specification
Name: 3 axle 30CBM vacuum tanker trailer
Loading capacity: 30,000 litres

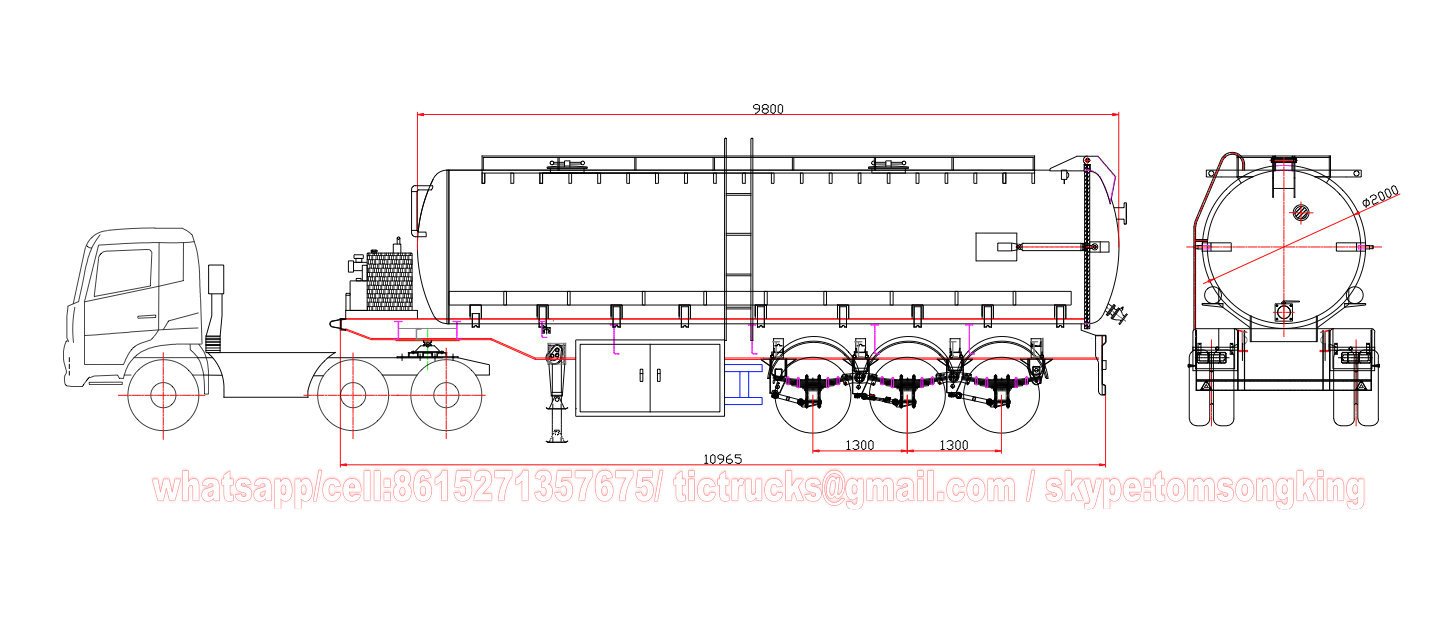

Overall dimension: 11000*2500*3800mm
Vacuum pump: Hydraulic vacuum pump with water cooling system
Rear door: Opened by hydraulic cylinder
Axle: 9T*3 (FUWA, Anqiao, Man, York or BPW)
Frame: Q550 high tension steel
Tanker body: High tension steel, 8mm thickness
Kingpin: 2'' Kingpin JOST
Landing gear: Double speed JOST
Spare tyre carrier: 1~2
Brake system: Wabco dual line pneumatic brake line
Electrical system: 12/24V, 7 pin socket (US, EU or Australian standard)
Accessories: Handrail, ladders, fire extinguisher
Light: tail lamp, side lamp, brake lamp, etc. All LED.
Surface process: Sandblasted
Painting: base coating + surface painting.
vacuum tanker trailer adopts a vacuum pump to suck the air out of the tank for the generation of the minus pressure. All the waste, including sewage, impurities and crude oil sludge can be pushed into the tank for storage and transportation. The tanker has various size, normally in round shape to guarantee maximum resistance against exterior air pressure, steel plate thickness can reach 8mm. The air compressor pump is the most critical part of the trailer, it can be driven by PTO or a separate diesel engine. The rear door, controlled by hydraulic cylinder, can be opened for the further removal of the waste. It's widely used in city sewage network or oil field.
Vacuum Tanker Trailer Features
Tank body made from high tension steel
High quality vacuum pump with water cooling system
Rear door can be opened by hydraulic cylinder
Main components purchased from famous brand
Shipment option
The same as all other type of tanker trailer, it's difficult to load the sewage vacuum tanker trailer inside a 40ft container. CBU is the only way of shipment, the freight cost will occupy a large amount in the total cost of the purchasing of vacuum tanker trailer.
Vacuum Suction Tanker Truck Semi Trailer can help to clean the sewer under ground, clean the sludge in the river around city. Vacuum Suction Tanker Truck Semi Trailer also can help big factory to clean the greasy dirt and waste water.
Dimension: 9550X2490X3300 ,25000 Liters ,44KW diesel engine to drive the
liquid ring vacuum pump
