3,4,5 axle fuel tanker trailer Steel, stainless steel or aluminum Featuring specification
Views: 1691 Author: Dong Runze Special Vehicle Publish Time: 2017-10-17 Origin: Dong Runze Special Vehicle
3,4,5 axle fuel tanker trailer Featuring specification
US $19800-$39800
Steel 3 axle fuel tanker trailer , stainless steel3 axle fuel tanker trailer ,aluminum 3 axle fuel tanker trailer
Name: 3,4,5 axle fuel tanker trailer
Loading capacity: 36,000 liters;40,000 liters;42,000 liters;44,000 liters;45,000 liters;48,000 liters;50,000 liters;52,000 liters;
54,000 litres;56,000 litres;58,000 litres;60,000 litres;70,000 litres;

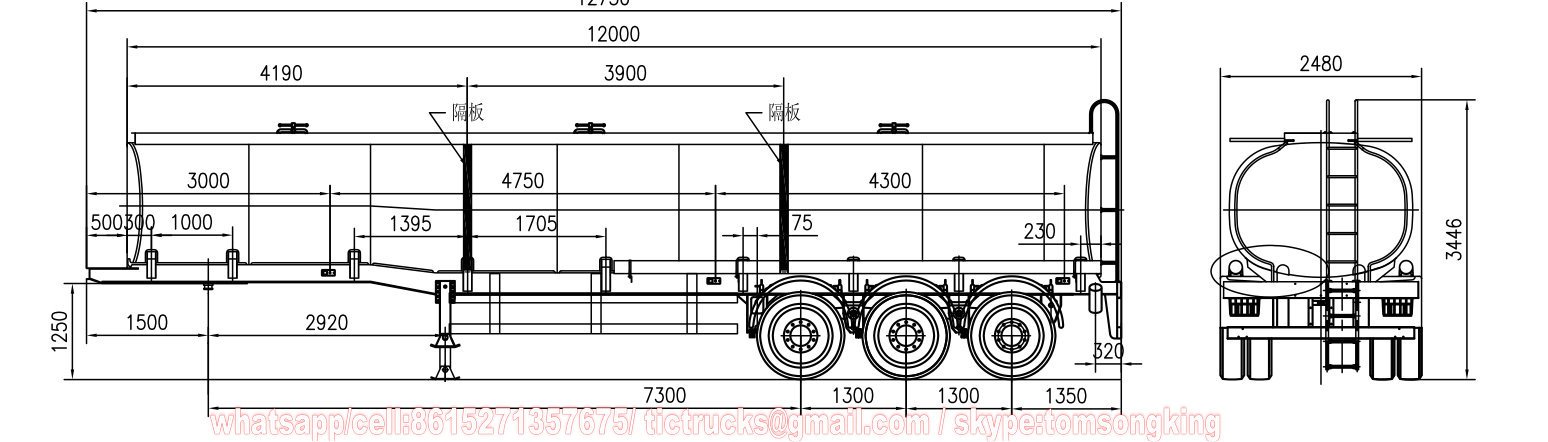

Overall dimension: 12700*2500*3900mm
Compartment: 1,2,3,4,5,6,7
Axle: 9T*3 (FUWA, Anqiao, Man, York or BPW), air suspension or mechanical suspension
Tires: 11R22.5, 12 Tires + 1 spare one
Frame: Q550 high tension steel
Kingpin: 2'' Kingpin JOST
Landing gear: Double speed JOST
Spare tyre carrier: 1~2
Brake system: Wabco dual line pneumatic brake line
Electrical system: 12/24V, 7 pin socket (US, EU or Australian standard)
Accessories: Handrail, ladders, drainage valve, vapor recovery syste, vent valves, etc
Light: tail lamp, side lamp, brake lamp, etc. All LED.
Surface process: Sandblasted
Painting: base coating + surface painting.
Fuel tanker trailer is designed for the stable and secure transportation of fuels and other liquid. Common tanker model includes 36CBM, 42CBM, 52CBM, 60CBM, etc. The tanker body adopts 6mm thick steel plate with 3~5 compartment according to customers requirement. Steel, stainless steel or aluminum are all available based on customers' needs. The self bearing tank is of maximum shape with lowest centre gravity. The drainage has two options: gravity drainage and pump drainage. Other components include: ladders, foldable handrail, manhole, valves, etc, which can all be customized or recommended by us. All tankers will be inspected of leakage before shipment, calibration chart will also be provided.
Fule tanker Trailer Features
Various tanker capacity
Gravity drainage and pump drainage
Oval tanker body made from high tension steel plate
Main components purchased from famous brand
Shipment option
The fuel tanker can only be loaded in 40ft unless it is small in volumes (less than 30 cubic meter) otherwise for over 30 CBM tanker trailer, it has to be shipped in CBU terms (completely built unit). Therefore, the freight cost of tanker trailer is slightly higher. Road transport is also availble for neighboring regions.
