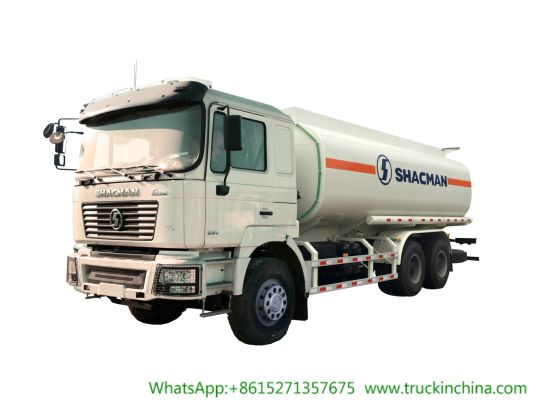

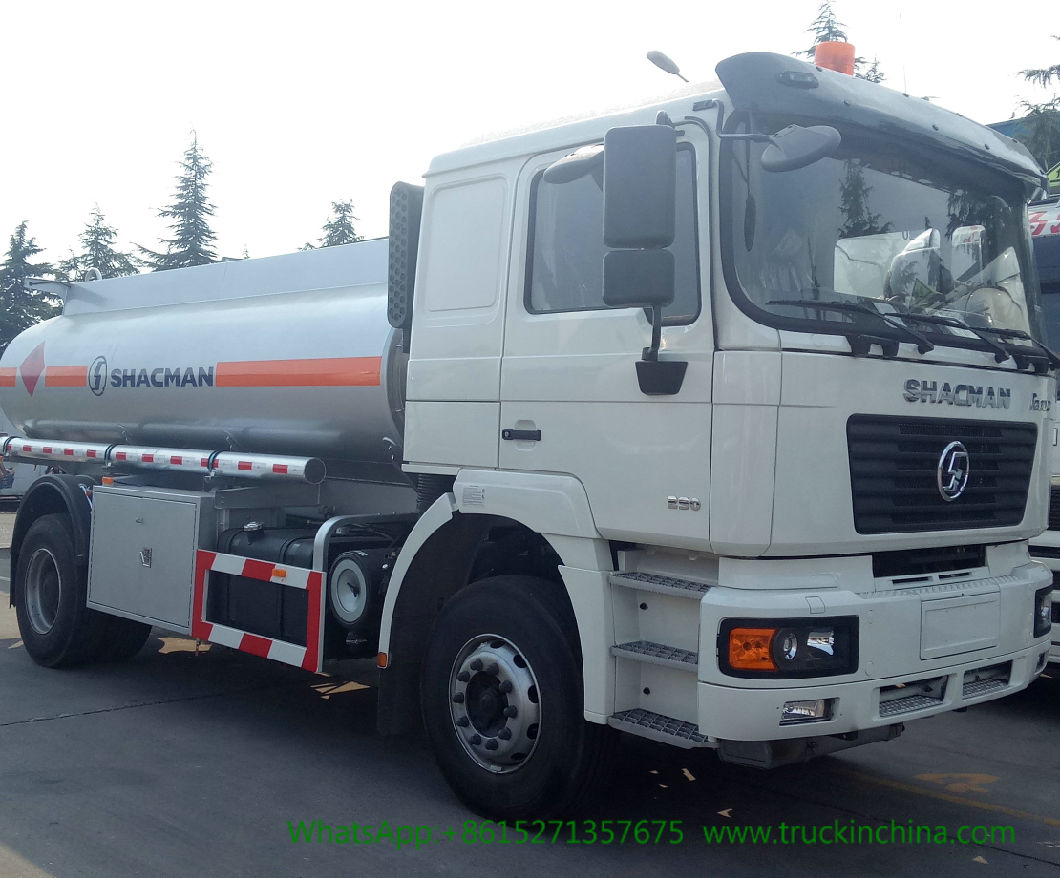

Shacman Fuel Tanker Trucks 15000L F2000 with Oil Bowser Pump and Refueling Reel Fuel Dispenser
Shacman Fuel Tanker Tank diamension(mm): 5100*2460*1700
Transmitter:Crude oil, oil products, edible oil, water, ethyl alcohol etc
Tank material:Carbon steel, stainless steel, rubber-lined, rotomoulded plastic, full aluminum
Tank shape:Round square, oval, round
Oil pump:Self-priming pump, gear pump, chemical pump, stainless steel pump
Functions:Can be seperated into several cabins to load different oil, chemical and food.
Various kinds of insulation and heating system optionalTrucks 25000L F2000/6X4 EGR EURO3
| SX1255NL434 | 6×4 | F2000 | WP10.270E32 | 270 | 9.726/2200 | 9JS119 | 7.5MAN | 13STR | 4.8 | 12.00R20 | 400L | 4325+1350 |
| SX1255NM434 | 6×4 | F2000 | WP10.290E32 | 290 | 9.726/2200 | 9JS119 | 7.5MAN | 13STR | 4.8 | 12.00R20 | 400L | 4325+1350 |
| SX1255NN434 | 6×4 | F2000 | WP10.310E32 | 310 | 9.726/2200 | 9JS135 | 7.5MAN | 13STR | 4.8 | 12.00R20 | 400L | 4325+1350 |
| SX1255NR434 | 6×4 | F2000 | WP10.340E32 | 340 | 9.726/2200 | 9JS135 | 7.5MAN | 13STR | 4.8 | 12.00R20 | 400L | 4325+1350 |
| SX1255NT434 | 6×4 | F2000 | WP10.380E32 | 380 | 9.726/2200 | RTD-11509C | 7.5MAN | 13STR | 4.8 | 12.00R20 | 400L | 4325+1350 |
| SX1255NL464 | 6×4 | F2000 | WP10.270E32 | 270 | 9.726/2200 | 9JS119 | 7.5MAN | 13STR | 4.8 | 12.00R20 | 400L | 4600+1350 |
| SX1255NM464 | 6×4 | F2000 | WP10.290E32 | 290 | 9.726/2200 | 9JS119 | 7.5MAN | 13STR | 4.8 | 12.00R20 | 400L | 4600+1350 |
| SX1255NN464 | 6×4 | F2000 | WP10.310E32 | 310 | 9.726/2200 | 9JS135 | 7.5MAN | 13STR | 4.8 | 12.00R20 | 400L | 4600+1350 |
| SX1255NR464 | 6×4 | F2000 | WP10.340E32 | 340 | 9.726/2200 | 9JS135 | 7.5MAN | 13STR | 4.8 | 12.00R20 | 400L | 4600+1350 |
| SX1255NT464 | 6×4 | F2000 | WP10.380E32 | 380 | 9.726/2200 | RTD-11509C | 7.5MAN | 13STR | 4.8 | 12.00R20 | 400L | 4600+1350 |
| SX1255NM504 | 6×4 | F2000 | WP10.290E32 | 290 | 9.726/2200 | 9JS119 | 7.5MAN | 13STR | 4.8 | 12.00R20 | 400L | 5000+1350 |
| SX1255NN504 | 6×4 | F2000 | WP10.310E32 | 310 | 9.726/2200 | 9JS135 | 7.5MAN | 13STR | 4.8 | 12.00R20 | 400L | 5000+1350 |
| SX1255NR504 | 6×4 | F2000 | WP10.340E32 | 340 | 9.726/2200 | 9JS135 | 7.5MAN | 13STR | 4.8 | 12.00R20 | 400L | 5000+1350 |
| SX1255NM564 | 6×4 | F2000 | WP10.290E32 | 290 | 9.726/2200 | 9JS119 | 7.5MAN | 13STR | 4.8 | 12.00R20 | 400L | 5600+1350 |
| SX1255NN564 | 6×4 | F2000 | WP10.310E32 | 310 | 9.726/2200 | 9JS135 | 7.5MAN | 13STR | 4.8 | 12.00R20 | 400L | 5600+1350 |
| SX1255NR564 | 6×4 | F2000 | WP10.340E32 | 310 | 9.726/2200 | 9JS135 | 7.5MAN | 13STR | 4.8 | 12.00R20 | 400L | 5600+1350 |
Euro 3, Euro 4 Shacman off raod 6X6 F2000 all wheel drive Fuel Tanker for Sale
Military Truck off road chassis 6x6 CONTACT US
Cellphone: (+86)15271357635
Website: www.truckinchina.com
| SX2255DL435 | 6×6 | F2000 | WP10.270 | 270 | 9.726/2200 | 9JS119 | 6.5STR | 13STR | 4.8 | 12.00R20 | 400L | 4325+1350 |
| SX2255DM435 | 6×6 | F2000 | WP10.290 | 290 | 9.726/2200 | 9JS119 | 6.5STR | 13STR | 4.8 | 12.00R20 | 400L | 4325+1350 |
| SX2255DR435 | 6×6 | F2000 | WP10.336 | 336 | 9.726/2200 | 9JS135 | 6.5STR | 13STR | 4.8 | 12.00R20 | 400L | 4325+1350 |
| SX2255DT435 | 6×6 | F2000 | WP10.375 | 375 | 9.726/2200 | RTD-11509C | 6.5STR | 13STR | 4.8 | 12.00R20 | 400L | 4325+1350 |
| SX2255DR465 | 6×6 | F2000 | WP10.336 | 336 | 9.726/2200 | 9JS135 | 6.5STR | 13STR | 4.8 | 12.00R20 | 400L | 4600+1400 |
| SX2255DT465 | 6×6 | F2000 | WP10.375 | 375 | 9.726/2200 | RTD-11509C | 6.5STR | 13STR | 4.8 | 12.00R20 | 400L | 4600+1400 |
| SX2255DR465C | 6×6 | F2000 | ISME345 E30 | 345 | 10.8/1900 | 10JSD160 | 6.5STR | 13STR | 4.8 | 12.00R20 | 400L | 4600+1400 |
| SX2255DT465C | 6×6 | F2000 | ISME385 E30 | 385 | 10.8/1900 | 10JSD180 | 6.5STR | 13STR | 4.8 | 12.00R20 | 400L | 4600+1400 |
SX2255JR435 | 6×6 | F2000 | WP10.336NE31 | 336 | 9.726/2200 | 9JS135 | 6.5STR | 13STR | 4.8 | 12.00R20 | 400L | 4300+1400 |
| SX2255JR465 | 6×6 | F2000 | WP10.336NE31 | 336 | 9.726/2200 | 9JS135 | 6.5STR | 13STR | 4.8 | 12.00R20 | 400L | 4600+1400 |
| Optional winch: | Install 10 tons of hydraulic winch | 1 | $6,600 | $6,600USD |
Pipeline system
There is an air intake pipe and a discharge pipe at the front and rear air chambers respectively, which can be opened simultaneously and controlled separately via their respective ball valves and butterfly valves
EURO3 EURO4
Heavy duty chassis SHACMAN F2000 FUEL TANKER TRUCK
Engine | WeiChai Power / Cummins ISM |
| Output | 280 HP - 420 HP |
| Volume | 15000L - 25000L
|
CONTACT US
Cellphone: (+86)15271357675
Website: www.truckinchina.com
Tanker
Material Steel
Thickness of shell 4mm 5mm /6mm / 8mm
Thickness of dish 5mm /6mm / 8mm
Inside baffles 3mm /4mm / 5mm
Compartments 3 to 4 compartments
Volume 15000L to 25000L+ 5% expansion
Tank Top Accessories
Ladders fixed on the front and rear; foldable handrail
Walkway with anti-slip material in the front of reach the manholes,
Not covering the complete length of the tank.

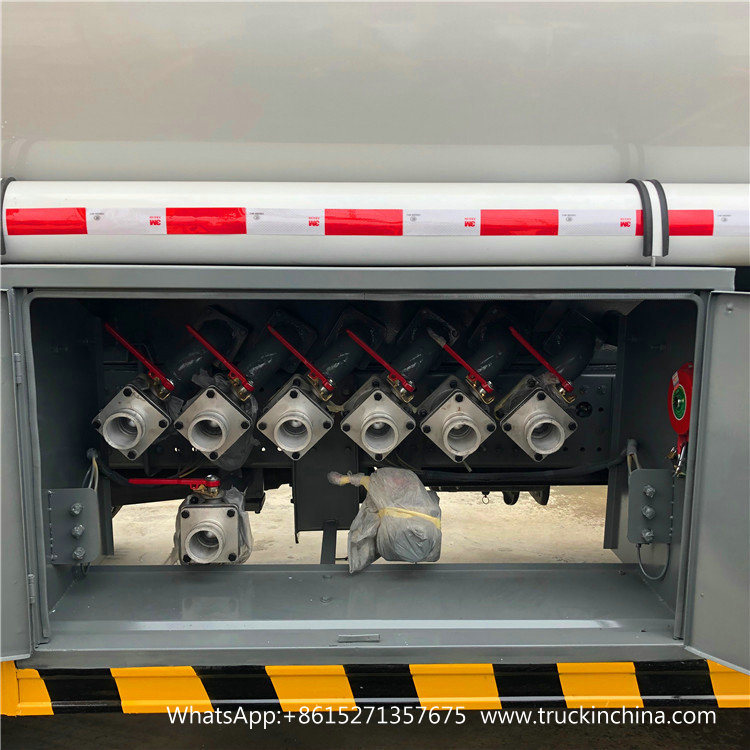

Tank Equipments (all API Standard)
Each compartment is equipped with :
Aluminum Manhole cover 16" or 20"
Aluminum Emergency Bottom valve 3" with Pneumatic switch in locker
Aluminum Spill Valve 3" or 4",
Discharging Nylon hose 6m
Discharge and loading
Gravity discharge,
Top loading. Option: Bottom loading
Electric Installation
Complete 24V system in explosion proof installation
Rear lighting with rear, stop, parking, direction, fog, reverse lights, side lights
Painting
Exterior surface treatment by shot blasting
Painting by high solid primer directly on the surface
Painting inside special paint booth with the cargo cabin color or the color chosen by the customer
Accessories
Side protection, 2 Fire extinguisher, 1 Spare tire carrier.
1 Tool box with standard tools, Heavy duty tail bumper
Fuel Tank Truck Aluminum Fuel Tank Truck | Name | Oil tanker truck |
| F2000 |
| 4×2 |
| Model | SX5185GYYJL461 |
| Engine | WP10.270E32 |
| Horsepower | 270 |
| Emission Standard | Euro |
| Transmission | RTD11509C-QH50 |
| Drive Axle | 13T double reduction 5.262 |
| Frame | 850×300(8+5) |
| Wheelbase | 4600 |
| Rear chassis Over Hang | 1900 |
| Front axle | MAN 7.5T |
| Suspension(Front and rear) | Multi leaf springs |
| Capacity Of the Fuel Tank | 400L(Aluminum) |
| Fuel | Diesel |
| Tires | 12.00R20 |
| Max weight | ≤20 |
| Max speed | 50~70/90 |
| Cab | Rear window |
| Manual sunroof |
| Hydraulic driver seat |
| Radio with MP3 player |
