Beiben Offroad Diesel Tanker for Petroleum Oil, Gasoline, Petrol, Diesel Transportation with Pto Pump 30, 000L 12 Wheels (Fuel Bowser)
Beiben Offroad Diesel Tanker for Petroleum Oil, Gasoline, Petrol, Diesel Transportation with Pto Pump 30, 000L 12 Wheels (Fuel Bowser)
| Quantity: | |
|---|---|
- BEIBEN
- 8705
- Shanghai, China
- 1000
- T/T
Beiben Offroad Diesel Tanker For Petroleum Oil ,Gasoline, Petrol, Diesel Transportation With PTO Pump 30,000L 12 wheels (Fuel Bowser)
Tank Capacity 18,000 Litres ( About 4,700 gallons )
Tank Material Carbon steel
Pump Equipped for overhead delivery, 1000 litres / min
North Benz / Beiben off road tanker / 22000 liters oil tank truck
Beiben 18000L 6x6 / 6x4 Offroad Diesel Tanker For Petroleum Oil /Gasoline/ Petrol/ Diesel Transportation With PTO Pump
Driving Type: 6*4 6*6 , AWD, off-road , 10 wheel ,
Capacity: 12000L, 15000L, 18000L, 20000L..
Steering Wheel: Left Hand Drive and Right Hand Drive

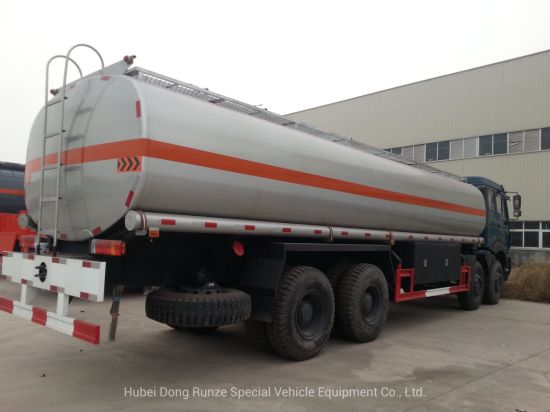

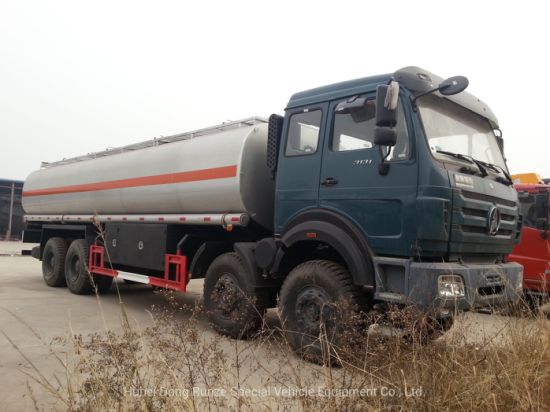

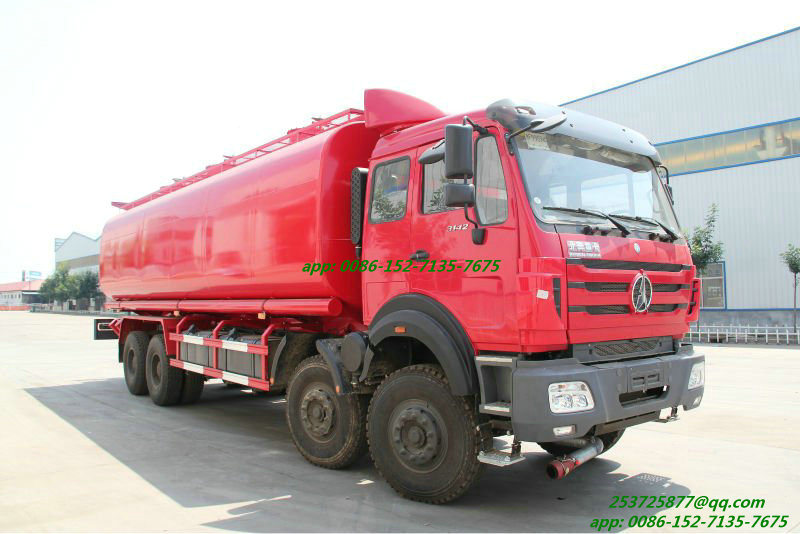

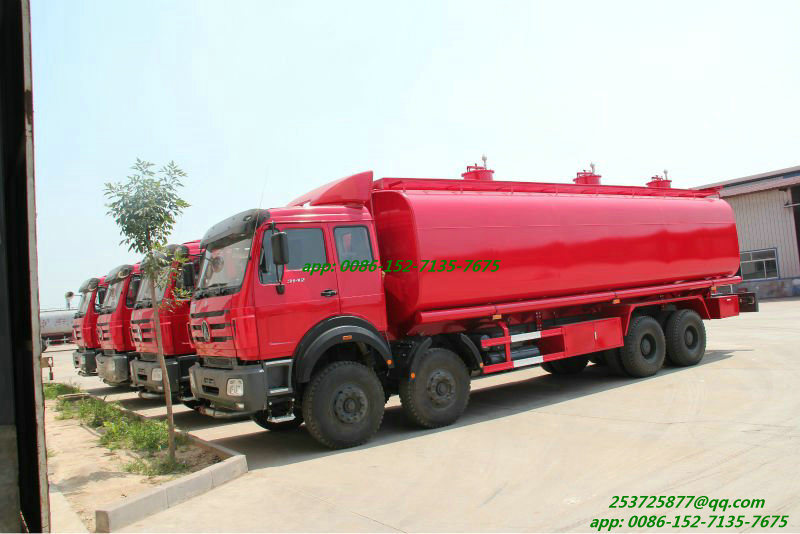

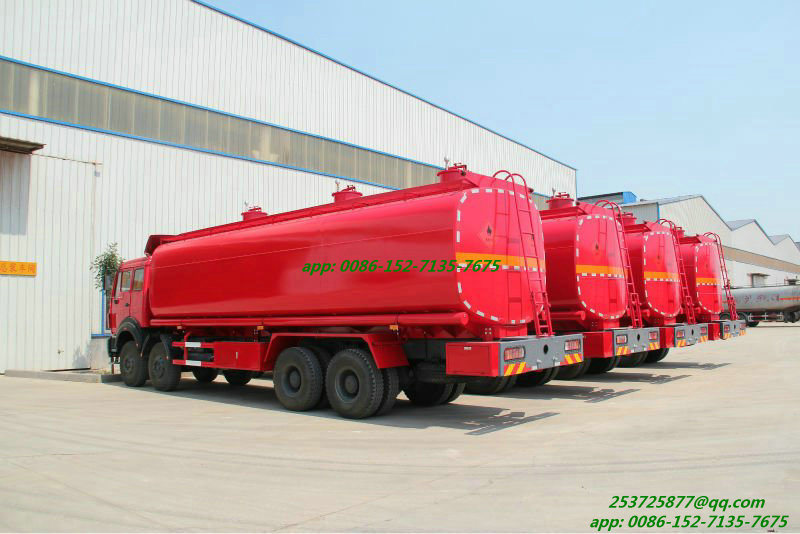

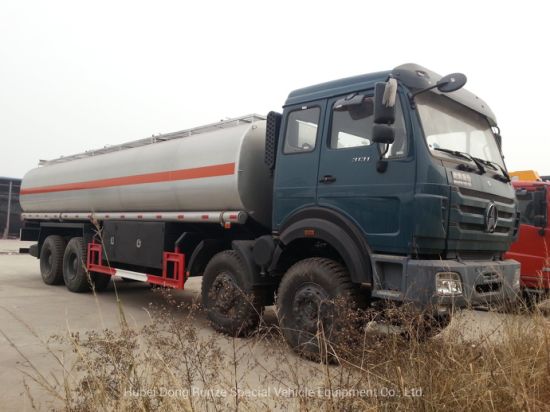

Truck Photo show:
beiben 2527 fuel truck, beiben 2529 fuel truck,beiben 2534 fuel truck ,beiben 2538 fuel tanker truck,beiben 3132 fuel tankers. north benz oil tankers
The beiben fuel tanker from us can be beiben 4*2 fuel tanker, beiben 6*4 fuel tanker and beiben 8*4 fuel tankers. All the beiben fuel tanker trucks
CONTACT US
Cellphone: (+86)15271357675
Website: www.truckinchina.com
Specialize Custom Commercial Vehicle body building - semi trailer, full trailer-Spare parts
Euro 3,
6*4 | ND1255B44 | 4450+1450 | WP10.290 |
| ND1252B44 | WP10.336 | ||
| 6*4 | ND1253B45J | 4500+1350 | WP7.270E30 |
| 8*4 | ND13105D44J | 1700+4425+1350 | WP10.270 |
6x6 off road tanker
| 2527A/6*6/4450+1450/ | WP10.270N/199 | 9T-160 | TAS85 | 12.00-20 | 12.00R20 |
| 11.00-20 | |||||
| 11.00R20 | |||||
| 2527A/6*6/5050+1450/ | WP10.270N/199 | 9T-160 | TAS85 | 12.00-20 | 12.00R20 |
| 2530A/6*6/5050+1450/ | WP10.300N/221 | 9T-160 | 11.00-20 | ||
| 11.00R20 | |||||
| 2534A/6*6/5050+1450/ | WP10.336/247 | 9T-160 | TAS85 | 12.00-20 | 12.00R20 |
| 2538A/6*6/5050+1450/ | WP10.375/276 | RT11509C | |||
Tanker
Material Steel
Thickness of shell 4mm 5mm /6mm / 8mm
Thickness of dish 5mm /6mm / 8mm
Inside baffles 3mm /4mm / 5mm
Compartments 3 to 4 compartments
Volume 15000L to 25000L+ 5% expansion
Tank Top Accessories
Ladders fixed on the front and rear; foldable handrail
Walkway with anti-slip material in the front of reach the manholes,
Not covering the complete length of the tank.

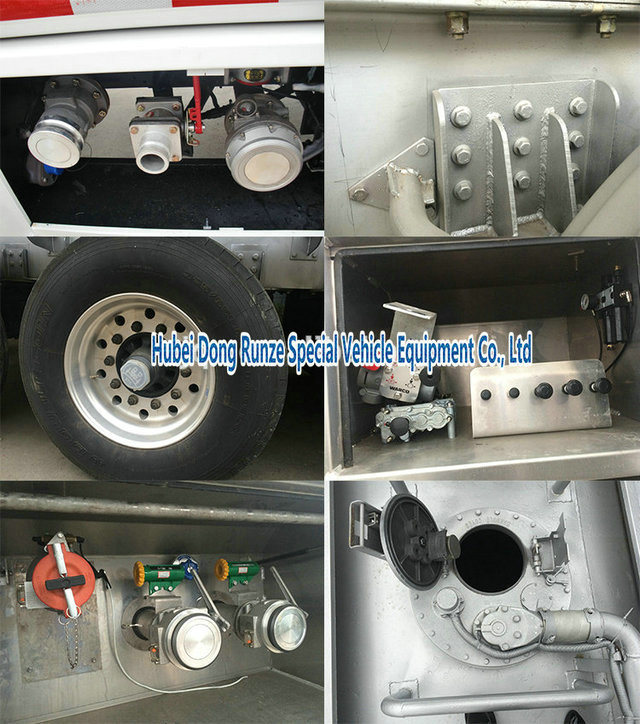

Tank Equipments (all API Standard)
Each compartment is equipped with :
Aluminum Manhole cover 16" or 20"

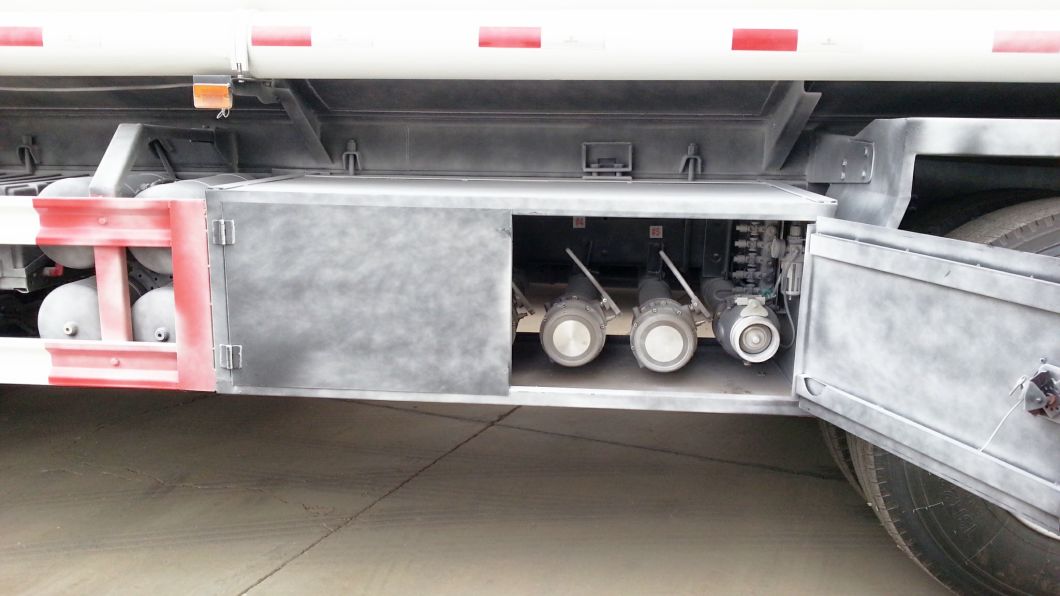

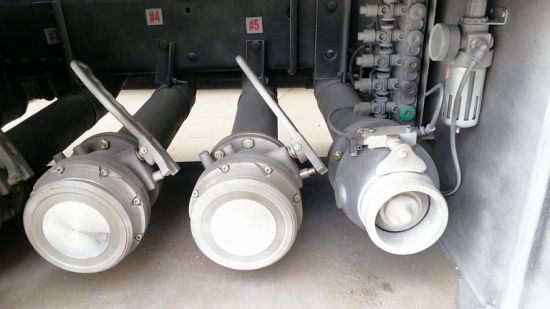

Aluminum Emergency Bottom valve 3" with Pneumatic switch in locker
Aluminum Spill Valve 3" or 4",
Discharging Nylon hose 6m
Discharge and loading
Gravity discharge,
Top loading. Option: Bottom loading
Electric Installation
Complete 24V system in explosion proof installation
Rear lighting with rear, stop, parking, direction, fog, reverse lights, side lights
Painting
Exterior surface treatment by shot blasting
Painting by high solid primer directly on the surface
Painting inside special paint booth with the cargo cabin color or the color chosen by the customer
Accessories
Side protection, 2 Fire extinguisher, 1 Spare tire carrier.
1 Tool box with standard tools, Heavy duty tail bumper
Euro 4
6*4 | 4450+1450 | ND12500B44J | WP10.300E40 | 9JS150A |
| WP10.336E40 | ||||
| 8*4 | 1950+3900+1450 1950+3700+1450 | ND13101D39J | WP10.336E40 | 12JS160T |
| WP10.375E40 | 12JS200T | |||
| 8*8 | 1500+4150+1450 | ND2311G41J | WP10.336E40 | 12JS160T |
| 6*4 | 5050+1450 | ND12500B51J6Z00 | WP10.270E40 | 9JS135 |
| WP10.300E40 | 9JS150A | |||
| 6*4 | 4450+1450 | ND12501B45J7 | WP10.336E40 | 9JS150A |
| 8*4 | 1950+3100+1450 | ND13103D31J7 | WP10.336E40 | 12JS160T |
| WP12.375E40 | 12JS200T | |||
| 8*4 | 1950+4600+1450 1950+4300+1450 | ND13104D46J | WP10.336E40 | 12JS160T |
| WP12.375E40 | 12JS200T | |||
| 6*4 | 3800+1450 | ND12505B38J | WP10.336E40 | 12JS160T |
| WP12.375E40 | 12JS200T | |||
| 6*6 | 3800+1450 | ND2250F38J | WP10.300E40 | 9JS150A |
| WP10.336E40 | 9JS180 | |||
| 8*4 | 1950+2800+1450 | ND13103D28J | WP10.336E40 | 12JS160T |
| WP12.375E40 | 12JS200T | |||
| 8*4 | 1950+2800+1450 | ND13101D28J7 | WP10.336E40 | 12JS160T |
| WP12.375E40 | 12JS200T | |||
| 6*4 | 5050+1450 | ND12500B51J | WP10.336E40 | 9JS150A |
| WP12.375E40 | 9JS180 | |||
| 8*4 | 3800+1450 | ND12505B38J7 | WP10.336E40 | 12JS160T |
| WP12.375E40 | 12JS200T | |||
| 8*4 | 1500+4750+1450 | ND13109D47J | WP10.300E40 | 12JS160T |
| WP10.336E40 | 12JS160T | |||
| WP12.375E40 | 12JS200T | |||
| 8*4 | 1950+3100+1450 | ND13101D31J | WP10.336E40 | 12JS160T |
| WP12.375E40 | 12JS200T |
Our beiben tanker trucks feature:
Total beiben tanker are portainted welded by automatically carbon dioxide welding. Nice surface without obvious welding line, safety and reliabiliy
* Beiben fuel tankers body could b oval or trapezoid, tank inside with subdivision board, oil baffle plate, ensure to lighten the shock in the process of transporting.
* Installed famous breath valve DN60, suitable and effective adjust the pressure in the north benz oil tankers.
*Static guiding equipment lap joint adhensive tape on the rear tank can efficiently protect static that arise in the transportation.
| North-ben BeiBen 6x4 / 6x6 Off-road Fuel Oil Tanker Truck | ||
| General | ||
| Chassis Brand | North Benz | |
| Overall Dimension | 9580 * 2500 * 3400 mm | |
| GVW / Kerb Weight | 25,000 kg / 12,400 kg | |
| Cab | Cab Capacity | 2 persons allowed |
| Air Conditioner | Air conditioner is equipped | |
| Engine | Fuel Type | Diesel |
| Engine Brand | Weichai engine(Chinese top brand) | |
| Power | 336 Ps (247 KW) | |
| Displacement | 9726 ml | |
| Emission Standard | Euro III | |
| Chassis | Drive Type | 6X6, left hand drive |
| Transmission | 9-speed front, 1 reverse | |
| Wheelbase/No. of axle | 4450+1450 mm / 3 | |
| Tyre Specification | 12.00-20 | |
| Tyre Number | 10 tyres and 1 spare tyre | |
| Max Speed | 85 km/h | |
| Paint | Metallic paint | |
| Superstructure | Tank Capacity | 18,000 Litres ( About 4,700 gallons ) |
| Tank Material | Carbon steel | |
| Pump | Equipped for overhead delivery, 1000 litres / min | |
| Suction Head | 6 m | |
| Hose | High quality, wire strengthened hose, with cooper wire, anti-static | |
| All standard accessories: manhole, ladder, anti-static belt, anti-slip walkway, handrail, fire extinguisher, inlet, discharge, reflective stickers..... | ||
| Optional | ** Tank material could be carbon steel, stainless steel, aluminum (aluminum tanker)... ** It can be divided into many compartments. ** Devices can be equipped: fuel counter (flow gauge), fuel dispenser, hose reel, level gauge... ** Heat preservation & heating system could be added. ** Bottom loading system can be equipped. | |
FAQ
·MOQ:1 SET
·Delivery date:25 workdays after we received deposit.
