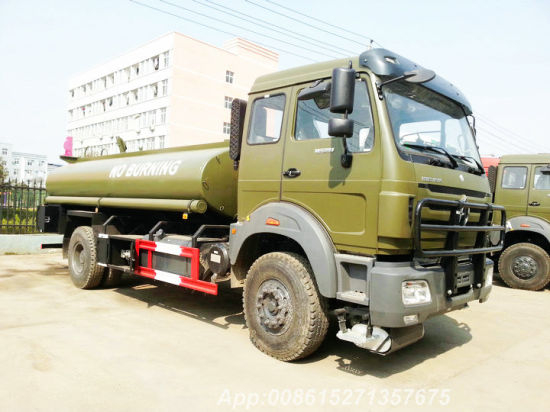

Beiben 1629 off Road Tanker 8000L 4X4 Military Truck for Sale
| Quantity: | |
|---|---|
- 10000
- T/T, Western Union
- Nil
Beiben 4x4 Off Road Truck For Sale, Beiben 4x4
fuel tankers. north benz oil tankers
The beiben fuel tanker from us can be beiben 4*2 fuel tanker, beiben 6*4 fuel tanker and beiben 8*4 fuel tankers. All the beiben fuel tanker trucks
Beiben 1629 off road tanker 4x4 Military Truck for saleEuro 3, Euro 4 septik truck sewage tanker Cesspool Emptying Truck
4*2/4x4 | ND1160A41 | 4100 | WP6.180 |
| ND1163A48J | 4800 | WP10.270 WP10.290 |
Model | ND2160E48J (4*4) |
Engine | 290 HP EURO II-V |
chassis | BeiBen 4x4 military chassis |
Outside dimension(mm) | 8826×2500×3355 |
volume of tank | 6000L~ 10000L |
Material of tank | Carbon steel |
Thickness | 6mm |
Total mass (kg) | 16000 |
Kerb mass (kg) | 7960 |
Rated payload(kg) | 7910 |
Wheelbase (mm) | 4800 |
Tread(front/rear) | 1995/1800 |
Approach/departure angle | 30/28 |
Front /rear suspension | 1410/2616 |
Minimum turning diameter | 20.4 |
Clutch type | GFX420, diaphragm spring clutch |
Gear box type | 9JS119,mechanical , 9 forwards, manual |
Tire type | 14.00R20 (6+1) |
Fuel tank capacity (L) | 300 |
Max.gradient | 60 |
Max. Speed(Km/h) | 85 |
Battery(V) | Electrical system storage battery 2X12V/135Ah |
generator | 28V-35A |
Starter | 5.4Kw/24V |
A/C | YES |
4x2
Beiben Vacuum Sewage Suction Tanker Truck 8cbm
Chassis | |
Model | ND11601A48J |
Traction type | 4X2 |
Driving type | LHD |
Driver's cab | Long cabin, A/C |
Dimensions in (mm) | Wheel base(mm): 4800 |
Overall size(mm): 8690x2500x3080 | |
Engine | Maker: WEICHAI |
Diesel 4 stroke direct injection diesel engine, 6 cylinder in-line with water cooling, turbo-charging & intercooling | |
Engine model: WP10.270E31 | |
Emission Standard: EUROIII EGR | |
Maximum output: 270HP /1900 rpm | |
Number of cylinder:6 | |
Displacement: 9.726L | |
Clutch | 430mm, hydraulically operating with air assistance |
Transmission | Fuller 9JS135 |
Steering | TAS85 or Zf8098 |
Front Axle | Benz front axle 7.5 ton |
Rear Axle | Benz strengthened type 13T, double reduction drive axle Ratio: 5.263 |
Spring | 10/8+6 |
Types | 12.00-20 Bias tyre |
No. of tyre | 6+1(spare) |
Fuel tank | 400L Aluminium |
PTO | QH50 |
Electrics | Operating voltage: 24V, negative grounded |
Kerb weight(kg) | 6920 |
Body | |
Tank Volume | 8m3,9m3,10m3,12m3 |
Sewage Tank,Sewer JettingTruck,Vacuum Suction tanker , vacuum suction truck ,vacuum truck,Sewer Jet Truck ,vacuum sewage suction truck ,Septic Tank Truck ,Cesspit Emptier
Euro 3,
6*4 | ND1255B44 | 4450+1450 | WP10.290 |
| ND1252B44 | WP10.336 | ||
| 6*4 | ND1253B45J | 4500+1350 | WP7.270E30 |
| 8*4 | ND13105D44J | 1700+4425+1350 | WP10.270 |
6x6 off road tanker
| 2527A/6*6/4450+1450/ | WP10.270N/199 | 9T-160 | TAS85 | 12.00-20 | 12.00R20 |
| 11.00-20 | |||||
| 11.00R20 | |||||
| 2527A/6*6/5050+1450/ | WP10.270N/199 | 9T-160 | TAS85 | 12.00-20 | 12.00R20 |
| 2530A/6*6/5050+1450/ | WP10.300N/221 | 9T-160 | 11.00-20 | ||
| 11.00R20 | |||||
| 2534A/6*6/5050+1450/ | WP10.336/247 | 9T-160 | TAS85 | 12.00-20 | 12.00R20 |
| 2538A/6*6/5050+1450/ | WP10.375/276 | RT11509C | |||
Euro 4
6*4 | 4450+1450 | ND12500B44J | WP10.300E40 | 9JS150A |
| WP10.336E40 | ||||
| 8*4 | 1950+3900+1450 1950+3700+1450 | ND13101D39J | WP10.336E40 | 12JS160T |
| WP10.375E40 | 12JS200T | |||
| 8*8 | 1500+4150+1450 | ND2311G41J | WP10.336E40 | 12JS160T |
| 6*4 | 5050+1450 | ND12500B51J6Z00 | WP10.270E40 | 9JS135 |
| WP10.300E40 | 9JS150A | |||
| 6*4 | 4450+1450 | ND12501B45J7 | WP10.336E40 | 9JS150A |
| 8*4 | 1950+3100+1450 | ND13103D31J7 | WP10.336E40 | 12JS160T |
| WP12.375E40 | 12JS200T | |||
| 8*4 | 1950+4600+1450 1950+4300+1450 | ND13104D46J | WP10.336E40 | 12JS160T |
| WP12.375E40 | 12JS200T | |||
| 6*4 | 3800+1450 | ND12505B38J | WP10.336E40 | 12JS160T |
| WP12.375E40 | 12JS200T | |||
| 6*6 | 3800+1450 | ND2250F38J | WP10.300E40 | 9JS150A |
| WP10.336E40 | 9JS180 | |||
| 8*4 | 1950+2800+1450 | ND13103D28J | WP10.336E40 | 12JS160T |
| WP12.375E40 | 12JS200T | |||
| 8*4 | 1950+2800+1450 | ND13101D28J7 | WP10.336E40 | 12JS160T |
| WP12.375E40 | 12JS200T | |||
| 6*4 | 5050+1450 | ND12500B51J | WP10.336E40 | 9JS150A |
| WP12.375E40 | 9JS180 | |||
| 8*4 | 3800+1450 | ND12505B38J7 | WP10.336E40 | 12JS160T |
| WP12.375E40 | 12JS200T | |||
| 8*4 | 1500+4750+1450 | ND13109D47J | WP10.300E40 | 12JS160T |
| WP10.336E40 | 12JS160T | |||
| WP12.375E40 | 12JS200T | |||
| 8*4 | 1950+3100+1450 | ND13101D31J | WP10.336E40 | 12JS160T |
| WP12.375E40 | 12JS200T |
Our beiben tanker trucks feature:
Total beiben tanker are portainted welded by automatically carbon dioxide welding. Nice surface without obvious welding line, safety and reliabiliy
Beiben fuel tankers body could b oval or trapezoid, tank inside with subdivision board, oil baffle plate, ensure to lighten the shock in the process of transporting.
Installed famous breath valve DN60, suitable and effective adjust the pressure in the north benz oil tankers.
*Static guiding equipment lap joint adhensive tape on the rear tank can efficiently protect static that arise in the transportation.
