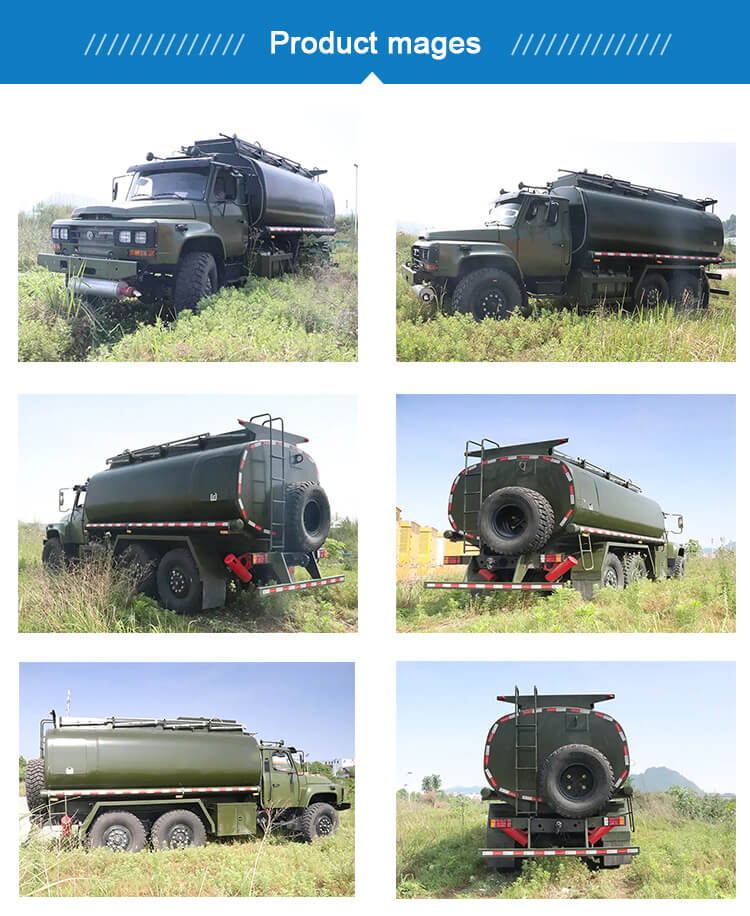

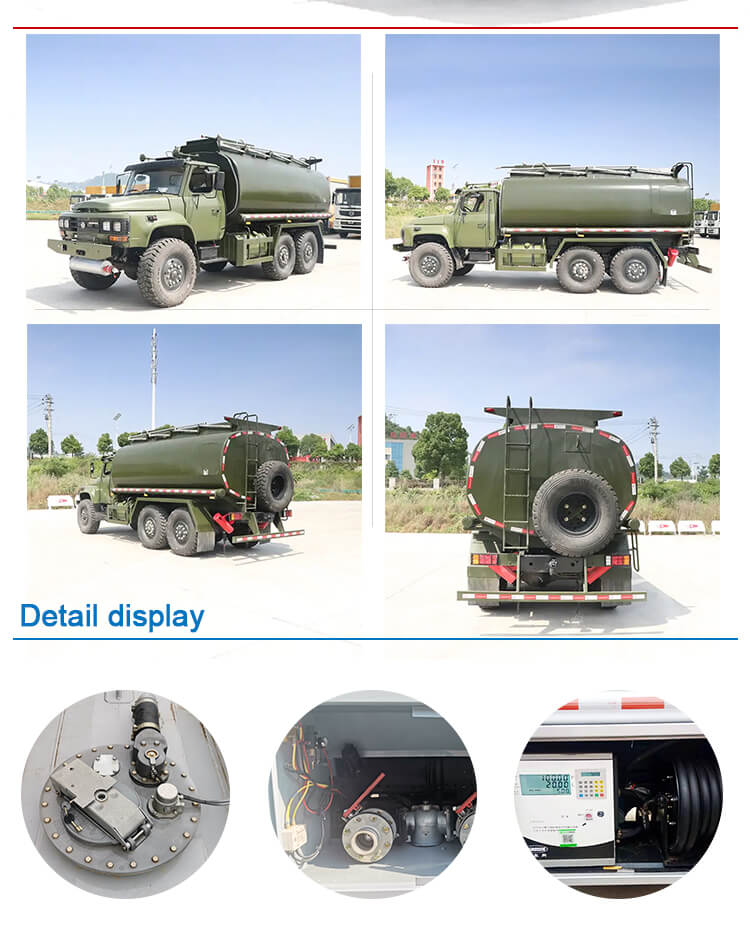

Dongfeng Off-road 6X6 Fuel Diesel Delivery Tanker Truck with Fuel Bowser
For oil derivatives (gasoline, diesel oil, lubricating oil and coal tar oil)
transportation and storage.
Capacity of tank body 3-8CBM
Ask for better price
Cell /+8615271357675
The pictures are for your reference only.

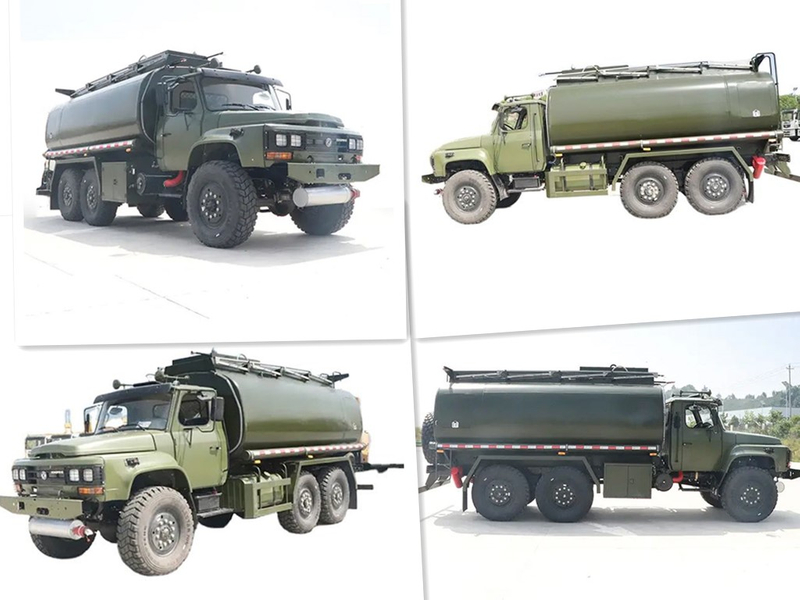

off road oil tanker 6x6 2650GL Fuel tank Truck
Dongfeng 6X6 Mlitary Truck Chassis for Spv
| Truck Chassis model | EQ2102(6*6 drive type) EQ5160GLJ | |
Dimension(Lx Wx H)(mm) | 7760×2470×2740 | |
Track(front/rear)(mm) | 1876/1870 | |
Front/rear overhang (mm) | 1410/625 | |
Approach / Departure angle () | 35/34 | |
Wheel distance(mm) | 3475+1250,3500+1250 | |
Total mass (kg) | 10675 | |
Kerb mass (kg) | 6965 | |
Rated load weight (kg) | 3715 | |
Drive type | 6x6 | |
Max.grade ability (%) | 60% | |
Max.slop ability (%) | 40% | |
Min.turning circle (m) | 18.8 | |
Max speed (km/h) | 90 | |
Max.brake distance (m) | 8m | |
Min.ground clearance (mm) | 305 | |
Vertical obstacle-navigation Height (mm) | 700 | |
Climbing trenches depth (mm) | 700 | |
Max.fording depth (m) | 1 | |
Engine | Engine model:EQ6BT5.9; or B190 Engine manufacture: Dongfeng cummins co.,Ltd Rated power(kw/r/min):118/2800 | |
Displacement (L) | 5.880 | |
Max.power (kw/hp) | 118kw/160hp ;or 140kw/190hp | |
Max rated speed (r/min) | 2800 | |
Fuel consumption (L/100km) | 26.5L | |
Emission standard | Euro II | |
Fuel tank (L) | Main fuel tank:145L,spare fuel tank:50L | |
Fuel tank material | Aluminum alloy | |
Clutch | Valeo 350 | |
Dry single plate, hydraulic control booster Mechanical operation with hydraulic assistance | ||
Mechanism,5 gears, 5 forward,1reverse gear Manual operation | ||
Braking | Service Brake | Brake gap can be adjusted automatically double circulation air brake system |
Assistant brake | WEVB(Engine exhaust brake) | |
Park brake | Spring brake effect to middle and rear tires | |
Steering description | Whole circulation in ball type, hydraulic power assistance | |
Vehicle frame dimension(mm) | 232x75x6.5 | |
Front axle description(T) | 3.7T | |
Rear axle description(T) | 4Tx2 axle | |
Tire and number | 12.5R-20 off-road tire,6+1 tires | |
Cab | 1. Full steel skeleton structure cab 2. One sleeper bed in the cab,with Air-conditioner 5.Air- damping driver\\\\ s seat | |
| Chassis: | EQ2165AX | Fuel type: | diesel fuel |
| Engine: | ISLe290 40 | Rated capacity (kg): | 6800 |
| Displacement (cc): | 8900 | Wheelbase (mm): | 4500 |
| Power (kW): | 213 | Dimensions (mm): | 7850 × 2500 × 3520 |
| Chassis: | EQ2251AX | Fuel type: | diesel fuel |
| Engine: | ISLe375 40 | Rated capacity (kg): | 12870 |
| Displacement (cc): | 8900 | Wheelbase (mm): | 3800+1400 |
| Power (kW): | 276 | Dimensions (mm): | 8470 × 2500/2700 × 3520 |
| Chassis: | DFS5160GLJ | Fuel type: | diesel fuel |
| Engine: | YC6J180-42; ISDe185 40 | Rated capacity (kg): | 7900 |
| Displacement (cc): | 6494; 6700 | Wheelbase (mm): | 3500+1250 |
| Power (kW): | 132; 136 | Dimensions (mm): | 7760/7825 × 2500 × 2845/29.. |
| Chassis: | EQ2166AX | Fuel type: | diesel fuel |
| Engine: | ISLe290 40 | Rated capacity (kg): | 5840 |
| Displacement (cc): | 8900 | Wheelbase (mm): | 4500 |
| Power (kW): | 213 | Dimensions (mm): | 7850 × 2500 × 3490 |
| Chassis: | EQ2221AX | Fuel type: | diesel fuel |
| Engine: | ISLe315 40 | Rated capacity (kg): | 10000 |
| Displacement (cc): | 8900 | Wheelbase (mm): | 3800+1400 |
| Power (kW): | 231.5 | Dimensions (mm): | 8470 × 2500 × 3520 |
| Chassis: | EQ2141AX | Fuel type: | diesel fuel |
| Engine: | ISLe290 40 | Rated capacity (kg): | 5000 |
| Displacement (cc): | 8900 | Wheelbase (mm): | 3800 |
| Power (kW): | 213 | Dimensions (mm): | 7150 × 2500 × 3490 |
| Chassis: | EQ2221AX | Rated capacity (kg): | 10000 |
| Engine: | ISLe315 40 | Wheelbase (mm): | 3800+1400 |
| Displacement (cc): | 8900 | Dimensions (mm): | 8470 × 2500 × 3520 |
| Power (kW): | 231.5 | Gross weight (kg): | 21895 |
| Chassis: | EQ2251AX | Fuel type: | diesel fuel |
| Engine: | ISLe375 40 | Rated capacity (kg): | 12870 |
| Displacement (cc): | 8900 | Wheelbase (mm): | 3800+1400 |
| Power (kW): | 276 | Dimensions (mm): | 8470 × 2500/2700 × 3520 |
which has excellent performance with reasonable price.
