HOWO Mobile Workshop 6X6 off Road Service Trucks Customizing
| Quantity: | |
|---|---|
-
Shanghai, China
-
10000
-
T/T, Western Union
HOWO Mobile Workshop 6x6 Off Road Service Trucks Customizing Rescue vehicle
Multifunctional Maintainging Truck WorkShop Truck Customizing
Road Repair Mobile Workshop

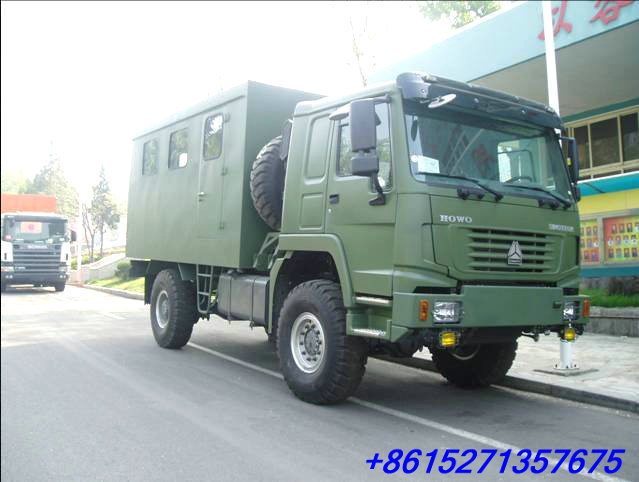

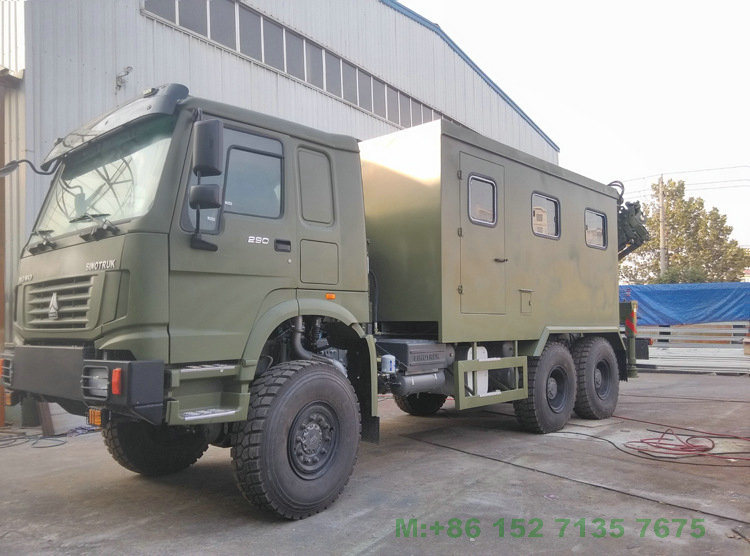

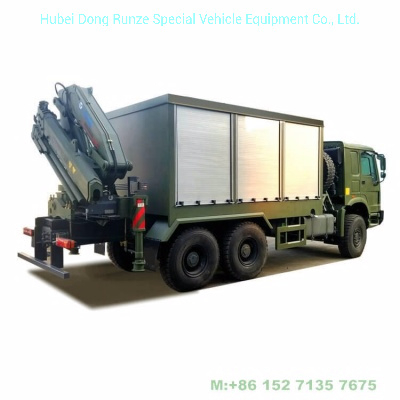

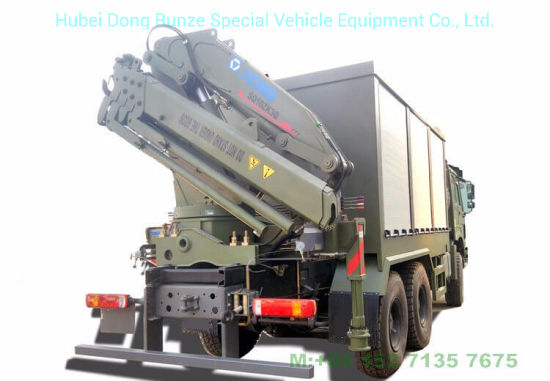

HOWO Mobile Workshop 6x6 Off Road Service Trucks
The pictures are for your reference only.
1.Beiben ND1160,ND2060 truck based on Mercedes Benz technology
2. Common rail engine, World famous weichai engine
3.FAST(Fuller) gearbox
4.Benz front axle and rear axle, for military using.
Euro 3, Euro 4 military mobile workshop truck
4*2/4x4 | ND1160A41 | 4100 | WP6.180 |
| ND1163A48J | 4800 | WP10.270 WP10.290 |

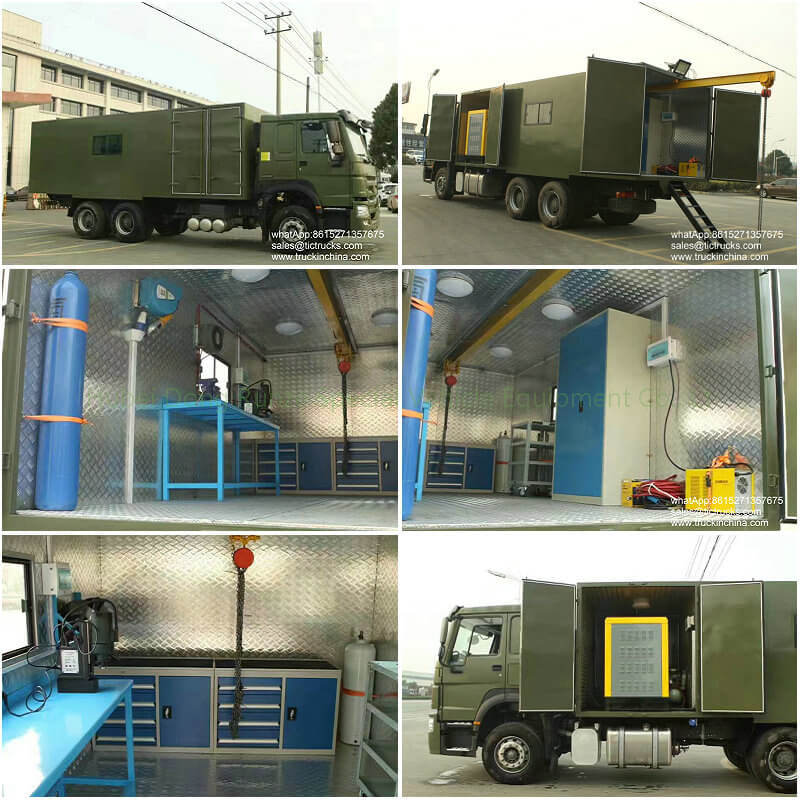

Equipment for Mobile Workshop 5190YX | |||||
Item | Description | Technical Data | Measurement | Weight | Qty. |
1 | Chassis | As Option | |||

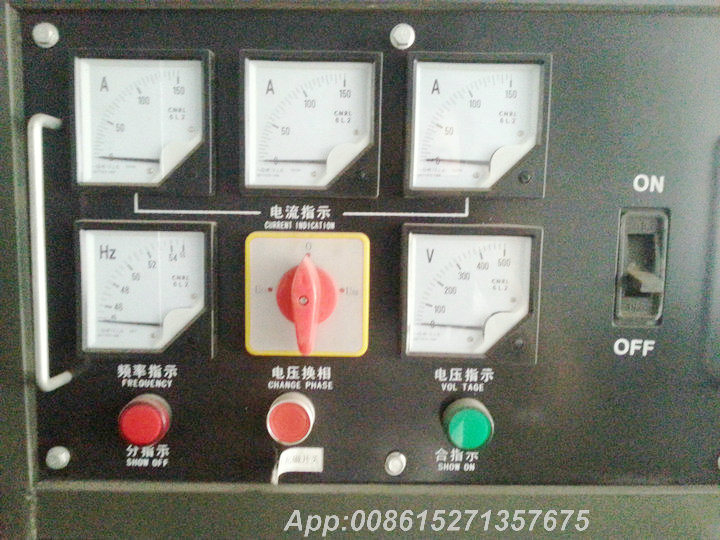

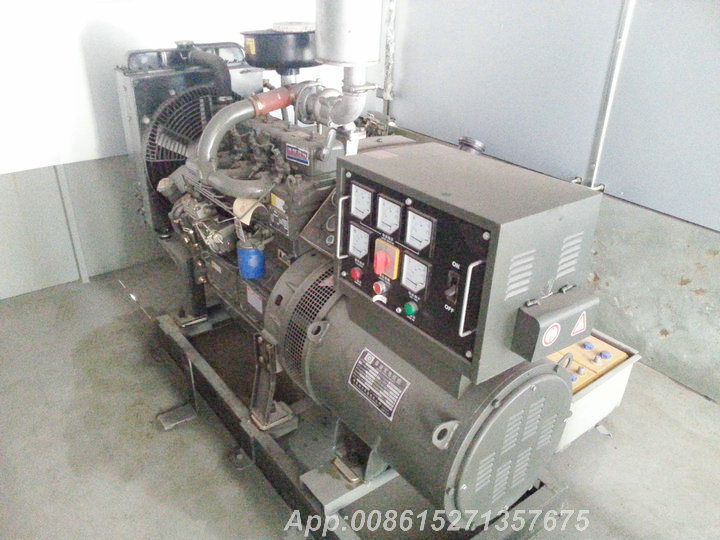

2 | Power Set (Generator) | Model: 40GF74-4 | 2030x650x1255(mm) | 1030kg | 1 |
Rated Power: 40KW | |||||
Rated Voltage: 400/230V | |||||
Rated Frequency: 50Hz | |||||
Rated Current: 72.2A | |||||
Output: 3-phase, 4-line | |||||
Diesel Engine: R4100ZD | |||||
Generator Model: TZH-40 | |||||
3 | Welding Set | Model: ZX5-250B | 406x530x840(mm) | 160kg | 1 |
Voltage: 380V | |||||
Phase: 3 | |||||
Frequency: 50/60Hz | |||||
Initial Current: 29.6A | |||||
Range: 25-250A | |||||
Input: 19.2KVA | |||||
Working Ambient: -10--+40oC | |||||

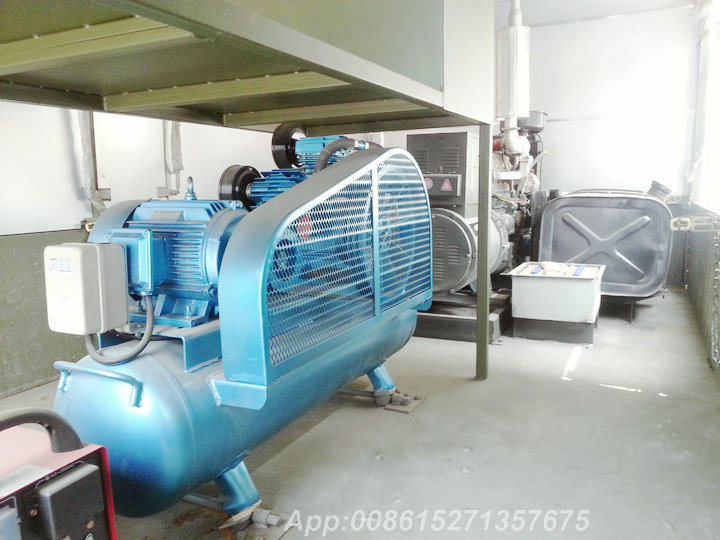

4 | Air Compressor | Model: AW3608 | 1180x410x850(mm) | 130kg | 1 |
Voltage: 380V | |||||
Frequency: 50Hz | |||||
Power: 3KW | |||||
Pressure: 0.7MPa | |||||
Capacity: 0.36M3/mm | |||||
5 | Drilling Machine | Model: ZQJ4119AD | 760x490x260(mm) | 57kg | 1 |
Bore Range: 3--16mm | |||||
Power: 700W | |||||
6 | Vice | Size: 150mm | |||
7 | Grinding Machine | Model: MQ3225 | 1 | ||
Size: 250mm | |||||
Power: 700W | |||||
8 | Oxygen Cylinder | Volume: 40L | 1 | ||
9 | Acetylene Cylinder | 1 | |||
10 | Gas Welding Set | 1 | |||
11 | Working Bench | Steel Panel | 2300x550x780(mm) | 1 | |
12 | Hand Tools | M6--16 drilling set; Hack Saw; | |||
Hammer; Portable Oil Pump; | |||||
3--16mm Thread Tapper; | |||||
Spanner sets; Socket Spanner Sets | |||||
Files; Clamps | |||||
Tools
No | Name | Specification | Quantity |
1 | Bow saw frame | 2 | |
2 | Hacksaw blade | 18 tine; 32 tine | Each 1 |
3 | Manual oil gun | 1 | |
4 | Oil pot | 300cc | 1 |
5 | Hand electric drill | 220V 0.6~6mm | 1 |
6 | Pipe expansion ware | 1 set | |
7 | Electrical maintenance kits | with multimeter | 1 set |
8 | Screw tap | Coarse thread | 6/set |
9 | Screw tap | Fine thread | 3/set |
10 | Screw tap holder | 180mm;280mm | each 1 set |
11 | Screw die | Coarse thread | 6/set |
12 | Screw die | Fine thread | 3/set |
13 | Drill | 1-10mm (at intervals of)0.5mm | 2set |
14 | Drill | 11-16mm | 2sets |
15 | Drill | 3.4;4.2;5.1;6.8;8.5;10.2 | each 1 set |
16 | Steel ruler | 150mm,300mm | Each 1 |
17 | Vernier caliper | 150mm,250mm | 1 |
18 | Screw thread gauge | the metric system; British system | each 1 |
19 | Tape | 2m | 1 |
20 | Round head hammer | 2.5 pound | 1 |
21 | File | roundness,semi-circle,flat,square ,triangle | Each 2 |
22 | Assorted set of files | 2 sets | |
23 | Screwdriver | cross 125mm;minus 125mm | each 1 |
24 | Pointed plier | 150mm | 1 |
25 | Steel wire clamp | 200mm | 1 |
26 | Carp clamp | 200mm | 1 |
27 | Oxygen watch | 1 | |
28 | Acetylene watch | 1set | |
29 | Welding wire clip | 500A | 1 |
30 | White glass | 10 | |
31 | Protection glasses | 1 | |
32 | Steel brush | 1 | |
33 | Emery cloth | 46#;80#;120# | each 10 |
34 | Metric fixed wrench | 10/set | 1 set |
35 | Metric ring wrench | 10/set | 1 set |
36 | Wrench | 8";10";12" | each 1 |
37 | Round head hammer | 1.5 pound | 1 |
38 | Welding torch | 1 | |
39 | Cut torch | 1 | |
40 | Oxygen tube | 30m | 1 |
41 | Acetylene tube | 30m | 1 |
42 | Hand electric drill | 220V 3-19mm | 1 |
43 | Jack | 10T | 1 |
44 | Socket wrench | 8mm-32mm | 32/set |
45 | Cut clamp | medium-sized | 1 |
46 | Welding gloves | 1 | |
47 | |||
48 | Work Light | 1 | |
49 | Welding mask | 1 |
Equipments:
50Kw generator, air conoressor, charger, portable generator, are welding machine, plasma cutting machine, eletric winch, desk drill, desk grinding machine, 1 ton crane, 200kg hand chain hoist and slide rail, pneumatic tyre spanner
maintenance vehicle,Emergency repair car,road service car,maintenance truck
Hydraulic drive, reliable, safe and noise-free;
Latest fan-shaped nozzle, three overlapping design;
High power rear lights for night operation
option 2
Device | Model | Specifications | Dimensions |
Chassis | ZZ2152M4367LA ZZ2152M4367LA | ||
Pressure Washer | DL40-type | 22L/MINPressure:210kg Flow: 22L/MIN Motor:11kw Spray gun: 1 unit High-pressure hose:10 m nozzle: 5 unit 350kgWeight:350kg | Length:1500mm Width:650mm Height:500mm |
Oil drum with a suction pump | JK-3BGeneral | 40L/minPower:0.12kw Flow: 40L/min Head:2.5m Entrance and Exit: 25/32mm Voltage:220V | |
40KWdiesel generator set | 40GF-440GF-4 Engine Model: R4110D40-1 Generator Type:TZH-40 | Rated Power:40kw Rated Voltage:400/230V Rated Frequency:50HZ Rated current: 72.2A Output Mode:3-phase 4-wire Weight:850kg | 1820- x636x - 1320 |
ZX7SCRWelding Machine | ZX7-400SZX7-400S | Voltage:380V, 3 phase, 50/60HZ CurrentRange:25-250A Input Capacity: 14.5KVA Working environment:-10 ~ +40. C C | 475-x 280 -x 400 |
