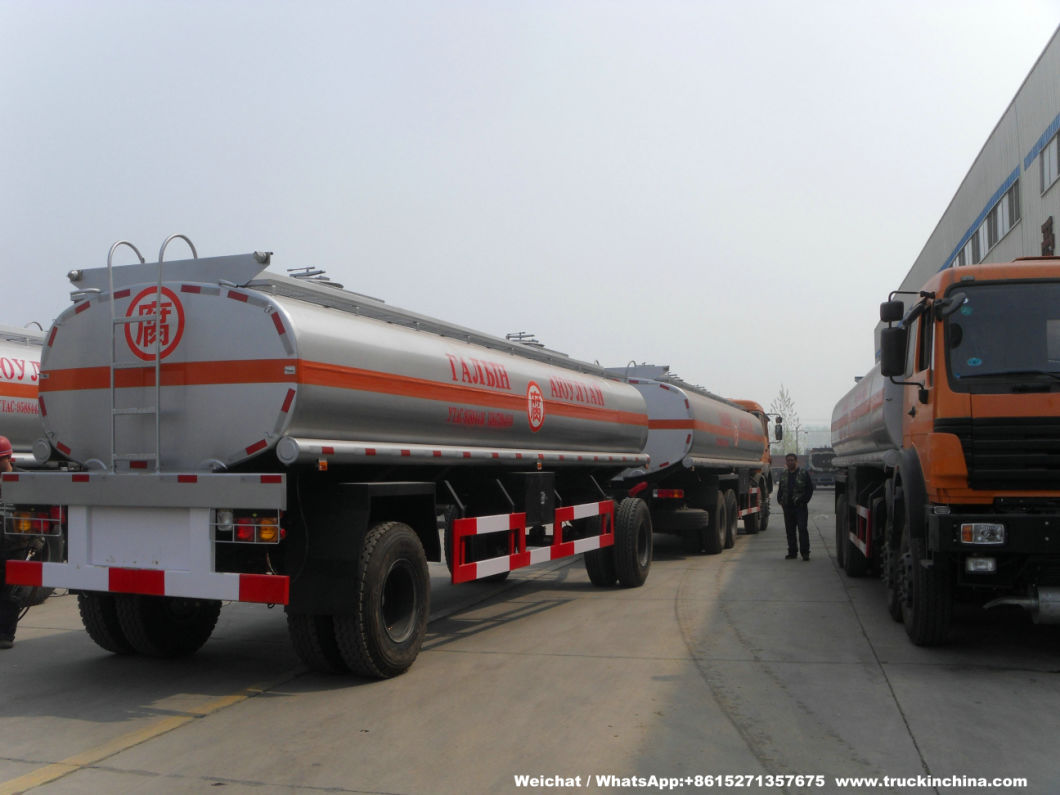

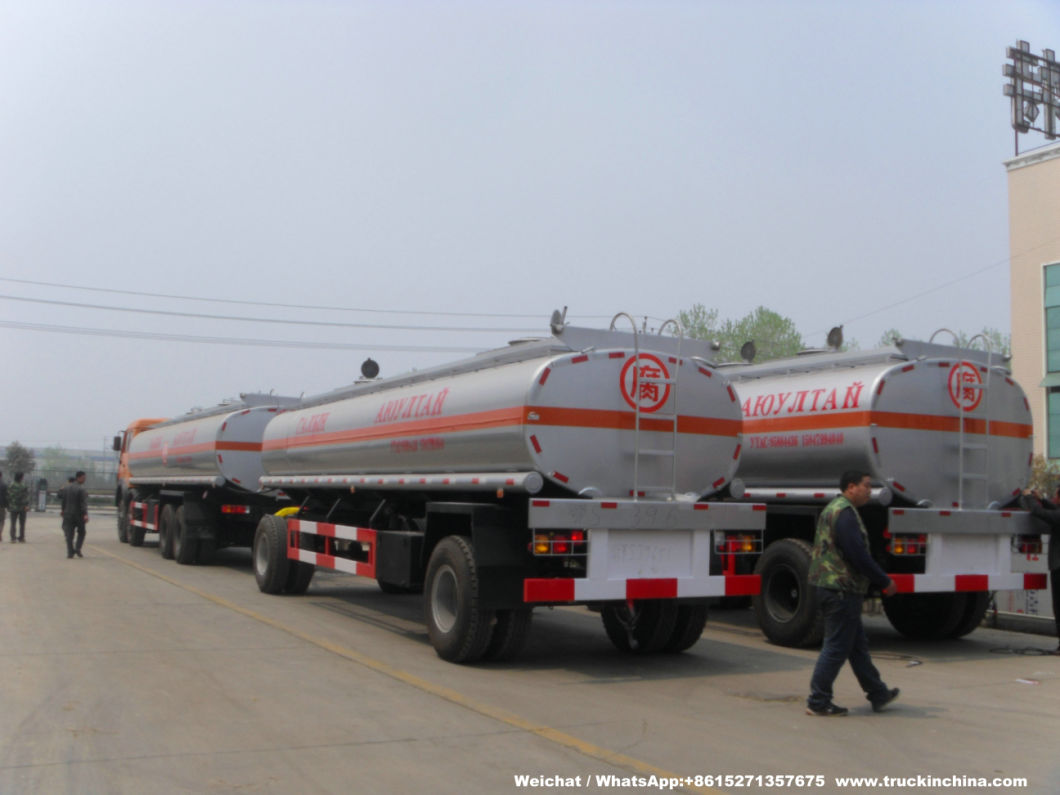

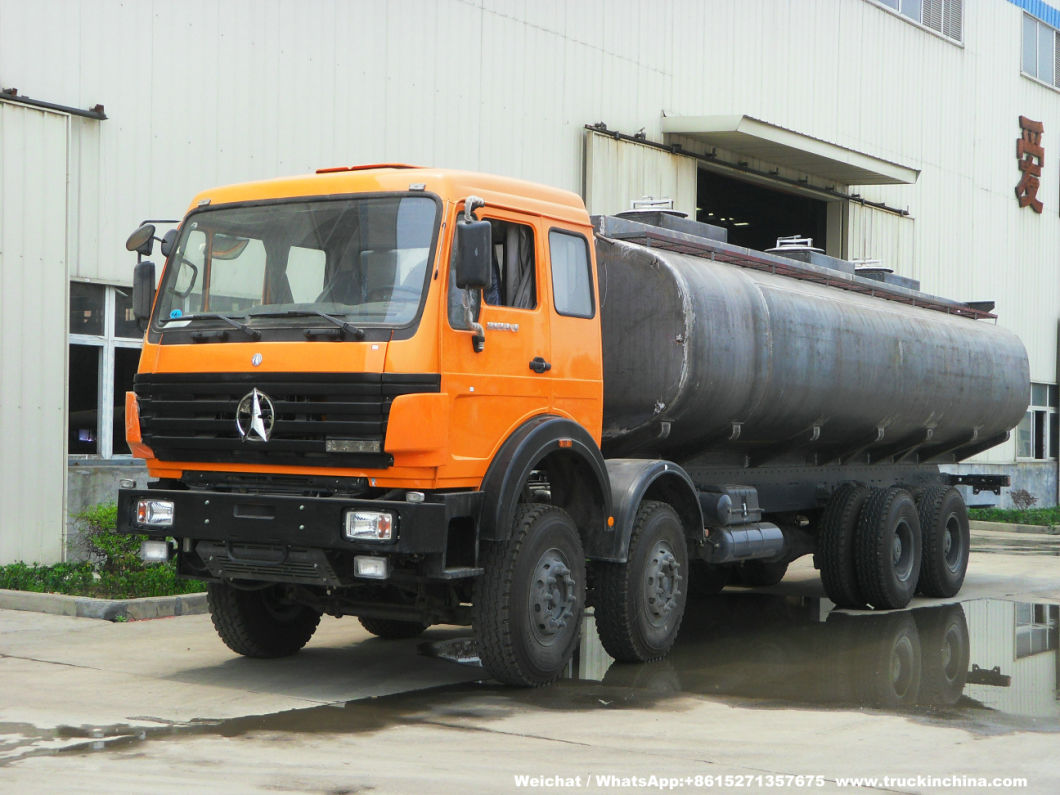

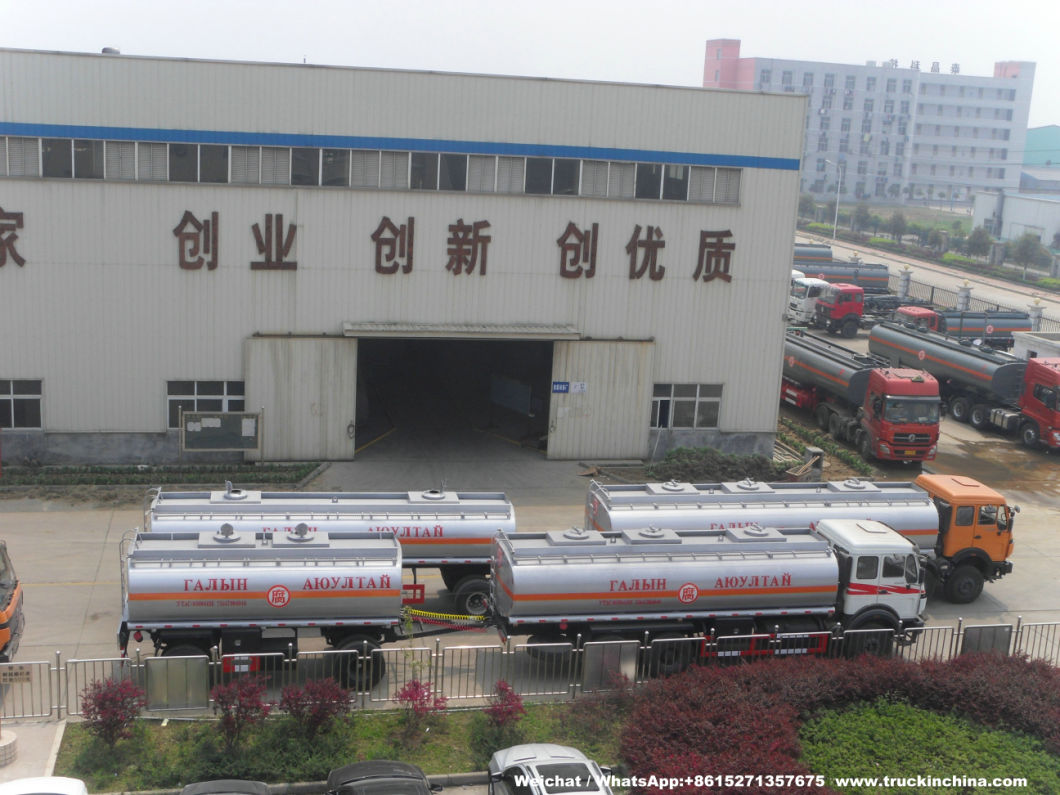

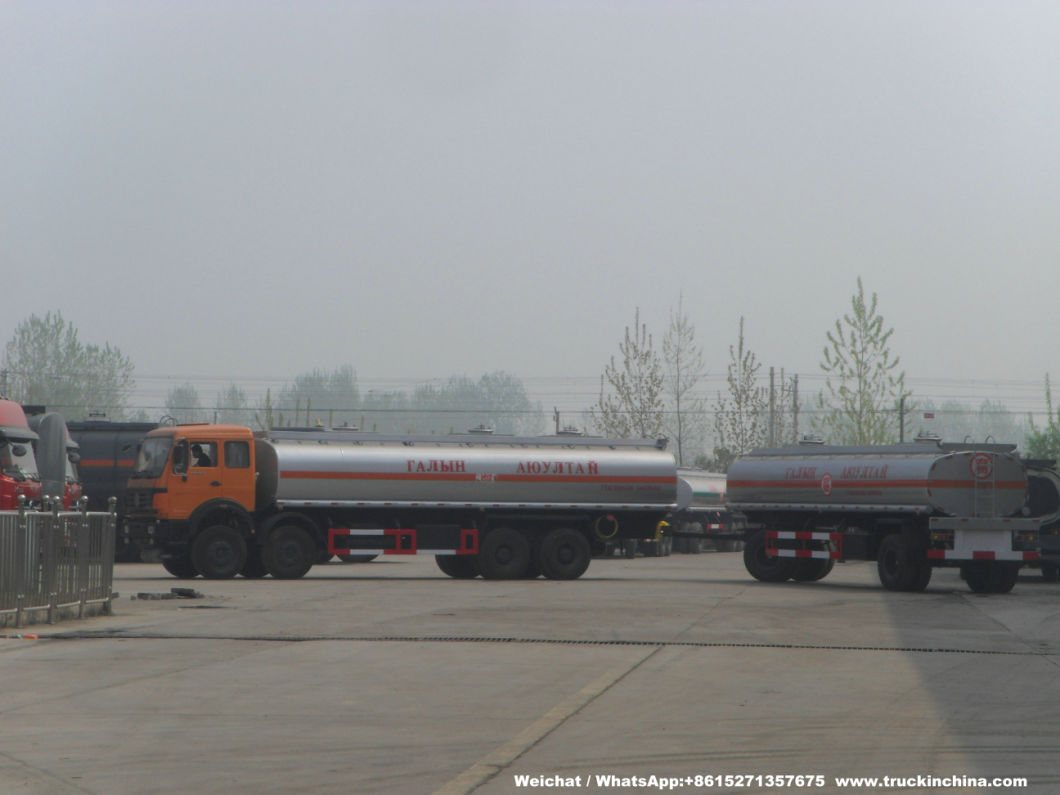

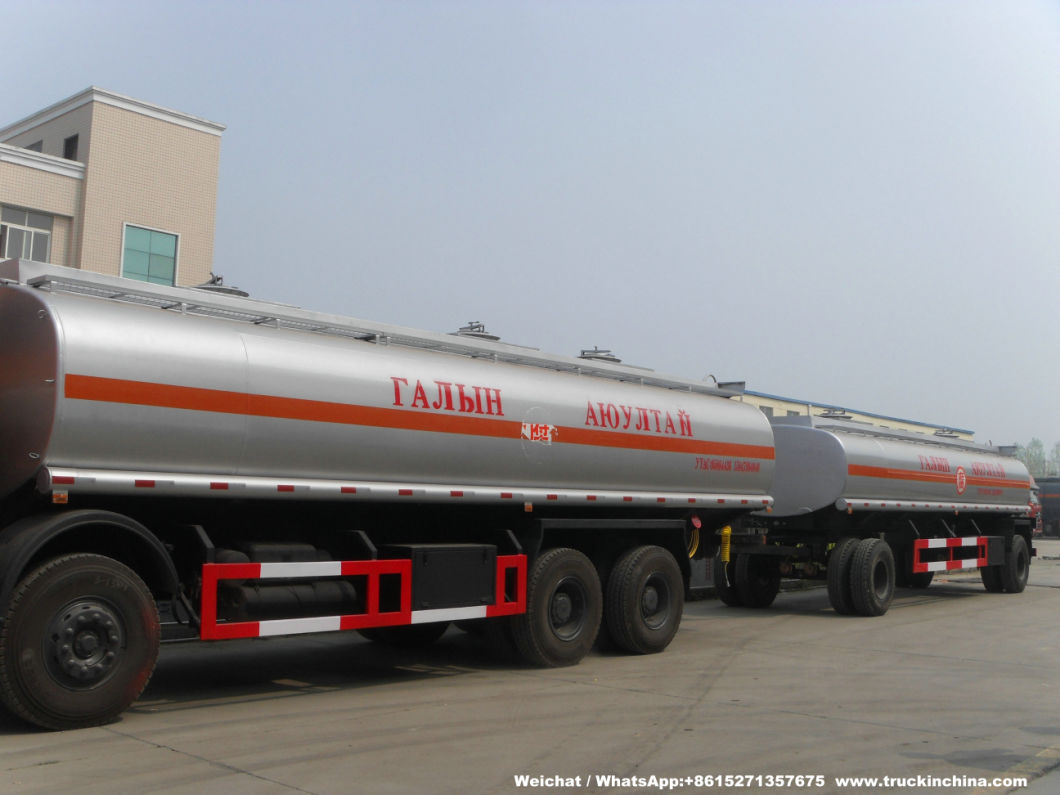

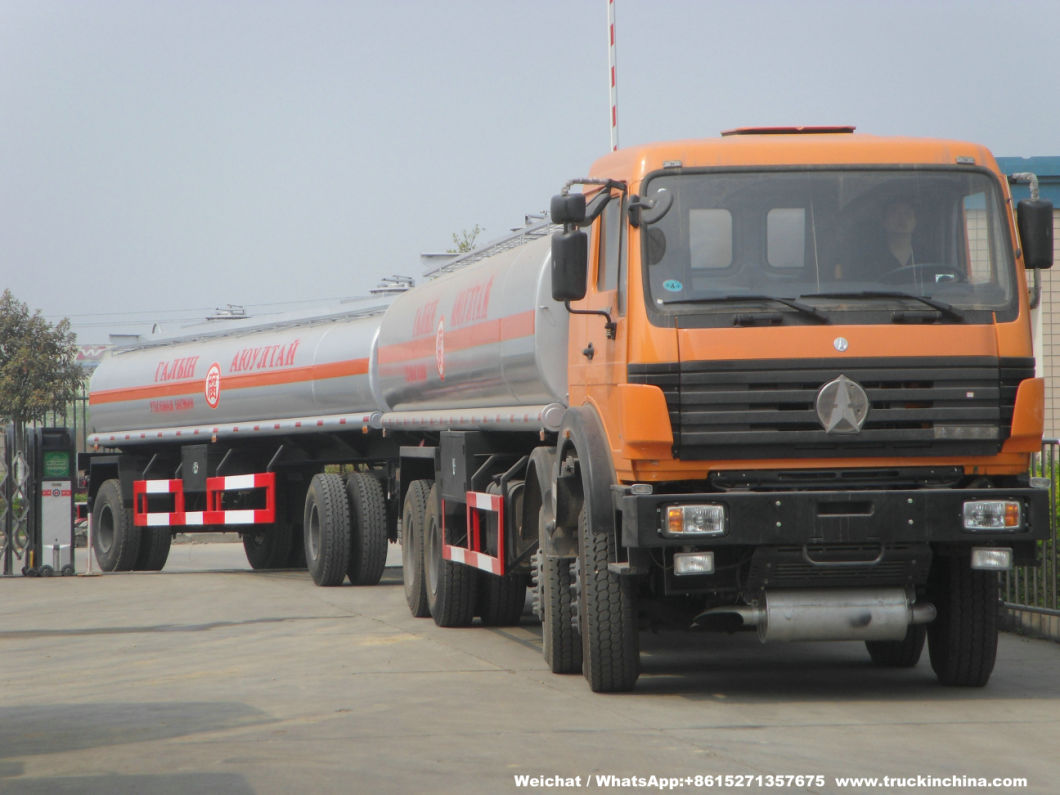

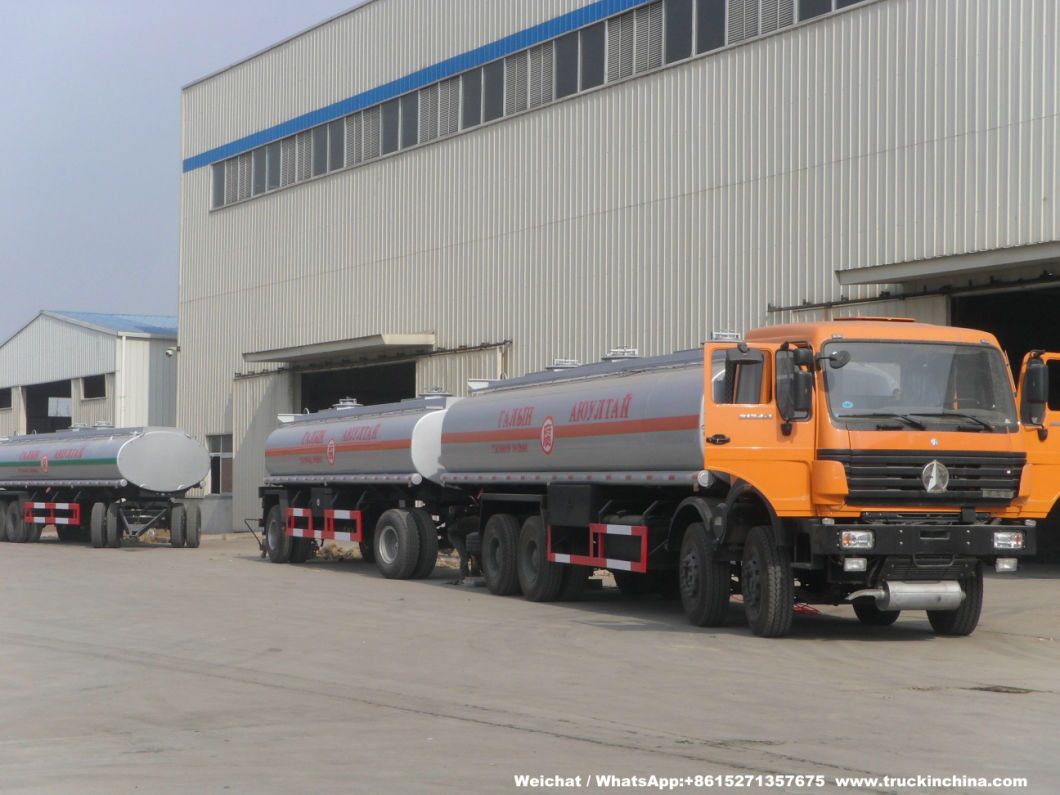

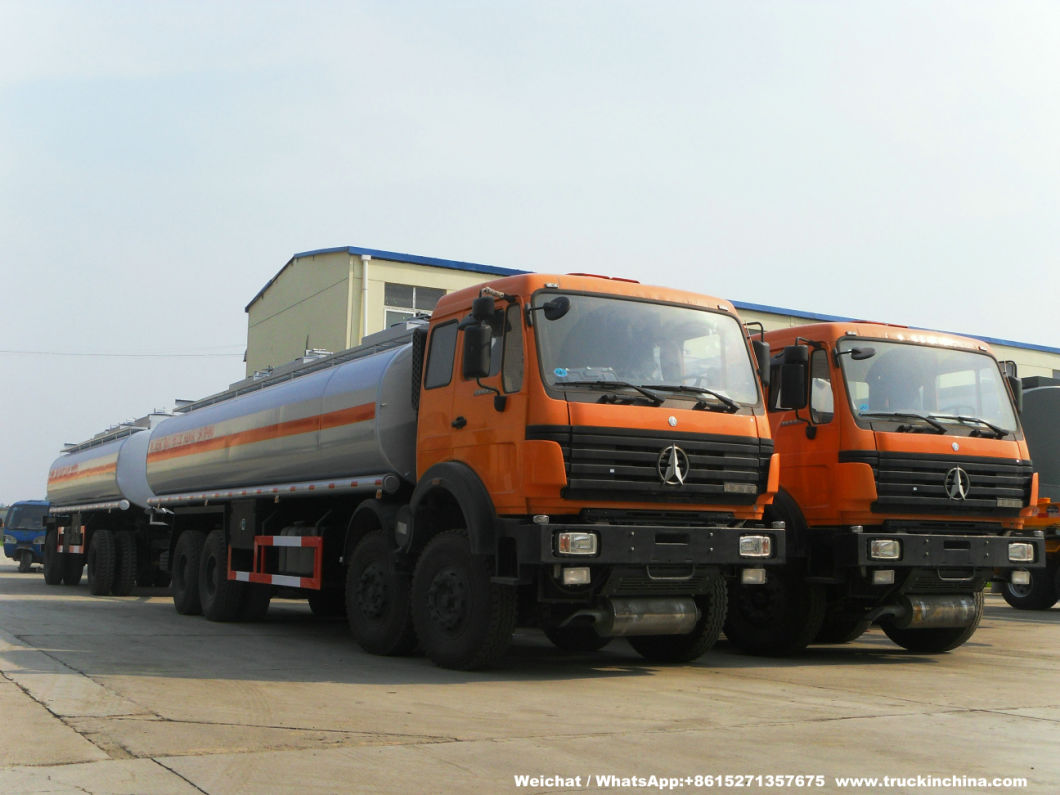

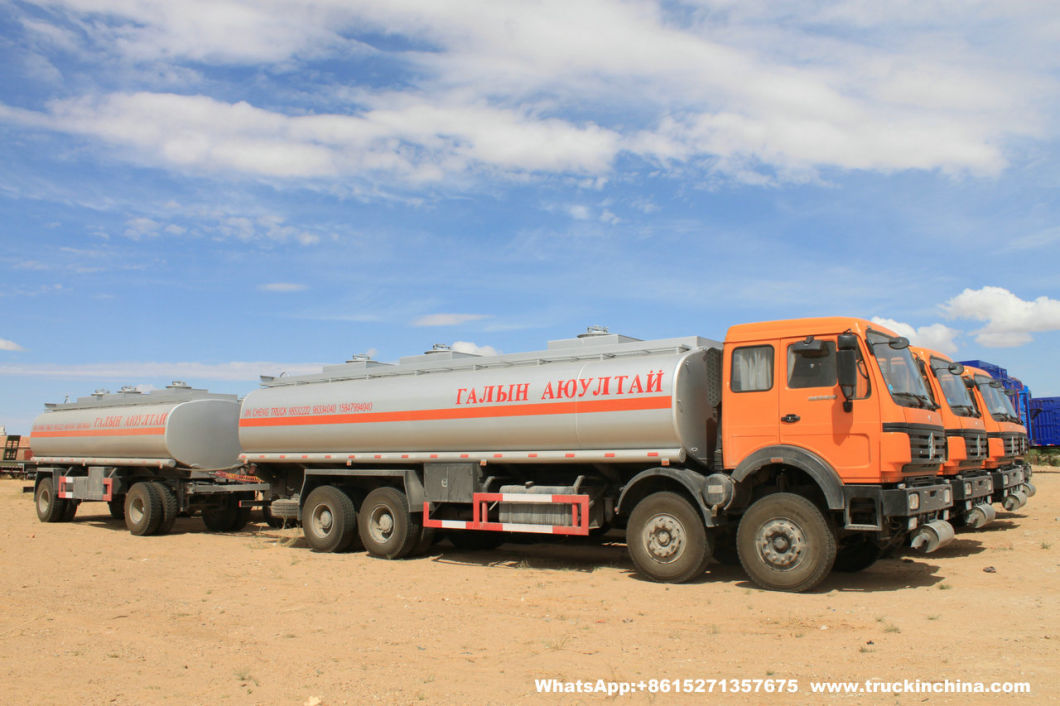

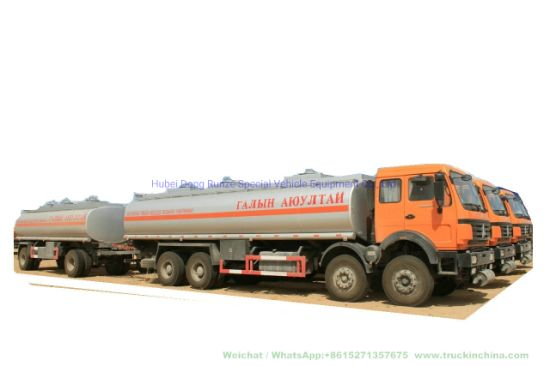

Beiben (North Benz 8X4 Tanker) 30000L +15000 Liters Fuel Tank Truck with Full Tank Trailer
| Quantity: | |
|---|---|
- Shanghai, China
- 1000
- T/T, Western Union
BeiBen (North Benz 8X4 Tanker) 30000L +15000 Liters Fuel Tank Truck with Full Tank Trailer
beiben 3127 fuel truck, beiben 3129 fuel truck,beiben 3134 fuel truck ,beiben 3138 fuel tanker truck,beiben 3132 fuel tankers. north benz oil tankers
The beiben fuel tanker from us can be beiben 8*4 fuel tanker, beiben 8*8 fuel tanker and beiben 8*4 fuel tankers. All the beiben fuel tanker trucks
CONTACT US
Website: www.truckinchina.com
Specialize Custom Commercial Vehicle body building - semi trailer, full trailer-Spare parts
| Product | North Benz 8x4 35000 liters fuel tank truck (35-40T) | |
| Chassis type | 3134k | |
| Cubage(L) | 30,000-35,000 liters | |
| Parameters | Overall dimension length/width/height (mm) | 11000×2495×3650 |
| Total Mass(kg) | 31000 | |
| Payload(kg) | 14500 | |
| Kerb Mass(kg) | 16500 | |
| Approach angle/ Departure angle(mm) | 27/19 | |
| Front suspension/rear suspension(mm) | 1410/2876 | |
| Fuel Type | Diesel | |
| Fuel Consumption/100 km | ||
| Max Speed | 85 | |
| Engine | Type | WP10.340E32 |
| Displacement/Power(kw) | 9726/250, 340HP | |
| Manufacturer | Weichai Power coorperation Co.,Ltd | |
| Type | 6-cylinders,water-cooling,diesel engine | |
| Chassis | Drive type | 8×4 |
| Wheelbase(mm) | 1950+4600+1450 | |
| Tread(front/rear) | 1995/1995,1800/1800 | |
| Front axle | 6.5Tx2 | |
| Rear axle | 18Tx2 | |
| Steering gear | Hydraulic power assistance | |
| Transmission | 12 forward gear, 2 reverse gear,mechanical trasmission | |
Clutch | monolithic dry type clutch | |
Braking system | Full air brake on all wheels, dual air line system | |
Cab | Long cab,single row cab,with one sleeper bed | |
| Number of axle | 4 axle,rear axle are transmission axle | |
| Tire Type | 11.00-20 | |
| Air-condition | Factory installed Air-conditioner | |
Euro 3,
6*4 | ND1255B44 | 4450+1450 | WP10.290 |
| ND1252B44 | WP10.336 | ||
| 6*4 | ND1253B45J | 4500+1350 | WP7.270E30 |
| 8*4 | ND13105D44J | 1700+4425+1350 | WP10.270 |
6x6 off road tanker
| 2527A/6*6/4450+1450/ | WP10.270N/199 | 9T-160 | TAS85 | 12.00-20 | 12.00R20 |
| 11.00-20 | |||||
| 11.00R20 | |||||
| 2527A/6*6/5050+1450/ | WP10.270N/199 | 9T-160 | TAS85 | 12.00-20 | 12.00R20 |
| 2530A/6*6/5050+1450/ | WP10.300N/221 | 9T-160 | 11.00-20 | ||
| 11.00R20 | |||||
| 2534A/6*6/5050+1450/ | WP10.336/247 | 9T-160 | TAS85 | 12.00-20 | 12.00R20 |
| 2538A/6*6/5050+1450/ | WP10.375/276 | RT11509C | |||
Tanker
Material Steel
Thickness of shell 4mm 5mm /6mm / 8mm
Thickness of dish 5mm /6mm / 8mm
Inside baffles 3mm /4mm / 5mm
Compartments 3 to 4 compartments
Volume 15000L to 25000L+ 5% expansion
Tank Top Accessories
Ladders fixed on the front and rear; foldable handrail
Walkway with anti-slip material in the front of reach the manholes,
Not covering the complete length of the tank.
Tank Equipments (all API Standard)
Each compartment is equipped with :
Aluminum Manhole cover 16" or 20"
Aluminum Emergency Bottom valve 3" with Pneumatic switch in locker
Aluminum Spill Valve 3" or 4",
Discharging Nylon hose 6m
Discharge and loading
Gravity discharge,
Top loading. Option: Bottom loading
Electric Installation
Complete 24V system in explosion proof installation
Rear lighting with rear, stop, parking, direction, fog, reverse lights, side lights
Painting
Exterior surface treatment by shot blasting
Painting by high solid primer directly on the surface
Painting inside special paint booth with the cargo cabin color or the color chosen by the customer
Accessories
Side protection, 2 Fire extinguisher, 1 Spare tire carrier.
1 Tool box with standard tools, Heavy duty tail bumper
Euro 4
6*4 | 4450+1450 | ND12500B44J | WP10.300E40 | 9JS150A |
| WP10.336E40 | ||||
| 8*4 | 1950+3900+1450 1950+3700+1450 | ND13101D39J | WP10.336E40 | 12JS160T |
| WP10.375E40 | 12JS200T | |||
| 8*8 | 1500+4150+1450 | ND2311G41J | WP10.336E40 | 12JS160T |
| 6*4 | 5050+1450 | ND12500B51J6Z00 | WP10.270E40 | 9JS135 |
| WP10.300E40 | 9JS150A | |||
| 6*4 | 4450+1450 | ND12501B45J7 | WP10.336E40 | 9JS150A |
| 8*4 | 1950+3100+1450 | ND13103D31J7 | WP10.336E40 | 12JS160T |
| WP12.375E40 | 12JS200T | |||
| 8*4 | 1950+4600+1450 1950+4300+1450 | ND13104D46J | WP10.336E40 | 12JS160T |
| WP12.375E40 | 12JS200T | |||
| 6*4 | 3800+1450 | ND12505B38J | WP10.336E40 | 12JS160T |
| WP12.375E40 | 12JS200T | |||
| 6*6 | 3800+1450 | ND2250F38J | WP10.300E40 | 9JS150A |
| WP10.336E40 | 9JS180 | |||
| 8*4 | 1950+2800+1450 | ND13103D28J | WP10.336E40 | 12JS160T |
| WP12.375E40 | 12JS200T | |||
| 8*4 | 1950+2800+1450 | ND13101D28J7 | WP10.336E40 | 12JS160T |
| WP12.375E40 | 12JS200T | |||
| 6*4 | 5050+1450 | ND12500B51J | WP10.336E40 | 9JS150A |
| WP12.375E40 | 9JS180 | |||
| 8*4 | 3800+1450 | ND12505B38J7 | WP10.336E40 | 12JS160T |
| WP12.375E40 | 12JS200T | |||
| 8*4 | 1500+4750+1450 | ND13109D47J | WP10.300E40 | 12JS160T |
| WP10.336E40 | 12JS160T | |||
| WP12.375E40 | 12JS200T | |||
| 8*4 | 1950+3100+1450 | ND13101D31J | WP10.336E40 | 12JS160T |
| WP12.375E40 | 12JS200T |
Our beiben tanker trucks feature:
Total beiben tanker are portainted welded by automatically carbon dioxide welding. Nice surface without obvious welding line, safety and reliabiliy
* Beiben fuel tankers body could b oval or trapezoid, tank inside with subdivision board, oil baffle plate, ensure to lighten the shock in the process of transporting.
* Installed famous breath valve DN60, suitable and effective adjust the pressure in the north benz oil tankers.
*Static guiding equipment lap joint adhensive tape on the rear tank can efficiently protect static that arise in the transportation.
Q: Can i get any discount?
A: Yes, there are 3 ways:
1: Order over 15 units;
2: Place order with our truck;
3: 100% TT Payment.
Q: Is inspection need after final production?
A: Our QC team to control the quality within and after final production. The buyer's inspection is also allowed.
Q: How long I can get the goods after confirm order?
A: We need 7-30days for production; If you pay 100%TT, we will book ship in advance, no need to wast time waiting for delivery.
Q: What is your guarantee?
A: 1 year or 12000km;
Q: What should i do if claims appears?
A: When the claims appear, what we need are the pictures of products, use condition brief, the order information. we will analysize the problem, even field investigation, and work out an final option with customers.
