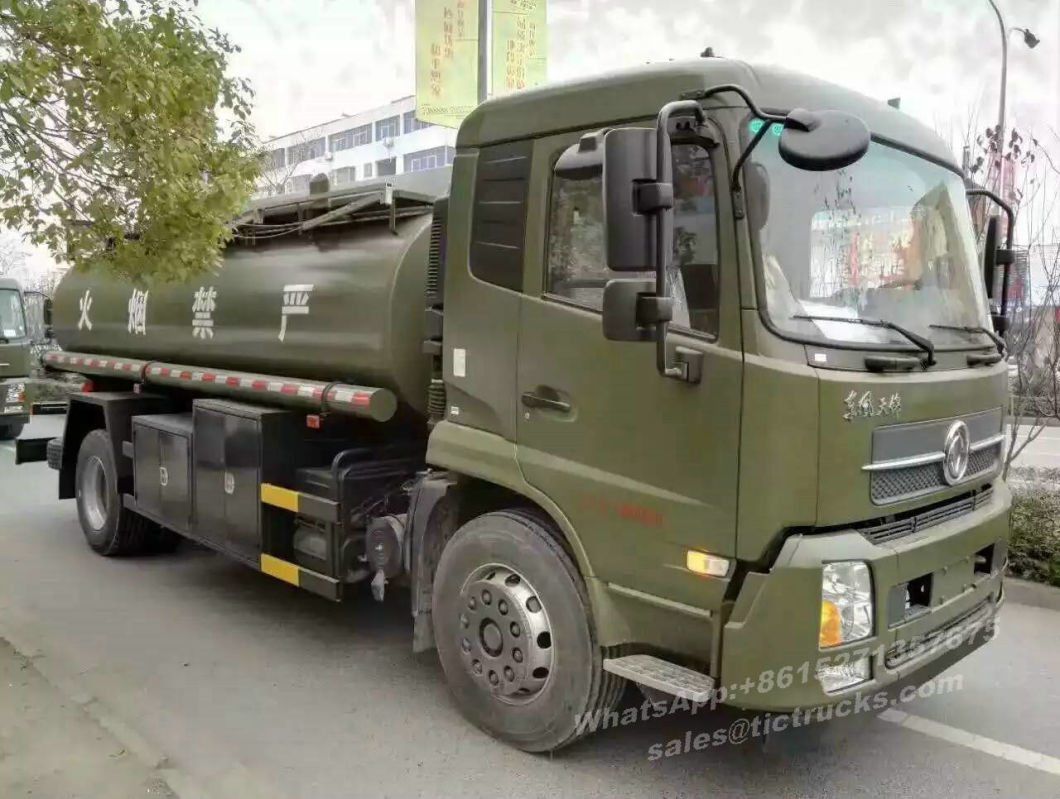

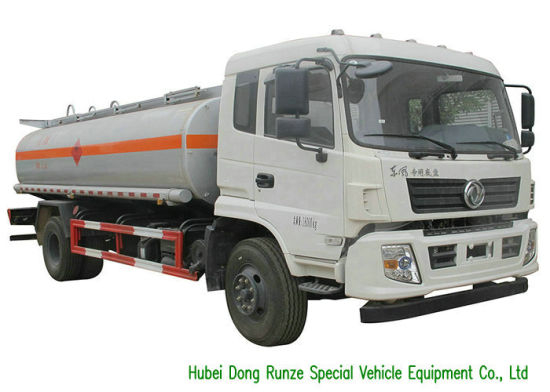

King Run Mobile Fueling Trucks LHD / RHD 4x4 ALL Wheel Drive
King Run Mobile Fueling Trucks LHD / RHD 4x4 ALL Wheel Drive
Tank volume 12000L-15000L
Tank material Carbon steel
Tank thickness 5mm
For oil derivatives (gasoline, diesel oil, lubricating oil and coal tar oil)
transportation and storage.
Capacity of tank body 3-25CBM
Thickness of tank body5mm,With 5 cabin
Gear oil pump, flow meter, flash hider, fire extinguisher
Ask for better price
Cell /+8615271357675 The pictures are for your reference only.
4*4 Oil Diesel Bowser
Dongfeng 4x4 ALL Wheel Drive Diesel Road Tanker Truck for Diesel Transportation With PTO Fuel Pump 10-12CBM 190HP
15,000 Litres (4,000 Gallons) Diesel Bowser, Truck Tank Fuel, Petrol Delivery
Fuel Tanker Dongfeng ( 15,000 Litres ) |
General | Vehicle Brand | DRZ |
Chassis Brand | Dongfeng |
Overall Dimension | 8800 * 2480 * 2950 mm |
GVW / Kerb Weight | 1,600 kg / 6,505 kg |
Cab | Cab Capacity | 3 persons allowed |
Air Conditioner | W/ air conditioner |
Engine | Fuel Type | Diesel |
Engine Brand | Cummins engine |
Power | 180 Ps (132 KW) |
Displacement | 4500 ml |
Emission Standard | Euro III |
Chassis | Drive Type | 4X2, left or right hand drive |
Transmission | 6-speed front, 1 reverse |
Wheelbase/No. of axle | 4700 mm / 2 |
Tyre Specification | 9.00-20 |
Tyre Number | 6 tyres and 1 spare tyre |
Max Speed | 90 km/h |
Paint | Metallic paint |
Superstructure | Tank Capacity | 15,000 Litres ( About 4,000 gallons) |
Tank Material | Carbon steel |
Pump | Fuel pump equipped for overhead delivery |
Suction Head | 6 m |
Hose | High quality, wire strengthened hose, with cooper wire, anti-static |
All standard accessories: manhole, ladder, anti-static belt, anti-slip walkway, handrail, fire extinguisher, inlet, discharge, reflective stickers..... |
Optional | ** Tank material could be carbon steel, stainless steel, aluminum (aluminum tanker)...
** It can be divided into many compartments.
** Imported American mechnical pump Blackmer
** Imported American electrical pump Fillrite....
** Devices can be equipped: flow meter, fuel dispenser, hose reel & nozzle, level gauge...
** Heat preservation & heating system could be added.
** Bottom loading system can be equipped. |
| Vehicle Model | DRZ5162GYYE4X4 | Vehicle Brand | DRZE |
| Overall dimensions | 8500X2470X3040mm | Curb weight | 7900kg |
| Tank dimensions | 5500×2250×1350mm | Tank volume | 12000L |
| Chassis parameters |
| Chassis model | EQ5162GLJ | Chassis brand | DONGFENG |
| Overall dimensions | 8200 x 2470x 2850mm | Wheel base | 4500mm |
| Front/rear wheel track | 1940/1860mm | Front/rear suspension | 1250/2450 mm |
| Approach/departure angle | 25/18° | Maximum speed | 88km/h |
| Chassis Manufacturer | Dongfeng Motor Company |
| Cab | Configuration | A row and a half deluxe cab(with sleeping berth),allowable 3 passengers |
| Color | Blue,other color is optional |
| Engine | Model | B190 33 |
| Emission | Euro 3 |
| Type | 6 cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling,diesel engine |
| Rated power | 190hp,rated power speed 2500rpm |
| Displacement | 5900ml |
| Max.torque | 640N.m |
| Bore x stroke | 102x120mm |
| Manufacturer | Dongfeng Cummins Engine Co., Ltd. |
| Tire | Size | 10.00R20 steel wire tire |
| Number | 6+1 nos |
| Frame | 250(7+5)mm, parts are double layers. |
| Fuel tank | 200L,steel |
| Front axle | 4.5T drive axle |
| Rear axle | 10.0T |
| Drive form | 4X4 |
| Rated voltage | 24V,DC |
| Transmissions | 8 speed forward 1 reverse. |
| Steering device | Power assisted steering |
| Steering wheel | Left hand drive |
| Selective configuration | |
| If there is a slight change in the chassis parameters above,please take the actual product as the standard |
| Fuel tank structure parameters |
| Tank dimensions | 5500×2250×1350mm | Tank volume | 12000L |
| Tank material | Carbon steel | Tank thickness | 5mm |
| | | Color and Logo | Optional |
| Standard configuration | Chassis, carbon steel fuel tank, sub frame,oil pump, two aluminum alloy flow valves, tool box, manhole,climbing ladder, fire extinguisher, oil hose. |
| Selective configuration | Aluminum alloy fuel tank, flow meter, oiling machine, European standard manhole, pneumatic valve, AIP valve, anti overflow sensor plug, oil and gas recovery system,divided into several bins. |

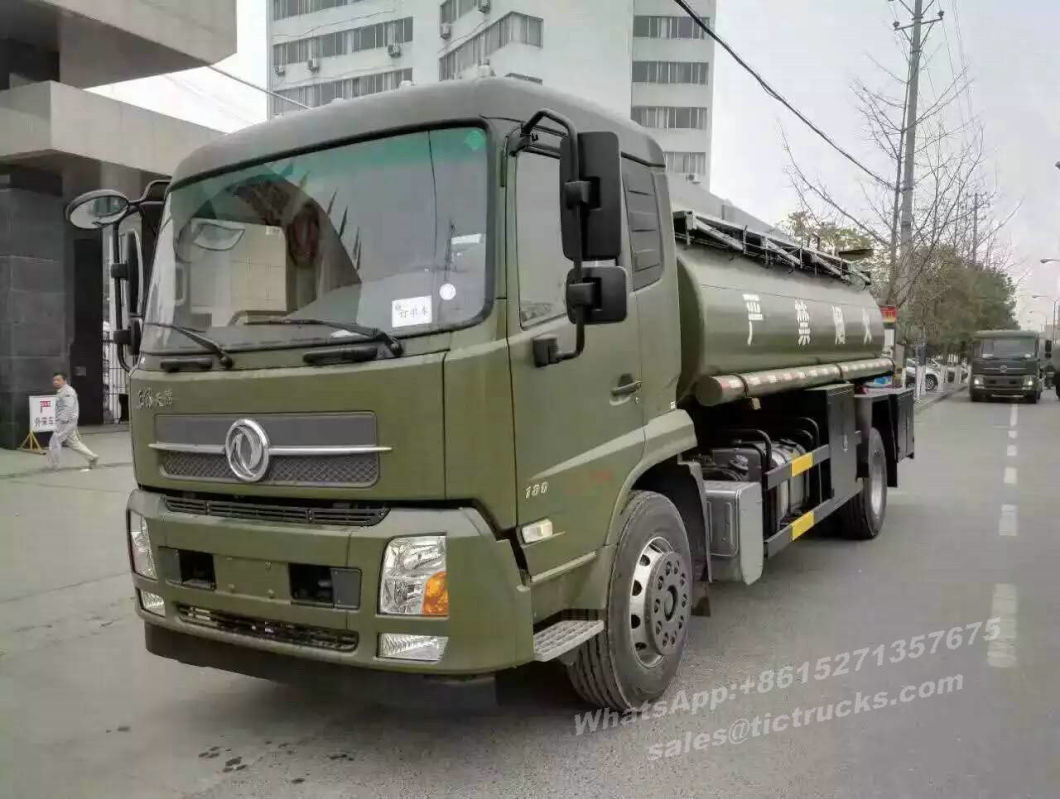

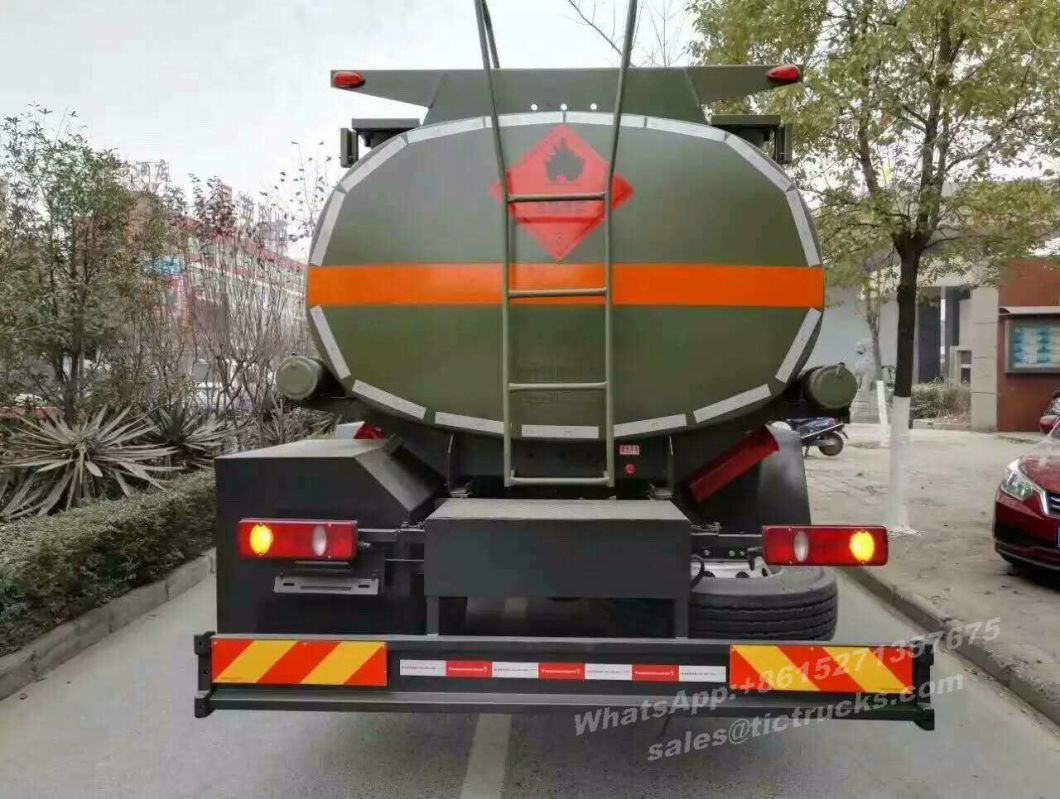

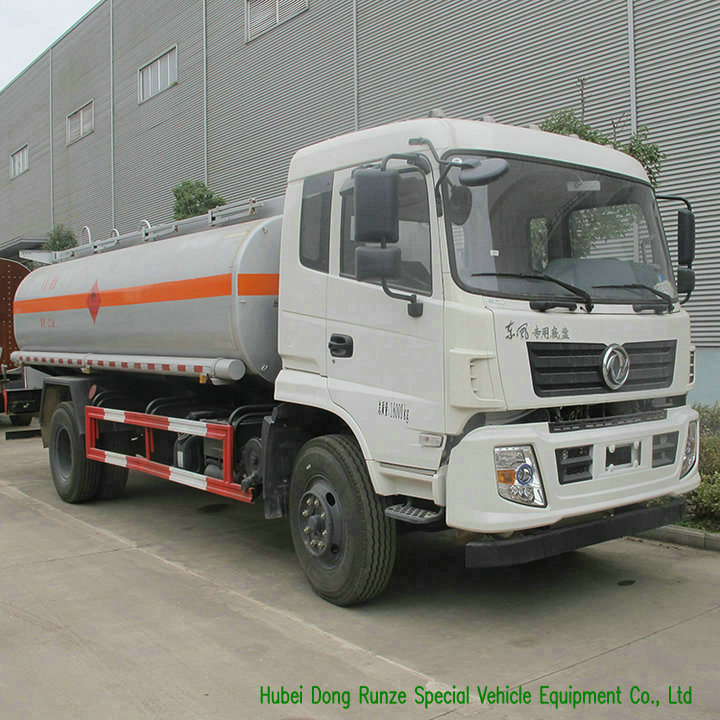

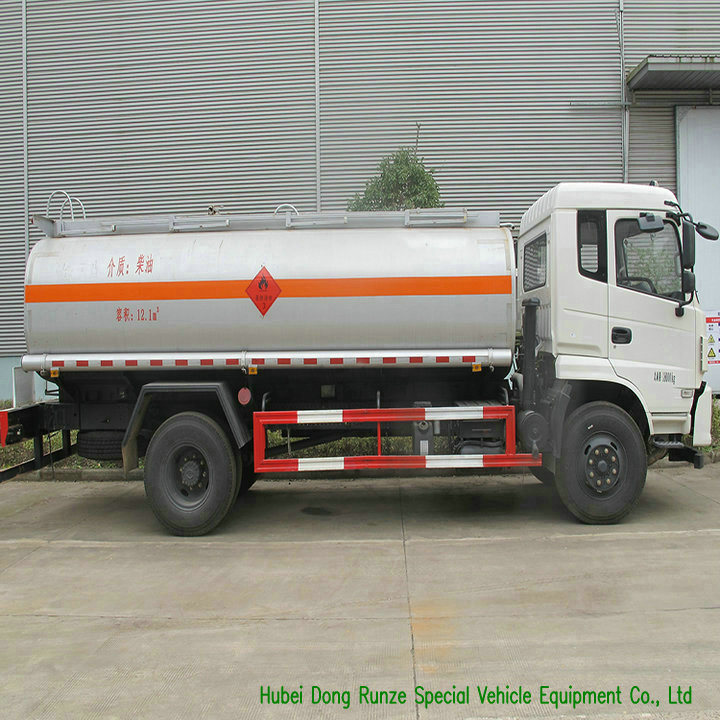

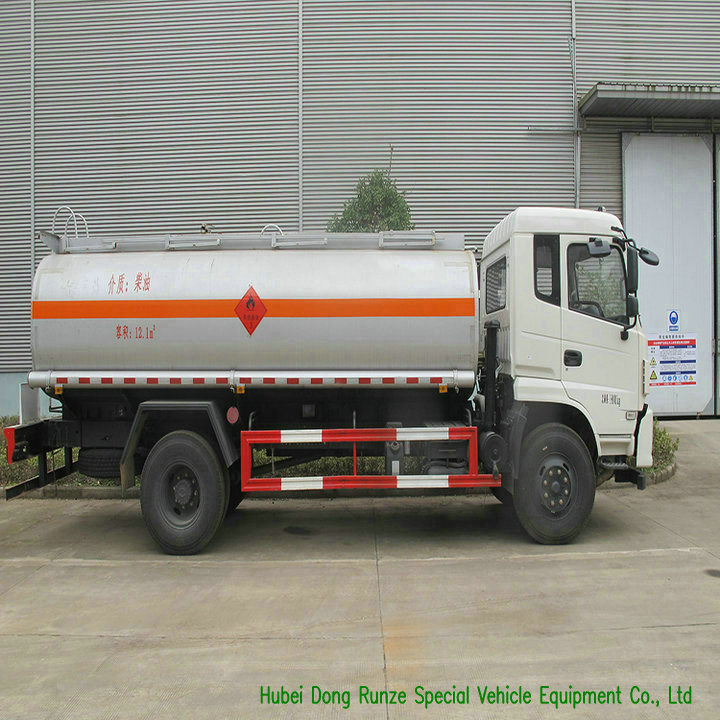

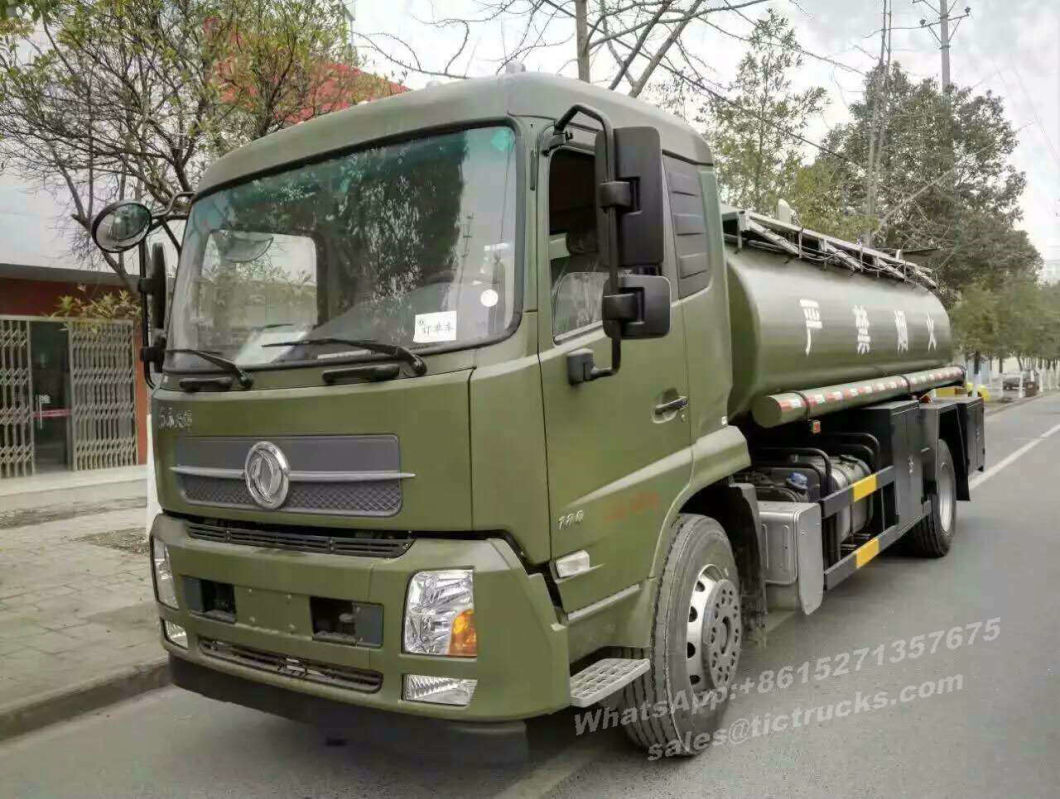

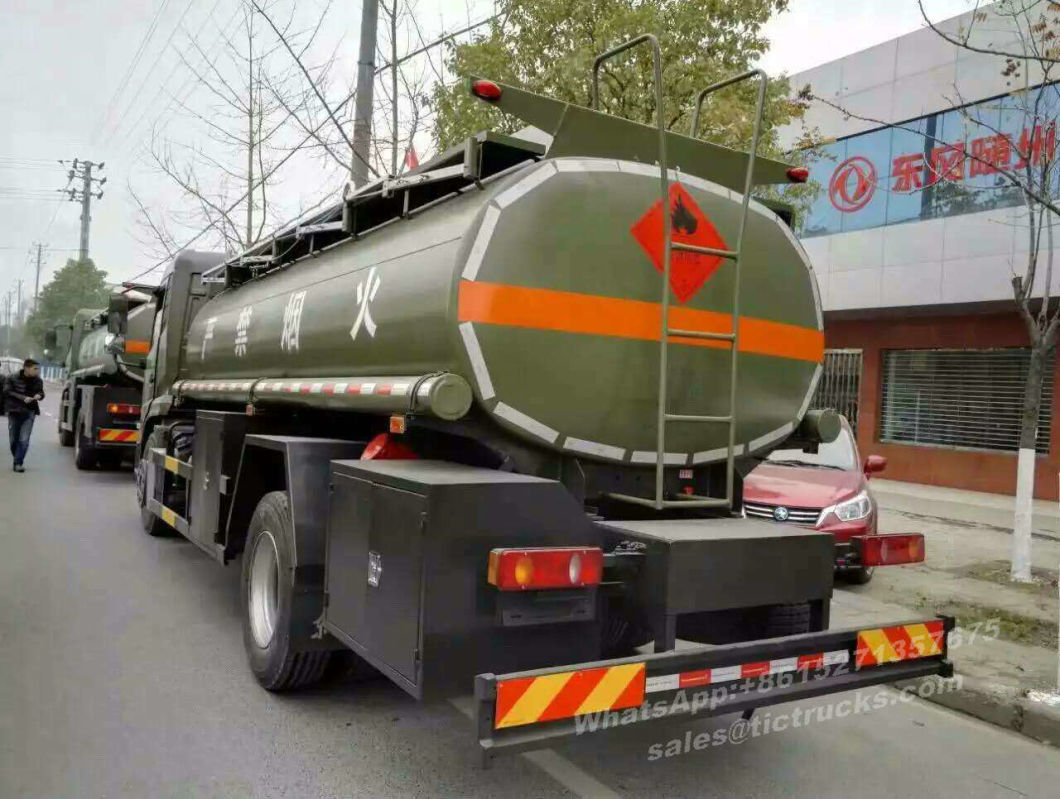

Truck Photo show:
4x4 Full Wheel Drive Oil Tanker Truck Capacity 10CBM 190HP
Cell :+8615271357675
