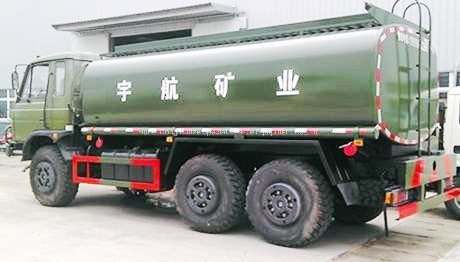

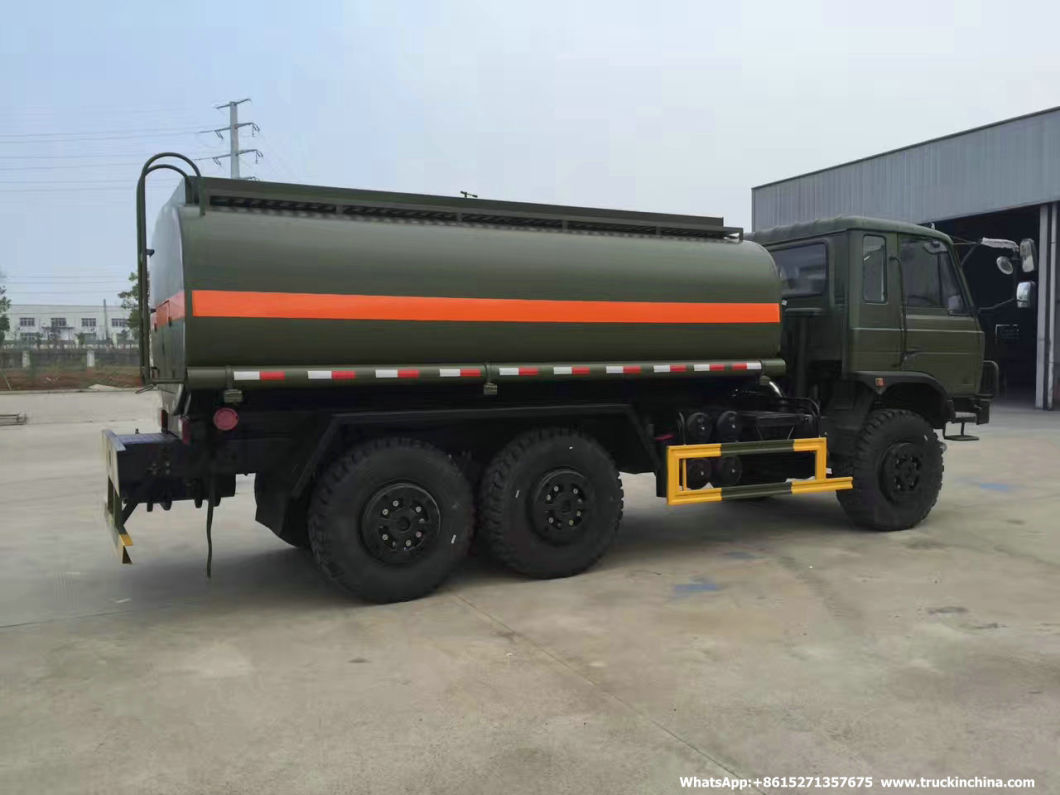

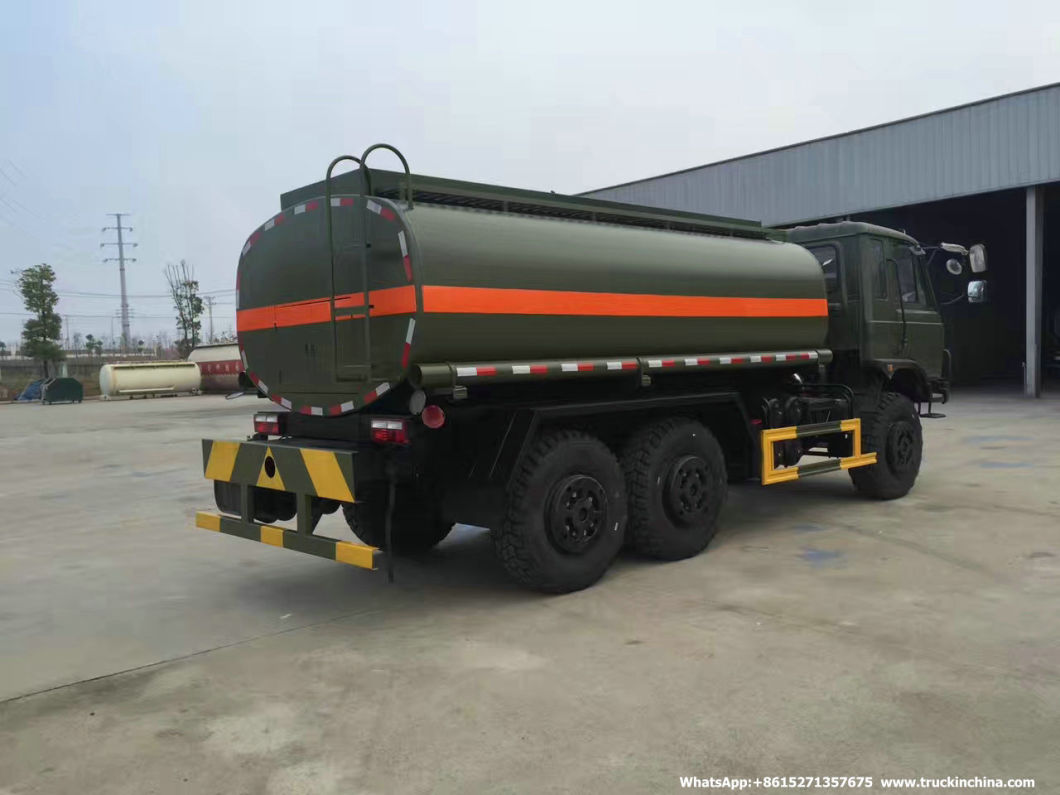

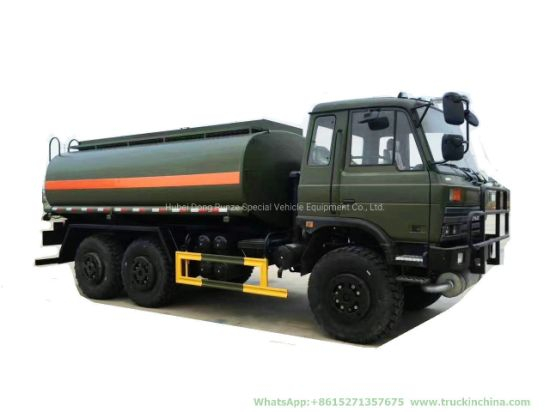

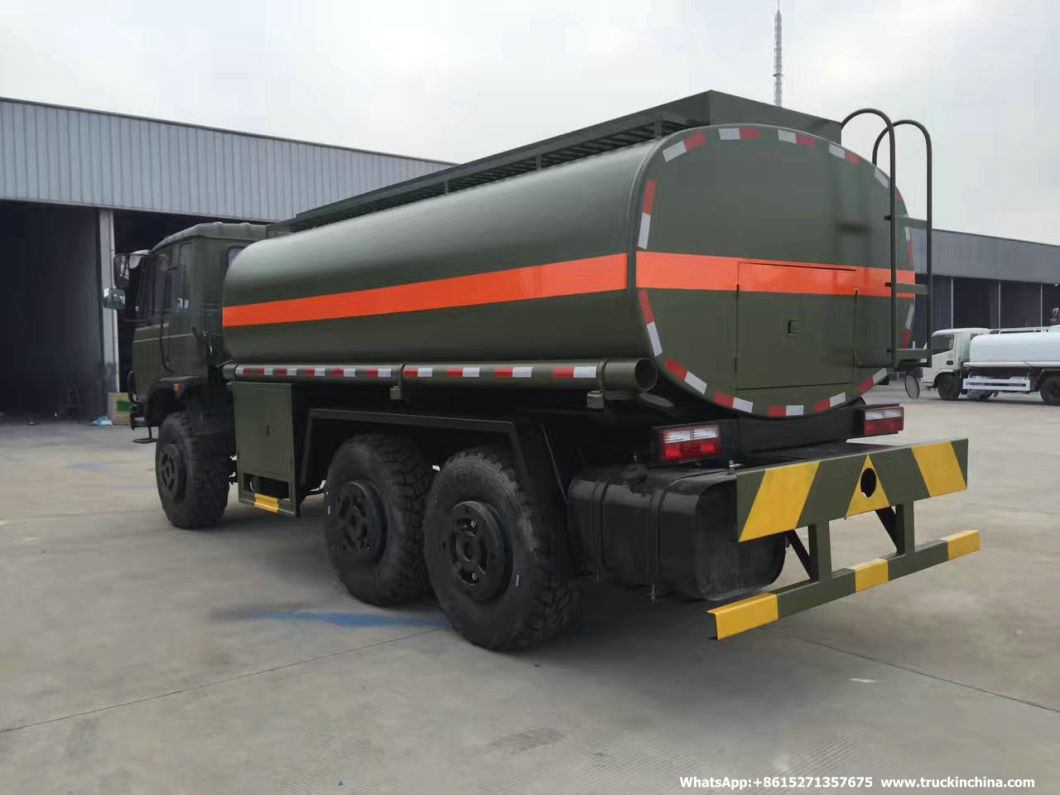

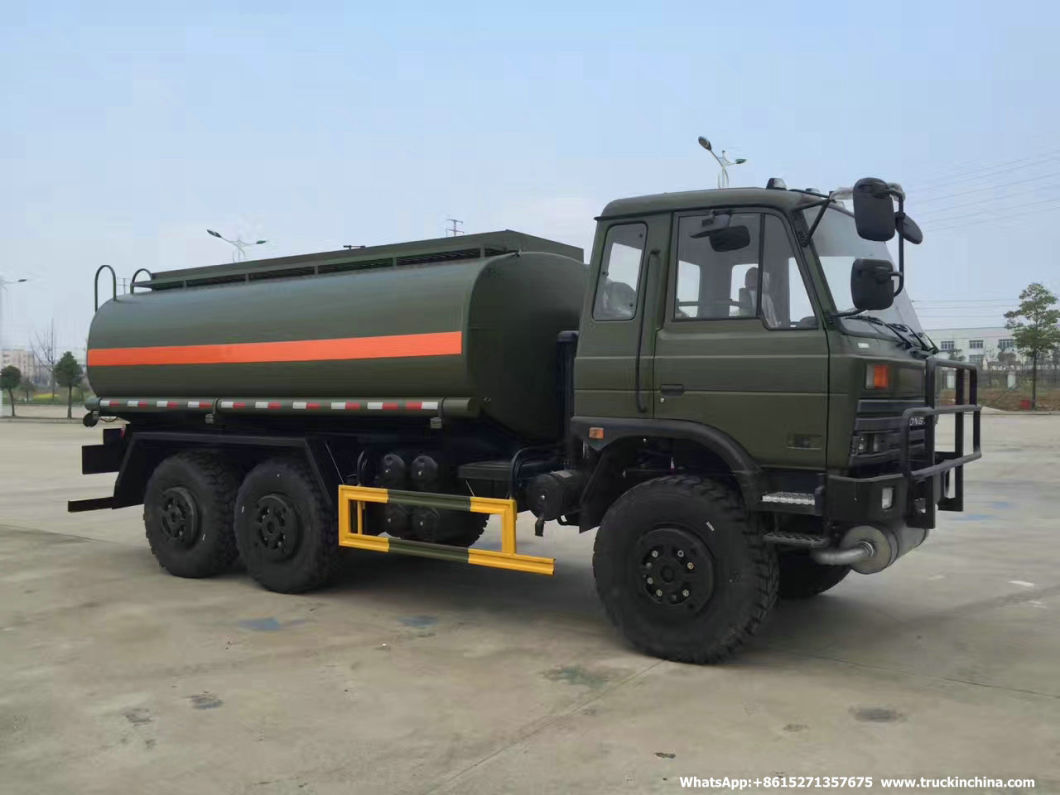

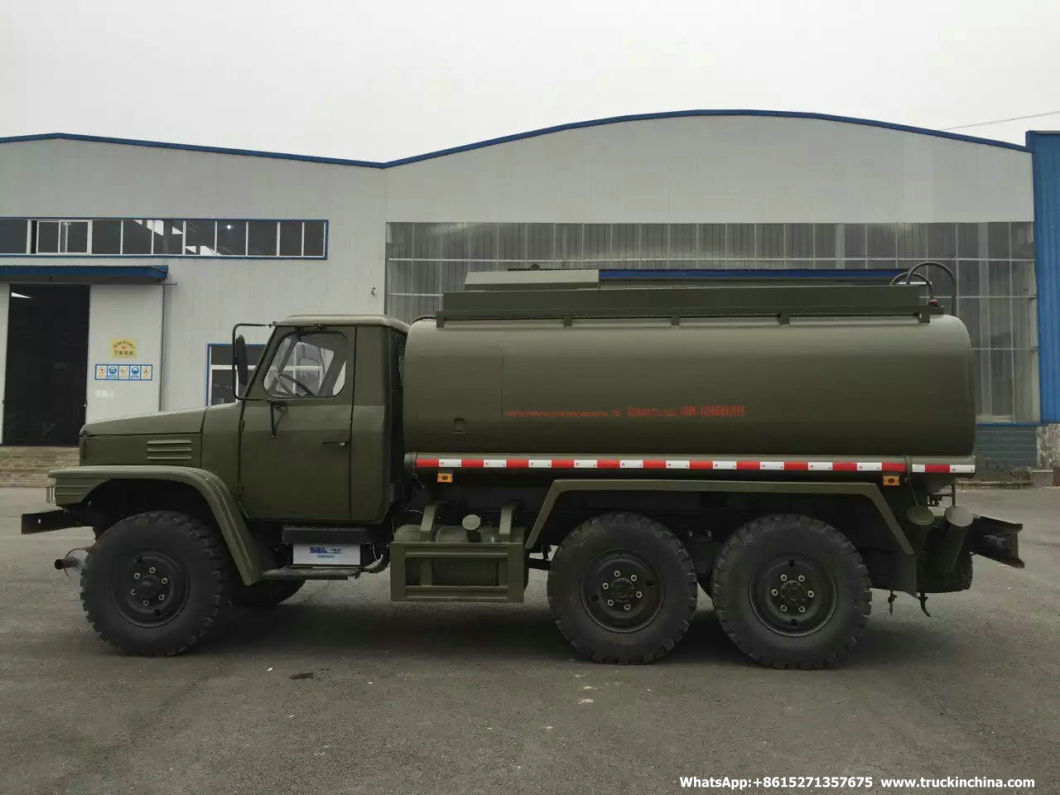

Dongfeng off Road 8000L 6X6 Fuel Tanker Truck for Sales

Quantity:
  • Shanghai, China
  • 10000
  • T/T, Western Union
  • EQ2102
  • Diesel
  • 6×6
  • 6 - 8L
  • New
  • 12.00-20, 12.5r-20
  • 153
  • 400L
  • 3475+1250
  • High Quality Q235
  • 7495*2470*2740
  • Pto, Oil Pump, Refilling Machine, Flow M
  • 4tx2 Axle
  • 3.7t
  • 90
  • Dongfeng
  • Nil
  • military standard.
  • China
  • 8705909990
  • 10001 - 15000L
  • ISO9000, CCC
  • Euro 3
  • 12 - 16m
  • Manual
  • 10t

Dongfeng Military 6x6 Fuel Tank Truck EQ2102 Fuel Oil Bowser Trucks For Sales 6000 ~10000Litres
Dongfeng 6x6 water/ oil tanker truck Customization, Cost and Control Built How You Want it, at a Price You Can Afford. for sale call:+86-152 -7135-7675
Dongfeng off Road 8000L 6X6 Fuel Tanker Truck for Sales
Dongfeng 6X6 Military Army Trucks
Dongfeng off Road 8000L 6X6 Fuel Tanker Truck for Sales
dongfeng offroad Tanker
Dongfeng off Road 8000L 6X6 Fuel Tanker Truck for Sales
6X6 All Driving Military Truck Military off Road Fuel Tanker
Dongfeng off Road 8000L 6X6 Fuel Tanker Truck for Sales
Dongfeng 10cbm 6X6 off - Road Fuel Tanker Truck
Dongfeng off Road 8000L 6X6 Fuel Tanker Truck for Sales
All Driving Military Truck Military off Road Fuel Tanker
Dongfeng off Road 8000L 6X6 Fuel Tanker Truck for Sales
Dongfeng 6X6 off Road Military Oil Tanker Bowser with Oil Pump Fuel Dispenser for Sale
Dongfeng off Road 8000L 6X6 Fuel Tanker Truck for Sales
Dongfeng off Road 8000L 6X6 Fuel Tanker Truck for Sales
Dongfeng off Road 8000L 6X6 Fuel Tanker Truck for Sales
Dongfeng off Road 8000L 6X6 Fuel Tanker Truck for Sales
Dongfeng off Road 8000L 6X6 Fuel Tanker Truck for Sales
Dongfeng off Road 8000L 6X6 Fuel Tanker Truck for Sales


Specification of Donfeng 6*6 Military Fuel Tanker Truck :



Dongfeng All Wheel Drive 6*6 Off Road Military Fuel Tank Truck Oil Diesel Bowser Truck

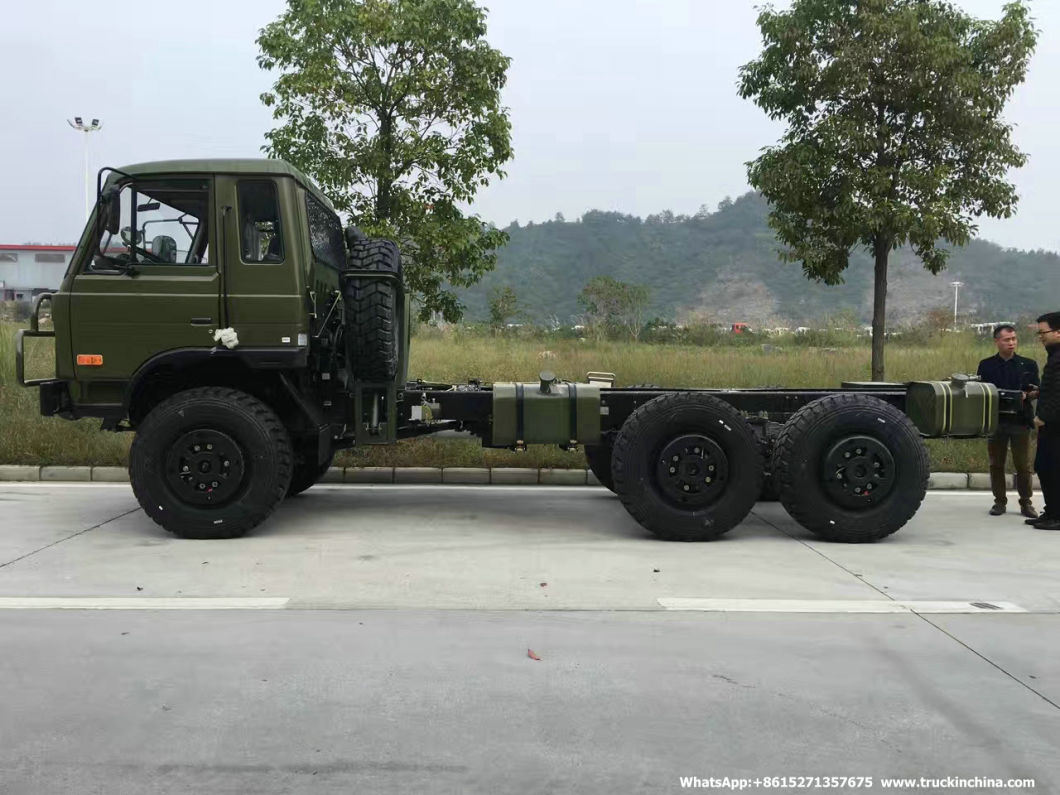

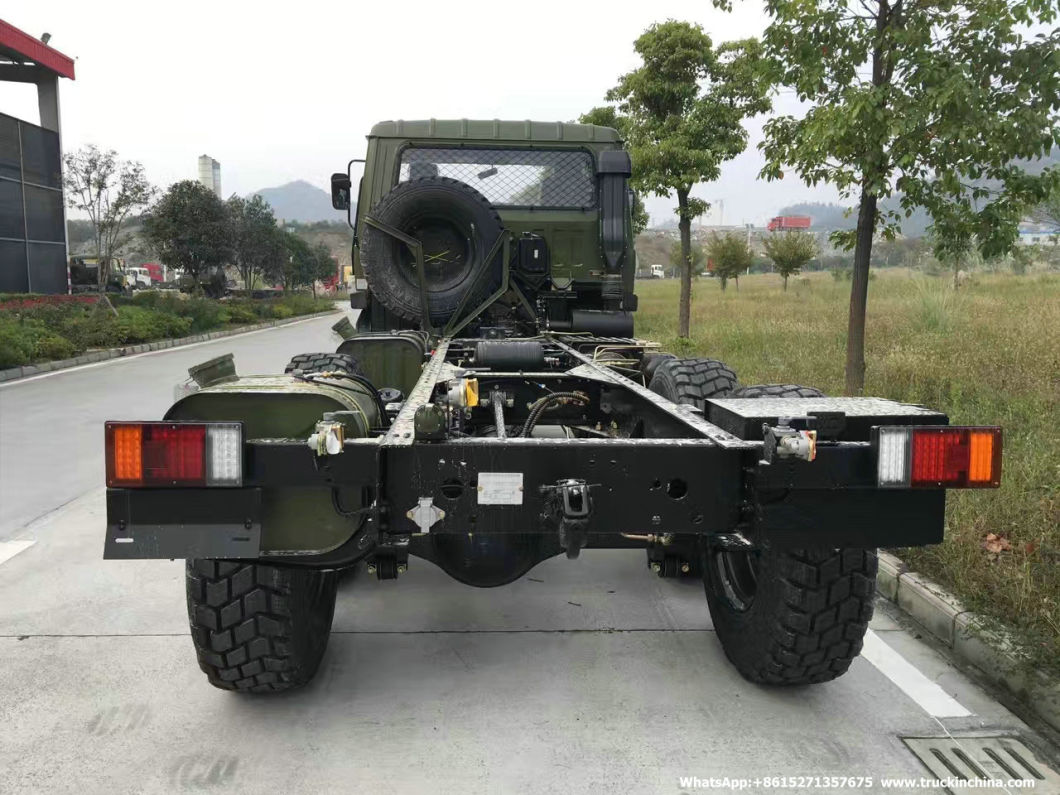

Chassis model Dong Feng 6*6 chassis
Traction type 6*6
The total mass(kg) 10940
Overall size(mm) 7495*2470*2740
wheelbase(mm) 3475+1250
engine manufacturer DONGFENG CUMMINS CO.LTD
model EQ6BT5.9
power(Kw)/(r/min) 118/2800 160HP
Max torque(N.m)/(r/min) 546/1700
tire 12.5R20 radial off road tire
Frame profile size(mm) 232×75×6.5
others PTO and capstan are optional
Special function:
Tank capacity 8000 liters
Material of the tank High quality Q235

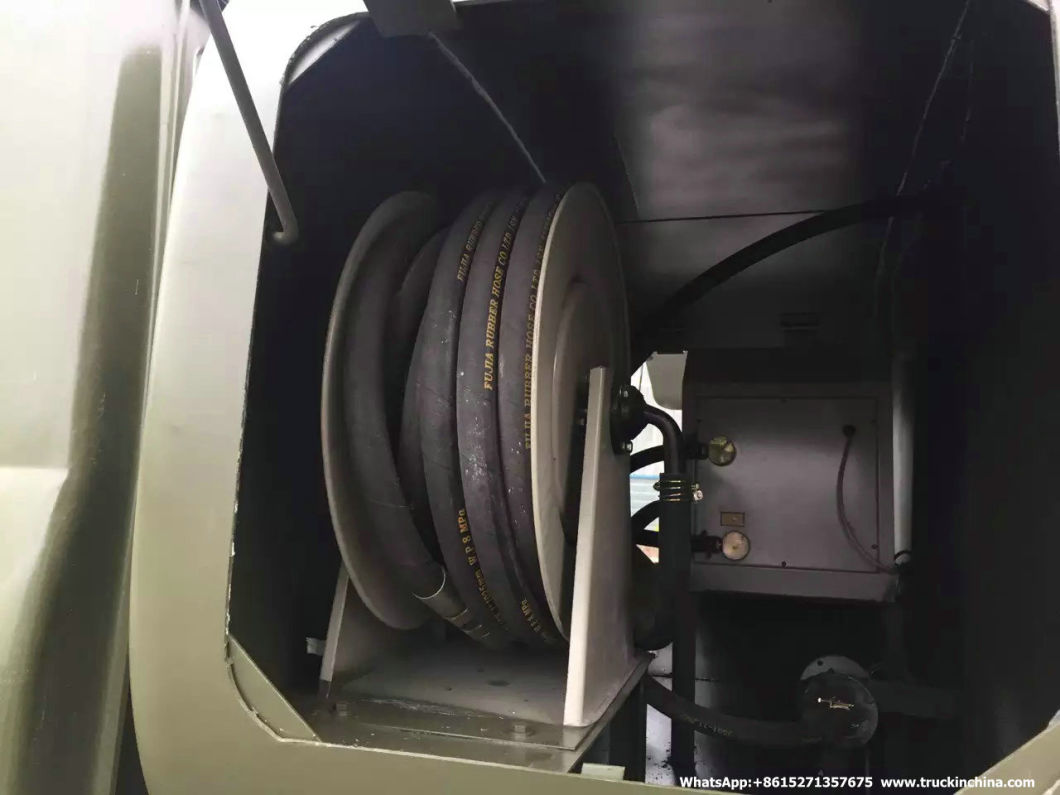

Optional: PTO, oil pump, refilling machine, flow meter, air condition



Fual tank: tank welded by welding machines and automatic welding of Carbon dioxide.
Tank material Made of 5mm GB Q235A carbon steel plate produced by Wuhan Iron and Steel corp.
Paint: painted by overall spraying machines.
Equipments 3 pcs of baffle plate are installed inside of the tank body.
2 manholes are located at the top of tank body.

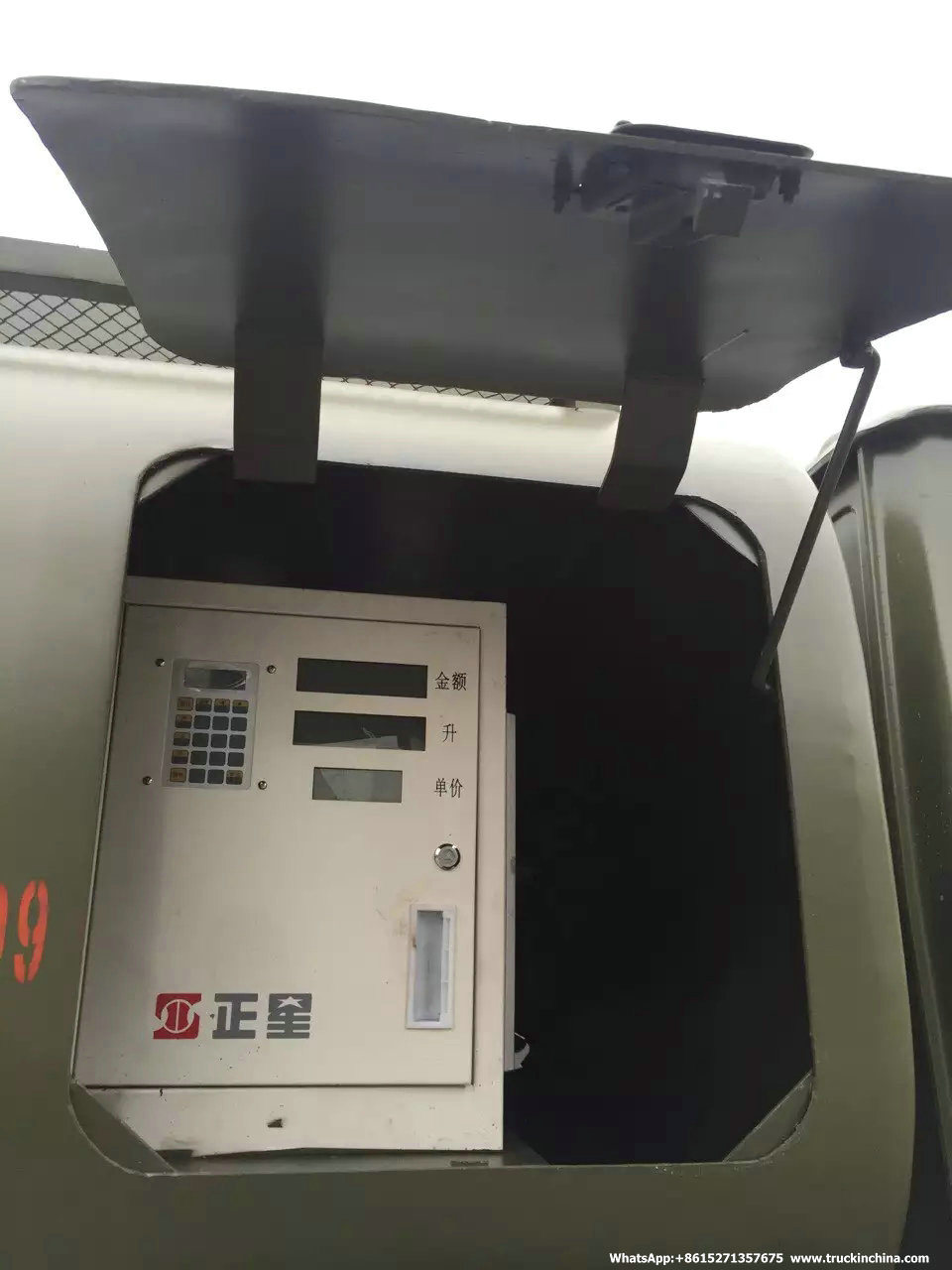

With oil pump.(Model: 80YHCB-60) oil pump, refilling machine, flow meter, air condition



Optional winch:
Install 10 tons of hydraulic winch 1 $6,600 $6,600USD

Dongfeng Military 6x6 Fuel Tank Truck EQ2102 Fuel Oil Bowser Trucks For Sales
which has excellent performance with reasonable price.

Truck Chassis model

EQ2102(6*6 drive type)

Dimension(Lx Wx H)(mm)

7760×2470×2740

Track(front/rear)(mm)

1876/1870

Front/rear overhang (mm)

1410/625

Approach / Departure angle ()

35/34

Wheel distance(mm)

3475+1250

Total mass (kg)

10675

Kerb mass (kg)

6965

Rated load weight (kg)

3715

Drive type

6x6

Max.grade ability (%)

60%

Max.slop ability (%)

40%

Min.turning circle (m)

18.8

Max speed (km/h)

90

Max.brake distance (m)

8m

Min.ground clearance (mm)

305

Vertical obstacle-navigation
Height (mm)

700

Climbing trenches depth (mm)

700

Max.fording depth (m)

1


Engine

Engine model:EQ6BT5.9
Engine manufacture: Dongfeng cummins co.,Ltd
Rated power(kw/r/min):118/2800

Displacement (L)

5.880

Max.power (kw/hp)

118kw/160hp

Max rated speed (r/min)

2800

Fuel consumption (L/100km)

26.5L

Emission standard

Euro II

Fuel tank (L)

Main fuel tank:145L,spare fuel tank:50L

Fuel tank material

Aluminum alloy

Clutch

Valeo 350

Dry single plate, hydraulic control booster
Mechanical operation with hydraulic assistance

Mechanism,5 gears, 5 forward,1reverse gear
Manual operation

Braking

Service Brake

Brake gap can be adjusted automatically
double circulation air brake system

Assistant brake

WEVB(Engine exhaust brake)

Park brake

Spring brake effect to middle and rear tires

Steering description

Whole circulation in ball type, hydraulic power
assistance

Vehicle frame dimension(mm)

232x75x6.5

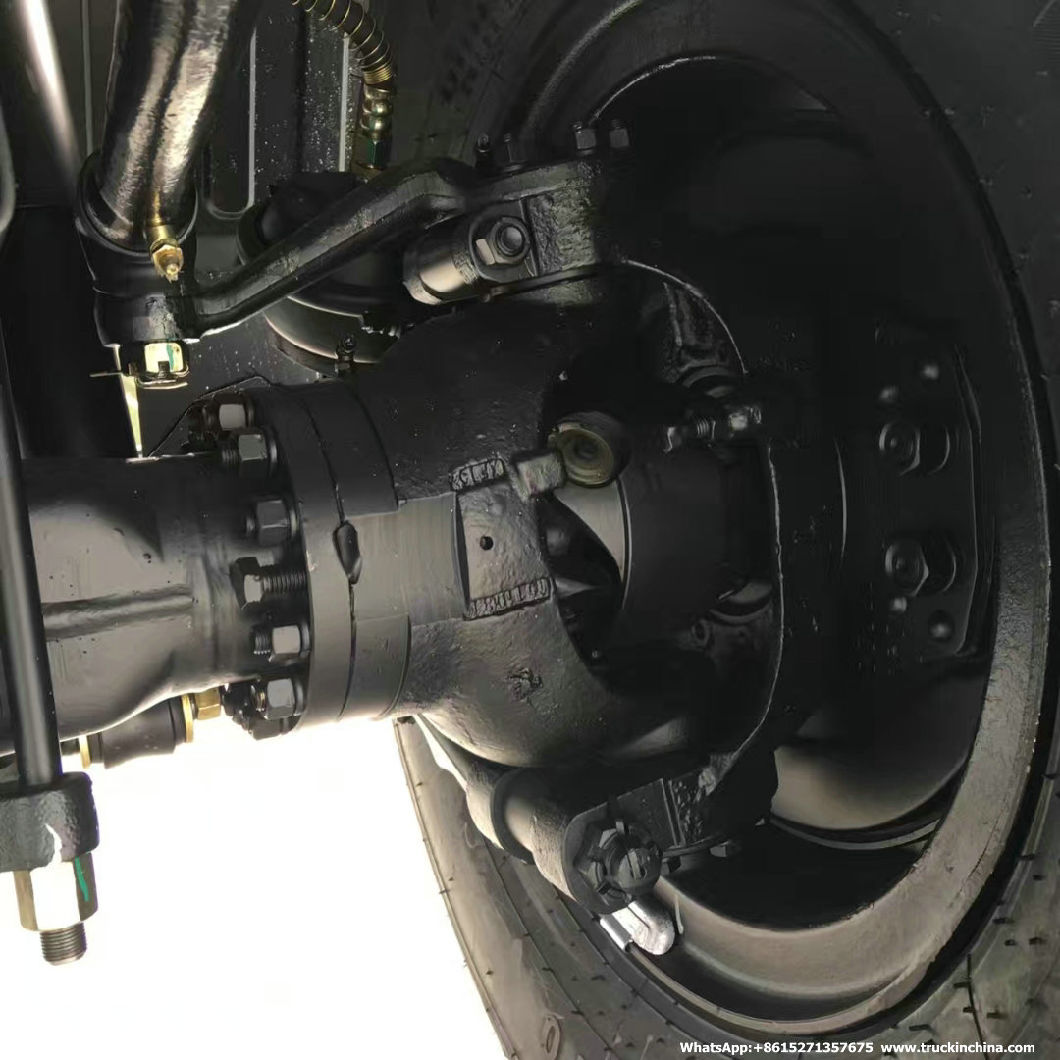

Front axle description(T)

3.7T

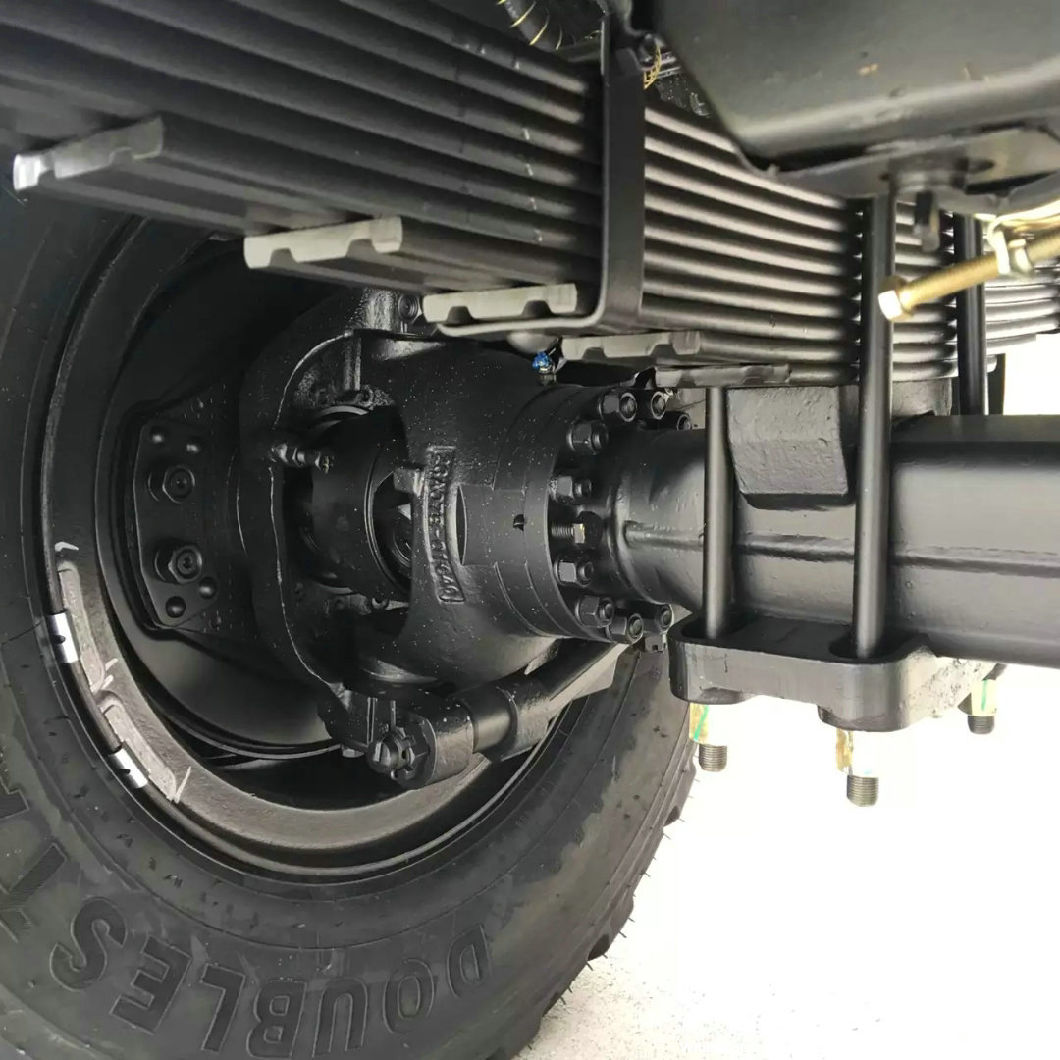

Rear axle description(T)

4Tx2 axle

Tire and number

12.5R-20 off-road tire,6+1 tires

Cab

1. Full steel skeleton structure cab
2. One sleeper bed in the cab,with Air-conditioner
5.Air- damping driver\\\\ s seat

Water truck special function

A. Water tank capacity(L):10,000 Liters
B. Sprinkling area(m):14-16m
C. Suction lift(m):≥7m
Water cannon range description
Water cannon installed on the rear of the truck,also
with operation platform,that operator can work on
the platform.It can be used to clean road,trees,and
also for emergency fire fighting.
Water cannon range:≥60m,it can rotation with 360°
degree freely

Manhole size(mm)

Man way access hole on top of tank; manhole
diameter:¢500mm

Front spray function

Front spray bar with fan sprayer,spray range: ≥20m

Man walk way

With skid resistance man walk way on top of tank

Water pump model

80QZB(F)-60/90S

Flow rate(L/m)

1000

Head of delivery(m)

60

Shaft power

22.5

Suction height (m)

6.5

Efficiency(%)

95%
Dongfeng 6 wheel Drive Truck chassis 6*6 military trucks all wheel drive trucks
Troop carrier soldiers carrier 6x6 trucks

Dongfeng off-road 6x6 fuel tanker truck capacity 10m3 with best price for sale

Brand Dongfeng Drive type 6x6 LHD/RHD
Total mass 18000kg Tanker capacity 10000L(10m3)
Rated load 9900kg Material of tank WISCO steel
Curb weight 7955kg Overall dimension 7760×2500×2845mm
Wheel base 3800+1400mm F/R axle load

4020/13980kg

(Tandem)

Quantity of

leaf spring

11/10 Quantity of wheels 6
Tyre type 12.5R20

Approach/

Departure angle

35/34°
F/R suspension 1408/1453mm Front track 2051mm
Rear track 2051/2051mm Max.vehicle speed 85km/h

Passengers

in cab

2,3 Chassis model EQ2182NXJ
Engine Model B210 33
Max.power 155kw/210HP
Displacement 5900ml
Emission level Euro 3
Description

In line ,6 cylinders,4 strokes,water cooled,inter cooled,turbo charged,

high pressure,common rail,diesel engine

Gearbox Description Manual,6 forward &1 reverse gears

Brake

system

Service brake Double circuit pneumatic (air) brake
Parking brake Spring-Power drum brake
Electric system Operating voltage 24V negative grounded
Starter 24V,5.4KW
Alternator 28V,1.5KW
Battery voltage 2X12V/165Ah
Cabin Description

One and half rows,military quality configuration,single sleepers,

power steering,A/C provided

Dongfeng 6x6 Military Army Trucks ALL WHEEL DRIVE ... Dongfeng 6x6 Military ArmyTrucks ALL WHEEL DRIVE(AWD) lorry truck
Welcome all around world customer visit our factory.-

We can Provide you the following 6x6 Military Truck OFF Road Fuel Truck:

SINO SHACMAN ,DONGFENG DFL,FAW,BEIBEN NORTH BENZ , HOWO ,FOTON ,JAC I,SUZU Chassis,DF NISSAN-UD Chassis,HINO Chassis, JMC Chassis,JAC Chassis, Hongyan IVECO, Hualing-CAMC Chassis,MAN chassis or tractor tank trailer and so on all are optioanl
1.Factory direct sale
2.Specialized in Trucks 10 years
3.a competitive price.
4.with CCC,ISO9001,SGS,ASME
5.chassis is optional SINO SHACMAN ,HOWO, DFL, HINO /UD, BENZ, MAN ,ISUZU 4x2 ,4x4,6X4 ,6x6,8x4,8x8 .
6.Engine min horse power is 120HP~ 240HP~380HP
7.the tank volume is 3000L~12000-18000L~20000L- 35000L - More Than 35000L Diesel Trailer.
8.the tank produce as you requiry;
Welcome all around world customer visit our factory.
