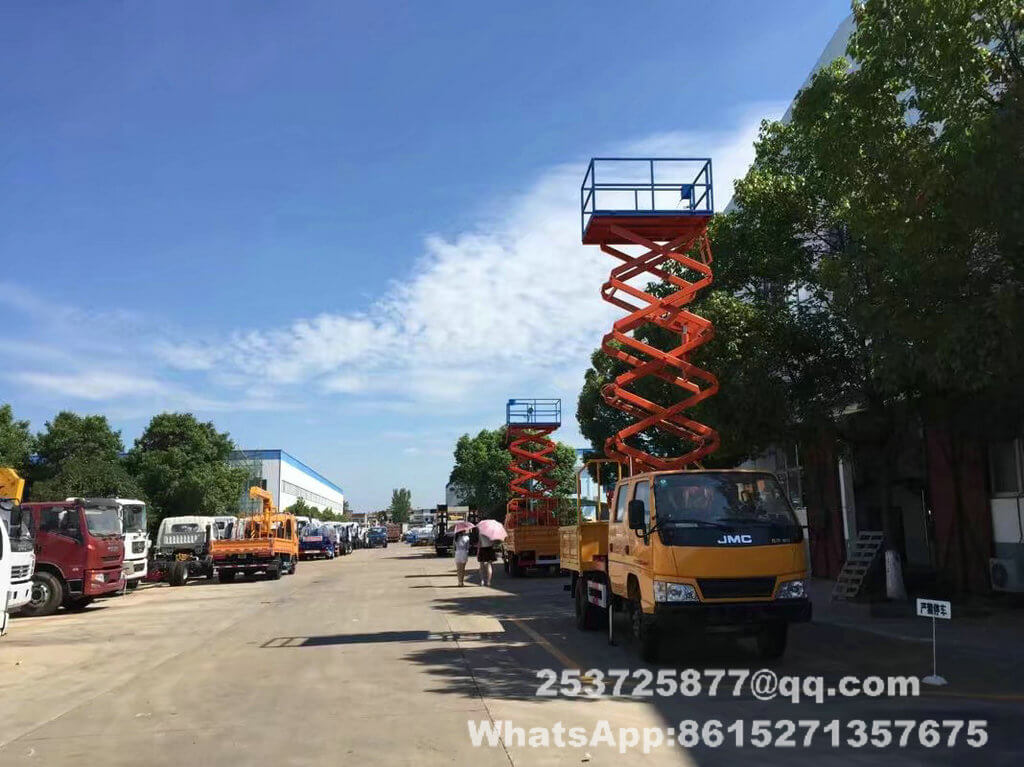

JMC man Lift Platform Truck 10m
Emission Standard:Euro 4, Euro 5
Fuel Type:Diesel
Dimensions (L x W x H) (mm):5995*1880,1950*2960,3060
| FOB: | |
|---|---|
| Quantity: | |
|
| |
-
DRZ5040JGK10J
-
Dong run ze
-
8705909990
JMC man Lift Platform Truck 10m
Emission Standard:Euro 4
Fuel Type:Diesel
Dimensions (L x W x H) (mm):5995*1880,1950*2960,3060
[Specifications] | |||
Vehicle Brand | Dong run ze |
|
|
Truck Name | Lifting Platform Truck | Production model | DRZ5040JGK10J5 |
Gross weight(kg) | 3900 | Tank volume(m3) | |
Curb weight(kg) | outline dimension(mm) | 5995×1880,1950×2960,3060 | |
Rated loading capacity (kg) | 3575 | Compartment dimension(mm) | ×× |
rated capacity(Person) | Total mass of quasi Trailer(Kg) | ||
Cab-by the number(person) | 2+3 | the quality of the utilization factor | |
Approach/departure angle(°) | 27/15 | Front / rear overhang (mm) | 1065/1570 |
Axle No. | 2 | Wheelbase(mm) | 3360 |
Axle load(Kg) | 1800/2100 | Maximum speed(Km/h) | 100 |
Other: | The cab selected with different chassis ;Side protection and rear protection materials:Q235,Attended mode:Bolted connection;Under run protection device section size(width * height):50×100(mm),ground clearance:400mm.ABS model:APG3550500A,ABS manufacturer :Zhejiang Yatai electromechanical Limited by Share Ltd | ||
[Chassis Information] | |||
Chassis Model | JX1041TSG25 | Chassis name | truck chassis(Class II) |
Brand name | JMC | Manufacturer | Jiangling Motors Limited by Share Ltd |
overall dimension(mm) | 5865×1880×2020 | Tire No. | 6 |
Approach /departure angle(°) | 27/18.5,15/18.5 | Tyre size | 7.00R16LT 8PR |
Springs | 7/4+6,7/5+6 | track front(mm) | 1385 |
Fuel Type | Diesel | track rear(mm) | 1425 |
emission standard | GB17691-2005 Euro5,GB3847-2005 | ||
Engine Model | Engine Manufacturer | Displacement(ml) | Power(Kw) |
JX493ZLQ5
JX493ZLQ5A | Jiangling Motors Limited by Share Ltd Jiangling Motors Limited by Share Ltd | 2771
2771 | 85
85 |
JMC man Lift Platform Truck 10m
Emission Standard:Euro 4
Fuel Type:Diesel
Dimensions (L x W x H) (mm):5995*1880,1950*2960,3060
[Specifications] | |||
Vehicle Brand | Dong run ze |
|
|
Truck Name | Lifting Platform Truck | Production model | DRZ5040JGK10J5 |
Gross weight(kg) | 3900 | Tank volume(m3) | |
Curb weight(kg) | outline dimension(mm) | 5995×1880,1950×2960,3060 | |
Rated loading capacity (kg) | 3575 | Compartment dimension(mm) | ×× |
rated capacity(Person) | Total mass of quasi Trailer(Kg) | ||
Cab-by the number(person) | 2+3 | the quality of the utilization factor | |
Approach/departure angle(°) | 27/15 | Front / rear overhang (mm) | 1065/1570 |
Axle No. | 2 | Wheelbase(mm) | 3360 |
Axle load(Kg) | 1800/2100 | Maximum speed(Km/h) | 100 |
Other: | The cab selected with different chassis ;Side protection and rear protection materials:Q235,Attended mode:Bolted connection;Under run protection device section size(width * height):50×100(mm),ground clearance:400mm.ABS model:APG3550500A,ABS manufacturer :Zhejiang Yatai electromechanical Limited by Share Ltd | ||
[Chassis Information] | |||
Chassis Model | JX1041TSG25 | Chassis name | truck chassis(Class II) |
Brand name | JMC | Manufacturer | Jiangling Motors Limited by Share Ltd |
overall dimension(mm) | 5865×1880×2020 | Tire No. | 6 |
Approach /departure angle(°) | 27/18.5,15/18.5 | Tyre size | 7.00R16LT 8PR |
Springs | 7/4+6,7/5+6 | track front(mm) | 1385 |
Fuel Type | Diesel | track rear(mm) | 1425 |
emission standard | GB17691-2005 Euro5,GB3847-2005 | ||
Engine Model | Engine Manufacturer | Displacement(ml) | Power(Kw) |
JX493ZLQ5
JX493ZLQ5A | Jiangling Motors Limited by Share Ltd Jiangling Motors Limited by Share Ltd | 2771
2771 | 85
85 |
