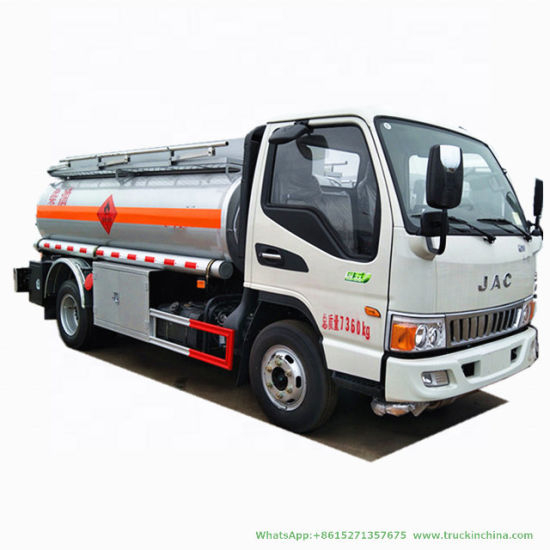

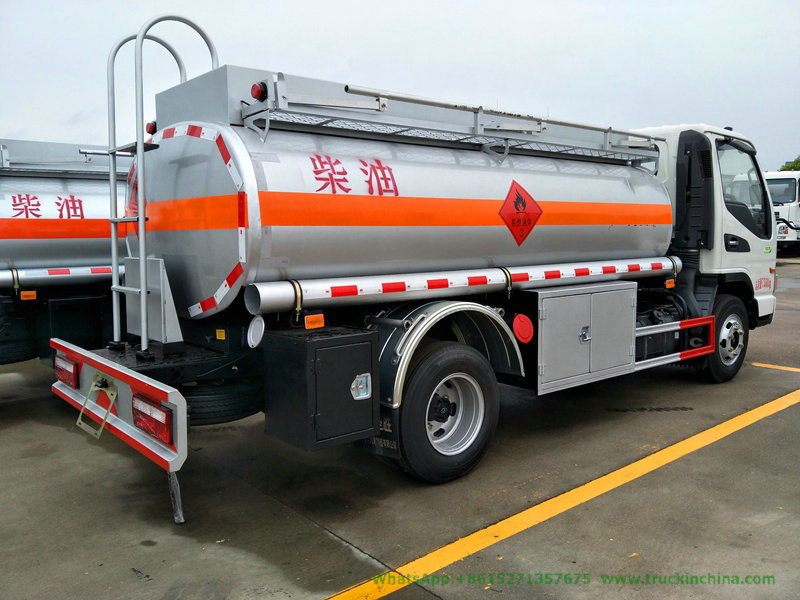

JAC 4m3 Mini Fuel Delivery Truck (1000 Gallon Small Fuel Tanker Truck)

JAC 4m3 Mini Fuel Delivery Truck (1000 Gallon Small Fuel Tanker Truck)
Quantity:
  • Shanghai, China
  • 3000
  • T/T

JAC 3-8 ton diesel engine fuel pump truck,oil tanker

JAC 4m3 Mini Fuel Delivery Truck  (1000 Gallon Small Fuel Tanker Truck)



For oil derivatives (gasoline, diesel oil, lubricating oil and coal tar oil)
transportation and storage.


Ask for better price

Cell /+8615271357675

The pictures are for your reference only.

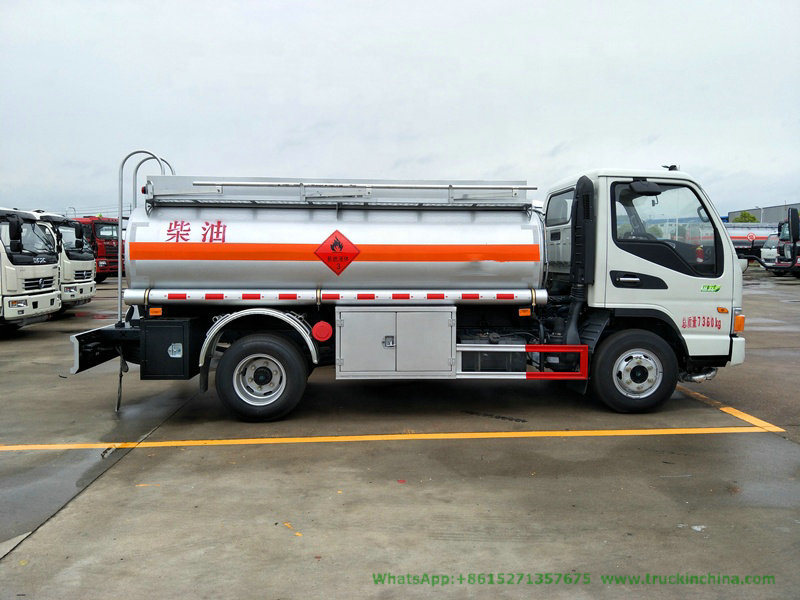

JAC 4m3 Mini Fuel Delivery Truck (1000 Gallon Small Fuel Tanker Truck)
5000 Litres capacity JAC Jet fuel tank truck

JAC 4X2 FUEL TANKER TRUCK SPECIFICATION
Brand JAC Drive type 4x2 LHD
Total mass 7360kg Tanker capacity 5000L(5m3)
Rated load 3380kg Material of tank WISCO steel
Curb weight 3850kg Overall dimension 5990×1950×2500mm
Wheel base 3308mm F/R axle load 2360/5000kg
Quantity of leaf 7/9+7 Quantity of wheels 6

spring
Tyre type 7.00R16 Approach/ 23/17°

Departure angle
F/R suspension 1105/1577mm Front track 1620mm
Rear track 1395mm Max.vehicle speed 80km/h
Passengers in cab 2 Chassis model HFC1071P82K5C2Z
Engine Model HFC4DA1-2C
Max.power 88kw/120HP
Displacement 2800ml
Emission level Euro 4
Description In line ,4 cylinders,4 strokes,water cooled,inter cooled,turbo charged,electric control,

high pressure common rail ,diesel engine
Gearbox Description Manual,5 forward &1 reverse gears
Brake Service brake Double circuit pneumatic (air) brake

system Parking brake Spring-Power drum brake
Electric system Operating voltage 24V negative grounded
Starter 24V,5.4KW
Alternator 28V,1.5KW
Battery voltage 2X12V/165Ah
Cabin Description Single row,luxury sedan configuration,power steering,A/C optional

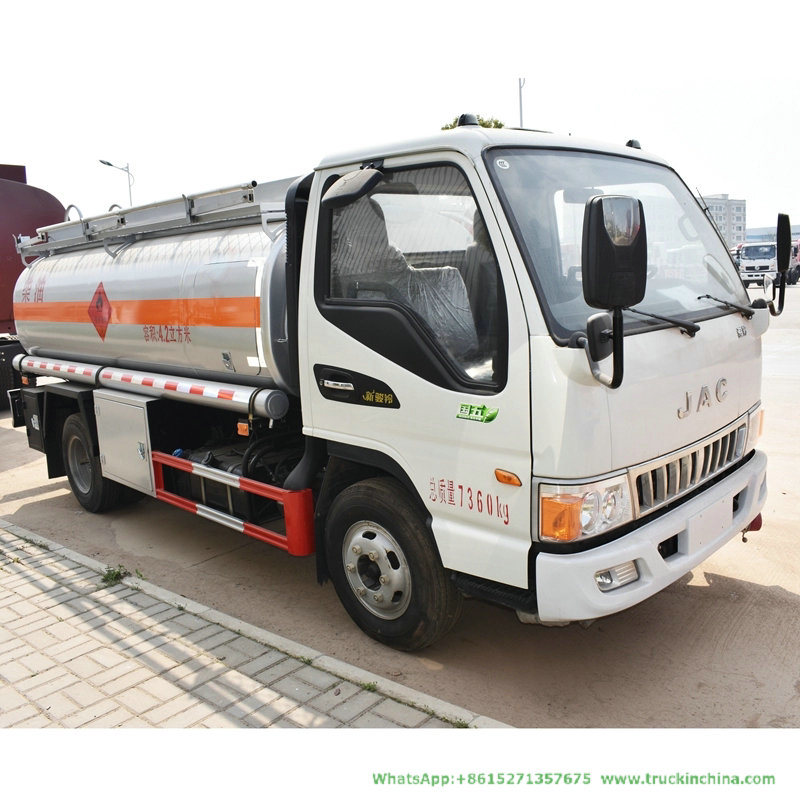

JAC 4m3 Mini Fuel Delivery Truck (1000 Gallon Small Fuel Tanker Truck)

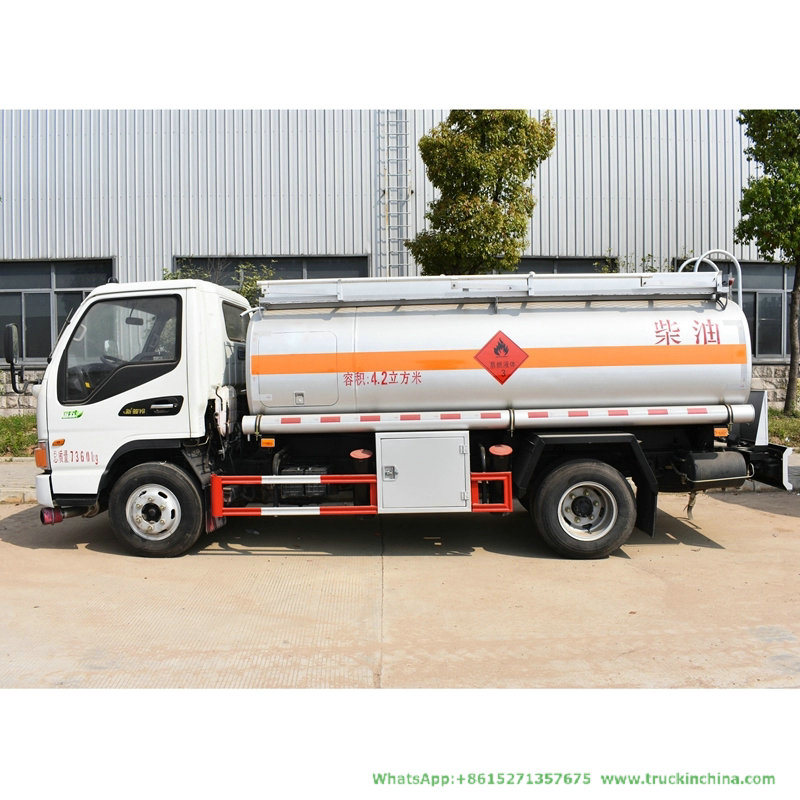

JAC 4m3 Mini Fuel Delivery Truck (1000 Gallon Small Fuel Tanker Truck)

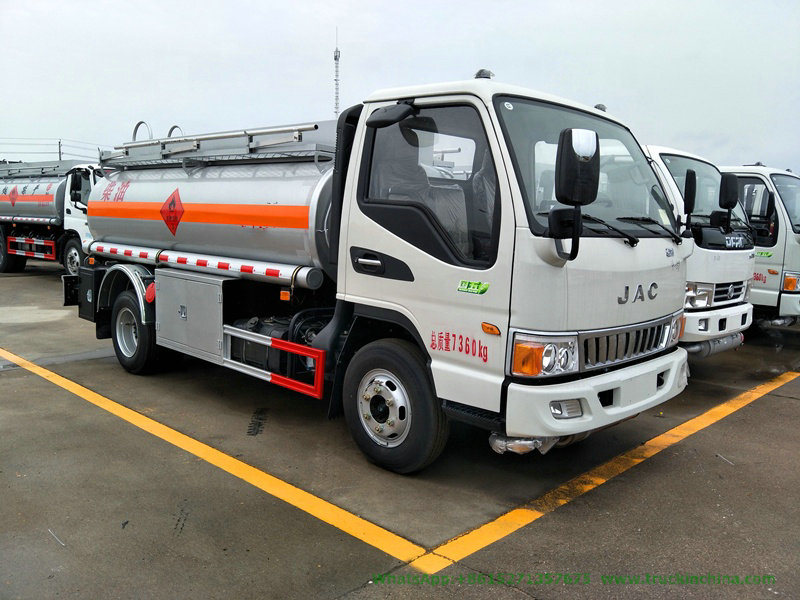

JAC 4m3 Mini Fuel Delivery Truck (1000 Gallon Small Fuel Tanker Truck)
JAC 4m3 Mini Fuel Delivery Truck (1000 Gallon Small Fuel Tanker Truck)

Jac Refuel Tank Truck Refueling Trucks Fuel Dispensing Truck 5000l

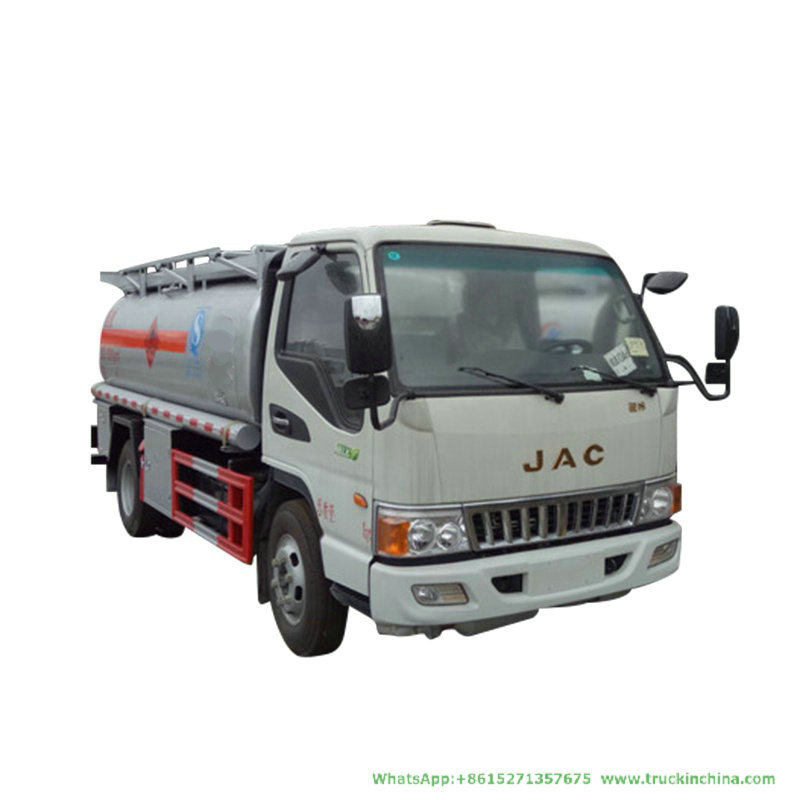

JAC 4m3 Mini Fuel Delivery Truck (1000 Gallon Small Fuel Tanker Truck)

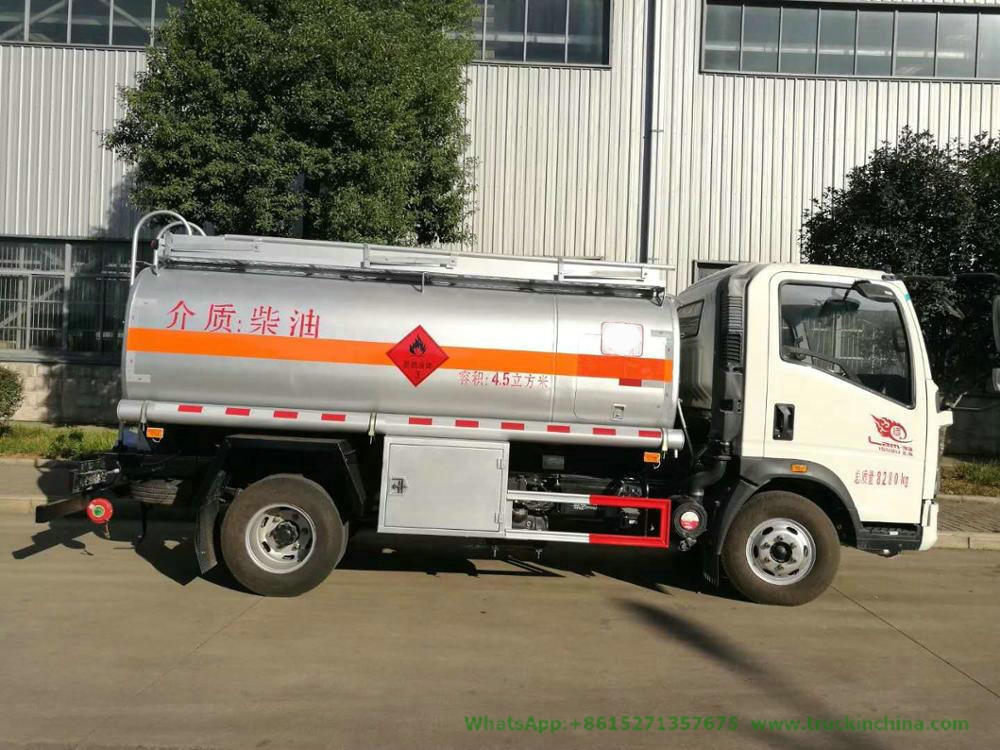

JAC 4m3 Mini Fuel Delivery Truck (1000 Gallon Small Fuel Tanker Truck)

JAC 6m3 mini fuel delivery truck,small fuel tanker truck specifications

Petroleum Tanker JAC (6,000 Litres)
General Vehicle Brand DRZ
Chassis Brand JAC
Overall Dimension 5990 * 1900*2550 mm
GVW / Kerb Weight 7,495 kg / 3,300 kg
Cab Cab Capacity 3 persons allowed
Air Conditioner Air conditioner is optional
Engine Fuel Type Diesel
Engine Brand Dongfeng Chaoyang engine
Power 98 Ps (72 KW)
Displacement 3707 ml
Emission Standard Euro III
Chassis Drive Type 4X2, left or right hand drive
Transmission 5-speed front, 1 reverse
Wheelbase/No. of axle 3308 mm / 2
Tyre Specification 6.50-16
Tyre Number 6 tyres and 1 spare tyre
Max Speed 80 km/h
Paint Metallic paint
Superstructure Tank Capacity 6,000 Litres (About 1,600 gallons)
Tank Material Carbon steel
Pump Fuel pump equipped for overhead delivery
Suction Head 6 m
Hose High quality, wire suggested hose, with cooper wire, anti-static
All standard accessories: manhole, ladder, inlet, discharge........
Optional
** Tank material could be carbon steel, stainless steel, aluminum (aluminum tanker)...
** It can be divided into many compartments.
** Imported mechnical pump Blackmer
** Imported electrical pump Fillrite....
** Devices Can be equipped: flow meter, fuel dispenser, hose reel & nozzle, level gauge...
** Heat preservation & heating system could be added.
** Bottom loading system can be equipped.
Equipment
Oil pump Model 60 YHCB-30
Pressure 0.4MPa
Flow 30m3/h
Rated power 6KW
Rotate speed 970r/min
Standard JB/T6434-92




JAC 4m3 Mini Fuel Delivery Truck (1000 Gallon Small Fuel Tanker Truck)

Fuel Tanker is one of our main and competitive products. We can provide you product with high quality and at reasonable price according to your requirements. The tank material could be carbon steel, stainless steel, aluminum alloy, etc. Fuel tank can be chosen with oil pump, flow meter, tanker piston, and bobbin disk. Fuel tank can be separated to several compartments to fill different kinds of fuel. Our tankers are seamless welding and has gone through strict anti-leakage inspection. And the interior tank body has gone through anti-corrosion treatment.
Function:
Petroleum tanker (also called fuel transfer tank,fuel bowser, oil tank truck, oil truck tanker, oil tank for truck, diesel bowser, diesel tanker, petrol fuel tank, fuel dispensing truck ) is used to transport oil, diesel, gasoline, kerosene, etc.
It can be divided into many compartments to transport different types of fuels, lubricant, crude oil, alcohol...
Oil pump equipped, with pump in pump out function.

Features:
---- Forland chassis, perfect performance.
---- Quanchai engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure.
---- Fuel pump super powerful, highly efficient, with pump in pump out function.
---- Massive, durable, long service life.

Specification:
Similar Key Words: I-SUZU fuel transfer tank, I-VECO fuel delivery truck, fuel oil storage tank, oil transport truck, crude oil tanker, diesel oil tanker truck, petrol fuel bowser, refueler truck
Petroleum Tanker JAC (8,000 Litres)
General Vehicle Brand DRZ
Chassis Brand JAC
Overall Dimension 7000 * 2200*2550 mm
GVW / Kerb Weight 9,995 kg / 8,000 kg
Cab Cab Capacity 3 persons allowed
Air Conditioner Air conditioner is optional
Engine Fuel Type Diesel
Engine Brand Dongfeng Chaoyang engine
Power 130 Ps (96 KW)
Displacement 3907 ml
Emission Standard Euro III
Chassis Drive Type 4X2, left or right hand drive
Transmission 5-speed front, 1 reverse
Wheelbase/No. of axle 3815 mm / 2
Tyre Specification 7.50-16
Tyre Number 6 tyres and 1 spare tyre
Max Speed 80 km/h
Paint Metallic paint
Superstructure Tank Capacity 8,000 Litres (About 2,000 gallons)
Tank Material Carbon steel
Pump Fuel pump equipped for overhead delivery
Suction Head 6 m
Hose High quality, wire strengthened hose, with cooper wire, anti-static
All standard accessories: manhole, ladder, inlet, discharge.....
Optional
** Tank material could be carbon steel, stainless steel, aluminum (aluminum tanker)...
** It can be divided into many compartments.
** Imported mechnical pump Blackmer
** Imported electrical pump Fillrite....
** Devices can be equipped: flow meter, fuel dispenser, hose reel & nozzle, level gauge...
** Heat preservation & heating system could be added.
** Bottom loading system can be equipped.



 Gasoline refueling tanker truck, Petrol refueling tanker truck,mobile refueling truck, 3000~5000 liter, 6 wheel 10000 Liter Fuel Tank Truck 10000L Oil Refueling bowser Truck

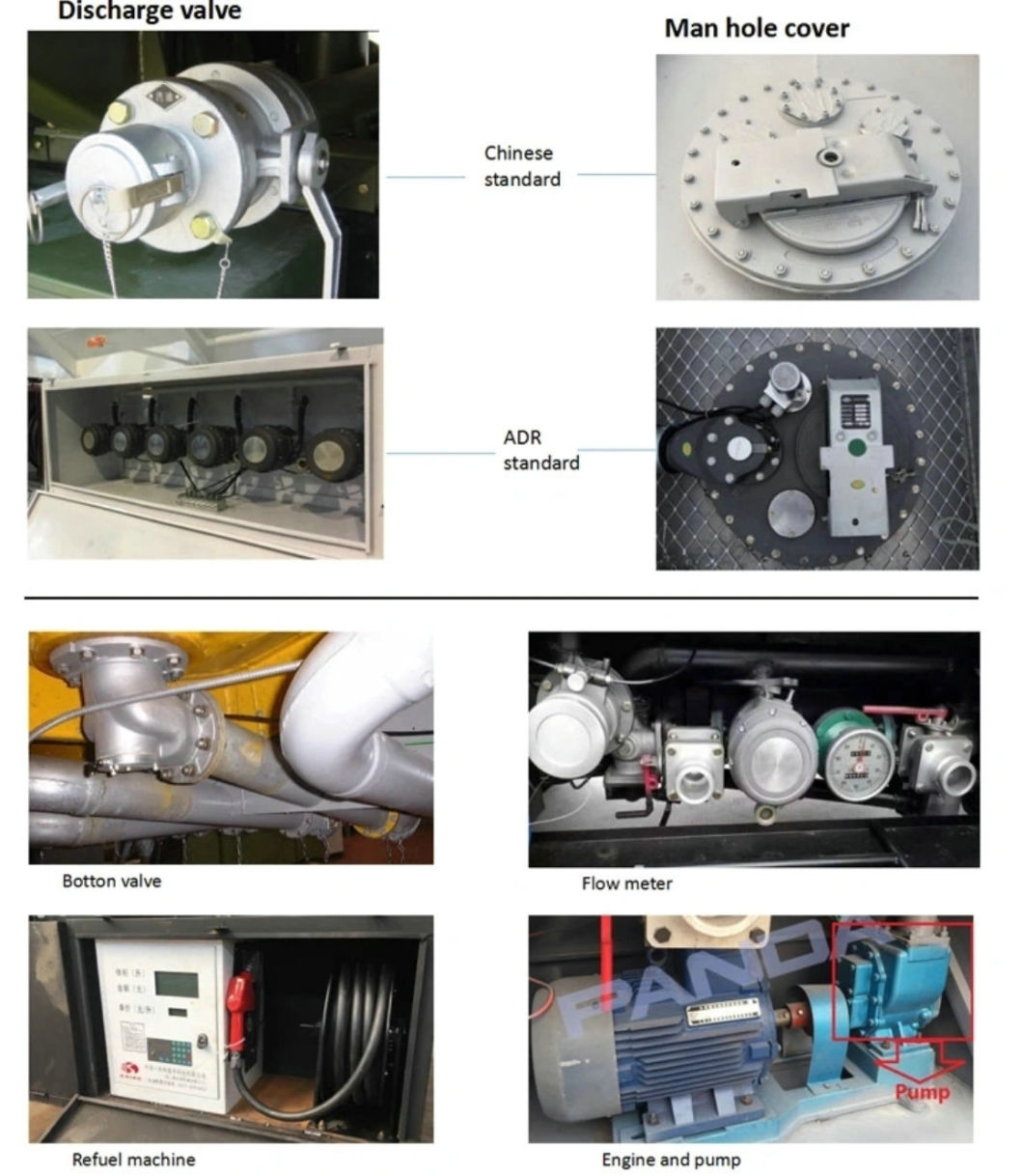

Main parts equipped on fuel bowser truck
JAC 4m3 Mini Fuel Delivery Truck (1000 Gallon Small Fuel Tanker Truck)



Specificaiton of fuel tank truck

Oil tank truck/Fuel tank truck
Oil tank truck, also known as mobile fuel trucks, fuel tankers, fuel tank truck, oil tankers,oil transport truck and edible oil tankers,

According to different uses and use environments, there are a variety of refueling or oil transportation functions, with oil absorption, oil pumping, and a variety of oil separation and distribution functions. Can separate warehouse, separate different oil products, tank body set up multiple anti-wave partitions. Can be designed as a chemical transportation vehicle.

Transport medium: applicable to the transport of gasoline, kerosene, diesel, vegetable oil, edible oil, heavy oil, coal tar and non-petroleum products of alcohol, aldehyde, benzene, ether and other liquid substances.

The tank material adopts high-quality 4-6mm thick carbon steel, stainless steel, aluminum alloy.


For oil tank truck, according to the transport medium, the configuration and different places, there are many different titles, such as: tanker, tank truck, oil tanker, refueling truck, tax-control refueling truck, fuel tanker, Petrol tanker, coal tar carrier, lube oil carrier, crude oil transporter, heavy oil transporter, oil transporter and so on.

According to the appearance, the oil truck can be divided into: flat head tanker, pointed tanker, single bridge tanker, rear double-bridge tanker, double-bridge tanker, double rear-axle tanker, light tanker, small tanker, medium tanker, large tanker, semi-trailer tanker, small three-axle tanker, double former-axle with single rear-axle tanker, four former-axle with four rear-axle tanker, four former-axle with eight rear-axle tanker and so on.

According to brand, the oil truck can be divided into: Dongfeng tanker, Futian tanker, Sino tanker, North Benz tanker, Jianghuai oil tanker, Shaanqi oil tanker, CAMC oil tanker, Isuzu tanker, Qingling tanker, Jiangling tanker and so on.

According to transportation medium: the truck suitable for the transport gasoline, kerosene, diesel, vegetable oil, edible oil, heavy oil, coal tar oil and non-petroleum products of alcohol, aldehyde, benzene, ether and other liquid substances.

The material of tank body is made of 4-6mm thick carbon steel with high quality . GB sheet can choose carbon steel and stainless steel or aluminum alloy, pure aluminum can, lined with rubber, rotomolding, plastic, glass steel and so on.

The tank shape: square-round, oval, round;

Pump can be choose self-priming pump, gear pump or double pump; the pump can help the oil pump in and out or self-flow.

Other function: can be designed for chemical transport vehicles;
Special design: can be designed to an independent sub-warehouse to transport different oil with the same time. 15 meters refueling reel (can automatically return to position), the tank is equipped with many anti-wave boards to keep the tank with high strength, stable center of gravity, delivery safety and other characteristics in the transportation.

Optional equipment: All tankers can be designed into chemical trucks, different kinds of heating and insulation series tank; all tankers can be equipped with computer and flow-meter.
