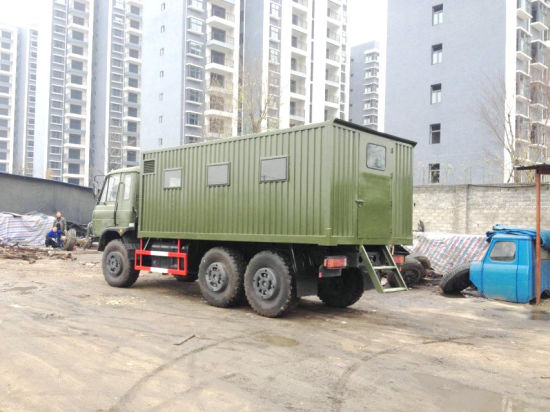

Dongfeng 6x6 off road military standard all wheel drive Mobile Workshop Truck for Sale
1.Beiben ND1160,ND2060 truck based on Mercedes Benz technology
2. Common rail engine, World famous weichai engine
3.FAST(Fuller) gearbox
4.Benz front axle and rear axle, for military using.
Euro 3,
Truck Chassis model |
EQ2102(6*6 drive type) EQ5160GLJ |
Dimension(Lx Wx H)(mm) |
7760×2470×2740 |
Track(front/rear)(mm) |
1876/1870 |
Front/rear overhang (mm) |
1410/625 |
Approach / Departure angle () |
35/34 |
Wheel distance(mm) |
3475+1250,3500+1250 |
Total mass (kg) |
10675 |
Kerb mass (kg) |
6965 |
Rated load weight (kg) |
3715 |
Drive type |
6x6 |
Max.grade ability (%) |
60% |
Max.slop ability (%) |
40% |
Min.turning circle (m) |
18.8 |
Max speed (km/h) |
90 |
Max.brake distance (m) |
8m |
Min.ground clearance (mm) |
305 |
Vertical obstacle-navigation
Height (mm) |
700 |
Climbing trenches depth (mm) |
700 |
Max.fording depth (m) |
1 |
Engine |
Engine model:EQ6BT5.9; or B190
Engine manufacture: Dongfeng cummins co.,Ltd
Rated power(kw/r/min):118/2800 |
Displacement (L) |
5.880 |
Max.power (kw/hp) |
118kw/160hp ;or 140kw/190hp |
Max rated speed (r/min) |
2800 |
Fuel consumption (L/100km) |
26.5L |
Emission standard |
Euro II |
Fuel tank (L) |
Main fuel tank:145L,spare fuel tank:50L |
Fuel tank material |
Aluminum alloy |
Clutch |
Valeo 350 |
Dry single plate, hydraulic control booster
Mechanical operation with hydraulic assistance |
Mechanism,5 gears, 5 forward,1reverse gear
Manual operation |
Braking |
Service Brake |
Brake gap can be adjusted automatically
double circulation air brake system |
Assistant brake |
WEVB(Engine exhaust brake) |
Park brake |
Spring brake effect to middle and rear tires |
Steering description |
Whole circulation in ball type, hydraulic power
assistance |
Vehicle frame dimension(mm) |
232x75x6.5 |
Front axle description(T) |
3.7T |
Rear axle description(T) |
4Tx2 axle |
Tire and number |
12.5R-20 off-road tire,6+1 tires |
Cab
|
1. Full steel skeleton structure cab
2. One sleeper bed in the cab,with Air-conditioner
5.Air- damping driver\\\\ s seat |
Optional winch: | Install 10 tons of hydraulic winch | 1 | $6,600 | $6,600USD |
|
which has excellent performance with reasonable price. Euro 4
| Chassis Specifications |
| Chassis Model | DFS5160GLJ |
| Fuel type | Diesel |
| Cabin | Dongfeng153,Half row |
| Whole Vehicle main dimensions (mm) |
| Overall dimensions (L×W×H) | 7760*2500*3150 |
| Box dimensions ((L×W×H) | 5000*2500*2020 |
| Wheel base | 3500+1250 |
| Front track | 1916 |
| Rear track | 1876/1876 |
| Weight data (kg) |
| G.V.W | 10740 |
| Curb weight (chassis) | 9600 |
| Whole vehicle main performance |
| Max. speed (km/h) | 90 |
| Max. slope of climb (%) | 30 |
| Engine Specifications |
| Model | ISDe185 40 |
| Emission Standards | EURO IV |
| Maximum power | 136kw / 185HP |
| Number of cylinders | 6 |
| Displacement (L) | 6.7 |
| Rated power speed | 2500RPM |
| Maximum torque | 700N.m |
| Maximum torque speed | 1400RPM |
| Engine size | 810x720x820mm |
| Compression ratio | 17.3:1 |
| Bore x Stroke | 107x124mm |
| Engine Type |
Inline six cylinder
electronically controlled
high pressure common
rail system enhanced particulate filter |
Engine Manufacturer | Dongfeng Cummin |
| Others |
| Gear box | 6-speed |
| Axle | 3 |
| Suspension | Spring plate 10/12 |
| Steering Wheel | Lelf hand drive |
| Brake system | Air braking |
| Electric device | 24V |
| Oil tank capacity | 160L |
| Tyres & Quantity | 12.5R20 / 6 |

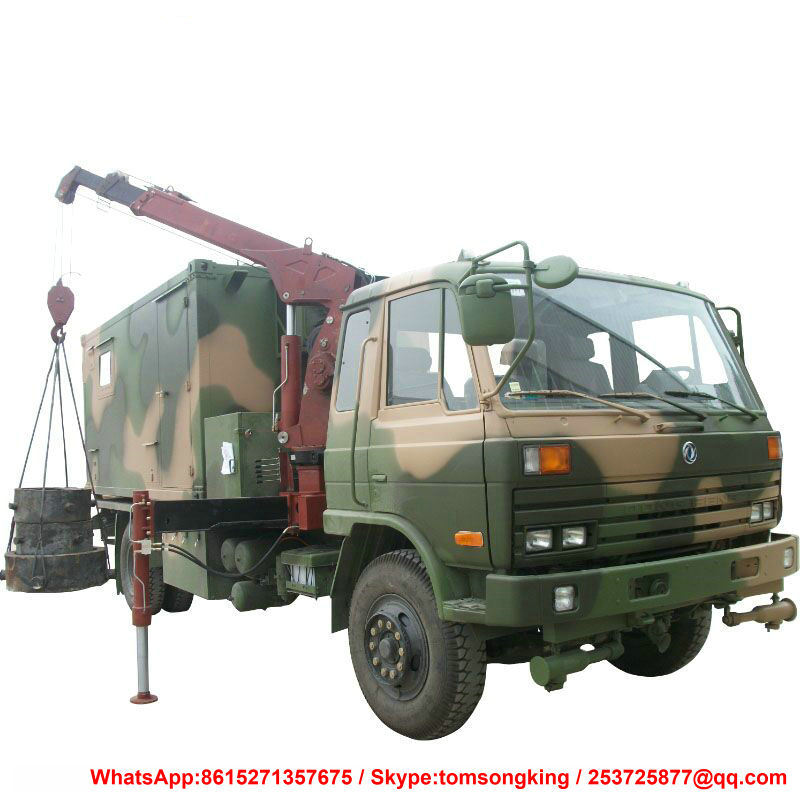

military mobile workshop truck
Equipment for Mobile Workshop 5190YX |
Item |
Description |
Technical Data |
Measurement |
Weight |
Qty. |
1 |
Chassis |
As Option |
|
|
|
2 |
Power Set
(Generator) |
Model: 40GF74-4 |
2030x650x1255(mm) |
1030kg |
1 |
Rated Power: 40KW |
Rated Voltage: 400/230V |
Rated Frequency: 50Hz |
Rated Current: 72.2A |
Output: 3-phase, 4-line |
Diesel Engine: R4100ZD |
Generator Model: TZH-40 |
3 |
Welding Set |
Model: ZX5-250B |
406x530x840(mm) |
160kg |
1 |
Voltage: 380V |
Phase: 3 |
Frequency: 50/60Hz |
Initial Current: 29.6A |
Range: 25-250A |
Input: 19.2KVA |
Working Ambient: -10--+40oC |
4 |
Air Compressor |
Model: AW3608 |
1180x410x850(mm) |
130kg |
1 |
Voltage: 380V |
Frequency: 50Hz |
Power: 3KW |
Pressure: 0.7MPa |
Capacity: 0.36M3/mm |
5 |
Drilling Machine |
Model: ZQJ4119AD |
760x490x260(mm) |
57kg |
1 |
Bore Range: 3--16mm |
Power: 700W |
6 |
Vice |
Size: 150mm |
|
|
|
7 |
Grinding Machine |
Model: MQ3225 |
|
|
1 |
Size: 250mm |
Power: 700W |
8 |
Oxygen Cylinder |
Volume: 40L |
|
|
1 |
9 |
Acetylene Cylinder |
|
|
|
1 |
10 |
Gas Welding Set |
|
|
|
1 |
11 |
Working Bench |
Steel Panel |
2300x550x780(mm) |
|
1 |
12 |
Hand Tools |
M6--16 drilling set; Hack Saw; |
|
|
|
Hammer; Portable Oil Pump; |
3--16mm Thread Tapper; |
Spanner sets; Socket Spanner Sets |
Files; Clamps |
Tools
No |
Name |
Specification |
Quantity |
1 |
Bow saw frame |
|
2 |
2 |
Hacksaw blade |
18 tine; 32 tine |
Each 1 |
3 |
Manual oil gun |
|
1 |
4 |
Oil pot |
300cc |
1 |
5 |
Hand electric drill |
220V 0.6~6mm |
1 |
6 |
Pipe expansion ware |
|
1 set |
7 |
Electrical maintenance kits |
with multimeter |
1 set |
8 |
Screw tap |
Coarse thread |
6/set |
9 |
Screw tap |
Fine thread |
3/set |
10 |
Screw tap holder |
180mm;280mm |
each 1 set |
11 |
Screw die |
Coarse thread |
6/set |
12 |
Screw die |
Fine thread |
3/set |
13 |
Drill |
1-10mm (at intervals of)0.5mm |
2set |
14 |
Drill |
11-16mm |
2sets |
15 |
Drill |
3.4;4.2;5.1;6.8;8.5;10.2 |
each 1 set |
16 |
Steel ruler |
150mm,300mm |
Each 1 |
17 |
Vernier caliper |
150mm,250mm |
1 |
18 |
Screw thread gauge |
the metric system; British system |
each 1 |
19 |
Tape |
2m |
1 |
20 |
Round head hammer |
2.5 pound |
1 |
21 |
File |
roundness,semi-circle,flat,square
,triangle |
Each 2 |
22 |
Assorted set of files |
|
2 sets |
23 |
Screwdriver |
cross 125mm;minus 125mm |
each 1 |
24 |
Pointed plier |
150mm |
1 |
25 |
Steel wire clamp |
200mm |
1 |
26 |
Carp clamp |
200mm |
1 |
27 |
Oxygen watch |
|
1 |
28 |
Acetylene watch |
|
1set |
29 |
Welding wire clip |
500A |
1 |
30 |
White glass |
|
10 |
31 |
Protection glasses |
|
1 |
32 |
Steel brush |
|
1 |
33 |
Emery cloth |
46#;80#;120# |
each 10 |
34 |
Metric fixed wrench |
10/set |
1 set |
35 |
Metric ring wrench |
10/set |
1 set |
36 |
Wrench |
8";10";12" |
each 1 |
37 |
Round head hammer |
1.5 pound |
1 |
38 |
Welding torch |
|
1 |
39 |
Cut torch |
|
1 |
40 |
Oxygen tube |
30m |
1 |
41 |
Acetylene tube |
30m |
1 |
42 |
Hand electric drill |
220V 3-19mm |
1 |
43 |
Jack |
10T |
1 |
44 |
Socket wrench |
8mm-32mm |
32/set |
45 |
Cut clamp |
medium-sized |
1 |
46 |
Welding gloves |
|
1 |
47 |
|
|
|
48 |
Work Light |
|
1 |
49 |
Welding mask |
|
1
|
beiben tractor trucks, beiben dump trucks and bogie suspension semitrailers that worked very well in Congo, Alegeria, Nigeria, Tanzania, Kenya and south africa.
