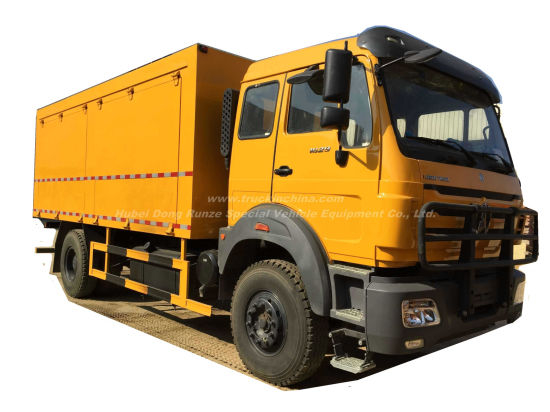

Beiben 4X2 Mobile Workshop for Sale

Quantity:
  • Shanghai, China
  • 10000
  • T/T
  • 5190YXN
  • Mercedes Benz Technology
  • Emission Standards: : Euro 2, Euro 3, Euro 4
  • Engine: Weichai / 270~420HP/ Hino 350HP
  • Steering System: Zf8098
  • BEIBEN
  • Nil
  • military standard.
  • China
  • 8705909990
  • Diesel
  • ISO9000, CCC
  • Euro 3
  • New
  • Cabin: Ng80A, Ng80b
  • 12.00-20,12.00r20,12.00r24
Beiben Mobile Workshop Maintenance Vehicles
beiben 4x2 or 4x4 mobile workshop truck


1.Beiben ND1160,ND2060 truck based on Mercedes Benz technology
2. Common rail engine, World famous weichai engine
3.FAST(Fuller) gearbox
4.Benz front axle and rear axle, for military using.
Beiben 4X2 Mobile Workshop for Sale
Beiben 4X2 Mobile Workshop for Sale

Euro 3, Euro 4 military mobile workshop truck

4*2/4x4
ND1160A41 4100 WP6.180
ND1163A48J 4800 WP10.270
WP10.290
Beiben 4X2 Mobile Workshop for Sale
Beiben 4X2 Mobile Workshop for Sale
Beiben 4X2 Mobile Workshop for Sale
Beiben 4X2 Mobile Workshop for Sale

Equipment for Mobile Workshop 5190YX

Item

Description

Technical Data

Measurement

Weight

Qty.

1

Chassis

As Option

2

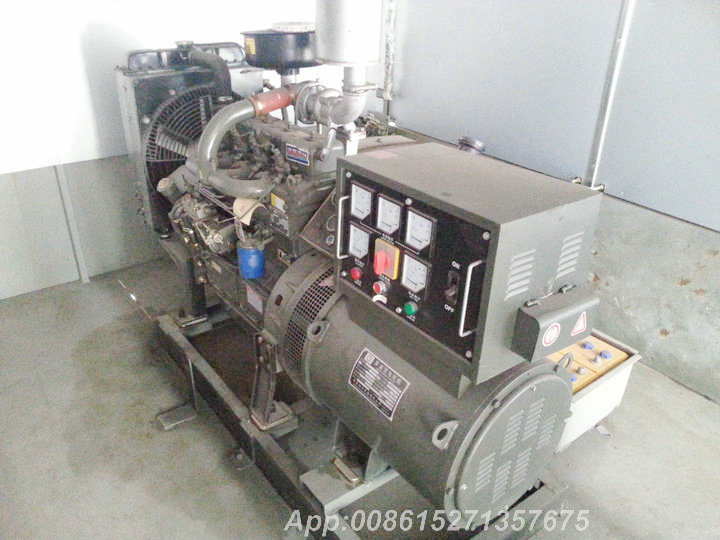

Power Set
(Generator)

Model: 40GF74-4

2030x650x1255(mm)

1030kg

1

Rated Power: 40KW

Rated Voltage: 400/230V

Rated Frequency: 50Hz

Rated Current: 72.2A

Output: 3-phase, 4-line

Diesel Engine: R4100ZD

Generator Model: TZH-40

3

Welding Set

Model: ZX5-250B

406x530x840(mm)

160kg

1

Voltage: 380V

Phase: 3

Frequency: 50/60Hz

Initial Current: 29.6A

Range: 25-250A

Input: 19.2KVA

Working Ambient: -10--+40oC

4

Air Compressor

Model: AW3608

1180x410x850(mm)

130kg

1

Voltage: 380V

Frequency: 50Hz

Power: 3KW

Pressure: 0.7MPa

Capacity: 0.36M3/mm

5

Drilling Machine

Model: ZQJ4119AD

760x490x260(mm)

57kg

1

Bore Range: 3--16mm

Power: 700W

6

Vice

Size: 150mm

7

Grinding Machine

Model: MQ3225

1

Size: 250mm

Power: 700W

8

Oxygen Cylinder

Volume: 40L

1

9

Acetylene Cylinder

1

10

Gas Welding Set

1

11

Working Bench

Steel Panel

2300x550x780(mm)

1

12

Hand Tools

M6--16 drilling set; Hack Saw;

Hammer; Portable Oil Pump;

3--16mm Thread Tapper;

Spanner sets; Socket Spanner Sets

Files; Clamps

Tools

No

Name

Specification

Quantity

1

Bow saw frame

2

2

Hacksaw blade

18 tine; 32 tine

Each 1

3

Manual oil gun

1

4

Oil pot

300cc

1

5

Hand electric drill

220V 0.6~6mm

1

6

Pipe expansion ware

1 set

7

Electrical maintenance kits

with multimeter

1 set

8

Screw tap

Coarse thread

6/set

9

Screw tap

Fine thread

3/set

10

Screw tap holder

180mm;280mm

each 1 set

11

Screw die

Coarse thread

6/set

12

Screw die

Fine thread

3/set

13

Drill

1-10mm (at intervals of)0.5mm

2set

14

Drill

11-16mm

2sets

15

Drill

3.4;4.2;5.1;6.8;8.5;10.2

each 1 set

16

Steel ruler

150mm,300mm

Each 1

17

Vernier caliper

150mm,250mm

1

18

Screw thread gauge

the metric system; British system

each 1

19

Tape

2m

1

20

Round head hammer

2.5 pound

1

21

File

roundness,semi-circle,flat,square
,triangle

Each 2

22

Assorted set of files

2 sets

23

Screwdriver

cross 125mm;minus 125mm

each 1

24

Pointed plier

150mm

1

25

Steel wire clamp

200mm

1

26

Carp clamp

200mm

1

27

Oxygen watch

1

28

Acetylene watch

1set

29

Welding wire clip

500A

1

30

White glass

10

31

Protection glasses

1

32

Steel brush

1

33

Emery cloth

46#;80#;120#

each 10

34

Metric fixed wrench

10/set

1 set

35

Metric ring wrench

10/set

1 set

36

Wrench

8";10";12"

each 1

37

Round head hammer

1.5 pound

1

38

Welding torch


1

39

Cut torch


1

40

Oxygen tube

30m

1

41

Acetylene tube

30m

1

42

Hand electric drill

220V 3-19mm

1

43

Jack

10T

1

44

Socket wrench

8mm-32mm

32/set

45

Cut clamp

medium-sized

1

46

Welding gloves


1

47




48

Work Light


1

49

Welding mask


1

Beiben 4X2 Mobile Workshop for Sale
Beiben 4X2 Mobile Workshop for Sale
