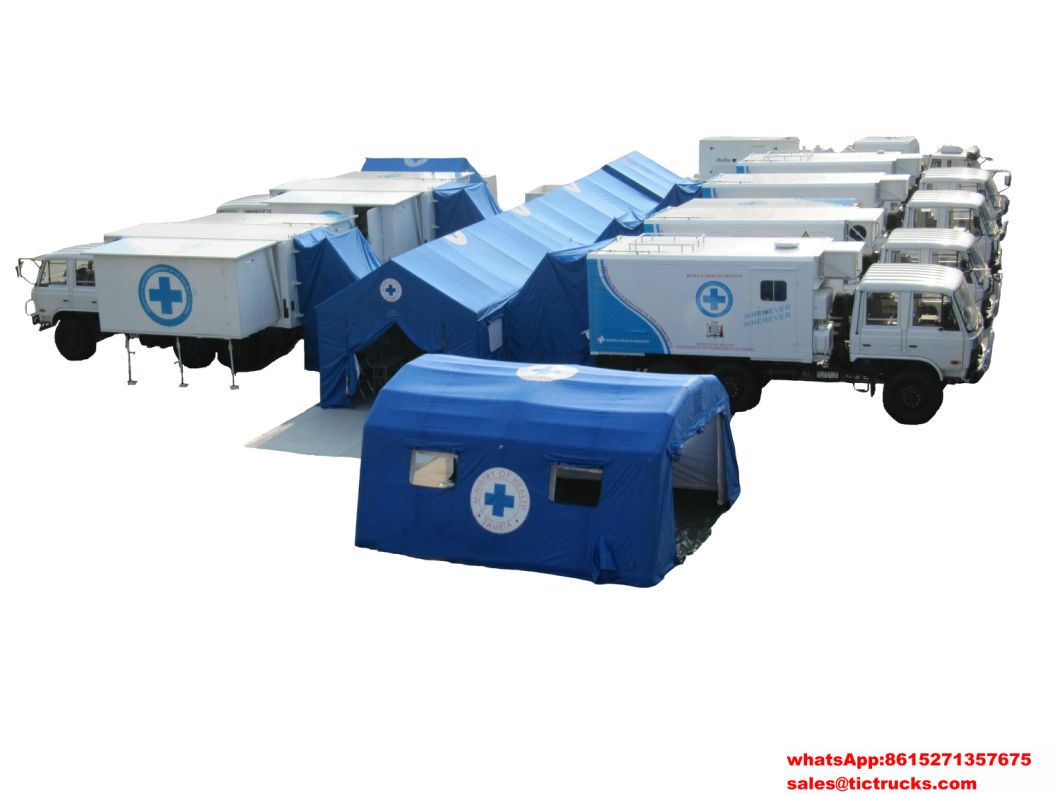

Customizing Dong Run Offroad Military Awd 4X4 Ambulance Mobile Clinic Vehicle

Customizing Dong Run Offroad Military Awd 4X4 Ambulance Mobile Clinic Vehicle
Quantity:
  • Shanghai, China
  • 10000
  • T/T, Western Union

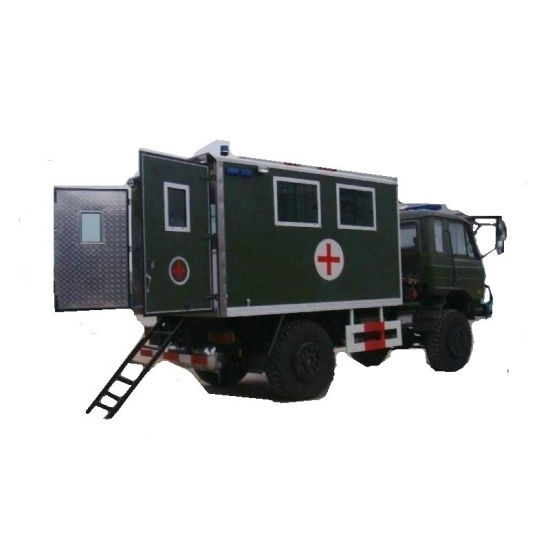

Dong Run Offroad Military AWD 4x4 Ambulance Mobile Clinic Vehicle

Off Road Service Trucks

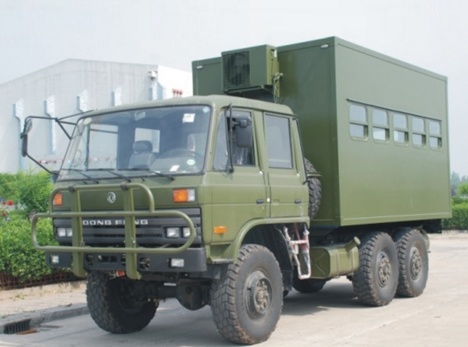

Military  Troop Offroad 4x4 6x6 Mobile Camp Showers Vehicle For Satisfy 30 Soldiers Road Shower
Cell /+8615271357675

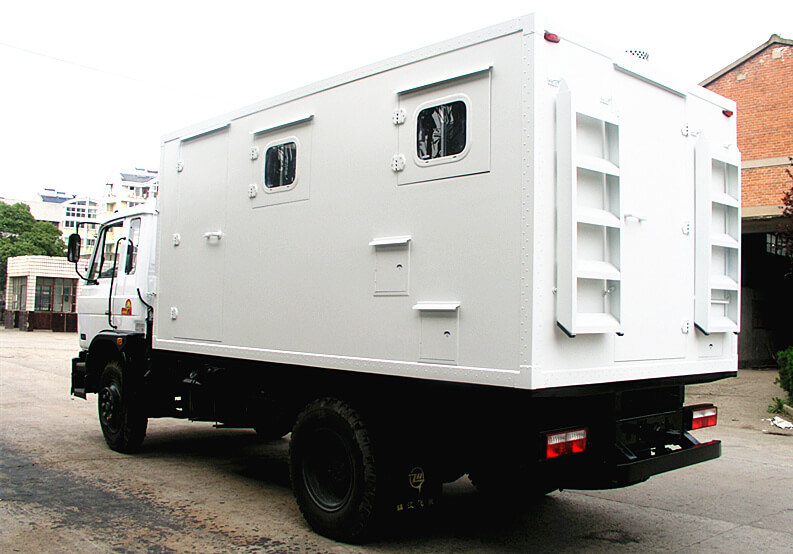

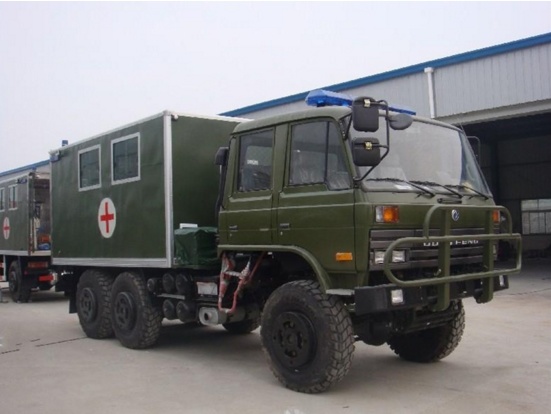

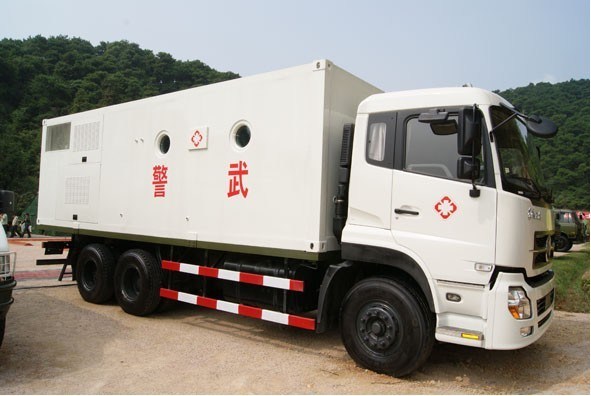

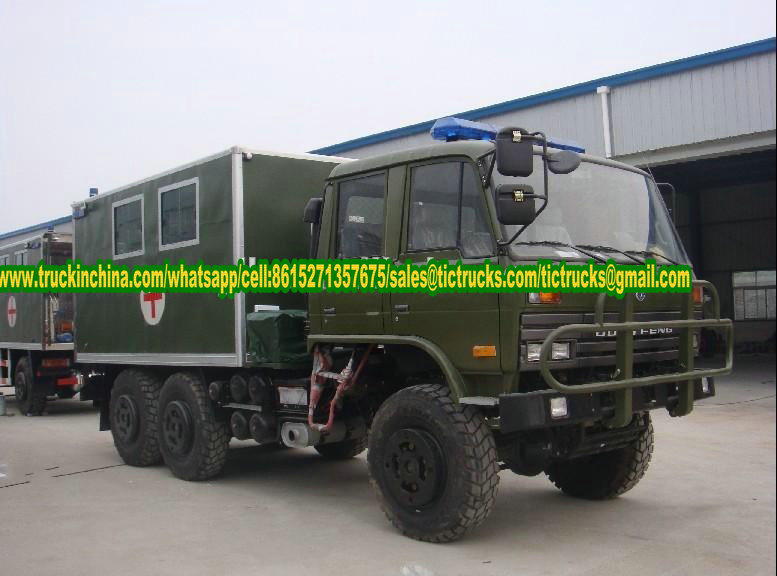

The pictures are for your reference only.
Customizing Dong Run Offroad Military Awd 4X4 Ambulance Mobile Clinic Vehicle
Customizing Dong Run Offroad Military Awd 4X4 Ambulance Mobile Clinic Vehicle
Customizing Dong Run Offroad Military Awd 4X4 Ambulance Mobile Clinic Vehicle
Customizing Dong Run Offroad Military Awd 4X4 Ambulance Mobile Clinic Vehicle

Customizing Dong Run Offroad Military Awd 4X4 Ambulance Mobile Clinic Vehicle


Customizing Dong Run Offroad Military Awd 4X4 Ambulance Mobile Clinic Vehicle
Customizing Dong Run Offroad Military Awd 4X4 Ambulance Mobile Clinic Vehicle
Customizing Dong Run Offroad Military Awd 4X4 Ambulance Mobile Clinic Vehicle



Customizing Dong Run Offroad Military Awd 4X4 Ambulance Mobile Clinic Vehicle

Customizing Dong Run Offroad Military Awd 4X4 Ambulance Mobile Clinic Vehicle

Customizing Dong Run Offroad Military Awd 4X4 Ambulance Mobile Clinic Vehicle
Customizing Dong Run Offroad Military Awd 4X4 Ambulance Mobile Clinic Vehicle

Shower Vehicle , Vehicle Mounted Showers ,Hot Camp Showers, Road Shower

6x6 / 4x4 Offorad Customizing Portable Shower, Vehicle Mounted Shower,

Dongfeng  Off road  All wheels Drive Hot Water Shower | Vehicle Mounted

Ambulance equipment include one portable stretcher, one medical locker, one oxygen bomb,two transfusion hooks, one sterilizing lamp, one sewage barrel, three single seats, preserve with two soft cushion, soft back and life belt, one aluminum alloy slid window, one top alarm lamp, two headlamps, one converter, one power jack, handrail,footstep, plastic floor, ambulance cross sticker.

160HP Emergency Vehicles Ambulance

Main Specs

Overall dimension

6500mm * 2550mm * 3550mm

Box overall dimension

3545mm * 2294mm * 2480mm

Wheelbase

3600mm

Max gross weight

8510kg

Specified load weight

2500kg

Cab passengers

3

Engine

Cummins EQB160-33

Transmission

Manual 5-speed

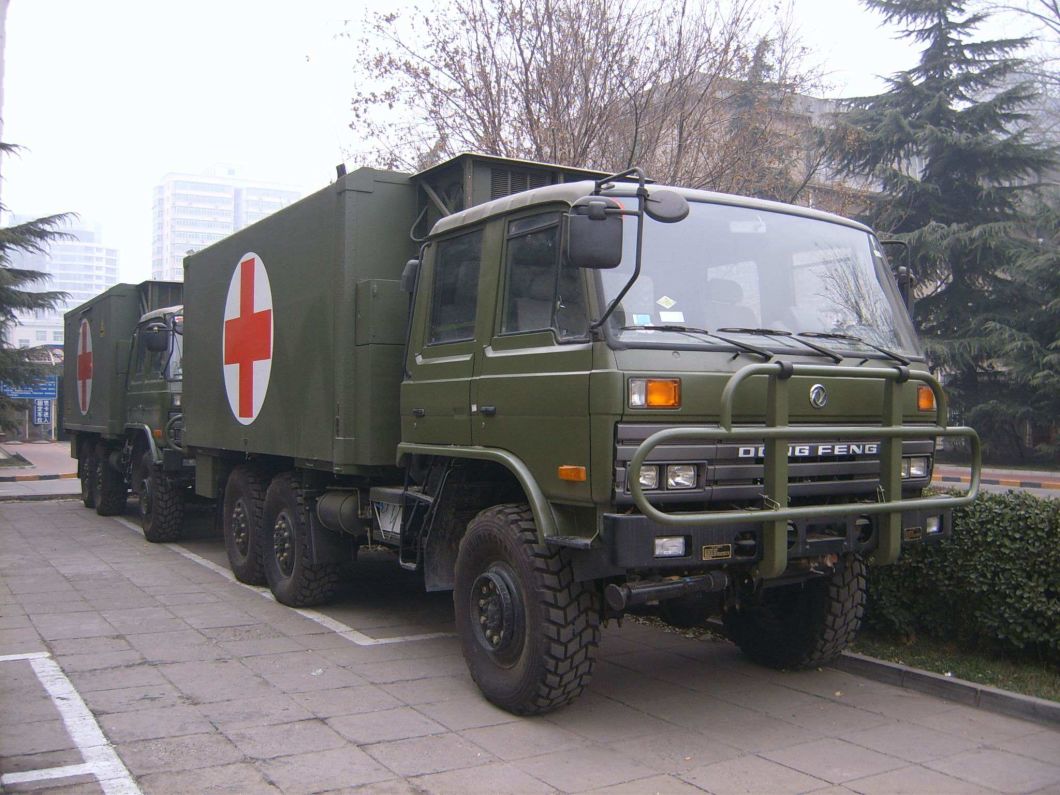

170HP  4x4 Military Ambulance / Emergency Vehicles Ambulance

Items

Descriptions

Specifications

General

Vehicle name

Ambulance

Driving type

4x4

The total mass(kg)

12000

Curb weight(kg)

7195

Payload weight (kg)

5000

Overall dimensions (mm)

6500x2470x3550

Cargo box size(mm)

3545x2294x2480

Engine

Fuel type

Diesel

Engine brand

Cummins

Engine model

B170-33

Engine power(kw)

125

Displacement(ml)

5900

Emission standard

Euro III

Chassis

Chassis model

EQ2090GJ

Steering wheel

Left hand drive

Axle

2

Front/rear axle load(T)

3860/4650

Tire specification

12.5R20

Wheelbase (mm)

3600

Wheel tread(mm)

1876/1870

Front/rear suspension(mm)

1408/1492

Approach/departure angle

35/33

Top speed(km/h)

90

Box Equipments

1. Emergency room non-slip floor : 1 set

2. Integratd interior decoration : 1 set

3. Partition(fixed toughened glass windows) :1set

4. Emergency room lighting: 1 set

5. Medical equipment cabinet: 1 set

6. Safety handrails : 1 set

7. Oxygen supply system: 1 set

8. Mobile self-lifting stretcher: 2 sets

9. Inverter: 1 set

10. External power supply: 1 set

11. Ultraviolet radiation disinfector system :1 set

12. Blue and white marking lights: 1 set

13. Long line of warning light: 1 set

14. Long line of warning light: 1 set

15. Forced ventilation system : 1 set

16. Doctor chair: 1 set

17. Patient beds : 4 units

18. Operation panel : 1 set

19. Fire extinguisher: 2 sets

20. Anti-collision head restrain: 1 set

21. Waste can : 1 set

22. Intercom system: 1 set



Main Specifications For Your Reference

military vehicles accessories, EQ240 (EQ2081E), EQ245 (EQ2100E), EQ1093F6D, EQ1118G, dongfeng days kam military vehicles DFL1120GAJ, dongfeng brave warrior EQ2050 series, EQ2070, EQ2090, EQ2102, EQ2102G, EQ2102N, EQ2162, EQ2162G, EQ2162N, EQ2082E6D, EQ2100E6D, EQ5118G caravanning series, EQ6689PT EQ6670PT cross-country bus series.


Description:

To Provide Bath Protection During Field Operation, The Water From Rivers And Reservoirs That Meet The Requirements Of Use Can Be Absorbed Through The Water Purification Device.

Provide Shower Water, Or Use Municipal Pipe Network Or Other Water Supply Equipment For Water Supply.

Protect Ability: One Hour Can Satisfy 30 People To Shower.

Within The Car Equipped With: Shower Head; The Shower Pump; Automatic Oil-Burning Boiler; Diesel Generating Set; Fuel Air Heater;

Water Purification Equipment;   Water Tank; Electric Control Cabinet, Etc.

Main Parameters:

Dimension: 5800 x 2,200 x 3150 Mm  Or  Customizing

Bath Room Size  : 4100 x 2200 x 2100 Mm  Or Customizing


Maximum Speed:  90 Km/h

Height   Region: No More Than 2500 m;

Water Temperature: 40 ~ 45 ºC;

Fuel  : Diesel Oil
