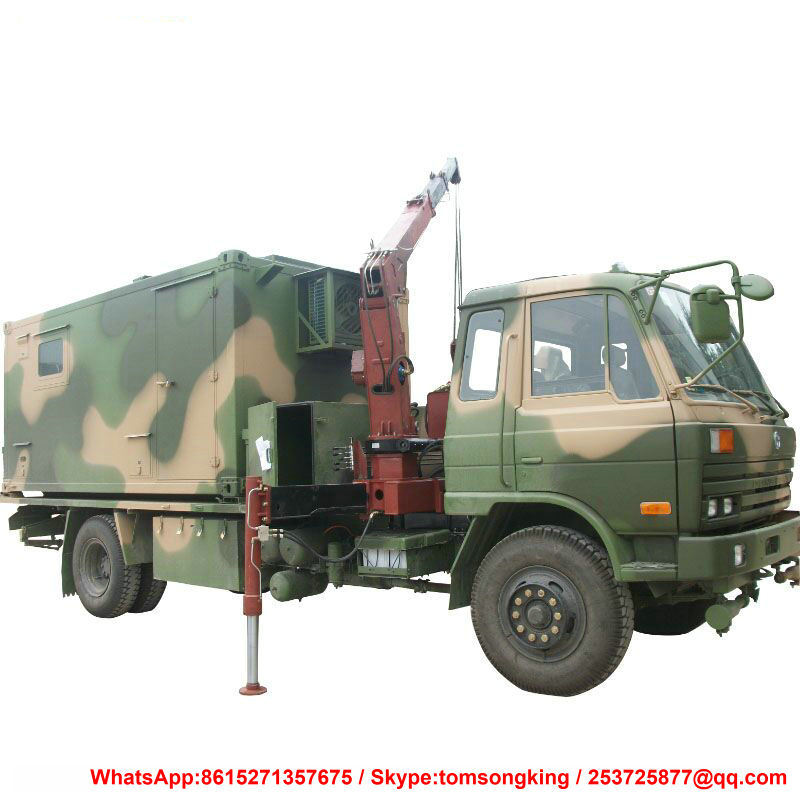

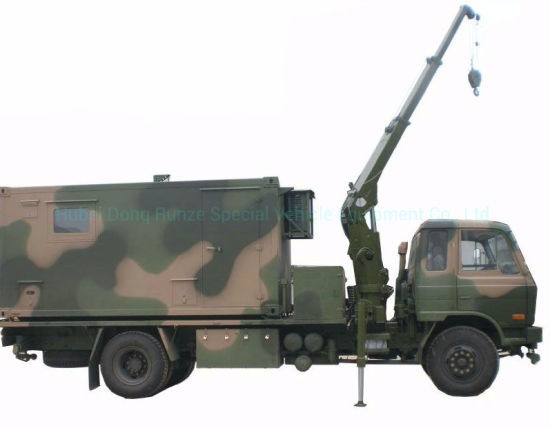

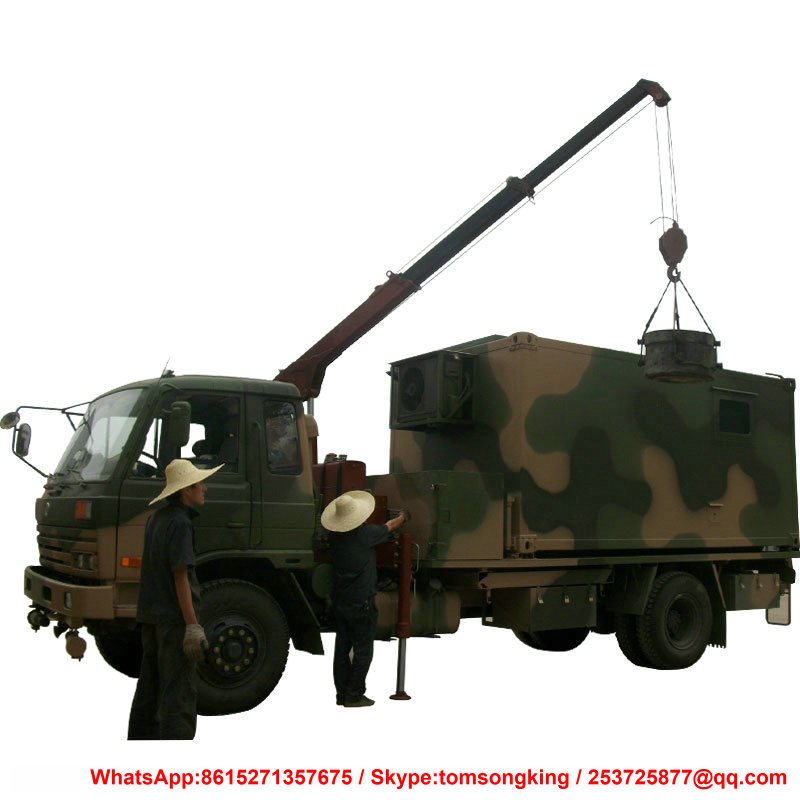

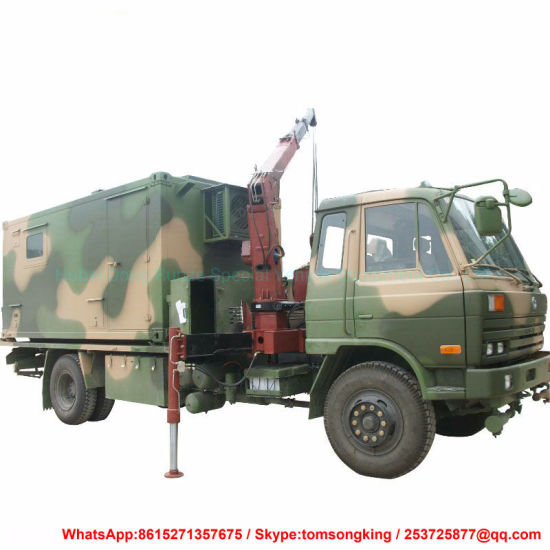

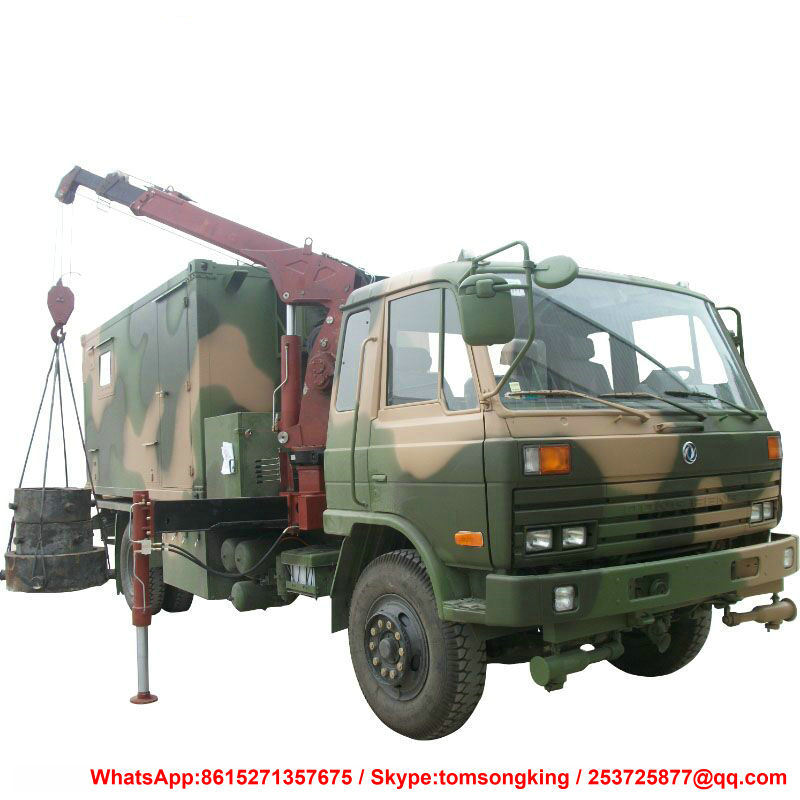

Dongfeng Awd 4X4 Offroad Truck Mounted Mobile Workshop Conainer with Crane 3 Ton
| Quantity: | |
|---|---|
-
Shanghai, China
-
1000
-
T/T, Western Union
Dongfeng AWD Offroad Truck 4x4 Mounted Mobile Workshop Conainer With Crane 3 Ton
Mobile Workshop 4x4 Off Road Service Trucks Customizing
Multifunctional Maintainging Truck WorkShop Truck Customizing
Road Repair Mobile Workshop
Off Road Service Trucks
Cell /+8615271357675
The pictures are for your reference only.
Euro 3,
| Drive type EQ5162 chassis all wheel drive LHD 4x4 | |||
| Total mass | 16000kg | ||
| Curb weight | 7940kg | Overall dimension | 8040×2500×3200mm |
| Wheel base | 4500mm | F/R axle load | 6000/10000kg |
| Quantity of leaf spring | 9/11+8 | Quantity of tires | 6 |
| Tyre type | 9.00R20,10.00R20 | Approach/Departure angle | 25/18° |
| F/R suspension | 1250/2290mm | Front track | 1900mm |
| Rear track | 1800mm | Max.vehicle speed | 88km/h |
| Passengers in cab | 3 | Chassis model | EQ5162 |
Engine | Model | ISB190 30 B190 -33 | |
| Max.power | 140kw/190HP | ||
| Displacement | 5900ml | ||
| Emission level | Euro 3 | ||
| Description | In line ,6 cylinders,4 strokes,water cooled, inter cooled,turbo charged,high pressure, technical pump | ||
| Gearbox | Description | Manual,6 forward gears&1 reverse gear | |
| Cabin | Description | One and half rows, standard configuration | |
Euro 5/6 military mobile workshop truck Dongfeng EQ2100B 4x4 off road desert truck
| Model | EQ2100B | |
| Chassia model | EQ2100BJ | |
| Overall dimension(mm) | 7700,7900×2500×2870,3490 | |
| cargo box size(mm) | 4270×2294×550 | |
| G.V.W(KG) | 16000 | |
| Curb Weight(kg) | 10700 | |
| Load weight(kg) | 5300 | |
| Specified pessanger(contain driver) | 2 | |
| Driving type | 4×4 | |
| Chassis model | EQ2100BJ | |
| Front/rear axle load weight | 3.3T/8T 4.5T/9T option | |
| Axle number | 2 | |
| Wheelbase(mm) | 4200/4500 | |
| tire number | 6 | |
| tire specification | 9.00R20, | |
| Gearbox manual | 6 Speed | |
| Top speed(kw/h) | 76 | |
| Engine model | Displacement (ml) | Power(kw) |
| B190-33 Dongfeng cummins | 5900L | 140 |
| Emission standard | Euro III | |
| With A/C | ||
6x6 offroad chassis optional
| The main technical parameters] | |||||
| Product | EQ2102 type off-road vehicle 6x6 | ||||
| The total mass (Kg) | 16020 | ||||
| Load weight (Kg) | 7900 | Dimensions (mm) | 7650,7500 × 2470 × 2893,2740 | ||
| Curb weight (Kg) | 7730 | Compartment Size (mm) | 4270 × 2294 × 550,800 | ||
| Rated capacity (persons) | Quasi-trailer total mass (Kg) | 6000 | |||
| Approach / departure angle (°) | 35/34, 35/36 | Front / rear overhang (mm) | 1385/1515, 1385/1365 | ||
| Number of axes | 3 | Wheelbase (mm) | 3500 +1250 4100+1250 | ||
| Axle load (Kg) | 4000/12020 (and loading axis) | Maximum speed (Km / h) | 90, | ||
| Other | Off-road vehicle when a total mass of 11 620 and the corresponding load mass is 3500.Top of Cab optional air conditioning. The car should be mounted tachograph. | ||||
| Tire Size | 12.5R20 | Number of tires | 6 | ||
| Number of leaf spring | 10/12 | Front track (mm) | 1876 | ||
| Type of fuel | Diesel fuel | Rear track (mm) | 1870/1870 | ||
| Emission standards | GB3847-2005, GB17691-2005 National 3 | ||||
| Engine Model | Engine Manufacturer | Displacement (ml) | Power (Kw) | ||
| B190 33 | Dongfeng Cummins Engine Co., Ltd. | 5900 | 140 | ||
Equipment for Mobile Workshop 5190YX | |||||
Item | Description | Technical Data | Measurement | Weight | Qty. |
1 | Chassis | As Option | |||

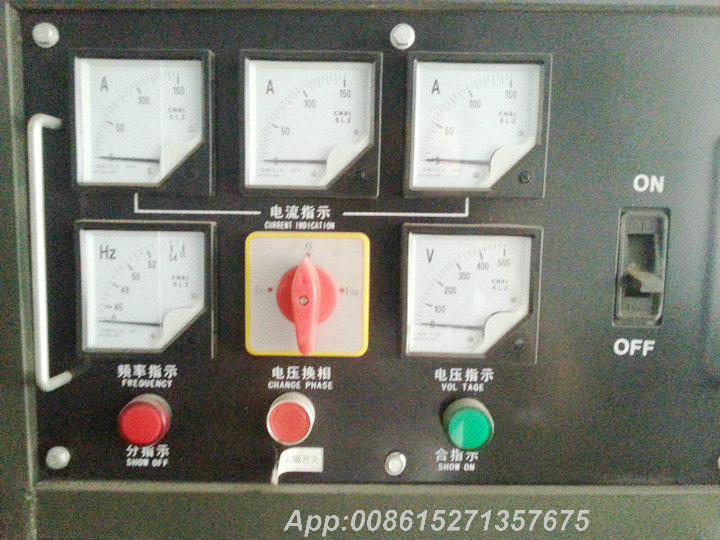

2 | Power Set (Generator) | Model: 40GF74-4 | 2030x650x1255(mm) | 1030kg | 1 |
Rated Power: 40KW | |||||
Rated Voltage: 400/230V | |||||
Rated Frequency: 50Hz | |||||
Rated Current: 72.2A | |||||
Output: 3-phase, 4-line | |||||
Diesel Engine: R4100ZD | |||||
Generator Model: TZH-40 | |||||
3 | Welding Set | Model: ZX5-250B | 406x530x840(mm) | 160kg | 1 |
Voltage: 380V | |||||
Phase: 3 | |||||
Frequency: 50/60Hz | |||||
Initial Current: 29.6A | |||||
Range: 25-250A | |||||
Input: 19.2KVA | |||||
Working Ambient: -10--+40oC | |||||
4 | Air Compressor | Model: AW3608 | 1180x410x850(mm) | 130kg | 1 |
Voltage: 380V | |||||
Frequency: 50Hz | |||||
Power: 3KW | |||||
Pressure: 0.7MPa | |||||
Capacity: 0.36M3/mm | |||||
5 | Drilling Machine | Model: ZQJ4119AD | 760x490x260(mm) | 57kg | 1 |
Bore Range: 3--16mm | |||||
Power: 700W | |||||
6 | Vice | Size: 150mm | |||
7 | Grinding Machine | Model: MQ3225 | 1 | ||
Size: 250mm | |||||
Power: 700W | |||||
8 | Oxygen Cylinder | Volume: 40L | 1 | ||
9 | Acetylene Cylinder | 1 | |||
10 | Gas Welding Set | 1 | |||
11 | Working Bench | Steel Panel | 2300x550x780(mm) | 1 | |
12 | Hand Tools | M6--16 drilling set; Hack Saw; | |||
Hammer; Portable Oil Pump; | |||||
3--16mm Thread Tapper; | |||||
Spanner sets; Socket Spanner Sets | |||||
Files; Clamps | |||||
Tools
No | Name | Specification | Quantity |
1 | Bow saw frame | 2 | |
2 | Hacksaw blade | 18 tine; 32 tine | Each 1 |
3 | Manual oil gun | 1 | |
4 | Oil pot | 300cc | 1 |
5 | Hand electric drill | 220V 0.6~6mm | 1 |
6 | Pipe expansion ware | 1 set | |
7 | Electrical maintenance kits | with multimeter | 1 set |
8 | Screw tap | Coarse thread | 6/set |
9 | Screw tap | Fine thread | 3/set |
10 | Screw tap holder | 180mm;280mm | each 1 set |
11 | Screw die | Coarse thread | 6/set |
12 | Screw die | Fine thread | 3/set |
13 | Drill | 1-10mm (at intervals of)0.5mm | 2set |
14 | Drill | 11-16mm | 2sets |
15 | Drill | 3.4;4.2;5.1;6.8;8.5;10.2 | each 1 set |
16 | Steel ruler | 150mm,300mm | Each 1 |
17 | Vernier caliper | 150mm,250mm | 1 |
18 | Screw thread gauge | the metric system; British system | each 1 |
19 | Tape | 2m | 1 |
20 | Round head hammer | 2.5 pound | 1 |
21 | File | roundness,semi-circle,flat,square ,triangle | Each 2 |
22 | Assorted set of files | 2 sets | |
23 | Screwdriver | cross 125mm;minus 125mm | each 1 |
24 | Pointed plier | 150mm | 1 |
25 | Steel wire clamp | 200mm | 1 |
26 | Carp clamp | 200mm | 1 |
27 | Oxygen watch | 1 | |
28 | Acetylene watch | 1set | |
29 | Welding wire clip | 500A | 1 |
30 | White glass | 10 | |
31 | Protection glasses | 1 | |
32 | Steel brush | 1 | |
33 | Emery cloth | 46#;80#;120# | each 10 |
34 | Metric fixed wrench | 10/set | 1 set |
35 | Metric ring wrench | 10/set | 1 set |
36 | Wrench | 8";10";12" | each 1 |
37 | Round head hammer | 1.5 pound | 1 |
38 | Welding torch | 1 | |
39 | Cut torch | 1 | |
40 | Oxygen tube | 30m | 1 |
41 | Acetylene tube | 30m | 1 |
42 | Hand electric drill | 220V 3-19mm | 1 |
43 | Jack | 10T | 1 |
44 | Socket wrench | 8mm-32mm | 32/set |
45 | Cut clamp | medium-sized | 1 |
46 | Welding gloves | 1 | |
47 | |||
48 | Work Light | 1 | |
49 | Welding mask | 1 |
Equipments:
50Kw generator, air conoressor, charger, portable generator, are welding machine, plasma cutting machine, eletric winch, desk drill, desk grinding machine, 1 ton crane, 200kg hand chain hoist and slide rail, pneumatic tyre spanner
maintenance vehicle,Emergency repair car,road service car,maintenance truck
Hydraulic drive, reliable, safe and noise-free;
Latest fan-shaped nozzle, three overlapping design;
High power rear lights for night operation
option 2
Device | Model | Specifications | Dimensions |
Chassis | ZZ2152M4367LA ZZ2152M4367LA | ||
Pressure Washer | DL40-type | 22L/MINPressure:210kg Flow: 22L/MIN Motor:11kw Spray gun: 1 unit High-pressure hose:10 m nozzle: 5 unit 350kgWeight:350kg | Length:1500mm Width:650mm Height:500mm |
Oil drum with a suction pump | JK-3BGeneral | 40L/minPower:0.12kw Flow: 40L/min Head:2.5m Entrance and Exit: 25/32mm Voltage:220V | |
40KWdiesel generator set | 40GF-440GF-4 Engine Model: R4110D40-1 Generator Type:TZH-40 | Rated Power:40kw Rated Voltage:400/230V Rated Frequency:50HZ Rated current: 72.2A Output Mode:3-phase 4-wire Weight:850kg | 1820- x636x - 1320 |
ZX7SCRWelding Machine | ZX7-400SZX7-400S | Voltage:380V, 3 phase, 50/60HZ CurrentRange:25-250A Input Capacity: 14.5KVA Working environment:-10 ~ +40. C C | 475-x 280 -x 400 |
beiben tractor trucks, beiben dump trucks and bogie suspension semitrailers that worked very well in Congo, Alegeria, Nigeria, Tanzania, Kenya and south africa.
China Truck Truck Trailer Diesel Truck Tractor Truck Off Road Truck Lorry Truck Beiben Truck Mobile Steel Structure Workshop Mobile Led Truck Workshop Truck Truck Mobile Display Sinotruk Mobile Workshop Truck
Recommended Suppliers
China Truck Manufacturers Truck Trailer Manufacturers Diesel Truck Manufacturers Tractor Truck Manufacturers Off Road Truck Manufacturers Lorry Truck Manufacturers Beiben Truck Manufacturers Mobile Steel Structure Workshop Manufacturers Mobile Led Truck Manufacturers Workshop Truck Manufacturers Truck Mobile Display Manufacturers Sinotruk Mobile Workshop Truck Manufacturers
Hot Wholesale Products
Wholesale Lorry Truck Wholesale Service Truck Body Wholesale Workshop Truck Wholesale Mining Service Truck Wholesale Military Truck Parts Wholesale Mobile Workshop Bodies
Dongfeng AWD Offroad Truck 4x4 Mounted Mobile Workshop Conainer With Crane 3 Ton
Mobile Workshop 4x4 Off Road Service Trucks Customizing
Multifunctional Maintainging Truck WorkShop Truck Customizing
Road Repair Mobile Workshop
Off Road Service Trucks
Cell /+8615271357675
The pictures are for your reference only.
Euro 3,
| Drive type EQ5162 chassis all wheel drive LHD 4x4 | |||
| Total mass | 16000kg | ||
| Curb weight | 7940kg | Overall dimension | 8040×2500×3200mm |
| Wheel base | 4500mm | F/R axle load | 6000/10000kg |
| Quantity of leaf spring | 9/11+8 | Quantity of tires | 6 |
| Tyre type | 9.00R20,10.00R20 | Approach/Departure angle | 25/18° |
| F/R suspension | 1250/2290mm | Front track | 1900mm |
| Rear track | 1800mm | Max.vehicle speed | 88km/h |
| Passengers in cab | 3 | Chassis model | EQ5162 |
Engine | Model | ISB190 30 B190 -33 | |
| Max.power | 140kw/190HP | ||
| Displacement | 5900ml | ||
| Emission level | Euro 3 | ||
| Description | In line ,6 cylinders,4 strokes,water cooled, inter cooled,turbo charged,high pressure, technical pump | ||
| Gearbox | Description | Manual,6 forward gears&1 reverse gear | |
| Cabin | Description | One and half rows, standard configuration | |
Euro 5/6 military mobile workshop truck Dongfeng EQ2100B 4x4 off road desert truck
| Model | EQ2100B | |
| Chassia model | EQ2100BJ | |
| Overall dimension(mm) | 7700,7900×2500×2870,3490 | |
| cargo box size(mm) | 4270×2294×550 | |
| G.V.W(KG) | 16000 | |
| Curb Weight(kg) | 10700 | |
| Load weight(kg) | 5300 | |
| Specified pessanger(contain driver) | 2 | |
| Driving type | 4×4 | |
| Chassis model | EQ2100BJ | |
| Front/rear axle load weight | 3.3T/8T 4.5T/9T option | |
| Axle number | 2 | |
| Wheelbase(mm) | 4200/4500 | |
| tire number | 6 | |
| tire specification | 9.00R20, | |
| Gearbox manual | 6 Speed | |
| Top speed(kw/h) | 76 | |
| Engine model | Displacement (ml) | Power(kw) |
| B190-33 Dongfeng cummins | 5900L | 140 |
| Emission standard | Euro III | |
| With A/C | ||
6x6 offroad chassis optional
| The main technical parameters] | |||||
| Product | EQ2102 type off-road vehicle 6x6 | ||||
| The total mass (Kg) | 16020 | ||||
| Load weight (Kg) | 7900 | Dimensions (mm) | 7650,7500 × 2470 × 2893,2740 | ||
| Curb weight (Kg) | 7730 | Compartment Size (mm) | 4270 × 2294 × 550,800 | ||
| Rated capacity (persons) | Quasi-trailer total mass (Kg) | 6000 | |||
| Approach / departure angle (°) | 35/34, 35/36 | Front / rear overhang (mm) | 1385/1515, 1385/1365 | ||
| Number of axes | 3 | Wheelbase (mm) | 3500 +1250 4100+1250 | ||
| Axle load (Kg) | 4000/12020 (and loading axis) | Maximum speed (Km / h) | 90, | ||
| Other | Off-road vehicle when a total mass of 11 620 and the corresponding load mass is 3500.Top of Cab optional air conditioning. The car should be mounted tachograph. | ||||
| Tire Size | 12.5R20 | Number of tires | 6 | ||
| Number of leaf spring | 10/12 | Front track (mm) | 1876 | ||
| Type of fuel | Diesel fuel | Rear track (mm) | 1870/1870 | ||
| Emission standards | GB3847-2005, GB17691-2005 National 3 | ||||
| Engine Model | Engine Manufacturer | Displacement (ml) | Power (Kw) | ||
| B190 33 | Dongfeng Cummins Engine Co., Ltd. | 5900 | 140 | ||
Equipment for Mobile Workshop 5190YX | |||||
Item | Description | Technical Data | Measurement | Weight | Qty. |
1 | Chassis | As Option | |||
2 | Power Set (Generator) | Model: 40GF74-4 | 2030x650x1255(mm) | 1030kg | 1 |
Rated Power: 40KW | |||||
Rated Voltage: 400/230V | |||||
Rated Frequency: 50Hz | |||||
Rated Current: 72.2A | |||||
Output: 3-phase, 4-line | |||||
Diesel Engine: R4100ZD | |||||
Generator Model: TZH-40 | |||||
3 | Welding Set | Model: ZX5-250B | 406x530x840(mm) | 160kg | 1 |
Voltage: 380V | |||||
Phase: 3 | |||||
Frequency: 50/60Hz | |||||
Initial Current: 29.6A | |||||
Range: 25-250A | |||||
Input: 19.2KVA | |||||
Working Ambient: -10--+40oC | |||||
4 | Air Compressor | Model: AW3608 | 1180x410x850(mm) | 130kg | 1 |
Voltage: 380V | |||||
Frequency: 50Hz | |||||
Power: 3KW | |||||
Pressure: 0.7MPa | |||||
Capacity: 0.36M3/mm | |||||
5 | Drilling Machine | Model: ZQJ4119AD | 760x490x260(mm) | 57kg | 1 |
Bore Range: 3--16mm | |||||
Power: 700W | |||||
6 | Vice | Size: 150mm | |||
7 | Grinding Machine | Model: MQ3225 | 1 | ||
Size: 250mm | |||||
Power: 700W | |||||
8 | Oxygen Cylinder | Volume: 40L | 1 | ||
9 | Acetylene Cylinder | 1 | |||
10 | Gas Welding Set | 1 | |||
11 | Working Bench | Steel Panel | 2300x550x780(mm) | 1 | |
12 | Hand Tools | M6--16 drilling set; Hack Saw; | |||
Hammer; Portable Oil Pump; | |||||
3--16mm Thread Tapper; | |||||
Spanner sets; Socket Spanner Sets | |||||
Files; Clamps | |||||
Tools
No | Name | Specification | Quantity |
1 | Bow saw frame | 2 | |
2 | Hacksaw blade | 18 tine; 32 tine | Each 1 |
3 | Manual oil gun | 1 | |
4 | Oil pot | 300cc | 1 |
5 | Hand electric drill | 220V 0.6~6mm | 1 |
6 | Pipe expansion ware | 1 set | |
7 | Electrical maintenance kits | with multimeter | 1 set |
8 | Screw tap | Coarse thread | 6/set |
9 | Screw tap | Fine thread | 3/set |
10 | Screw tap holder | 180mm;280mm | each 1 set |
11 | Screw die | Coarse thread | 6/set |
12 | Screw die | Fine thread | 3/set |
13 | Drill | 1-10mm (at intervals of)0.5mm | 2set |
14 | Drill | 11-16mm | 2sets |
15 | Drill | 3.4;4.2;5.1;6.8;8.5;10.2 | each 1 set |
16 | Steel ruler | 150mm,300mm | Each 1 |
17 | Vernier caliper | 150mm,250mm | 1 |
18 | Screw thread gauge | the metric system; British system | each 1 |
19 | Tape | 2m | 1 |
20 | Round head hammer | 2.5 pound | 1 |
21 | File | roundness,semi-circle,flat,square ,triangle | Each 2 |
22 | Assorted set of files | 2 sets | |
23 | Screwdriver | cross 125mm;minus 125mm | each 1 |
24 | Pointed plier | 150mm | 1 |
25 | Steel wire clamp | 200mm | 1 |
26 | Carp clamp | 200mm | 1 |
27 | Oxygen watch | 1 | |
28 | Acetylene watch | 1set | |
29 | Welding wire clip | 500A | 1 |
30 | White glass | 10 | |
31 | Protection glasses | 1 | |
32 | Steel brush | 1 | |
33 | Emery cloth | 46#;80#;120# | each 10 |
34 | Metric fixed wrench | 10/set | 1 set |
35 | Metric ring wrench | 10/set | 1 set |
36 | Wrench | 8";10";12" | each 1 |
37 | Round head hammer | 1.5 pound | 1 |
38 | Welding torch | 1 | |
39 | Cut torch | 1 | |
40 | Oxygen tube | 30m | 1 |
41 | Acetylene tube | 30m | 1 |
42 | Hand electric drill | 220V 3-19mm | 1 |
43 | Jack | 10T | 1 |
44 | Socket wrench | 8mm-32mm | 32/set |
45 | Cut clamp | medium-sized | 1 |
46 | Welding gloves | 1 | |
47 | |||
48 | Work Light | 1 | |
49 | Welding mask | 1 |
Equipments:
50Kw generator, air conoressor, charger, portable generator, are welding machine, plasma cutting machine, eletric winch, desk drill, desk grinding machine, 1 ton crane, 200kg hand chain hoist and slide rail, pneumatic tyre spanner

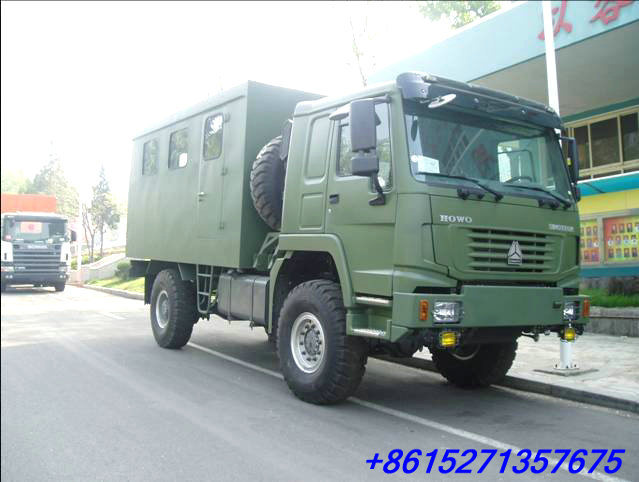

maintenance vehicle,Emergency repair car,road service car,maintenance truck
Hydraulic drive, reliable, safe and noise-free;
Latest fan-shaped nozzle, three overlapping design;
High power rear lights for night operation
option 2
Device | Model | Specifications | Dimensions |
Chassis | ZZ2152M4367LA ZZ2152M4367LA | ||
Pressure Washer | DL40-type | 22L/MINPressure:210kg Flow: 22L/MIN Motor:11kw Spray gun: 1 unit High-pressure hose:10 m nozzle: 5 unit 350kgWeight:350kg | Length:1500mm Width:650mm Height:500mm |
Oil drum with a suction pump | JK-3BGeneral | 40L/minPower:0.12kw Flow: 40L/min Head:2.5m Entrance and Exit: 25/32mm Voltage:220V | |
40KWdiesel generator set | 40GF-440GF-4 Engine Model: R4110D40-1 Generator Type:TZH-40 | Rated Power:40kw Rated Voltage:400/230V Rated Frequency:50HZ Rated current: 72.2A Output Mode:3-phase 4-wire Weight:850kg | 1820- x636x - 1320 |
ZX7SCRWelding Machine | ZX7-400SZX7-400S | Voltage:380V, 3 phase, 50/60HZ CurrentRange:25-250A Input Capacity: 14.5KVA Working environment:-10 ~ +40. C C | 475-x 280 -x 400 |
beiben tractor trucks, beiben dump trucks and bogie suspension semitrailers that worked very well in Congo, Alegeria, Nigeria, Tanzania, Kenya and south africa.
China Truck Truck Trailer Diesel Truck Tractor Truck Off Road Truck Lorry Truck Beiben Truck Mobile Steel Structure Workshop Mobile Led Truck Workshop Truck Truck Mobile Display Sinotruk Mobile Workshop Truck
Recommended Suppliers
China Truck Manufacturers Truck Trailer Manufacturers Diesel Truck Manufacturers Tractor Truck Manufacturers Off Road Truck Manufacturers Lorry Truck Manufacturers Beiben Truck Manufacturers Mobile Steel Structure Workshop Manufacturers Mobile Led Truck Manufacturers Workshop Truck Manufacturers Truck Mobile Display Manufacturers Sinotruk Mobile Workshop Truck Manufacturers
Hot Wholesale Products
Wholesale Lorry Truck Wholesale Service Truck Body Wholesale Workshop Truck Wholesale Mining Service Truck Wholesale Military Truck Parts Wholesale Mobile Workshop Bodies
