Customizing SAIC Maxus Mobile Vehicle Inspection And Maintenance
Special functions and devices: on-board lift, equipment rack, air compressor, mainly used for vehicle inspection and maintenance.
Optional: dynamic balancing machine, tire dismantling machine, telescopic air drum
Price for refer only. Final Price Offer Discount.
| Quantity: | |
|---|---|
|
| |
-
5040XJXA2DB
-
Dong Run Ze
-
87059099900
-
Shanghai, China
-
10000
-
T/T, Western Union

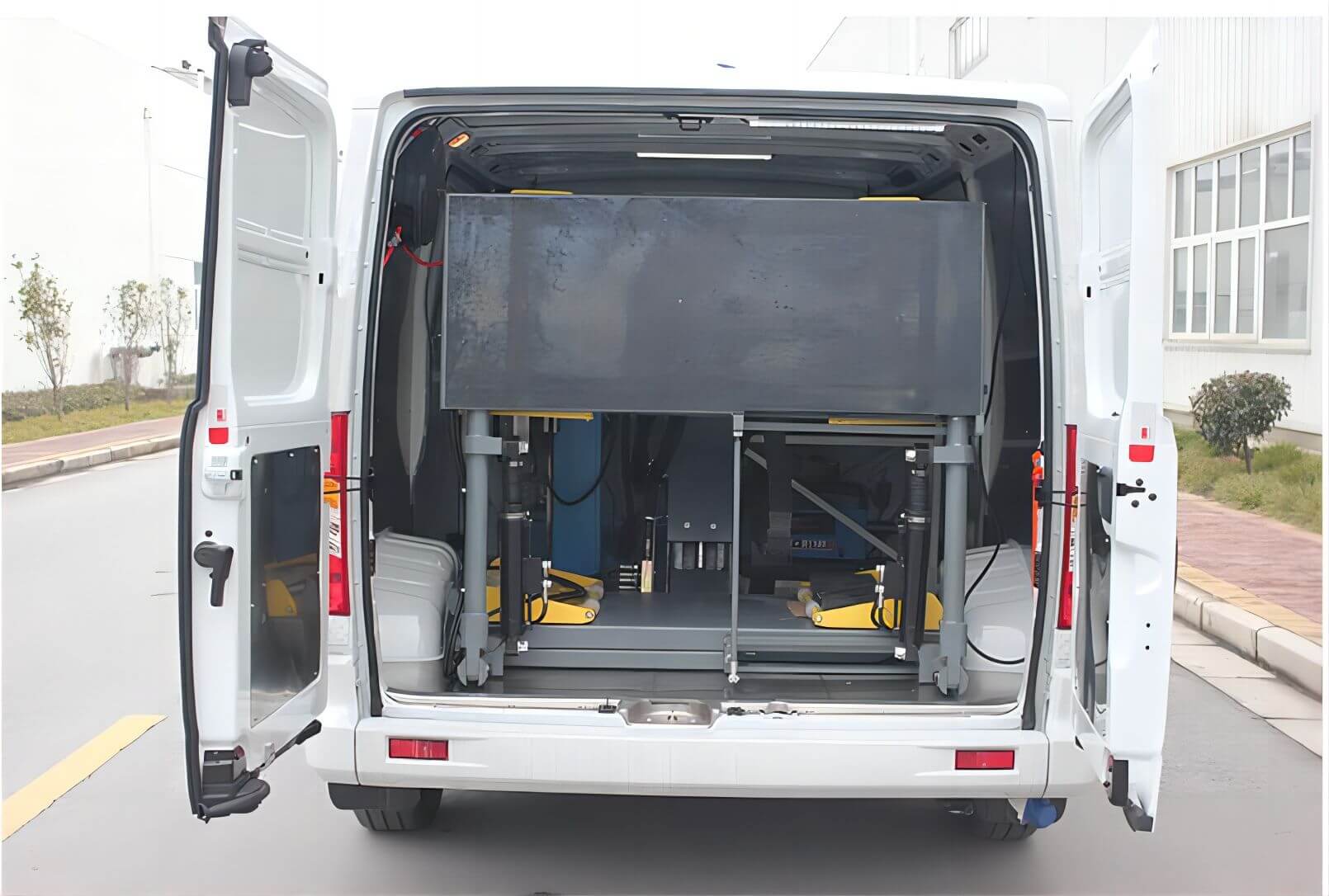

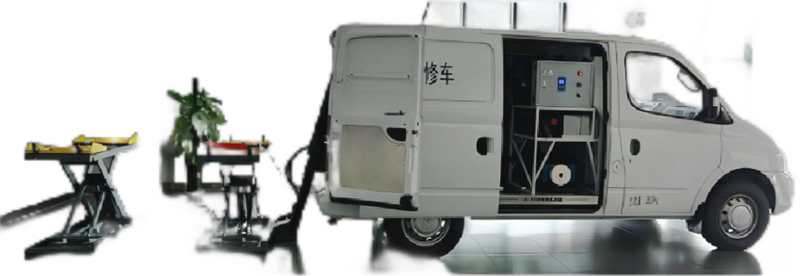

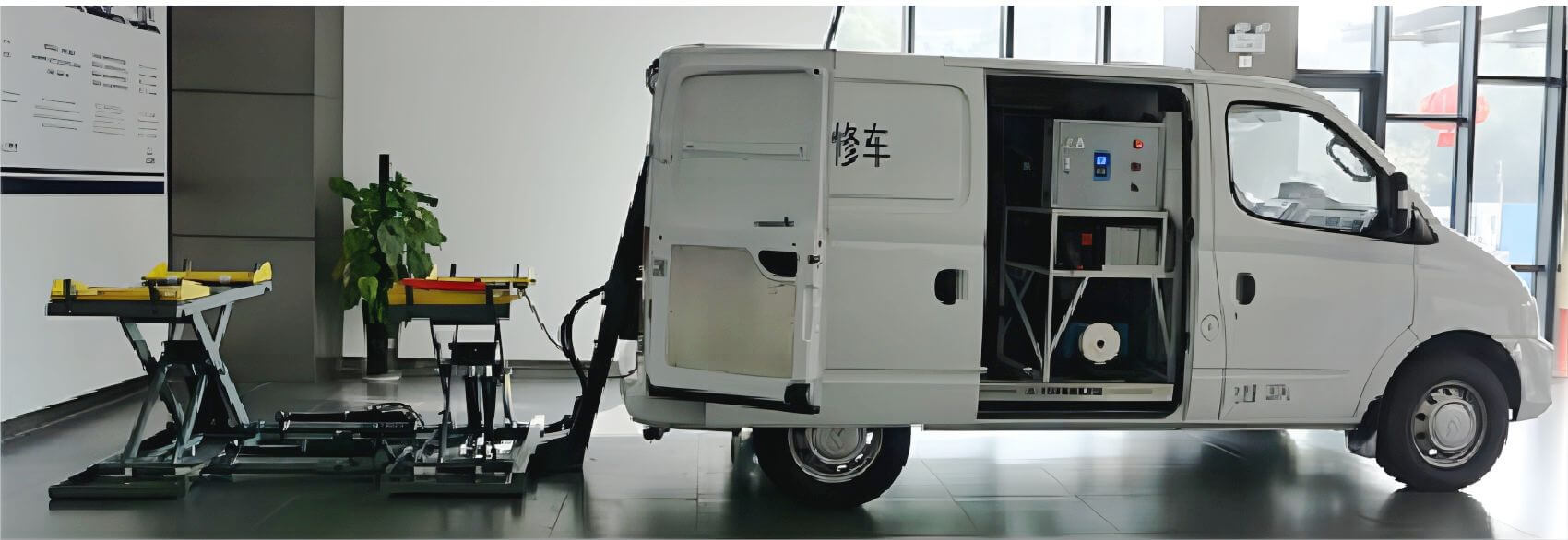

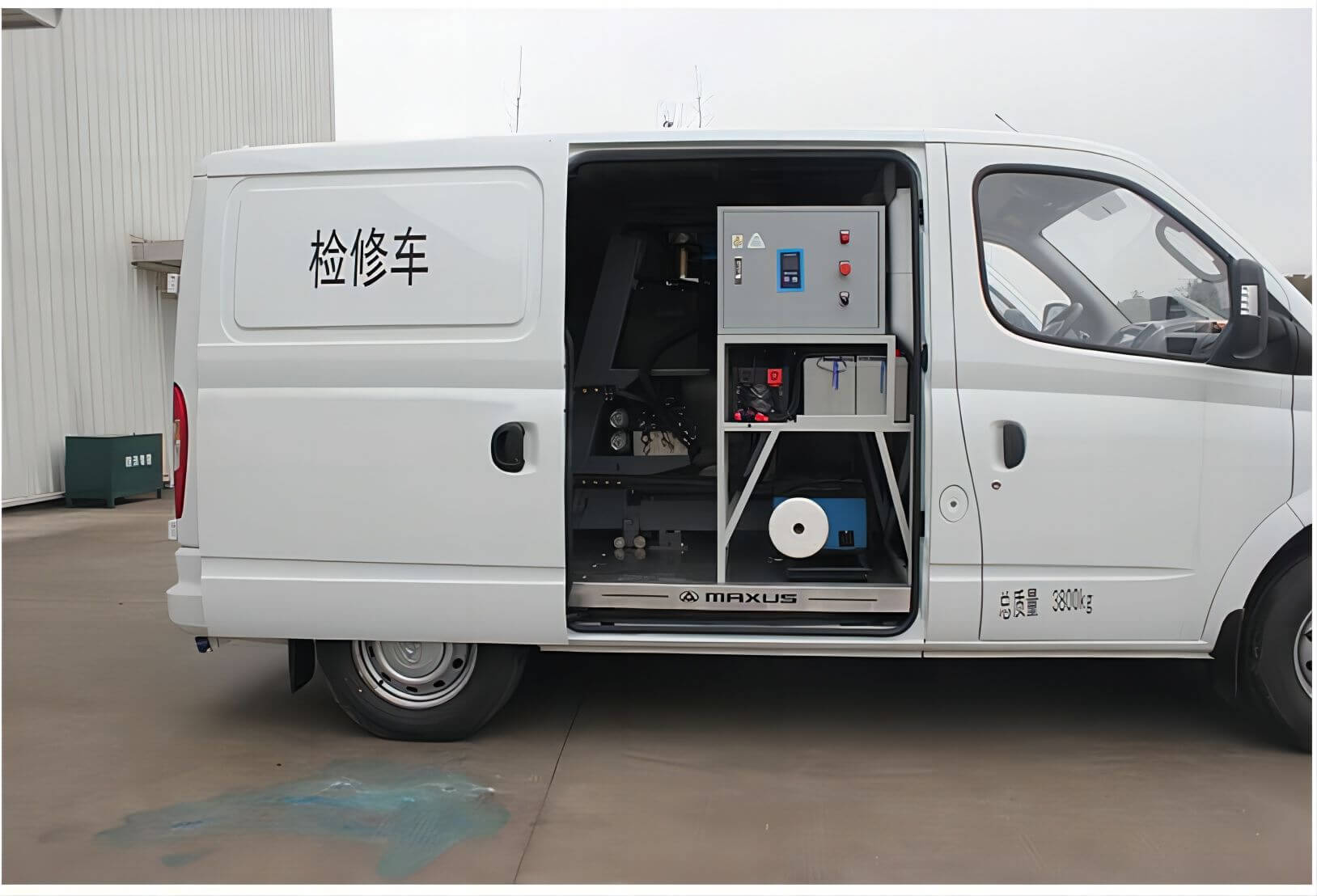

Special functions and devices: This vehicle is equipped with an on-board lift, equipment rack, and air compressor, mainly used for vehicle inspection and maintenance. It can be optionally equipped with an on-board dynamic balancing machine, an on-board tire dismantling machine, and a telescopic air drum
Main technical parameters
Overall dimensions: | 4950,5160,5035×1998×2132,2345(mm) | Rated passenger capacity: | 2-7(p) |
Total mass: | 3800(Kg) | Net | 3150,2970,2800,2640(Kg) |
Approach Angle/Departure Angle: | 26/17,26/14(°) | Front/rear overhang: | 865/985,865/1195,865/1070(mm) |
Axle Load: | 1760/2040 | Wheelbase: | 3100(mm) |
Number of shafts: | 2 | Maximum speed: | 160,150(km/h) |
Number of tires: | 4(pcs) | Tire Specifications: | 215/75R16LT |
Fuel consumption: | (L/100Km) | Number of spring pieces: | -/2 |
Front wheel base: | 1734(mm) | Rear wheel base: | 1728(mm) |
Engine parameter
Engine type | Engine manufacturer | Volume (ml) | Power (kw) |
SC20M139Q6; Q6 SC20M125. 1 | Shanghai New Power Automobile Technology Co., LTD.; Shanghai New power Automobile Technology Co., LTD | 1996; 1996 | 102; 93 |
ABS Model :ABS 9,ESP9,3550G500; ABS manufacturers: Bosch Auto Parts (Suzhou) Co., LTD., Bosch Auto Parts (Suzhou) Co., LTD., Zhejiang APAC Electromechanical Co., LTD. Optional description: Optional right sliding door, left sliding door, push-pull side window, side tread, license plate decorative plate, front grille, tail label, wheel rim, wheel decoration cover. Optional integrated rear step (optional integrated rear step vehicle length 5035mm, rear suspension 1070mm, departure Angle 17°), optional rear step (optional rear step vehicle length 5160mm, rear suspension 1195mm, departure Angle 14°), the model optional middle top (optional middle top height 2345mm); Special functions and devices: The car is equipped with car lift, equipment rack, air compressor, mainly used for vehicle detection and maintenance. Optional vehicle dynamic balancing machine, vehicle tire removal machine, telescopic air drum; SC20M139Q6 Maximum net power :100.5kW, maximum speed of 155km/h.SC20M125.1Q6 Maximum net power :91.5kW, maximum speed of 150km/h.
