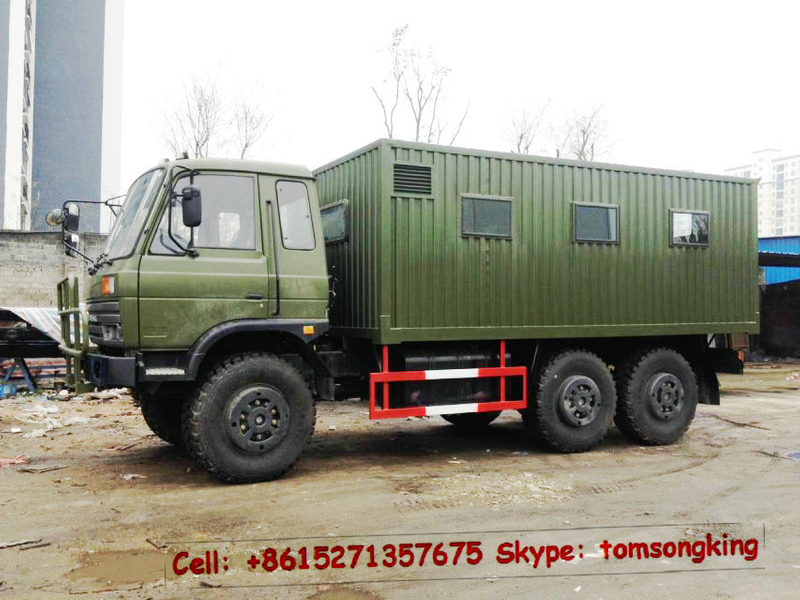

6x6 service truck mobile workshop truck
Jin
Tom
wheel specification | 12.5R20 |
wheel numer | 6 |
wheel span front/rear mm | 1876 / 1870 |
max gross weight(kg) | 1,605,011,650 |
kgspecified load weight(kg) | 79,003,500 |
curb weight (kg) | 7955 |
max load weight allowed(kg)<o:p> | 6000<o:p> |
cab passengers<o:p> | 3<o:p> |
°approach/departure angle<o:p> | 35/34<o:p> |
front/rear suspension(kg)<o:p> | 1385/1515<o:p> |
km/htop speed<o:p> | 90<o:p> |
axle lpad(kg)<o:p> | 4020/12030,3410/8240<o:p> |
chassis model/manufacturer<o:p> | EQ2162GJ<o:p> |
| Dongfeng vehicle co<o:p> |
engine model/manufacturer<o:p> | EQB190-20 /190hp ,Euro II<o:p> |
| Dongfeng Cummins diesel engine co.,ltd<o:p> |
6x6 service truck mobile workshop truck
Jin
Tom
wheel specification | 12.5R20 |
wheel numer | 6 |
wheel span front/rear mm | 1876 / 1870 |
max gross weight(kg) | 1,605,011,650 |
kgspecified load weight(kg) | 79,003,500 |
curb weight (kg) | 7955 |
max load weight allowed(kg)<o:p> | 6000<o:p> |
cab passengers<o:p> | 3<o:p> |
°approach/departure angle<o:p> | 35/34<o:p> |
front/rear suspension(kg)<o:p> | 1385/1515<o:p> |
km/htop speed<o:p> | 90<o:p> |
axle lpad(kg)<o:p> | 4020/12030,3410/8240<o:p> |
chassis model/manufacturer<o:p> | EQ2162GJ<o:p> |
| Dongfeng vehicle co<o:p> |
engine model/manufacturer<o:p> | EQB190-20 /190hp ,Euro II<o:p> |
| Dongfeng Cummins diesel engine co.,ltd<o:p> |
Brand | DONGFENG off road military 6x6 trucks | |
Max Gross Weight | 11050kg(Off-Road Status Load Weight 3500kg) | |
Max Speed | 90km/h | |
Overall Dimension | Length | 7495mm |
Width | 2470mm | |
Height | 2893mm | |
Box Dimension | Length | 4270mm |
Width | 2294mm | |
Height | 2150/2200mm | |
Wheelbase | 3475/3500+1250mm | |
Front/Rear Wheel Track | 1876/1870mm | |
Approach/Departure Angle | 35/34 | |
Engine Info | Manufacturer | Dongfeng Cummins Engine Co., Ltd |
Model | EQB190-20 | |
Rated Power | 140kw/2800r/min | |
Max Torque | 650N.m/1700r/min | |
Clutch | Φ395mm diaphragm clutch | |
Gearbox | 6 Speeds Gearbox, Manual |
Equipment for Mobile Workshop | |||||
Item | Description | Technical Data | Measurement | Weight | Qty. |
1 | Chassis | As Option | |||
2 | Power Set | Model: 40GF74-4 | 2030x650x1255(mm) | 1030kg | 1 |
Rated Power: 40KW | |||||
Rated Voltage: 400/230V | |||||
Rated Frequency: 50Hz | |||||
Rated Current: 72.2A | |||||
Output: 3-phase, 4-line | |||||
Diesel Engine: R4100ZD | |||||
Generator Model: TZH-40 | |||||
3 | Welding Set | Model: ZX5-250B | 406x530x840(mm) | 160kg | 1 |
Voltage: 380V | |||||
Phase: 3 | |||||
Frequency: 50/60Hz | |||||
Initial Current: 29.6A | |||||
Range: 25-250A | |||||
Input: 19.2KVA | |||||
Working Ambient: -10--+40oC | |||||
4 | Air Compressor | Model: AW3608 | 1180x410x850(mm) | 130kg | 1 |
Voltage: 380V | |||||
Frequency: 50Hz | |||||
Power: 3KW | |||||
Pressure: 0.7MPa | |||||
Capacity: 0.36M3/mm | |||||
5 | Drilling Machine | Model: ZQJ4119AD | 760x490x260(mm) | 57kg | 1 |
Bore Range: 3--16mm | |||||
Power: 700W | |||||
6 | Vice | Size: 150mm | |||
7 | Grinding Machine | Model: MQ3225 | 1 | ||
Size: 250mm | |||||
Power: 700W | |||||
8 | Oxygen Cylinder | Volume: 40L | 1 | ||
9 | Acetylene Cylinder | 1 | |||
10 | Gas Welding Set | 1 | |||
11 | Working Bench | Steel Panel | 2300x550x780(mm) | 1 | |
12 | Hand Tools | M6--16 drilling set; Hack Saw; | |||
Hammer; Portable Oil Pump; | |||||
3--16mm Thread Tapper; | |||||
Spanner sets; Socket Spanner Sets | |||||
Files; Clamps |
Tools
No | Name | Specification | Quantity |
1 | Bow saw frame | 2 | |
2 | Hacksaw blade | 18 tine; 32 tine | Each 1 |
3 | Manual oil gun | 1 | |
4 | Oil pot | 300cc | 1 |
5 | Hand electric drill | 220V 0.6~6mm | 1 |
6 | Pipe expansion ware | 1 set | |
7 | Electrical maintenance kits | with multimeter | 1 set |
8 | Screw tap | Coarse thread | 6/set |
9 | Screw tap | Fine thread | 3/set |
10 | Screw tap holder | 180mm;280mm | each 1 set |
11 | Screw die | Coarse thread | 6/set |
12 | Screw die | Fine thread | 3/set |
13 | Drill | 1-10mm (at intervals of)0.5mm | 2set |
14 | Drill | 11-16mm | 2sets |
15 | Drill | 3.4;4.2;5.1;6.8;8.5;10.2 | each 1 set |
16 | Steel ruler | 150mm,300mm | Each 1 |
17 | Vernier caliper | 150mm,250mm | 1 |
18 | Screw thread gauge | the metric system; British system | each 1 |
19 | Tape | 2m | 1 |
20 | Round head hammer | 2.5 pound | 1 |
21 | File | roundness,semi-circle,flat,square ,triangle | Each 2 |
22 | Assorted set of files | 2 sets | |
23 | Screwdriver | cross 125mm;minus 125mm | each 1 |
24 | Pointed plier | 150mm | 1 |
25 | Steel wire clamp | 200mm | 1 |
26 | Carp clamp | 200mm | 1 |
27 | Oxygen watch | 1 | |
28 | Acetylene watch | 1set | |
29 | Welding wire clip | 500A | 1 |
30 | White glass | 10 | |
31 | Protection glasses | 1 | |
32 | Steel brush | 1 | |
33 | Emery cloth | 46#;80#;120# | each 10 |
34 | Metric fixed wrench | 10/set | 1 set |
35 | Metric ring wrench | 10/set | 1 set |
36 | Wrench | 8";10";12" | each 1 |
37 | Round head hammer | 1.5 pound | 1 |
38 | Welding torch |
| 1 |
39 | Cut torch |
| 1 |
40 | Oxygen tube | 30m | 1 |
41 | Acetylene tube | 30m | 1 |
42 | Hand electric drill | 220V 3-19mm | 1 |
43 | Jack | 10T | 1 |
44 | Socket wrench | 8mm-32mm | 32/set |
45 | Cut clamp | medium-sized | 1 |
46 | Welding gloves |
| 1 |
47 |
|
|
|
48 | Work Light |
| 1 |
49 | Welding mask |
| 1 |
|
DongFeng third generation 6X6 Diesel off road vehicle |
Brand | DONGFENG off road military 6x6 trucks | |
Max Gross Weight | 11050kg(Off-Road Status Load Weight 3500kg) | |
Max Speed | 90km/h | |
Overall Dimension | Length | 7495mm |
Width | 2470mm | |
Height | 2893mm | |
Box Dimension | Length | 4270mm |
Width | 2294mm | |
Height | 2150/2200mm | |
Wheelbase | 3475/3500+1250mm | |
Front/Rear Wheel Track | 1876/1870mm | |
Approach/Departure Angle | 35/34 | |
Engine Info | Manufacturer | Dongfeng Cummins Engine Co., Ltd |
Model | EQB190-20 | |
Rated Power | 140kw/2800r/min | |
Max Torque | 650N.m/1700r/min | |
Clutch | Φ395mm diaphragm clutch | |
Gearbox | 6 Speeds Gearbox, Manual |
Equipment for Mobile Workshop | |||||
Item | Description | Technical Data | Measurement | Weight | Qty. |
1 | Chassis | As Option | |||
2 | Power Set | Model: 40GF74-4 | 2030x650x1255(mm) | 1030kg | 1 |
Rated Power: 40KW | |||||
Rated Voltage: 400/230V | |||||
Rated Frequency: 50Hz | |||||
Rated Current: 72.2A | |||||
Output: 3-phase, 4-line | |||||
Diesel Engine: R4100ZD | |||||
Generator Model: TZH-40 | |||||
3 | Welding Set | Model: ZX5-250B | 406x530x840(mm) | 160kg | 1 |
Voltage: 380V | |||||
Phase: 3 | |||||
Frequency: 50/60Hz | |||||
Initial Current: 29.6A | |||||
Range: 25-250A | |||||
Input: 19.2KVA | |||||
Working Ambient: -10--+40oC | |||||
4 | Air Compressor | Model: AW3608 | 1180x410x850(mm) | 130kg | 1 |
Voltage: 380V | |||||
Frequency: 50Hz | |||||
Power: 3KW | |||||
Pressure: 0.7MPa | |||||
Capacity: 0.36M3/mm | |||||
5 | Drilling Machine | Model: ZQJ4119AD | 760x490x260(mm) | 57kg | 1 |
Bore Range: 3--16mm | |||||
Power: 700W | |||||
6 | Vice | Size: 150mm | |||
7 | Grinding Machine | Model: MQ3225 | 1 | ||
Size: 250mm | |||||
Power: 700W | |||||
8 | Oxygen Cylinder | Volume: 40L | 1 | ||
9 | Acetylene Cylinder | 1 | |||
10 | Gas Welding Set | 1 | |||
11 | Working Bench | Steel Panel | 2300x550x780(mm) | 1 | |
12 | Hand Tools | M6--16 drilling set; Hack Saw; | |||
Hammer; Portable Oil Pump; | |||||
3--16mm Thread Tapper; | |||||
Spanner sets; Socket Spanner Sets | |||||
Files; Clamps |
Tools
No | Name | Specification | Quantity |
1 | Bow saw frame | 2 | |
2 | Hacksaw blade | 18 tine; 32 tine | Each 1 |
3 | Manual oil gun | 1 | |
4 | Oil pot | 300cc | 1 |
5 | Hand electric drill | 220V 0.6~6mm | 1 |
6 | Pipe expansion ware | 1 set | |
7 | Electrical maintenance kits | with multimeter | 1 set |
8 | Screw tap | Coarse thread | 6/set |
9 | Screw tap | Fine thread | 3/set |
10 | Screw tap holder | 180mm;280mm | each 1 set |
11 | Screw die | Coarse thread | 6/set |
12 | Screw die | Fine thread | 3/set |
13 | Drill | 1-10mm (at intervals of)0.5mm | 2set |
14 | Drill | 11-16mm | 2sets |
15 | Drill | 3.4;4.2;5.1;6.8;8.5;10.2 | each 1 set |
16 | Steel ruler | 150mm,300mm | Each 1 |
17 | Vernier caliper | 150mm,250mm | 1 |
18 | Screw thread gauge | the metric system; British system | each 1 |
19 | Tape | 2m | 1 |
20 | Round head hammer | 2.5 pound | 1 |
21 | File | roundness,semi-circle,flat,square ,triangle | Each 2 |
22 | Assorted set of files | 2 sets | |
23 | Screwdriver | cross 125mm;minus 125mm | each 1 |
24 | Pointed plier | 150mm | 1 |
25 | Steel wire clamp | 200mm | 1 |
26 | Carp clamp | 200mm | 1 |
27 | Oxygen watch | 1 | |
28 | Acetylene watch | 1set | |
29 | Welding wire clip | 500A | 1 |
30 | White glass | 10 | |
31 | Protection glasses | 1 | |
32 | Steel brush | 1 | |
33 | Emery cloth | 46#;80#;120# | each 10 |
34 | Metric fixed wrench | 10/set | 1 set |
35 | Metric ring wrench | 10/set | 1 set |
36 | Wrench | 8";10";12" | each 1 |
37 | Round head hammer | 1.5 pound | 1 |
38 | Welding torch |
| 1 |
39 | Cut torch |
| 1 |
40 | Oxygen tube | 30m | 1 |
41 | Acetylene tube | 30m | 1 |
42 | Hand electric drill | 220V 3-19mm | 1 |
43 | Jack | 10T | 1 |
44 | Socket wrench | 8mm-32mm | 32/set |
45 | Cut clamp | medium-sized | 1 |
46 | Welding gloves |
| 1 |
47 |
|
|
|
48 | Work Light |
| 1 |
49 | Welding mask |
| 1 |
|
| ||||
|
| ||||
|
|
|
DongFeng third generation 6X6 Diesel off road vehicle |
