HOWO Mobile Workshop Tool Service Trucks Customizing (Maintenance Lorry Vehicle)
| Quantity: | |
|---|---|
-
Shanghai, China
-
10000
-
T/T, Western Union

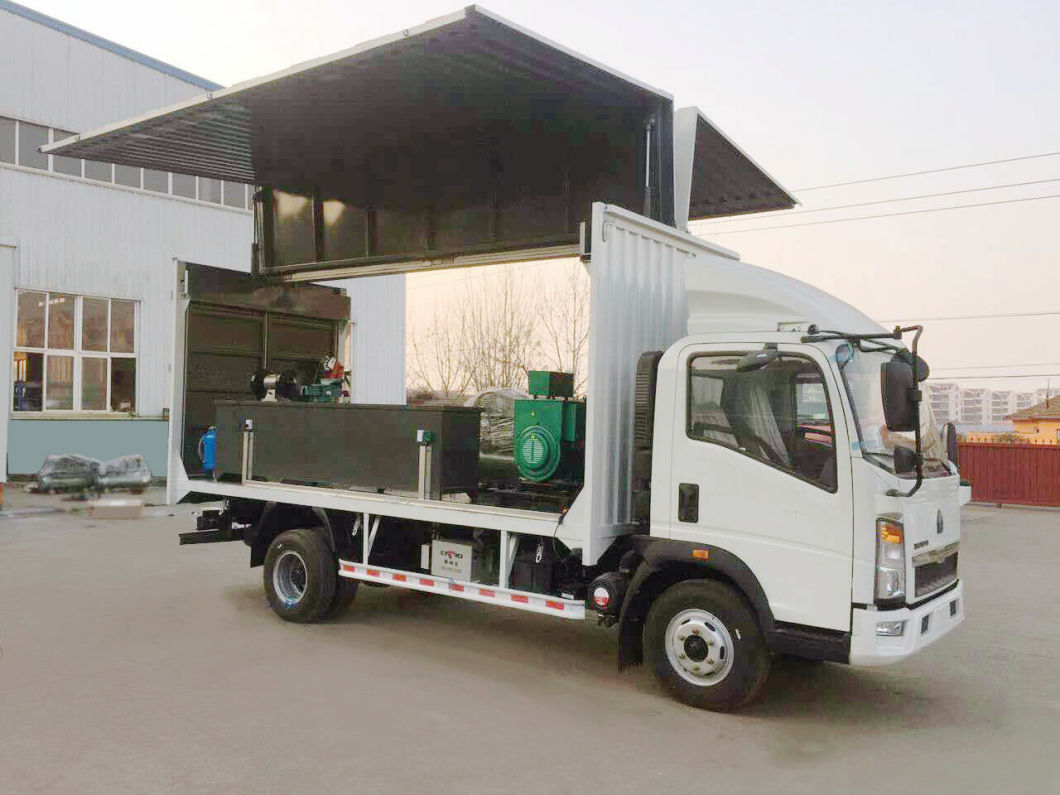

HOWO Mobile Workshop Tool Service Trucks Customizing
HOWO Mobile Workshop Tool Service Trucks Customizing
Multifunctional Maintainging Truck WorkShop Truck Customizing
Road Repair Mobile Workshop
Multifunctional Maintainging Truck WorkShop Truck Customizing
Road Repair Mobile Workshop
Off Road Service Trucks
Cell /+8615271357675
The pictures are for your reference only.

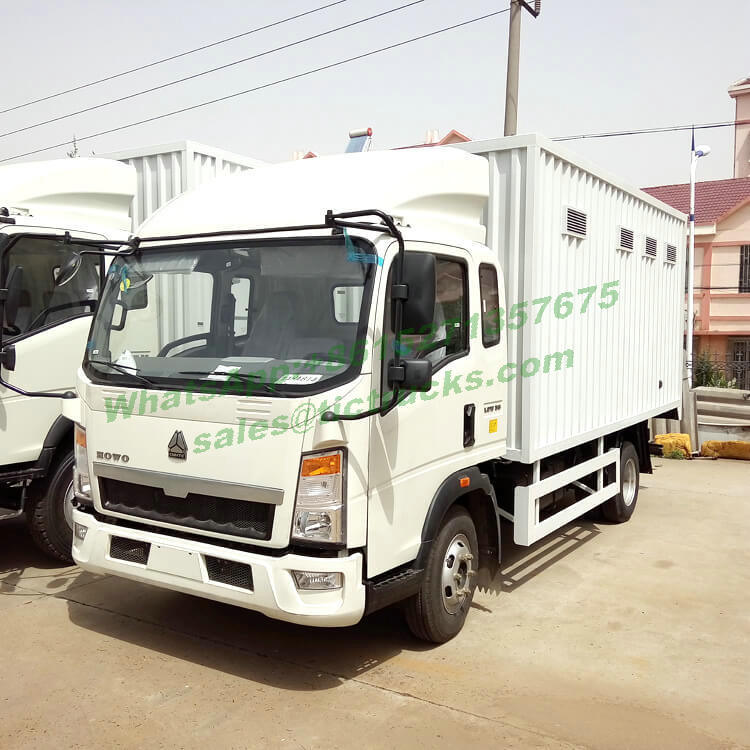

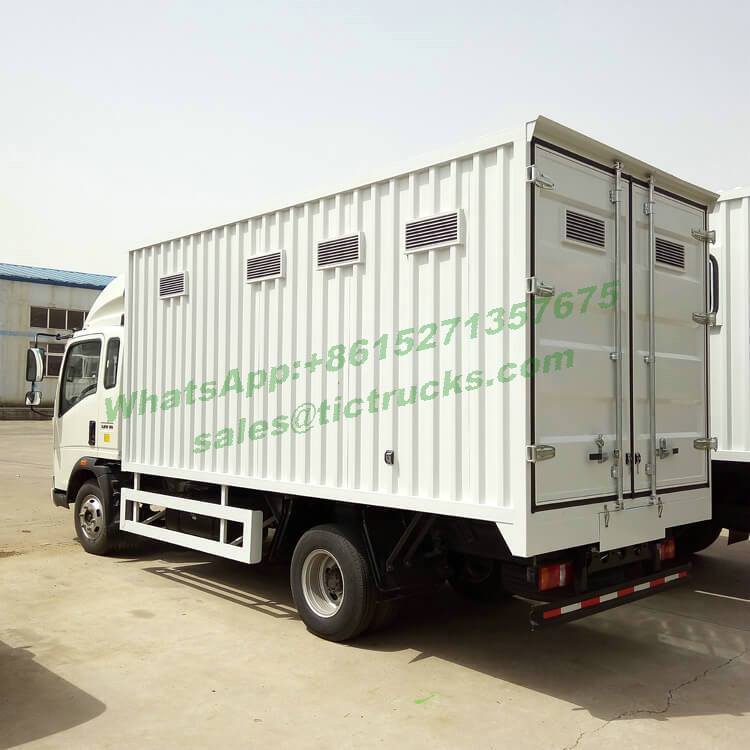

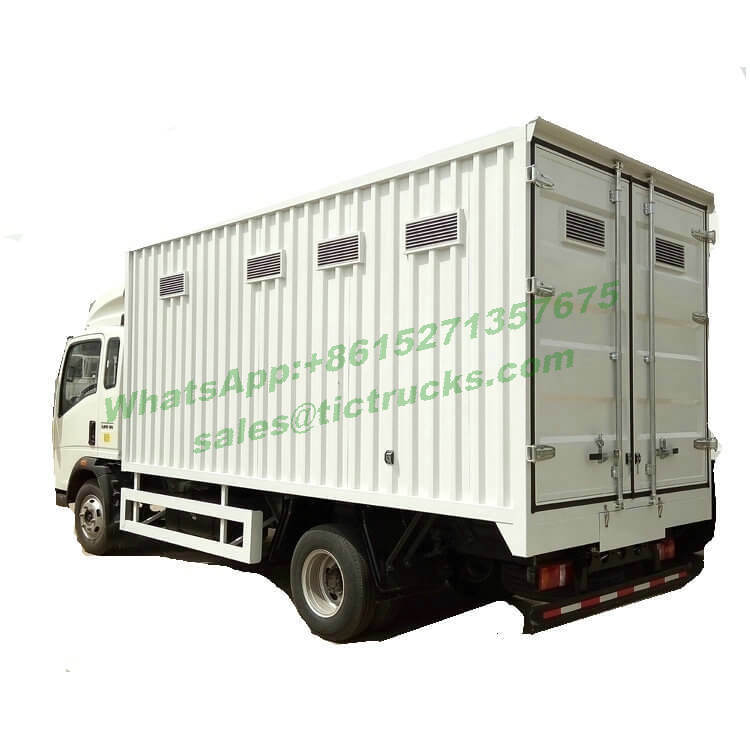

HOWO Mobile Workshop Tool Trucks 110HP Technical Parameters
| Description | Tool Truck | |
| Drive Model | 4X2 | |
| Vehicle Main Dimensions | Dimensions(L x W x H)mm | 6000x2250x2900 |
| Wheel base (mm) | 3360 | |
| Weight in KGS | Curb Weight | 4000 |
| GVW. | 8000 | |
| Max. driving speed(km/h) | 94 | |
| Engine | Model | YN4100 |
| Type | 4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
| Horse Power(HP) | 110HP | |
| Emission standard | Euro II | |
| Gearbox | 5 forwards & 1 reverse | |
| Steering Gear | Power steering, hydraulic steering with power assistance | |
| Tire | 7.00R16 all steel radial tyre with one spare | |
| Brakes | dual circuit compressed air brake | |
| Van | ||
| Material | Steel | |
HOWO Workshop Tool Truck 160HP
Technical parameters
| Cabin | Driving type 4*2 LHD/RHD Model ZZ 2080mm cabin, 1bed, AC | |
| Overall Size(mm) | 8500*2500*2850 | |
| Platform Size(mm) | 1100X570X1000mm | |
| Wheel base(mm) | 5200 | |
| GVW(kg) | 12000 | |
| Front axle loading capacity(kg) | 1*3800 | |
| Rear axle loading capacity(kg) | 2*10500 | |
| Engine | Brand | YuChai |
| Model | YC4E160-33 | |
| Type | Diesel, 4-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
| Displacement | 4.257L | |
| Bore*Stroke | 102*118mm | |
| Hose Power(HP) | 160HP | |
| Emission standard | Euro 2 | |
| Max speed | 72km/h | |
| Tire | 9.00R20 radial tires ,7pcs including 1 spare tire | |
| Transmission | DC6J65TC gear box, with 6 forward and 1 reverse | |
| Steering | power steering | |
| Oil tank | 220L Aluminum alloy fuel tank | |
| Brake system | Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake | |
Electrics | Operating voltage:24V,negative grounded Batteries:2x12 V,165 Ah horn,headlamps,fog lights,brake lights,indicators and reverse light | |
| Options | Vertical Muffler; ABS; Automatic Break Clearance Adjusting Arm; Traveling Data; ZF Gearbox PTO | |
Sinotruk Howo 6x4 Road Repair Mobile Workshop Maintenance Truck for Sale
HOWO Vehicle Mobile Workshop 6x4 | ||
Max WG:29000kg ZZ1257N4341W | ||
Complete | Tare Weight | 16,000 Kg |
Loading Capacity | 13000 Kg | |
Drive Type | 6X4 | |
Tyres | 10+ 1; 12.00R20 STEEL TYRE, | |
Max. Speed | 75 KPH | |
Max. Gradeability | 40% | |
Minimum Ground Clearance | 298 mm | |
Overall Dimensions | 9890,10350 x 2520 x 3660 mm | |
Wheel Base | 4325+1350 ;4600+1350 mm | |
Fuel Tank Capacity | 300L | |
Engine | WD615.62; WD615.92;(D12.27) 6 Cylinder in Line, Water Cooling Diesel Engine, Turbo Charged with Intercooler; 266hp/2200rpm; | |
Gearbox | FULLER RT-11509C; 9 Forwards & 1 Reverse | |
Equipment | Power Set | Model: 40GF ; Rated Power 40KW; Voltage 400/230V; |
Welding Set | Model: ZX7 SCR , (ZX5-250B); Voltage 380V; Initial Current 29.6A; | |
Air Compressor | Model: AW3608; Voltage 380V; Power 3KW; | |
Drilling Machine | Model: ZQJ4119AD; Bore Range 3 ~ 16mm; Power 700W | |
Vice | Size: 150mm | |
Grinding Machine | Model: MQ3225; Size 250mm; Power 700W | |
Gas Welding & Cutting Set | Oxygen Cylinder 40L; Accetylene Cylinder 20L | |
Working Bench | Steel Panel, 2,300mm x 550mm x 780mm | |
Lifting Device | Roof Mounted, Retractable Cantilever, 2-Ton Chain Block | |
General tools | 2 sets | |
Working light | 15m | |
Color: green | ||
SINOTRUK Mobile Workshop Truck

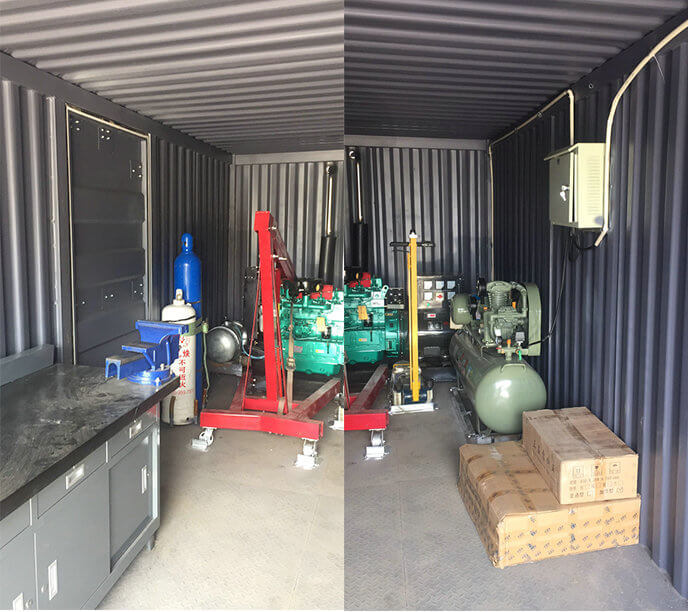

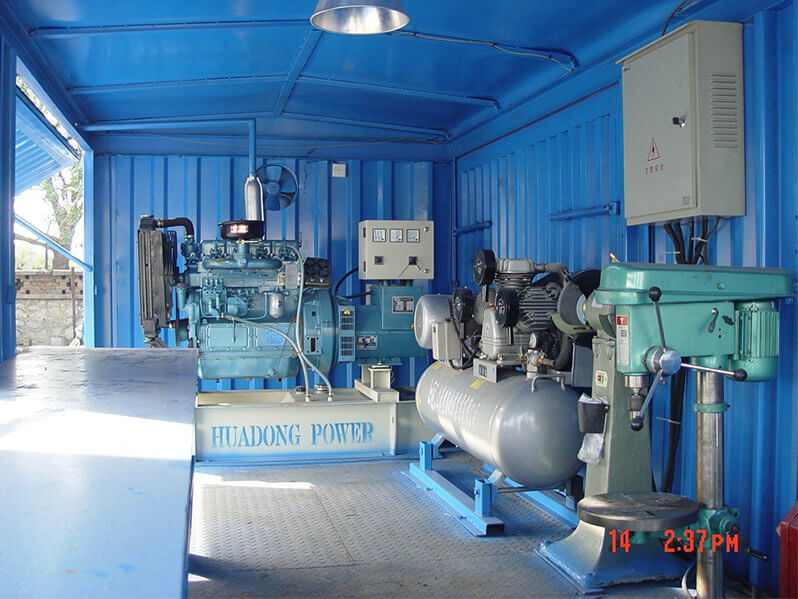

Equipment for Mobile Workshop 5190YX | |||||
Item | Description | Technical Data | Measurement | Weight | Qty. |
1 | Chassis | As Option | |||
2 | Power Set (Generator) | Model: 40GF74-4 | 2030x650x1255(mm) | 1030kg | 1 |
Rated Power: 40KW | |||||
Rated Voltage: 400/230V | |||||
Rated Frequency: 50Hz | |||||
Rated Current: 72.2A | |||||
Output: 3-phase, 4-line | |||||
Diesel Engine: R4100ZD | |||||
Generator Model: TZH-40 | |||||
3 | Welding Set | Model: ZX5-250B | 406x530x840(mm) | 160kg | 1 |
Voltage: 380V | |||||
Phase: 3 | |||||
Frequency: 50/60Hz | |||||
Initial Current: 29.6A | |||||
Range: 25-250A | |||||
Input: 19.2KVA | |||||
Working Ambient: -10--+40oC | |||||
4 | Air Compressor | Model: AW3608 | 1180x410x850(mm) | 130kg | 1 |
Voltage: 380V | |||||
Frequency: 50Hz | |||||
Power: 3KW | |||||
Pressure: 0.7MPa | |||||
Capacity: 0.36M3/mm | |||||
5 | Drilling Machine | Model: ZQJ4119AD | 760x490x260(mm) | 57kg | 1 |
Bore Range: 3--16mm | |||||
Power: 700W | |||||
6 | Vice | Size: 150mm | |||
7 | Grinding Machine | Model: MQ3225 | 1 | ||
Size: 250mm | |||||
Power: 700W | |||||
8 | Oxygen Cylinder | Volume: 40L | 1 | ||
9 | Acetylene Cylinder | 1 | |||
10 | Gas Welding Set | 1 | |||
11 | Working Bench | Steel Panel | 2300x550x780(mm) | 1 | |
12 | Hand Tools | M6--16 drilling set; Hack Saw; | |||
Hammer; Portable Oil Pump; | |||||
3--16mm Thread Tapper; | |||||
Spanner sets; Socket Spanner Sets | |||||
Files; Clamps | |||||
Tools
No | Name | Specification | Quantity |
1 | Bow saw frame | 2 | |
2 | Hacksaw blade | 18 tine; 32 tine | Each 1 |
3 | Manual oil gun | 1 | |
4 | Oil pot | 300cc | 1 |
5 | Hand electric drill | 220V 0.6~6mm | 1 |
6 | Pipe expansion ware | 1 set | |
7 | Electrical maintenance kits | with multimeter | 1 set |
8 | Screw tap | Coarse thread | 6/set |
9 | Screw tap | Fine thread | 3/set |
10 | Screw tap holder | 180mm;280mm | each 1 set |
11 | Screw die | Coarse thread | 6/set |
12 | Screw die | Fine thread | 3/set |
13 | Drill | 1-10mm (at intervals of)0.5mm | 2set |
14 | Drill | 11-16mm | 2sets |
15 | Drill | 3.4;4.2;5.1;6.8;8.5;10.2 | each 1 set |
16 | Steel ruler | 150mm,300mm | Each 1 |
17 | Vernier caliper | 150mm,250mm | 1 |
18 | Screw thread gauge | the metric system; British system | each 1 |
19 | Tape | 2m | 1 |
20 | Round head hammer | 2.5 pound | 1 |
21 | File | roundness,semi-circle,flat,square ,triangle | Each 2 |
22 | Assorted set of files | 2 sets | |
23 | Screwdriver | cross 125mm;minus 125mm | each 1 |
24 | Pointed plier | 150mm | 1 |
25 | Steel wire clamp | 200mm | 1 |
26 | Carp clamp | 200mm | 1 |
27 | Oxygen watch | 1 | |
28 | Acetylene watch | 1set | |
29 | Welding wire clip | 500A | 1 |
30 | White glass | 10 | |
31 | Protection glasses | 1 | |
32 | Steel brush | 1 | |
33 | Emery cloth | 46#;80#;120# | each 10 |
34 | Metric fixed wrench | 10/set | 1 set |
35 | Metric ring wrench | 10/set | 1 set |
36 | Wrench | 8";10";12" | each 1 |
37 | Round head hammer | 1.5 pound | 1 |
38 | Welding torch | 1 | |
39 | Cut torch | 1 | |
40 | Oxygen tube | 30m | 1 |
41 | Acetylene tube | 30m | 1 |
42 | Hand electric drill | 220V 3-19mm | 1 |
43 | Jack | 10T | 1 |
44 | Socket wrench | 8mm-32mm | 32/set |
45 | Cut clamp | medium-sized | 1 |
46 | Welding gloves | 1 | |
47 | |||
48 | Work Light | 1 | |
49 | Welding mask | 1 |
Equipments:
50Kw generator, air conoressor, charger, portable generator, are welding machine, plasma cutting machine, eletric winch, desk drill, desk grinding machine, 1 ton crane, 200kg hand chain hoist and slide rail, pneumatic tyre spanner
maintenance vehicle,Emergency repair car,road service car,maintenance truck
Hydraulic drive, reliable, safe and noise-free;
Latest fan-shaped nozzle, three overlapping design;
High power rear lights for night operation
option 2
Device | Model | Specifications | Dimensions |
Chassis | ZZ2152M4367LA ZZ2152M4367LA | ||
Pressure Washer | DL40-type | 22L/MINPressure:210kg Flow: 22L/MIN Motor:11kw Spray gun: 1 unit High-pressure hose:10 m nozzle: 5 unit 350kgWeight:350kg | Length:1500mm Width:650mm Height:500mm |
Oil drum with a suction pump | JK-3BGeneral | 40L/minPower:0.12kw Flow: 40L/min Head:2.5m Entrance and Exit: 25/32mm Voltage:220V | |
40KWdiesel generator set | 40GF-440GF-4 Engine Model: R4110D40-1 Generator Type:TZH-40 | Rated Power:40kw Rated Voltage:400/230V Rated Frequency:50HZ Rated current: 72.2A Output Mode:3-phase 4-wire Weight:850kg | 1820- x636x - 1320 |
ZX7SCRWelding Machine | ZX7-400SZX7-400S | Voltage:380V, 3 phase, 50/60HZ CurrentRange:25-250A Input Capacity: 14.5KVA Working environment:-10 ~ +40. C C | 475-x 280 -x 400 |
beiben tractor trucks, beiben dump trucks and bogie suspension semitrailers that worked very well in Congo, Alegeria, Nigeria, Tanzania, Kenya and south africa.
China Truck Truck Trailer Diesel Truck Tractor Truck Off Road Truck Lorry Truck Beiben Truck Mobile Steel Structure Workshop Mobile Led Truck Workshop Truck Truck Mobile Display Sinotruk Mobile Workshop Truck
Recommended Suppliers
China Truck Manufacturers Truck Trailer Manufacturers Diesel Truck Manufacturers Tractor Truck Manufacturers Off Road Truck Manufacturers Lorry Truck Manufacturers Beiben Truck Manufacturers Mobile Steel Structure Workshop Manufacturers Mobile Led Truck Manufacturers Workshop Truck Manufacturers Truck Mobile Display Manufacturers Sinotruk Mobile Workshop Truck Manufacturers
Hot Wholesale Products
Wholesale Lorry Truck Wholesale Service Truck Body Wholesale Workshop Truck Wholesale Mining Service Truck Wholesale Military Truck Parts Wholesale Mobile Workshop Bodies
HOWO Mobile Workshop Tool Service Trucks Customizing
HOWO Mobile Workshop Tool Service Trucks Customizing
Multifunctional Maintainging Truck WorkShop Truck Customizing
Road Repair Mobile Workshop
Multifunctional Maintainging Truck WorkShop Truck Customizing
Road Repair Mobile Workshop
Off Road Service Trucks
Cell /+8615271357675
The pictures are for your reference only.
HOWO Mobile Workshop Tool Trucks 110HP Technical Parameters
| Description | Tool Truck | |
| Drive Model | 4X2 | |
| Vehicle Main Dimensions | Dimensions(L x W x H)mm | 6000x2250x2900 |
| Wheel base (mm) | 3360 | |
| Weight in KGS | Curb Weight | 4000 |
| GVW. | 8000 | |
| Max. driving speed(km/h) | 94 | |
| Engine | Model | YN4100 |
| Type | 4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
| Horse Power(HP) | 110HP | |
| Emission standard | Euro II | |
| Gearbox | 5 forwards & 1 reverse | |
| Steering Gear | Power steering, hydraulic steering with power assistance | |
| Tire | 7.00R16 all steel radial tyre with one spare | |
| Brakes | dual circuit compressed air brake | |
| Van | ||
| Material | Steel | |
HOWO Workshop Tool Truck 160HP
Technical parameters
| Cabin | Driving type 4*2 LHD/RHD Model ZZ 2080mm cabin, 1bed, AC | |
| Overall Size(mm) | 8500*2500*2850 | |
| Platform Size(mm) | 1100X570X1000mm | |
| Wheel base(mm) | 5200 | |
| GVW(kg) | 12000 | |
| Front axle loading capacity(kg) | 1*3800 | |
| Rear axle loading capacity(kg) | 2*10500 | |
| Engine | Brand | YuChai |
| Model | YC4E160-33 | |
| Type | Diesel, 4-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
| Displacement | 4.257L | |
| Bore*Stroke | 102*118mm | |
| Hose Power(HP) | 160HP | |
| Emission standard | Euro 2 | |
| Max speed | 72km/h | |
| Tire | 9.00R20 radial tires ,7pcs including 1 spare tire | |
| Transmission | DC6J65TC gear box, with 6 forward and 1 reverse | |
| Steering | power steering | |
| Oil tank | 220L Aluminum alloy fuel tank | |
| Brake system | Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake | |
Electrics | Operating voltage:24V,negative grounded Batteries:2x12 V,165 Ah horn,headlamps,fog lights,brake lights,indicators and reverse light | |
| Options | Vertical Muffler; ABS; Automatic Break Clearance Adjusting Arm; Traveling Data; ZF Gearbox PTO | |
Sinotruk Howo 6x4 Road Repair Mobile Workshop Maintenance Truck for Sale
HOWO Vehicle Mobile Workshop 6x4 | ||
Max WG:29000kg ZZ1257N4341W | ||
Complete | Tare Weight | 16,000 Kg |
Loading Capacity | 13000 Kg | |
Drive Type | 6X4 | |
Tyres | 10+ 1; 12.00R20 STEEL TYRE, | |
Max. Speed | 75 KPH | |
Max. Gradeability | 40% | |
Minimum Ground Clearance | 298 mm | |
Overall Dimensions | 9890,10350 x 2520 x 3660 mm | |
Wheel Base | 4325+1350 ;4600+1350 mm | |
Fuel Tank Capacity | 300L | |
Engine | WD615.62; WD615.92;(D12.27) 6 Cylinder in Line, Water Cooling Diesel Engine, Turbo Charged with Intercooler; 266hp/2200rpm; | |
Gearbox | FULLER RT-11509C; 9 Forwards & 1 Reverse | |
Equipment | Power Set | Model: 40GF ; Rated Power 40KW; Voltage 400/230V; |
Welding Set | Model: ZX7 SCR , (ZX5-250B); Voltage 380V; Initial Current 29.6A; | |
Air Compressor | Model: AW3608; Voltage 380V; Power 3KW; | |
Drilling Machine | Model: ZQJ4119AD; Bore Range 3 ~ 16mm; Power 700W | |
Vice | Size: 150mm | |
Grinding Machine | Model: MQ3225; Size 250mm; Power 700W | |
Gas Welding & Cutting Set | Oxygen Cylinder 40L; Accetylene Cylinder 20L | |
Working Bench | Steel Panel, 2,300mm x 550mm x 780mm | |
Lifting Device | Roof Mounted, Retractable Cantilever, 2-Ton Chain Block | |
General tools | 2 sets | |
Working light | 15m | |
Color: green | ||

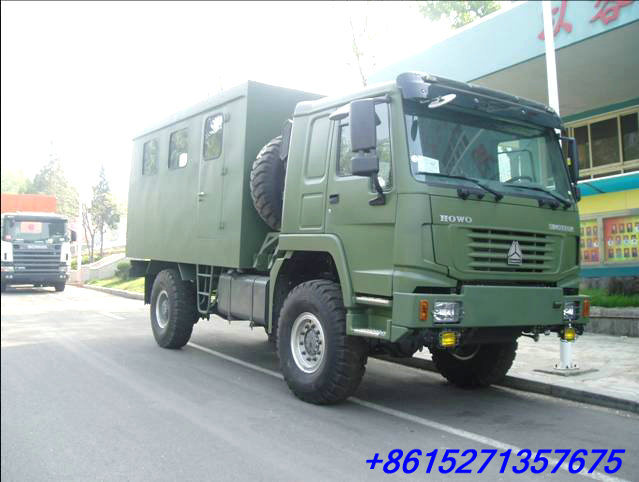

SINOTRUK Mobile Workshop Truck
Equipment for Mobile Workshop 5190YX | |||||
Item | Description | Technical Data | Measurement | Weight | Qty. |
1 | Chassis | As Option | |||
2 | Power Set (Generator) | Model: 40GF74-4 | 2030x650x1255(mm) | 1030kg | 1 |
Rated Power: 40KW | |||||
Rated Voltage: 400/230V | |||||
Rated Frequency: 50Hz | |||||
Rated Current: 72.2A | |||||
Output: 3-phase, 4-line | |||||
Diesel Engine: R4100ZD | |||||
Generator Model: TZH-40 | |||||
3 | Welding Set | Model: ZX5-250B | 406x530x840(mm) | 160kg | 1 |
Voltage: 380V | |||||
Phase: 3 | |||||
Frequency: 50/60Hz | |||||
Initial Current: 29.6A | |||||
Range: 25-250A | |||||
Input: 19.2KVA | |||||
Working Ambient: -10--+40oC | |||||
4 | Air Compressor | Model: AW3608 | 1180x410x850(mm) | 130kg | 1 |
Voltage: 380V | |||||
Frequency: 50Hz | |||||
Power: 3KW | |||||
Pressure: 0.7MPa | |||||
Capacity: 0.36M3/mm | |||||
5 | Drilling Machine | Model: ZQJ4119AD | 760x490x260(mm) | 57kg | 1 |
Bore Range: 3--16mm | |||||
Power: 700W | |||||
6 | Vice | Size: 150mm | |||
7 | Grinding Machine | Model: MQ3225 | 1 | ||
Size: 250mm | |||||
Power: 700W | |||||
8 | Oxygen Cylinder | Volume: 40L | 1 | ||
9 | Acetylene Cylinder | 1 | |||
10 | Gas Welding Set | 1 | |||
11 | Working Bench | Steel Panel | 2300x550x780(mm) | 1 | |
12 | Hand Tools | M6--16 drilling set; Hack Saw; | |||
Hammer; Portable Oil Pump; | |||||
3--16mm Thread Tapper; | |||||
Spanner sets; Socket Spanner Sets | |||||
Files; Clamps | |||||
Tools
No | Name | Specification | Quantity |
1 | Bow saw frame | 2 | |
2 | Hacksaw blade | 18 tine; 32 tine | Each 1 |
3 | Manual oil gun | 1 | |
4 | Oil pot | 300cc | 1 |
5 | Hand electric drill | 220V 0.6~6mm | 1 |
6 | Pipe expansion ware | 1 set | |
7 | Electrical maintenance kits | with multimeter | 1 set |
8 | Screw tap | Coarse thread | 6/set |
9 | Screw tap | Fine thread | 3/set |
10 | Screw tap holder | 180mm;280mm | each 1 set |
11 | Screw die | Coarse thread | 6/set |
12 | Screw die | Fine thread | 3/set |
13 | Drill | 1-10mm (at intervals of)0.5mm | 2set |
14 | Drill | 11-16mm | 2sets |
15 | Drill | 3.4;4.2;5.1;6.8;8.5;10.2 | each 1 set |
16 | Steel ruler | 150mm,300mm | Each 1 |
17 | Vernier caliper | 150mm,250mm | 1 |
18 | Screw thread gauge | the metric system; British system | each 1 |
19 | Tape | 2m | 1 |
20 | Round head hammer | 2.5 pound | 1 |
21 | File | roundness,semi-circle,flat,square ,triangle | Each 2 |
22 | Assorted set of files | 2 sets | |
23 | Screwdriver | cross 125mm;minus 125mm | each 1 |
24 | Pointed plier | 150mm | 1 |
25 | Steel wire clamp | 200mm | 1 |
26 | Carp clamp | 200mm | 1 |
27 | Oxygen watch | 1 | |
28 | Acetylene watch | 1set | |
29 | Welding wire clip | 500A | 1 |
30 | White glass | 10 | |
31 | Protection glasses | 1 | |
32 | Steel brush | 1 | |
33 | Emery cloth | 46#;80#;120# | each 10 |
34 | Metric fixed wrench | 10/set | 1 set |
35 | Metric ring wrench | 10/set | 1 set |
36 | Wrench | 8";10";12" | each 1 |
37 | Round head hammer | 1.5 pound | 1 |
38 | Welding torch | 1 | |
39 | Cut torch | 1 | |
40 | Oxygen tube | 30m | 1 |
41 | Acetylene tube | 30m | 1 |
42 | Hand electric drill | 220V 3-19mm | 1 |
43 | Jack | 10T | 1 |
44 | Socket wrench | 8mm-32mm | 32/set |
45 | Cut clamp | medium-sized | 1 |
46 | Welding gloves | 1 | |
47 | |||
48 | Work Light | 1 | |
49 | Welding mask | 1 |

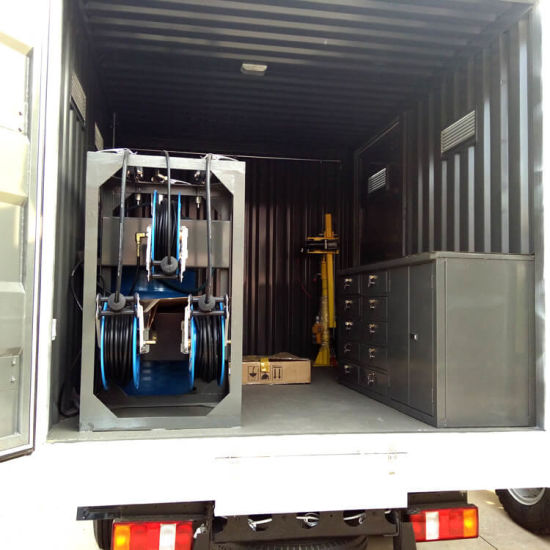

Equipments:
50Kw generator, air conoressor, charger, portable generator, are welding machine, plasma cutting machine, eletric winch, desk drill, desk grinding machine, 1 ton crane, 200kg hand chain hoist and slide rail, pneumatic tyre spanner
maintenance vehicle,Emergency repair car,road service car,maintenance truck
Hydraulic drive, reliable, safe and noise-free;
Latest fan-shaped nozzle, three overlapping design;
High power rear lights for night operation
option 2
Device | Model | Specifications | Dimensions |
Chassis | ZZ2152M4367LA ZZ2152M4367LA | ||
Pressure Washer | DL40-type | 22L/MINPressure:210kg Flow: 22L/MIN Motor:11kw Spray gun: 1 unit High-pressure hose:10 m nozzle: 5 unit 350kgWeight:350kg | Length:1500mm Width:650mm Height:500mm |
Oil drum with a suction pump | JK-3BGeneral | 40L/minPower:0.12kw Flow: 40L/min Head:2.5m Entrance and Exit: 25/32mm Voltage:220V | |
40KWdiesel generator set | 40GF-440GF-4 Engine Model: R4110D40-1 Generator Type:TZH-40 | Rated Power:40kw Rated Voltage:400/230V Rated Frequency:50HZ Rated current: 72.2A Output Mode:3-phase 4-wire Weight:850kg | 1820- x636x - 1320 |
ZX7SCRWelding Machine | ZX7-400SZX7-400S | Voltage:380V, 3 phase, 50/60HZ CurrentRange:25-250A Input Capacity: 14.5KVA Working environment:-10 ~ +40. C C | 475-x 280 -x 400 |
beiben tractor trucks, beiben dump trucks and bogie suspension semitrailers that worked very well in Congo, Alegeria, Nigeria, Tanzania, Kenya and south africa.
China Truck Truck Trailer Diesel Truck Tractor Truck Off Road Truck Lorry Truck Beiben Truck Mobile Steel Structure Workshop Mobile Led Truck Workshop Truck Truck Mobile Display Sinotruk Mobile Workshop Truck
Recommended Suppliers
China Truck Manufacturers Truck Trailer Manufacturers Diesel Truck Manufacturers Tractor Truck Manufacturers Off Road Truck Manufacturers Lorry Truck Manufacturers Beiben Truck Manufacturers Mobile Steel Structure Workshop Manufacturers Mobile Led Truck Manufacturers Workshop Truck Manufacturers Truck Mobile Display Manufacturers Sinotruk Mobile Workshop Truck Manufacturers
Hot Wholesale Products
Wholesale Lorry Truck Wholesale Service Truck Body Wholesale Workshop Truck Wholesale Mining Service Truck Wholesale Military Truck Parts Wholesale Mobile Workshop Bodies
