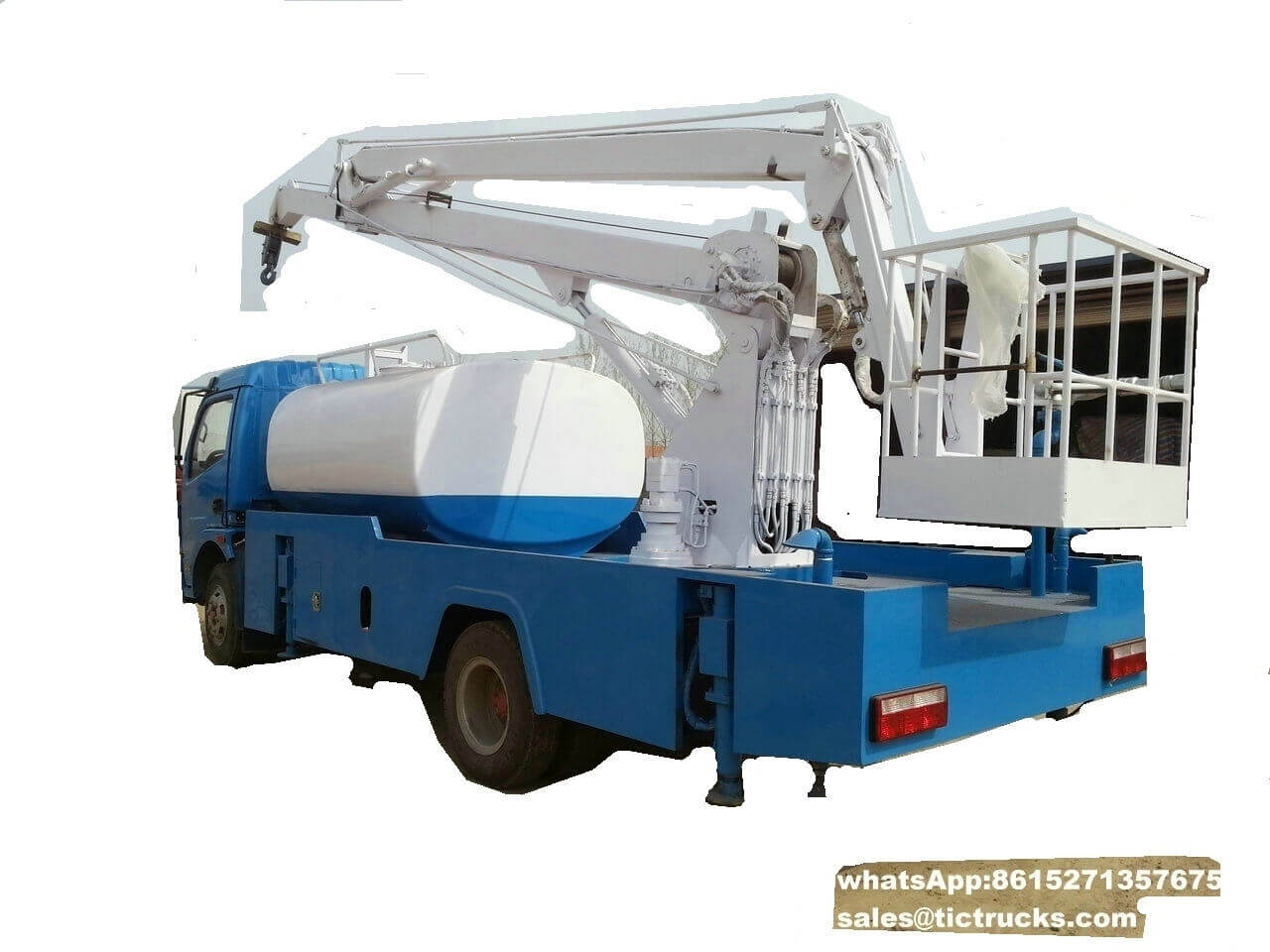

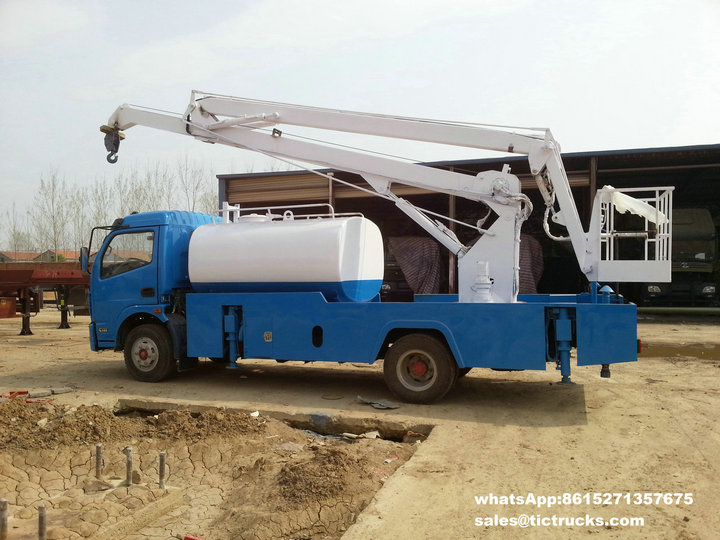

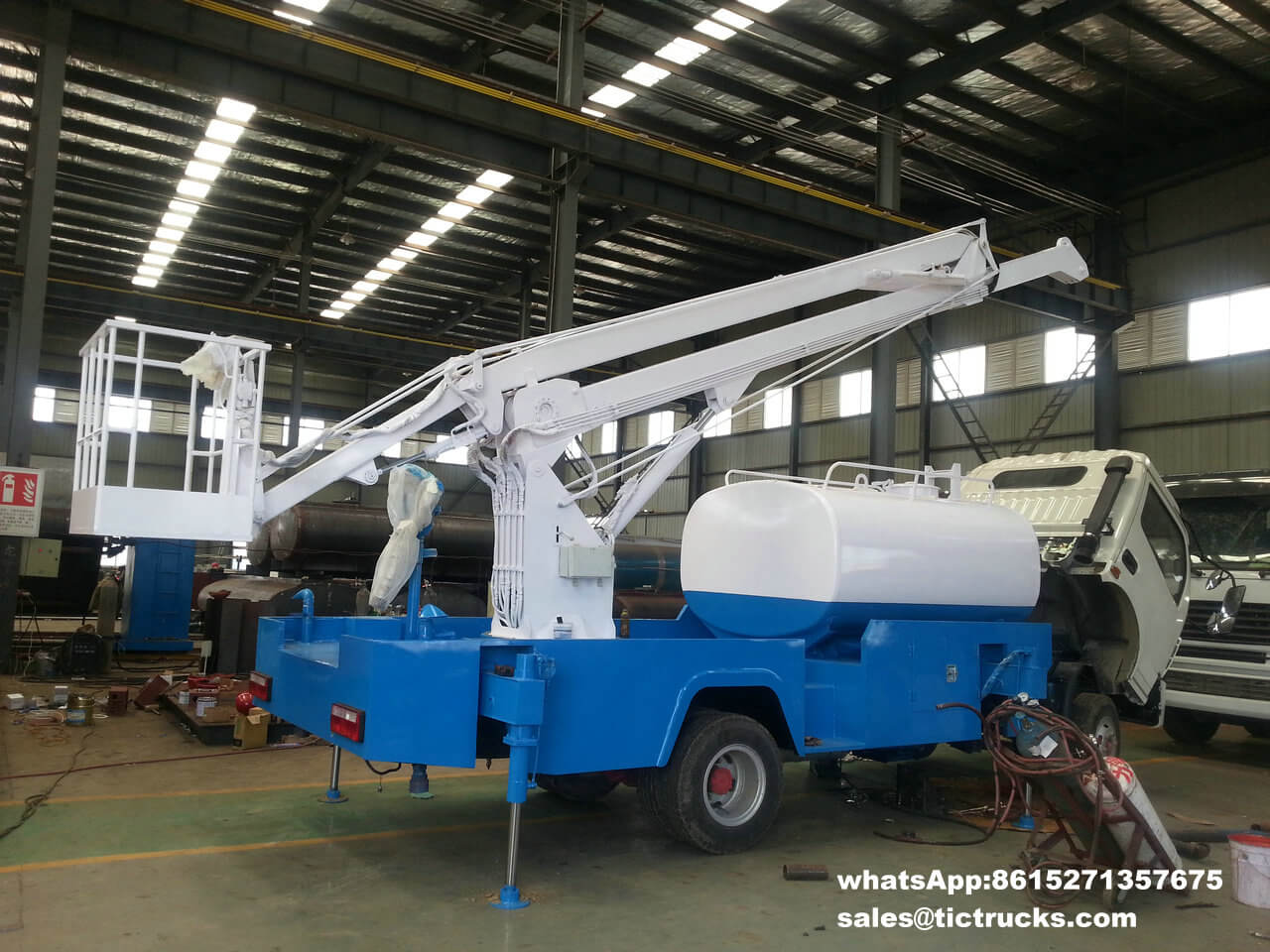

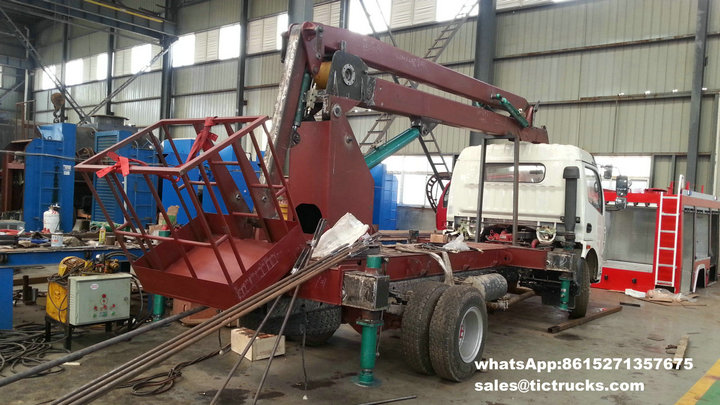

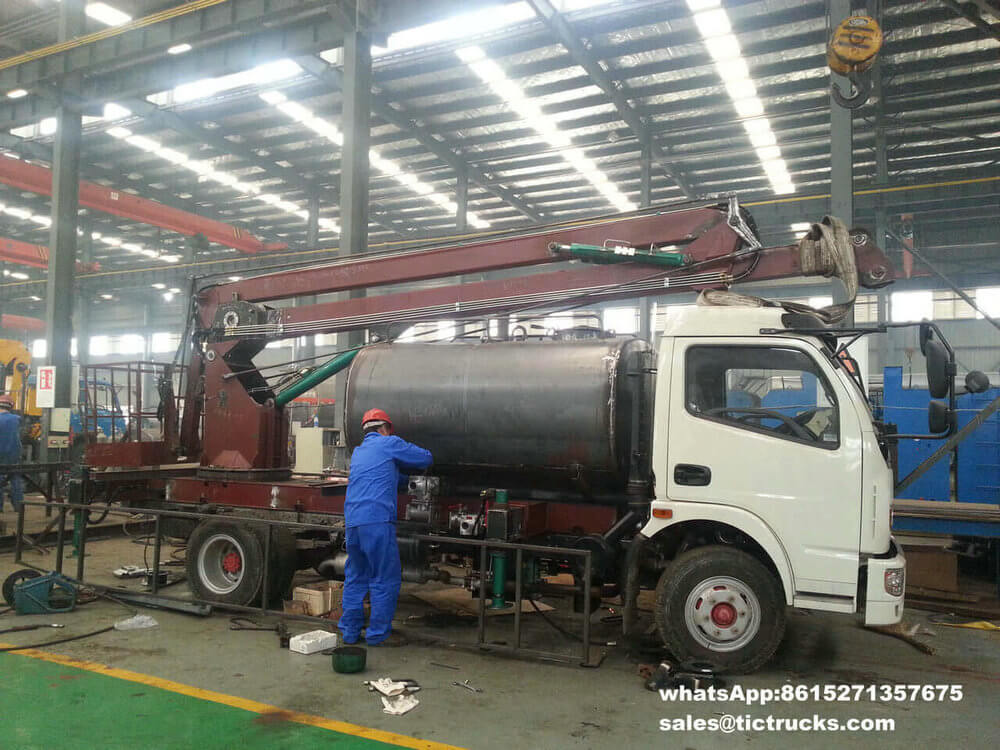

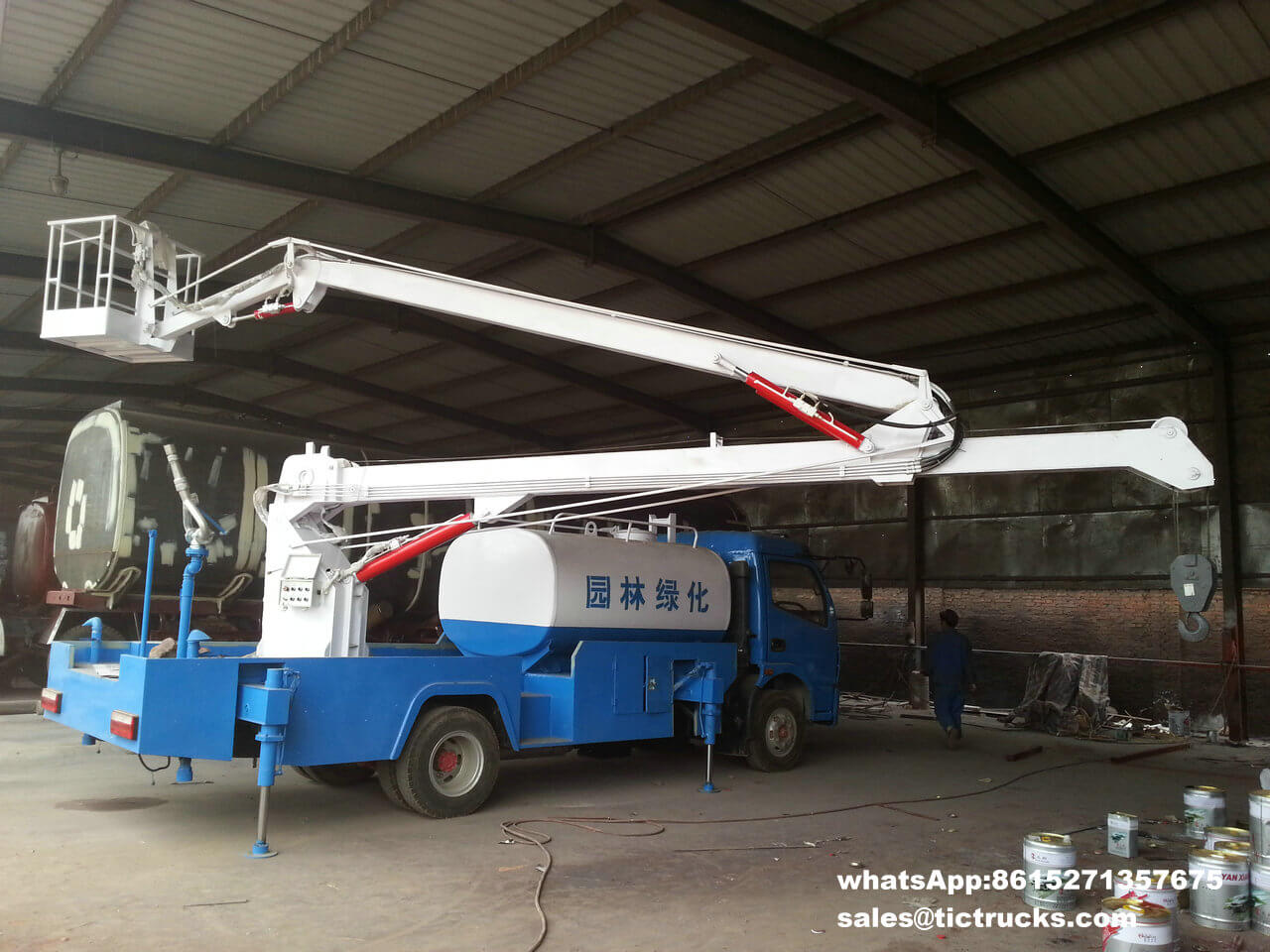

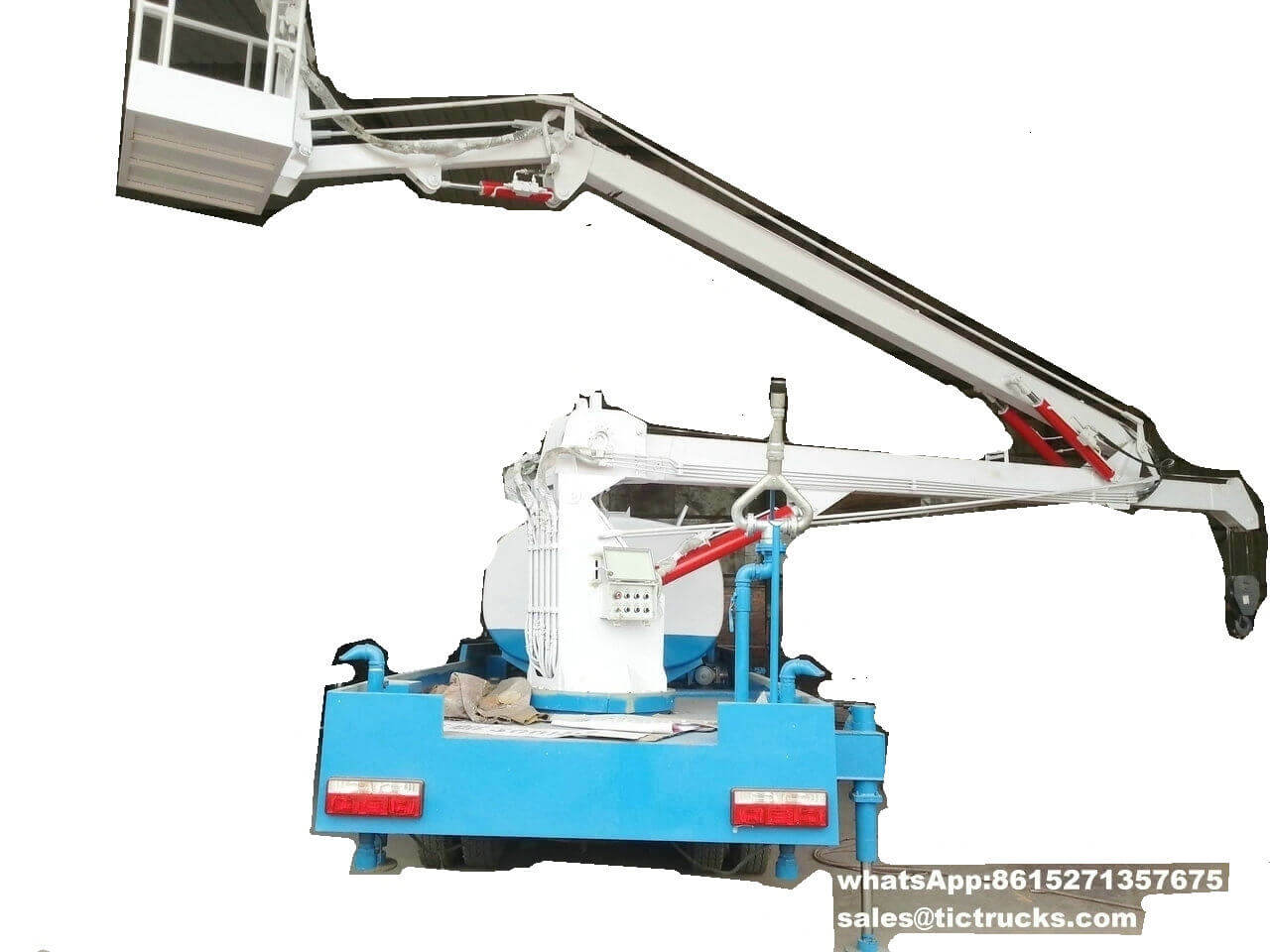

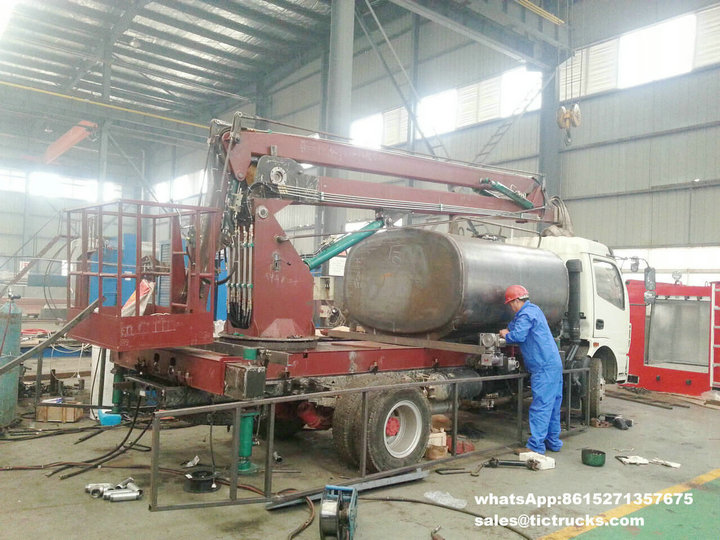

Aerial platform truck 16m with water tank and water pump Customising
Aerial Platform 16m Water Tank 3000L Truck
Aerial platform truck 16m with water tank and water pump Customising Aerial Platform 16m Water Tank 3000L Truck
water tanker is superior high quality carbon steel plate, provided with Yifeng special-purpose sprinkler water pump, vertical imbibing length≥5m, spray width≥14m, hoisting heights ≥25m.
Front washing and rear sprinkling, with spurting aside, with working platform after the tank installed high pressure cannon(the spurting water can be adjusted to concurrent shape, heavy rain shape, moderate rain, fine rain shape, and the cannon can rotate 360 degree, hoisting≥25m)
Installed with self-flow and fire hydrant valve. Equip with self-priming pump, which could suck the pool water into the tanker, and also can suck water from fire hydrant in the street directly.
The water trucks also have the function of pesticide spraying. The water tankers could be processed through antiseptic treatment according to customer’s requirements. They’re also applicable for water carrier and emergent firefighting.
Please notify in advance if you have special requirements about water trucks (eg: stainless steel plate material). We can offer various spare parts, pipes and sprayer nozzles.
1. Dongfeng 4x2 chassis, flat cab with sleeper, left/right hand drive with A/C;
1. Tank effective volume: 2000L-3000L, made by 4-6mm carbon steel plate or corrosion resistant plate;
Basic composition:chassis,tanker,PTO,transmission shaft,special self-priming pump,pipeline,jet,rear work platform.Optional equipment:GPS, gimbaled nozzle,VVB,pneumatic valve,visual operating system,external power,medicament tray.
Our company develop all kinds of watering trucks, mainly used in city roads,big factory,troops,parks,cleaning,proventing dust,watering,crop-dusting and so on.We can produce different all kinds of watering trucks according to customer's requirements.
reasonable price,multiple functions,easy operation
Gross Weight (kg)
Overall dimensions (mm)
Curb Weight (kg)
Approach / Departure Angle(°)
Front Track (mm)
Rear Track (mm)
Front/Rear Overhang (mm)
Axle Load (kg)
Number of axles
Number of Tyres
Max speed (km/h)
Allowable Cab Passengers
Max Operation Height: 16m , 360° hydraulic Rotation, 3section folding arm, Single hydraulic lifting cylinder, bidirection balance valve, Electronical Control System lift arm, 1000kg telescoping hook, 4pcs of hydrocylinder adjustable manual landing leg with bothway hydraulic lock.
double row cab,side and rear protective material is Q235, connecting by nut and welding,rear bottom part clearance is 450mm,section size is 30×200(mm)
