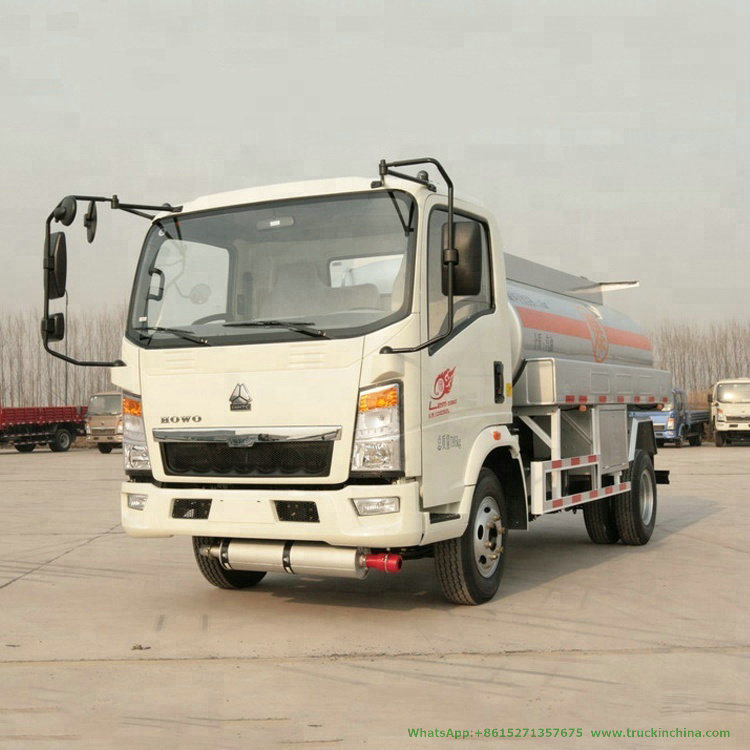

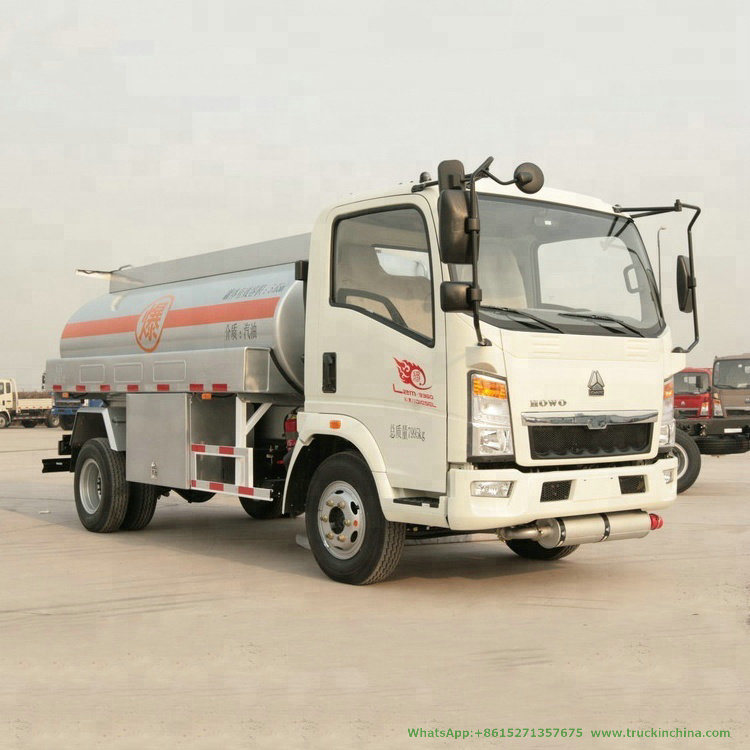

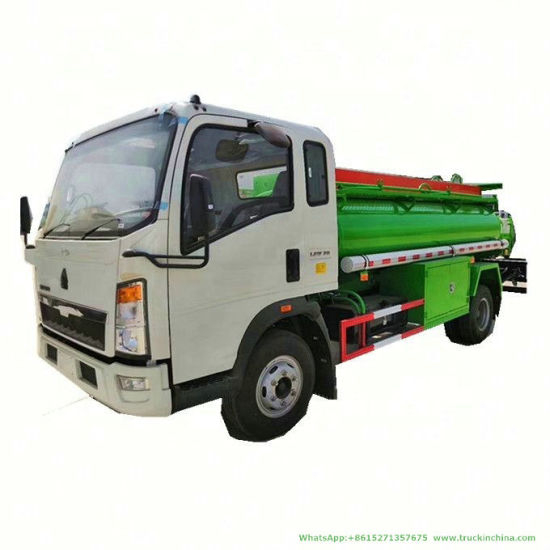

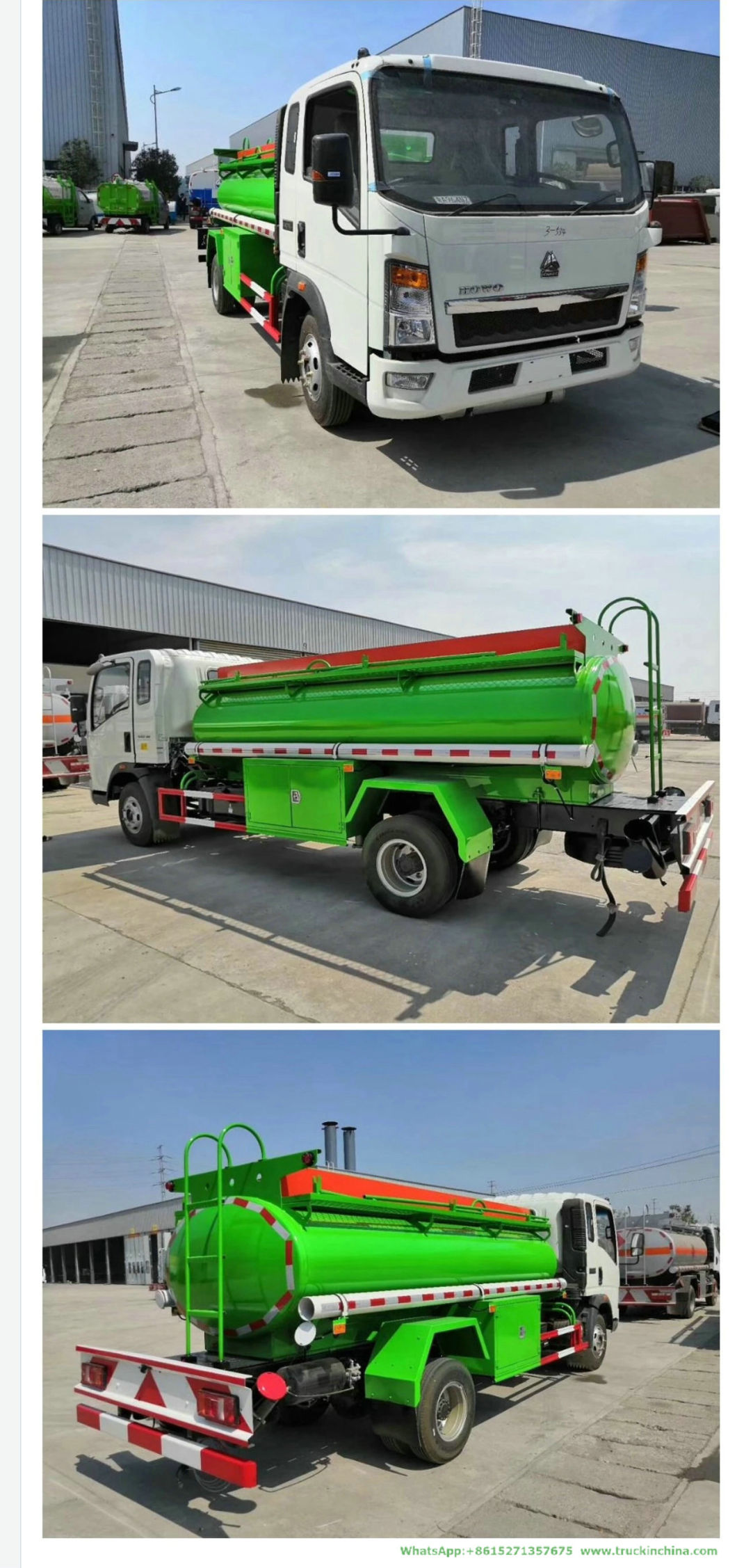

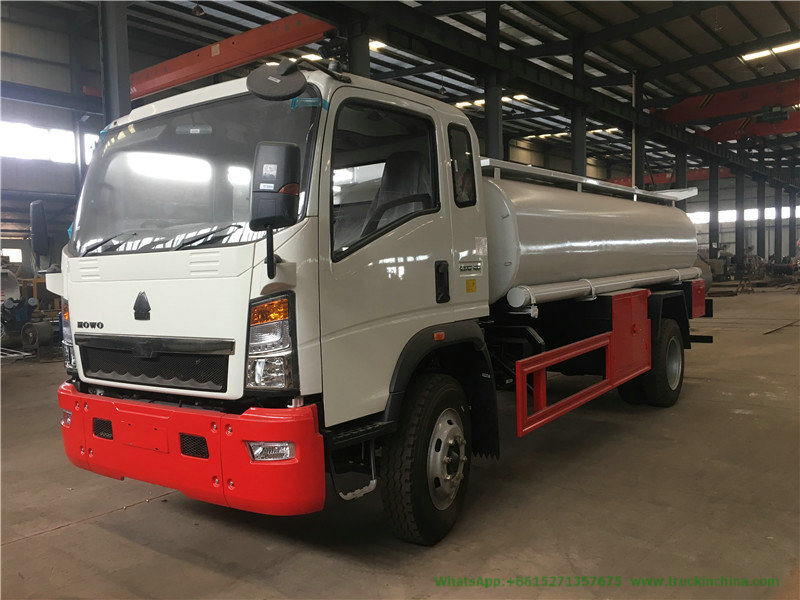

5000 Liters HOWO Fuel Tanker (LHD, RHD Right Hand Drive Diesel Delivery Refueling Truck 1500 -2000Gallon)
| Quantity: | |
|---|---|
-
Shanghai, China
-
3000
-
T/T
5000 Liters HOWO Fuel Tanker (LHD ,RHD Right Hand Drive Diesel Delivery Refueling Truck)
Sinotruck 3-8 ton 1500 -2000Gallon diesel engine fuel pump truck,oil tanker
Hot Sale SINOTRUK HOWO 4X2 1500 Gallon Fuel Tanker Truck with Fuel Delivery Nozzle
| Name | Refuel Truck |
| Dimension(LxWxH) | 6900*2320*2700(mm) |
| Total Mass | 12400 Kg |
| Rated Payload | 10000 Kg |
| Cerb Weight | 2400 Kg |
| Passenger | 3 |
| Approach/Departure Angle | 21/16 |
| The Parameters of Chassis | |
| Manufacture/Model | HOWO/BJ1073VEJEA-A |
| Driving Type | 4*2 left/right hand drive |
| Wheel Base | 4200 mm |
| Gearbox | Six speed lever with five speed forward and one reverse, manual |
| Front/Rear Track | 1545/1525(mm) |
| Tyre | 8.50-16 |
| The Number of Tyre | 6+1(spare tyre) |
| Front/Rear Suspension | 1085/1550(mm) |
| Leaf Spring Number | 4/6+7 |
| The Paremeters of Engine | |
| Manufacturer/Model | Yuchai/4DW9163NG2 |
| Rated Power | 140hp |
| Fuel Type | Diesel oil |
| Displacement/Capacity | 5900ml |
| Emission Standard | Euro3 |
| Cylinder | Straight/4/intercooling |
| Max. torque | 500N.m |
| Velocity | 2000rpm |
| The Parameters of Equipment | |
| Color/Logo | Customizable |
| Material | Carbon steel |
| Function | Transporting and refueling, etc. |
| Volume of Tank | 10000L |
| Thickness | 5mm |

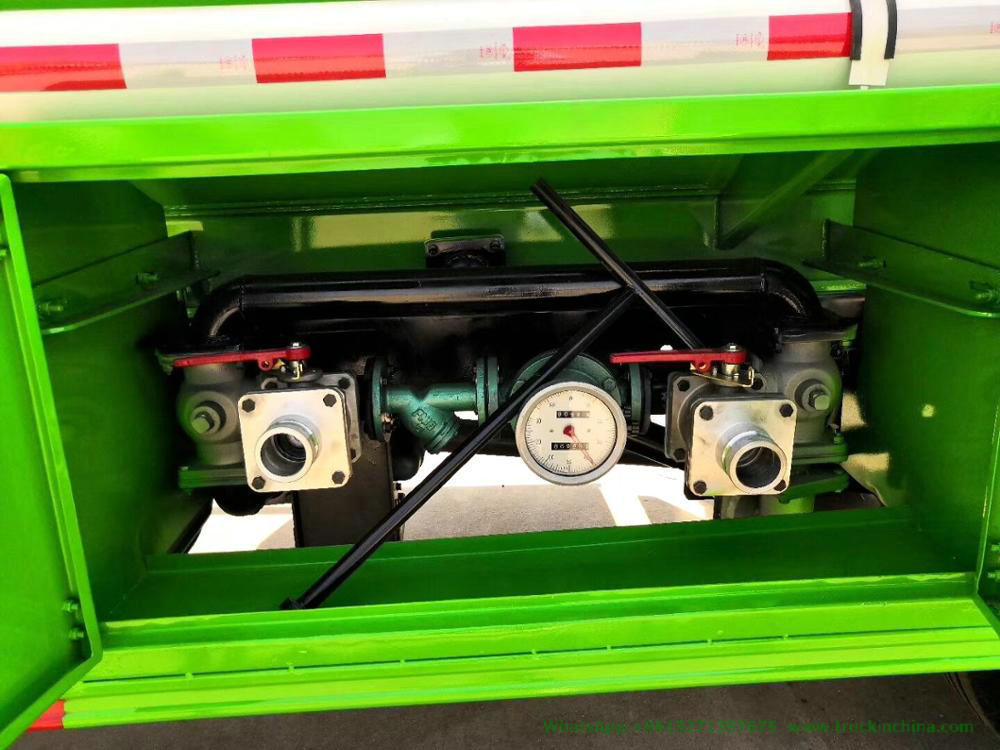

| Equipment | Pump,outlet and inlet valve (with filter), wave baffle, dispenser, dispensing gun,15m hose,tool box,manhole,ladder,walkway over the tank,three layer painting,breather valve,etc. |
HOWO 6000L mobile fuel trucks and 6 cubic fuel pump truck for sale
| Petroleum Tank Truck Sinotruk - HOWO (5,000-6000 Litres) | ||
| General | Vehicle Brand | DRZ |
| Chassis Brand | Sinotruk - Howo | |
| Overall Dimension | 5960 * 2300 * 2500 mm | |
| GVW / Kerb Weight | 6,790 kg / 3,860 kg | |
| Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | Air conditioner is optional | |
| Engine | Fuel Type | Diesel |
| Engine Brand | Yuchai engine | |
| Power | 130 Ps (96 KW) | |
| Displacement | 3760 ml | |
| Emission Standard | Euro III | |
| Chassis | Drive Type | 4X2, left hand drive |
| Transmission | 5-speed forward, 1 reverse | |
| Wheelbase/No. of axle | 3360 mm / 2 | |
| Tyre Specification | 7.00R16LT | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 75 km/h | |
| Paint | Metallic paint | |
| Superstructure | Tank Capacity | 5,000-6000 Litres ( About 1,300-1500 gallons) |
| Tank Material | Carbon steel | |
| Pump | Fuel pump equipped for overhead delivery | |
| Suction Head | 6 m | |
| Hose | High quality, wire suggested hose, with cooper wire, anti-static | |
| All standard accessories: manhole, ladder, anti-static belt, anti-slip walkway, handrail, fire extinguisher, inlet, discharge, reflective stickers........ | ||
| Optional | ** Tank material could be carbon steel, stainless steel, aluminum (aluminum tanker)... ** It can be divided into many compartments. ** Imported mechnical pump Blackmer ** Imported electrical pump Fillrite.... ** Devices Can be equipped: flow meter, fuel dispenser, hose reel & nozzle, level gauge... ** Heat preservation & heating system could be added. ** Bottom loading system can be equipped. | |
| Equipment | |||
| Oil pump | Model | 60 YHCB-30 | |
| Pressure | 0.4MPa | ||
| Flow | 30m3/h | ||
| Rated power | 6KW | ||
| Rotate speed | 970r/min | ||
| Standard | JB/T6434-92 | ||
HOWO 8 cbm oil tank truck and sinotruck howo 8 ton capacity fuel tank truck
-
Oil Truck HOWO (8,000 Litres) General Vehicle Brand DRZ Chassis Brand HOWO Overall Dimension 8600 * 2480 * 3180 mm GVW / Kerb Weight 9,400 kg / 4,255 kg Cab Cab Capacity 3 persons allowed Air Conditioner Air conditioner is optional Engine Fuel Type Diesel Engine Brand YUNNEI Power 120 Ps (86 KW) Displacement 3900 ml Emission Standard Euro III Chassis Drive Type 4X2, left or right hand drive Transmission 5-speed front, 1 reverse Wheelbase/No. of axle 3800 mm / 2 Tyre Specification 750-16 Tyre Number 6 tyres and 1 spare tyre Max Speed 80 km/h Paint Metallic paint Superstructure Tank Capacity 8,000 Litres (About 2,000 gallons) Tank Material Carbon steel Pump Fuel pump equipped for overhead delivery Suction Head 6 m Hose High quality, wire suggested hose, with cooper wire, anti-static All standard accessories: manhole, ladder, anti-static belt, anti-slip walkway, handrail, fire extinguisher, inlet, discharge, reflective stickers........ Optional ** Tank material could be carbon steel, stainless steel, aluminum (aluminum tanker)...
** It can be divided into many compartments.
** Imported mechnical pump Blackmer
** Imported electrical pump Fillrite....

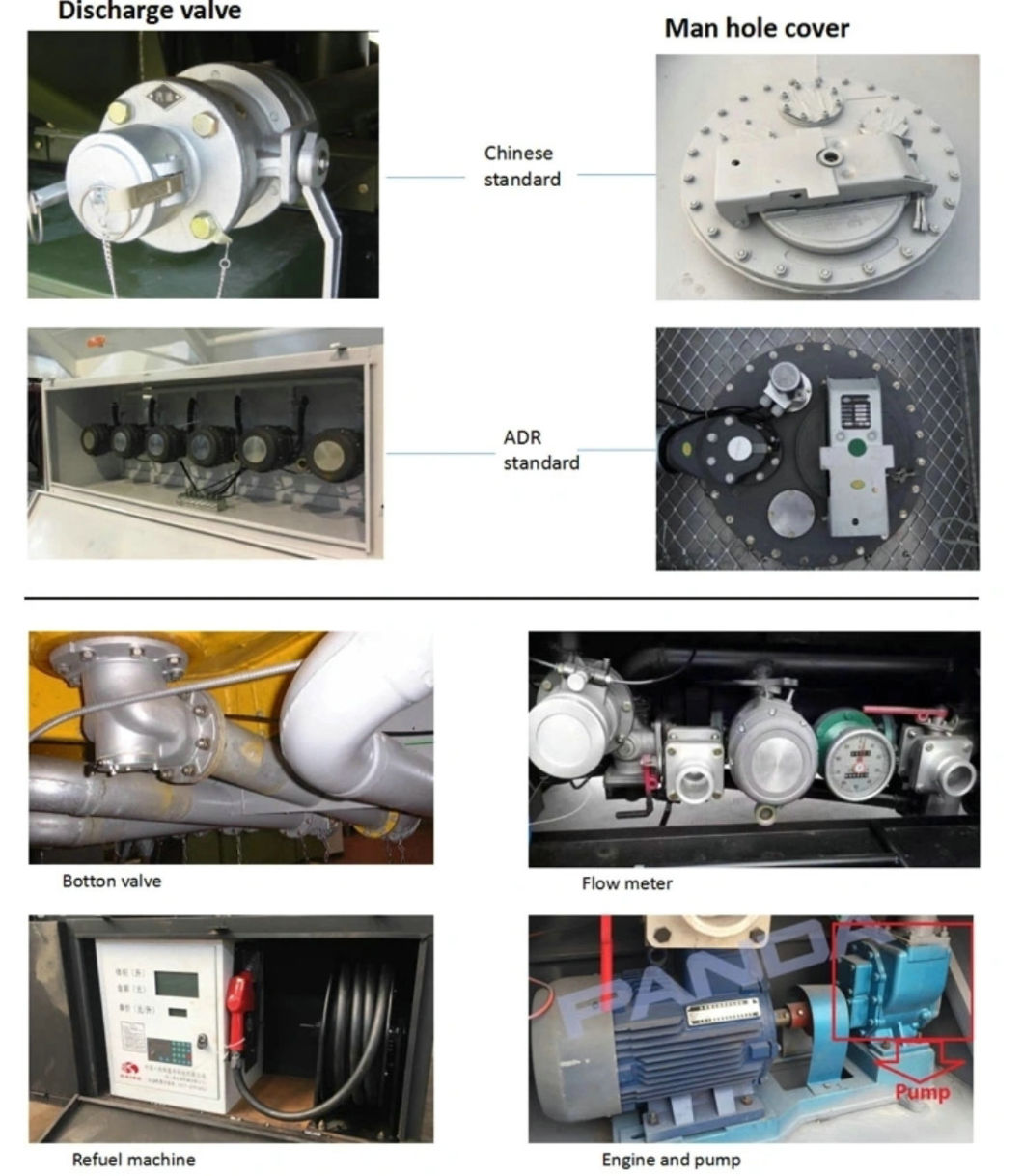

** Devices Can be equipped: flow meter, fuel dispenser, hose reel & nozzle, level gauge...
** Heat preservation & heating system could be added.
** Bottom loading system can be equipped.
For oil derivatives (gasoline, diesel oil, lubricating oil and coal tar oil)
transportation and storage.
Ask for better price
Cell /+8615271357675
The pictures are for your reference only.
5000 Litres capacity fuel tank truck
HOWO 4x2 5000 Liters Capacity aluminum fuel delivery tanker truck1000 Gallon Fuel oil Tank Truck price
1. Transporting diesel, gasoline, heavy oil, coal tar, vegetable oil etc.
2. Tank body material: superior quality carbon steel meeting international standard.
3. Tank shape: Square round, oval, reasonable and durable structure, low failure rate, reduce the cost of maintenance
4. The tank can be divided into several compartment to transport different oil.
5. Make the tank strength and stable. It is safe for transportation.
6. One year warranty for three key parts (engine ,gear-box, axle)
Technical parameter for fuel tanker truck
| Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 8260×2496×3200 |
| Wheel base (mm) | 5600 | |
| Wheel track (front/rear) (mm) | 2022/1830 | |
| Approach/Departure angle(°) | 18/15 | |
| Weight in KGS | Tare Weight | 8000 |
| payload | 10000 | |
| Front axles loading capacity | 1x7000 | |
| Rear axles loading capacity | 1x16000 | |
| Max. driving speed(km/h) | 95 | |
| Engine | Brand | Sinotruk |
| Model | WD615.87 | |
| Type | 4-stroke direct injection , 6-cylinder in-line, turbo-charging and inter-cooling | |
| Horse Power(HP) | 290 HP | |
| Emission standard | Euro | |
| Gearbox | HW15710 ,10 Forwards gear & 2 reverse gear | |
| Steering | power steering ZF8098 from Germany | |
| Tire | 11.00-20 bias tyre | |
| Tank specification | 1, size: 10,000 liters, with two European standard manholes, two discharge valves and two bottom valves 2, thickness: 4 mm tank and wave-proof board, 5 mm end plate 3, one water tank under the truck. 4, with walk platform and handrail on the tank 5, with alarm lamp on the top of cab 6, Battery in the left side and Oil tank right 7, Exhaust Pipe in the middle of Cab and Tank | |
| Pump | With one pump, the fuel can be pumped in , also pumped out. | |
Fuel Tanker is one of our main and competitive products. We can provide you product with high quality and at reasonable price according to your requirements. The tank material could be carbon steel, stainless steel, aluminum alloy, etc. Fuel tank can be chosen with oil pump, flow meter, tanker piston, and bobbin disk. Fuel tank can be separated to several compartments to fill different kinds of fuel. Our tankers are seamless welding and has gone through strict anti-leakage inspection. And the interior tank body has gone through anti-corrosion treatment.
Petroleum tanker (also called fuel transfer tank,fuel bowser, oil tank truck, oil truck tanker, oil tank for truck, diesel bowser, diesel tanker, petrol fuel tank, fuel dispensing truck ) is used to transport oil, diesel, gasoline, kerosene, etc.
It can be divided into many compartments to transport different types of fuels, lubricant, crude oil, alcohol...
Oil pump equipped, with pump in pump out function.
Features:
---- Forland chassis, perfect performance.
---- Quanchai engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure.
---- Fuel pump super powerful, highly efficient, with pump in pump out function.
---- Massive, durable, long service life.
Specification:
Similar Key Words: I-SUZU fuel transfer tank, I-VECO fuel delivery truck, fuel oil storage tank, oil transport truck, crude oil tanker, diesel oil tanker truck, petrol fuel bowser, refueler truck
| Petroleum Tanker JAC (8,000 Litres) | ||
| General | Vehicle Brand | DRZ |
| Chassis Brand | JAC | |
| Overall Dimension | 7000 * 2200*2550 mm | |
| GVW / Kerb Weight | 9,995 kg / 8,000 kg | |
| Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | Air conditioner is optional | |
| Engine | Fuel Type | Diesel |
| Engine Brand | Dongfeng Chaoyang engine | |
| Power | 130 Ps (96 KW) | |
| Displacement | 3907 ml | |
| Emission Standard | Euro III | |
| Chassis | Drive Type | 4X2, left or right hand drive |
| Transmission | 5-speed front, 1 reverse | |
| Wheelbase/No. of axle | 3815 mm / 2 | |
| Tyre Specification | 7.50-16 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 80 km/h | |
| Paint | Metallic paint | |
| Superstructure | Tank Capacity | 8,000 Litres (About 2,000 gallons) |
| Tank Material | Carbon steel | |
| Pump | Fuel pump equipped for overhead delivery | |
| Suction Head | 6 m | |
| Hose | High quality, wire strengthened hose, with cooper wire, anti-static | |
| All standard accessories: manhole, ladder, inlet, discharge..... | ||
| Optional | ** Tank material could be carbon steel, stainless steel, aluminum (aluminum tanker)... ** It can be divided into many compartments. ** Imported mechnical pump Blackmer ** Imported electrical pump Fillrite.... ** Devices can be equipped: flow meter, fuel dispenser, hose reel & nozzle, level gauge... ** Heat preservation & heating system could be added. ** Bottom loading system can be equipped. | |
Gasoline refueling tanker truck, Petrol refueling tanker truck,mobile refueling truck, 3000~5000 liter, 6 wheel 10000 Liter Fuel Tank Truck 10000L Oil Refueling bowser Truck
Specificaiton of fuel tank truck
Oil tank truck/Fuel tank truck
Oil tank truck, also known as mobile fuel trucks, fuel tankers, fuel tank truck, oil tankers,oil transport truck and edible oil tankers,
According to different uses and use environments, there are a variety of refueling or oil transportation functions, with oil absorption, oil pumping, and a variety of oil separation and distribution functions. Can separate warehouse, separate different oil products, tank body set up multiple anti-wave partitions. Can be designed as a chemical transportation vehicle.
Transport medium: applicable to the transport of gasoline, kerosene, diesel, vegetable oil, edible oil, heavy oil, coal tar and non-petroleum products of alcohol, aldehyde, benzene, ether and other liquid substances.
The tank material adopts high-quality 4-6mm thick carbon steel, stainless steel, aluminum alloy.
For oil tank truck, according to the transport medium, the configuration and different places, there are many different titles, such as: tanker, tank truck, oil tanker, refueling truck, tax-control refueling truck, fuel tanker, Petrol tanker, coal tar carrier, lube oil carrier, crude oil transporter, heavy oil transporter, oil transporter and so on.
According to the appearance, the oil truck can be divided into: flat head tanker, pointed tanker, single bridge tanker, rear double-bridge tanker, double-bridge tanker, double rear-axle tanker, light tanker, small tanker, medium tanker, large tanker, semi-trailer tanker, small three-axle tanker, double former-axle with single rear-axle tanker, four former-axle with four rear-axle tanker, four former-axle with eight rear-axle tanker and so on.
According to brand, the oil truck can be divided into: Dongfeng tanker, Futian tanker, Sino tanker, North Benz tanker, Jianghuai oil tanker, Shaanqi oil tanker, CAMC oil tanker, Isuzu tanker, Qingling tanker, Jiangling tanker and so on.
According to transportation medium: the truck suitable for the transport gasoline, kerosene, diesel, vegetable oil, edible oil, heavy oil, coal tar oil and non-petroleum products of alcohol, aldehyde, benzene, ether and other liquid substances.
The material of tank body is made of 4-6mm thick carbon steel with high quality . GB sheet can choose carbon steel and stainless steel or aluminum alloy, pure aluminum can, lined with rubber, rotomolding, plastic, glass steel and so on.
The tank shape: square-round, oval, round;
Pump can be choose self-priming pump, gear pump or double pump; the pump can help the oil pump in and out or self-flow.
Other function: can be designed for chemical transport vehicles;
Special design: can be designed to an independent sub-warehouse to transport different oil with the same time. 15 meters refueling reel (can automatically return to position), the tank is equipped with many anti-wave boards to keep the tank with high strength, stable center of gravity, delivery safety and other characteristics in the transportation.
Optional equipment: All tankers can be designed into chemical trucks, different kinds of heating and insulation series tank; all tankers can be equipped with computer and flow-meter.
Cell :+8615271357675
5000 Liters HOWO Fuel Tanker (LHD ,RHD Right Hand Drive Diesel Delivery Refueling Truck)
Sinotruck 3-8 ton 1500 -2000Gallon diesel engine fuel pump truck,oil tanker
Hot Sale SINOTRUK HOWO 4X2 1500 Gallon Fuel Tanker Truck with Fuel Delivery Nozzle
| Name | Refuel Truck |
| Dimension(LxWxH) | 6900*2320*2700(mm) |
| Total Mass | 12400 Kg |
| Rated Payload | 10000 Kg |
| Cerb Weight | 2400 Kg |
| Passenger | 3 |
| Approach/Departure Angle | 21/16 |
| The Parameters of Chassis | |
| Manufacture/Model | HOWO/BJ1073VEJEA-A |
| Driving Type | 4*2 left/right hand drive |
| Wheel Base | 4200 mm |
| Gearbox | Six speed lever with five speed forward and one reverse, manual |
| Front/Rear Track | 1545/1525(mm) |
| Tyre | 8.50-16 |
| The Number of Tyre | 6+1(spare tyre) |
| Front/Rear Suspension | 1085/1550(mm) |
| Leaf Spring Number | 4/6+7 |
| The Paremeters of Engine | |
| Manufacturer/Model | Yuchai/4DW9163NG2 |
| Rated Power | 140hp |
| Fuel Type | Diesel oil |
| Displacement/Capacity | 5900ml |
| Emission Standard | Euro3 |
| Cylinder | Straight/4/intercooling |
| Max. torque | 500N.m |
| Velocity | 2000rpm |
| The Parameters of Equipment | |
| Color/Logo | Customizable |
| Material | Carbon steel |
| Function | Transporting and refueling, etc. |
| Volume of Tank | 10000L |
| Thickness | 5mm |
| Equipment | Pump,outlet and inlet valve (with filter), wave baffle, dispenser, dispensing gun,15m hose,tool box,manhole,ladder,walkway over the tank,three layer painting,breather valve,etc. |
HOWO 6000L mobile fuel trucks and 6 cubic fuel pump truck for sale
| Petroleum Tank Truck Sinotruk - HOWO (5,000-6000 Litres) | ||
| General | Vehicle Brand | DRZ |
| Chassis Brand | Sinotruk - Howo | |
| Overall Dimension | 5960 * 2300 * 2500 mm | |
| GVW / Kerb Weight | 6,790 kg / 3,860 kg | |
| Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | Air conditioner is optional | |
| Engine | Fuel Type | Diesel |
| Engine Brand | Yuchai engine | |
| Power | 130 Ps (96 KW) | |
| Displacement | 3760 ml | |
| Emission Standard | Euro III | |
| Chassis | Drive Type | 4X2, left hand drive |
| Transmission | 5-speed forward, 1 reverse | |
| Wheelbase/No. of axle | 3360 mm / 2 | |
| Tyre Specification | 7.00R16LT | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 75 km/h | |
| Paint | Metallic paint | |
| Superstructure | Tank Capacity | 5,000-6000 Litres ( About 1,300-1500 gallons) |
| Tank Material | Carbon steel | |
| Pump | Fuel pump equipped for overhead delivery | |
| Suction Head | 6 m | |
| Hose | High quality, wire suggested hose, with cooper wire, anti-static | |
| All standard accessories: manhole, ladder, anti-static belt, anti-slip walkway, handrail, fire extinguisher, inlet, discharge, reflective stickers........ | ||
| Optional | ** Tank material could be carbon steel, stainless steel, aluminum (aluminum tanker)... ** It can be divided into many compartments. ** Imported mechnical pump Blackmer ** Imported electrical pump Fillrite.... ** Devices Can be equipped: flow meter, fuel dispenser, hose reel & nozzle, level gauge... ** Heat preservation & heating system could be added. ** Bottom loading system can be equipped. | |
| Equipment | |||
| Oil pump | Model | 60 YHCB-30 | |
| Pressure | 0.4MPa | ||
| Flow | 30m3/h | ||
| Rated power | 6KW | ||
| Rotate speed | 970r/min | ||
| Standard | JB/T6434-92 | ||
HOWO 8 cbm oil tank truck and sinotruck howo 8 ton capacity fuel tank truck
-
Oil Truck HOWO (8,000 Litres) General Vehicle Brand DRZ Chassis Brand HOWO Overall Dimension 8600 * 2480 * 3180 mm GVW / Kerb Weight 9,400 kg / 4,255 kg Cab Cab Capacity 3 persons allowed Air Conditioner Air conditioner is optional Engine Fuel Type Diesel Engine Brand YUNNEI Power 120 Ps (86 KW) Displacement 3900 ml Emission Standard Euro III Chassis Drive Type 4X2, left or right hand drive Transmission 5-speed front, 1 reverse Wheelbase/No. of axle 3800 mm / 2 Tyre Specification 750-16 Tyre Number 6 tyres and 1 spare tyre Max Speed 80 km/h Paint Metallic paint Superstructure Tank Capacity 8,000 Litres (About 2,000 gallons) Tank Material Carbon steel Pump Fuel pump equipped for overhead delivery Suction Head 6 m Hose High quality, wire suggested hose, with cooper wire, anti-static All standard accessories: manhole, ladder, anti-static belt, anti-slip walkway, handrail, fire extinguisher, inlet, discharge, reflective stickers........ Optional ** Tank material could be carbon steel, stainless steel, aluminum (aluminum tanker)...
** It can be divided into many compartments.
** Imported mechnical pump Blackmer
** Imported electrical pump Fillrite....
** Devices Can be equipped: flow meter, fuel dispenser, hose reel & nozzle, level gauge...
** Heat preservation & heating system could be added.
** Bottom loading system can be equipped.
For oil derivatives (gasoline, diesel oil, lubricating oil and coal tar oil)
transportation and storage.
Ask for better price
Cell /+8615271357675
The pictures are for your reference only.
5000 Litres capacity fuel tank truck

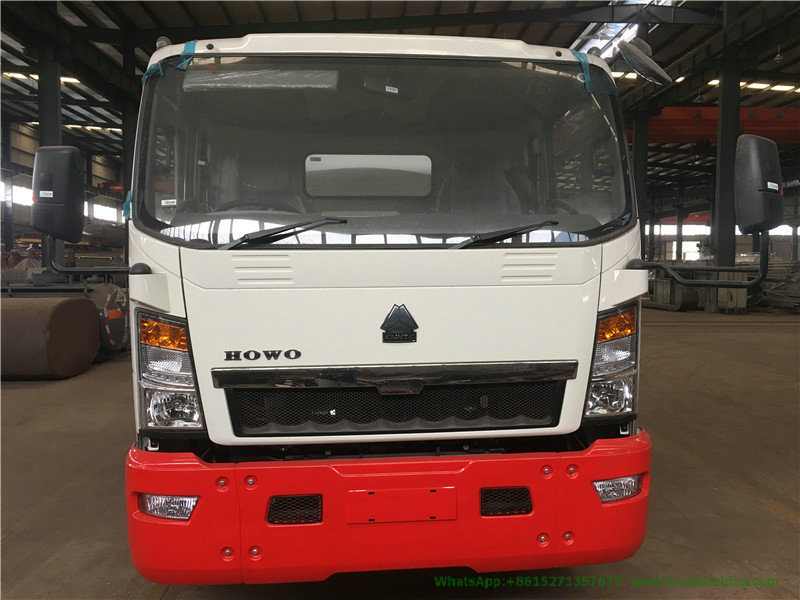

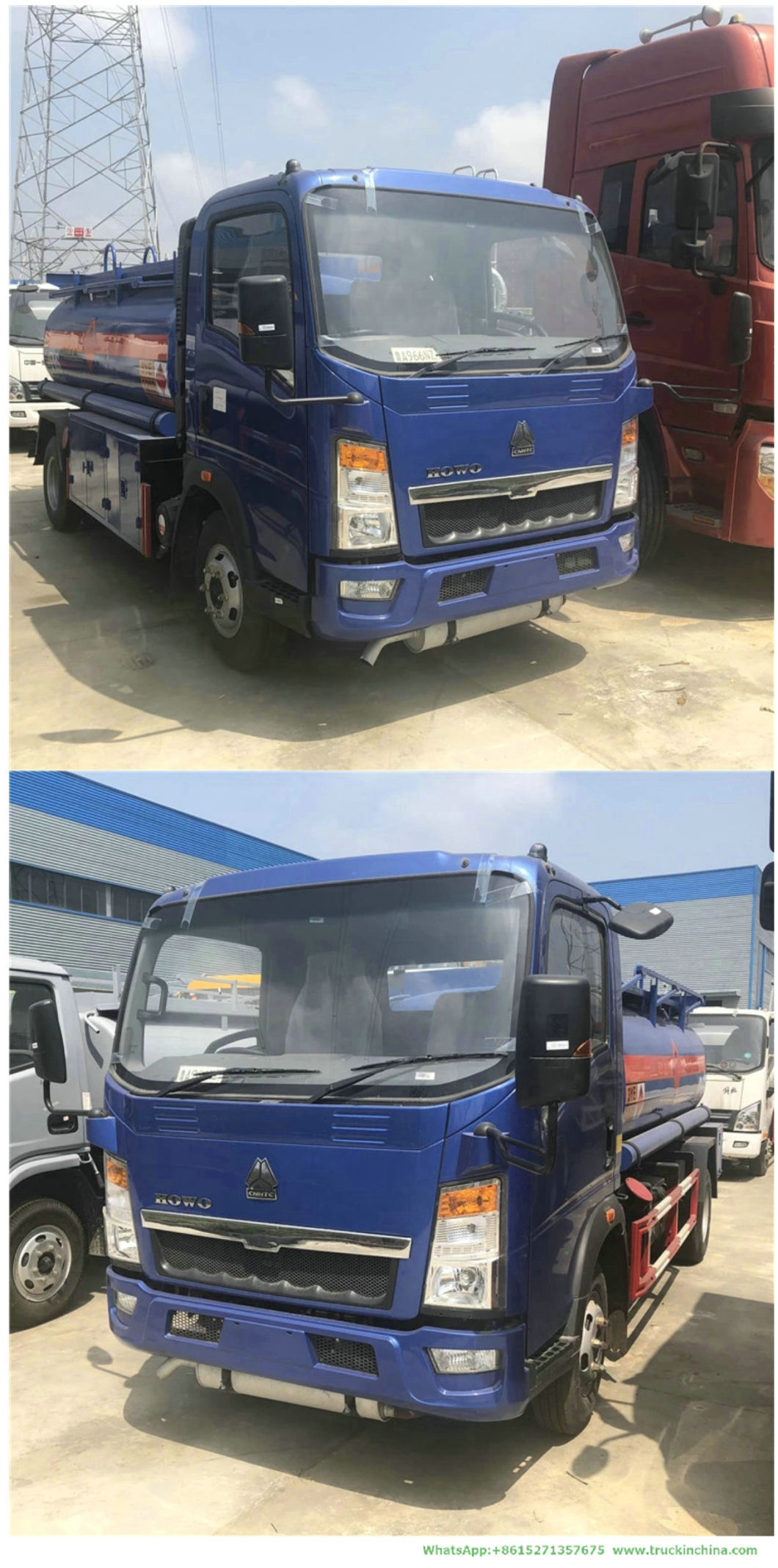

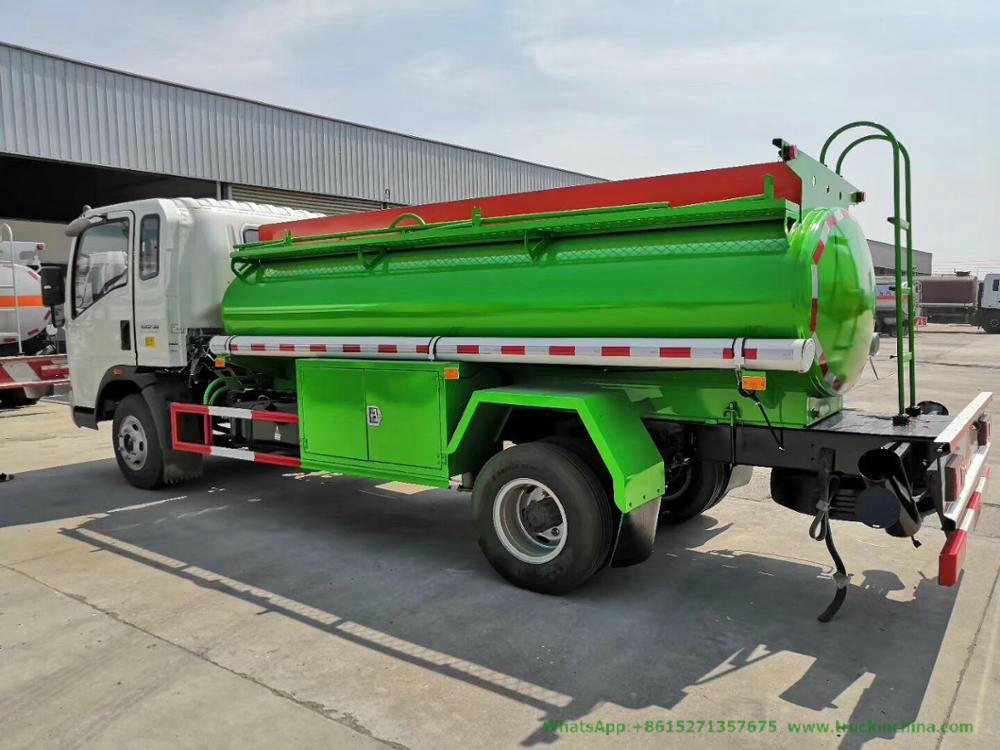

HOWO 4x2 5000 Liters Capacity aluminum fuel delivery tanker truck1000 Gallon Fuel oil Tank Truck price
1. Transporting diesel, gasoline, heavy oil, coal tar, vegetable oil etc.
2. Tank body material: superior quality carbon steel meeting international standard.
3. Tank shape: Square round, oval, reasonable and durable structure, low failure rate, reduce the cost of maintenance
4. The tank can be divided into several compartment to transport different oil.
5. Make the tank strength and stable. It is safe for transportation.
6. One year warranty for three key parts (engine ,gear-box, axle)
Technical parameter for fuel tanker truck
| Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 8260×2496×3200 |
| Wheel base (mm) | 5600 | |
| Wheel track (front/rear) (mm) | 2022/1830 | |
| Approach/Departure angle(°) | 18/15 | |
| Weight in KGS | Tare Weight | 8000 |
| payload | 10000 | |
| Front axles loading capacity | 1x7000 | |
| Rear axles loading capacity | 1x16000 | |
| Max. driving speed(km/h) | 95 | |
| Engine | Brand | Sinotruk |
| Model | WD615.87 | |
| Type | 4-stroke direct injection , 6-cylinder in-line, turbo-charging and inter-cooling | |
| Horse Power(HP) | 290 HP | |
| Emission standard | Euro | |
| Gearbox | HW15710 ,10 Forwards gear & 2 reverse gear | |
| Steering | power steering ZF8098 from Germany | |
| Tire | 11.00-20 bias tyre | |

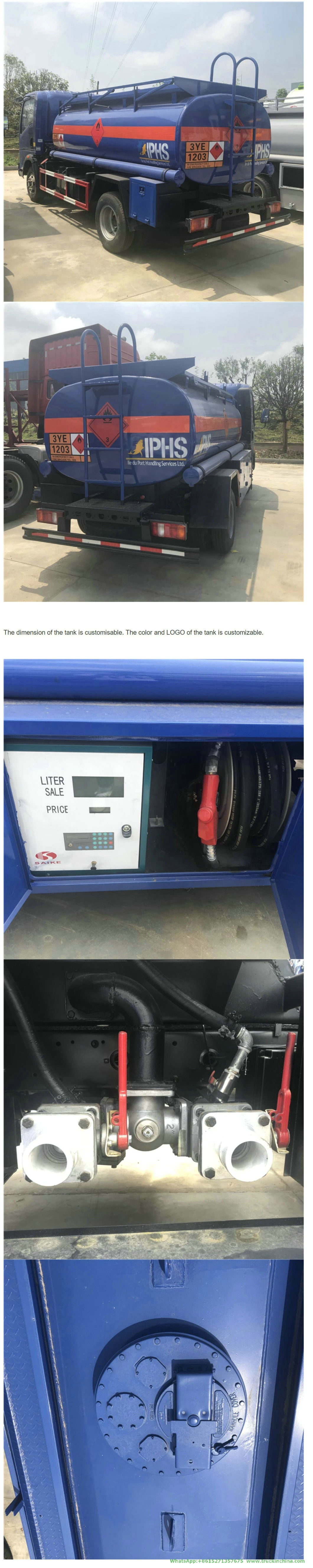

| Tank specification | 1, size: 10,000 liters, with two European standard manholes, two discharge valves and two bottom valves 2, thickness: 4 mm tank and wave-proof board, 5 mm end plate 3, one water tank under the truck. 4, with walk platform and handrail on the tank 5, with alarm lamp on the top of cab 6, Battery in the left side and Oil tank right 7, Exhaust Pipe in the middle of Cab and Tank | |
| Pump | With one pump, the fuel can be pumped in , also pumped out. | |
Fuel Tanker is one of our main and competitive products. We can provide you product with high quality and at reasonable price according to your requirements. The tank material could be carbon steel, stainless steel, aluminum alloy, etc. Fuel tank can be chosen with oil pump, flow meter, tanker piston, and bobbin disk. Fuel tank can be separated to several compartments to fill different kinds of fuel. Our tankers are seamless welding and has gone through strict anti-leakage inspection. And the interior tank body has gone through anti-corrosion treatment.
Petroleum tanker (also called fuel transfer tank,fuel bowser, oil tank truck, oil truck tanker, oil tank for truck, diesel bowser, diesel tanker, petrol fuel tank, fuel dispensing truck ) is used to transport oil, diesel, gasoline, kerosene, etc.
It can be divided into many compartments to transport different types of fuels, lubricant, crude oil, alcohol...
Oil pump equipped, with pump in pump out function.
Features:
---- Forland chassis, perfect performance.
---- Quanchai engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure.
---- Fuel pump super powerful, highly efficient, with pump in pump out function.
---- Massive, durable, long service life.
Specification:
Similar Key Words: I-SUZU fuel transfer tank, I-VECO fuel delivery truck, fuel oil storage tank, oil transport truck, crude oil tanker, diesel oil tanker truck, petrol fuel bowser, refueler truck
| Petroleum Tanker JAC (8,000 Litres) | ||
| General | Vehicle Brand | DRZ |
| Chassis Brand | JAC | |
| Overall Dimension | 7000 * 2200*2550 mm | |
| GVW / Kerb Weight | 9,995 kg / 8,000 kg | |
| Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | Air conditioner is optional | |
| Engine | Fuel Type | Diesel |
| Engine Brand | Dongfeng Chaoyang engine | |
| Power | 130 Ps (96 KW) | |
| Displacement | 3907 ml | |
| Emission Standard | Euro III | |
| Chassis | Drive Type | 4X2, left or right hand drive |
| Transmission | 5-speed front, 1 reverse | |
| Wheelbase/No. of axle | 3815 mm / 2 | |
| Tyre Specification | 7.50-16 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 80 km/h | |
| Paint | Metallic paint | |
| Superstructure | Tank Capacity | 8,000 Litres (About 2,000 gallons) |
| Tank Material | Carbon steel | |
| Pump | Fuel pump equipped for overhead delivery | |
| Suction Head | 6 m | |
| Hose | High quality, wire strengthened hose, with cooper wire, anti-static | |
| All standard accessories: manhole, ladder, inlet, discharge..... | ||
| Optional | ** Tank material could be carbon steel, stainless steel, aluminum (aluminum tanker)... ** It can be divided into many compartments. ** Imported mechnical pump Blackmer ** Imported electrical pump Fillrite.... ** Devices can be equipped: flow meter, fuel dispenser, hose reel & nozzle, level gauge... ** Heat preservation & heating system could be added. ** Bottom loading system can be equipped. | |
Gasoline refueling tanker truck, Petrol refueling tanker truck,mobile refueling truck, 3000~5000 liter, 6 wheel 10000 Liter Fuel Tank Truck 10000L Oil Refueling bowser Truck
Specificaiton of fuel tank truck
Oil tank truck/Fuel tank truck
Oil tank truck, also known as mobile fuel trucks, fuel tankers, fuel tank truck, oil tankers,oil transport truck and edible oil tankers,
According to different uses and use environments, there are a variety of refueling or oil transportation functions, with oil absorption, oil pumping, and a variety of oil separation and distribution functions. Can separate warehouse, separate different oil products, tank body set up multiple anti-wave partitions. Can be designed as a chemical transportation vehicle.
Transport medium: applicable to the transport of gasoline, kerosene, diesel, vegetable oil, edible oil, heavy oil, coal tar and non-petroleum products of alcohol, aldehyde, benzene, ether and other liquid substances.
The tank material adopts high-quality 4-6mm thick carbon steel, stainless steel, aluminum alloy.
For oil tank truck, according to the transport medium, the configuration and different places, there are many different titles, such as: tanker, tank truck, oil tanker, refueling truck, tax-control refueling truck, fuel tanker, Petrol tanker, coal tar carrier, lube oil carrier, crude oil transporter, heavy oil transporter, oil transporter and so on.
According to the appearance, the oil truck can be divided into: flat head tanker, pointed tanker, single bridge tanker, rear double-bridge tanker, double-bridge tanker, double rear-axle tanker, light tanker, small tanker, medium tanker, large tanker, semi-trailer tanker, small three-axle tanker, double former-axle with single rear-axle tanker, four former-axle with four rear-axle tanker, four former-axle with eight rear-axle tanker and so on.
According to brand, the oil truck can be divided into: Dongfeng tanker, Futian tanker, Sino tanker, North Benz tanker, Jianghuai oil tanker, Shaanqi oil tanker, CAMC oil tanker, Isuzu tanker, Qingling tanker, Jiangling tanker and so on.
According to transportation medium: the truck suitable for the transport gasoline, kerosene, diesel, vegetable oil, edible oil, heavy oil, coal tar oil and non-petroleum products of alcohol, aldehyde, benzene, ether and other liquid substances.
The material of tank body is made of 4-6mm thick carbon steel with high quality . GB sheet can choose carbon steel and stainless steel or aluminum alloy, pure aluminum can, lined with rubber, rotomolding, plastic, glass steel and so on.
The tank shape: square-round, oval, round;
Pump can be choose self-priming pump, gear pump or double pump; the pump can help the oil pump in and out or self-flow.
Other function: can be designed for chemical transport vehicles;
Special design: can be designed to an independent sub-warehouse to transport different oil with the same time. 15 meters refueling reel (can automatically return to position), the tank is equipped with many anti-wave boards to keep the tank with high strength, stable center of gravity, delivery safety and other characteristics in the transportation.
Optional equipment: All tankers can be designed into chemical trucks, different kinds of heating and insulation series tank; all tankers can be equipped with computer and flow-meter.
Cell :+8615271357675
