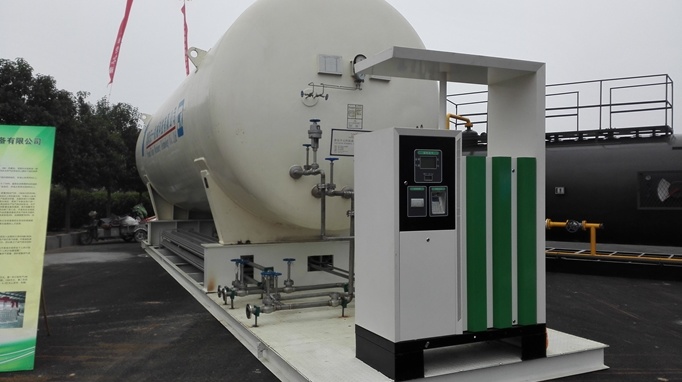

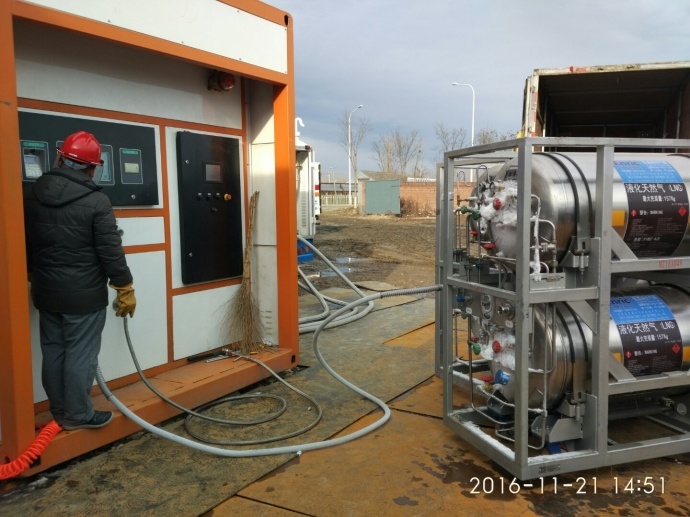

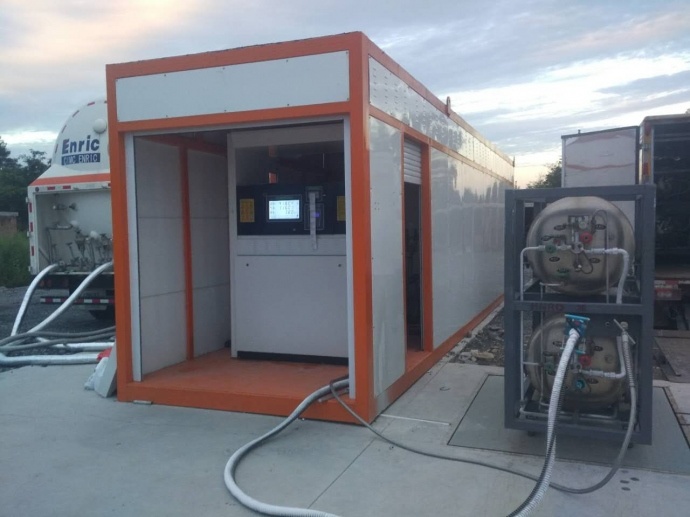

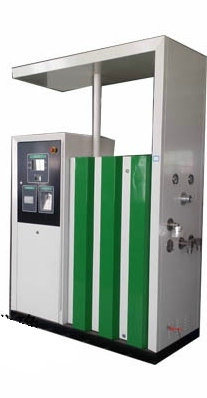

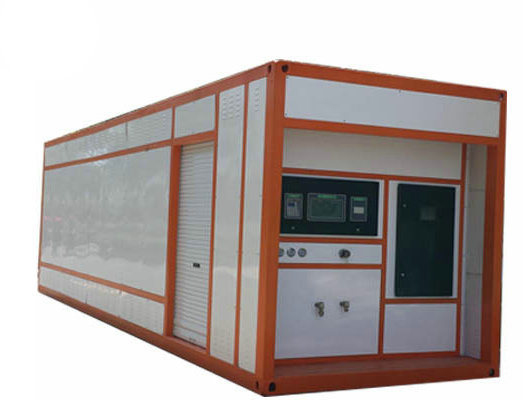

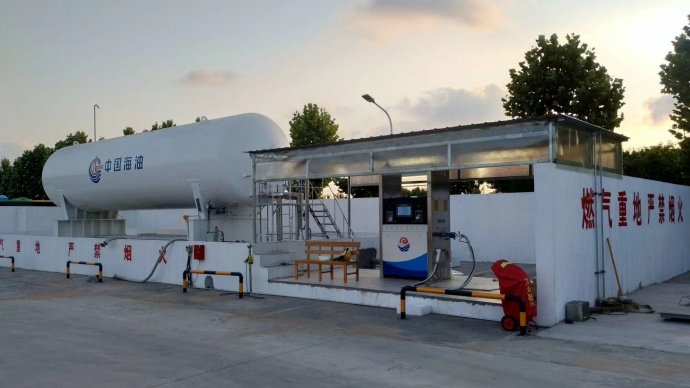

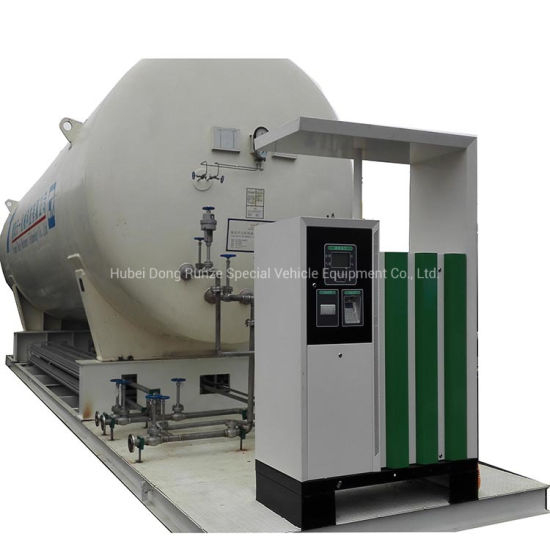

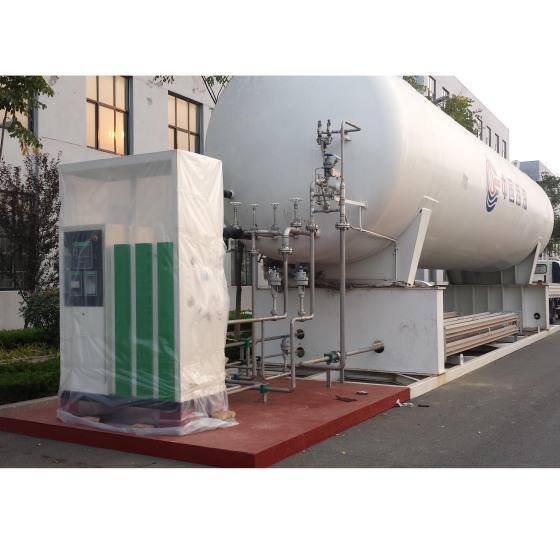

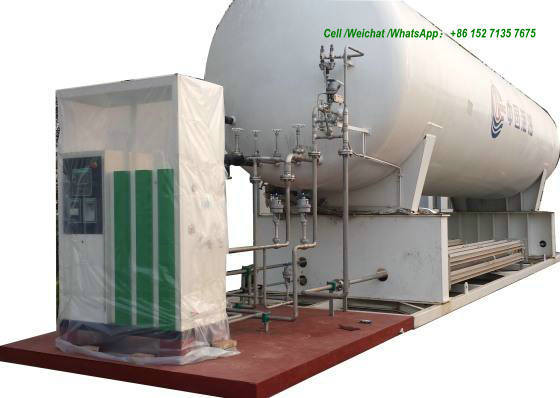

LNG Filling Plant Liquefied Natural Gas (LNG) Stations with Skid LNG Tank
| Quantity: | |
|---|---|
- Shanghai, China
- 8000
- T/T
Detail Picture
Specification: 8357 × 2500 × 2435mm
Trademark: DRZ
packaging: naked
Power: 15KW
weight: 850Kg
Power: 380 v
Specification: 8357 × 2500 × 2435
Trademark: DRZ
Packing: container
Power: 7 kw
Working power supply: 380V
Production: 20
1) lpg storage tank capacity
5,000l , 10,000l, 15,000l, 20,000l, 25,000l, 30,000l, 35,000l, 50,000l, 80,000l, 100,000l . 120,000l, 150,000l, 180,000l, 200,000l.
2) lpg storage tank material
Q345R Q370R SA516
3) lpg storage tank production flow
cuttings-bending plate-submerged arc welding-assembly-non destructive testing-heat treatment- hydraulic test- sand blasting-painting
Technical Parameter for 30tons lpg storage tank
Item | Parameter | ||
Tank | Description of LPG tank | 60CBM LPG storage tank | |
Overall dimensions (mm) | 10962*2728*3318 | ||
Curb weight(kg) | 12750 | ||
Filling weight(kg) | 30000 | ||
Type of vessel | The third kind | ||
Design pressure | 1.77MPa | ||
Max working pressure | 1.61MPa | ||
Design temperature | -19~50ºC | ||
Filling medium | Liquid petroleum gas (propane) | ||
Corrosion allowance | 1.0mm | ||
Volume | 60 CBM | ||
Thermal treatment | The entirety | ||
Filling capacity | 420~450kg/CBM | ||
Material of the tank | Q345R | ||
Hydraulic test pressure | 2.22 M Pa | ||
Gas tight test pressure | 1.77 M Pa | ||
Cylinder thickness | 14mm | ||
Head thickness | 16mm | ||
Service life | 15 years | ||
Accessory for the LPG storage tank | |||
Liquid level indicator | Type | UNZ-518C14 | |
Version of the indicator | Magnetic type liquid level indicator | ||
Normal pressure | 2.5M Pa | ||
Scope of testing | 50-2300mm | ||
Precision | 2.5 | ||
Safety valve | Model | A42F-2.5-80 | |
Version | Built-in | ||
Normal pressure | 2.5 M Pa | ||
Normal diameter | DN80 | ||
Opening pressure | 1.68~1.76MPa | ||
Re-seating pressure | 0.8 times of the opening pressure | ||
Loading and unloading system | Normal diameter | Feed pipe | DN50 |
Drain pipe | DN50 | ||
Admission port | DN50 | ||
Sewage outfall port | DN50 | ||
Vent nozzle port | DN50 | ||
Standard | GB150 | ||
Safety fitting for selection | Safety valve, column magnetic liquid level gauge, pressure gauge, thermometer, cut-off valves, etc. | ||
Specification | Designed Pressure: 1.66Mpa Filling Ratio: 0.42 kg/L Working Temperature:-50ºC Corrosion Allowance: 1mm | ||
Detailed pics for 60cbm lpg gas storage tank ASME LPG storage tank
| Technical Specification | Parameter | |
| Tank | Tank name | LPG storage tank |
| Model | DT3100-100LAG | |
| Overall dimensions | 13024*3244*3830 mm | |
| Inner diameter | 3200mm | |
| Vessel type | on the ground | |
| Designing pressure | 1.91 Mpa | |
| Working pressure | 1.61 Mpa | |
| Designing temperature | -19~50 | |
| Filling medium | Liquid petroleum/propane gas | |
| Corrosion margin | 1.00 mm | |
| Curb weight | 49400kg | |
| Full capacity | 100m³ | |
| Heat treatment | Bulk | |
| Filling factor | 520 Kg/ m³ | |
| Tanker & pressure parts material | Q345R | |
| Hydraulic test pressure | 2.22 Mpa | |
| Gas tight test pressure | 1.91 Mpa | |
| Produce standard | ASME standard and GB150 standard | |
| Optional accessories | afety valve,SCL-UHZ(magnetic flap gauge),pressure gauge,thermometer,cut-off valve etc. | |
| Liquid indicator | Model | UHZ-518C14 |
| Version | Magnetic | |
| Nominal pressure | 2.5 Mpa | |
| Scope of testing | 50~2500 mm | |
| precision | 2.5 | |
| Safety Valve | Model | A42F-2.5-80 |
| Version | Built-in | |
| Nominal pressure | 2.5 Mpa | |
| Nominal radius | DN80 | |
| Opening pressure | 1.68-1.76 Mpa | |
| Re-seating pressure | ≥0.8 Mpa opening pressure | |
| Handling System | Feed pipe | DN80 |
| Drain pipe | DN80 | |
| Admission port | DN50 | |
| Sewage outfall port | DN80 | |
| Vent nozzle port | DN80 | |
Tanker LPG gas tanker series list:
Storage tanker (Under ground Horizontal type)
S/N | Name | Model number | Volume | Tanker dimensions(L×W×H) | Thickness of raw material (MM) | Seal head type | Loading weight (KG) | Tanker weight(KG) | Others |
1 | lpg storage tank | DT1600-12 | 12 m3 | 6270×1620×2255 DN1600×10 | δ10 | Double oval | 4840 | 3298 | |
2 | lpg storage tank | DT2100-25 | 25 m3 | 7594×2124×2877 DN2100×12 | δ12 | Double oval | 10080 | 5688 | |
3 | lpg storage tank | DT2400-32 | 32 m3 | 7508×2428×3007 DN2400×14 | δ14 | Double oval | 12902 | 7460 | |
4 | lpg storage tank | DT2400-50 | 50 m3 | 11483×2428×3028 DN2400×14 | δ14 | Double oval | 20160 | 10824 | |
5 | Propane gas storage tanker | DT2600-50 | 50 m3 | 9912×2628×3215 DN2600×14 | δ14 | Double oval | 20160 | 10229 | |
6 | Propane gas storage tanker | DT3000-80 | 80 m3 | 11866×3032×3610 DN3000×16 | δ16 | Double oval | 32256 | 17900 | |
7 | Propane gas storage tanker | DT3200-100 | 100 m3 | 13010×3236×3716 DN3200×18 | δ18 | Double oval | 40320 | 21228 | |
8 | Liquid ammonium storage tanker | DT2000-20 | 20 m3 | 6806×2028×2611 DN2000×14 | δ14 | Double oval | 10188 | 5585 | |
9 | Liquid ammonium storage tanker | DT2200-32 | 32 m3 | 8914×2232×2810 DN2200×16 | δ16 | Double oval | 16301 | 8795 |
3
| | LPG STORAGE TANK SPECIFICATION | ||||||
| Capacity (CBM) | Diameter DN | Shell thickness (mm) | Head thickness (mm) | Kerb weight (kg) | Loading Weight (kg) | Overall dimension(mm) | |
| 5 | 1600 | 10 | 10 | 2030 | 1995 | 3070*1620*2210 | |
| 8 | 1600 | 10 | 10 | 2540 | 3192 | 4270*1620*2210 | |
| 10 | 1600 | 10 | 10 | 2950 | 3990 | 5260*1620*2210 | |
| 12 | 1800 | 10 | 12 | 3360 | 4788 | 5034*1820*2410 | |
| 15 | 1800 | 10 | 12 | 3920 | 5985 | 6224*1820*2410 | |
| 20 | 1800 | 10 | 12 | 4820 | 7980 | 8174*1820*2410 | |
| 25 | 2200 | 12 | 14 | 6020 | 9975 | 7008*2224*2814 | |
| 32 | 2400 | 14 | 14 | 7710 | 12768 | 7508*2428*3018 | |
| 50 | 2600 | 14 | 16 | 10910 | 19950 | 9912*2628*3218 | |
| 50 | 2700 | 14 | 16 | 10640 | 19950 | 9182*2728*3318 | |
| 80 | 3100 | 16 | 18 | 17000 | 31920 | 11166*3132*3722 | |
| 80 | 3200 | 18 | 18 | 18140 | 31920 | 10516*3236*3826 | |
| 100 | 3100 | 16 | 18 | 20410 | 39900 | 13866*3132*3722 | |
| 100 | 3200 | 18 | 18 | 21800 | 39900 | 13016*3236*3826 | |
| 120 | 3400 | 18 | 20 | 24960 | 47880 | 13820*3436*4026 | |
| Design pressure | 1.77MPa | ||||||
| Corrosion allowance( mm) | 1mm | ||||||
| Medium density (kg/m3) | 420kg/m3 | ||||||
| Material of tank and main pressure parts | Q345R | ||||||
| Carried standard | Pressure vessels,supervision regulation on safety technology for stationary pressure vessels | ||||||
| Safety valve of selection fitting | Safety valve, column magnetic reversible level meter,pressure gauge, thermometer,cut-off valve | ||||||
| Product Model | T-LPG-TK |
| Structural form | Integral type, separated type |
| Install Method | Above-ground, |
| System Approach OPTIONAL: | Double pump system, single pump system |
| Storage Tank Volume(M 3;) | 5, 6, 10,15,20, 30 , 40 , 50 , 60,80, 100 , 125 , 150 |
| Design pressure of storage tank | 1.77Mpa |
| Design pressure of pipe | 2.5Mpa |
| Opening pressure of safety valve | 1.75Mpa |
| Ambient Temperature | -40-55°C |
| Ambint Humidity | 10~95% |
| Dimension of skid-mounted body | Up to customer's requirement |
Horizontal Storage HCL Acid Tanks Steel Lined LDPE 120000 Liters
For Storage Bleach, Hydrochloric Acid, Ferric Chloride, Oilfield Chemicals, Corrosive Wastes And Other Hazardous Cargoes.
Steel ( 6 mm -8mm ) Lined PE - Plastic 7042 (16mm - 20 mm ) storage tank
storage hydrochloride, hydrogen chlorate, sodium hydroxide,acrylic
acetic acid, glacial acetic acid, hydrogen peroxide
Propionic acid, ammonia,NH3·H2O
other tanks
Horizontal Oil Tank | Horizontal Oil Tank |
SS Double Oil Tank | |
SF Double Oil Tank | |
Industrial Condenser | U shape Condenser |
Tubular surface condenser | |
Reaction Tower | Pressure Reactor |
Pyrolysis Reactor |
Horizontal Fuel Storage Tank Cbm For Petroleum Oil,Gasoline, Petrol, Diesel Steel Q235 or Q345 .Q245.R20 thinckness 5.6.8mm - 10.12mm Custermizing 1-100CBM
Tri Axle 28Mt Liquid Petroleum Gas Lpg Tank Truck Semi Trailer For Sale
$35,900.00 - $37,500.00/Set(Min. Order)
Best Quality 60m3 Tri Axle Propane Tank Lpg Semi Trailer For Sale
$29,000.00 - $37,500.00/Set(Min. Order)
Lowest Price Q345R 30mt Bulk Propane Delivery Lpg Gas Tanker Trailer 60m3
$30,000.00 - $37,500.00/Set(Min. Order)
China New Tri Axle 50000 Liter Lpg Transport Tank Trailer Trucks 20 Ton
$32,000.00 - $33,600.00/Set(Min. Order)
China Mini 2.5 Metric Tonnes Howo Lpg Gas Distribution Tanker Truck 5000 Liter
$23,000.00 - $29,500.00/Set(Min. Order)
Sinotruk Howo Mini Mobile Truck Tankers Light Cargo Truck Box Truck For Liquefied Gas Mobile Gas Metan Refueling Trucks For Sale
$16,800.00 - $25,000.00/Unit
1 Unit(Min. Order)
New Liquid Ammonia Tank Container Mobile Gas Metan Refueling Lpg Road Tanker Bobtail Propane Mobile Dispenser Truck
$16,800.00 - $25,000.00/Unit
1 Unit(Min. Order)
New Liquid Methane Lpg Auto Gas 5 Mt Skid Gas Plant With Dispenser Pump Gas Refueling Nigeria Lpg Dispensing Trucks
$16,800.00 - $25,000.00/Unit
1 Unit(Min. Order)
Sinotruk Howo 4x2 Nigeria Bulk Lpg Dispensing Bullet Tank 2.5 Ton 3 Ton 4 Ton 5 Ton Mini 5m3 Lpg Bobtail Truck For Refilling
$16,800.00 - $25,000.00/Unit
1 Unit(Min. Order)
Sinotruk Howo 4x2 6m3 8m3 10m3 Flow Meter Lpg Gas Mini Transport Filling 5000 Litres Lpg Vehicle Fuel Tank
$16,800.00 - $25,000.00/Unit
1 Unit(Min. Order)
00:23
Famous 5-35cbm Dongfeng Kinland 220-375Hp 8x4 Propane Lpg Trucks For Sale
$25,000.00/Sets
00:23
Hot Sale 20 Cbm 30cbm 40cbm 50cbm Lpg Gas Tank Container Trailer 2 Axles 3 Axles Liquid Propane Gas Semi Trailer Made In China
$22,000.00/Sets
Sinotruk Howo 120hp 116hp Dimethyl Ether Tank Propane Gas Car Refilling Mobile Tanker Mobile Gas Filling Service Truck
$16,800.00 - $25,000.00/Unit
1 Unit(Min. Order)
Factory 2.5 Mt Howo Small Liquid Propane Gas Transport Truck For Sale
$23,000.00 - $29,500.00/Set(Min. Order)
China New Lowest Price Dongfeng Small 5000 l Propane Truck Transport Lpg Tanker For Sale
$23,000.00 - $29,500.00/Set(Min. Order)
Chinese Cheapest 6x4 Dongfeng 12 Ton Bulk Cooking Gas Lpg Truck 25000 Liters With Good Quality
$35,000.00 - $41,000.00/Set(Min. Order)
Chinese Cheapest Left Hand Drive 8x4 Jiefang Bulk Lpg Cooking Gas Delivery Tanker Truck 18 Ton
$58,000.00 - $59,000.00/Set(Min. Order)
12Mt Brand New 10 Wheeler Faw 24000 Liters Bulk Propane Transport Tanker Truck For Sale
$39,000.00 - $59,000.00/Set(Min. Order)
20m3 Chinese Factory 10ton Portable Lpg Filling Station For Sale
$22,000.00 - $35,000.00/Set(Min. Order)
Q345R Portable 10mt Gas Lpg Cylinder Filling Plant For Sale
$20,000.00 - $35,000.00/Set(Min. Order)
2.5 Ton To 60 Tons Propane Tank Skid Mounted Lpg Filling Station With Scale
$23,000.00 - $35,000.00/Set(Min. Order)
Factory Lowest Price Brand New Portable 40 Cubic Meter Lpg Tank Skid Fpr Sale
$23,000.00 - $35,000.00/Set(Min. Order)
China Lowest Price 15mt Propane Lpg Gas Filling Machine
$23,600.00 - $35,000.00/Set(Min. Order)
5m3 To 120m3 Lpg Cooking Gas Cylinder Filling Station Sale
$23,000.00 - $35,000.00/Set(Min. Order)
Hot Selling 10 Metric Tonne Portable Mobile Lpg Station With Lpg Dispenser
$24,500.00 - $31,500.00/Set(Min. Order)
2017 New Top Quality 21 Metric Ton Propane Gas Filling Station With Cheapest Price
$23,000.00 - $35,000.00/Set(Min. Order)
China Cheapest Brand New 20m3 Lpg Refilling Station For Cooking Gas Cylinder
$22,000.00 - $35,000.00/Set(Min. Order)
Chinese Factory Brand New Small Mobile 5 Ton Lpg Skid Station With Gas Scale For Sale
$21,000.00 - $25,000.00/Set(Min. Order)
Lowest Price New Mini Gas Cylinder Filling Mobile Station 6tons
$22,000.00 - $23,000.00/Set(Min. Order)
Best Quality Portable 20000 Liter Lpg Filling Tank Skid For Sale
$24,500.00 - $31,500.00/Set(Min. Order)
Factory 30000 Liter Auto Lpg Gas Filling Skid Station With Dispenser
$23,600.00 - $35,000.00/Set(Min. Order)
Brand New 15ton Cooking Gas Cylinder Filling Lpg Skid With 2 Scales
$23,600.00 - $35,000.00/Set(Min. Order)
High Safe 5m3 To 120m3 Chinese Lpg Filling Stations For Sale
$22,000.00 - $23,000.00/Set(Min. Order)
Top Quality 50000 Liters Gas Cylinder Lpg Filling Plant Made In China
$23,000.00 - $35,000.00/Set(Min. Order)
Chinese Cheapest Price 25 Metric Ton 50m3 Propane Station For Sale
$26,000.00 - $35,000.00/Set(Min. Order)
Factory Lowest Price 20000 Liters 10 Ton Lpg Gas Refilling Plant For Sale
$22,000.00 - $35,000.00/Set(Min. Order)
Acid Storage Tank for Oil Fied Chemical Contain Hydrochloric Acid 120CBM Horizontal
Used to contain: HCl (max 35%), NaOH (max 50%), NaCLO (max 10%), PAC (max 17%), H2SO4 etc
Horizontal / Vertical Storage HCL Acid Tanks Steel Lined LDPE 120000 Liters
For Storage Bleach, Hydrochloric Acid, Ferric Chloride, Oilfield Chemicals, Corrosive Wastes And Other Hazardous Cargoes.
Steel ( 6 mm -8mm ) Lined PE Plastic 7042 (16mm - 25 mm ) storage tank
| water tank | stainless steel tank /water pump/ High pressure squirt gun |
|---|---|
| steel option | Q235/Q345/ 16 manganese steel/SS201/SS304 /SS316 alummin alloy tanker |
| acids tanker | steel lined plastic for water/alcohol/ethanol acid, alkaline and salt HCL, NaOH ,NaCIO Sodium Hypochlorite NaCIO /hydrofluoric acid HF/CAUSTIC SODA alummin nitric acid |
| oil/petrol,Fuel diesel/LPG/LNG | steel tank with oil pump/ gun fuel truck nozzle |
| asphalt/bitumen/crude oil tanker/ AN ammonium methana Alcohol | burner/steam heating and insulation system ,pump option |

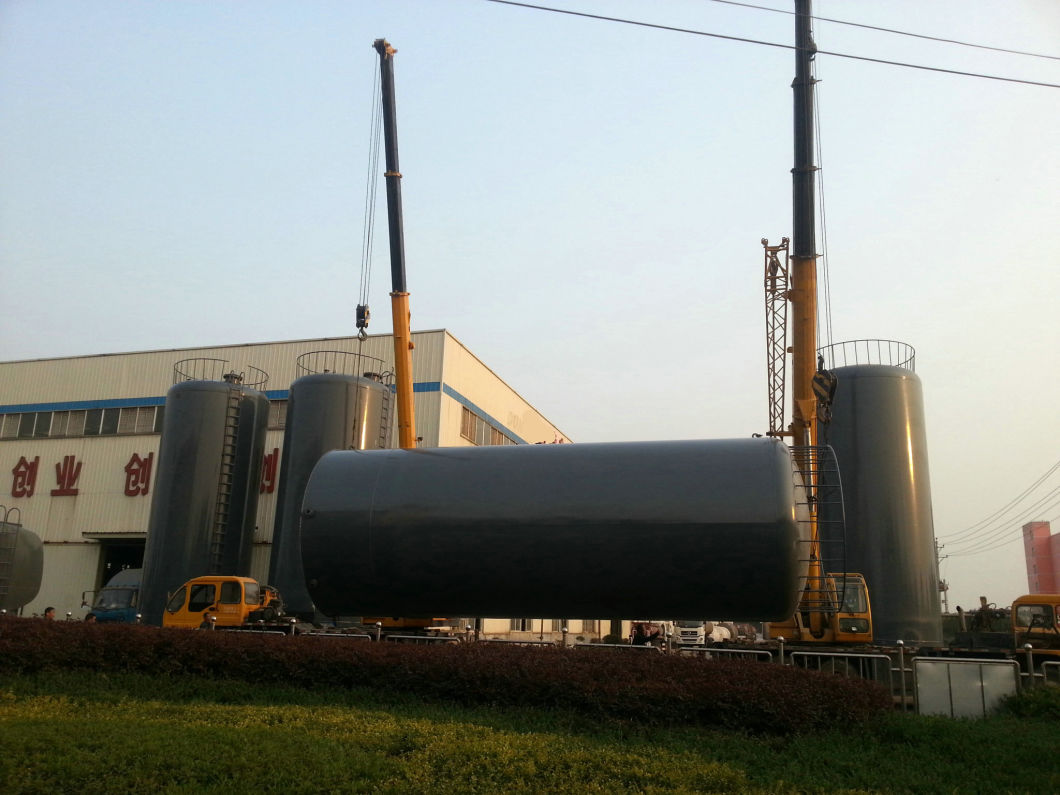

Detail Picture
Specification: 8357 × 2500 × 2435mm
Trademark: DRZ
packaging: naked
Power: 15KW
weight: 850Kg
Power: 380 v
Specification: 8357 × 2500 × 2435
Trademark: DRZ
Packing: container
Power: 7 kw
Working power supply: 380V
Production: 20
1) lpg storage tank capacity
5,000l , 10,000l, 15,000l, 20,000l, 25,000l, 30,000l, 35,000l, 50,000l, 80,000l, 100,000l . 120,000l, 150,000l, 180,000l, 200,000l.
2) lpg storage tank material
Q345R Q370R SA516
3) lpg storage tank production flow
cuttings-bending plate-submerged arc welding-assembly-non destructive testing-heat treatment- hydraulic test- sand blasting-painting
Technical Parameter for 30tons lpg storage tank
Item | Parameter | ||
Tank | Description of LPG tank | 60CBM LPG storage tank | |
Overall dimensions (mm) | 10962*2728*3318 | ||
Curb weight(kg) | 12750 | ||
Filling weight(kg) | 30000 | ||
Type of vessel | The third kind | ||
Design pressure | 1.77MPa | ||
Max working pressure | 1.61MPa | ||
Design temperature | -19~50ºC | ||
Filling medium | Liquid petroleum gas (propane) | ||
Corrosion allowance | 1.0mm | ||
Volume | 60 CBM | ||
Thermal treatment | The entirety | ||
Filling capacity | 420~450kg/CBM | ||
Material of the tank | Q345R | ||
Hydraulic test pressure | 2.22 M Pa | ||
Gas tight test pressure | 1.77 M Pa | ||
Cylinder thickness | 14mm | ||
Head thickness | 16mm | ||
Service life | 15 years | ||
Accessory for the LPG storage tank | |||
Liquid level indicator | Type | UNZ-518C14 | |
Version of the indicator | Magnetic type liquid level indicator | ||
Normal pressure | 2.5M Pa | ||
Scope of testing | 50-2300mm | ||
Precision | 2.5 | ||
Safety valve | Model | A42F-2.5-80 | |
Version | Built-in | ||
Normal pressure | 2.5 M Pa | ||
Normal diameter | DN80 | ||
Opening pressure | 1.68~1.76MPa | ||
Re-seating pressure | 0.8 times of the opening pressure | ||
Loading and unloading system | Normal diameter | Feed pipe | DN50 |
Drain pipe | DN50 | ||
Admission port | DN50 | ||
Sewage outfall port | DN50 | ||
Vent nozzle port | DN50 | ||
Standard | GB150 | ||
Safety fitting for selection | Safety valve, column magnetic liquid level gauge, pressure gauge, thermometer, cut-off valves, etc. | ||
Specification | Designed Pressure: 1.66Mpa Filling Ratio: 0.42 kg/L Working Temperature:-50ºC Corrosion Allowance: 1mm | ||
Detailed pics for 60cbm lpg gas storage tank ASME LPG storage tank
| Technical Specification | Parameter | |
| Tank | Tank name | LPG storage tank |
| Model | DT3100-100LAG | |
| Overall dimensions | 13024*3244*3830 mm | |
| Inner diameter | 3200mm | |
| Vessel type | on the ground | |
| Designing pressure | 1.91 Mpa | |
| Working pressure | 1.61 Mpa | |
| Designing temperature | -19~50 | |
| Filling medium | Liquid petroleum/propane gas | |
| Corrosion margin | 1.00 mm | |
| Curb weight | 49400kg | |
| Full capacity | 100m³ | |
| Heat treatment | Bulk | |
| Filling factor | 520 Kg/ m³ | |
| Tanker & pressure parts material | Q345R | |
| Hydraulic test pressure | 2.22 Mpa | |
| Gas tight test pressure | 1.91 Mpa | |
| Produce standard | ASME standard and GB150 standard | |
| Optional accessories | afety valve,SCL-UHZ(magnetic flap gauge),pressure gauge,thermometer,cut-off valve etc. | |
| Liquid indicator | Model | UHZ-518C14 |
| Version | Magnetic | |
| Nominal pressure | 2.5 Mpa | |
| Scope of testing | 50~2500 mm | |
| precision | 2.5 | |
| Safety Valve | Model | A42F-2.5-80 |
| Version | Built-in | |
| Nominal pressure | 2.5 Mpa | |
| Nominal radius | DN80 | |
| Opening pressure | 1.68-1.76 Mpa | |
| Re-seating pressure | ≥0.8 Mpa opening pressure | |
| Handling System | Feed pipe | DN80 |
| Drain pipe | DN80 | |
| Admission port | DN50 | |
| Sewage outfall port | DN80 | |
| Vent nozzle port | DN80 | |
Tanker LPG gas tanker series list:
Storage tanker (Under ground Horizontal type)
S/N | Name | Model number | Volume | Tanker dimensions(L×W×H) | Thickness of raw material (MM) | Seal head type | Loading weight (KG) | Tanker weight(KG) | Others |
1 | lpg storage tank | DT1600-12 | 12 m3 | 6270×1620×2255 DN1600×10 | δ10 | Double oval | 4840 | 3298 | |
2 | lpg storage tank | DT2100-25 | 25 m3 | 7594×2124×2877 DN2100×12 | δ12 | Double oval | 10080 | 5688 | |
3 | lpg storage tank | DT2400-32 | 32 m3 | 7508×2428×3007 DN2400×14 | δ14 | Double oval | 12902 | 7460 | |
4 | lpg storage tank | DT2400-50 | 50 m3 | 11483×2428×3028 DN2400×14 | δ14 | Double oval | 20160 | 10824 | |
5 | Propane gas storage tanker | DT2600-50 | 50 m3 | 9912×2628×3215 DN2600×14 | δ14 | Double oval | 20160 | 10229 | |
6 | Propane gas storage tanker | DT3000-80 | 80 m3 | 11866×3032×3610 DN3000×16 | δ16 | Double oval | 32256 | 17900 | |
7 | Propane gas storage tanker | DT3200-100 | 100 m3 | 13010×3236×3716 DN3200×18 | δ18 | Double oval | 40320 | 21228 | |
8 | Liquid ammonium storage tanker | DT2000-20 | 20 m3 | 6806×2028×2611 DN2000×14 | δ14 | Double oval | 10188 | 5585 | |
9 | Liquid ammonium storage tanker | DT2200-32 | 32 m3 | 8914×2232×2810 DN2200×16 | δ16 | Double oval | 16301 | 8795 |
3
| | LPG STORAGE TANK SPECIFICATION | ||||||
| Capacity (CBM) | Diameter DN | Shell thickness (mm) | Head thickness (mm) | Kerb weight (kg) | Loading Weight (kg) | Overall dimension(mm) | |
| 5 | 1600 | 10 | 10 | 2030 | 1995 | 3070*1620*2210 | |
| 8 | 1600 | 10 | 10 | 2540 | 3192 | 4270*1620*2210 | |
| 10 | 1600 | 10 | 10 | 2950 | 3990 | 5260*1620*2210 | |
| 12 | 1800 | 10 | 12 | 3360 | 4788 | 5034*1820*2410 | |
| 15 | 1800 | 10 | 12 | 3920 | 5985 | 6224*1820*2410 | |
| 20 | 1800 | 10 | 12 | 4820 | 7980 | 8174*1820*2410 | |
| 25 | 2200 | 12 | 14 | 6020 | 9975 | 7008*2224*2814 | |
| 32 | 2400 | 14 | 14 | 7710 | 12768 | 7508*2428*3018 | |
| 50 | 2600 | 14 | 16 | 10910 | 19950 | 9912*2628*3218 | |
| 50 | 2700 | 14 | 16 | 10640 | 19950 | 9182*2728*3318 | |
| 80 | 3100 | 16 | 18 | 17000 | 31920 | 11166*3132*3722 | |
| 80 | 3200 | 18 | 18 | 18140 | 31920 | 10516*3236*3826 | |
| 100 | 3100 | 16 | 18 | 20410 | 39900 | 13866*3132*3722 | |
| 100 | 3200 | 18 | 18 | 21800 | 39900 | 13016*3236*3826 | |
| 120 | 3400 | 18 | 20 | 24960 | 47880 | 13820*3436*4026 | |
| Design pressure | 1.77MPa | ||||||
| Corrosion allowance( mm) | 1mm | ||||||
| Medium density (kg/m3) | 420kg/m3 | ||||||
| Material of tank and main pressure parts | Q345R | ||||||
| Carried standard | Pressure vessels,supervision regulation on safety technology for stationary pressure vessels | ||||||
| Safety valve of selection fitting | Safety valve, column magnetic reversible level meter,pressure gauge, thermometer,cut-off valve | ||||||

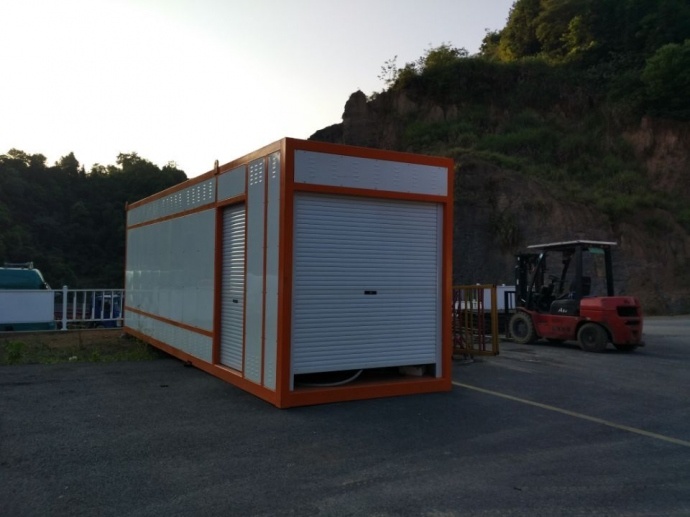

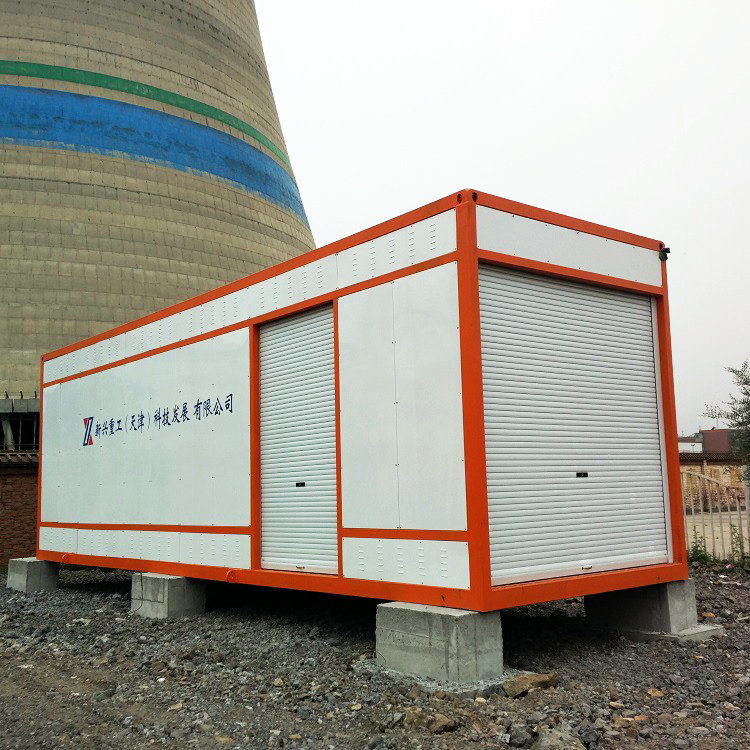

| Product Model | T-LPG-TK |
| Structural form | Integral type, separated type |
| Install Method | Above-ground, |
| System Approach OPTIONAL: | Double pump system, single pump system |
| Storage Tank Volume(M 3;) | 5, 6, 10,15,20, 30 , 40 , 50 , 60,80, 100 , 125 , 150 |
| Design pressure of storage tank | 1.77Mpa |
| Design pressure of pipe | 2.5Mpa |
| Opening pressure of safety valve | 1.75Mpa |
| Ambient Temperature | -40-55°C |
| Ambint Humidity | 10~95% |
| Dimension of skid-mounted body | Up to customer's requirement |
Horizontal Storage HCL Acid Tanks Steel Lined LDPE 120000 Liters
For Storage Bleach, Hydrochloric Acid, Ferric Chloride, Oilfield Chemicals, Corrosive Wastes And Other Hazardous Cargoes.
Steel ( 6 mm -8mm ) Lined PE - Plastic 7042 (16mm - 20 mm ) storage tank
storage hydrochloride, hydrogen chlorate, sodium hydroxide,acrylic
acetic acid, glacial acetic acid, hydrogen peroxide
Propionic acid, ammonia,NH3·H2O
other tanks
Horizontal Oil Tank | Horizontal Oil Tank |
SS Double Oil Tank | |
SF Double Oil Tank | |
Industrial Condenser | U shape Condenser |
Tubular surface condenser | |
Reaction Tower | Pressure Reactor |
Pyrolysis Reactor |
Horizontal Fuel Storage Tank Cbm For Petroleum Oil,Gasoline, Petrol, Diesel Steel Q235 or Q345 .Q245.R20 thinckness 5.6.8mm - 10.12mm Custermizing 1-100CBM
Tri Axle 28Mt Liquid Petroleum Gas Lpg Tank Truck Semi Trailer For Sale
$35,900.00 - $37,500.00/Set(Min. Order)
Best Quality 60m3 Tri Axle Propane Tank Lpg Semi Trailer For Sale
$29,000.00 - $37,500.00/Set(Min. Order)
Lowest Price Q345R 30mt Bulk Propane Delivery Lpg Gas Tanker Trailer 60m3
$30,000.00 - $37,500.00/Set(Min. Order)
China New Tri Axle 50000 Liter Lpg Transport Tank Trailer Trucks 20 Ton
$32,000.00 - $33,600.00/Set(Min. Order)
China Mini 2.5 Metric Tonnes Howo Lpg Gas Distribution Tanker Truck 5000 Liter
$23,000.00 - $29,500.00/Set(Min. Order)
Sinotruk Howo Mini Mobile Truck Tankers Light Cargo Truck Box Truck For Liquefied Gas Mobile Gas Metan Refueling Trucks For Sale
$16,800.00 - $25,000.00/Unit
1 Unit(Min. Order)
New Liquid Ammonia Tank Container Mobile Gas Metan Refueling Lpg Road Tanker Bobtail Propane Mobile Dispenser Truck
$16,800.00 - $25,000.00/Unit
1 Unit(Min. Order)
New Liquid Methane Lpg Auto Gas 5 Mt Skid Gas Plant With Dispenser Pump Gas Refueling Nigeria Lpg Dispensing Trucks
$16,800.00 - $25,000.00/Unit
1 Unit(Min. Order)
Sinotruk Howo 4x2 Nigeria Bulk Lpg Dispensing Bullet Tank 2.5 Ton 3 Ton 4 Ton 5 Ton Mini 5m3 Lpg Bobtail Truck For Refilling
$16,800.00 - $25,000.00/Unit
1 Unit(Min. Order)
Sinotruk Howo 4x2 6m3 8m3 10m3 Flow Meter Lpg Gas Mini Transport Filling 5000 Litres Lpg Vehicle Fuel Tank
$16,800.00 - $25,000.00/Unit
1 Unit(Min. Order)
00:23
Famous 5-35cbm Dongfeng Kinland 220-375Hp 8x4 Propane Lpg Trucks For Sale
$25,000.00/Sets
00:23
Hot Sale 20 Cbm 30cbm 40cbm 50cbm Lpg Gas Tank Container Trailer 2 Axles 3 Axles Liquid Propane Gas Semi Trailer Made In China
$22,000.00/Sets
Sinotruk Howo 120hp 116hp Dimethyl Ether Tank Propane Gas Car Refilling Mobile Tanker Mobile Gas Filling Service Truck
$16,800.00 - $25,000.00/Unit
1 Unit(Min. Order)
Factory 2.5 Mt Howo Small Liquid Propane Gas Transport Truck For Sale
$23,000.00 - $29,500.00/Set(Min. Order)
China New Lowest Price Dongfeng Small 5000 l Propane Truck Transport Lpg Tanker For Sale
$23,000.00 - $29,500.00/Set(Min. Order)
Chinese Cheapest 6x4 Dongfeng 12 Ton Bulk Cooking Gas Lpg Truck 25000 Liters With Good Quality
$35,000.00 - $41,000.00/Set(Min. Order)
Chinese Cheapest Left Hand Drive 8x4 Jiefang Bulk Lpg Cooking Gas Delivery Tanker Truck 18 Ton
$58,000.00 - $59,000.00/Set(Min. Order)
12Mt Brand New 10 Wheeler Faw 24000 Liters Bulk Propane Transport Tanker Truck For Sale
$39,000.00 - $59,000.00/Set(Min. Order)
20m3 Chinese Factory 10ton Portable Lpg Filling Station For Sale
$22,000.00 - $35,000.00/Set(Min. Order)
Q345R Portable 10mt Gas Lpg Cylinder Filling Plant For Sale
$20,000.00 - $35,000.00/Set(Min. Order)
2.5 Ton To 60 Tons Propane Tank Skid Mounted Lpg Filling Station With Scale
$23,000.00 - $35,000.00/Set(Min. Order)
Factory Lowest Price Brand New Portable 40 Cubic Meter Lpg Tank Skid Fpr Sale
$23,000.00 - $35,000.00/Set(Min. Order)
China Lowest Price 15mt Propane Lpg Gas Filling Machine
$23,600.00 - $35,000.00/Set(Min. Order)
5m3 To 120m3 Lpg Cooking Gas Cylinder Filling Station Sale
$23,000.00 - $35,000.00/Set(Min. Order)
Hot Selling 10 Metric Tonne Portable Mobile Lpg Station With Lpg Dispenser
$24,500.00 - $31,500.00/Set(Min. Order)
2017 New Top Quality 21 Metric Ton Propane Gas Filling Station With Cheapest Price
$23,000.00 - $35,000.00/Set(Min. Order)
China Cheapest Brand New 20m3 Lpg Refilling Station For Cooking Gas Cylinder
$22,000.00 - $35,000.00/Set(Min. Order)
Chinese Factory Brand New Small Mobile 5 Ton Lpg Skid Station With Gas Scale For Sale
$21,000.00 - $25,000.00/Set(Min. Order)
Lowest Price New Mini Gas Cylinder Filling Mobile Station 6tons
$22,000.00 - $23,000.00/Set(Min. Order)
Best Quality Portable 20000 Liter Lpg Filling Tank Skid For Sale
$24,500.00 - $31,500.00/Set(Min. Order)
Factory 30000 Liter Auto Lpg Gas Filling Skid Station With Dispenser
$23,600.00 - $35,000.00/Set(Min. Order)
Brand New 15ton Cooking Gas Cylinder Filling Lpg Skid With 2 Scales
$23,600.00 - $35,000.00/Set(Min. Order)
High Safe 5m3 To 120m3 Chinese Lpg Filling Stations For Sale
$22,000.00 - $23,000.00/Set(Min. Order)
Top Quality 50000 Liters Gas Cylinder Lpg Filling Plant Made In China
$23,000.00 - $35,000.00/Set(Min. Order)
Chinese Cheapest Price 25 Metric Ton 50m3 Propane Station For Sale
$26,000.00 - $35,000.00/Set(Min. Order)
Factory Lowest Price 20000 Liters 10 Ton Lpg Gas Refilling Plant For Sale
$22,000.00 - $35,000.00/Set(Min. Order)
Acid Storage Tank for Oil Fied Chemical Contain Hydrochloric Acid 120CBM Horizontal
Used to contain: HCl (max 35%), NaOH (max 50%), NaCLO (max 10%), PAC (max 17%), H2SO4 etc
Horizontal / Vertical Storage HCL Acid Tanks Steel Lined LDPE 120000 Liters
For Storage Bleach, Hydrochloric Acid, Ferric Chloride, Oilfield Chemicals, Corrosive Wastes And Other Hazardous Cargoes.
Steel ( 6 mm -8mm ) Lined PE Plastic 7042 (16mm - 25 mm ) storage tank
| water tank | stainless steel tank /water pump/ High pressure squirt gun |
|---|---|
| steel option | Q235/Q345/ 16 manganese steel/SS201/SS304 /SS316 alummin alloy tanker |
| acids tanker | steel lined plastic for water/alcohol/ethanol acid, alkaline and salt HCL, NaOH ,NaCIO Sodium Hypochlorite NaCIO /hydrofluoric acid HF/CAUSTIC SODA alummin nitric acid |
| oil/petrol,Fuel diesel/LPG/LNG | steel tank with oil pump/ gun fuel truck nozzle |
| asphalt/bitumen/crude oil tanker/ AN ammonium methana Alcohol | burner/steam heating and insulation system ,pump option |
