Road Construction Intelligent Asphalt Distributor

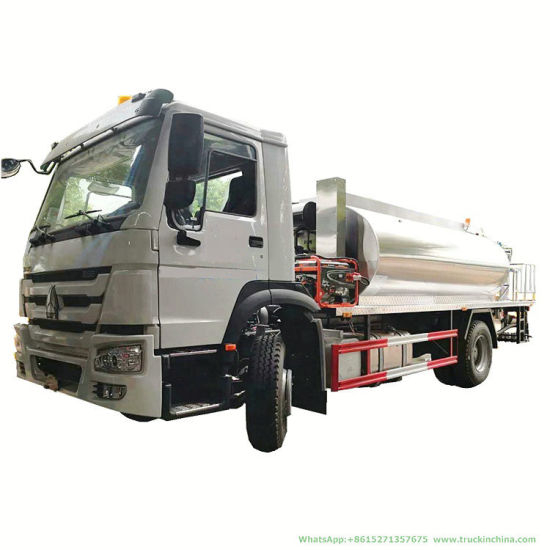

HOWO Howo 16 Ton Intelligent Asphalt Distributor Truck 6m3 Asphalt Emulsion Tank 6000-16000L Tank Spraying Nozzles 24-30 Nos (Asphalt Tank 8000-16000L Insulated Spray Bitumen 3.5 -6 meters)
Cell: 0086 152 7135 7675
HOWO Asphalt Distributor 6 m3
Brief introduction of asphalt distributor truck
standard asphalt distributor is an high-tech product which can spread emulsified asphalt, fluxed asphalt, oil refining asphalt, heated asphalt, heavy traffic paving asphalt and high viscosity modified asphalt (vehicle with high configuration). The product has been widely used in highway construction and road maintenance projects. It can be used for construction of upper and lowers seal coat, prime coat, waterproof layer, bonding layer, bituminous surface treatment, bituminous penetration pavement, fog seal and other projects of different grades of highway pavement. It can also be used for transportation of liquid asphalt or other heavy oil
1. Bitumen spray truck, aslo called asphalt sprayer or saphalt paving truck, is specially designed and produced for transporting or spraying liquid asphalt(Including hot asphalt, emulsified asphalt and residue),in addition it can also supply loose asphalt binder to the soil, the construction of asphalt stabilized soil pavement or pavement base.
Bitumen spray truck is a black road construction machinery, one of the main equipment for the construction of road, city roads, airports and port terminals.
2. Type of our asphalt paving truck:
a. Common type
b. Standard type
c. Smart type(domestic main components)
d. Smart type(import main components)
(See more details in the comparation table below)
3. Capacity of spraying asphalt:
Type: whole four types above can work with liquid asphalt, such as hot asphalt, emulsified asphalt and residue, etc.
Rubber asphalt: need special equipment and customized.
Spraying rate: according to equipped asphalt pump(from 300~680 liters/min)
Spraying width: 4.5~6m
Spraying area: 0.2~0.3 liters/cbm

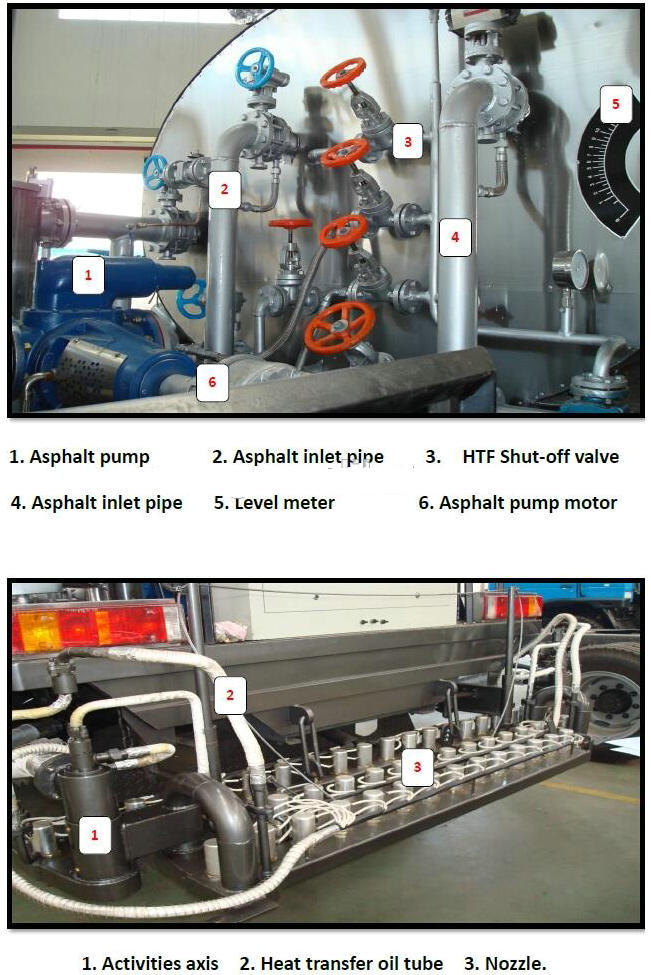

4. Structure of our asphalt spray truck:
Automobile system, asphalt tank, asphalt pumping and spraying system, thermal oil heating system, hydraulic system, combustion system, control system, pneumatic system, operating platform.
Vehicle Description | |||||
Vehicle model | Asphalt Distributor | Overall dimensions (mm) | 8335*2480*3050 | ||
GVW (kg) | Appro×16000 | Fact loading capacity (L) | 6000 | ||
Mass in working order (kg) | Appro×10160 | Max. Speed (km/h) | 95 | ||
Chassis Description | |||||
Chassis Model | ZZ1167K501GE | ||||
Cab | Standard cabin with Left hand drive | ||||
Color | Optional | ||||
Allowable person in cab | 2 | ||||
Wheel base (mm) | 4500 | ||||
Front/Rear track base (mm) | 1506/1466 | ||||
Front/Rear overhang (mm) | 1032/2068 | ||||
Number of axles | 2 | ||||
Axle | Front axle | 2320 | |||
Rear axle | 3480 | ||||
Traction system | 4x2 | ||||
Operation control system | Power steering | ||||
Braking system | Full air | ||||
Electric system | 24V | ||||
Transmission | Mechanical gear box 5 speeds + one rear | ||||
Spring plate | 6/8+4 | ||||
Tire specification | 275/80R22.5,10.00R20,10.00-20 | ||||
Tire quantity | 6+1 | ||||
Engine Description | |||||
Engine model | MC05.16-50 | ||||
Emission standard | Euro 2 | ||||
Exhaust/output | 4580/118 | ||||
Horse power | 160 | ||||
Up-parts Description | |||||
Asphalt tank Outline Dimension (mm) | 4350/2410/1710 | ||||
Asphalt tank Inner Dimension(mm) | 3980/1950/1250 | ||||
Insulating layer thickness (mm) | 50 | ||||
Asphalt tank Total Volume(L) | 6000 | ||||
Hydraulic pump | CBQ550-L | ||||
Proportional valve | Taiwan EFBG-03-160-HF | ||||
Asphalt pump | QGB680 | ||||
Hydraulic motor for asphalt pump | 05-110-BD31 | ||||
Heating System | Italian burner Riello | ||||
Heat-transfer oil pump | 25-25-160 | ||||
Control System | SIEMENS CLW-39-01 | ||||

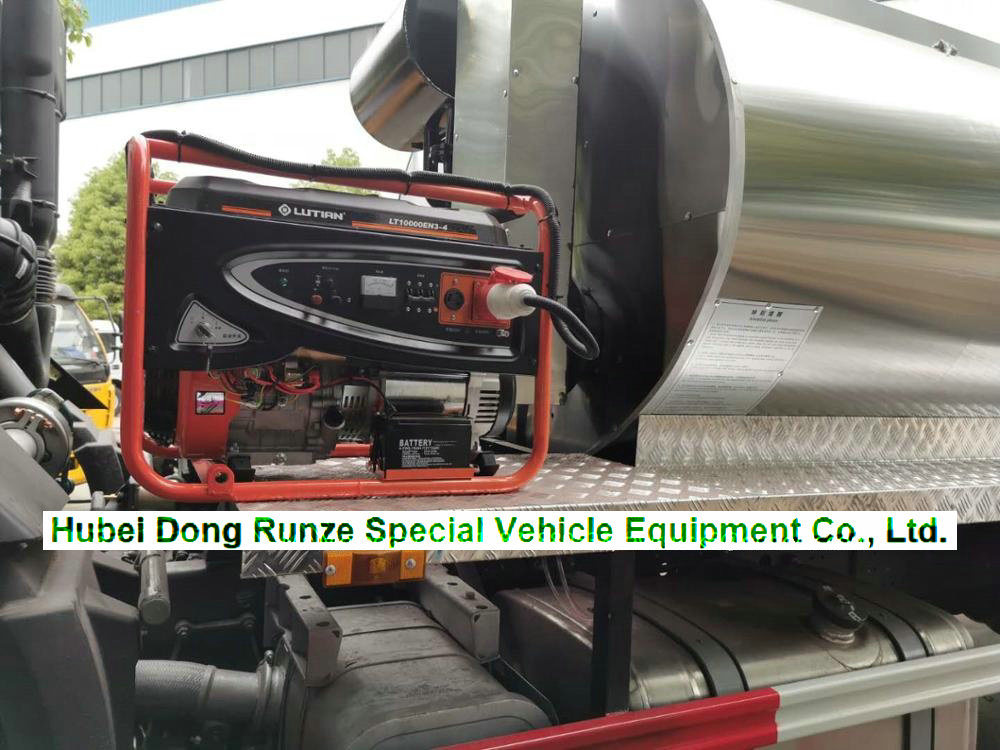

Generator | 5.5KW gasoline engine generator | ||||
Number of nozzle | 30-39 | ||||
Spray medium | Hot asphalt/ Hot modified asphalt/ Cutback asphalt/ Emulsified asphalt | ||||
Spray width(m) | 4.5-6 | ||||
Spray amount(L/m2) | 0.2-2 | ||||
Working Condition: | 1,Altitude: 0-4500m 2,Temperature: -350C~+450C 3,Relative humidity: 80% 4,Wind force: ≤8 degree |
Automobile system, asphalt tank, asphalt pumping and spraying system, thermal oil heating system, hydraulic system, combustion system, control system, pneumatic system, operating platform.
Driving Type | 4x2,left hand drive |
Weights | |
Tare weight(kg) | 4800 |
Dimensions | |
Wheelbase(mm) | 3360 |
Overall Dimension(mm) | 5990 x 2050 x2500 |
Max speed(km/h) | 90 |
Engine | |
Engine model | CY4100 (95HP) |
Emission standard | Euro III |
Engine type | Diesel 4-storke Inter-cooling, water-cooled |
No. of cylinders | 4 cylinders |
Displacement(L) | 3.707 |
Rated power Rev((Kw/rpm) | 73kw / 3200rpm |
Drive Line | |
Transmission | WLY6T100, 6 forward gears and 1 reverse gear, Manual operation operation |
Steering | Power steering |
Brake system | Air brake |
Cab | |
cabin | One row and half |
Standard configuration | Can be tipped forwardly; with A/C; |
Axle | |
Front axle | 2.4tons |
Rear axle | 4.2 tons |
Tire specification | |
Tire specification | 7.00R16 |
Tire quantity | 6 tires+1 spare tire |
Bitumen Spray System Options (Please select which type you need when inquiry) | |||
Type | Common Type | Standard Type | Smart Type |
Model of asphalt pump | QGB270(300L/min) | QGB680(680L/min) | QGB680(680L/min) |
Origin of asphalt pump | China made | China made | China made |
Suitable Tank Volume | 6CBM | 6CBM | 6CBM |
Medium | Dilute/Emulsify asphalt | Hot/Dilute/Emulsify asphalt | Hot/Dilute/Emulsify asphalt |
Hydraulic System | Shanxi YUCI | Shanxi YUCI | Shanxi YUCI |
Proportional Valve | - | - | Taiwan EFBG-03-160-HF |
Reversing Valve | - | - | √ |
Relief Valve | - | - | √ |
Model of Hydraulic Pump | CBQ550-L | CBQ550-L | CBQ550-L |
Model of Hydraulic Motor | 05-110-BD31 | 05-110-BD31 | 05-110-BD31 |
Radiator | RISHENG brand | RISHENG brand | RISHENG brand |
Control System | Manaul | Rear work platform | German Siemens CLW-39-01 |
Control Type | 1-control-1 | 1-control-1 | Computer smart control, 1-control-1 |
Operation Person Number | 2 persons | 2 persons | 1 persons |
Asphalt Nozzle Number | 11 | 30~39 | 30~39 |
Heating Type | Heat conducting oil automatically heating | ||
Conducting Oil | Hebei,China | ||
Burner | Italy import G10 | ||
Power of Engine | 6KW | ||
Spraying Capacity | 0.8L/min | 0.2~3L/min | 0.2~3L/min |
Spraying Error | / | ±8% | ±2% |
Spraying Width | 4.5m | 4.5 | 4.5~6m |
Remark | If sprinkling asphalt to install extra equipment | If you need to sprinkle rubber asphalt, please call me |
1.) Automatic asphalt distributor boasts three layers. It can adjust the spray amount according to its operational speed.
2.) The whole asphalt spraying process can be finished in the cab.
3.) Each nozzle is controlled by separate computer. The spray width can be adjusted at random.
4.) The control procedure is equipped with two control systems, cab and post operational platform to ensure the reliability of asphalt spray.
5.)The computer control system adopts modular design for lower accident rate and maintenance.
6.)The temperature of asphalt in tank is kept below or equal to two degrees per hour
7.)The distributor is equipped with automatic blowing device to shift the asphalt outside to the tank
Automatic Asphalt Distributor/Bitumen Sprayer The main fitting adopts the most advanced components with computer system controlled spraying. Our intelligent asphalt distributor's accuracy meets Euro standards. Together with the advantages of asphalt distributors in the world, with automatic asphalt distributor, we innovated four new technologies
1. Any asphalt used is displaced.
2. Asphalt nozzle is multilayer filtrate and keeps the quality of spray.
3. Asphalt spraying is controlled by computer system.
4. Asphalt spray is suitable for asphalt pavement construction, which can improve performance achievements to international standards with zero tolerance.
5.Automatic asphalt distributor boasts three layers. It can adjust the spray amount according to its operational speed.
6. The whole asphalt spraying process can be finished in the cab.
7. Each nozzle is controlled by separate computer. The spray width can be adjusted at random.
8. The control procedure is equipped with two control systems, cab and post operational platform to ensure the reliability ofasphalt spray.
Q1. What is the advantage of your Asphalt Distributor?
We have two categories of Asphalt Distributors: Ordinary and Intelligent. Please take a look at our catalog to know the advantages of the Ordinary type. The advantages of the Intelligent type:
1. The main accessories (asphalt pump, burner, control system) are imported;
2. Adjustable spray amount based on the viscosity of the medium;
3. Two sets of control systems (cab and back operating platform) and newly launched GPS remote control and diagnose system.
Q2. What is the price of your Asphalt Distributor?
We have three kinds of Asphalt Distributors: Ordinary, Standard and Intelligent. Prices are based on the type, capacity and configuration.
Q3. What is the difference between Intelligent Asphalt Distributor and Standard Asphalt Distributor?
A. Intelligent: The whole operation can be carried out in the cab; Standard: Manual operation.
B. Intelligent: Imported accessories (asphalt pump--Danish ROTAN, burner-Italian Riello, hydraulic pump -Germany Rexroth, temperature control system-Omron, computer control components-Siemens. The standard type also uses imported accessories.
C. Intelligent: heat transfer oil heating system, each nozzle is controlled by separate computer. Standard: asphalt pump+ heat transfer oil, one computer controls three nozzles.
Q4. What warranty coverage do I have?
Our Asphalt Distributor has one-year warranty. We will provide free accessories for exported products.

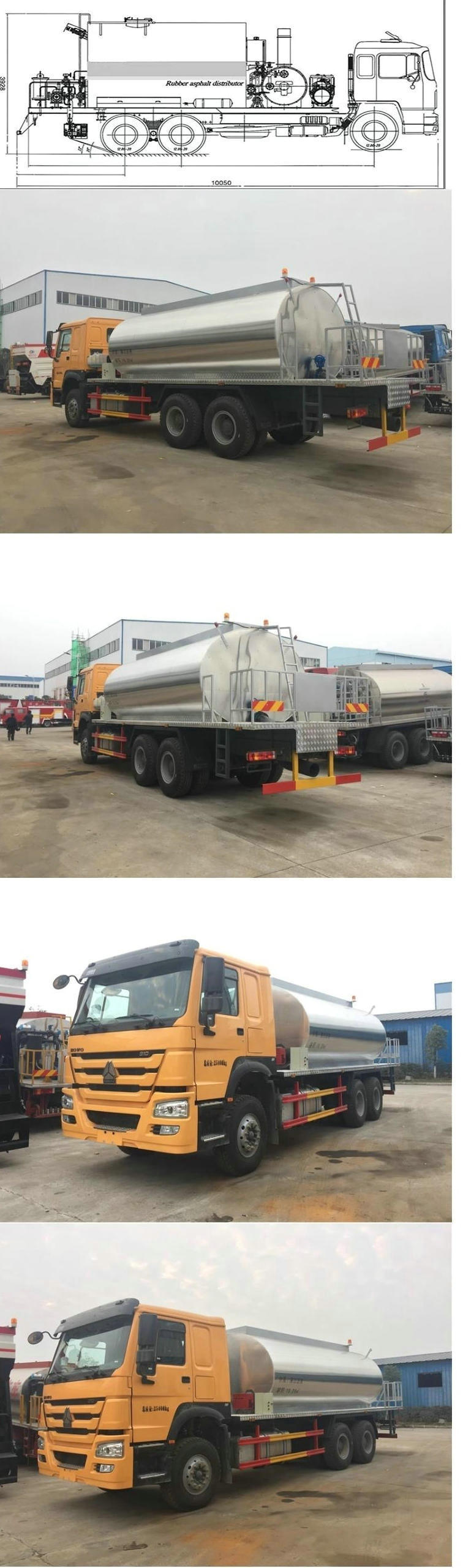

Asphalt tanker truck,bitumen spraying truck,which is mainly used for road construction.
Currently our company produce the asphalt spraying truck 3000~14000 liter design.
Meanwhile,our company also produce the multi-function truck that asphalt spraying with crush stone paver.Welcome for your inquiry.
Item | Unit | Specification |
Vehicle Model Name | Asphalt Spray Truck (standard,semi-auto,automatic,Imported Automatic) | |
Driving type | 6*4 | |
Tank Volume | M³(L) | 12-14 |
Overall Dimension | mm | 10200×2500×3450 |
Gross Weight | kg | 25000 |
Payload | kg | 8870,8805 |
Curb Weight | kg | 16000 |
Axle No. | 3 | |
Wheelbase | mm | 4600+1350 |
Max speed | Km/h | 95 |
Chassis Model | ZZ1257M4641W | |
Chassis Brand | HOWO | |
Chassis Manufacturer | CNHTC Jinan Truck Co., Ltd. | |
Chassis Category | Truck chassis (second) | |
Engine Model | WD615.92 | |
Engine Manufacturer | ChinaNationalHeavyDutyTruckGroupCo.,Ltd | |
Displacement / Power | ml/kw | 9726/192 |
Emission Standard | EURO II | |
Fuel Type | Diesel | |
Tire specification / Number | 11.00R20 /10 | |
Transmission | 10 forward,1 reverse | |
Front Axle /Rear Axle | T | |
Cab Seats | man | 3 |
Spray Width | mm | 6 |
Nozzle Quantity | pcs | 48 |
Control Method | Manual or Computer | |
Price | ||
Vehicle Profile | The asphalt spray truck is a kind of professional distributing emulsified asphalt, heat diluted asphalt, asphalt, high viscosity modified asphalt, it is an intelligent automation high-tech truck. The truck sprinkles road surface with asphalt and spray the priming oil, waterproof layer, bond layer on asphalt roadbed. It consist of chassis, Asphalt tank, asphalt pump , spray system, hot oil heating system , hydraulic system, burning system, control system, pneumatic system and operational platform. The truck is easy to operate. Based on existing technologies , it has new designed to make sure the sprinkling asphalt quantity , to improve construction environment for mankind. It is reasonable and reliable to ensure the asphalt distributing uniformity, computer control is stable and reliable, vehicle technical has reached the world advanced level. It can be work under the harsh environments. | |
Performance Feature | 1. Adjust the nozzles in any form through the computer according to the asphalt spraying quantity and working width. 2. Control the nozzles independently through the manual/automatic control, this can adjust the nozzles in any form. 3. It can control the asphalt spraying quantity not only in the cab but also on the operational platform at the end of the truck. 4. The automatic system can measure the truck speed, it also can automatically calculate the revolution of asphalt pump according to entered asphalt spraying quantity and spraying width, then adjust the pump number through the automatic system . 5. Equipped with Italy imports of diesel burner heating, with auto ignition and temperature control. 6.. Adopt to the advanced high viscosity asphalt pump, can put outside pump in the Tank to achieve self-absorption, also can put the asphalt out of the tank. 7.In order to make sure the vehicle reliability and extend the service life, the critical part of the vehicle adopt to the international famous parts. 8. All the heat pipe has the insulation layer to reduce heat release and avoid to scald the operator at the same time. 9. Vehicular rapid-heating system(10-15ºC/h) can improve the heating efficiency and reduce the construction time to ensure the spray temperature. 10. The asphalt spray bar is designed three-stage folded structure, move the asphalt spray up and down to achieve dual or multiple spraying, move the asphalt spray left and right to achieve extend the distributing range, what' more . It can avoid obstacles efficiently. 11. The manual spraying function can make spraying through the hand nozzle, it is quite flexible but only applicable to small and marginal construction condition. Install the hand spray gun, open the outlet valve, open the diverting valve, open the oil return valve, use the oil return valve to adjust the pressure of the spray gun. 12. It is designed the precipitation sewage tank in the asphalt tank, and equip with liquid level digital display and security alarms. 13.It has good thermal insulation layer, this is preservative and durable and ensure the static heat preservation performance index ≤12ºC/8h. 14The out package of the truck adopt to stainless steel plate, antiseptic and durable, beautiful designed |
Parameters of Semi-Automatic Asphalt Distributor.
Model | 5251GLQ | 5162GLQ | 5161GLQ | 5120GLQ | 5111GLQ | 5090GLQ | 5081GLQ |
Truck | Cab-over-engine 6*4 | Cab-over-engine 4*2 | Cab-over-engine 4*2 | Cab-over-engine 4*2 | Cab-over-engine 4*2 | Cab-over-engine 4*2 | Cab-over-engine 4*2 |
Chassis Model | ZZ1257M4647C | DFL1160BX | BJ5163ELFFD | BJ1123VJPEG-S | EQ1110TJ12D5 | EQ1090T9ADJ3AC | HFC1081KT |
Burner model | G20 | G20 | G20 | G20 | G20 | G20 | G20 |
Asphalt capacity | 12000 | 8000 | 8000 | 6600 | 5400 | 4500 | 5000 |
Spray bar variable(m) | 0-6M | 0-6M | 0-6M | 0-6M | 0-6M | 0-6M | 0-5.5M |
Spray bar value(kg) | 0.3-3.0 | 0.3-3.0 | 0.3-3.0 | 0.3-3.0 | 0.3-3.0 | 0.3-3.0 | 0.3-3.0 |
Dimension | 10500*2496*3350 | 8995*2490*3200 | 8785*2455*3015 | 8990*2350*2855 | 7998*2260*2870 | 7445*2285*2560 | 7350*2010*2460 |
Configuration Type | Details of Asphalt truck | |||
Normal configuration Simple type | 1. Asphalt pump: ZP230 insulation type high viscosity asphalt pump; 2. Asphalt pump drive motor: GM05 series high-torque plunger motor; 3. Burner: G10 imported from Italy 4. Temperature control: AI-218 microcomputer temperature controller; 5. Spreading width: 1.2m ~ 4.5m, optional 6m 6. Spray control: manual adjustment 7. Asphalt pipeline compressed air cleaning function | |||
Ordinary configuration | 1. Asphalt pump: ZP230 insulation type high viscosity asphalt pump; 2. Asphalt pump drive motor: GM05 series high-torque plunger motor; 3. Hydraulic pump: F563 aluminum alloy gear pump; 4. Hydraulic system: manual flow control valve imported; 5. Burner: G10 imported from Italy 6. Temperature control: AI-218 microcomputer temperature controller; 7. Spreading width: 1.2m ~ 4.5m, optional 6m 8. Sprinkler control: manually adjust asphalt pipe 9. Asphalt pipeline compressed air cleaning function | |||
Ordinary upgrade configuration | 1. Asphalt pump: ZP230 insulation type high viscosity asphalt pump; 2. Asphalt pump drive motor: GM05 series high-torque plunger motor; 3. Hydraulic pump: F563 aluminum alloy gear pump; 4. Hydraulic system: imported proportional flow control valve; 5. Burner: G10 imported from Italy 6. Heating method: automatically heating by heat-conduction oil 7. Temperature control: AI microcomputer temperature controller; 8. Width of Spray : 1.2m ~ 4.5m, optional 6m precise triple overlappingSpray , 9. Spraying quantity control: manually adjust asphalt nozzle; 10. Asphalt pipeline compressed air cleaning function | |||
Semi-intelligent configuration | 1. Asphalt pump: ZP230 insulation type high viscosity asphalt pump; 2. Asphalt pump drive motor: GM05 series high-torque plunger motor; 3. Hydraulic pump: F563 aluminum alloy gear pump; 4. Hydraulic system: imported proportional flow control valve; 5. Burner: G10 imported from Italy 6. Heating method: automatically heating by heat-conduction oil 7. Temperature control: AI microcomputer temperature controller; 8. Maximum width of Spray : 4.5 meters, optional 6 meters, precise three overlapping Spray , fully electric controln ozzle, 9. Sprinkler control: front and background potentiometer adjustment, digital display; 10. Asphalt pipeline compressed air cleaning function | |||
Full intelligent configuration | 1. Asphalt pump: ZP230 insulation type high viscosity asphalt pump; 2. Asphalt pump drive motor: GM05 series high-torque plunger motor; 3. Hydraulic pump: F563 aluminum alloy gear pump; 4. Hydraulic system: imported proportional flow control valve; 5. Burner: G10 imported from Italy 6. Heating method: automatically heating by heat-conduction oil with selective heating function 7.temperature control: Germany Siemens temperature control module, computer temperature control 8. Maximum width of Spray : 4.5 meters, optional 6 meters, precise three overlapping Spray , fully electric control nozzle, 9. Sprinkling width is precisely controlled by computer: sprinkling quantity control: Germany Siemens PLC, intelligent control, sprinkling quantity and speed precise linkage, front touch screen control system. 10. Asphalt pipeline compressed air cleaning function | |||
Full intelligent configuration imported Pump |
2. Asphalt pump drive motor: GM05 series high-torque plunger motor; 3. Hydraulic pump: Germany leisler plunger variable pump; 4. Hydraulic system: imported proportional flow control valve; 5. Burner: G10 imported from Italy 6. Heating method: automatically heating by heat-conduction oil with selective heating function 7. temperature control: Germany Siemens temperature control module, computer temperature control 8. Maximum width of Spray : 4.5 meters, optional 6 meters, precise three overlapping Spray , fully electric control nozzle, 9. Sprinkling width is precisely controlled by computer: sprinkling quantity control: Germany Siemens PLC, intelligent control, sprinkling quantity and speed precise linkage, front touch screen control system. 10. Asphalt pipeline compressed air cleaning function 11.spray volume 0.2 ~ 3 kg / , 28 sets of full electric nozzle, |
Our products enjoy a good reputation for the good quality!
The asphalt distributor is made up by chassis, asphalt tank, asphalt pump, optional conduction oil heating system, electronic control system and spraybar system, etc.
Major features:
1) Digital display meters and instruments to indicate speed of the vehicle and the asphalt pump rotation, as well as temperature of asphalt inside the tank.
2) Possesses heat preservation, conduction oil recycling heating, transportation, spray, pumping and discharge function, etc.
3) Nozzle controlled through pneumatic joint control operation of cylinder for opening and closing.
4) Cleaning system of compressed air
5) Hydraulic power take-off of chassis or auxiliary diesel engine for drive, heated with burner, optional conduction oil recycling system.
Road Construction Intelligent Asphalt Distributor
HOWO Howo 16 Ton Intelligent Asphalt Distributor Truck 6m3 Asphalt Emulsion Tank 6000-16000L Tank Spraying Nozzles 24-30 Nos (Asphalt Tank 8000-16000L Insulated Spray Bitumen 3.5 -6 meters)
Cell: 0086 152 7135 7675
HOWO Asphalt Distributor 6 m3
Brief introduction of asphalt distributor truck
standard asphalt distributor is an high-tech product which can spread emulsified asphalt, fluxed asphalt, oil refining asphalt, heated asphalt, heavy traffic paving asphalt and high viscosity modified asphalt (vehicle with high configuration). The product has been widely used in highway construction and road maintenance projects. It can be used for construction of upper and lowers seal coat, prime coat, waterproof layer, bonding layer, bituminous surface treatment, bituminous penetration pavement, fog seal and other projects of different grades of highway pavement. It can also be used for transportation of liquid asphalt or other heavy oil
1. Bitumen spray truck, aslo called asphalt sprayer or saphalt paving truck, is specially designed and produced for transporting or spraying liquid asphalt(Including hot asphalt, emulsified asphalt and residue),in addition it can also supply loose asphalt binder to the soil, the construction of asphalt stabilized soil pavement or pavement base.
Bitumen spray truck is a black road construction machinery, one of the main equipment for the construction of road, city roads, airports and port terminals.
2. Type of our asphalt paving truck:
a. Common type
b. Standard type
c. Smart type(domestic main components)
d. Smart type(import main components)
(See more details in the comparation table below)
3. Capacity of spraying asphalt:
Type: whole four types above can work with liquid asphalt, such as hot asphalt, emulsified asphalt and residue, etc.
Rubber asphalt: need special equipment and customized.
Spraying rate: according to equipped asphalt pump(from 300~680 liters/min)
Spraying width: 4.5~6m
Spraying area: 0.2~0.3 liters/cbm
4. Structure of our asphalt spray truck:
Automobile system, asphalt tank, asphalt pumping and spraying system, thermal oil heating system, hydraulic system, combustion system, control system, pneumatic system, operating platform.
Vehicle Description | |||||
Vehicle model | Asphalt Distributor | Overall dimensions (mm) | 8335*2480*3050 | ||
GVW (kg) | Appro×16000 | Fact loading capacity (L) | 6000 | ||
Mass in working order (kg) | Appro×10160 | Max. Speed (km/h) | 95 | ||
Chassis Description | |||||
Chassis Model | ZZ1167K501GE | ||||
Cab | Standard cabin with Left hand drive | ||||
Color | Optional | ||||
Allowable person in cab | 2 | ||||
Wheel base (mm) | 4500 | ||||
Front/Rear track base (mm) | 1506/1466 | ||||
Front/Rear overhang (mm) | 1032/2068 | ||||
Number of axles | 2 | ||||
Axle | Front axle | 2320 | |||
Rear axle | 3480 | ||||
Traction system | 4x2 | ||||
Operation control system | Power steering | ||||
Braking system | Full air | ||||
Electric system | 24V | ||||
Transmission | Mechanical gear box 5 speeds + one rear | ||||
Spring plate | 6/8+4 | ||||
Tire specification | 275/80R22.5,10.00R20,10.00-20 | ||||
Tire quantity | 6+1 | ||||
Engine Description | |||||
Engine model | MC05.16-50 | ||||
Emission standard | Euro 2 | ||||
Exhaust/output | 4580/118 | ||||
Horse power | 160 | ||||
Up-parts Description | |||||
Asphalt tank Outline Dimension (mm) | 4350/2410/1710 | ||||
Asphalt tank Inner Dimension(mm) | 3980/1950/1250 | ||||
Insulating layer thickness (mm) | 50 | ||||
Asphalt tank Total Volume(L) | 6000 | ||||
Hydraulic pump | CBQ550-L | ||||
Proportional valve | Taiwan EFBG-03-160-HF | ||||
Asphalt pump | QGB680 | ||||
Hydraulic motor for asphalt pump | 05-110-BD31 | ||||
Heating System | Italian burner Riello | ||||
Heat-transfer oil pump | 25-25-160 | ||||
Control System | SIEMENS CLW-39-01 | ||||
Generator | 5.5KW gasoline engine generator | ||||
Number of nozzle | 30-39 | ||||
Spray medium | Hot asphalt/ Hot modified asphalt/ Cutback asphalt/ Emulsified asphalt | ||||
Spray width(m) | 4.5-6 | ||||
Spray amount(L/m2) | 0.2-2 | ||||
Working Condition: | 1,Altitude: 0-4500m 2,Temperature: -350C~+450C 3,Relative humidity: 80% 4,Wind force: ≤8 degree |
Automobile system, asphalt tank, asphalt pumping and spraying system, thermal oil heating system, hydraulic system, combustion system, control system, pneumatic system, operating platform.
Driving Type | 4x2,left hand drive |
Weights | |
Tare weight(kg) | 4800 |
Dimensions | |
Wheelbase(mm) | 3360 |
Overall Dimension(mm) | 5990 x 2050 x2500 |
Max speed(km/h) | 90 |
Engine | |
Engine model | CY4100 (95HP) |
Emission standard | Euro III |
Engine type | Diesel 4-storke Inter-cooling, water-cooled |
No. of cylinders | 4 cylinders |
Displacement(L) | 3.707 |
Rated power Rev((Kw/rpm) | 73kw / 3200rpm |
Drive Line | |
Transmission | WLY6T100, 6 forward gears and 1 reverse gear, Manual operation operation |
Steering | Power steering |
Brake system | Air brake |
Cab | |
cabin | One row and half |
Standard configuration | Can be tipped forwardly; with A/C; |
Axle | |
Front axle | 2.4tons |
Rear axle | 4.2 tons |
Tire specification | |
Tire specification | 7.00R16 |
Tire quantity | 6 tires+1 spare tire |
Bitumen Spray System Options (Please select which type you need when inquiry) | |||
Type | Common Type | Standard Type | Smart Type |
Model of asphalt pump | QGB270(300L/min) | QGB680(680L/min) | QGB680(680L/min) |
Origin of asphalt pump | China made | China made | China made |
Suitable Tank Volume | 6CBM | 6CBM | 6CBM |
Medium | Dilute/Emulsify asphalt | Hot/Dilute/Emulsify asphalt | Hot/Dilute/Emulsify asphalt |
Hydraulic System | Shanxi YUCI | Shanxi YUCI | Shanxi YUCI |
Proportional Valve | - | - | Taiwan EFBG-03-160-HF |
Reversing Valve | - | - | √ |
Relief Valve | - | - | √ |
Model of Hydraulic Pump | CBQ550-L | CBQ550-L | CBQ550-L |
Model of Hydraulic Motor | 05-110-BD31 | 05-110-BD31 | 05-110-BD31 |
Radiator | RISHENG brand | RISHENG brand | RISHENG brand |
Control System | Manaul | Rear work platform | German Siemens CLW-39-01 |
Control Type | 1-control-1 | 1-control-1 | Computer smart control, 1-control-1 |
Operation Person Number | 2 persons | 2 persons | 1 persons |
Asphalt Nozzle Number | 11 | 30~39 | 30~39 |
Heating Type | Heat conducting oil automatically heating | ||
Conducting Oil | Hebei,China | ||
Burner | Italy import G10 | ||
Power of Engine | 6KW | ||
Spraying Capacity | 0.8L/min | 0.2~3L/min | 0.2~3L/min |
Spraying Error | / | ±8% | ±2% |
Spraying Width | 4.5m | 4.5 | 4.5~6m |
Remark | If sprinkling asphalt to install extra equipment | If you need to sprinkle rubber asphalt, please call me |
1.) Automatic asphalt distributor boasts three layers. It can adjust the spray amount according to its operational speed.
2.) The whole asphalt spraying process can be finished in the cab.
3.) Each nozzle is controlled by separate computer. The spray width can be adjusted at random.
4.) The control procedure is equipped with two control systems, cab and post operational platform to ensure the reliability of asphalt spray.
5.)The computer control system adopts modular design for lower accident rate and maintenance.
6.)The temperature of asphalt in tank is kept below or equal to two degrees per hour
7.)The distributor is equipped with automatic blowing device to shift the asphalt outside to the tank
Automatic Asphalt Distributor/Bitumen Sprayer The main fitting adopts the most advanced components with computer system controlled spraying. Our intelligent asphalt distributor's accuracy meets Euro standards. Together with the advantages of asphalt distributors in the world, with automatic asphalt distributor, we innovated four new technologies
1. Any asphalt used is displaced.
2. Asphalt nozzle is multilayer filtrate and keeps the quality of spray.
3. Asphalt spraying is controlled by computer system.
4. Asphalt spray is suitable for asphalt pavement construction, which can improve performance achievements to international standards with zero tolerance.
5.Automatic asphalt distributor boasts three layers. It can adjust the spray amount according to its operational speed.
6. The whole asphalt spraying process can be finished in the cab.
7. Each nozzle is controlled by separate computer. The spray width can be adjusted at random.
8. The control procedure is equipped with two control systems, cab and post operational platform to ensure the reliability ofasphalt spray.
Q1. What is the advantage of your Asphalt Distributor?
We have two categories of Asphalt Distributors: Ordinary and Intelligent. Please take a look at our catalog to know the advantages of the Ordinary type. The advantages of the Intelligent type:
1. The main accessories (asphalt pump, burner, control system) are imported;
2. Adjustable spray amount based on the viscosity of the medium;
3. Two sets of control systems (cab and back operating platform) and newly launched GPS remote control and diagnose system.
Q2. What is the price of your Asphalt Distributor?
We have three kinds of Asphalt Distributors: Ordinary, Standard and Intelligent. Prices are based on the type, capacity and configuration.
Q3. What is the difference between Intelligent Asphalt Distributor and Standard Asphalt Distributor?
A. Intelligent: The whole operation can be carried out in the cab; Standard: Manual operation.
B. Intelligent: Imported accessories (asphalt pump--Danish ROTAN, burner-Italian Riello, hydraulic pump -Germany Rexroth, temperature control system-Omron, computer control components-Siemens. The standard type also uses imported accessories.
C. Intelligent: heat transfer oil heating system, each nozzle is controlled by separate computer. Standard: asphalt pump+ heat transfer oil, one computer controls three nozzles.
Q4. What warranty coverage do I have?
Our Asphalt Distributor has one-year warranty. We will provide free accessories for exported products.
Asphalt tanker truck,bitumen spraying truck,which is mainly used for road construction.
Currently our company produce the asphalt spraying truck 3000~14000 liter design.
Meanwhile,our company also produce the multi-function truck that asphalt spraying with crush stone paver.Welcome for your inquiry.
Item | Unit | Specification |
Vehicle Model Name | Asphalt Spray Truck (standard,semi-auto,automatic,Imported Automatic) | |
Driving type | 6*4 | |
Tank Volume | M³(L) | 12-14 |
Overall Dimension | mm | 10200×2500×3450 |
Gross Weight | kg | 25000 |
Payload | kg | 8870,8805 |
Curb Weight | kg | 16000 |
Axle No. | 3 | |
Wheelbase | mm | 4600+1350 |
Max speed | Km/h | 95 |
Chassis Model | ZZ1257M4641W | |
Chassis Brand | HOWO | |
Chassis Manufacturer | CNHTC Jinan Truck Co., Ltd. | |
Chassis Category | Truck chassis (second) | |
Engine Model | WD615.92 | |
Engine Manufacturer | ChinaNationalHeavyDutyTruckGroupCo.,Ltd | |
Displacement / Power | ml/kw | 9726/192 |
Emission Standard | EURO II | |
Fuel Type | Diesel | |
Tire specification / Number | 11.00R20 /10 | |
Transmission | 10 forward,1 reverse | |
Front Axle /Rear Axle | T | |
Cab Seats | man | 3 |
Spray Width | mm | 6 |
Nozzle Quantity | pcs | 48 |
Control Method | Manual or Computer | |
Price | ||
Vehicle Profile | The asphalt spray truck is a kind of professional distributing emulsified asphalt, heat diluted asphalt, asphalt, high viscosity modified asphalt, it is an intelligent automation high-tech truck. The truck sprinkles road surface with asphalt and spray the priming oil, waterproof layer, bond layer on asphalt roadbed. It consist of chassis, Asphalt tank, asphalt pump , spray system, hot oil heating system , hydraulic system, burning system, control system, pneumatic system and operational platform. The truck is easy to operate. Based on existing technologies , it has new designed to make sure the sprinkling asphalt quantity , to improve construction environment for mankind. It is reasonable and reliable to ensure the asphalt distributing uniformity, computer control is stable and reliable, vehicle technical has reached the world advanced level. It can be work under the harsh environments. | |
Performance Feature | 1. Adjust the nozzles in any form through the computer according to the asphalt spraying quantity and working width. 2. Control the nozzles independently through the manual/automatic control, this can adjust the nozzles in any form. 3. It can control the asphalt spraying quantity not only in the cab but also on the operational platform at the end of the truck. 4. The automatic system can measure the truck speed, it also can automatically calculate the revolution of asphalt pump according to entered asphalt spraying quantity and spraying width, then adjust the pump number through the automatic system . 5. Equipped with Italy imports of diesel burner heating, with auto ignition and temperature control. 6.. Adopt to the advanced high viscosity asphalt pump, can put outside pump in the Tank to achieve self-absorption, also can put the asphalt out of the tank. 7.In order to make sure the vehicle reliability and extend the service life, the critical part of the vehicle adopt to the international famous parts. 8. All the heat pipe has the insulation layer to reduce heat release and avoid to scald the operator at the same time. 9. Vehicular rapid-heating system(10-15ºC/h) can improve the heating efficiency and reduce the construction time to ensure the spray temperature. 10. The asphalt spray bar is designed three-stage folded structure, move the asphalt spray up and down to achieve dual or multiple spraying, move the asphalt spray left and right to achieve extend the distributing range, what' more . It can avoid obstacles efficiently. 11. The manual spraying function can make spraying through the hand nozzle, it is quite flexible but only applicable to small and marginal construction condition. Install the hand spray gun, open the outlet valve, open the diverting valve, open the oil return valve, use the oil return valve to adjust the pressure of the spray gun. 12. It is designed the precipitation sewage tank in the asphalt tank, and equip with liquid level digital display and security alarms. 13.It has good thermal insulation layer, this is preservative and durable and ensure the static heat preservation performance index ≤12ºC/8h. 14The out package of the truck adopt to stainless steel plate, antiseptic and durable, beautiful designed |
Parameters of Semi-Automatic Asphalt Distributor.
Model | 5251GLQ | 5162GLQ | 5161GLQ | 5120GLQ | 5111GLQ | 5090GLQ | 5081GLQ |
Truck | Cab-over-engine 6*4 | Cab-over-engine 4*2 | Cab-over-engine 4*2 | Cab-over-engine 4*2 | Cab-over-engine 4*2 | Cab-over-engine 4*2 | Cab-over-engine 4*2 |
Chassis Model | ZZ1257M4647C | DFL1160BX | BJ5163ELFFD | BJ1123VJPEG-S | EQ1110TJ12D5 | EQ1090T9ADJ3AC | HFC1081KT |
Burner model | G20 | G20 | G20 | G20 | G20 | G20 | G20 |
Asphalt capacity | 12000 | 8000 | 8000 | 6600 | 5400 | 4500 | 5000 |
Spray bar variable(m) | 0-6M | 0-6M | 0-6M | 0-6M | 0-6M | 0-6M | 0-5.5M |
Spray bar value(kg) | 0.3-3.0 | 0.3-3.0 | 0.3-3.0 | 0.3-3.0 | 0.3-3.0 | 0.3-3.0 | 0.3-3.0 |
Dimension | 10500*2496*3350 | 8995*2490*3200 | 8785*2455*3015 | 8990*2350*2855 | 7998*2260*2870 | 7445*2285*2560 | 7350*2010*2460 |
Configuration Type | Details of Asphalt truck | |||
Normal configuration Simple type | 1. Asphalt pump: ZP230 insulation type high viscosity asphalt pump; 2. Asphalt pump drive motor: GM05 series high-torque plunger motor; 3. Burner: G10 imported from Italy 4. Temperature control: AI-218 microcomputer temperature controller; 5. Spreading width: 1.2m ~ 4.5m, optional 6m 6. Spray control: manual adjustment 7. Asphalt pipeline compressed air cleaning function | |||
Ordinary configuration | 1. Asphalt pump: ZP230 insulation type high viscosity asphalt pump; 2. Asphalt pump drive motor: GM05 series high-torque plunger motor; 3. Hydraulic pump: F563 aluminum alloy gear pump; 4. Hydraulic system: manual flow control valve imported; 5. Burner: G10 imported from Italy 6. Temperature control: AI-218 microcomputer temperature controller; 7. Spreading width: 1.2m ~ 4.5m, optional 6m 8. Sprinkler control: manually adjust asphalt pipe 9. Asphalt pipeline compressed air cleaning function | |||
Ordinary upgrade configuration | 1. Asphalt pump: ZP230 insulation type high viscosity asphalt pump; 2. Asphalt pump drive motor: GM05 series high-torque plunger motor; 3. Hydraulic pump: F563 aluminum alloy gear pump; 4. Hydraulic system: imported proportional flow control valve; 5. Burner: G10 imported from Italy 6. Heating method: automatically heating by heat-conduction oil 7. Temperature control: AI microcomputer temperature controller; 8. Width of Spray : 1.2m ~ 4.5m, optional 6m precise triple overlappingSpray , 9. Spraying quantity control: manually adjust asphalt nozzle; 10. Asphalt pipeline compressed air cleaning function | |||
Semi-intelligent configuration | 1. Asphalt pump: ZP230 insulation type high viscosity asphalt pump; 2. Asphalt pump drive motor: GM05 series high-torque plunger motor; 3. Hydraulic pump: F563 aluminum alloy gear pump; 4. Hydraulic system: imported proportional flow control valve; 5. Burner: G10 imported from Italy 6. Heating method: automatically heating by heat-conduction oil 7. Temperature control: AI microcomputer temperature controller; 8. Maximum width of Spray : 4.5 meters, optional 6 meters, precise three overlapping Spray , fully electric controln ozzle, 9. Sprinkler control: front and background potentiometer adjustment, digital display; 10. Asphalt pipeline compressed air cleaning function | |||
Full intelligent configuration | 1. Asphalt pump: ZP230 insulation type high viscosity asphalt pump; 2. Asphalt pump drive motor: GM05 series high-torque plunger motor; 3. Hydraulic pump: F563 aluminum alloy gear pump; 4. Hydraulic system: imported proportional flow control valve; 5. Burner: G10 imported from Italy 6. Heating method: automatically heating by heat-conduction oil with selective heating function 7.temperature control: Germany Siemens temperature control module, computer temperature control 8. Maximum width of Spray : 4.5 meters, optional 6 meters, precise three overlapping Spray , fully electric control nozzle, 9. Sprinkling width is precisely controlled by computer: sprinkling quantity control: Germany Siemens PLC, intelligent control, sprinkling quantity and speed precise linkage, front touch screen control system. 10. Asphalt pipeline compressed air cleaning function | |||
Full intelligent configuration imported Pump |
2. Asphalt pump drive motor: GM05 series high-torque plunger motor; 3. Hydraulic pump: Germany leisler plunger variable pump; 4. Hydraulic system: imported proportional flow control valve; 5. Burner: G10 imported from Italy 6. Heating method: automatically heating by heat-conduction oil with selective heating function 7. temperature control: Germany Siemens temperature control module, computer temperature control 8. Maximum width of Spray : 4.5 meters, optional 6 meters, precise three overlapping Spray , fully electric control nozzle, 9. Sprinkling width is precisely controlled by computer: sprinkling quantity control: Germany Siemens PLC, intelligent control, sprinkling quantity and speed precise linkage, front touch screen control system. 10. Asphalt pipeline compressed air cleaning function 11.spray volume 0.2 ~ 3 kg / , 28 sets of full electric nozzle, |
Our products enjoy a good reputation for the good quality!
The asphalt distributor is made up by chassis, asphalt tank, asphalt pump, optional conduction oil heating system, electronic control system and spraybar system, etc.
Major features:
1) Digital display meters and instruments to indicate speed of the vehicle and the asphalt pump rotation, as well as temperature of asphalt inside the tank.
2) Possesses heat preservation, conduction oil recycling heating, transportation, spray, pumping and discharge function, etc.
3) Nozzle controlled through pneumatic joint control operation of cylinder for opening and closing.
4) Cleaning system of compressed air
5) Hydraulic power take-off of chassis or auxiliary diesel engine for drive, heated with burner, optional conduction oil recycling system.
6 pcs Metal Alky T21 UN3394 UN3399 Portable Tank TEAL DEAC MAO to SGP Max. gross weight : 4000 kg Tare : 1050 kg Payload : 2950 kg Portable Tank instruction : T21 ADR/RID tank code : N/A Special provisions : TP2 TP7 TP36 TP41 Model : KS1880-T21 ISO size/type code : N/A Type : UN Portable Tank Dimensions : 1148(E.D) x2128 (L) x1388 (H) mm Nominal capacity : 1880 L Measured capacity : 1880 L at 20°C Maximum allowable working pressure : 14 bar Test pressure : 21 bar APPROVALS ADR/RID: F/9151/BV/23 IMDG: F/BV/23/194-T21 US DOT: UN Portable Tank TIR*: GB/C 26839 BV/2023 SUBSTANCES SUITABLE FOR TRANSPORT: In accordance with the requirements of the applicable regulations and the construction of the tank and its equipment. (Substances not compatible with the tank and/or its accessories are excluded for transport) UN3394 & UN3399
Customized Hydrochloric Acid HCL Tank Container Lined PE 24m3 for Trailer Mounted to Vietnam TANK CONTAINER VOLUME 24M3 STEEL SHEET 5MM, HEAD 6MM,Lined LLDPE 16mm for Hydrochloric Acid, Sulfuric Acid Transport 3 CHAMBERS HS CODE: 7309.00
6 units Metal Alky C480 Portable Tank TEAL DEAC Cylinder for Singapore 360 DEG. ROTATABLE TOP FLANGE VALVE (KV-MTFF DN15 PN 40), 360 DEG. ROTATABLE TOP FLANGE VALVE (KV-MTFE DN20 PN 40) K4430 Gaskets
6 Units 40KL 44KL 40FT ISO Steel Lined PE dilute sulfuric acid Tank Container to Kazakhstan40FT Tank Container PE Lined TankUsed to contain: HCl (max 35%), NaOH (max 50%), PAC (max 17%),H2SO4(max 94%) etc…Sulphuric Acid Tank Capacity: 40,000 Liters;44,000 LitersSteel sheet 6mm, head 6mmLiner thickness: 16mm PE01p
2 Sets HOWO Offroad AWD 6x6 Mixing And Charging ANFO Explosive Trucks Delivery
10 Units Hydrochloric Acid HCL PE LINED ISO Tank Containers to Vietnam 20FT Tank Container PE Lined Tank Used to contain: HCl (max 35%), NaOH (max 50%), PAC (max 17%),H2SO4(max 94%) etc… Tank Capacity: 21,900 Liters Steel sheet 6mm, head 6mm Liner thickness: 16mm PE
17m3 , 22m3 Lined PE Tank Container for Hydrochloric Acid HCL to Vietnam 20FT TANK CONTAINER TANK VOLUME/ STEEL THICKNESS 22M3/ 6MM (SOC / EMPTY AND NEW TANKS) BRAND: DONG RUNZE MODEL: DRAU2308018 STORAGE TANK CONTAINER TANK FOR HCL CARGO TRUCK TANK VOLUME/STEEL THICKNESS:17M3/ 6MM ( EMPTY AND NEW TANKS) BRAND: DONG RUNZE MODEL: DTA5260 HS CODE : 7309000000
4 Sets Polyethylene Lined Steel Offshore T14 Tanks For Hydrochloric Acid Transport to Kazakhstan Marks DTAU2305012 DTAU2305028 DTAU2305033 DTAU2305049
80Units Metal Alky C480 UN Portable Tank T21 TEAL Cylinders to USA 80Units UN T21 Portable Tank Container 1880L Cylinder For TEAL Metal Alkyls UN3394 UN3399 to USA Adr/Rid Organometallic Substance, Liquid, Water- Reactive C-430 Saddle Type Portable Tank , tank capacity 1630L C-480 Saddle Type Portable Tank, tank capacity 1880L C-1980 TEAL TMGa ,TEGa,TMIn, TMAl DEAC Metal Alky C-1980 T21 Metal Alky 7495L
6 Sets Polyethylene Lined Steel Tanks 6600Gallon For Hydrochloric Acid Storage Transport Hydrochloric Acid (HCl) to SAU Chemical Factory This the 4th LOT HCL ,NaCLO Tanks For this SAU Chemical Facttory . The 1 st Order date will go back to Date 13-1-2021. CAST IRON STORAGE TANK FOR CHEMICAL MATERIALS STORAGE TANK CAPACITY: 25M3 HS CODE:7309000000
3 Sets Lined PE Tanks 6604Gallon For Storage Transport Sodium Hypochlorite to Saudi Arabia FROM WUHAN PORT CHINA TO DAMMAM, SAUDI ARABIA BY SEA. + Port of loading : WUHAN PORT + Port of unloading :DAMMAM CAST IRON STORAGE TANK FOR CHEMICAL MATERIALS STORAGE TANK CAPACITY: 25M3 HS CODE:730900 10.2x2.1x2.5*3 160.65cbm 3X40HQ
4PCS Power Take-off PTO FOR JMC TRANSMISSION MODEL DN3-7003-EC 6MT1420 to URUGUAY Sdq51/65 (Gearbox Power Take off For ISUZU QINGLING Transmission DN3-70030-E0, 6MT1420 PTO Assembly) HWP-G32/65CHQ ,32/65 PQ1
12PCS PTO Wanliyang Transmission Power Take-off For WLY6T40 WLY6TS40 to Mexico 1 PC SDQ211/60LGQ1 PTO FOR 6DS60T-D TO SAUDI ARABIA
2 Units Righ Hand Drive Shacman F3000 Hydro Excavators Truck Combined Vacuum Sewer Jetting to Suva Port Fiji Shacman F3000 Hydro Excavators Truck Sewer Jet Suction Units (RHD 13500L Sewage+4000L Clean Water ) PTO, transmission shaft, vacuum pump, tanker, hydraulic system and jetting pipe system. Combined Sewer Suction & Jetting Unit SZW Aluminium Alloy Liquid Water Ring Compressor Vacuum Pump XW-2800 VAC Flow 2800 M³/h ,1648 Cfm 46.7M3/min 75KW
6 Sets Lined PE Tanks 6604Gallon For Storage Transport Hydrochloric Acid (HCl) to Saudi Arabia FROM WUHAN PORT CHINA TO DAMMAM, SAUDI ARABIA BY SEA. Port of loading : WUHAN PORT + Port of unloading :DAMMAM DONG RUN ZE CAST IRON STORAGE TANK FOR CHEMICAL MATERIALS STORAGE TANK CAPACITY: 25M3 HS CODE:7309000000 9.7x2.2x2.5*6
