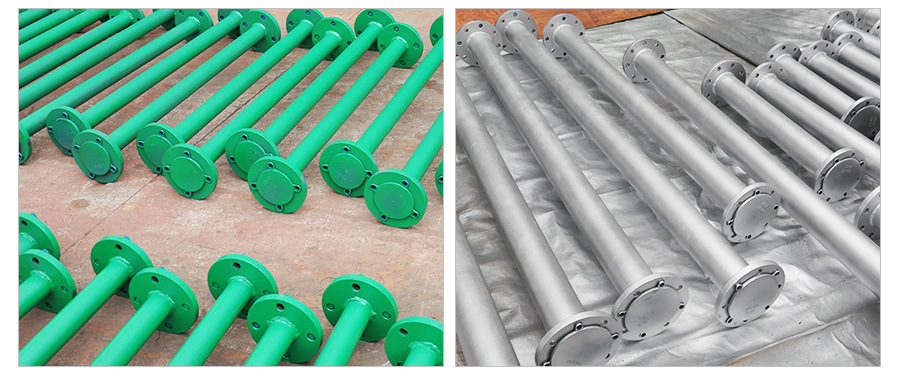

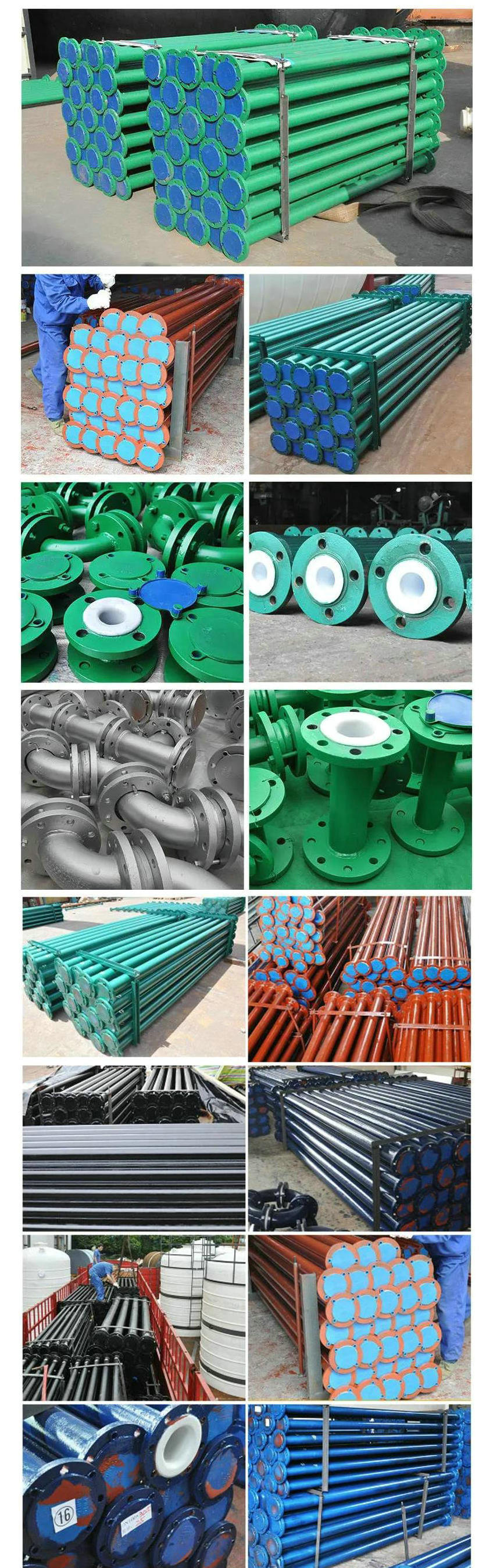

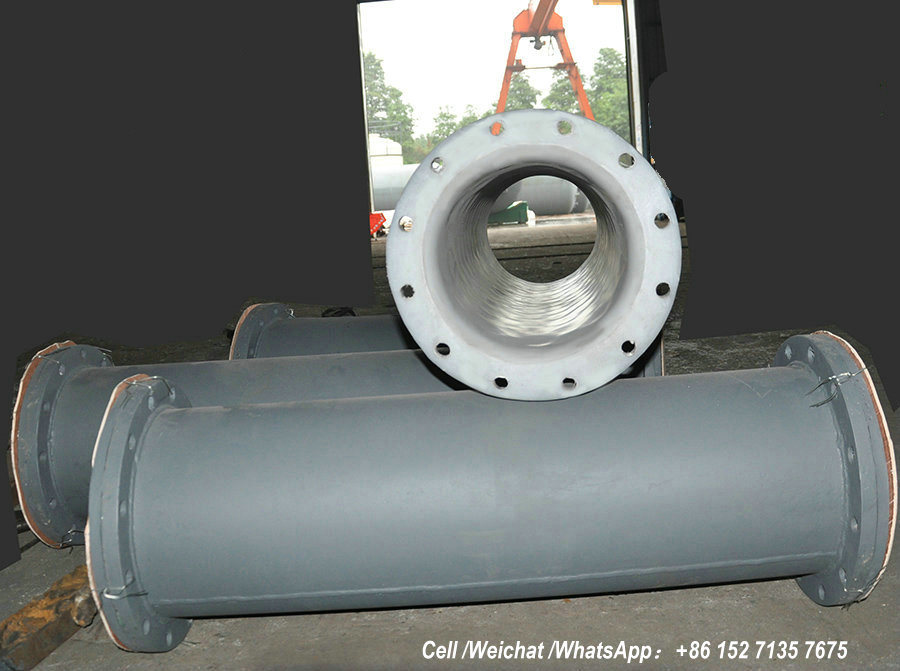

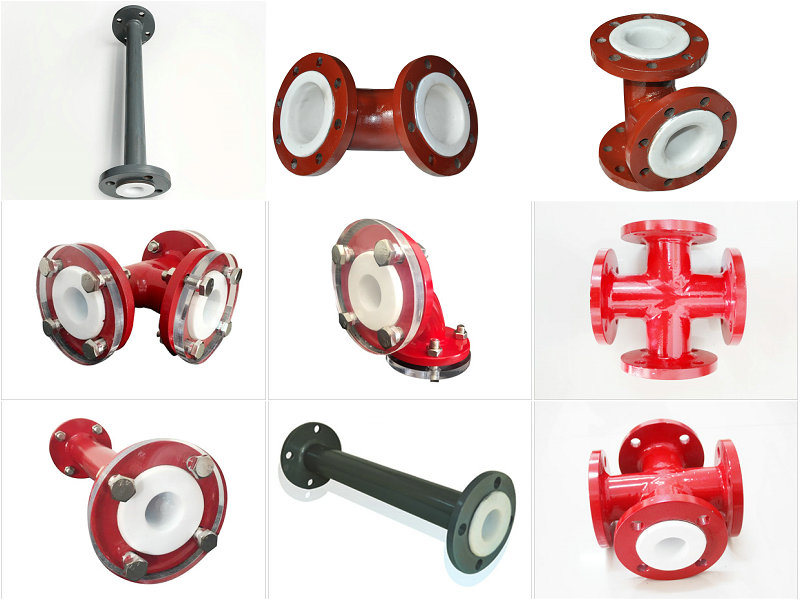

Chemical Pipeline PE Lined Carbon Steel Pipe (PE / PTFE Coating Seamless Steel Pipe)
Anticorrosive Steel Lined Plastic PTFE ,LLDPE Pipe Use for Sulfuric Acid Hydrochloric Acid HCL, NaOH, NaCLO,
Steel lined piping with tetrafluoride
Molded piping with tetrafluoride
Anticorrosive pipeline resistant to high temperature and negative pressure

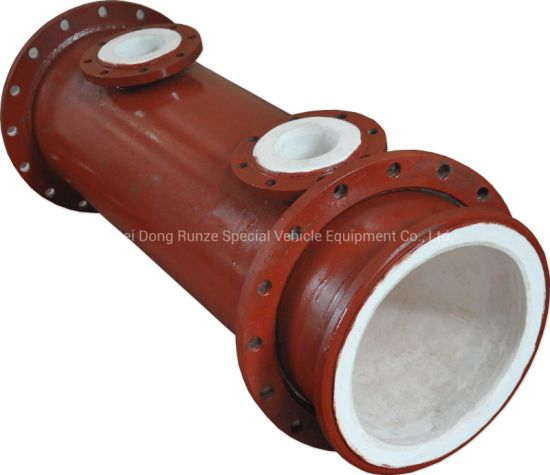

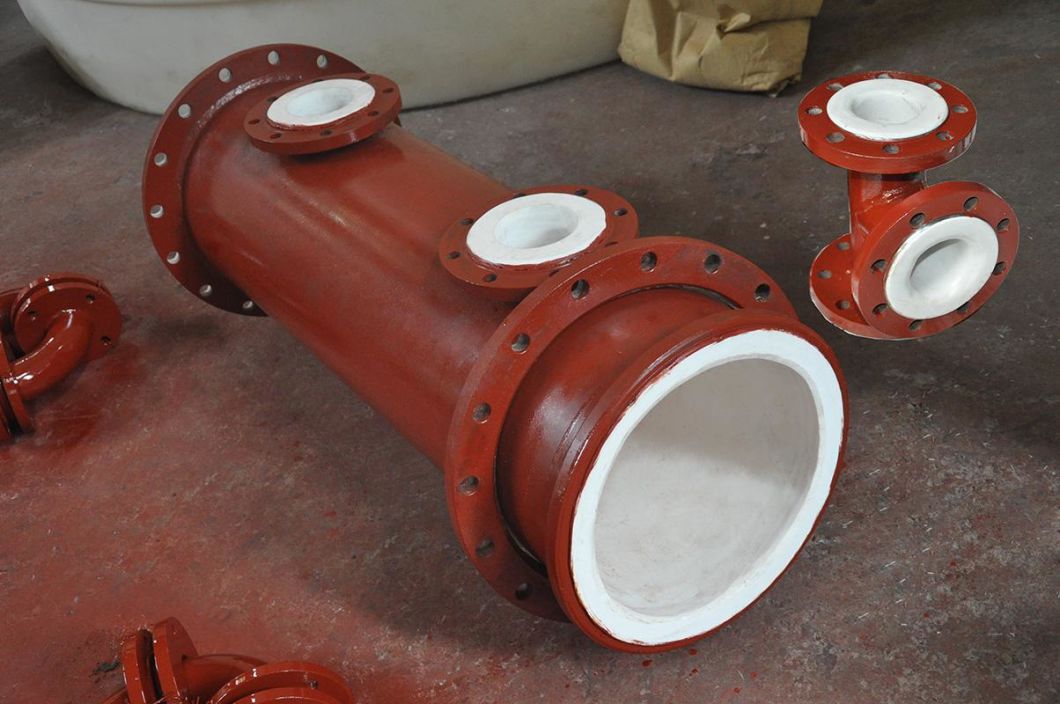

Chemical pipeline Customizing
Metal cans Steel-Lined Plastic Square Tank, Electrolytic Tank, Pickling Tank Acid Containment Vessels Custom Made Rotationally Molded Linear Resins LLDPE
Custermizing Checmial Acid Storage Tank 60 m3 Steel Lined LLDPE Tank Used to Contain: HCl (max 35%) , Naoh (max 50%) , Naclo (max 10%) , PAC (max 17%) ,H2so4
Used to contain: HCl (max 35%), NaOH (max 50%), NaCLO (max 10%), PAC (max 17%), H2SO4 etc
Media (density) : (1155 Kg/m3), Hydrochloric Acid (1150 Kg/m3), Sulfate, Nitrate (1152 Kg/m3), Phosphate (1151 Kg/m3), Hydrofluoric Acid (1132 Kg/m3), Battery Fluid (1135 Kg/m3), Chloride (1135 Kg/m3), Ferric Chloride Solution (1130 Kg/m3), Sodium Hypochlorite (1130 Kg/m3), Sulfurous Acid (1030 Kg/m3)
processing/storing; aluminum sulfate, ammonium sulfate, calcium chloride, ethylene glycol, ferric chloride, ferric sulfate, ferrous sulfate, hydrochloric acid, hydrofluoric acid, hydrofluosilicic acid, hydrogen peroxide, magnesium chloride, phosphoric acid, polymers, potassium hydroxide, or just plain water and we'll design the vessel(s) you require.
Horizontal / Vertical Storage HCL Acid Tanks Steel Lined LDPE 120000 Liters
For Storage Bleach, Hydrochloric Acid, Ferric Chloride, Oilfield Chemicals, Corrosive Wastes And Other Hazardous Cargoes.
Steel ( 6 mm -8mm ) Lined PE Plastic 7042 (16mm - 25 mm ) storage tank

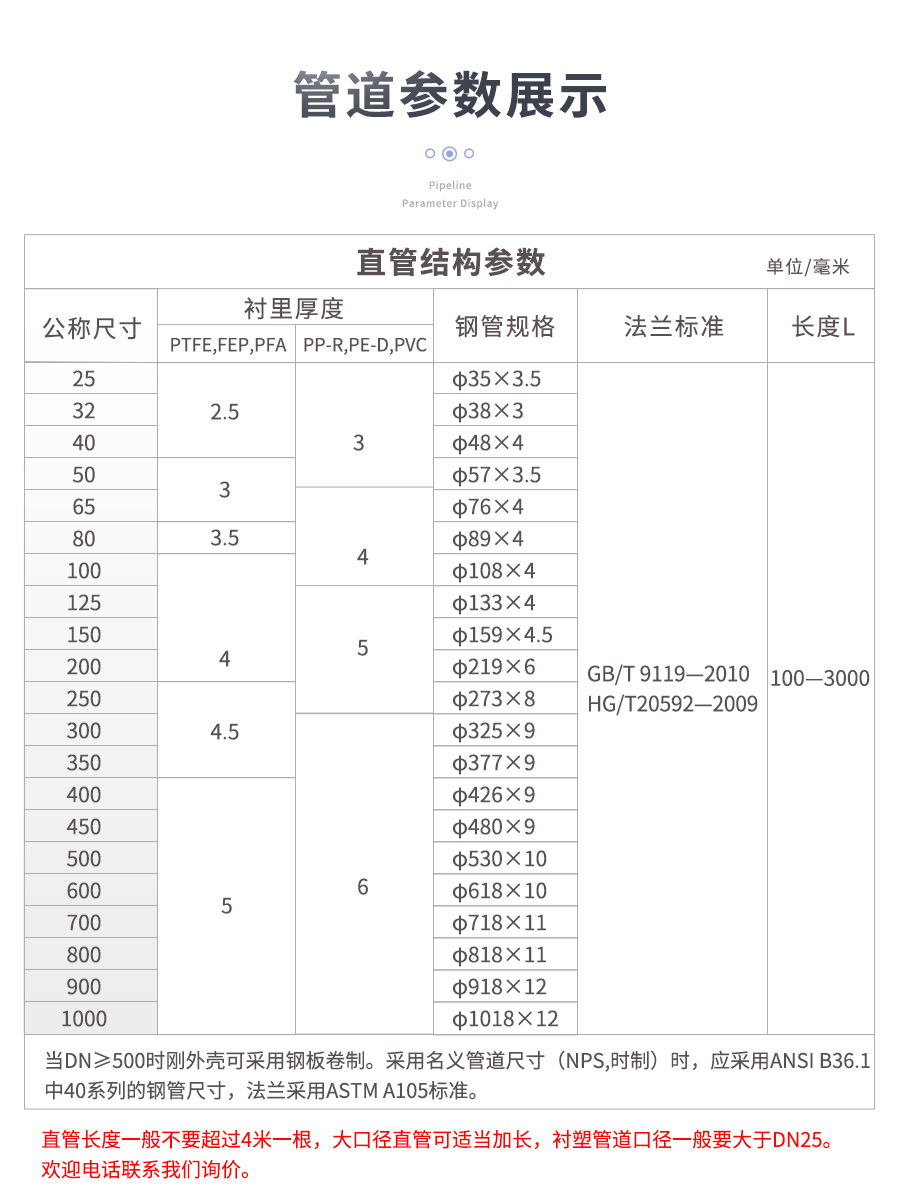

Specification | General PTFE thickness and negative pressure-resistance | The thickness of PTFE wall required to resist-0.1MPA pressure when the temperature is less than 120degree, | |
DN25 | 2mm | -0.08Mpa | 3mm(L≤3000mm) |
DN32 | 2mm | -0.075Mpa | 3mm(L≤3000mm) |
DN40 | 2.5mm | -0.075Mpa | 4mm(L≤3000mm) |
DN50 | 2.5mm | -0.06Mpa | 5mm(L≤3000mm) |
DN65 | 2.5mm | -0.05Mpa | 8mm(L≤1000mm) |
DN80 | 3mm | -0.05Mpa | 10mm(L≤1000mm) |
DN100 | 3mm | -0.04Mpa | 13mm(L≤1000mm) |
DN125 | 4mm | -0.03Mpa | 13mm(L≤1000mm) |
DN150 | 4mm | -0.025Mpa | 13mm(L≤1000mm) |
DN200 | 5mm | -0.02Mpa | 15mm(L≤1000mm) |
Specifications:
Nominal Diameter (mm/in. ): DN15-DN600 (NPS 1/2-NPS 24)
Operating temperature: -20-180 degree
Operating pressure: -0.09MPa-1.6MPa (-0.9bar-16bar)
Pipe: Seamless steel.
Flange: ASME B16.5 Class 150 Flange options: HG, GB, JB, JIS, BS, DIN, ANSI, ASTM
Special pieces of specific or non standard size can be manufactured on request.
Carbon steel 45/90degree ptfe lined elbow
Operating temperature: -20-180
Operating pressure: -0.09MPa-1.6MPa
Carbon steel 45/90degree ptfe lined elbow
1. Positive pressure: It shall adopt steel components according to different technical requirements, and the thickness of PTFE wall shall be over 2mm. If the temperature is less than 100 degree, the production length shall be less than 6m; And if the temperature exceeds 100 degree, the length shall be less than 3m.
2. Negative pressure: Design according to different ambient conditions of the users
PTFE lined 90° elbow | Unit mm | ||||||||
Nominal diameter | Specification of balled iron T | Raised face A | Central height C1 | Inside diameter D1 | PTFE thickness | out side diameter of flange D | Diameter of bolt circle K | Thickness of flange C | |
DN(mm) | NPS(inch) | ||||||||
DN15 | 1/2 | 34 | 40 | 80 | 15 | 5 | 90 | 65 | 11 |
DN20 | 3/4 | 38 | 45 | 90 | 18 | 5 | 100 | 75 | 11 |
DN25 | 1 | 42 | 60 | 92 | 22 | 5 | 110 | 85 | 12 |
DN32 | 1 1/4 | 48 | 70 | 100 | 28 | 5 | 130 | 100 | 13 |
DN40 | 1 1/2 | 57 | 80 | 112 | 38 | 5 | 140 | 110 | 14 |
DN50 | 2 | 68 | 95 | 117 | 48 | 5 | 155 | 125 | 14 |
DN65 | 2 1/2 | 89 | 115 | 135 | 63 | 8 | 175 | 145 | 16 |
DN80 | 3 | 108 | 130 | 150 | 78 | 8 | 190 | 160 | 16 |
DN100 | 4 | 114 | 150 | 150 | 87 | 8 | 210 | 180 | 18 |
DN125 | 5 | 140 | 180 | 190 | 110 | 8 | 240 | 210 | 20 |
DN150 | 6 | 168 | 205 | 230 | 135 | 10 | 275 | 240 | 20 |
DN200 | 8 | 219 | 260 | 305 | 180 | 10 | 330 | 295 | 20 |
DN250 | 10 | 273 | 315 | 380 | 230 | 12 | 385 | 350 | 23 |
DN300 | 12 | 325 | 365 | 420 | 280 | 12 | 435 | 400 | 23 |
Key words:
ptfe lined pipe fittings | ptfe lined tee | ptfe lined reducer | ptfe lined elbow | ptfe lined cross |
ptfe lined pipe and fittings | ptfe lined90degree elbow | ptfe lined 45 degrdd elbow | ptfe lined ECC reducer | ptfe lined CON reducer |
ptfe lined equal tee | ptfe lined reduce tee | ptfe lined unequal tee | ptfe lined pipe | ptfe lined fittings |
ptfe lined carbon steel pipe fittings | ptfe lined carbon steel tee | ptfe lined carbon steel reducer | ptfe lined carbon steel elbow | ptfe lined carbon steel cross |
PTFE pipe | PTFE lined pipe(Australia) | Resistant Stainless Steel Pipe | Resistant Steel Pipe | Carbon seamless steel pipe |
Anti Corrosion Pipe Fittings Lined | PTFE lining fittings | PTFE lined piping | straight tee | PTFE lined bends |

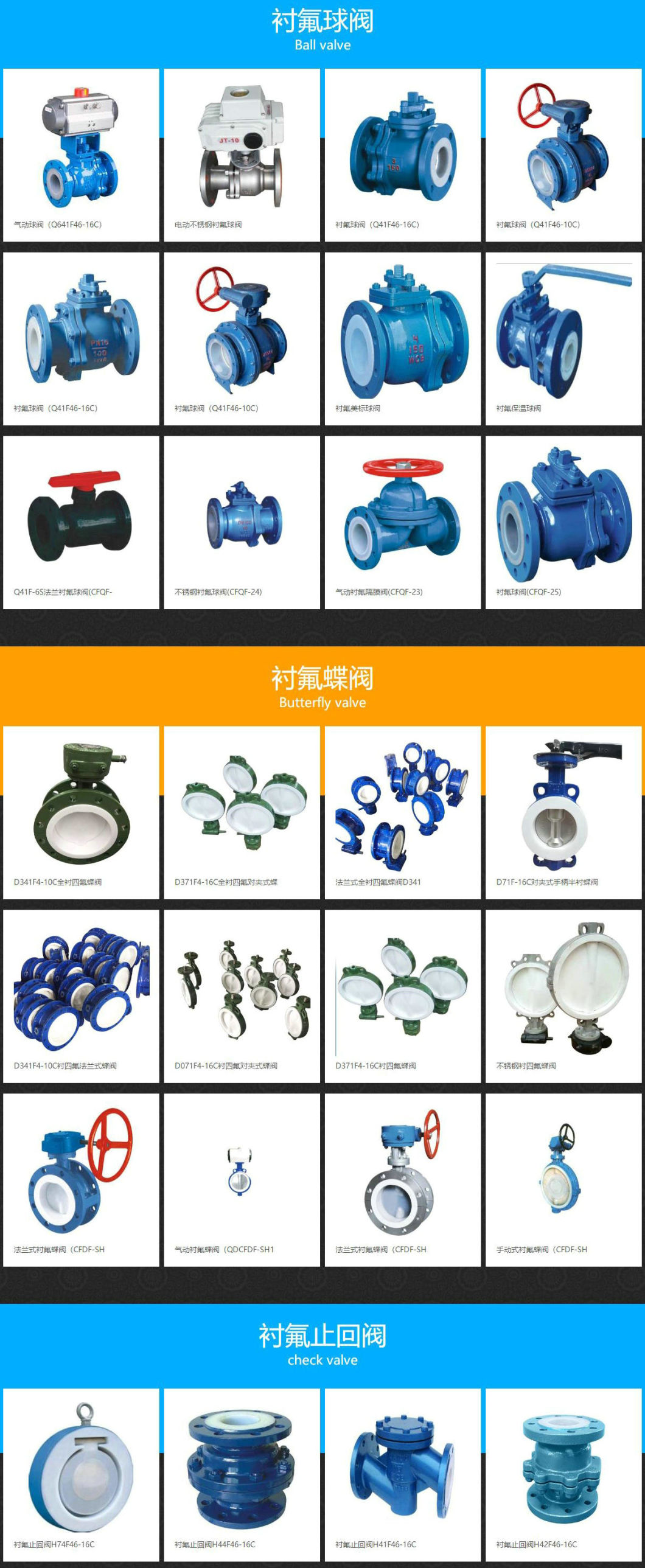

Ball valve
Ball valve
Pneumatic
Pneumatic ball valve (Q641F46-16C)
Electric
Electric stainless steel lined fluorine ball valve
Fluorine
Fluorine ball valve (Q41F46-16C)
Fluorine
Fluorine ball valve (Q41F46-10C)
Fluorine
Fluorine ball valve (Q41F46-16C)
Fluorine
Fluorine ball valve (Q41F46-10C)
Fluorine
Fluorine bearing American standard ball valve
Fluorine
Fluorine lined thermal insulation ball valve
Q41F-6S
Q41F-6S flanged ball valve (CFQF-)
Stainless
Stainless steel lined fluorine ball valve (CFQF-24)
Pneumatic
Pneumatic lining diaphragm valve (CFQF-23)
Fluorine
Fluorine ball valve (CFQF-25)
Butterfly valve
Butterfly valve
D341F4-10C
D341F4-10C fully lined tetrafluoroethylene butterfly valve
D371F4-16C
D371F4-16C fully lined with tetrafluoroethylene clip Butterfly
Flange
Flange type fully lined tetrafluoroethylene butterfly valve D341
D71F-16C
D71F-16C pair clamp handle semi lining butterfly valve
D341F4-10C
D341F4-10C Teflon flange butterfly valve
D071F4-16C
D071F4-16C lined fluorine pair butterfly valve
D371F4-16C
D371F4-16C lined Teflon butterfly valve
Stainless
Stainless steel lined Teflon butterfly valve
Flanged
Flanged lining butterfly valve (CFDF-SH)
Pneumatic
Pneumatic lining butterfly valve (QDCFDF-SH1)
Flanged
Flanged lining butterfly valve (CFDF-SH)
Manual
Manual lining butterfly valve (CFDF-SH)
check valve
Check valve
Fluorine
Fluorine check valve H74F46-16C
Fluorine
Fluorine check valve H44F46-16C
Fluorine
Fluorine check valve H41F46-16C
Fluorine
Fluorine check valve H42F46-16C
PTFE Lined Pipe (with fixed or rotation flange) | 0 Professional China Supplier of Glass Lined Pipe for Corrosion Resistance Manufacturer of PTFE Flexible Connector Resistance PTFE Lined Pipe High-Quality PE Lined Corrosion Resistance Tee High Corrosion China Made High-Quality PFA Lined Ball Valve | High Corrosion Resistance PTFE Lined Pipe FOB Price: US $500 / Piece Min. Order: 10 Meters FEP Lined Butterfly Valve D941 (D941) FEP Lined Butterfly Valve D941 (D941) Min. Order: 10 Pieces FEP Lined Butterfly Valve D41 FEP Lined Butterfly Valve D41 Min. Order: 10 Pieces FEP Lined Butterfly Valve D671 FEP Lined Butterfly Valve D671 Min. Order: 10 Pieces FEP Lined Butterfly Valve D71 FEP Lined Butterfly Valve D71 Min. Order: 10 Pieces Professional China Supplier of PTFE Lined Check Valve (H42) Professional China Supplier of PTFE Lined Check Valve (H42) Min. Order: 10 Pieces FEP Lined Check Valve FEP Lined Check Valve Min. Order: 1 Piece PTFE Lined Baiting Ball Valve PTFE Lined Baiting Ball Valve FOB Price: US $10-1,000 / Piece Min. Order: 1 Piece PFA Lined Ball Valve (FK) PFA Lined Ball Valve (FK) FOB Price: US $500-10,000 / Piece Min. Order: 1 Piece FEP Lined Ball Valve (Q941) FEP Lined Ball Valve (Q941) FOB Price: US $10-1,000 / Piece Min. Order: 1 Piece FEP Lined Ball Valve (Q641) FEP Lined Ball Valve (Q641) FOB Price: US $200-1,000 / Piece Min. Order: 1 Piece Wcb Flange Ball Valve Pn16, 150lb, 300lb Wcb Flange Ball Valve Pn16, 150lb, 300lb FOB Price: US $200-1,000 / Piece Min. Order: 1 Piece PTFE Lined DIP Pipe/Feeding Pipe/Entry Pipe PTFE Lined DIP Pipe/Feeding Pipe/Entry Pipe FOB Price: US $50 / Piece Min. Order: 1 Piece PTFE Lined Tank Horizontal Pressure Vessels PTFE Lined Tank Horizontal Pressure Vessels Min. Order: 1 Piece PTFE Lined Columns PTFE Lined Columns Min. Order: 1 Piece ETFE Line Pipe ETFE Line Pipe Min. Order: 1 Piece PTFE Lined Butterfly Valve PTFE Lined Butterfly Valve Min. Order: 1 Piece Expansion Joint From China for Sell Expansion Joint From China for Sell FOB Price: US $600 / Piece Min. Order: 1 Piece Butterfly Valve Butterfly Valve Min. Order: 1 Piece PTFE Lined Reactor PTFE Lined Reactor Min. Order: 1 Piece Butterfly Valve Butterfly Valve Min. Order: 1 Piece PTFE Lined Vessel PTFE Lined Vessel Min. Order: 1 Piece Butterfly Valve Butterfly Valve Min. Order: 10 Pieces Vacuum Resistance PTFE Expansion Joint Vacuum Resistance PTFE Expansion Joint Min. Order: 1 Piece Rubber Expansion Joint with PTFE Lining Rubber Expansion Joint with PTFE Lining Min. Order: 10 Pieces PTFE Bellows to Compensate for Mechanical and Thermal Changes PTFE Bellows to Compensate for Mechanical and Thermal Changes Min. Order: 1 Piece PTFE Expansion Joint for Normal Pressure 0.1mpa PTFE Expansion Joint for Normal Pressure 0.1mpa Min. Order: 1 Piece PTFE Lined Cross for Chemical Plants PTFE Lined Cross for Chemical Plants FOB Price: US $250 / Piece Min. Order: 10 Pieces Plastic Lined Equal Tee (carbon steel) Plastic Lined Equal Tee (carbon steel) FOB Price: US $500 / Piece Min. Order: 10 Pieces Expansion Rubber Bellow Flange Expansion Rubber Bellow Flange FOB Price: US $500 / Piece Min. Order: 1 Piece PTFE Lined Cross PTFE Lined Cross FOB Price: US $250 / Piece Min. Order: 10 Pieces PTFE/Teflon Lined Tee (Equal tee) PTFE/Teflon Lined Tee (Equal tee) FOB Price: US $200 / Piece Min. Order: 1 Piece Plastic Lined Pipe Plastic Lined Pipe Min. Order: 10 Meters Plastic Lined Elbow (OEM service supplied) Plastic Lined Elbow (OEM service supplied) FOB Price: US $200 / Piece Min. Order: 10 PiecesTeflon Lined Reducer FOB Price: US $200 / Piece Min. Order: 1 Piece Jacketed Glass Lined Reactor 10000L Supplier From China Jacketed Glass Lined Reactor 10000L Supplier From China Min. Order: 1 Piece Horizontal Glass Lined Storage Tank Horizontal Glass Lined Storage Tank FOB Price: US $200-20,000 / Piece Min. Order: 1 Piece Glass Lined Elbow 45deg Glass Lined Elbow 45deg Min. Order: 1 Piece Metallic Expansion Joints Metallic Expansion Joints FOB Price: US $40 / Piece Min. Order: 10 Pieces Professional China Supplier of PTFE Pipe Professional China Supplier of PTFE Pipe Min. Order: 10 Meters Professional China Glass Lined Falling Film Evaporator Professional China Glass Lined Falling Film Evaporator FOB Price: US $10,000 / set Min. Order: 1 set PP/Po/PE Lined Pipe and Fittings PP/Po/PE Lined Pipe and Fittings Min. Order: 10 Pieces Professional China Supplier of Glass Lined Plate Condenser Professional China Supplier of Glass Lined Plate Condenser Min. Order: 1 Piece Cast Steel and Stainless Steel FEP Lined Globe Valve Cast Steel and Stainless Steel FEP Lined Globe Valve Min. Order: 1 Piece Professional China Supplier of PFA Lined Ball Valve Professional China Supplier of PFA Lined Ball Valve FOB Price: US $500-10,000 / Piece Min. Order: 1 Piece PTFE Lined Insulation Ball Valve PTFE Lined Insulation Ball Valve Min. Order: 10 Pieces FEP/PFA/E-Tfe/PTFE Lined Ball Valve FEP/PFA/E-Tfe/PTFE Lined Ball Valve Min. Order: 10 Pieces Guaranteed PTFE Corrugated Flexible Hose Guaranteed PTFE Corrugated Flexible Hose FOB Price: US $10-500 / Piece Min. Order: 1 Piece Professional Manufacturer of PTFE Lined Sight Glass Professional Manufacturer of PTFE Lined Sight Glass Min. Order: 1 Piece PTFE/FEP/PFA/E-Tfe Lined Butterfly Valve PTFE/FEP/PFA/E-Tfe Lined Butterfly Valve Min. Order: 10 Pieces Professional China Supplier of FEP Lined Check Valve Professional China Supplier of FEP Lined Check Valve Min. Order: 1 Piece China Made PTFE Gasket China Made PTFE Gasket FOB Price: US $10-200 / Piece Min. Order: 100 Pieces Zy212 Mechanical Seal Zy212 Mechanical Seal Min. Order: 10 Pieces Zy212b Mechanical Seal Zy212b Mechanical Seal Min. Order: 10 Pieces Professional China Manufacturer of Zy204b Mechanical Seal Professional China Manufacturer of Zy204b Mechanical Seal Min. Order: 1 Piece Zy205/206/207 Mechanical Seal for Industrial Pump Zy205/206/207 Mechanical Seal for Industrial Pump Min. Order: 10 Pieces Zy2009 Mechanical Seal for Reactors Zy2009 Mechanical Seal for Reactors Min. Order: 10 Pieces High-Quality PP Lined Corrosion Resistance Pipe |
The chemical compatibility of LDPE and HDPE on this chart is tested at 20°C: and 50°C: for 7 days and 30 days (if applicable) with constant exposure.
LDPE & HDPE resistance listed by chemical | |
1.4-dioxane | LDPE / HDPE at 20°C: little or no damage after 30 days. LDPE at 50°C: shows some effect after 7 days. |
Acetaldehyde | LDPE / HDPE at 20°C: little or no damage after 30 days. HDPE at 50°C: shows some effect after 7 days. LDPE at 50°C: immediate damage may occur. |
Acetic Acid 5 % | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Acetic Acid, glacial 50% | LDPE / HDPE at 20°C: little or no damage after 30 days. LDPE at 50 °C: immediate damage may occur. |
Acetone | LDPE / HDPE at 20°C-50°C: damage may occur. Not recommended for continuous use. |
Allyl Alcohol | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Aluminum salts | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Amino acids | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Ammonia | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Ammonium carbonate saturated | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Ammonium phosphate | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Ammonium sulphate | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Amyl chloride | HDPE at 20°C: shows some effect after 7 days. HDPE at 50°C & LDPE at 20°C-50°C: immediate damage may occur. Not recommended for continuous use. |
Aniline | LDPE / HDPE at 20°C: little or no damage after 30 days. HDPE at 50°C: shows some effect after 7 days. |
Benzene | LDPE / HDPE at 20°C-50°C: damage may occur. Not recommended for continuous use. |
Benzyl alcohol | LDPE / HDPE at 50°C: immediate damage may occur. HDPE at 20°C: shows some effect after 7 days. |
Boric acid | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Bromine | LDPE / HDPE at 50°C: immediate damage may occur. HDPE at 20°C: shows some effect after 7 days. |
Butyric acid | LDPE / HDPE at 50°C: immediate damage may occur. HDPE at 20°C: shows some effect after 7 days. |
Calcium chloride | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Calcium hydroxide saturated | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Carbon tetrachloride | HDPE at 20°C: shows little or no damage after 30 days. LDPE at 20°C & HDPE at 50°C: show some effect after 7 days. LDPE at 50°C: not recommended. |
Chlorine 10% in water | LDPE / HDPE at 20°C: shows little or no damage after 30 days. LDPE at 50°C: shows damage and is not recommended. |
Chlorobenzene | Immediate damage may occur. Not recommended for continuous use. |
Chloroform | LDPE / HDPE at 20°C: show some effect after 7 days. LDPE / HDPE at 50°C: immediate damage may occur. Not recommended for continuous use. |
Chromic acid 10% | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Chromic acid 50% | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Citric acid 10% | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Cresol | HDPE at 20°C: shows some effect after 7 days. LDPE at 20°C-50°C & HDPE at 50°C: show immediate damage. Not recommended for continuous use. |
Cyclohexane | LDPE / HDPE at 50°C: immediate damage may occur. LDPE / HDPE at 20°C: show some effect after 7 days. |
Diethyl ketone | LDPE / HDPE at 20°C-50°C: damage may occur. Not recommended for continuous use. |
Dimethylsulfoxide | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Ethanol 95% | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Ethyl acetate | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Ethyl benzene | HDPE at 20°C: shows some effect after 7 days. LDPE at 20°C-50°C & HDPE at 50°C: show immediate damage. Not recommended for continuous use. |
Ethylene glycol | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Ethylene oxide | HDPE at 20°C: shows little or no damage after 30 days. LDPE at 20°C: and LDPE/ HDPE at 50°C: show some effect after 7 days. |
Ferric chloride | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Fluoride | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Fluorine | HDPE at 20°C: shows little or no damage after 30 days. LDPE at 20°C: shows some effect after 7 days. Not recommended at 50°C. |
Formaldehyde 10% | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Formaldehyde 40% | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Glycerol | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Hexane | HDPE at 20°C: shows little or no damage after 30 days continuous use. HDPE at 50 °C: shows some effect after 7 days. LDPE not recommended at any temperature. |
Hydrochloric acid 20% | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Hydrochloric acid 35% | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Hydrochloric acid 5% | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Hydrocyanic acid | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Hydrofluoric acid | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Hydrofluoric acid 4% | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Hydrofluoric acid 48% | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Hydrogen peroxide 3% | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Hydrogen peroxide 30% | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Isobutyl alcohol | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Isopropyl alcohol | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Kerosene | LDPE / HDPE at 20°C: show some effect after 7 days. LDPE / HDPE not recommended at 50°C, as immediate damage may occur. |
Lactic Acid 10 % | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Lactic Acid 90 % | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Lead acetate | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Methanol | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Methyl ethyl ketone | Immediate damage may occur. Not recommended for continuous use. |
Methyl propyl ketone | HDPE at 20°C: shows some effect after 7 days. LDPE at 20°C-50°C & HDPE at 50°C: Immediate damage may occur. Not recommended for continuous use. |
Methylene chloride | HDPE at 20°C: shows some effect after 7 days. LDPE at 20°C-50°C & HDPE at 50°C: Immediate damage may occur. Not recommended for continuous use. |
Mineral oil | LDPE / HDPE at 20°C: little or no damage after 30 days. LDPE at 50°C: may show immediate damage and is not recommended. |
n-amyl acetate | LDPE / HDPE at 20°C: little or no damage after 30 days. LDPE at 50°C: shows some effect after 7 days or constant exposure. |
n-butyl alcohol | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Nitric acid 50 % | LDPE at 20°C: shows little or damage after 30 days. HDPE at 20°C & LDPE at 50°C: show effect after 7 days. HDPE at 50°C: shows immediate damage and is not recommended. |
Nitric acid 70 % | LDPE / HDPE at 20°C: show some effect after 7 days. LDPE / HDPE at 50°C: show immediate damage. Not recommended. |
n-octane | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Oleic acid | HDPE at 20°C-50°C: little or no damage after 30 days. LDPE at 20°C-50°C: shows immediate damage and is not recommended. |
Oxalic acid | LDPE at 20°C: shows some effect after 7 days. HDPE at 20°C and LDPE / HDPE at 50°C: shows little/ no damage after 30 days. |
Ozone | LDPE / HDPE at 20°C: little or no damage after 30 days. LDPE / HDPE at 50°C: show immediate damage. Not recommended. |
Perchloric acid | LDPE / HDPE at 20°C: little or no damage after 30 days. LDPE / HDPE at 50°C: show immediate damage. Not recommended. |
Perchloric ethylene | LDPE / HDPE at 20°C-50°C: show immediate damage. Not recommended. |
Phenol | LDPE / HDPE at 20°C-50°C: show immediate damage. Not recommended. |
Phosphoric acid 10% | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Phosphoric acid 85% | LDPE / HDPE at 20°C: little or no damage after 30 days. LDPE at 50°C: shows immediate damage and is not recommended. |
Phosphorous trichloride | LDPE / HDPE at 20°C: little or no damage after 30 days. LDPE at 50°C: has no data available. HDPE at 50°C: shows some effect after 7 days. |
Potassium carbonate | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Potassium hydroxide 5 % | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Potassium hydroxide concentrated | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Potassium permanganate | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Propylene glycol | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Pyridine | Immediate damage may occur. Not recommended for continuous use. |
Salicylic acid, saturated | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Silver acetate | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Silver nitrate | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Sodium carbonate | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Sodium chloride, saturated | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Sodium dichromate | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Sodium hydroxide 1% | LDPE at 20°C-50°C: shows little or no damage after 30 days. HDPE at 20°C-50°C: shows some effect after 7 days. |
Sodium hydroxide 50% | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Sodium hypochlorite 15% | HDPE at 20°C-50°C: little or no damage after 30 days. LDPE at 20°C: is suitable but at 50°C: shows some effect after 7 days. |
Sodium nitrate | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Sodium sulphate | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Sucrose | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Sulfuric acid 20% | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Sulfuric acid 6% | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Sulfuric acid 60% | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Sulfuric acid 98% | LDPE at 20°C-50°C: shows little or no damage after 30 days. HDPE at 20°C: shows effect after 7 days. Not recommended for use at 50°C. |
Tannic acid | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Tetrahydrofuran | LDPE / HDPE at 20°C: show some effect after 7 day of constant exposure. LDPE / HDPE at 50°C: show immediate damage. Not recommended. |
Toluene | LDPE at 20°C: show some effect after 7 day of constant exposure. HDPE at 20°C-50°C & LDPE at 50°C: show immediate damage. Not recommended. |
Trichloracetic acid | LDPE / HDPE at 20°C: show some effect after 7 day of constant exposure. LDPE / HDPE at 50°C: show immediate damage. Not recommended. |
Trichlorethane | Immediate damage may occur. Not recommended for continuous use. |
Turpentine oil | LDPE / HDPE at 20°C: show some effect after 7 days. LDPE / HDPE at 50°C: show immediate damage. Not recommended. |
Urea | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Xylene | HDPE at 20°C: shows some effect after 7 day of constant exposure. LDPE at 20-50°C and HDPE at 50°C: show immediate damage. Not recommended. |
Zinc chloride | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |

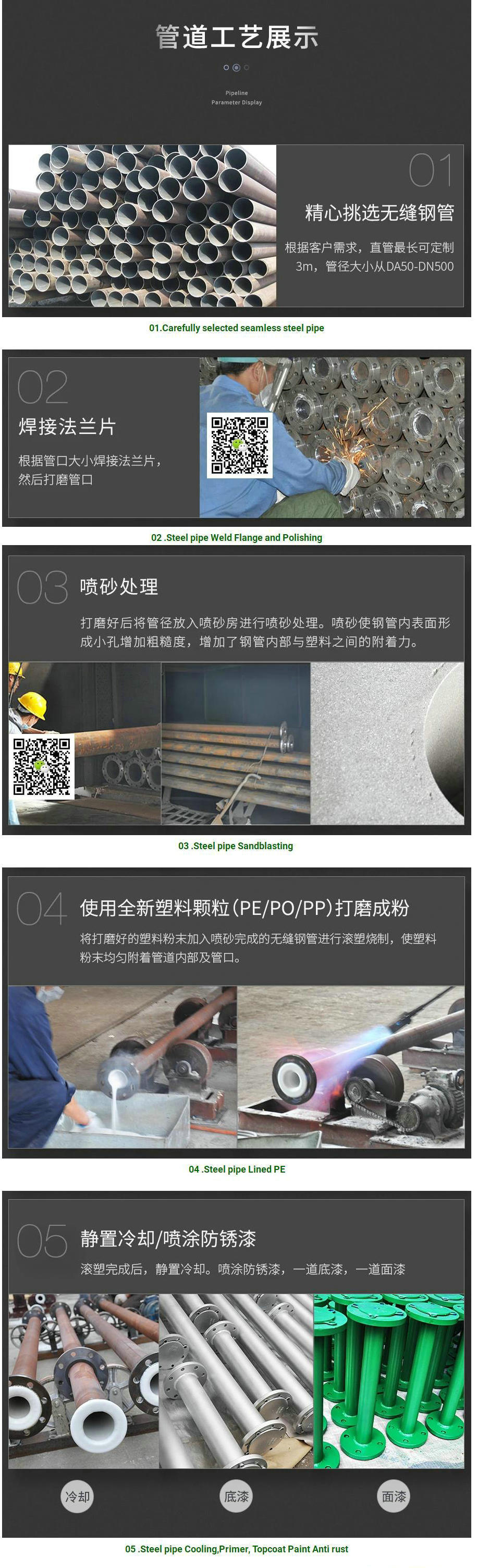

Chemical Pipeline PE Lined Carbon Steel Pipe (PE / PTFE Coating Seamless Steel Pipe)
Anticorrosive Steel Lined Plastic PTFE ,LLDPE Pipe Use for Sulfuric Acid Hydrochloric Acid HCL, NaOH, NaCLO,
Steel lined piping with tetrafluoride
Molded piping with tetrafluoride
Anticorrosive pipeline resistant to high temperature and negative pressure
Chemical pipeline Customizing
Metal cans Steel-Lined Plastic Square Tank, Electrolytic Tank, Pickling Tank Acid Containment Vessels Custom Made Rotationally Molded Linear Resins LLDPE
Custermizing Checmial Acid Storage Tank 60 m3 Steel Lined LLDPE Tank Used to Contain: HCl (max 35%) , Naoh (max 50%) , Naclo (max 10%) , PAC (max 17%) ,H2so4
Used to contain: HCl (max 35%), NaOH (max 50%), NaCLO (max 10%), PAC (max 17%), H2SO4 etc
Media (density) : (1155 Kg/m3), Hydrochloric Acid (1150 Kg/m3), Sulfate, Nitrate (1152 Kg/m3), Phosphate (1151 Kg/m3), Hydrofluoric Acid (1132 Kg/m3), Battery Fluid (1135 Kg/m3), Chloride (1135 Kg/m3), Ferric Chloride Solution (1130 Kg/m3), Sodium Hypochlorite (1130 Kg/m3), Sulfurous Acid (1030 Kg/m3)
processing/storing; aluminum sulfate, ammonium sulfate, calcium chloride, ethylene glycol, ferric chloride, ferric sulfate, ferrous sulfate, hydrochloric acid, hydrofluoric acid, hydrofluosilicic acid, hydrogen peroxide, magnesium chloride, phosphoric acid, polymers, potassium hydroxide, or just plain water and we'll design the vessel(s) you require.
Horizontal / Vertical Storage HCL Acid Tanks Steel Lined LDPE 120000 Liters
For Storage Bleach, Hydrochloric Acid, Ferric Chloride, Oilfield Chemicals, Corrosive Wastes And Other Hazardous Cargoes.
Steel ( 6 mm -8mm ) Lined PE Plastic 7042 (16mm - 25 mm ) storage tank
Specification | General PTFE thickness and negative pressure-resistance | The thickness of PTFE wall required to resist-0.1MPA pressure when the temperature is less than 120degree, | |
DN25 | 2mm | -0.08Mpa | 3mm(L≤3000mm) |
DN32 | 2mm | -0.075Mpa | 3mm(L≤3000mm) |
DN40 | 2.5mm | -0.075Mpa | 4mm(L≤3000mm) |
DN50 | 2.5mm | -0.06Mpa | 5mm(L≤3000mm) |
DN65 | 2.5mm | -0.05Mpa | 8mm(L≤1000mm) |
DN80 | 3mm | -0.05Mpa | 10mm(L≤1000mm) |
DN100 | 3mm | -0.04Mpa | 13mm(L≤1000mm) |
DN125 | 4mm | -0.03Mpa | 13mm(L≤1000mm) |
DN150 | 4mm | -0.025Mpa | 13mm(L≤1000mm) |
DN200 | 5mm | -0.02Mpa | 15mm(L≤1000mm) |
Specifications:
Nominal Diameter (mm/in. ): DN15-DN600 (NPS 1/2-NPS 24)
Operating temperature: -20-180 degree
Operating pressure: -0.09MPa-1.6MPa (-0.9bar-16bar)
Pipe: Seamless steel.
Flange: ASME B16.5 Class 150 Flange options: HG, GB, JB, JIS, BS, DIN, ANSI, ASTM
Special pieces of specific or non standard size can be manufactured on request.
Carbon steel 45/90degree ptfe lined elbow
Operating temperature: -20-180
Operating pressure: -0.09MPa-1.6MPa
Carbon steel 45/90degree ptfe lined elbow
1. Positive pressure: It shall adopt steel components according to different technical requirements, and the thickness of PTFE wall shall be over 2mm. If the temperature is less than 100 degree, the production length shall be less than 6m; And if the temperature exceeds 100 degree, the length shall be less than 3m.
2. Negative pressure: Design according to different ambient conditions of the users
PTFE lined 90° elbow | Unit mm | ||||||||
Nominal diameter | Specification of balled iron T | Raised face A | Central height C1 | Inside diameter D1 | PTFE thickness | out side diameter of flange D | Diameter of bolt circle K | Thickness of flange C | |
DN(mm) | NPS(inch) | ||||||||
DN15 | 1/2 | 34 | 40 | 80 | 15 | 5 | 90 | 65 | 11 |
DN20 | 3/4 | 38 | 45 | 90 | 18 | 5 | 100 | 75 | 11 |
DN25 | 1 | 42 | 60 | 92 | 22 | 5 | 110 | 85 | 12 |
DN32 | 1 1/4 | 48 | 70 | 100 | 28 | 5 | 130 | 100 | 13 |
DN40 | 1 1/2 | 57 | 80 | 112 | 38 | 5 | 140 | 110 | 14 |
DN50 | 2 | 68 | 95 | 117 | 48 | 5 | 155 | 125 | 14 |
DN65 | 2 1/2 | 89 | 115 | 135 | 63 | 8 | 175 | 145 | 16 |
DN80 | 3 | 108 | 130 | 150 | 78 | 8 | 190 | 160 | 16 |
DN100 | 4 | 114 | 150 | 150 | 87 | 8 | 210 | 180 | 18 |
DN125 | 5 | 140 | 180 | 190 | 110 | 8 | 240 | 210 | 20 |
DN150 | 6 | 168 | 205 | 230 | 135 | 10 | 275 | 240 | 20 |
DN200 | 8 | 219 | 260 | 305 | 180 | 10 | 330 | 295 | 20 |
DN250 | 10 | 273 | 315 | 380 | 230 | 12 | 385 | 350 | 23 |
DN300 | 12 | 325 | 365 | 420 | 280 | 12 | 435 | 400 | 23 |
Key words:
ptfe lined pipe fittings | ptfe lined tee | ptfe lined reducer | ptfe lined elbow | ptfe lined cross |
ptfe lined pipe and fittings | ptfe lined90degree elbow | ptfe lined 45 degrdd elbow | ptfe lined ECC reducer | ptfe lined CON reducer |
ptfe lined equal tee | ptfe lined reduce tee | ptfe lined unequal tee | ptfe lined pipe | ptfe lined fittings |
ptfe lined carbon steel pipe fittings | ptfe lined carbon steel tee | ptfe lined carbon steel reducer | ptfe lined carbon steel elbow | ptfe lined carbon steel cross |
PTFE pipe | PTFE lined pipe(Australia) | Resistant Stainless Steel Pipe | Resistant Steel Pipe | Carbon seamless steel pipe |
Anti Corrosion Pipe Fittings Lined | PTFE lining fittings | PTFE lined piping | straight tee | PTFE lined bends |
Ball valve
Ball valve
Pneumatic
Pneumatic ball valve (Q641F46-16C)
Electric
Electric stainless steel lined fluorine ball valve
Fluorine
Fluorine ball valve (Q41F46-16C)
Fluorine
Fluorine ball valve (Q41F46-10C)
Fluorine
Fluorine ball valve (Q41F46-16C)
Fluorine
Fluorine ball valve (Q41F46-10C)
Fluorine
Fluorine bearing American standard ball valve
Fluorine
Fluorine lined thermal insulation ball valve
Q41F-6S
Q41F-6S flanged ball valve (CFQF-)
Stainless
Stainless steel lined fluorine ball valve (CFQF-24)
Pneumatic
Pneumatic lining diaphragm valve (CFQF-23)
Fluorine
Fluorine ball valve (CFQF-25)
Butterfly valve
Butterfly valve
D341F4-10C
D341F4-10C fully lined tetrafluoroethylene butterfly valve
D371F4-16C
D371F4-16C fully lined with tetrafluoroethylene clip Butterfly
Flange
Flange type fully lined tetrafluoroethylene butterfly valve D341
D71F-16C
D71F-16C pair clamp handle semi lining butterfly valve
D341F4-10C
D341F4-10C Teflon flange butterfly valve
D071F4-16C
D071F4-16C lined fluorine pair butterfly valve
D371F4-16C
D371F4-16C lined Teflon butterfly valve
Stainless
Stainless steel lined Teflon butterfly valve
Flanged
Flanged lining butterfly valve (CFDF-SH)
Pneumatic
Pneumatic lining butterfly valve (QDCFDF-SH1)
Flanged
Flanged lining butterfly valve (CFDF-SH)
Manual
Manual lining butterfly valve (CFDF-SH)
check valve
Check valve
Fluorine
Fluorine check valve H74F46-16C
Fluorine
Fluorine check valve H44F46-16C
Fluorine
Fluorine check valve H41F46-16C
Fluorine
Fluorine check valve H42F46-16C
PTFE Lined Pipe (with fixed or rotation flange) | 0 Professional China Supplier of Glass Lined Pipe for Corrosion Resistance Manufacturer of PTFE Flexible Connector Resistance PTFE Lined Pipe High-Quality PE Lined Corrosion Resistance Tee High Corrosion China Made High-Quality PFA Lined Ball Valve | High Corrosion Resistance PTFE Lined Pipe FOB Price: US $500 / Piece Min. Order: 10 Meters FEP Lined Butterfly Valve D941 (D941) FEP Lined Butterfly Valve D941 (D941) Min. Order: 10 Pieces FEP Lined Butterfly Valve D41 FEP Lined Butterfly Valve D41 Min. Order: 10 Pieces FEP Lined Butterfly Valve D671 FEP Lined Butterfly Valve D671 Min. Order: 10 Pieces FEP Lined Butterfly Valve D71 FEP Lined Butterfly Valve D71 Min. Order: 10 Pieces Professional China Supplier of PTFE Lined Check Valve (H42) Professional China Supplier of PTFE Lined Check Valve (H42) Min. Order: 10 Pieces FEP Lined Check Valve FEP Lined Check Valve Min. Order: 1 Piece PTFE Lined Baiting Ball Valve PTFE Lined Baiting Ball Valve FOB Price: US $10-1,000 / Piece Min. Order: 1 Piece PFA Lined Ball Valve (FK) PFA Lined Ball Valve (FK) FOB Price: US $500-10,000 / Piece Min. Order: 1 Piece FEP Lined Ball Valve (Q941) FEP Lined Ball Valve (Q941) FOB Price: US $10-1,000 / Piece Min. Order: 1 Piece FEP Lined Ball Valve (Q641) FEP Lined Ball Valve (Q641) FOB Price: US $200-1,000 / Piece Min. Order: 1 Piece Wcb Flange Ball Valve Pn16, 150lb, 300lb Wcb Flange Ball Valve Pn16, 150lb, 300lb FOB Price: US $200-1,000 / Piece Min. Order: 1 Piece PTFE Lined DIP Pipe/Feeding Pipe/Entry Pipe PTFE Lined DIP Pipe/Feeding Pipe/Entry Pipe FOB Price: US $50 / Piece Min. Order: 1 Piece PTFE Lined Tank Horizontal Pressure Vessels PTFE Lined Tank Horizontal Pressure Vessels Min. Order: 1 Piece PTFE Lined Columns PTFE Lined Columns Min. Order: 1 Piece ETFE Line Pipe ETFE Line Pipe Min. Order: 1 Piece PTFE Lined Butterfly Valve PTFE Lined Butterfly Valve Min. Order: 1 Piece Expansion Joint From China for Sell Expansion Joint From China for Sell FOB Price: US $600 / Piece Min. Order: 1 Piece Butterfly Valve Butterfly Valve Min. Order: 1 Piece PTFE Lined Reactor PTFE Lined Reactor Min. Order: 1 Piece Butterfly Valve Butterfly Valve Min. Order: 1 Piece PTFE Lined Vessel PTFE Lined Vessel Min. Order: 1 Piece Butterfly Valve Butterfly Valve Min. Order: 10 Pieces Vacuum Resistance PTFE Expansion Joint Vacuum Resistance PTFE Expansion Joint Min. Order: 1 Piece Rubber Expansion Joint with PTFE Lining Rubber Expansion Joint with PTFE Lining Min. Order: 10 Pieces PTFE Bellows to Compensate for Mechanical and Thermal Changes PTFE Bellows to Compensate for Mechanical and Thermal Changes Min. Order: 1 Piece PTFE Expansion Joint for Normal Pressure 0.1mpa PTFE Expansion Joint for Normal Pressure 0.1mpa Min. Order: 1 Piece PTFE Lined Cross for Chemical Plants PTFE Lined Cross for Chemical Plants FOB Price: US $250 / Piece Min. Order: 10 Pieces Plastic Lined Equal Tee (carbon steel) Plastic Lined Equal Tee (carbon steel) FOB Price: US $500 / Piece Min. Order: 10 Pieces Expansion Rubber Bellow Flange Expansion Rubber Bellow Flange FOB Price: US $500 / Piece Min. Order: 1 Piece PTFE Lined Cross PTFE Lined Cross FOB Price: US $250 / Piece Min. Order: 10 Pieces PTFE/Teflon Lined Tee (Equal tee) PTFE/Teflon Lined Tee (Equal tee) FOB Price: US $200 / Piece Min. Order: 1 Piece Plastic Lined Pipe Plastic Lined Pipe Min. Order: 10 Meters Plastic Lined Elbow (OEM service supplied) Plastic Lined Elbow (OEM service supplied) FOB Price: US $200 / Piece Min. Order: 10 PiecesTeflon Lined Reducer FOB Price: US $200 / Piece Min. Order: 1 Piece Jacketed Glass Lined Reactor 10000L Supplier From China Jacketed Glass Lined Reactor 10000L Supplier From China Min. Order: 1 Piece Horizontal Glass Lined Storage Tank Horizontal Glass Lined Storage Tank FOB Price: US $200-20,000 / Piece Min. Order: 1 Piece Glass Lined Elbow 45deg Glass Lined Elbow 45deg Min. Order: 1 Piece Metallic Expansion Joints Metallic Expansion Joints FOB Price: US $40 / Piece Min. Order: 10 Pieces Professional China Supplier of PTFE Pipe Professional China Supplier of PTFE Pipe Min. Order: 10 Meters Professional China Glass Lined Falling Film Evaporator Professional China Glass Lined Falling Film Evaporator FOB Price: US $10,000 / set Min. Order: 1 set PP/Po/PE Lined Pipe and Fittings PP/Po/PE Lined Pipe and Fittings Min. Order: 10 Pieces Professional China Supplier of Glass Lined Plate Condenser Professional China Supplier of Glass Lined Plate Condenser Min. Order: 1 Piece Cast Steel and Stainless Steel FEP Lined Globe Valve Cast Steel and Stainless Steel FEP Lined Globe Valve Min. Order: 1 Piece Professional China Supplier of PFA Lined Ball Valve Professional China Supplier of PFA Lined Ball Valve FOB Price: US $500-10,000 / Piece Min. Order: 1 Piece PTFE Lined Insulation Ball Valve PTFE Lined Insulation Ball Valve Min. Order: 10 Pieces FEP/PFA/E-Tfe/PTFE Lined Ball Valve FEP/PFA/E-Tfe/PTFE Lined Ball Valve Min. Order: 10 Pieces Guaranteed PTFE Corrugated Flexible Hose Guaranteed PTFE Corrugated Flexible Hose FOB Price: US $10-500 / Piece Min. Order: 1 Piece Professional Manufacturer of PTFE Lined Sight Glass Professional Manufacturer of PTFE Lined Sight Glass Min. Order: 1 Piece PTFE/FEP/PFA/E-Tfe Lined Butterfly Valve PTFE/FEP/PFA/E-Tfe Lined Butterfly Valve Min. Order: 10 Pieces Professional China Supplier of FEP Lined Check Valve Professional China Supplier of FEP Lined Check Valve Min. Order: 1 Piece China Made PTFE Gasket China Made PTFE Gasket FOB Price: US $10-200 / Piece Min. Order: 100 Pieces Zy212 Mechanical Seal Zy212 Mechanical Seal Min. Order: 10 Pieces Zy212b Mechanical Seal Zy212b Mechanical Seal Min. Order: 10 Pieces Professional China Manufacturer of Zy204b Mechanical Seal Professional China Manufacturer of Zy204b Mechanical Seal Min. Order: 1 Piece Zy205/206/207 Mechanical Seal for Industrial Pump Zy205/206/207 Mechanical Seal for Industrial Pump Min. Order: 10 Pieces Zy2009 Mechanical Seal for Reactors Zy2009 Mechanical Seal for Reactors Min. Order: 10 Pieces High-Quality PP Lined Corrosion Resistance Pipe |
The chemical compatibility of LDPE and HDPE on this chart is tested at 20°C: and 50°C: for 7 days and 30 days (if applicable) with constant exposure.
LDPE & HDPE resistance listed by chemical | |
1.4-dioxane | LDPE / HDPE at 20°C: little or no damage after 30 days. LDPE at 50°C: shows some effect after 7 days. |
Acetaldehyde | LDPE / HDPE at 20°C: little or no damage after 30 days. HDPE at 50°C: shows some effect after 7 days. LDPE at 50°C: immediate damage may occur. |
Acetic Acid 5 % | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Acetic Acid, glacial 50% | LDPE / HDPE at 20°C: little or no damage after 30 days. LDPE at 50 °C: immediate damage may occur. |
Acetone | LDPE / HDPE at 20°C-50°C: damage may occur. Not recommended for continuous use. |
Allyl Alcohol | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Aluminum salts | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Amino acids | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Ammonia | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Ammonium carbonate saturated | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Ammonium phosphate | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Ammonium sulphate | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Amyl chloride | HDPE at 20°C: shows some effect after 7 days. HDPE at 50°C & LDPE at 20°C-50°C: immediate damage may occur. Not recommended for continuous use. |
Aniline | LDPE / HDPE at 20°C: little or no damage after 30 days. HDPE at 50°C: shows some effect after 7 days. |
Benzene | LDPE / HDPE at 20°C-50°C: damage may occur. Not recommended for continuous use. |
Benzyl alcohol | LDPE / HDPE at 50°C: immediate damage may occur. HDPE at 20°C: shows some effect after 7 days. |
Boric acid | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Bromine | LDPE / HDPE at 50°C: immediate damage may occur. HDPE at 20°C: shows some effect after 7 days. |
Butyric acid | LDPE / HDPE at 50°C: immediate damage may occur. HDPE at 20°C: shows some effect after 7 days. |
Calcium chloride | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Calcium hydroxide saturated | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Carbon tetrachloride | HDPE at 20°C: shows little or no damage after 30 days. LDPE at 20°C & HDPE at 50°C: show some effect after 7 days. LDPE at 50°C: not recommended. |
Chlorine 10% in water | LDPE / HDPE at 20°C: shows little or no damage after 30 days. LDPE at 50°C: shows damage and is not recommended. |
Chlorobenzene | Immediate damage may occur. Not recommended for continuous use. |
Chloroform | LDPE / HDPE at 20°C: show some effect after 7 days. LDPE / HDPE at 50°C: immediate damage may occur. Not recommended for continuous use. |
Chromic acid 10% | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Chromic acid 50% | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Citric acid 10% | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Cresol | HDPE at 20°C: shows some effect after 7 days. LDPE at 20°C-50°C & HDPE at 50°C: show immediate damage. Not recommended for continuous use. |
Cyclohexane | LDPE / HDPE at 50°C: immediate damage may occur. LDPE / HDPE at 20°C: show some effect after 7 days. |
Diethyl ketone | LDPE / HDPE at 20°C-50°C: damage may occur. Not recommended for continuous use. |
Dimethylsulfoxide | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Ethanol 95% | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Ethyl acetate | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Ethyl benzene | HDPE at 20°C: shows some effect after 7 days. LDPE at 20°C-50°C & HDPE at 50°C: show immediate damage. Not recommended for continuous use. |
Ethylene glycol | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Ethylene oxide | HDPE at 20°C: shows little or no damage after 30 days. LDPE at 20°C: and LDPE/ HDPE at 50°C: show some effect after 7 days. |
Ferric chloride | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Fluoride | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Fluorine | HDPE at 20°C: shows little or no damage after 30 days. LDPE at 20°C: shows some effect after 7 days. Not recommended at 50°C. |
Formaldehyde 10% | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Formaldehyde 40% | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Glycerol | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Hexane | HDPE at 20°C: shows little or no damage after 30 days continuous use. HDPE at 50 °C: shows some effect after 7 days. LDPE not recommended at any temperature. |
Hydrochloric acid 20% | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Hydrochloric acid 35% | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Hydrochloric acid 5% | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Hydrocyanic acid | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Hydrofluoric acid | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Hydrofluoric acid 4% | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Hydrofluoric acid 48% | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Hydrogen peroxide 3% | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Hydrogen peroxide 30% | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Isobutyl alcohol | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Isopropyl alcohol | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Kerosene | LDPE / HDPE at 20°C: show some effect after 7 days. LDPE / HDPE not recommended at 50°C, as immediate damage may occur. |
Lactic Acid 10 % | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Lactic Acid 90 % | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Lead acetate | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Methanol | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Methyl ethyl ketone | Immediate damage may occur. Not recommended for continuous use. |
Methyl propyl ketone | HDPE at 20°C: shows some effect after 7 days. LDPE at 20°C-50°C & HDPE at 50°C: Immediate damage may occur. Not recommended for continuous use. |
Methylene chloride | HDPE at 20°C: shows some effect after 7 days. LDPE at 20°C-50°C & HDPE at 50°C: Immediate damage may occur. Not recommended for continuous use. |
Mineral oil | LDPE / HDPE at 20°C: little or no damage after 30 days. LDPE at 50°C: may show immediate damage and is not recommended. |
n-amyl acetate | LDPE / HDPE at 20°C: little or no damage after 30 days. LDPE at 50°C: shows some effect after 7 days or constant exposure. |
n-butyl alcohol | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Nitric acid 50 % | LDPE at 20°C: shows little or damage after 30 days. HDPE at 20°C & LDPE at 50°C: show effect after 7 days. HDPE at 50°C: shows immediate damage and is not recommended. |
Nitric acid 70 % | LDPE / HDPE at 20°C: show some effect after 7 days. LDPE / HDPE at 50°C: show immediate damage. Not recommended. |
n-octane | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Oleic acid | HDPE at 20°C-50°C: little or no damage after 30 days. LDPE at 20°C-50°C: shows immediate damage and is not recommended. |
Oxalic acid | LDPE at 20°C: shows some effect after 7 days. HDPE at 20°C and LDPE / HDPE at 50°C: shows little/ no damage after 30 days. |
Ozone | LDPE / HDPE at 20°C: little or no damage after 30 days. LDPE / HDPE at 50°C: show immediate damage. Not recommended. |
Perchloric acid | LDPE / HDPE at 20°C: little or no damage after 30 days. LDPE / HDPE at 50°C: show immediate damage. Not recommended. |
Perchloric ethylene | LDPE / HDPE at 20°C-50°C: show immediate damage. Not recommended. |
Phenol | LDPE / HDPE at 20°C-50°C: show immediate damage. Not recommended. |
Phosphoric acid 10% | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Phosphoric acid 85% | LDPE / HDPE at 20°C: little or no damage after 30 days. LDPE at 50°C: shows immediate damage and is not recommended. |
Phosphorous trichloride | LDPE / HDPE at 20°C: little or no damage after 30 days. LDPE at 50°C: has no data available. HDPE at 50°C: shows some effect after 7 days. |
Potassium carbonate | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Potassium hydroxide 5 % | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Potassium hydroxide concentrated | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Potassium permanganate | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Propylene glycol | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Pyridine | Immediate damage may occur. Not recommended for continuous use. |
Salicylic acid, saturated | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Silver acetate | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Silver nitrate | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Sodium carbonate | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Sodium chloride, saturated | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Sodium dichromate | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Sodium hydroxide 1% | LDPE at 20°C-50°C: shows little or no damage after 30 days. HDPE at 20°C-50°C: shows some effect after 7 days. |
Sodium hydroxide 50% | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Sodium hypochlorite 15% | HDPE at 20°C-50°C: little or no damage after 30 days. LDPE at 20°C: is suitable but at 50°C: shows some effect after 7 days. |
Sodium nitrate | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Sodium sulphate | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Sucrose | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Sulfuric acid 20% | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Sulfuric acid 6% | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Sulfuric acid 60% | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Sulfuric acid 98% | LDPE at 20°C-50°C: shows little or no damage after 30 days. HDPE at 20°C: shows effect after 7 days. Not recommended for use at 50°C. |
Tannic acid | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Tetrahydrofuran | LDPE / HDPE at 20°C: show some effect after 7 day of constant exposure. LDPE / HDPE at 50°C: show immediate damage. Not recommended. |
Toluene | LDPE at 20°C: show some effect after 7 day of constant exposure. HDPE at 20°C-50°C & LDPE at 50°C: show immediate damage. Not recommended. |
Trichloracetic acid | LDPE / HDPE at 20°C: show some effect after 7 day of constant exposure. LDPE / HDPE at 50°C: show immediate damage. Not recommended. |
Trichlorethane | Immediate damage may occur. Not recommended for continuous use. |
Turpentine oil | LDPE / HDPE at 20°C: show some effect after 7 days. LDPE / HDPE at 50°C: show immediate damage. Not recommended. |
Urea | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
Xylene | HDPE at 20°C: shows some effect after 7 day of constant exposure. LDPE at 20-50°C and HDPE at 50°C: show immediate damage. Not recommended. |
Zinc chloride | LDPE / HDPE at 20°C-50°C: little or no damage after 30 days. |
2 Sets HOWO Offroad AWD 6x6 Mixing And Charging ANFO Explosive Trucks Delivery
10 Units Hydrochloric Acid HCL PE LINED ISO Tank Containers to Vietnam 20FT Tank Container PE Lined Tank Used to contain: HCl (max 35%), NaOH (max 50%), PAC (max 17%),H2SO4(max 94%) etc… Tank Capacity: 21,900 Liters Steel sheet 6mm, head 6mm Liner thickness: 16mm PE
17m3 , 22m3 Lined PE Tank Container for Hydrochloric Acid HCL to Vietnam 20FT TANK CONTAINER TANK VOLUME/ STEEL THICKNESS 22M3/ 6MM (SOC / EMPTY AND NEW TANKS) BRAND: DONG RUNZE MODEL: DRAU2308018 STORAGE TANK CONTAINER TANK FOR HCL CARGO TRUCK TANK VOLUME/STEEL THICKNESS:17M3/ 6MM ( EMPTY AND NEW TANKS) BRAND: DONG RUNZE MODEL: DTA5260 HS CODE : 7309000000
4 Sets Polyethylene Lined Steel Offshore T14 Tanks For Hydrochloric Acid Transport to Kazakhstan Marks DTAU2305012 DTAU2305028 DTAU2305033 DTAU2305049
80Units Metal Alky C480 UN Portable Tank T21 TEAL Cylinders to USA 80Units UN T21 Portable Tank Container 1880L Cylinder For TEAL Metal Alkyls UN3394 UN3399 to USA Adr/Rid Organometallic Substance, Liquid, Water- Reactive C-430 Saddle Type Portable Tank , tank capacity 1630L C-480 Saddle Type Portable Tank, tank capacity 1880L C-1980 TEAL TMGa ,TEGa,TMIn, TMAl DEAC Metal Alky C-1980 T21 Metal Alky 7495L
6 units Metal Alky C480 Portable Tank TEAL DEAC Cylinder for Singapore 360 DEG. ROTATABLE TOP FLANGE VALVE (KV-MTFF DN15 PN 40), 360 DEG. ROTATABLE TOP FLANGE VALVE (KV-MTFE DN20 PN 40) K4430 Gaskets
6 Sets Polyethylene Lined Steel Tanks 6600Gallon For Hydrochloric Acid Storage Transport Hydrochloric Acid (HCl) to SAU Chemical Factory This the 4th LOT HCL ,NaCLO Tanks For this SAU Chemical Facttory . The 1 st Order date will go back to Date 13-1-2021. CAST IRON STORAGE TANK FOR CHEMICAL MATERIALS STORAGE TANK CAPACITY: 25M3 HS CODE:7309000000
3 Sets Lined PE Tanks 6604Gallon For Storage Transport Sodium Hypochlorite to Saudi Arabia FROM WUHAN PORT CHINA TO DAMMAM, SAUDI ARABIA BY SEA. + Port of loading : WUHAN PORT + Port of unloading :DAMMAM CAST IRON STORAGE TANK FOR CHEMICAL MATERIALS STORAGE TANK CAPACITY: 25M3 HS CODE:730900 10.2x2.1x2.5*3 160.65cbm 3X40HQ
4PCS Power Take-off PTO FOR JMC TRANSMISSION MODEL DN3-7003-EC 6MT1420 to URUGUAY Sdq51/65 (Gearbox Power Take off For ISUZU QINGLING Transmission DN3-70030-E0, 6MT1420 PTO Assembly) HWP-G32/65CHQ ,32/65 PQ1
12PCS PTO Wanliyang Transmission Power Take-off For WLY6T40 WLY6TS40 to Mexico 1 PC SDQ211/60LGQ1 PTO FOR 6DS60T-D TO SAUDI ARABIA
2 Units Righ Hand Drive Shacman F3000 Hydro Excavators Truck Combined Vacuum Sewer Jetting to Suva Port Fiji Shacman F3000 Hydro Excavators Truck Sewer Jet Suction Units (RHD 13500L Sewage+4000L Clean Water ) PTO, transmission shaft, vacuum pump, tanker, hydraulic system and jetting pipe system. Combined Sewer Suction & Jetting Unit SZW Aluminium Alloy Liquid Water Ring Compressor Vacuum Pump XW-2800 VAC Flow 2800 M³/h ,1648 Cfm 46.7M3/min 75KW
6 Sets Lined PE Tanks 6604Gallon For Storage Transport Hydrochloric Acid (HCl) to Saudi Arabia FROM WUHAN PORT CHINA TO DAMMAM, SAUDI ARABIA BY SEA. Port of loading : WUHAN PORT + Port of unloading :DAMMAM DONG RUN ZE CAST IRON STORAGE TANK FOR CHEMICAL MATERIALS STORAGE TANK CAPACITY: 25M3 HS CODE:7309000000 9.7x2.2x2.5*6
2 Sets Hydrochloric Acid HCL Tank Container Lined PE 24m3 Trailer Mounted to Vietnam
10 Units 22KL 20FT ISO Steel Lined PE Hydrochloric Acid HCL Tank Container to Vietnam 20FT Tank Container PE Lined Tank Used to contain: HCl (max 35%), NaOH (max 50%), PAC (max 17%),H2SO4(max 94%) etc… Tank Capacity: 21,000 Liters Steel sheet 6mm, head 6mm Liner thickness: 16mm PE 01pc butterfly valve CS/F46 and 01pc ball valve CS/F46 DRAU2209015 DRAU2209020 DRAU2209036 DRAU2209041 DRAU2209057 DRAU2209062 DRAU2209078 DRAU2209083 DRAU2209099 DRAU2209102
2 Sets Hydrochloric Acid Hydrofluoric Acid Road transport 20Ft Tank Container to Chennai India DTAU2200916 DTAU2200921
